Widearea AER800-1PL User manual

Widearea Telecommunication Technology Co., Ltd
Add: 2nd,3rd East Round Longtan Industry Garden 10#,Chengdu, Sichuan, China
Tel: [phone] (86)28 84207506 Fax: [phone]
E-mail: [email protected] Web Site: http://www.widearea.com.cn
New Generation ADSL Loop Extender
Installation Manual
Version: 008
Please read this
document carefully
before installation!

New Generation ADSLLoop Extender Installation Manual Page 1
This publication may not be reproduced in whole or in part without the express written
permission of Widearea.
Preface
This manual provides information on how to use this product. To make the best
use of this product, please read this manual thoroughly before use and keep this
manual handy for ease of reference.
The contents of this document may be updated in the future, without prior
notice.
This booklet was created with thorough attention to the content. If,
however, you have a question, spot an error, or find a description lacking, please
refer to the end of this booklet for information on how to contact us.
All brand names and trademarks are the property of their respective
owners.

New Generation ADSLLoop Extender Installation Manual Page 2
This publication may not be reproduced in whole or in part without the express written
permission of Widearea.
Contents
1. General Description............................................................................................ 3
2. Technical Specifications..................................................................................... 4
3. Application......................................................................................................... 4
4. Physical Structure............................................................................................... 5
4.1 AER800-1PL Box.................................................................................... 5
4.2 AER800-4PL Box.................................................................................... 6
4.3 AER800-8PL Box.................................................................................... 7
4.4 Business card AER800-C1PL.................................................................. 7
5. Installation Procedure......................................................................................... 7
5.1 Unpack .................................................................................................... 7
5.2 Install the ADSL Loop Extender ............................................................. 8
6. Troubleshooting.................................................................................................. 8
Abbreviations
WTT Chengdu Widearea Telecommunication Technology Co.,Ltd
ALE ADSL Loop Extender
CO Center Office
CPE Customer Point Equipment
DSLAM Digital subscriber line access multiplexer

New Generation ADSLLoop Extender Installation Manual Page 3
This publication may not be reproduced in whole or in part without the express written
permission of Widearea.
1. General Description
ADSL Loop Extender can extend the coverage of ADSL lines. It will provide systems with
higher performance-to-cost ratio, improve the equipment utilization rate and optimize the
network. This product will allow you to double the number of subscribers that you can reach
while offering more consistent high bandwidth services to your existing customers.
ADSL Loop Extender is an active element installed in the outside loop plant. It operates as an
amplifier and equalizes the signal.
ADSL Loop Extender’Box and the business card are as below:
AER800-1PL Box: A Box for 1 AER800-C1PL embedded.
AER800-4PL Box: A Box for 5 AER800-C1PL embedded.
AER800-8PL Box: A Box for 9 AER800-C1PL embedded.
AER800-C1PL: One port ADSL Loop Extender for one ADSL subscriber, can be
inserted into the Extender’s Box easily.
Benefits
Extending ADSL singal coverage distance.
Increasing ADSL rates.
Not requiring power supply line.
No need to install any equipment in the CO
Low power consumption and more environmentally friendly
ADSL subscriber can be added by inserting the business cards and facilitate the
expansion and maintenance.
Outdoor installation,lightning-proof, surge-voltage proof, rain-proof, over-current
protection design.
Easy to install, deploy and maintain.

New Generation ADSLLoop Extender Installation Manual Page 4
This publication may not be reproduced in whole or in part without the express written
permission of Widearea.

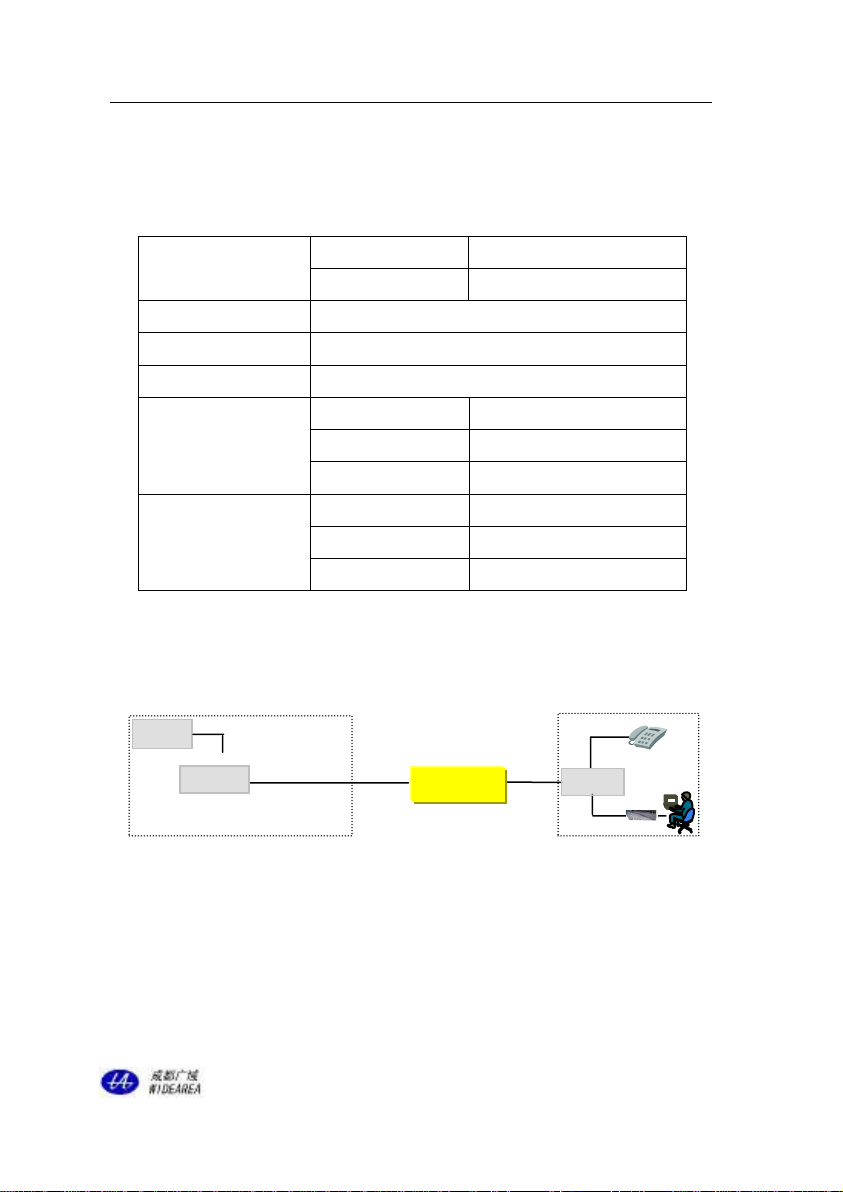

2. Technical Specifications
Table 1 –Technical Specifications of AER800-1PL Box, AER800-4PL Box, AER800-8PL
Box, business cardAER800-C1PL
Operating Environment
Temperature
-35℃～+65℃
Relative Humidity
5%～95% (Non-condensing)
Input Power
DC36V~DC72V
Power Consumption
Less than 0.1W( per port )
Lightning-proof grade
4000V
Number of supported
subscribers
AER800-1PL
1 ADSL subscriber
AER800-4PL
5 ADSL subscribers
AER800-8PL
9 ADSL subscribers
Dimension(LWH)
AER800-1PL Box
160mm×70mm×48mm
AER800-4PL Box
215mm×290mm×82mm
AER800-8PL Box
315mm×290mm×82mm
3. Application
3.1 The actual lines connecting of equipment
Figure 1 ADSLLoop ExtenderApplication Diagram
L1: The signal twist pair connecting ADSLLoop Extender to DSLAM.
L2: The signal twist pair connecting ADSLLoop Extender to Modem.
3.2 Resistance and distance demand
The recommended installation conditions are as follows.
Mode
m
CPE
L2
ADSL+PO
TS
ADS
L
L1
ADSL+POT
S
switch
POT
S
CO
AER800
splitter
DSLAM

New Generation ADSLLoop Extender Installation Manual Page 5
This publication may not be reproduced in whole or in part without the express written
permission of Widearea.
（1）26 AWG(0.4mm) twist pair
Table 2 -The Demand about Resistance and Distance of 26AWG:
Route
Loop Resistance
Demand Ohms
Distance Demand
kfeet
km
L1(CO-Extender)
470 ～1250
5.5 ～14.8
1.7 ～4.5
L2(Extender-CPE)
28 ～1100
0.3 ～9.8
0.1 ～4.0
L(CO-Extender-CPE)
579 ～1601
8.2 ～19.7
2.5 ～6.0
（2）24 AWG(0.5mm) twist pair
Table 3 -The Demand about Resistance and Distance of 24AWG:
Route
Loop Resistance
Demand Ohms
Distance Demand
kfeet
km
L1(CO-Extender)
396 ～1032
7.5 ～19.7
2.3 ～6.0
L2(Extender-CPE)
17 ～929
0.3 ～17.7
0.1 ～5.4
L(CO-Extender-CPE)
568 ～1445
10.8 ～27.6
3.3 ～8.4
4. Physical Structure
AER800-1PL Box: A Box for 1 AER800-C1PL embedded
AER800-4PL Box: A Box for 5 AER800-C1PL embedded.
AER800-8PL Box: A Box for 9 AER800-C1PL embedded.
AER800-C1PL: One port signal line power ADSL Loop Extender for one ADSL
subscribers, can be inserted into the Box easily.

New Generation ADSLLoop Extender Installation Manual Page 6
This publication may not be reproduced in whole or in part without the express written
permission of Widearea.
4.1 AER800-1PL Box
Figure 2 AER800-1PLBox
Table 4 - Twist-pair Connection Description of AER800-1PL
Color
Connection
Orange/White (A/B)
to DSLAM
Green/White (A/B)
to Modem
Blue/White (A/B)
Brown/White (A/B)

New Generation ADSLLoop Extender Installation Manual Page 7
This publication may not be reproduced in whole or in part without the express written
permission of Widearea.
4.2 AER800-4PL Box
Figure 3 AER800-4PLBox
Business card AER800-C1PL can be easily inserted into the Box. Wiring terminals on front
panel for twist pairs connecting.
Business Card AER800-C1PL
CO and CPE terminal
Slot for the card inserting
and pulling out
LED lights indicate
power supply status
Ground Terminal

New Generation ADSLLoop Extender Installation Manual Page 8
This publication may not be reproduced in whole or in part without the express written
permission of Widearea.
4.3 AER800-8PL Box

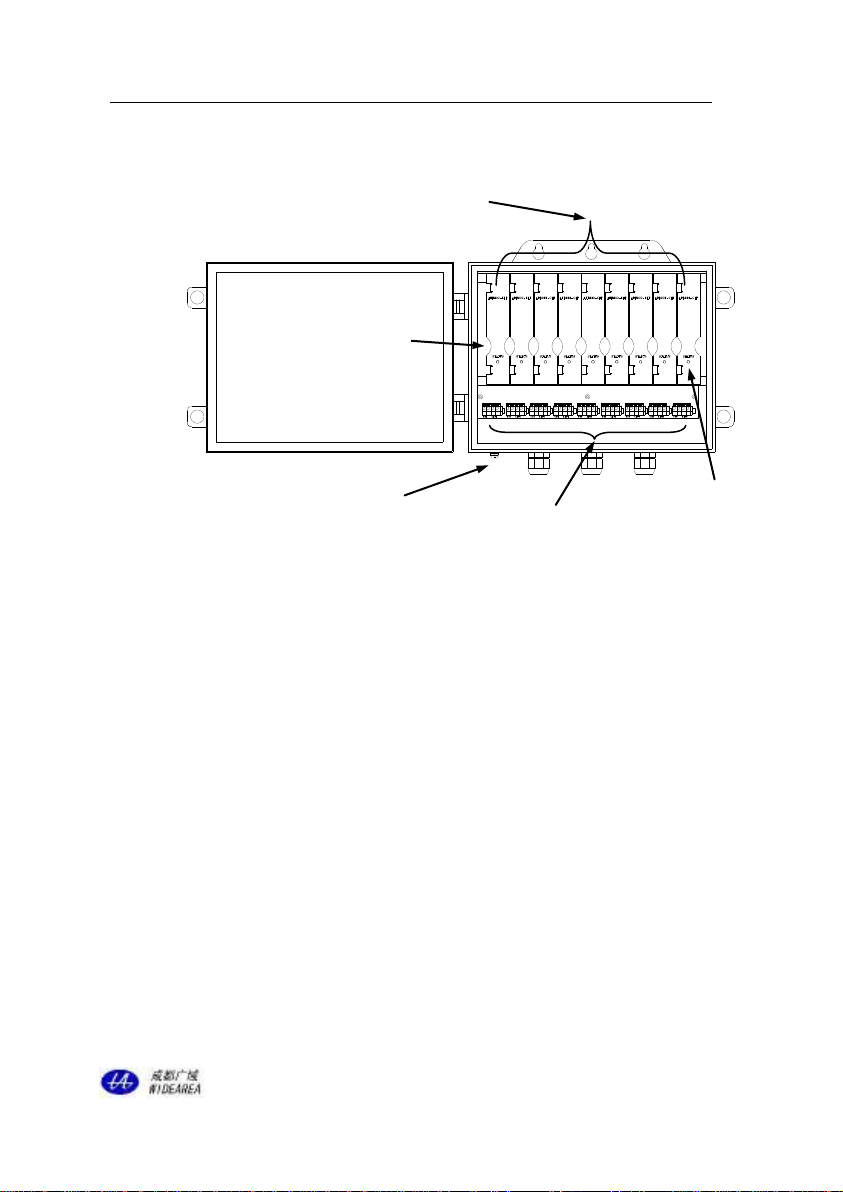

Figure 4 AER800-8PLBox
Business card AER800-C1PL can be easily inserted into the Box. Wiring terminals on front
panel for twist pairs connecting.
4.4 Business cardAER800-C1PL
In the Box, wiring terminals on front panel for twist pairs connecting. “CO”connects the signal
line from DSLAM to AER800-C1PL, “CPE”connects the line to the modem. LED lights
indicate power supply status. Please follow the Figure 3/4.
5. Installation Procedure
5.1 Unpack
Unpack equipment carefully; check for completeness against the purchase order. Notify the
supplier if items are missing.
Note: Save packing material. All equipment returned must be packed in the original
packing material.
Business Card AER800-C1PL
CO and CPE terminal
Slot for the card inserting
and pulling out
LED lights indicate
power supply status
Ground Terminal

New Generation ADSLLoop Extender Installation Manual Page 9
This publication may not be reproduced in whole or in part without the express written
permission of Widearea.
Inspect equipment for shipping damage, including bent or loose hardware, and broken
connectors. If equipment was damaged in transit, contact the supplier.
5.2 Install the ADSL Loop Extender
(1) Fix the AER800-1/4/8PL Box in the junction cabinet or at the supplied mounted brackets.
Ground the Box through the grounding screw in the bottom outside the Box.
Attention: Copper-core wire with no less than 2.5mm2section area is required as ground
wire. One end of the wire should connect to Loop Extender’s ground terminal. The other
end of the wire should connect to a good ground point. Grounding reliability can only
ensure effective lightning-proof.
(2) Insert business card AER800-C1PL into AER800-4/8PL Box.
(3) Connect the cable
Connect the signal line to AER800-C1PL, the line from DSLAM to the “CO”terminal, the line
linked to the modem to the “CPE”terminal. After the CO side twisted pair is connected, the
“STATUS”LED should be lightened.
(4) After confirming that all the twist-pair cables are connected correctly and Box is securely
installed, the ADSL Loop Extender will work within 10 seconds after power is supplied steadily.
Attention:
“A” and “B” represent A and B wire of the twist-pair. No polarity
6. Troubleshooting
Table 5 - ADSL Loop Extender Troubleshooting
Problem Description
Possible Reason
Suggested Resolution
Equipment does not work
after connected. Status LED
is OFF.
CO side cable is not connected
properly.
Check CO side cable.
No
connection
Business Card
status LED is
always on.
Cables at DSLAM side or
Modem side are not connected
properly.
Correct the cable
connection.

New Generation ADSLLoop Extender Installation Manual Page 10
This publication may not be reproduced in whole or in part without the express written
permission of Widearea.
Line quality is worse between
CO and CPE side.
Change good quality cable.
There is telephone before the
splitter on CPE side.
Discard the telephone before
the splitter on CPE side.
Cables linked ADSL Loop
Extender are not connected
properly.
Correct the cable
connection. Or check
whether the distance
between DSLAM, Extender,
Modem is proper.
There is noise in user’s
telephone
Cable is connected to ground or
the insulation is not good caused
by men during the construction
process.
Check the cables.
Cable is too near to some electric
equipments with strong magnetic
field, such as high power
sounder, selenium rectifier and
high power motor.
Make cable far from the
strong magnetic field.
Internet is slow, frequent
off-line problem
Affection of computer hardware
failures, system failures and
virus.
Check computer or take
with PC, testers and so on to
deal with.
The parallel cable at CPE side is
too long or the connector is
oxidation.
It is better to change the
parallel cable to copper twist
cable.
The cable to CPE side is
connected with too many
connectors.
Avoid exposed connectors,
use good quality cable
instead scattered connectors.
