WIKA 6 Series User manual

Example: Model 632.51 per ATEX
EN
DE
Operating instructions
Betriebsanleitung
Mode d'emploi
Manual de instrucciones
FR
ES
Pressure gauge model 6, NS 100 and NS 160 per ATEX
Manometer Typ 6, NG 100 and NG 160 nach ATEX
Manomètre type 6, diam. 100 et diam. 160 selon ATEX
Manómetro modelo 6, DN 100 and NS160, según ATEX

2WIKA operating instructions pressure gauge model 6 per ATEX
14508916.01 12/2021 EN/DE
EN
DE
FR
ES
Operating instructions model 6 per ATEX Page 3 - 20
Betriebsanleitung Typ 6 nach ATEX Seite 21 - 38
Mode d'emploi type 6 selon ATEX Page 39 - 56
Manual de instrucciones modelo 6 según ATEX Página 57 - 74
© 12/2021 WIKA Alexander Wiegand SE & Co. KG
All rights reserved. / Alle Rechte vorbehalten.
WIKA®is a registered trademark in various countries.
WIKA®ist eine geschützte Marke in verschiedenen Ländern.
Prior to starting any work, read the operating instructions!
Keep for later use!
Vor Beginn aller Arbeiten Betriebsanleitung lesen!
Zum späteren Gebrauch aufbewahren!
Lire le mode d‘emploi avant de commencer toute opération !
A conserver pour une utilisation ultérieure !
¡Leer el manual de instrucciones antes de comenzar cualquier trabajo!
¡Guardar el manual para una eventual consulta!

3WIKA mode d'emploi manomètre, type 6 selon ATEX
14508916.01 12/2021 EN/DE
FR
Contents
Declarations of conformity can be found online at www.wika.com.
Contents
1. General information 4
2. Safety 5
2.1 Intended use . . . . . . . . . . . . . . . . . . . . 5
2.2 Responsibility of the operator . . . . . . . . . . . . . . . 6
2.3 Ignition hazards . . . . . . . . . . . . . . . . . . . 6
2.4 Personnel qualification . . . . . . . . . . . . . . . . . 7
2.5 Special hazards . . . . . . . . . . . . . . . . . . . 8
2.6 Labelling / Safety marks. . . . . . . . . . . . . . . . . 8
2.7 Special conditions for safe use (X conditions) . . . . . . . . 10
3. Specications 14
4. Design and function 15
5. Transport, packaging and storage 15
5.1 Transport. . . . . . . . . . . . . . . . . . . . . 15
5.2 Packaging . . . . . . . . . . . . . . . . . . . . 15
5.3 Storage . . . . . . . . . . . . . . . . . . . . . 15
6. Commissioning, operation 16
7. Faults 18
8. Maintenance and cleaning 19
8.1 Maintenance . . . . . . . . . . . . . . . . . . . 19
8.2 Cleaning . . . . . . . . . . . . . . . . . . . . . 19
9. Dismounting, return and disposal 20
9.1 Dismounting . . . . . . . . . . . . . . . . . . . 20
9.2 Return. . . . . . . . . . . . . . . . . . . . . . 20
9.3 Disposal . . . . . . . . . . . . . . . . . . . . . 20
Annex: EU declaration of conformity 75

WIKA mode d'emploi manomètre, type 6 selon ATEX4
14508916.01 12/2021 EN/DE
FR
1. General information
1. General information
The instrument described in the operating instructions has been designed and
manufactured using state-of-the-art technology. All components are subject
to stringent quality and environmental criteria during production. Our manage-
ment systems are certied to ISO 9001 and ISO 14001.
These operating instructions contain important information on handling the
instrument. Working safely requires that all safety instructions and work
instructions are observed.
Observe the relevant local accident prevention regulations and general safety
regulations for the instrument's range of use.
The operating instructions are part of the product and must be kept in the
immediate vicinity of the instrument and readily accessible to skilled personnel
at any time.
Skilled personnel must have carefully read and understood the operating
instructions prior to beginning any work.
The manufacturer's liability is void in the case of any damage caused by using
the product contrary to its intended use, non-compliance with these opera-
ting instructions, assignment of insuciently qualied skilled personnel or
unauthorised modications to the instrument.
The general terms and conditions contained in the sales documentation shall
apply.
Subject to technical modications.
Further information:
- Internet address: www.wika.de / www.wika.com
Model Data sheet
632.51 PM 06.06
Explanation of symbols
WARNING!
... indicates a potentially dangerous situation that can result in
serious injury or death, if not avoided.
WARNING!
... indicates a potentially dangerous situation in the hazardous area
that results in serious injury or death, if not avoided.
Information
... points out useful tips, recommendations and information for
ecient and trouble-free operation.

5WIKA mode d'emploi manomètre, type 6 selon ATEX
14508916.01 12/2021 EN/DE
FR
2. Safety
2. Safety
WARNING!
Before installation, commissioning and operation, ensure that the
appropriate instrument has been selected in terms of measuring
range, design and specic measuring conditions.
Check the compatibility with the medium of the materials subjec-
ted to pressure!
In order to guarantee the measurement accuracy and long-term
stability specied, the corresponding load limits must be obser-
ved.
▶Non-observance can result in serious injury and/or damage to
property.
Further important safety instructions can be found in the individual
chapters of these operating instructions.
2.1 Intended use
These pressure gauges are used for measuring pressure in hazardous areas of
industrial applications.
ClassicationperEuropeanpressureequipmentdirective
Instrument type: Pressure accessory without safety function
Media: Liquid or gaseous, group 1 (hazardous)
For maximum allowable pressure PS, see chapter 2.6 “Labelling / safety marks”
Volume of wetted parts: < 1 L
The instrument must only be used with media which are not harmful to the wetted
parts over the entire operating range of the instrument. Any change in the state of
the matter or any decomposition of unstable media is not permitted.
Only use the instrument in applications that lie within its technical performance
limits (e.g. max. ambient temperature, material compatibility, ...).
→ For performance limits, see chapter 3 “Specications”.
Suitability for use
High overload safety up to 50 x full scale value
Measuring chamber protected against unauthorised intervention
Low measured error and inuence on function from medium pollution
Pressure measurement at very low pressures
For gaseous, aggressive media, also in aggressive environments
Robust design and ingress protection IP54, suitable for outdoor use

WIKA mode d'emploi manomètre, type 6 selon ATEX6
14508916.01 12/2021 EN/DE
FR
2. Safety
2.2 Responsibility of the operator
The legibility of the marking must be observed during time in use but at least
during inspection periods of three years. If any harm of the legibility is found
please contact the manufacturer to renew the marking.
For the safety of the system, the operator is obliged to carry out an ignition source
and ignition hazard analysis. Refer to chapter 2.3 “Ignition hazards”.
The responsibility for classication of zones lies with the plant manager and not
the manufacturer/supplier of the equipment.
2.3 Ignition hazards
Relevantidentied
ignition hazards
Implementedprotectivemeasures
Hot surfaces
■
The actual surface temperature depends on the appli-
cation, i.e. on the medium temperature
■
Temperature range marking; T range marking
■
Observation of legibility of marking
→ See chapter 2.6 “Labelling / safety marks”
Mechanically generated
sparks and hot surfaces
■
Low contact speed
■
Restriction of vibration
■
Selection of suitable materials
→ See chapter 2.7 “Special conditions for safe use (X
conditions)”
Stray electric currents,
cathodic corrosion
protection
■
Grounding via process connection required
→ See chapter 2.7 “Special conditions for safe use (X
conditions)”
Static electricity
■
No propagating brush discharge
■
All conductive parts bonded
■
Limitation of projected area of non-conductive parts
■
Limitation of layer thickness of non-conductive parts
■
Grounding via process connection required
■
Description of cleaning process
→ See chapter 2.7 “Special conditions for safe use (X
conditions)”
Static electricity for
instruments with mark
pointer
■
Warning label for “electrostatic charging”
→ See chapter 2.6 “Labelling / safety marks”
Exothermic reactions, inclu-
ding self-ignition of dusts
■
Provision of material data of the wetted parts for the
customer in order to avoid the use of critical media
→ See chapter 2.7 “Special conditions for safe use (X
conditions)”

7WIKA mode d'emploi manomètre, type 6 selon ATEX
14508916.01 12/2021 EN/DE
FR
The materials used can be found in the instrument marking. See chapter 2.6
“Labelling / safety marks”.
On the wetted parts of the instrument, small residual amounts of the
adjustment medium (e.g. compressed air, water, oil) can adhere from
production.With increased requirements for technical cleanliness,
suitability for the application must be checked by the operator before
commissioning.
Liquid media with the property of changing the volume during solidi-
cation can damage the measuring system (e.g. water if it falls below
the freezing point).
2.4 Personnelqualification
WARNING!
Risk of injury should qualication be insucient!
Improper handling can result in considerable injury and damage to
property.
The activities described in these operating instructions may only be
carried out by skilled personnel who have the qualications descri-
bed below.
Skilled personnel
Skilled personnel are understood to be personnel who, based on their techni-
cal training, knowledge of measurement and control technology and on their
experience and knowledge of country-specic regulations, current standards
and directives, are capable of carrying out the work described and independently
recognising potential hazards.
2. Safety

WIKA mode d'emploi manomètre, type 6 selon ATEX8
14508916.01 12/2021 EN/DE
FR
2.5 Special hazards
WARNING!
For hazardous media such as oxygen, acetylene, ammable or
toxic gases or liquids, and refrigeration plants, compressors, etc., in
addition to all standard regulations, the appropriate existing codes or
regulations must also be followed.
For further important safety instructions, see chapter 2.7 “Special conditions for
safe use (X conditions)”.
WARNING!
Residual media in dismounted instruments can result in a risk to
persons, the environment and equipment.
Take sucient precautionary measures.
2.6 Labelling / Safety marks
Ex marking
Ex marking per 2014/34/EU Ex marking per ISO 80079-36/37
A B C D E 1 2 3 4 5 6
II 2 G Ex h IIC T6 ...T1 Gb X
II 2 D Ex h IIIC T85°C ... T450°C Db X
Designation Marking Meaning
ACE marking European conformity
BSpecic marking for explo-
sion protection
Ex symbol
CSymbol of the equipment
group
II Equipment intended for use in other places
than underground parts of mines, and in
those parts of surface installations of such
mines, liable to be endangered by redamp
and/or combustible dust and an explosive
atmosphere.
DSymbol of the equipment
category
2 High safety, suitable for zone 1 and 21.
EEx atmosphere G For areas in which explosive gas, vapour,
mist or air mixtures are present.
D For areas in which explosive atmospheres
caused by dust can form.
2. Safety

9WIKA mode d'emploi manomètre, type 6 selon ATEX
14508916.01 12/2021 EN/DE
FR
Designation Marking Meaning
1Ex marking Ex Standards ISO 80079-36 and ISO 80079-37
applied.
2Ignition protection type h Non-electrical equipment for use in explosive
atmospheres.
An ignition protection type is not applied to
the letter “h”.
3Suitable atmosphere IIC Gas atmosphere group IIC.
IIIC Combustible yings, non-conductive dust
and conductive dust.
4Maximum surface
temperature
T6 ...T1 Symbol indicating the temperature class.
The actual maximum surface temperature
depends not on the equipment itself, but
mainly on the operating conditions.
T85°C ...
T450°C
Maximum surface temperature
The actual maximum surface temperature
depends not on the equipment itself, but
mainly on the operating conditions.
5EPL equipment protection
level
Gb Potential ignition sources that are eective or
may become eective during normal operati-
on and expected malfunction.
Db
6For specic conditions
of use, see operating
instructions
X Ambient temperature with special range.
Specic conditions of use apply.
2. Safety

WIKA mode d'emploi manomètre, type 6 selon ATEX10
14508916.01 12/2021 EN/DE
FR

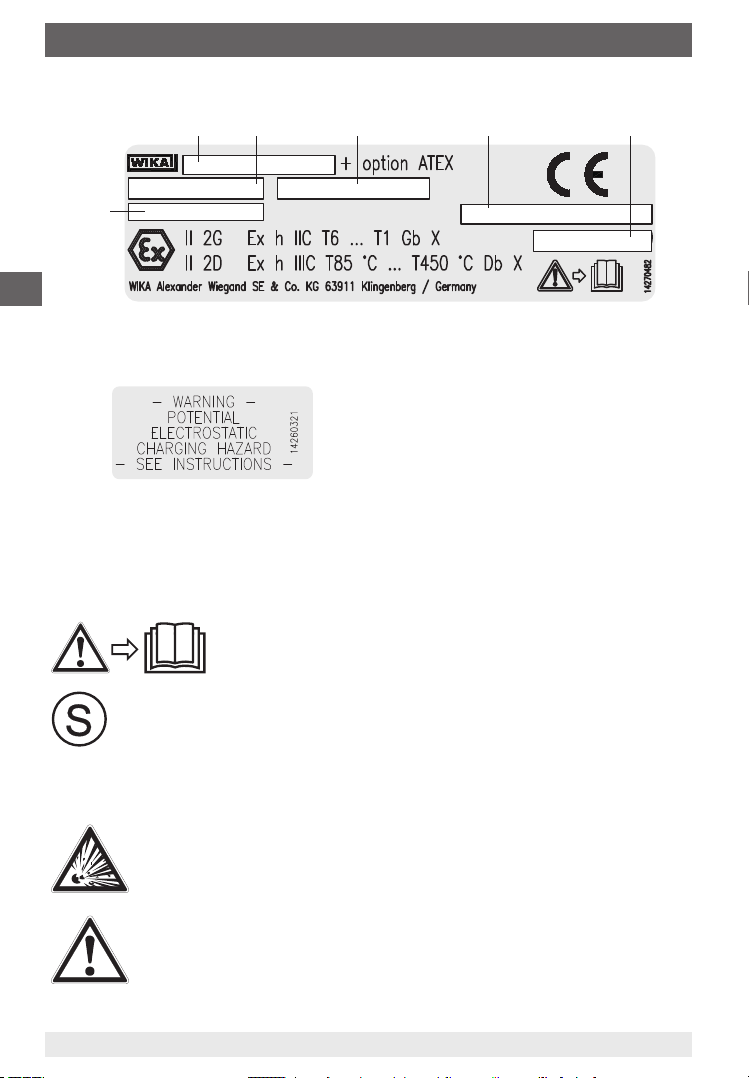

Product label
Warning label for “electrostatic
charging” (where applicable)
Model
Volume of wetted parts
Maximum allowable pressure PS
Serial number
Year of manufacture
Article number of the EU
declaration of conformity
Before mounting and commissioning the instrument, ensure
you read the operating instructions!
The instrument bearing this mark is a safety pressure gauge with a
solid bae wall in accordance with EN 837.
2.7 Special conditions for safe use (X conditions)
WARNING!
Non-observance of these instructions and their contents may result
in the loss of explosion protection.
WARNING!
It is imperative that the application conditions and safety require-
ments of the operating instructions are followed.
▶Instruments must be grounded via the process connection.
   


2. Safety

11WIKA mode d'emploi manomètre, type 6 selon ATEX
14508916.01 12/2021 EN/DE
FR
1. Design temperatures
Permissible ambient temperature
-20 ... +60 °C
Permissible medium temperature (instrument)
-20 … +100 °C
The permissible medium temperature does not only depend on the instrument
design, but also on the ignition temperature of the surrounding gases, vapours or
dusts. Both aspects have to be taken into account.
The limits of the permissible temperature ranges of an “instrument hook-up”
mounting arrangement are determined, in each case, by the component with the
greatest restriction.
2. Maximum surface temperature
The surface temperature of the instruments mainly depends on the medium
temperature of the application.The instrument itself does not contain any heat
sources. For determining the maximum surface temperature, besides the medium
temperature also other inuences such as the ambient temperature and, if appli-
cable, the solar irradiation must be taken into account. For prevention, consider
the maximum medium temperature as maximum surface temperature, if it is not
possible to determine the real surface temperature even in the case of expected
malfunctions.
Explosivegas/air,vapour/airandmist/airatmospheres
Requiredtemperatureclass
(ignition temperature of gas
orvapour)
Maximum permissible surface temperature
of the instrument (for the end application)
Instruments with permissible medium
temperature ≤100 °C
T6 (T > 85 °C) +65 °C
T5 (T > 100 °C) +80 °C
T4 (T > 135 °C) +100 °C
T3 (T > 200 °C) +100 °C
T2 (T > 300 °C) +100 °C
T1 (T > 450 °C) +100 °C
2. Safety

WIKA mode d'emploi manomètre, type 6 selon ATEX12
14508916.01 12/2021 EN/DE
FR
Explosivedust/airatmospheres
For dusts, the procedure specied in ISO/IEC 80079-20-2 for determining the
ignition temperature has to be applied.The ignition temperature is determined
separately for dust clouds and dust layers, respectively. For dust layers, the igniti-
on temperature depends on the dust layer thickness per IEC/EN 60079-14.
Ignition temperature
of dust
Maximum permissible surface temperature of the
instrument (for the end application)
Dust cloud: Tcloud < 2/3 Tcloud
Dust layer: Tlayer < Tlayer − 75 K − (reduction depending on the layer thickness)
The permissible maximum medium temperature must not exceed the lowest
determined value, even in case of a malfunction.
Explosiveatmosphereconsistingofhybridmixtures
The instruments must not be used in areas in which an atmosphere consisting of
explosive hybrid mixtures (dusts mixed with gases) can occur.
3. Temperature at the installation site
When mounting the instrument it must be ensured that, taking into consideration
the inuence of convection and heat radiation, no deviation above or below the
permissible ambient and medium temperatures can occur.
4. Pressurisation
Pressure surges must be avoided at all costs. Open the shut-o valves slowly.
5. Temperature increase through compression warming
Avoid the increasing of warming due to gas-compression. In these cases it may
be necessary to throttle the rate of change of pressure or reduce the permissible
medium temperature.
6.Equipotentialbonding
The instruments must be connected to the equipotential bonding of the plant via
the process connection by the end user in the end use application. Avoid use of
electric insulating sealing materials.
7. Handling of materials
Avoid exposing the instrument to any substances or ambient conditions that could
negatively aect the instrument and the materials used. Avoid handling substan-
ces that are liable to spontaneous combustion. For a list of the materials used,
see chapter 3 “Specications”. The materials of wetted parts not listed there (e.g.
Hastelloy) are noted on the dial.
2. Safety

13WIKA mode d'emploi manomètre, type 6 selon ATEX
14508916.01 12/2021 EN/DE
FR
8.Permissiblevibrationload
The instruments should always be installed in locations free from vibration. If the
line to the instrument is not adequately stable, an instrument holder should be
used for fastening.
If necessary, it is possible to isolate the instrument from the mounting point, e.g. by
installing a exible connection line between the measuring point and the pressure
gauge and mounting the instrument on a suitable bracket.
At the installation site
The following limit values must not be exceeded:
Frequency range: < 150 Hz
Acceleration: < 0.5 g (approx. 5 m/s2)
9. Cleaning
Clean the equipment with a moist cloth. Do not use other cleaning processes than
manual rubbing to prevent electrostatic charging.
10. Assessment of all accessory components
All accessories (e.g. valves or attachment components) must be assessed in
combination with the delivered instruments by the end user. Particularly the requi-
rements of grounding and prevention of electrostatic charges must be considered.
11.Suitableprotectivemeasures
The operator must recognise ignition hazards and take suitable protective measu-
res. See chapter 2.2 “Responsibility of the operator”.
12.Descriptionoftheprotectionlevel
The operator must understand the Ex marking based on the description in chapter
2.6 “Labelling / safety marks” and observe it for their application.
13. Checking of the instrument labelling
The legibility of the marking must be observed during time in use but at least
during inspection periods of three years. See chapter 2.2 “Responsibility of the
operator”.
14. Instruments with mark pointer
For instruments with marking pointer, ensure that there are no electrostatic
charging mechanisms at the marking pointer.
2. Safety

WIKA mode d'emploi manomètre, type 6 selon ATEX14
14508916.01 12/2021 EN/DE
FR
15. Protection against external impact
Avoid any kind of external impact. External impacts can generate sparks through
friction processes between dierent materials.
16.Instrumentlling
The lling/relling of instruments leads to a loss of the explosion protection and
can lead to damage to the instrument.
3. Specifications
Materials (wetted)
Capsule element Stainless steel 1.4571 (316 Ti)
Measuring chamber Stainless steel 1.4571 (316 Ti)
Process connection Stainless steel 1.4571 (316 Ti)
Sealing PTFE
Pressure limitation
Steady: Full scale value
Fluctuating: 0.9 x full scale value
Short time: 50 x full scale value
Temperatureeect
When the temperature of the measuring system deviates from the reference
temperature (+20 °C):
max. ±0.6 %/10 K of full scale value
Case ingress protection 1) (per IEC/EN 60529)
IP54
For further specications, see WIKA data sheet PM 06.06 and the order
documentation.
1) For general use, no ATEX requirement
2.Safety/3.Specications

15WIKA mode d'emploi manomètre, type 6 selon ATEX
14508916.01 12/2021 EN/DE
FR
4. Design and function
Description
Nominal size 100 and 160 mm
The instruments measure the pressure by means of resilient capsule pressure
elements.
The measuring characteristics are in accordance with the EN 837-3 standard.
The case is equipped with a blow-out device in the case back and therefore
meets the safety level “S1” per EN 837-1.
Scopeofdelivery
Cross-check scope of delivery with delivery note.
5. Transport, packaging and storage
5.1 Transport
Check the instrument for any damage that may have been caused by transport.
Obvious damage must be reported immediately.
5.2 Packaging
Do not remove packaging until just before mounting.
Keep the packaging as it will provide optimum protection during transport (e.g.
change in installation site, sending for repair).
5.3 Storage
Permissible storage temperature
-40 … +70 °C
4. Design and function / 5. Transport, packaging and storage

WIKA mode d'emploi manomètre, type 6 selon ATEX16
14508916.01 12/2021 EN/DE
FR
6. Commissioning, operation
Personnel: Skilled personnel
Before commissioning the instrument, the conditions from chapter 2.7 “Special
conditions for safe use (X conditions)” must be fullled.
Mechanical connection
In accordance with the general technical regulations for pressure measuring
instruments (e.g. EN 837-2 “Selection and installation recommendations for
pressure gauges”).
When screwing the instruments in, the force required for sealing must not be
applied through the case, but only through the spanner ats provided for this
purpose, and using a suitable tool.
For parallel threads, use at gaskets, lens-type sealing rings or WIKA prole
sealings at the sealing face .With tapered threads (e.g. NPT threads), sealing is
made in the threads , using a suitable sealing material (EN 837-2).
The tightening torque depends on the sealing used. In order to orientate the
measuring instrument so that it can be read as well as possible, a connection with
LH-RH adjusting nut or union nut should be used. When a blow-out device is tted
to an instrument, it must be protected against being blocked by debris and dirt.
Installation with open-ended
spanner
Sealing in the
thread 
Spanner ats
Sealing face 
6. Commissioning, operation

17WIKA mode d'emploi manomètre, type 6 selon ATEX
14508916.01 12/2021 EN/DE
FR
Installation
Nominal position per EN 837-3 / 9.6.6 image 7: 90° ( ⊥), if not stated other-
wise in the order documentation.
For outdoor applications, the selected installation location has to be suitable
for the specied ingress protection, so that the instrument is not exposed to
impermissible weather conditions. For information on the ingress protection,
see Technical information IN 00.18
To ensure that the pressure can be safely vented in the case of failure, instru-
ments with blow-out device or blow-out back must keep a minimum distance of
20 mm from each object.
Commissioning
During the commissioning process pressure surges must be avoided at all costs.
Open the shut-o valves slowly.
6. Commissioning, operation

WIKA mode d'emploi manomètre, type 6 selon ATEX18
14508916.01 12/2021 EN/DE
FR
7. Faults
Personnel: Skilled personnel
CAUTION!
Physicalinjuriesanddamagetopropertyandtheenvironment
If faults cannot be eliminated by means of the listed measures, the
instrument must be taken out of operation immediately.
▶Ensure that there is no longer any pressure present and protect
against being put into operation accidentally.
▶Contact the manufacturer.
▶If a return is needed, please follow the instructions given in
chapter 9.2 “Return”.
For contact details, see chapter 1 “General information”.
Fault Cause Measure
Nopointermovementdes-
pite change in pressure.
Movement blocked. Replace instrument.
Pressure element defective.
Pressure port blocked.
After depressurisation,
the pointer remains just
abovethezeropoint.
Friction in the movement. Tap lightly on the case.
Instrument was overloaded. Replace instrument.
Material fatigue of the pres-
sure element.
The pointer remains outs-
ide the zero point toleran-
ce after installation and
depressurisation.
Mounting error: Instrument
not mounted in nominal
position.
Check the mounting position.
Transport damage (e.g.
non-permissible shock
loading).
Replace instrument.
Instrument outside the
accuracy class.
Instrument was operated
outside of permissible per-
formance limits.
Check the observance of the
operating parameters of the
application.
Replace instrument.
Vibration of the pointer. Vibrations in the application. Decouple the instrument
mechanically.
Mechanical damage (e.g.
window, case).
Improper handling. Replace instrument.
For the replacement of the instrument chapters 9 “Dismounting, return and dispo-
sal” and 6 “Commissioning, operation” must be observed.
7. Faults

19WIKA mode d'emploi manomètre, type 6 selon ATEX
14508916.01 12/2021 EN/DE
FR
8. Maintenance and cleaning
8.1 Maintenance
The instruments are maintenance-free. The indicator should be checked once or
twice every year. For this the instrument must be disconnected from the process to
check with a pressure testing device.
Repairs must only be carried out by the manufacturer or appropriately qualied
skilled personnel.
8.2 Cleaning
CAUTION!
Clean the instrument with a moist cloth. Ensure that due to the
cleaning no electrostatic charge will be generated.
Wash or clean the dismounted instrument before returning it, in
order to protect persons and the environment from exposure to
residual media.
8. Maintenance and cleaning

WIKA mode d'emploi manomètre, type 6 selon ATEX20
14508916.01 12/2021 EN/DE
FR
9. Dismounting, return and disposal
WARNING!
Residual media in dismounted instruments can result in a risk to
persons, the environment and equipment.
Take sucient precautionary measures.
9.1 Dismounting
Only disconnect the instrument once the system has been depressurised!
9.2 Return
Strictly observe the following when shipping the instrument:
All instruments delivered to WIKA must be free from any kind of hazardous
substances (acids, bases, solutions, etc.) and must therefore be cleaned before
being returned.
When returning the instrument, use the original packaging or a suitable transport
packaging.
9.3 Disposal
Incorrect disposal can put the environment at risk.
Dispose of instrument components and packaging materials in an environmentally
compatible way and in accordance with the country-specic waste disposal
regulations.
9. Dismounting, return and disposal
