Wilbur Curtis Company Curtis CGC User manual

1
This Curtis Gold Cup Unit is Factory Pre-Set and Ready to Go Right from the Box.
Following are the Factory Settings for your Coffee Brewing System:
 •BrewTemperature=200°F
 •BrewVolume=SettoVesselRequirement.
SystemRequirements:
 •WaterSource20–90PSI(MinimumFlowRateof½GPM)
 •Electrical:Seeattachedschematicforstandardmodelorvisitwww.wilburcurtis.com
for your model.
Model
CGC
CAUTION: DO NOT
connect this brewer to hot
water. The inlet valve is
not rated for hot water.
CAUTION: Please use
this setup procedure
before attempting to use
this brewer. Failure to follow the
instructions can result in injury or the
voiding of the warranty.
IMPORTANT: Equipment
to be installed to comply
with applicable govern-
mental plumbing/electrical codes
having jurisdiction.
ISO 9001:2008 REGISTERED
WILBUR CURTIS CO., INC.
6913 West Acco Street
Montebello, CA 90640-5403
For the latest information go to
www.wilburcurtis.com
Tel: [phone]
Fax: [phone] For the latest specications and information go to www.wilburcurtis.com
Thisequipmentisdesignedforcommercialuse.Anyservicingotherthancleaningand
routinemaintenanceshouldbeperformedbyanauthorizedWilburCurtisCompanySer-
viceTechnician.
 • DONOTimmersetheunitinwateroranyotherliquid
 • Toreducetheriskofreorelectricshock,DONOTopenservicepanels. There
  arenouserserviceablepartsinside.
 • Keephandsandotheritemsawayfromhotareasoftheunitduringoperation.
 • Nevercleanwithscouringpowdersorharshchemicals.
Important Safeguards/Symbols
Service Manual – Curtis Gold Cup
Wilbur Curtis Company, inC.
Symbols:
WARNINGS – To help avoid personal injury
Important Notes/Cautions – from the factory
Sanitation Requirements
NSF International requires the following water connection:
1. A quick disconnect or additional coiled tubing (at least 2x the depth of the unit) is required so
that the unit can be moved for cleaning.
2. This unit must be installed with adequate backow protection to comply with applicable federal,
state and local codes.
3. Water pipe connections and xtures directly connected to a potable water supply shall be sized,
installed and maintained in accordance with federal, state, and local codes.
3. Connect the unit to electrical outlet with appropriate amperage rating (see serial tag on machine).
4. Once power has been supplied to the unit, ip the toggle switch to the ‘ON’ position (located on the rear of
the unit), the water tank will begin to ll. When the water level in the tank reaches the probe, the heating
element(s) will turn on.
5. Water in the heating tank will require approximately a half hour before reaching operating temperature
(factory setting of 200°F). Where applicable, turn on the Universal Control Module (UCM). When the unit
reaches operating temperature, it will display “READY TO BREW”.
NOTE: A water ltration system must be used to help maintain trouble-free operation. In areas with
extremely hard water, we highly recommend the use of a Curtis approved water lter. For our full
line of lters, please log on to www.wilburcurtis.com. A water ltration system will greatly prolong
the life of the unit and enhance the quality and taste of the product.
SETUP STEPS
1. The unit should be level (left to right - front to back), on a secure surface.
2. Connect the water line to the water inlet tting on the rear of the unit. Water volume ow to the machine
should be consistent. Use tubing sized sufciently to provide a minimum ow rate of one gallon per minute.

2
1. Brewer should be ON (conrm at the rear toggle switch). When a screen saver is running, touch the screen to restore the control screen.
This screen should read Ready to Brew.
2. Place an empty cup under the brewcone.
6. Select the desired coffee
size. Touch and hold for two
seconds to start brewing.
5. Slide the lled brewcone into
the brew rails on the brewer.
3. Place a clean lter into the
brewcone.
4. Fill brewcone with the
proper amount of ground
coffee.
COFFEE BREWING INSTRUCTIONS
WARNING TO AVOID SCALDING, Do not remove brewcone while brew light is ashing.
Touch Screen Control Module
The touch screen turns on when power is available to the controller. The screen will contain standard control feature such as symbols and buttons. Pressing
these elements with your nger tip will activate the programming functions. The default screen is shown in the illustration below.
STATUS LIGHTS
BREW BUTTONS
CURTIS LOGO
TO ENTER PROGRAMMING
Tap Curtis logo 5 times to bring
up the ACCESS CODE screen.
RETURN TO HOME SCROLL RETURN TO PREVIOUS
CONTROL SYMBOLS
All of these symbols may
not be visible at one time.
Your Curtis Gold Cup Series is Factory Pre-Set for Optimum Performance.
After connection to water and power; turn on the brewer at the rear toggle switch. You will hear a beep and the status lights will come on for a moment.
The screen will display . Next is displayed. Water will ll the tank (2-3 minutes depending on water ow rate).
When the proper level is reached will appear on the screen. It takes approximately 30 minutes to reach the set point temperature.
Control will display when temperature reaches the set point. The unit is now ready to brew.
MODEL NUMBER
CONTROL BD NUMBER
READY TO BREW
HEATING
FILLING

3
ACCESS CODE
screen. Default is 1
2 3 4. Once the code
is entered, press
OK. The Main Menu
screen will appear.

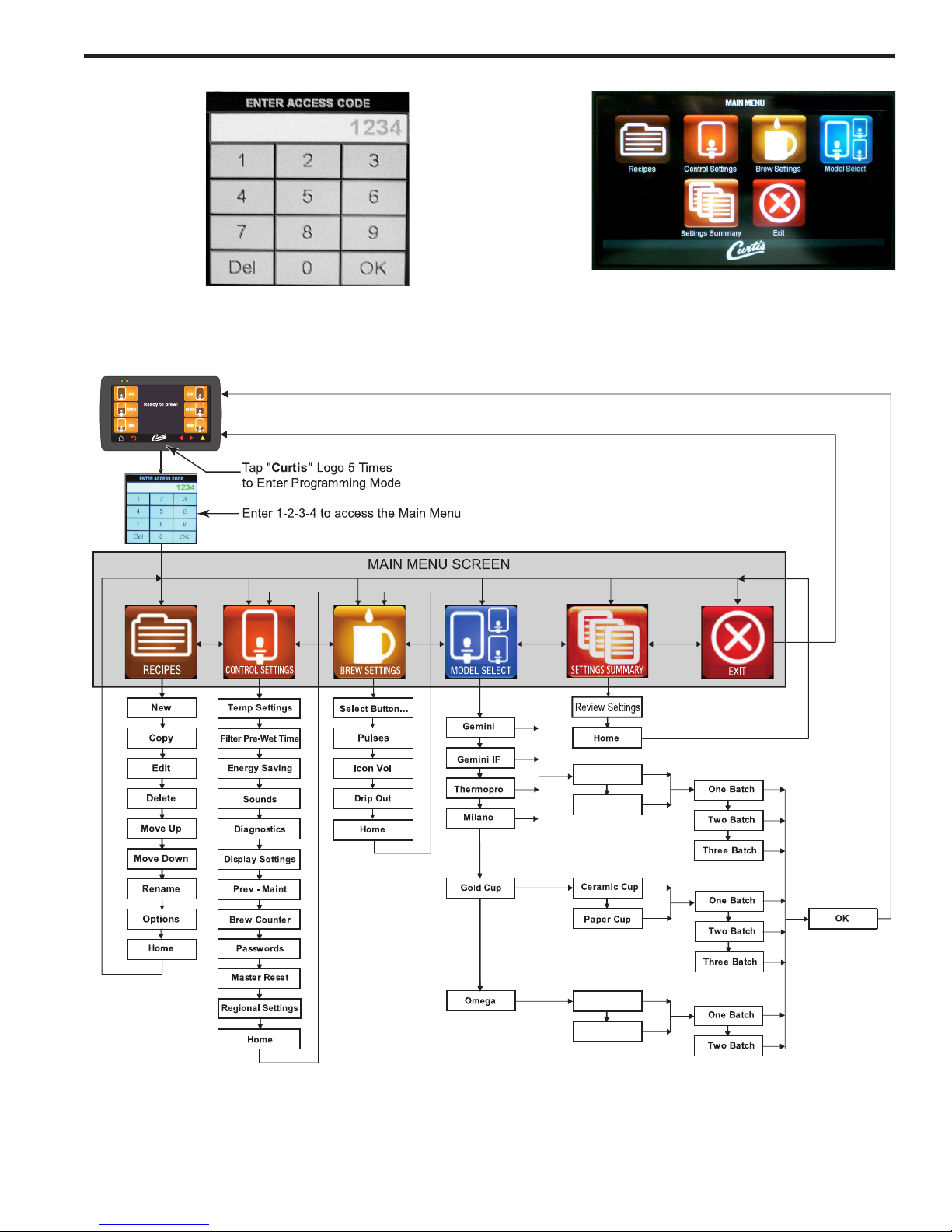

Menu Tree
This chart explains how to enter the program mode and menu selections available from the MAIN MENU.

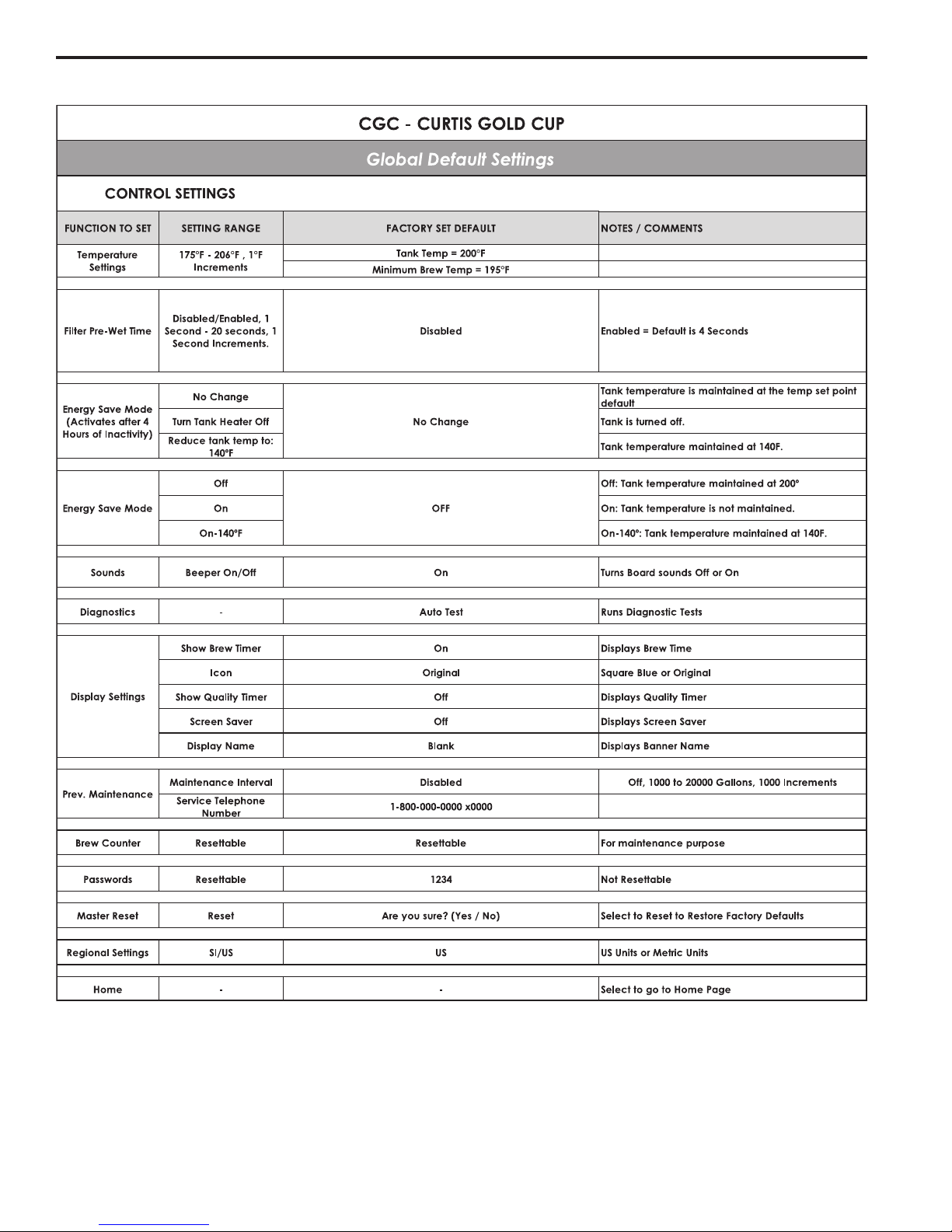

Programming
MAIN MENU SCREEN:
RECIPES
CONTROL SETTINGS
BREW SETTINGS
MODEL SELECT
SUMMARY
EXIT.
Single
Twin
Single
Twin

4
Programming

5
Programming

6
Important Screen
Messages

7

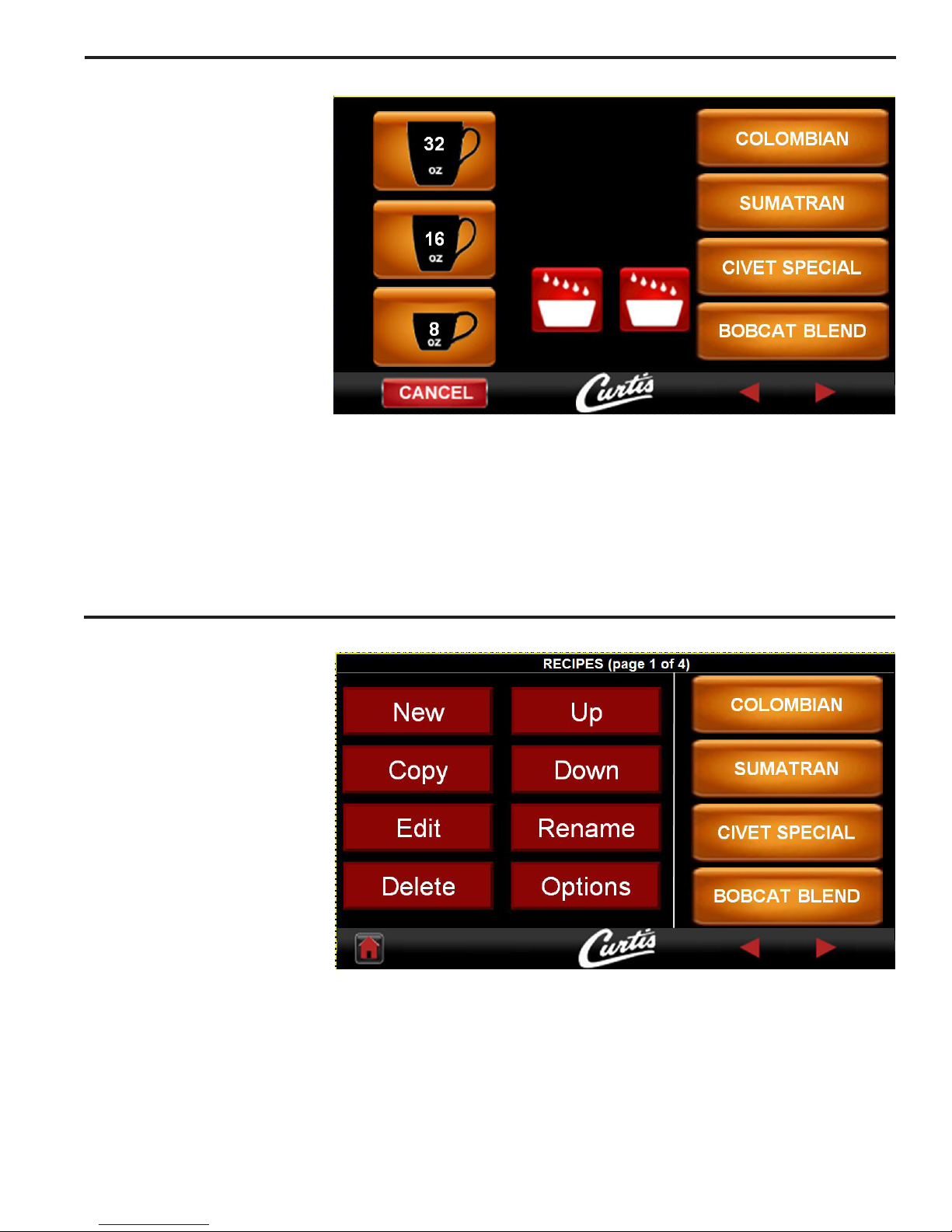

Coffee Recipe Selections
Programming Recipes
When coffee recipes are offered, the recipe selection will be shown BEFORE a brew size button can be pressed.
Pressing a recipe button will show the size selection (left brew head is shown at this stage).
Selecting a size will start the brew.
Pressing the Cancel button will return the screen to recipe selection.
The touch screen will display 4 recipes per brew head, per screen.
To view more than four recipes (if available), the left/right arrows will bring up the next four recipes.
Enter programming mode to view the Main Menu screen (refer to page 3).
From the Main Programming Menu screen, pressing the Recipes button will show you the the screen above.
Note: When Master Reset or Model Select are entered, only one recipe will be shown, with the default pulse/dripout times.
You may select four recipes per page; in this example 15 recipes have been saved so there are 4 pages of recipes. All of the
standard 6 recipes will be overwritten.

8
Programming – Recipes
Edit Recipe
A recipe consists of two adjustable features; water pulsing off and on times, and drip-out time.
The ‘Undo’ button will operate as for existing screens.
Changes are saved automatically upon on exiting.
Pressing the check mark button returns you to the ‘Recipes’ screen.
Buttons selectable are only LG/MED/SM, not Left/Right.
Recipes will be (by default) shown in the order they were created.
Up/down buttons will change order of recipes.
Right/left arrow buttons will go to next/previous screens of recipes.
‘New’ and ‘Copy’ buttons will create new recipe (or copy of selected recipe) AFTER the selected recipe.
‘Rename’ button will go to the ‘Enter Recipe Name’ screen.
‘Edit’ will go to the ‘Edit Recipe’ screen.
‘Delete’ will remove recipe.
‘Options’ will go to options screen .
Total number of recipes will be xed at 20; when limit reached, ‘New’ and ‘Copy’ buttons will be disabled.
Recipe buttons on this screen will use the same icon buttons as used on main brew screen.
If recipes are disabled (in options screen), all buttons on this screen are disabled apart from ‘Options’ button.

9

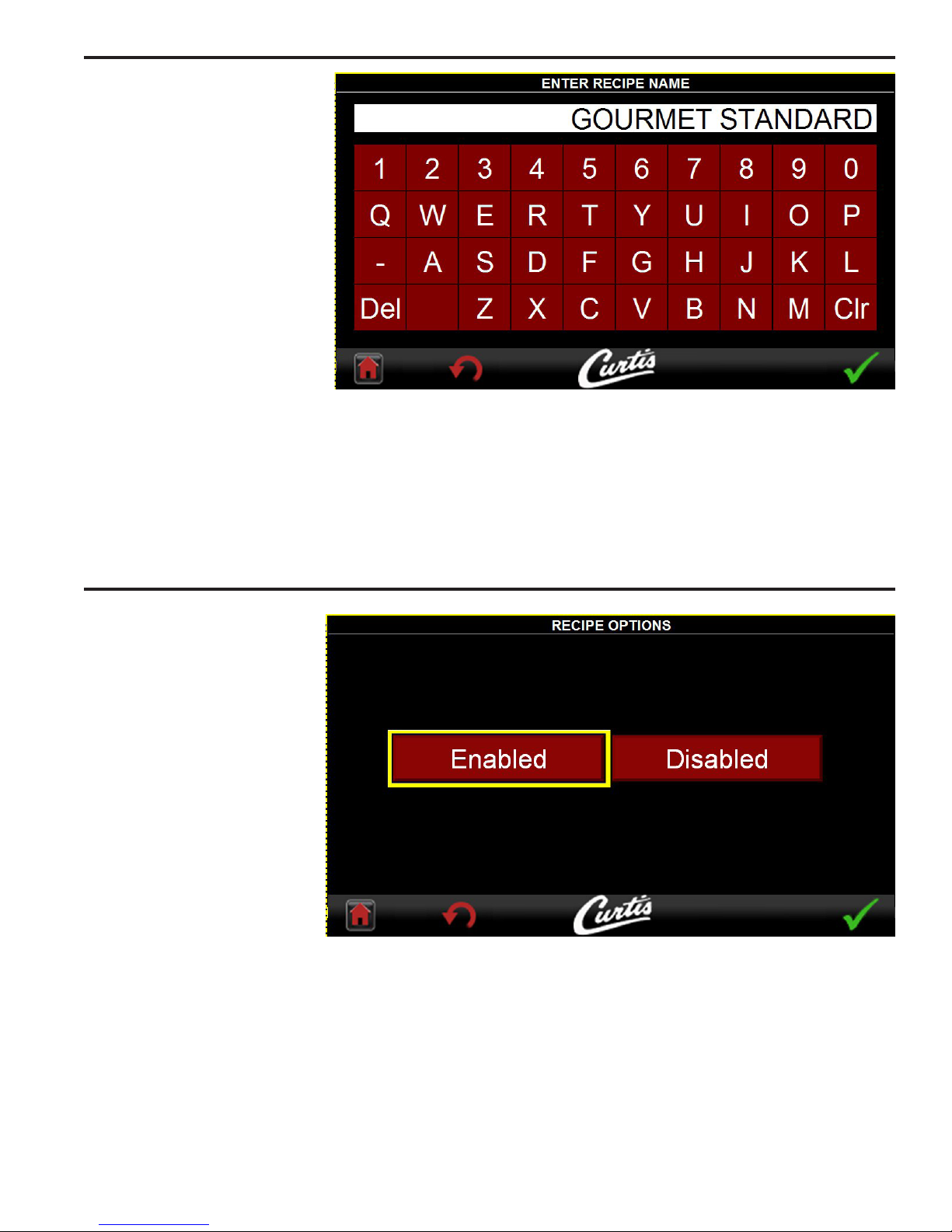

Recipe Options
The New screen is for entering recipe name when creating a new recipe or for copying an existing recipe.
When naming a recipe, it can be up to approximately 15-20 characters, limited by character width.
Undo button will operate as for existing screens.
All changes are saved automatically upon exiting.
The Check mark button returns you to the Recipes screen.
Enter Name
This screen will appear when the Options button pressed from recipes screen.
When recipes are enabled, Pulsing & Drip Out time are Dissabled and cannot be accessed through the Brew Button programming
screens.
Pressing the Check mark button will return you to the Recipes screen.

10
There are two methods that can be used to change the default settings on G4 brewers. They can be programmed at the brewer by
the touch screen universal control module (UCM) or the settings can be changed using the USB (Universal Serial Bus) data port
on the side of the brewer. Using the USB connection and a ash memory data storage device will easily reprogram the settings
simply by copying data.
The ash drive can upload or download the entire setting from one G4 brewer, into another G4
brewer. This eliminates the need to walk through the usual steps in reprogramming that would
be required when you use the touch screen to make a change. This is an advantage for a
service technician when standardizing the program settings on multiple G4 brewers.
Use a USB drive with USB 2.0 support and a type-A USB connection. Storage capacity should
be 2 GB minimum (reference the illustration on page 2).
IMPORTANT: The ash drive must be completely blank. Before starting, please erase any les
that may be in the USB drive.
SOFTWARE INFORMATION TRANSFER
UPLOAD TO USB
1. Make sure the brewer is on. Determine that the G4 brewer you wish to copy is properly programmed for your desired settings.
2. Connect an empty ash drive into the USB port on the brewer. The UCM on the brewer will upload all of the particular setup
data onto the ash drive. The yellow LED on top of the touch screen will light indicating that data is transferring. This will only
take a second to complete.
DOWNLOAD TO BREWER
1. Select the brewer you wish to make the program changes on. The brewer should be on.
2. Plug the loaded ash drive into the USB port on the brewer. The data copied from the rst G4 brewer will automatically down-
load, overwriting all the settings that were on the second brewer.
3. The red LED on the UCM will indicate that the download is in process. This will only take a second.
4. Once the download is complete, the UCM will reboot in order for the changes to take effect.
5. Remove the ash drive. The download is complete. The data on the ash drive can be downloaded into as many G4 brewers
as needed.
USB – Easy Programming

11

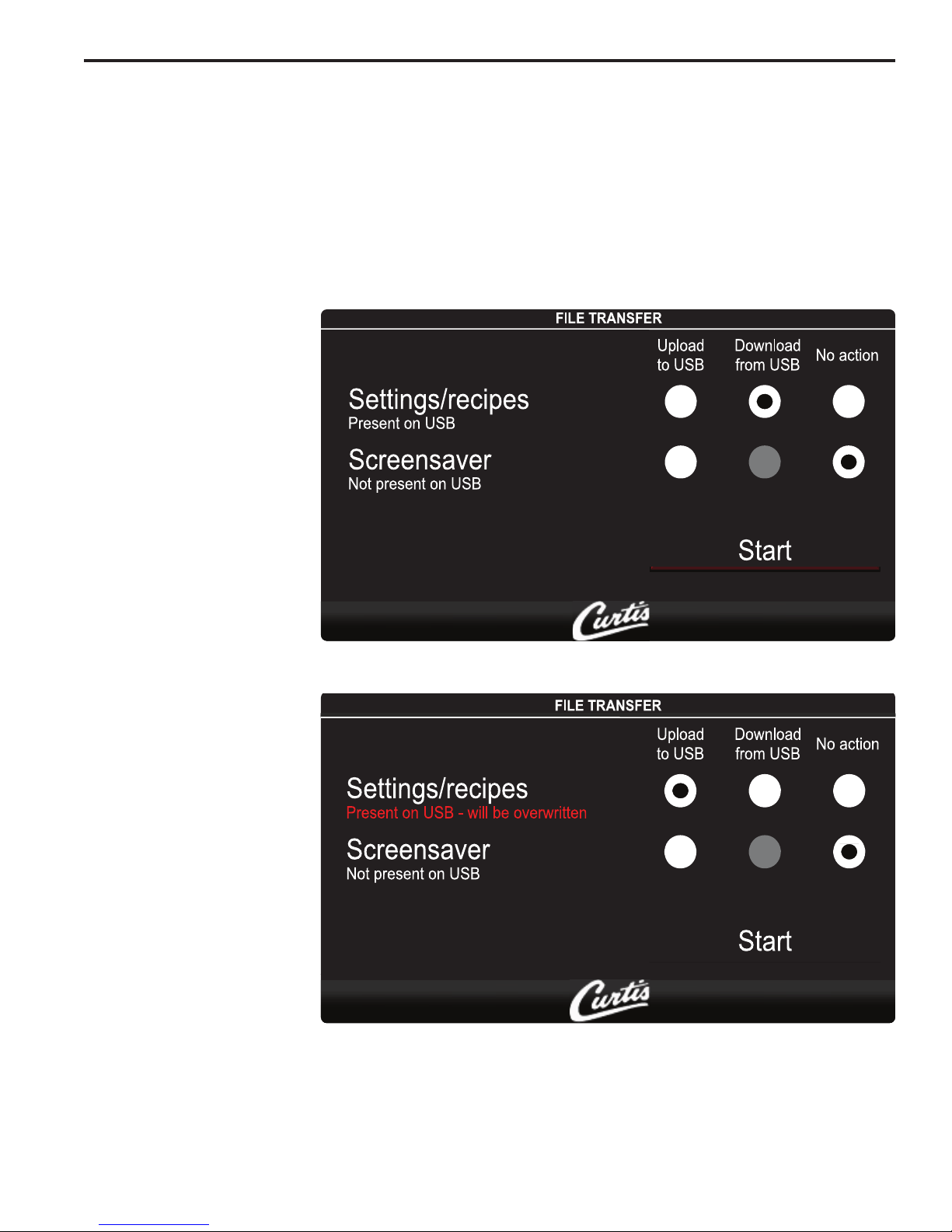

USB – File Transfer
This screen will be presented whenever the USB ash is inserted, as long ss UCM is showing main brew screen and is not cur-
rently brewing.
The default action is ‘No action’.
The UCM will always create a backup on the USB ash drive before downloading settings/recipes or screensaver.
If a rmware update le is present on the USB ash, the rmware update procedure will be started BEFORE this screen is shown.
Case 1: Settings/recipes le
present, screensaver not pres-
ent. User has selected ‘Down-
load from USB’ for settings/
recipes le.
Case 2: As above, but user has
selected ‘Upload to USB’ for set-
tings/recipes le.
With this action, the overwrite
warning appears.

12

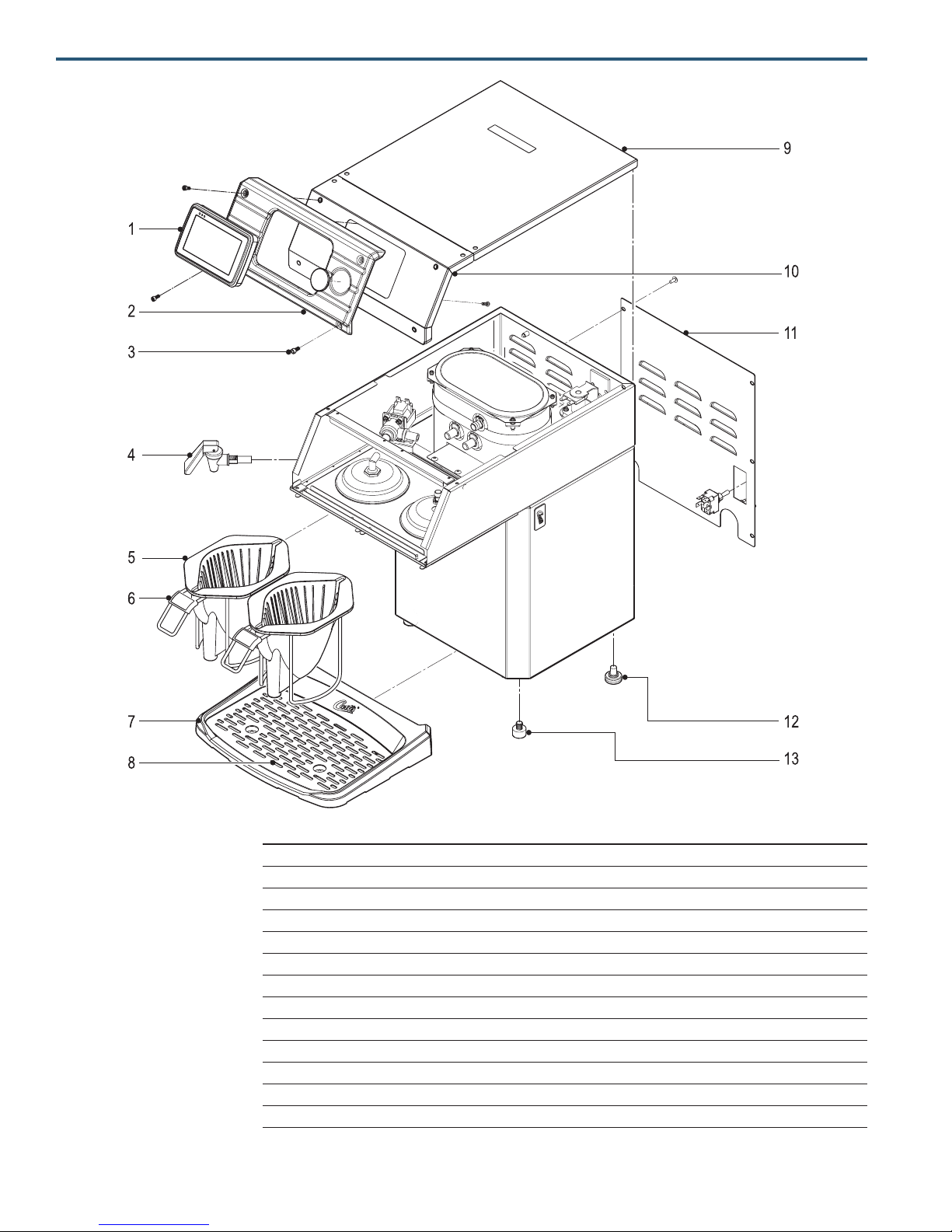

Illustrated Parts
MainView
ITEM NO. PART NO. DESCRIPTION
1 WC-10000* CONTROL MODULE, TOUCH SCREEN G4
2 WC-66081 FRONT BEZEL
3 WC-4868 SCREW, 8-32x3/8 SOCKET HEAD HD SS
4 WC-1809* FAUCET, PS/HSP SERIES HOT WATER 1/2-20 UNF
5 WC-3411 BREW CONE ASSY, OPEN BREW CGC
6 WC-66082 FLAVOR CLIP, BREW CONE
7 WC-66070 DRIP TRAY
8 WC-66085 SCREEN, DRIP TRAY
9 WC-61492-101 COVER, TOP BACK SINGLE CUP
10 WC-61492 COVER, TOP FRONT SINGLE CUP
11 WC-61491 COVER, BACK
12 WC-3518* LEG, 3/8”-16 x 1/2” LG. GLIDE
13 WC-3503* LEG, 3/8”-16 STUD SCREW BUMPER
* SUGGESTED PARTS TO STOCK

13
18
19
20
Illustrated Parts
TopWrap
ITEM NO. PART NO. DESCRIPTION
14 WC- 589-101 TRANSFORMER, 120/230VAC - 24VAC 4.8VA w/LEADS & TRMNLS
15 WC- 817* VALVE, DUMP RIGHT 120V-12W
16 WC- 889* VALVE, DUMP LEFT 120V-12W
17 WC-2962-101K KIT, FITTING SPRAYHEAD KYNAR
18 WC-29025* SPRAYHEAD, ASSY AFS-PURPLE
19 WC-66087 FILTER HOLSTER
20 WC-66090 SCOOP ASSEMBLY CGC
21 WC- 826L* VALVE, INLET 1.15GPM 120Vac 10W
22 WC-2401 ELBOW, 3/8 NPT x 1/4 FLARE PLTD
23 WC-10001* UNIVERSAL POWER MODULE - G4
24 WC-8556* HEATSINK and TRIAC ASSY 40A 600V
25 WC-14045-101 CURRENT SENSOR ASSY G4
26 WC- 103 SWITCH, TOGGLE DPST 25A 125/250VAC RESISTIVE
27 WC-13443 HARNESS ASSY COMPLETE CGC
28 WC-10008K UNIVERSAL HOST ADAPTER, USB
29 CGC4FILTER* FILTER, PAPER COFFEE #4 40/PKG
* SUGGESTED PARTS TO STOCK

14
30
31
32
33
34
35
36
37
38
39
40
Illustrated Parts
HeatingTank
ITEM NO. PART NO. DESCRIPTION
30 WC-5853-102 COVER, TOP HEATING TANK
31 WC-43062* GASKET, TANK LID
32 WC-5502* PROBE, WATER LEVEL
33 WC-5310 TUBE, 5/16 ID x 1/8W SILICONE GEN USE
34 WC-4394 GUARD, SHOCK/HEATING ELEMENT
35 WC- 522* THERMOSTAT, HI LIMIT HEATER DPST 277V-40A
36 WC-1438-101* SENSOR, TEMPERATURE TANK
37 WC-43055 GUARD, SHOCK RESET THERMOSTAT
38 WC-54324DV* TANK ASSY 1.73 GAL, 120/220V, (2) 1450W ELEMENT
39 WC- 917-04* ELEMENT, HEATING 1.45KW 120V W/JAM NUTS & SILICONE WSHRS
40 WC-36077 BRUSH, 3/32” SPIRAL NYLON
* SUGGESTED PARTS TO STOCK

15
Electrical Schematic
Curtis Gold Cup Brewer

16
Cleaning the Gold Cup Brewer
Regularcleaningandpreventivemaintenanceisessentialinkeepingyourcoffeebrewerlookingandworkinglikenew.
CAUTION –Donotusecleansers,bleachliquids,powdersoranyothersubstancecontainingchlorine.These
productspromotecorrosionandwillpitthestainlesssteel.USEOFTHESEPRODUCTS
WILLVOIDTHEWARRANTY.
1. Mixdishwashingliquidinwarmwatertomakeamildcleaningsolution.
2. Drainthedriptray.Washthetrayandscreen.Drytheseparts.
3. Wipeexteriorsurfaceswithaclothmoistenedwithcleaningsolution.Cleanoffdriedcof-
fee,spillsordebris.
4. Wipeexteriorsurfaceswithaclothsoakedincleanwatertoremovealltracesofcleaner.
5. Slidethebrewconesoutandcleanwithdetergentsolutionandasoftbrush.
6. Withthebrewconesremoved,cleanthesprayheadareawithcleaningsolution.Clean
thebrewrailswithabrushtoremoveanycoffeeresidue.
7. Wipethesprayheadareawithaclothsoakedincleanwatertoremoveanytracesof
cleaning solution.
8. Rinseanddrythebrewcones.Returnthemontothebrewrails.
9. Dryexteriorsurfaceswithacleansoftcloth.

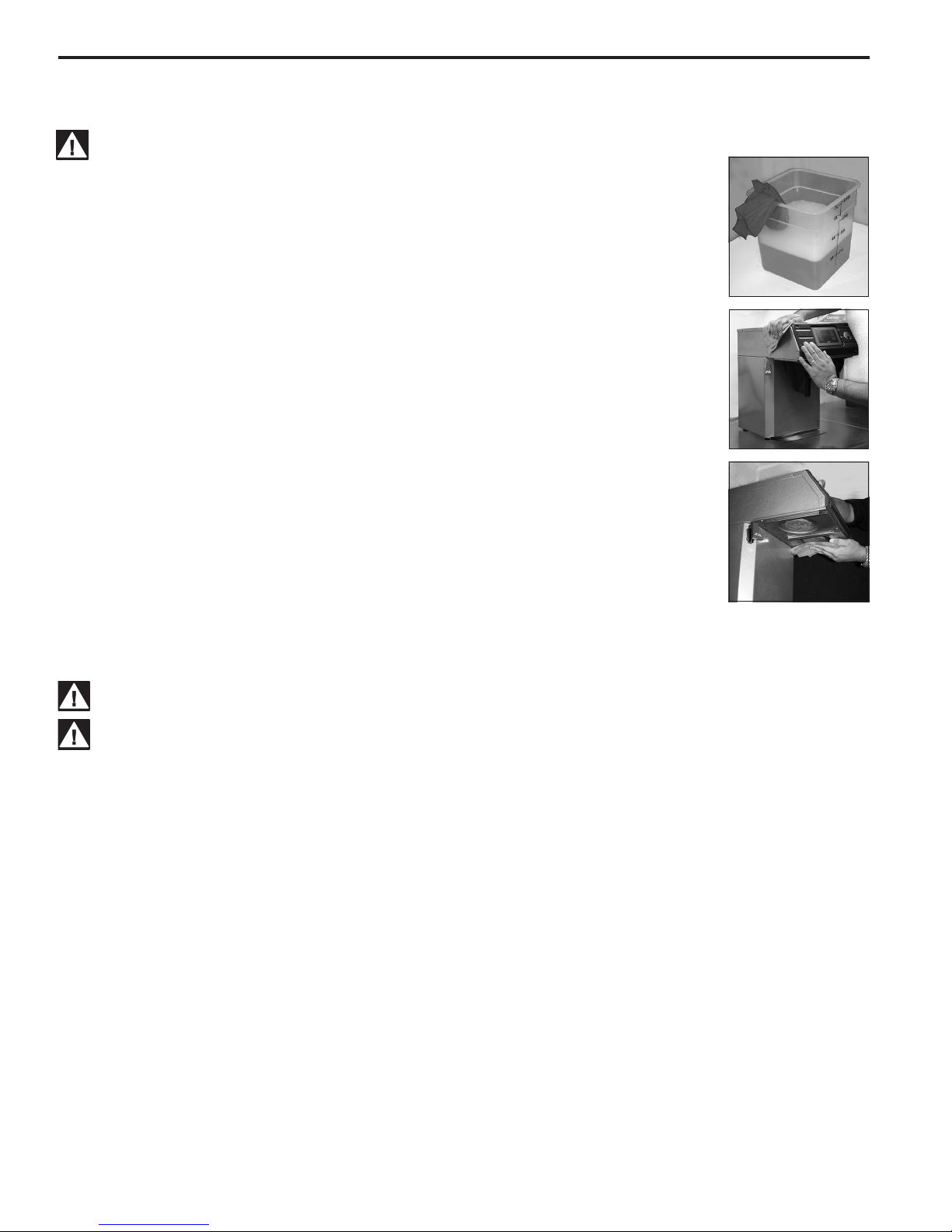

Liquid Level Probe
Cleaningintervalsfortheprobearetobedeterminedbytheuserortheservicetech,basedon
waterconditions.Theuseofwaterlters,orthetypeofwaterlterthatisbeingusedcanimpacttheserviceinterval.
Intervalscanbefromonemonthtoseveralyears,however,replacingratherthancleaningtheprobeispreferable.
WARNING:Disconnectelectricalpowerbeforeremovingaccesspanels!
CAUTION: Thisprocedureinvolvesworkingwithhotwaterandhotsurfaces!
1. Unplug the power cord and shut off the water line.
2. Removethetopcoveroftheunit.Locatethetopofthetankandremovethecover.
3. Drainthetanktoalevelabout3”belowthetipoftheprobe.
4. Allowsometimefortheprobetocoolbeforeworkingonthebrewer.
5. CleanthetipoftheprobeusingaScotch-BriteTMscuff pad.
6. Ifaresidualwhitelayerisstillvisibleontheprobe,removetheprobeandsoakitinvinegarorascaleremoving
chemical.Repeatthisstepuntilthewhitelayerisremoved.

17

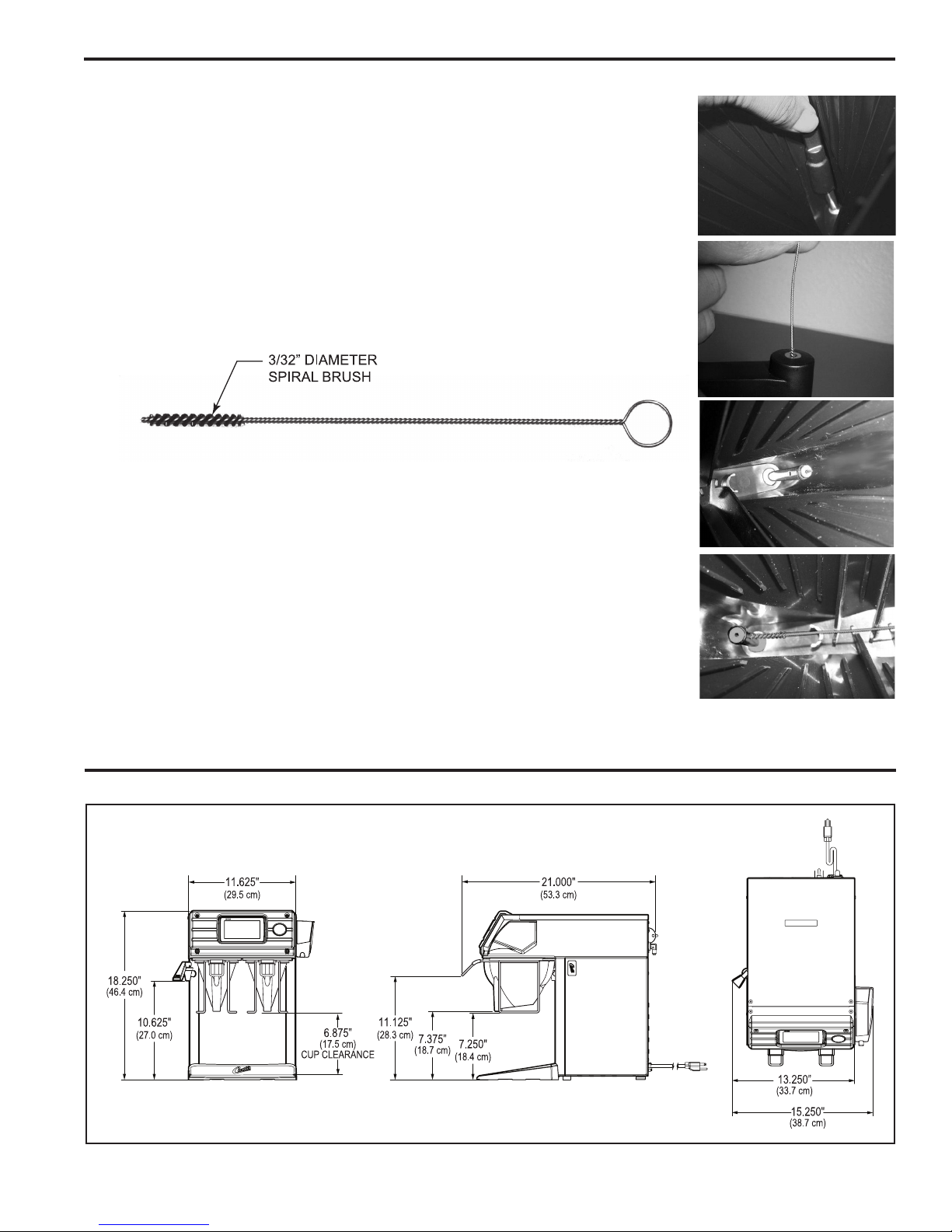

Cleaning the Brew Cones
Cleanthedispensingspoutofthebrewconeonceamonthormoreofteninlocations
wheretheunitgetsheavyuse.
1. Lookintothebrewconetolocatethecapcoveringthespouttube.Removethis
capbygraspingthetopportionandpullingitstraightup.
2. Cleantheinsideoriceofthespouttube.Forbettercleaning,youcanmixa
milddishwashingsolutiontousewhilecleaning.Insertasmallbrushthrough
thespouttubefromtheoutsideofthebrewcone.Spinthebrushafewtimesto
removeanycoffeeresidue.
 Lookinsidethebrewconeandverifythatthebrushhasgonecompletely
through the spout.
3. Cleanthesmallopeningonthesideofthespouttube.Insertthebrushintothe
sideopeningandspinitafewtimes.Runthebrushcompletelythroughtheside
opening.
4. Rinsethebrewconewithclearwater.Observetheowofwaterfromthedis-
pensingspouttomakesureyouhaveagoodow.Coverthespouttubewiththecap.
Rough-In Drawing

18
ECN 14441 . 9/25/[email protected] . revE
8/15/[email protected] . ECN 14340 . revD
4/19/12 @ 10.0 . ECN 14010 . rev C
3/28/[email protected] 13964 . rev B
11/1/11@14.5 . ECN 13598
7/27/[email protected] . EDR 7960
Product Warranty Information
The Wilbur Curtis Company certies that its products are free from defects in material and workmanship under normal use. The following limited
warranties and conditions apply:
3 Years, Parts and Labor, from Original Date of Purchase on digital control boards.
2 Years, Parts, from Original Date of Purchase on all other electrical components, ttings and tubing.
1 Year, Labor, from Original Date of Purchase on all electrical components, ttings and tubing.
Additionally, the Wilbur Curtis Company warrants its Grinding Burrs for Forty (40) months from date of purchase or 40,000 pounds of coffee,
whichever comes rst. Stainless Steel components are warranted for two (2) years from date of purchase against leaking or pitting and replace-
ment parts are warranted for ninety (90) days from date of purchase or for the remainder of the limited warranty period of the equipment in which
the component is installed.
All in-warranty service calls must have prior authorization. For Authorization, call the Technical Support Department at 1-800-995-0417. Effective
date of this policy is April 1, 2003.
Additional conditions may apply. Go to www.wilburcurtis.com to view the full product warranty information.
CONDITIONS & EXCEPTIONS
The warranty covers original equipment at time of purchase only. The Wilbur Curtis Company, Inc., assumes no responsibility for substitute replace-
ment parts installed on Curtis equipment that have not been purchased from the
Wilbur Curtis Company, Inc. The Wilbur Curtis Company will not accept any responsibility if the following conditions are not met. The warranty
does not cover and is void under the following circumstances:
1) Improper operation of equipment: The equipment must be used for its designed and intended purpose and function.
2) Improper installation of equipment: This equipment must be installed by a professional technician and must comply with all local electrical,
mechanical and plumbing codes.
3) Improper voltage: Equipment must be installed at the voltage stated on the serial plate supplied with this equipment.
4) Improper water supply: This includes, but is not limited to, excessive or low water pressure, and inadequate or uctuating water ow
rate.
5) Adjustments and cleaning: The resetting of safety thermostats and circuit breakers, programming and temperature adjustments are the
responsibility of the equipment owner. The owner is responsible for proper cleaning and regular maintenance of this equipment.
6) Damaged in transit: Equipment damaged in transit is the responsibility of the freight company and a claim should be made with the car-
rier.
7) Abuse or neglect (including failure to periodically clean or remove lime accumulations): Manufacturer is not responsible for variation
in equipment operation due to excessive lime or local water conditions. The equipment must be maintained according to the manufacturer’s
recommendations.
8) Replacement of items subject to normal use and wear: This shall include, but is not limited to, light bulbs, shear disks, “0” rings, gaskets,
silicone tube, canister assemblies, whipper chambers and plates, mixing bowls, agitation assemblies and whipper propellers.
9) Repairs and/or Replacements are subject to our decision that the workmanship or parts were faulty and the defects showed up under normal
use. All labor shall be performed during regular working hours. Overtime charges are the responsibility of the owner. Charges incurred by
delays, waiting time, or operating restrictions that hinder the service technician’s ability to perform service is the responsibility of the owner
of the equipment. This includes institutional and correctional facilities. The Wilbur Curtis Company will allow up to 100 miles, round trip, per
in-warranty service call.
RETURN MERCHANDISE AUTHORIZATION: All claims under this warranty must be submitted to the Wilbur Curtis Company Technical
Support Department prior to performing any repair work or return of this equipment to the factory. All returned equipment must be repackaged
properly in the original carton. No units will be accepted if they are damaged in transit due to improper packaging. NO UNITS OR PARTS WILL
BE ACCEPTED WITHOUT A RETURN MERCHANDISE AUTHORIZATION (RMA). RMA NUMBER MUST BE MARKED ON THE CARTON
OR SHIPPING LABEL. All in-warranty service calls must be performed by an authorized service agent. Call the Wilbur Curtis Technical Sup-
port Department to nd an agent near you.
9/2012 . F-3821 rev E
WILBUR CURTIS CO., INC.
6913 Acco St., Montebello, CA 90640-5403 USA
Phone: [phone] Fax: [phone]
Technical Support Phone: [phone] (M-F 5:30A - 4:00P PST) E-Mail: [email protected]
Web Site: www.wilburcurtis.com
