1. SONG METER MINI BAT 2 QUICKSTART GUIDE
Out of the box, the Song Meter Mini Bat 2 can be quickly configured to run one of several preset
schedules that cover common use cases.
1. Unlatch and open the lid on the Song Meter Mini Bat 2.
2. Depending on the version, insert four or eight AA baeries or between one and six Lithium-
ion baeries.
For additional information regarding baeries, see Baeries and Power (page 109).
3. Insert an SD Card into the recorder's SD Card slot.
For additional information regarding SD cards, see SD Card Compatibility (page 112).
4. Slide the ON/OFF switch to ON .
If the Bluetooth ® LED flashes red, this indicates that the recorder's internal clock is not set. It
will be set when pairing.
1. Install the Song Meter Configurator app from the Apple App Store or Google Play Store onto
your mobile device.
2. Check that Bluetooth is enabled on your mobile device.
3. Open the Song Meter Configurator app.
The Recorders screen will be displayed. The Song Meter Mini Bat 2 will automatically be
detected by the app and will appear in the Recorders screen.
4. Press and hold the PAIR/STATUS buon on the Song Meter Mini Bat 2 for three seconds.
The Bluetooth LED will blink green, indicating the recorder is ready to pair with the app.
In the Song Meter Configurator app Recorders screen, the Pair icon is displayed next to the
Song Meter Mini Bat 2.
5. Tap the Pair icon.
The icon will turn green, indicating successful pairing.
A pop-up message will appear asking if you want to set the recorder's time zone to your mobile
device's time zone.
• Tap Yes.
A pop-up message will appear asking if you want to set the recorder's location to your mobile
device's location.
1. Tap Yes.
2. Tap the Configure icon for the paired Song Meter Mini Bat 2 in the Recorders screen.
The Configuration Editor screen is displayed.
• Select a preset recording schedule from the drop-down menu and make any desired seings
changes.
The Song Meter Mini Bat 2 is now ready to deploy and record using the schedule you selected.
Song Meter Mini Bat 2 User Guide
4

NOTE
Any changes made in the Configuration Editor screen are immediately loaded
and saved into the Song Meter Mini Bat 2. There is no need to manually save
changes. If the Song Meter Mini Bat 2 is unpaired or powered o, it will
remember any changes made from within the Configuration Editor screen.
Song Meter Mini Bat 2 User Guide
5

2. USEFUL RESOURCES
2.1. WHERE TO FIND THIS USER GUIDE
This user guide is published in multiple locations:
• View a PDF in your web browser or download to your device at www.wildlifeacoustics.com/
resources/user-guides.
• In the Song Meter Configurator app, open App Info > User Guide.
The Song Meter Configurator app can be installed from the Apple App Store and Google Play
Store.
NOTE
This user guide is updated regularly. If you use a saved copy of the PDF to view
this guide, consider checking our website for an updated version. Whenever you
update the Song Meter Configurator app, the latest version of the user guide is
installed with the app.
2.2. DOWNLOAD FIRMWARE UPDATES
We regularly update firmware to fix issues and introduce new features. New firmware versions
can be found on our Downloads page.
NOTE
You must have a user account on wildlifeacoustics.com to access our Downloads
page. Only an email address is required to create a user account.
2.3. DESKTOP CONFIGURATOR
If you prefer to configure your recorder seings from a desktop or laptop computer, you
can download desktop configurator software for free on our Downloads page. You can export
a configuration file from the configurator to load into the Song Meter Mini Bat 2 (see Load
Firmware or a Configuration from Card (page 48)).
Note that the Song Meter Configurator mobile app must be used to update the Song Meter Mini
Bat 2's date and time over Bluetooth.
2.4. VIDEO TUTORIALS
Visit our Video Tutorials page to view tutorial videos for the Song Meter Mini Bat 2.
2.5. FREQUENTLY ASKED QUESTIONS
You can find answers to many common questions on our website, under Resources > Frequently
Asked Questions.
hps://www.wildlifeacoustics.com/resources/faqs
Song Meter Mini Bat 2 User Guide
6

2.6. DON’T MISS OUT ON IMPORTANT UPDATES
We continually add features to the Song Meter Mini Bat 2. Stay up to date with the newest
features and receive important technical support bulletins by signing up to our Mailing List.
2.7. CONTACTING SUPPORT
For technical questions, contact the Wildlife Acoustics support team using one of the methods
below. If contacting us via our website, please provide as much detail as you can so we can
provide eective help as quickly as possible.
•www.wildlifeacoustics.com/contact-us
• North America (toll-free): 1-888-733-0200
• Outside North America (toll charges may apply): [phone]
Song Meter Mini Bat 2 User Guide
7

3. INTRODUCTION
3.1. ABOUT THE SONG METER MINI BAT 2
The Wildlife Acoustics Song Meter Mini Bat 2 oers simple, yet innovative tools for detecting and
recording bats. With the addition of the optional acoustic microphone, the Song Meter Mini Bat
2 can also be used to record birds, frogs, and other lower-frequency environmental sounds.
The Song Meter Mini Bat 2 leverages the processing power of modern smartphones with the
Song Meter Configurator app. This companion app allows you to program the seings and
schedules of multiple recorders and to check essential status info like baery and card usage
from within Bluetooth range of the recorder.
3.2. CHANGES FROM THE SONG METER MINI BAT TO THE SONG
METER MINI BAT 2
The Song Meter Mini Bat 2 builds on the first-generation Song Meter Mini Bat by taking into
account the feedback we have received from users running all types of deployments since the
original product's launch in 2020.
The first- and second-generation recorders share much in common, and users coming from the
original Song Meter Mini Bat will find themselves well at home with the new Song Meter Mini
Bat 2. However, there are several major improvements worth highlighting, as well as functional
dierences that we recommend keeping in mind, particularly if you have a mixed fleet of first-
and second-generation recorders.
3.2.1. Improved Enclosure
The Song Meter Mini Bat 2's enclosure has been completely redesigned. It is now more robust and
easier to use.
While the first-generation Song Meter Mini Bat's enclosure was comprised of a separate base
and lid, the enclosure of the Song Meter Mini Bat 2 is joined by a permanent hinge, and the new,
lockable latch can be more easily operated with one hand. The latch can be locked close using an
appropriately sized padlock, without requiring an additional security bracket.
NOTE
The optional Security Bracket accessory for the first-generation Song Meter Mini
Bat is not compatible with the Song Meter Mini Bat 2.
The seal between the two halves of the enclosure has been improved, and the enclosure
(excluding acoustic stub mics) passes IP67 standards. This means it is completely sealed against
dust and can withstand temporary submersion in water up to a depth of one meter without
leaking. Note that installed acoustic stub mics can be damaged by underwater submersion, but
they are protected against rain.
The back of the Song Meter Mini Bat 2 features a tripod-style, ¼”-20 threaded mounting point.
This enables you to mount the recorder using many accessories designed for trail cameras and
similar devices.
For more detailed information on the new enclosure, see Song Meter Mini Bat 2
Hardware (page 12).
Song Meter Mini Bat 2 User Guide
8

3.2.2. Baery Configuration
The original Song Meter Mini Bat had one built-in AA baery tray, allowing the use of four AA
baeries by default. The optional Lithium-Ion Lid accessory replaced the standard lid with a
compartment for up to six 18650 lithium-ion baeries, installed in pairs.
The Song Meter Mini Bat 2 now comes in two entirely separate versions, AA and Li-ion, each with
a permanently installed baery tray for its respective baery type. See Baery Configuration
Versions (page 10) for more detail.
NOTE
The Song Meter Mini Bat 2 is not compatible with the Lithium-Ion Lid accessory
for the first generation Song Meter Mini Bat.
AA Baeries
The Song Meter Mini Bat 2 AA can be used with either four or eight AA baeries. With eight AA
baeries installed, you can record for twice as long as the original Song Meter Mini Bat could with
AA baeries. Ribbons built into the AA baery trays allow you to remove baeries much more
easily.
FOUR OR EIGHT: MAXIMUM AA VOLTAGE IS THE SAME
AA baeries in the Song Meter Mini Bat 2 AA are wired in two parallel sets of
four baeries. This means that the recorder's Status screen will show the same
voltage reading whether four or eight brand-new baeries are installed. The
voltage reading on a recorder with eight baeries will decline at half the speed
compared to a recorder with four baeries.
Lithium-Ion Baeries
The Song Meter Mini Bat 2 Li-ion can be used with any number of 18650 baeries between
one and six. Unlike the first-generation Song Meter Mini Bat's Lithium-Ion Lid accessory, 18650
baeries do not need to be installed in pairs.
CHANGE IN VOLTAGE READING
The original Song Meter Mini Bat's Lithium-Ion Lid used pairs of 18650 baeries
in parallel with other pairs of baeries. The new Song Meter Mini Bat 2 Li-ion
uses individual 18650 baeries in parallel with each other. This means that the
voltage reading on the Song Meter Mini Bat 2Li-ion's Status screen is half that of
the original Song Meter Mini Bat, despite having the same possible deployment
time.
For example, with six fully charged 18650 baeries, a first-generation Song Meter
Mini Bat will display a voltage of 8.4 V, while a Song Meter Mini Bat 2 will display a
voltage of 4.2 V. Both recorders have the same total energy available despite the
voltage dierence.
Song Meter Mini Bat 2 User Guide
9

3.2.3. New Ultrasonic Microphone
The Song Meter Mini Bat 2 uses a dierent microphone from the original Song Meter Mini Bat.
While the characteristics are generally very similar, it is approximately 10 dB more sensitive in
the ranges 20-50 kHz and 70-105 kHz.
Figure 1. Sensitivity and Noise of the Song Meter Mini Bat 1 and 2 Ultrasonic
Microphones
3.2.4. Configuration and Firmware Files are Cross-Compatible
The Song Meter Mini Bat and Song Meter Mini Bat 2 run the same firmware versions, meaning
both will be improved by the same new features and bug fixes as we release firmware updates.
Both recorders can also share configuration files. A configuration file exported from a Song
Meter Mini Bat can be imported into a Song Meter Mini Bat 2, and vice-versa. This provides a
simple way to maintain consistent seings across a mixed fleet of recorders.
NOTE
Configuration files that include the use of an optional second microphone
cannot be completely imported into a recorder that does not have the second
microphone installed. Relevant seings will be altered to only use the available
microphone.
3.3. BATTERY CONFIGURATION VERSIONS
The Song Meter Mini Bat 2 can be purchased with one of two options for baery power:
• The Song Meter Mini Bat 2 AA can run on either four or eight AA baeries.
Alkaline, NiMH, and Energizer® Ultimate Lithium™ baeries can be used. All installed baeries
must match. See Types of AA Baeries (page 109) for more information.
• The Song Meter Mini Bat 2 Li-ion can run on between one and six 18650 Lithium-ion (Li-ion)
baeries. See Lithium-Ion Baery Requirements (page 110) for details on choosing compatible
baeries.
Song Meter Mini Bat 2 User Guide
10

NOTE
These are two separate versions of the Song Meter Mini Bat 2. Neither version can
be converted or reconfigured to use the other type of baery.
The type of baery used significantly aects deployment time. As a general rule, 18650 Lithium-
ion baeries hold significantly more energy than AA baeries, and they are, by definition,
rechargeable. Using six, high-quality 18650 Lithium-ion baeries will enable the longest possible
deployments with the Song Meter Mini Bat 2.
Other than the dierences in baery compatibility, the AA and Li-ion versions of the Song Meter
Mini Bat 2 are identical in functionality.
IMPORTANT
Lithium-ion baeries are not to be confused with Energizer® Ultimate Lithium™
(Lithium/Iron Disulfide) baeries.
18650 Lithium-ion baeries are larger and put out a much higher voltage than
all types of AA baeries. 18650 Lithium-ion baeries therefore cannot be used
interchangeably with any AA baery.
For specifications regarding baeries and deployment times, see: Baeries and Power (page 109).
Song Meter Mini Bat 2 User Guide
11

4. SONG METER MINI BAT 2 HARDWARE
4.1. EXTERNAL FEATURES
Figure 2. Front-Left View
1. The Enclosure Latch snaps into place to keep the two halves of the enclosure sealed.
2. One of two Mounting Loops, which can accommodate bungee cords, rope, or cable locks up
to a diameter of 0.420'' (10.67 mm).
3. The Ultrasonic Microphone is installed flush with the enclosure, protected from water and
animals by a metallic mesh over a water-proof membrane. See Microphones (page 21).
4. The Enclosure Hinge keeps the lid and body of the recorder permanently aached.
Song Meter Mini Bat 2 User Guide
12

Figure 3. Front-Right View
1. A Padlock Loop allows the enclosure to be locked closed. See Padlock Compatibility (page 15)
for padlock size recommendations.
2. One of two Mounting Loops, which can accommodate bungee cords, rope, or cable locks up
to a diameter of 0.420'' (10.67 mm).
3. A Microphone Port can accommodate a second, acoustic microphone. When no second
microphone is installed, the port is occupied by a plastic hex bolt. See Install a Second
Microphone (page 22).
4. The Bar Code Label lists the recorder's Model Name and Serial Number.
5. A water-proof Vent regulates humidity and pressure inside the enclosure.
Song Meter Mini Bat 2 User Guide
13

Figure 4. Rear View
1. The upper and lower Mounting Tabs can accommodate bolts or screws with a maximum
thread diameter of 3/16′′ (4.6 mm). They can also serve as aachment points for bungee
cords or zip ties.
2. A Tripod Mount fits a 1/4ʺ-20 bolt, the same specification used by many cameras, including
trail cameras.
4.1.1. Durable, Weather-Proof Enclosure
The Song Meter Mini Bat 2 recorder is designed for long-term, outdoor deployment. Made from
durable polycarbonate plastic, it is UV-resistant and weatherproof. The enclosure meets IP67
standards, with the exclusion of Acoustic Microphones. This rating means it is dust-tight and
can withstand temporary submersion in water up to a depth of one meter without leaking. Note
that installed acoustic stub mics can be damaged by underwater submersion, though they are
protected against rain.
A reusable humidity regulation pack (hidden inside the enclosure) and a moisture vent regulate
humidity and pressure inside the enclosure. The vent is protected internally by a membrane that
blocks liquid water while allowing water vapor to exit the enclosure.
4.1.2. Versatile Mounting Options
The enclosure of the Song Meter Mini Bat 2 is equipped with aachment points that support a
wide range of mounting options:
•Mounting Tabs at the top and boom of the enclosure's back feature holes suitable for bolts or
screws up to 3/16′′ (4.6 mm) in diameter. They can also be used for aaching bungee cord hooks
or zip ties, for example.
•Mounting Loops at the upper-left and upper-right of the enclosure are suitable for cable locks,
rope, zip ties, or bungee cords, among other possibilities. The internal diameter of these loops
is 0.420'' (10.67 mm).
• The Tripod Mount on the back of the enclosure fits a 1/4ʺ-20 bolt, enabling compatibility with
many mounting accessories designed for trail cameras.
Song Meter Mini Bat 2 User Guide
14

NOTE
Be aware that not all camera mounts use the same bolt specification. For
example, mounts designed for heavy video cameras may use a 3/8ʺ-16 bolt.
Check the manufacturer's specifications when shopping for a compatible
mount.
IMPORTANT
With any mounting method, be careful not to apply excess force to the enclosure
of the Song Meter Mini Bat 2. If too much force is applied, the enclosure can
flex, opening gaps between the lid and body and compromising the recorder's
waterproofing.
Take extra care when aaching the recorder to young trees. The tree's growth
over the course of a deployment could increase the strain on the enclosure.
4.1.3. Lock Compatibility
The enclosure of the Song Meter Mini Bat 2 is designed to support two layers of security:
• A cable lock can be threaded through the two Mounting Loops along the top of the Song Meter
Mini Bat 2 to keep it aached to a tree or structure.
• A padlock can be inserted through the Padlock Loop to keep the enclosure latch closed.
Cable Lock Compatibility
The diameter of a cable lock must be narrower than 0.420'' (10.67 mm) to fit through the two
Mounting Loops.
Padlock Compatibility
The internal diameter of the Padlock Loop is 0.268'' (6.81 mm). We recommend a padlock with a
shackle diameter of 1/4'' (6.35 mm). This size does allow some movement of the latch, but not
enough that it compromises the IP67 waterproof rating of the Song Meter Mini Bat 2 enclosure.
WARNING
Do not use a padlock with a shackle thinner than 1/4'' (6.35 mm). A thinner shackle
will allow the latch to be undone partially or completely, allowing water to get in,
or allowing the lid to be fully opened.
Note that damage to any part of the Song Meter Mini Bat 2 's plastic enclosure can
compromise the eectiveness of these security features. If your recorder has
been damaged, contact Wildlife Acoustics Support to arrange a repair.
4.1.4. Optional Acoustic Microphone Port
The Song Meter Mini Bat 2 has a port for an optional acoustic microphone. When installed, this
allows the recorder to alternate between recording ultrasound and recording audio in the range
of human hearing.
Song Meter Mini Bat 2 User Guide
15

The optional, second microphone can be installed on the right edge of the recorder. When the
optional microphone is not installed, a plastic bolt and rubber gasket are used to seal the port.
For instructions on installing the optional acoustic microphone, see Install a Second Microphone
(page 22).
4.2. INTERNAL FEATURES
Figure 5. Internal Overview
1. The Status LED Key provides a guide for understanding the STATUS LEDs. This table can also
be found under Status LEDs (page 20).
2. The Control Panel is where you'll find physical controls for turning the Song Meter Mini
Bat 2 on, checking its status, initiating pairing, and performing several other functions. See
Figure 6: “Control Panel” for a detailed image of this section.
3. The Baery Compartment holds either eight AA baeries or six 18650 Lithium-ion
baeries, depending on the recorder version. The Li-ion version is shown here. See Baery
Compartment (page 16).
4. The SD Card slot holds a full-size SD card with a capacity up to 2 TB for storing recordings
and other files.
5. The Right Mic port allows you to connect a second, acoustic microphone to the recorder.
See Install a Second Microphone (page 22).
4.2.1. Baery Compartment
The lid of the Song Meter Mini Bat 2 holds the recorder's baeries. Depending on the version of
the recorder, it holds either AA baeries or 18650 Lithium-ion baeries.
Song Meter Mini Bat 2 User Guide
16

AA Baery Compartment
The AA baery compartment holds two plastic baery trays. Each tray holds four AA baeries,
and you can power the recorder with four or eight AA baeries in total.
If you use only four AA baeries, all four must be installed in the same tray.
Each tray is equipped with a ribbon. When installing AA baeries, position the ribbon underneath
the baeries. Pulling on the ribbon will then let you easily remove the baeries.
IMPORTANT
When inserting baeries, start near the aached end of each ribbon at the outer
side of each tray and work towards the free end. This will ensure the ribbon has
enough slack to make room for each baery. Without enough slack, the ribbon
may push baeries out of the tray.
If only using four AA baeries, make sure the ribbon aached to the empty
baery tray does not interfere with the seal between the lid and base of the
recorder enclosure.
For information on the dierent types of AA baeries, including Energizer® Ultimate Lithium™,
see Types of AA Baeries (page 109).
BEST PRACTICES FOR AA BATTERIES
• Do not mix multiple types of baeries (e.g. combining alkaline with NiMH).
This applies even when using eight AA baeries. All eight baeries must be of
the same type.
Ideally, all baeries should be of the same brand and model. Mixing baeries
with dierent characteristics can produce unpredictable results.
• Do not mixed new or freshly charged baeries with used or uncharged
baeries. A single dead baery will prevent the entire set from functioning.
• Ensure baeries are oriented with the correct positive/negative polarity.
• Remove baeries before storage.
Lithium-Ion Baery Compartment
The Lithium-ion baery holder lid holds between one and six Lithium-ion 18650 baeries. You can
install any number of 18650 baeries in any of the slots, and the recorder will work as intended,
but using more baeries provides longer run time. See Lithium-Ion Baery Requirements (page
110) for more details on choosing appropriate baeries.
If using fewer than six Lithium-ion baeries, we recommend inserting baeries starting from
the left. Because the plastic cover with the Status LED Key contacts the four left-most baeries
when the enclosure is closed, those four baery trays are the most secure slots. When all six
baery slots are filled, or when up to four baeries are installed in the left-most slots, baeries
are least likely to be shaken out of place by a strong impact.
Song Meter Mini Bat 2 User Guide
17

BEST PRACTICES FOR LITHIUM-ION BATTERIES
• Do not mix freshly charged baeries with drained baeries.
• Unlike many rechargeable AA baeries, lithium-ion baeries are shipped with
no stored charge. You must charge them before initial use.
• Ensure baeries are oriented with the correct positive/negative polarity.
• Remove baeries before storage.
• At the deployment site, make sure baeries were not knocked loose during
travel.
WARNING
There are strict regulations on shipping and traveling with lithium-ion baeries
in many parts of the world. Consult applicable laws before air travel or when
planning to ship lithium-ion baeries.
4.2.2. SD Card Slot
The Song Meter Mini Bat 2 recorder saves recording files and a summary log to an SD card
installed in the memory card slot.
To insert an SD card, slide it into the slot until it clicks into place. To remove, gently press the card
further into the slot until it clicks again, and let the internal spring mechanism eject the card.
• Only remove the SD card after seing the power switch to OFF and waiting until all Status LEDs
have turned o.
• Use the Song Meter Configurator app to check recording space available on the SD card.
NOTE
Wildlife Acoustics recommends the SanDisk® brand of SD cards for their superior
performance.
NOTE
Be sure the card’s write protection switch is “o.” The Song Meter Mini Bat 2
recorder will not record to a write-protected card.
Song Meter Mini Bat 2 User Guide
18

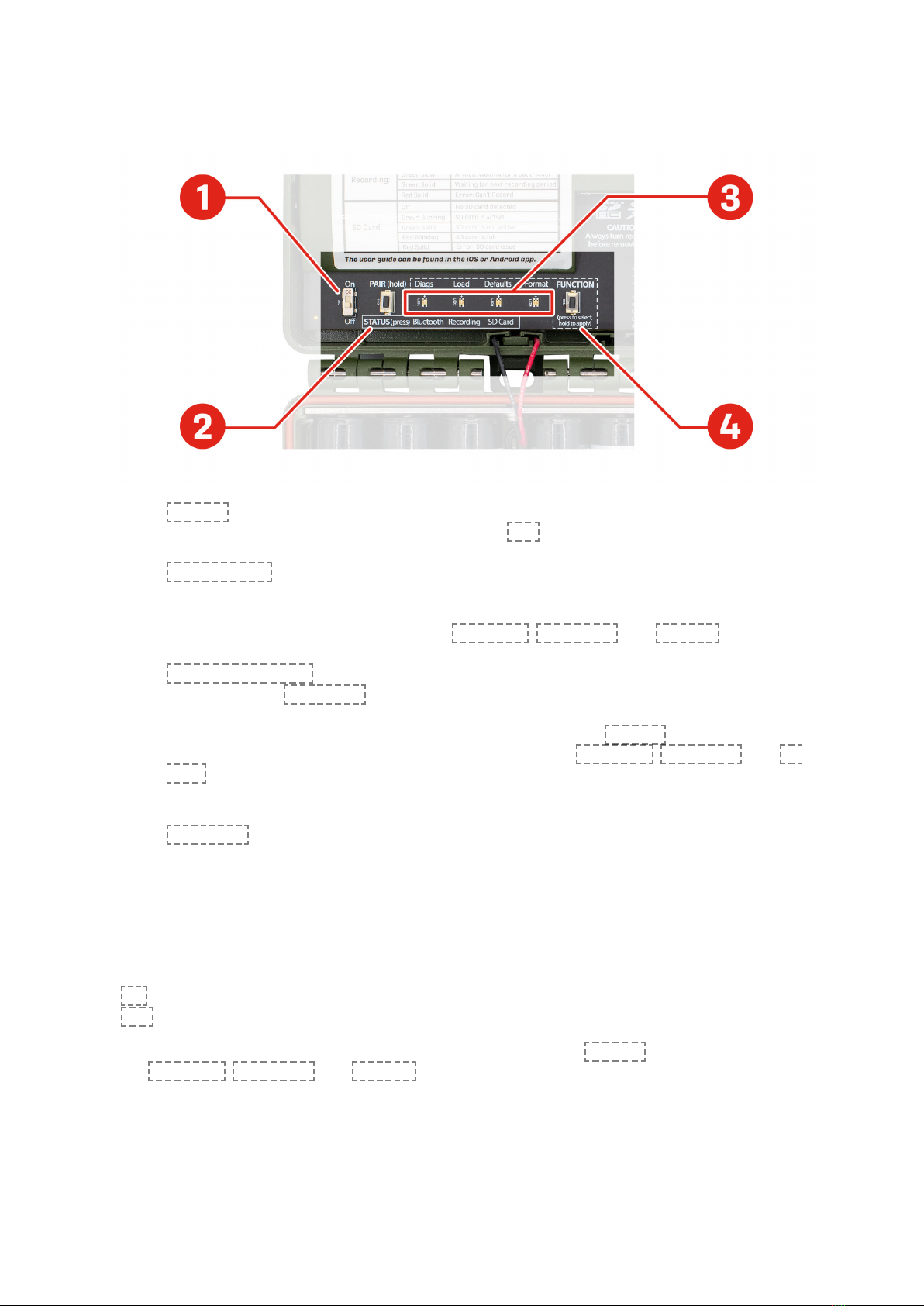

Figure 6. Control Panel
1. The ON/OFF switch determines whether the Song Meter Mini Bat 2 is fully active or in a
low-power, idle state. It is safe to set the switch to OFF at any time without risking data loss.
See ON/OFF Switch (page 19).
2. The PAIR/STATUS buon serves two functions:
a. Press and hold the buon to initiate pairing with the Song Meter Configurator app. See
Pair the Recorder with the Song Meter Configurator app (page 36).
b. Press the buon briefly to activate the Bluetooth , Recording , and SD Card LEDs to
indicate the recorder's current status.
3. The FUNCTION/STATUS LEDs serve two purposes:
a. When using the FUNCTION buon, refer to the labels above the LEDs to get feedback on
Function selection and progress. See Function Buon and LEDs (page 20)l.
b. When the Song Meter Mini Bat 2 is powered on, or when the STATUS buon is pressed
briefly, the three left-most LEDs indicate the recorder's Bluetooth , Recording , and SD
Card status (see Status LEDs (page 20)).
This information is also communicated via the Song Meter Configurator app (see Status
Screen (page 32)).
4. The FUNCTION buon can be used to select and initiate four functions (see Function Buon
and LEDs (page 20)).
These functions can also be initiated via the Song Meter Configurator app (see Utilities Menu
(page 44) and Load and Save Configurations from the Configuration Editor Screen (page
42)).
4.2.3. ON/OFF Switch
•ON (up position): Full power is enabled. Schedule is started.
•OFF (down position): The recorder enters a low-power idle state. Schedule is stopped.
When the Song Meter Mini Bat 2 recorder is first powered on, the STATUS LEDs
show Bluetooth , Recording , and SD Card status. If the recorder is unpaired and its buons
are not touched for one minute, the LEDs will turn o.
Song Meter Mini Bat 2 User Guide
19

NOTE
When the Song Meter Mini Bat 2 recorder is switched o, it goes through a
routine to end and save any current recording. This can take a few seconds.
4.2.4. Status LEDs
The three Status LEDs on the recorder provide Bluetooth , Recording , and SD Card
information .
The Status LEDs remain active while the recorder is paired with the Song Meter Configurator
app.
The table of Status LED definitions, below, is also printed inside the enclosure, just above the
Status LEDs.
Table 1. Status LED Key
LED Label LED Activity Status Meaning
Bluetooth O Not paired
Green Blinking Pairing
Green Solid Paired
Red Blinking Clock needs to be set
Red Solid Pair failed
Recording Green Blinking Recording (*Triggered)
Green Slow *Armed and waiting for trigger
Green Solid Waiting for next recording period
Red Solid Cannot record
SD Card O No card detected
Green Blinking Card is active: do not eject
Green Solid No activity: safe to eject
Red Blinking SD Card full
Red Solid SD Card issue
*Triggered ultrasonic mode only
4.2.5. Function Buon and LEDs
The physical controls on the Song Meter Mini Bat 2 allow you to perform four basic functions
without the Song Meter Configurator app.
Available Functions
There are four FUNCTION LEDs:
•Diags : This runs an internal diagnostic check. Two files are then wrien to the SD card:
• A diagnostics file with a file name matching the format: [RECORDER
NAME]_[DATE]_[TIME].minidiags. This may be used by Wildlife Acoustics Support to
diagnose technical issues.
• A configuration file with the file name format [RECORDER NAME].miniconfig. This file
contains a copy of the recorder's seings. It can be used to load the same configuration into
another Song Meter Mini Bat 2.
Song Meter Mini Bat 2 User Guide
20
