Wilkerson L12 Installation and maintenance instructions

Installation & Service Instructions:
83-955-000
1/4" & 3/8"
L12 Atomist Lubricators
ISSUED: September, 2002
Supersedes: November, 2001
ECN020442, Rev.2
!
!
WARNING
To avoid unpredictable system behavior that can cause personal
injury and property damage:
• Disconnect electrical supply (when necessary) before installation,
servicing, or conversion.
• Disconnect air supply and depressurize all air lines connected to
this product before installation, servicing, or conversion.
• Operate within the manufacturer’s specified pressure, temperature,
and other conditions listed in these instructions.
• Medium must be moisture-free if ambient temperature is below
freezing.
• Service according to procedures listed in these instructions.
• Installation, service, and conversion of these products must be
performed by knowledgeable personnel who understand how
pneumatic products are to be applied.
• After installation, servicing, or conversion, air and electrical
supplies (when necessary) should be connected and the product
tested for proper function and leakage. If audible leakage is
present, or the product does not operate properly, do not put into
use.
• Warnings and specifications on the product should not be covered
by paint, etc. If masking is not possible, contact your local
representative for replacement labels.
WARNING
FAILURE OR IMPROPER SELECTION OR IMPROPER USE OF
THE PRODUCTS AND/OR SYSTEMS DESCRIBED HEREIN OR
RELATED ITEMS CAN CAUSE DEATH, PERSONAL INJURY AND
PROPERTY DAMAGE.
This document and other information from The Company, its
subsidiaries and authorized distributors provide product and/or system
options for further investigation by users having technical expertise. It
is important that you analyze all aspects of your application, including
consequences of any failure and review the information concerning
the product or systems in the current product catalog. Due to the
variety of operating conditions and applications for these products or
systems, the user, through its own analysis and testing, is solely
responsible for making the final selection of the products and systems
and assuring that all performance, safety and warning requirements
of the application are met.
The products described herein, including without limitation, product
features, specifications, designs, availability and pricing, are subject
to change by The Company and its subsidiaries at any time without
notice.
EXTRA COPIES OF THESE INSTRUCTIONS ARE AVAILABLE FOR
INCLUSION IN EQUIPMENT / MAINTENANCE MANUALS THAT UTILIZE
THESE PRODUCTS. CONTACT YOUR LOCAL REPRESENTATIVE.
Englewood, CO 80110
Safety: Polycarbonate Bowls
!
CAUTION
Polycarbonate bowls, being transparent and tough, are ideal for use with
Filters and Lubricators. They are suitable for use in normal industrial
environments, but should not be located in areas where they could be
subjected to direct sunlight, an impact blow, nor temperatures outside of the
rated range. As with most plastics, some chemicals can cause damage.
Polycarbonate bowls should not be exposed to chlorinated hydrocarbons,
ketones, esters and certain alcohols. They should not be used in air systems
where compressors are lubricated with fire-resistant fluids such as phosphate
ester and di-ester types.
Metal bowls are recommended where ambient and/or media conditions are
not compatible with polycarbonate bowls. Metal bowls resist the action of
most such solvents, but should not be used where strong acids or bases are
present or in salt laden atmospheres. Consult the factory for specific
recommendations where these conditions exist.
TO CLEAN POLYCARBONATE BOWLS USE MILD SOAP AND WATER
ONLY! DO NOT use cleansing agents such as acetone, benzene, carbon
tetrachloride, gasoline, toluene, etc., which are damaging to this plastic.
Introduction:
Follow these instructions when installing, operating, or servicing
the product.
Application Limits
These products are intended for use in general purpose
compressed air systems only.
With Polycarbonate Bowl
kPa PSIG bar
Operating Pressure Maximum 1024 150 10.2
Operating Temperature Maximum 52°C (125°F)
Operating Temperature Minimum 0°C (32°F)
With Metal Bowl
kPa PSIG bar
Operating Pressure Maximum 1734 250 17.3
Operating Temperature Maximum 80°C (175°F)
Operating Temperature Minimum 0°C (32°F)
ANSI Symbols
Installation
1. The lubricator should be installed with reasonable accessibility
for service whenever possible. Keep pipe or tubing lengths to a
minimum with inside clean and free of dirt and chips. Pipe joint
compound should be used sparingly and applied only to the
male pipe – never into the female port. Do not use PTFE tape
to seal pipe joints – pieces have a tendency to break off and
lodge inside the unit, possibly causing malfunction.
2. Install lubricator so air flows in the direction of arrow on body.
3. Installation should be upstream of the device it is to lubricate
(valve, cylinders, tool, etc.).
Operation and Service
1. The inlet pressure of the Atomist lubricator must be turned
off and depressurized before the fill plug (brass) is removed.
Turn counterclockwise to remove. Fill to oil level line.
Use a petroleum based oil of 100 to 200 SSU viscosity at
100°F and an aniline point greater than 200°F. (Mobil DTE24
and Sun Company Sunvis 932 are good examples). Do not
use oils with adhesives, compound oils containing solvents,
graphite, detergents or synthetic oils.
2. Replace the fill plug (by turning clockwise) and seat firmly.
Excessive torque is not required.Turn on air supply. If leakage
occurs, DO NOT OPERATE — conduct repairs again. The
lubricator is now ready for setting.
Lubricator
with Manual Drain
Lubricator
less Drain

L12 Atomist Lubricator 83-955-000
3. Oil delivery adjustment — To adjust oil delivery, turn
adjustment knob on top of the lubricator.
Leaner — Clockwise
Richer — Counterclockwise
By counting the number of drops per minute in the sight
dome, you can adjust to your requirements.
Atomist lubricator — Approximately 3% of the droplets visible
in the sight dome go downstream; adjust drip rate accordingly.
Consult oil delivery conversion chart.
Generally, one drop per minute downstream for every
10 - 15 SCFM flow is satisfactory.
25 drops per minute equals one (1) ounce per hour - volume
of oil passing through the sight dome.
Lightly grease with provided lubricant. (Silicone free)
Inspect for nicks, scratches, and surface imperfections.
If present, reduced service life is probable and future replacement
should be planned.
Clean with lint-free cloth.

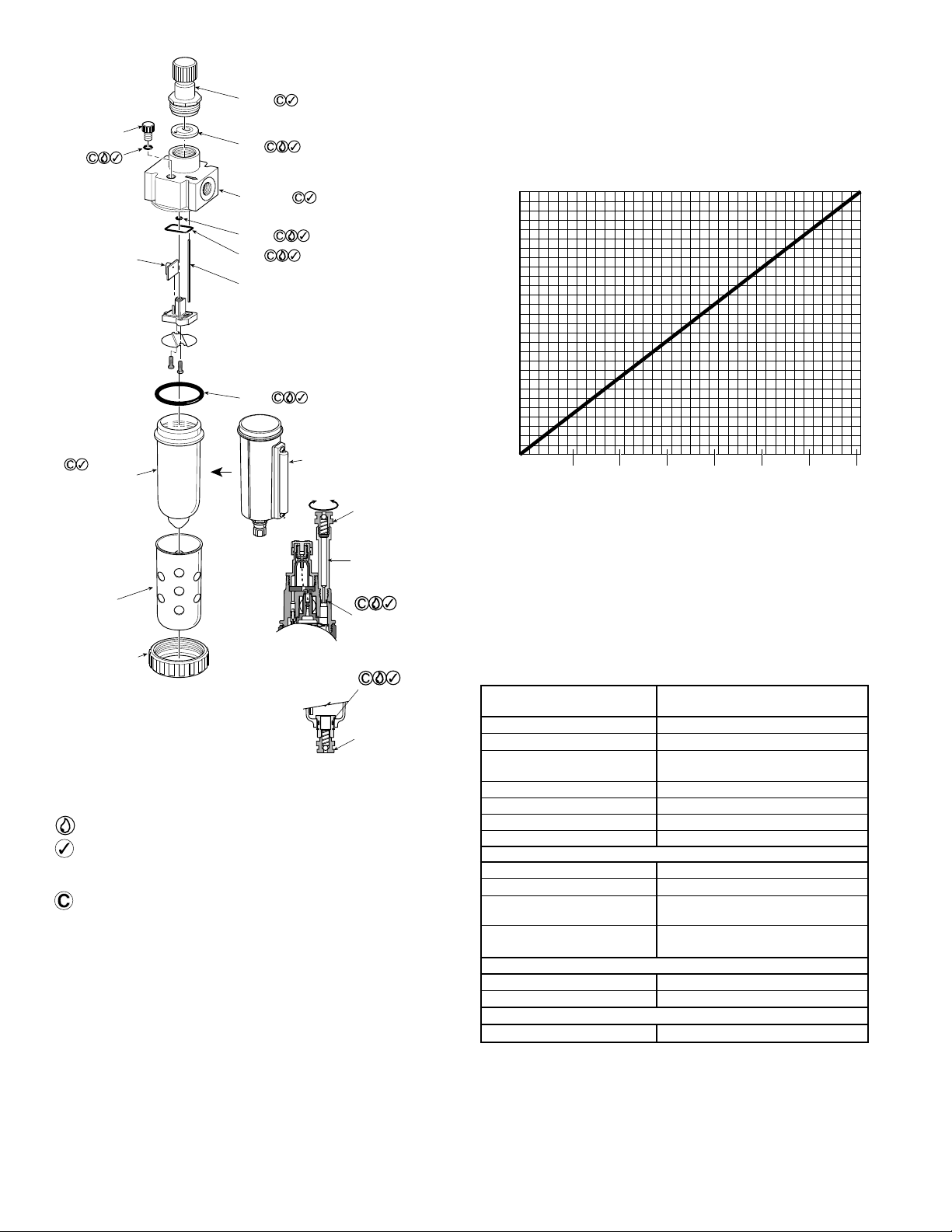

Filter Body
(Internal
Surfaces)
O-ring
O-ring
Metal Bowl
(Sight Glass
Shown)
Manual
Drain
O-ring
Fill Plug
Seal
Siphon Tube
Seal
Sight
Domel
Polycarbonate
Bowl
(See Warning)
(Do Not Scratch
Internal Surfaces)
Flapper
Retaining Collar
(Hand Tighten
Plus 1/4 Turn)
Bowl Guard
Body Force Fill Adapter Kit
LRP-96-302
Bowl Force Fill Adapter Kit
LRP-96-304
Fill Button Assembl
y
Torque:
2.8 to 3.4Nm
(35 to 30 in. lbs.)
O-ring
O-ring
Body Force
Fill Adapter
(Hand Tight)
Fill Button Assembly
Torque:
2.8 to 3.4Nm
(35 to 30 in. lbs.)
1
2
3
4
5
6
7
Downstream Delivery DPM
33 67 100 133 167 200 233
Dome Drip Rate DPM
Oil Delivery Conversion
3% of Drip Rate to Downstream
NOTE: This is a constant density type lubricator which delivers a
constant ratio of oil to air flow. Therefore, if air flow increases or
decreases, oil delivery will be adjusted proportionately. ONLY IF A
DIFFERENT RATIO IS DESIRED SHOULD YOUR ADJUSTMENT
KNOB SETTING BE CHANGED AFTER YOUR INITIAL SETTING.
4. To replace fill plug, drip control, & service lubricator:
A. Turn off air supply and depressurize the unit.
B. Refer to pictorial for servicing and torque values.
C. Turn on air supply and check lubricator for leakage. If
leakage occurs, DO NOT OPERATE — conduct repairs
again.
Service Kits Available
L12
Description 1/4" & 3/8"
Adjustment Knob LRP-96-300
Bowl Guard Kit GRP-96-345
Drip Control (Polycarbonate) LRP-96-307
and Fill Plug Kit
Lubricator Repair Kit LRP-96-309
Body Force Fill Adaptor Kit LRP-96-302
Sight Dome Kit LRP-96-301
Sight Gauge Kit GRP-96-346
Metal Bowl Kits
Manual Drain GRP-96-348
Piston Drain GRP-96-353
Sight Gauge & GRP-96-349
Manual Drain
Sight Gauge & LRP-96-305
Force Fill Adapter
Polycarbonate Bowl Kits
Manual Drain GRP-96-347
Bowl Force Fill Adapter Kit LRP-96-304
Drain Kits
Manual Drain GRP-96-340
