FM TOUR GUIDE SYSTEM
Model TGS 300
MANUAL AND USER GUIDE
MAN 118B
Transmitter Model PFM T31
Receiver Model TGS R30

Williams Sound ®
Helping People Hear
2
FM TOUR GUIDE SYSTEM, MODEL TGS 100
INSTALLATION GUIDE & USER MANUAL
Contents Page
System Overview 4
System Components 5
PFM T31 Transmitter
Microphones
TGS R30 Receiver
Headphones & Earphones
Safety Information 6
Recycling Instructions 7
Operating Instructions 7
PFM T31 Transmitter
TGS R30 Receiver
Hints for Using the System
Battery Information 11
Battery Installation
Rechargeable & Non-rechargeable Batteries
Using Optional Battery Chargers
In Case Of Difficulty 14
Warranty 15
System Specifications 16

Williams Sound ®
Helping People Hear
3
Tour Guide Uses the Body Pack
Transmitter With Microphone
FM Radio Signal
Listeners use Personal Receivers with 
Earphones, Headphones, Or Neckloop
The tour guide wears the body-pack transmitter and headset microphone. The guide’s
voice is broadcast as an FM radio signal over a distance of up to 100 meters. Listeners
use the pocket receiver and headphone to hear the speaker’s voice directly, with reduced
background noise. A neckloop telecoil coupler allows the system to be used with telecoil
(T-Switch) equipped hearing aids, at somewhat reduced range.
SYSTEM OVERVIEW
The FM Tour Guide System is a portable, high-performance, wireless system composed of the
PFM T31 Transmitter and TGS R30 Receivers and designed for use in guided tour applications.
The system allows one-way transmission of a tour guide’s voice to group members using an FM
radio signal. Using the system helps group members overcome background noise and distance from
the person speaking.
The FM System can be used for large or small tour groups and in noisy or quiet environments.
Your FM Tour Guide System has two principal parts: the transmitter and the receiver. Much like a
miniature radio station, the transmitter and microphone pick up the sounds you want to hear and
broadcast them over an FM radio signal. The receivers and headphones are used to pick up the
broadcast up to 100 meters away.
To avoid difficulties, please read through these instructions as you begin to use the system. Then
save them for questions that arise as you continue to use your system.
If you have problems with the FM Tour Guide System, don’t hesitate to call Williams Sound at
1-800-843-3544.

Williams Sound ®
Helping People Hear
4
SYSTEM COMPONENTS
þBody Pack Transmitter (PFM T31) with (2) AA batteries (BAT 001)
þNoise-cancelling headband microphone (MIC 086)
þ(6) Personal FM Receivers (TGS R30) w/batteries (BAT 001)
and headphones (HED 021)
þBelt clip cases (CCS 001)
þInstruction Manual
þSystem carry case (CCS 030 S)
THE PFM T31 TRANSMITTER
The PFM T31 Transmitter is a battery-powered body-pack model used with a microphone to pick up
the tour guide's voice. The transmitter produces an FM radio signal to broadcast the tour guide's
voice to the receiver units. A simple slide switch on top of the transmitter turns the unit on or off.
The PFM T31 operates on two AA non-rechargeable alkaline batteries (BAT 001), or two AA
rechargeable NiMH batteries (BAT 026).
MICROPHONES
A noise-cancelling, headband microphone (MIC 086) is the standard microphone. The noise-can-
celling microphone helps to reduce background sounds in noisy environments. The microphone
plugs into the “MIC” jack on top of the Transmitter. The microphone should be positioned directly
in front of the tour guide's mouth to achieve an optimal signal to noise ratio and so that head move-
ment does not affect the loudness of the signal. The microphone cord acts as the transmitting anten-
na.
Optional Microphones
An optional Hearing Protector Headset Microphone (MIC 036) is also available for extremely high
noise environments. It features ear muffs that completely cover both ears and provides 24 dB noise
isolation for hearing protection.
An optional Lapel Clip Microphone can be used in quieter environments like museums or galleries.
The MIC 090 has an omnidirectional pick-up pattern. The MIC 056 has a directional (or cardioid)
pick-up pattern, which will reduce background noise.
A small hand-held microphone (MIC 026) is also available for tour guides who prefer to hold the
microphone.
THE TGS R30 RECEIVER
The TGS R30 Receiver is a battery-powered body-pack receiver used with a headphone to hear the
signal produced by the transmitter. The receiver is pre-tuned to the transmitter and has a user-
adjustable volume control. The headphone plugs into the “EAR” jack on top of the Receiver.
The receiver is turned on by rotating the volume control wheel. The TGS R30 Receiver operates
on two AA non-rechargeable alkaline batteries (BAT 001), or two AA rechargeable NiMH
batteries (BAT 026).

Williams Sound ®
Helping People Hear
5
R
EARPHONE / HEADPHONE OPTIONS
HED 008 HED021 HED 026 EAR 022 EAR 013 EAR 014
HEADPHONES AND EARPHONES
The HED 021 Lightweight Headphone is the standard headset for the Tour Guide System. It offers
excellent sound quality and wearing comfort. The foam earpads may be removed and washed in a
mild detergent, rinsed thoroughly, and air dried. Replacement pads (HED 013) are available.
The headphone plugs into the “EAR” jack on top of the Receiver. The headphones are wired with a
mono plug. If a stereo headphone is substituted, it will only work on one side of the headphone.
OPTIONAL HEADPHONES AND EARPHONES
The HED 008 is a heavy-duty, hearing-protector headset. The HED 008 earmuffs completely cover
the ears and provide 24 dB noise isolation for hearing protection in high noise environments.
The EAR 022 Surround Earphone offers excellent sound quality in a unique style that hangs on the
ear. It is easy to keep clean since the earphone does not enter the ear. It is not recommended for
high noise environments.
The EAR 013 and EAR 014 are single and dual Mini Earphones. The earbud-style features a foam
covering that fits in the outer ear. The foam pads can be removed for cleaning or replacement.
Replacement pads (EAR 015-10) are available.
The stylish HED 026 rear-wear headphone offers excellent sound quality; it rests comfortably over
the ears and wraps around the back of the head for a less obtrusive, relaxed fit.

Williams Sound ®
Helping People Hear
6
CAUTION!
CAUTION!
CAUTION!
SAFETY INFORMATION
HEARING SAFETY
This product is designed to amplify sounds to a high volume level which could poten-
tially cause hearing damage if used improperly. To protect your hearing and the hear-
ing of others:
Make sure the volume is turned down before putting on the earphone or headphone before
adjusting the volume to a comfortable level.
Set the volume level at the minimum setting that you need to hear.
If you experience feedback (a squealing or howling sound), reduce the volume setting and
move the microphone away from the earphone or headphone.
Do not allow children or other unauthorized persons to have access to this product.
1.
2.
3.
4.
BATTERYSAFETY AND DISPOSAL
This product is supplied with disposable Alkaline batteries. Do not attempt to recharge
disposable batteries, which may explode, release dangerous chemicals, cause burns, or
other serious harm to the user or product.
PACEMAKER SAFETY:
Beforeusing this product with a pacemaker or other medical device, consult your physician
or the manufacturer of your pacemaker or other medical device.
If you have a pacemaker or other medical device, make sure that you are using this
product in accordance with safety guidelines established by your physician or the
pacemaker manufacturer.
1.
2.
BATTERYSAFETY AND DISPOSAL
Help Williams Sound protect the environment! Please take the time to dispose of your
equipment properly.
Product Recycling for Customers in the European Union:
Please do NOT dispose of your Williams Sound equipment in the household trash. Please
take the equipment to a electronics recycling center; OR return the product to the factory for
proper disposal.
Battery Recycling for Customers in the European Union:
Please do NOT dispose of used batteries in the household trash. Please take the batteries to a
retail or community collection point for recycling.
RECYCLING INSTRUCTIONS
8/18/05

Williams Sound ®
Helping People Hear
7
OPERATING INSTRUCTIONS
USING THE PFM T31 TRANSMITTER
Instructions:
Before you begin, make sure you have AA Alkaline batteries installed in the transmitter. See Battery
Information, page 11.
1. Plug the microphone into the “mic” jack on top of the transmitter.
2. Turn the power on: Place the FM switch to the “On” position.
3. Position the microphone as close to the speaker’s mouth as practical.
4. When you are ready to speak, turn the Mic Mute Switch to the “On” position. When you are done speaking,
mute the mic by turning the switch to the “Off” position. This will eliminate any unwanted noise as a result of
the transmitter being on.
Note: The microphone cord is also the transmitting antenna. For maximum range, make sure the microphone
cord is hanging as straight as possible.
5. Remember to turn the transmitter off when you are done using it: Turn the “FM” switch to the
“Off” position.
Mic
Williams Sound FM
Off On
FM
On/Off Switch
Mic Jack
Mic
Mic Mute Switch
NOTE ON THE TRANSMITTER ANTENNA:
The microphone cord is the transmitting antenna. Do not bunch up the cord, wrap it tightly around
your body, or wrap it aroun the transmitter. For maximum range, the cord should hang as straight as
possible. The transmitter can be placed in a pants pocket, or clipped onto a belt or waistband. Make
sure the transmitter is turned OFF when not in use.

Williams Sound ®
Helping People Hear
8
USING THE TGS R30 RECEIVER
Note: Rechargeable batteries are shipped in a discharged state and must be charged overnight
before using.
1. Make sure there are two charged AA batteries in the Receiver. If batteries are not installed,
see Battery Information, page 11.
2. Plug the earphone or headphone into the “Ear” jack on top of the Receiver.
3. Place the headphones over your ears.
4. Turn the power on by rotating the volume control thumbwheel on top of the Receiver.
5. Adjust the receiver volume control to a comfortable listening level.
You should be able to hear someone speaking into the transmitter microphone.
6. Place the receiver in the belt clip case provided. The receiver can be placed in a pants
pocket, or clipped onto a belt, harness, or waistband.
EAR Volume
1
Volume Control 
On/Off Switch
Earphone/Headphone 
Jack
"On" Indicator
LED
Switch Settings
MHz 1 2 3 4 5 6 7 8
72.1 DN UP DN UP DN DN DN DN
72.3 DN UP DN UP UP DN DN DN
72.5 DN UP DN UP DN DN UP DN
72.6 DN DN UP DN DN DN DN UP
72.7 DN UP DN UP UP DN UP DN
72.8 DN UP DN DN DN DN DN UP
72.9 DN UP DN UP DN DN DN UP
74.7 UP DN DN UP UP DN DN UP
75.3 UP UP DN UP DN DN DN DN
75.4 UP UP DN DN UP DN DN DN
75.5 UP UP DN UP UP DN DN DN
75.7 UP UP DN UP DN DN UP DN
75.9 UP UP DN UP UP DN UP DN
Battery
Compartment
12345678
Frequency Switches
CHANGING THE PFM T31 FREQUENCY
Begin by opening the battery compartment door. Remove the batteries, then open the back panel to
expose the circuit board. Referencing the Switch Settings chart (above), adjust the frequency
switches on the PFM T31 transmitter accordingly using a small screw driver or paper clip.
Reinstall the batteries, then close the back of the transmitter. Plug in the mic, and turn on the trans-
mitter to provide a tuning signal for the receivers. Be sure to change the receiver to the correspon-
ding channel.

Williams Sound ®
Helping People Hear
9
IC01
1
1
2
12
R30 R- 31 R-32
1
2
3
4
R7- 4
TUNING COIL
Ferrite Tuning
"Slug"

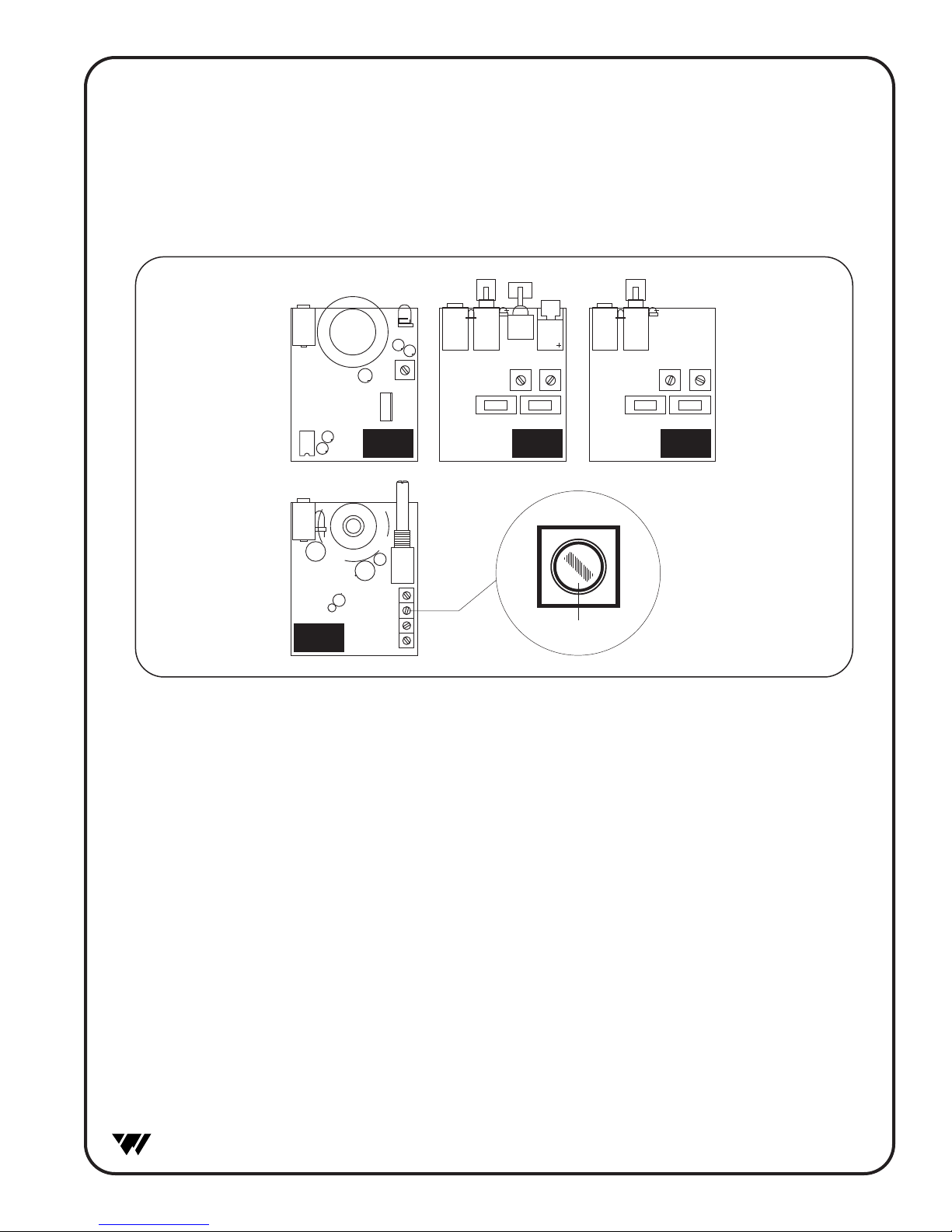

TGS R30 FREQUENCY CHANGE INSTRUCTIONS
Selecting a frequency for the R30, R31, R32 and R7-4 receivers requires an adjustment to the
internal tuning coil(s). See figure below for receiver types to locate the coils to be adjusted. A
plastic tuning wrench (PLT 005) will be needed to adjust these receiver tuning coils.
Most Williams Sound single channel Receivers are set at the factory to 72.9 MHz. The standard
four-channel receivers (R7-4), channels 1-4, are usually set to frequencies 72.1, 72.5, 72.9, 75.7
MHz respectively.
The Receiver must be tuned with a weak and somewhat noisy signal. If tuned too close to the
transmitter, with a strong signal, the most accurate tuning of the receiver is not possible.
TOCHANGE THE FREQUENCY TO ANOTHER CHANNEL:
Step 1: Set the transmitter to the channel desired and remove the antenna.
Step 2: Connect an audio source to the transmitter such as a CD or cassette player or
microphone or have someone talk into the transmitter’s microphone.
Step 3: Move the receiver about 25 feet away from the transmitter to set the tuning.

Williams Sound ®
Helping People Hear
10
Tour Group 1

Channel A
30 Meters Tour Group 2

Channel A
FIGURE 4: TOUR GUIDE GROUP SEPARATION
HINTS FOR USING THE SYSTEM
Normal operating distance between the transmitter and receiver is about 30 meters. The operating
range will vary in different buildings and surroundings. In some locations, the signal may momentar-
ily disappear. This is called a “drop-out” and is due to reflection and cancellation of the radio signal.
Moving a few feet will restore the signal.
Keep the transmitter and receiver units at least a meter apart. If the transmitter gets too close to a
receiver, it can overload the receiver, causing noisy reception or blocking of the signal.
Do not use more than one transmitter on the same channel (frequency) at the same time unless they
are physically separated by more than 30 meters. Operating more than one transmitter on the same
channel at the same time in the same place will result in interference.
USING MULTIPLE SYSTEMS FOR MULTIPLE GROUPS:
For multiple tour groups within the same facility, multiple Tour Guide Systems may be operated on
the same channel at the same time by maintaining physical separation of 30 meters between groups.
The physical separation of groups takes advantage of the FM capture effect which causes receivers to
lock onto the closest transmitter.

Williams Sound ®
Helping People Hear
11
INSTALLATION
Open the battery compartment using a coin in the slot in the bottom of the receiver or transmitter.
Press the batteries into place, observing proper battery polarity. Incorrect insertion of the battery is
difficult, and if forced, may cause both mechanical and electrical damage to transmitters or
receivers not covered by the five year warranty. Units will not work with the battery incorrectly
installed.
BATTERY INFORMATION
+–
+–
Battery 
Compartment
Tab
Rear of Transmitter
or Receiver
Note Proper 
Polarity
BATTERY INSTALLATION
NON-RECHARGEABLE BATTERIES
In normal use,two AA 1.5 V alkaline batteries (BAT 001) will last about 8 hours in the PFM T31
Transmitter and approximately 20 hours in the TGS R30 Receiver. If the sound becomes weak or
distorted, replace the batteries. Do not leave dead batteries in the receivers. Battery corrosion is not
covered by the Williams Sound five year warranty.
RECHARGEABLE BATTERIES
The PFM T31 Transmitter and TGS R30 Receivers can use rechargeable AA batteries
(BAT 026). On an overnight charge, these NiMH batteries are designed to operate a PFM T31
Transmitter for approximately 6 hours, and TGS R30 Receivers for 14 hours.
The battery installed in the receiver may be recharged in the receiver only if it is a NiMH battery,
and only if a Williams Sound CHG 1600 Multi-Charger is used. Damage from improper charging is
not covered by the Williams Sound five year warranty.
IMPORTANT RECHARGEABLE BATTERYINFORMATION
Rechargeable batteries are shipped in a discharged condition. They must be charged for a complete
charge cycle before the first use (approximately 15 hours). Rechargeable batteries will need to be
replaced after 1-2 years of use. Do not dispose of batteries in fire. Do not open batteries - toxic
chemicals inside.
!! IMPORTANT WARNINGS !!
DO NOT ATTEMPT TO RECHARGE ZINC CARBON (“HEAVY DUTY”), ALKALINE, OR LITHIUM BATTERIES!
DO NOT ATTEMPT TO RECHARGE DISPOSABLE BATTERIES! These batteries may heat up and
explode, causing possible injury and damage to the equipment.
Avoid shorting the plus and minus battery terminals together with metal objects. Battery damage
and burns can result!

Williams Sound ®
Helping People Hear
12
Charging 
Indicators
Charging
Contact Holes
Charging Pins
USING THE CHG 1600 CHARGER
USING THE OPTIONAL CHG 1600 BATTERY CHARGER
With AC power connected, the CHG 1600 Multiple Charger operates in a “trickle charge” mode.
Units can be left on trickle charge indefinitely without risk. Pressing the Overnight Charge button
switches the charger to a higher-rate, overnight charge mode on a 15 hour timer. After 15 hours, the
“Complete / Maintain” light will come on and the CHG 1600 reverts to trickle mode. Any time the
button is pressed, the 15 hour timed charge begins again. The CHG 1600 Charger does not monitor
individual unit battery state.
Charging Instructions
Step 1: Plug the power supply into an AC wall outlet. Plug the power connector into the jack on
the right side of the CHG 1600’s control panel.
Step 2: Make sure the units being charged are turned OFF. DO NOT attempt to charge non-
rechargeable batteries.
Step 3: Place the units in the slots so that the charging pins and the unit’s side contacts are cou
pled. The “CHG” indicator next to the unit will be dimly lit.
Step 4: When all units are in place, press the red button on the CHG 1600’s control panel. The
red “Overnight Charge” indicator on the CHG 1600’s control panel will light during
charging, and the “CHG” indicators next to each unit will be brightly lit.
Step 5: The CHG 1600 will charge the units for approximately 15 hours, then automatically
resume a trickle charge. The “Complete/Maintain” indicator will come on.
Units may be fully charged before the green “Complete/Maintain” indicator is lit. Units
may remain in the CHG 1600 Multiple Charger for more than 15 hours without harm.
Williams Sound rechargeable AA batteries can be charged on a daily or less frequent
basis.

Williams Sound ®
Helping People Hear
13
Charging 
Indicators
Charging
Pins
Cord Hook Power Input
Charging
Contact Holes

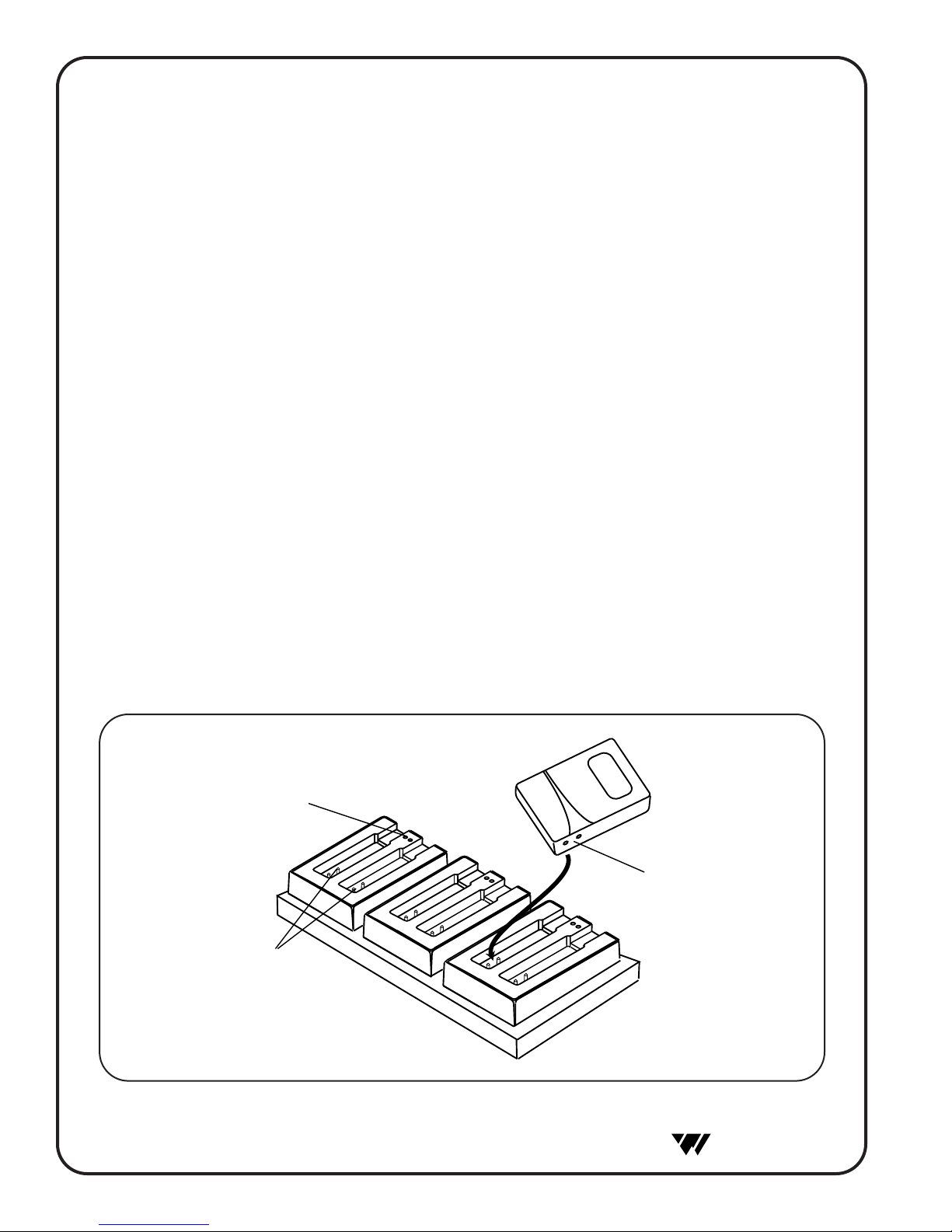

USING THE OPTIONAL CHG 200A BATTERY CHARGER TOCHARGE TRANSMITTERS AND RECEIVERS
Step 1: Plug the CHG 200’s power supply into
the Power Input on the charger’s side and
a standard AC wall outlet.
Step 2: Route the power cord around the Cord
Hook (see figure at right). This will min-
imize strain on the cord and jack and
insure that the power cord is not
detached during charging.
Step 3: Make sure the receivers/transmitters to
be charged are turned OFF.
Step 4: Place the receivers/transmitters in the
slots so that the CHG 200’s Charging
Pins and receiver’s side panel contacts
are coupled. Make sure that the charging
contact holes line up with the charging
pins. The receivers should drop easily
into the slots. DO NOT FORCE THEM
IN BACKWARDS.
Step 5: The Charging Indicators will light, indi-
cating that charging is in process.
It takes 14–16 hours to fully charge the
batteries. Remove the receivers when
charging is completed.
!! WARNING !!
DO NOT ATTEMPT TO RECHARGE DISPOSABLE BATTERIES!
The batteries may heat up and burst, causing possible injury and damage to the equipment.
Avoid shorting the plus and minus battery terminals together with metal objects. Battery damage and
burns can result!
Use only Williams Sound supplied chargers and batteries.
FURTHER SUGGESTIONS
Receivers should always be turned OFF while charging.
It’s best to allow the batteries to fully discharge before charging.
If the batteries are near end of life and the LED turns off while the receiver is operating, this is an
indication to change or recharge your batteries. Approximately one hour of battery life remains.
Rechargeable batteries will need to be replaced after 1–2 years of use.

Williams Sound ®
Helping People Hear
14
INCASE OFDIFFICULTY
If your Tour Guide System is not working, check the following:
1. Read through the manual and user guide carefully to verify proper setup and installation
of your system.
2. Make sure the batteries are fresh or completely charged and that the “plus” and “minus” termi-
nals are installed correctly.
3. If the rechargeable batteries will only work for a short period of time (less than 1 hour) even
after they are fully charged, they must be regenerated. Leave them in the receiver or transmitter
with the unit turned on, for 5 - 6 hours. Then turn receiver or transmitter off, place it in the
charger, and charge for 14 - 16 hours. This should restore normal battery life. Rechargeable bat-
teries will gradually lose their capacity over time and should be replaced every year.
4. Make sure the microphone is plugged into the PFM T31 Transmitter and the headphone is
plugged into the TGS R30 Receiver.
5. Move the transmitter and receiver closer together. You may be out of range. When using the sys-
tem indoors, it’s normal for the signal to momentarily disappear in certain locations. This is
called a “drop-out.” Moving a few feet will restore the signal.
6. Do not try to use more than one transmitter on the same channel in close proximity to each
other. MORE THAN ONE TRANSMITTER ON THE SAME CHANNEL WILL RESULT IN
INTERFERENCE IF THEY ARE CLOSE TOGETHER. Keep the systems at least 30 meters
apart or use separate channels for each system used.
7. If you are still hearing interference on the receivers, turn the transmitter off and listen with a
receiver. If you hear the interference with the transmitter off, you need to change to a clear chan-
nel. Call your Williams Sound at 1-800-843-3544 for details.
NOTICE
Williams Sound Corp. assumes no liability for improper use or operation of this equipment. The
user is cautioned to operate the volume controls at the lowest acceptable level, and in a manner that
will not cause damage to hearing. Ear pieces and accessories should be worn using good judgement
and for their intended purpose.
Users are cautioned that changes or modifications not expressly approved by Williams Sound Corp.
could void the user’s authority to operate the equipment.

Williams Sound ®
Helping People Hear
15
Limited Warranty
Williams Sound products are engineered, designed, and manufactured under carefully controlled conditions to
provide you with many years of reliable service. Williams Sound warrants the FM Tour Guide System
against defects in materials and workmanship for FIVE (5) years. During the first five years from the pur-
chase date, we will promptly repair or replace the FM Tour Guide System.
Microphones, earphones, headphones, batteries, chargers, cables, carry cases, and all other accessory products carry a
90-day warranty.
WILLIAMS SOUND HAS NO CONTROL OVER THE CONDITIONS UNDER WHICH THIS PRODUCT
IS USED. WILLIAMS SOUND, THEREFORE, DISCLAIMS ALL WARRANTIES NOT SET FORTH
ABOVE, BOTH EXPRESS AND IMPLIED, WITH RESPECT TO THE FM TOUR GUIDE SYSTEM,
INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FIT-
NESS FOR A PARTICULAR PURPOSE. WILLIAMS SOUND SHALL NOT BE LIABLE TO ANY PER-
SON OR ENTITY FOR ANY MEDICAL EXPENSES OR ANY DIRECT, INCIDENTAL OR CONSE-
QUENTIAL DAMAGES CAUSED BY ANY USE, DEFECT, FAILURE OR MALFUNCTIONING OF THE
PRODUCT, WHETHER A CLAIM FOR SUCH DAMAGES IS BASED UPON WARRANTY, CONTRACT,
TORT OR OTHERWISE, THE SOLE REMEDY FOR ANY DEFECT, FAILURE OR MALFUNCTION OF
THE PRODUCTS REPLACEMENT OF THE PRODUCT. NO PERSON HAS ANY AUTHORITY TO
BIND WILLIAMS SOUND TO ANY REPRESENTATION OR WARRANTY WITH RESPECT TO THE
FM TOUR GUIDE SYSTEM. UNAUTHORIZED REPAIRS OR MODIFICATIONS WILL VOID THE
WARRANTY.
The exclusions and limitations set out above are not intended to, and should not be construed so as to contra-
vene mandatory provisions of applicable law. If any part or term of this Disclaimer of Warranty is held to be
illegal, unenforceable, or in conflict with applicable law by a court of competent jurisdiction, the validity of
the remaining portions of this Disclaimer of Warranty shall not be affected, and all rights and obligations shall
be construed and enforced as if this Limited Warranty did not contain the particular part or term held to be
invalid.
If you experience difficulty with your system, call Toll-Free for Customer Assistance:
1-800-843-3544
If it is necessary to return the system for service, your Customer Service Representative will give you a
Return Authorization Number (RA) and shipping instruction.
Pack the system carefully and send it to:
Williams Sound Corp.
Attn: Repair Dept.
10321 West 70th Street
Eden Prairie, MN 55344 USA
Your warranty becomes effective the date you purchase your system. Your returned warranty card is our way
of knowing when your warranty begins. It also gives us important information about your system including
the serial number. This information will help us serve you better in the future. Please take a moment to com-
plete and mail the attached card. Thank you.

Williams Sound ®
Helping People Hear
16
SYSTEM SPECIFICATIONS
Dimensions: 3-5/8" L x 2-3/8" W x 7/8" H (92.1 mm x 60.3 mm x 22.2 mm)
Weight: 4.4 oz (125 g) with battery
Color: Royal blue, shatter-resistant polypropylene
Battery Type: Two (2) AA 1.5 V non-rechargeable Alkaline batteries
(BAT 001), 70 mA nominal current drain, 12 hours approx. life
(OR) two (2) AA 1.5 V NiMH rechargeable batteries (BAT 026),
70 mA nominal current drain, 10 hours per charge approx.,
recharges in 14-16 hours, uses CHG 200 Charger
Operating Freq’s: Selectable, 13 channels, 72.1-75.9 MHz, internal DIP switch
Stability: + .005%, frequency synthesized, crystal reference, PLL
Modulation: Wide-band FM, 75 kHz, 75 µS pre-emphasis
RF Output: 8000 µV/m at 30 m, max., 40 mW typical
FCC ID: CNM T30
Freq Response: 100 to 10 kHz, + 3 dB at 1% max. THD
Signal-to-Noise Ratio: 55-60 dB, with R31 or R32 Receiver
Auto Gain Control: 40 dB range, 30 mV threshold
Transmit Antenna: Integral with 39" microphone cord
Microphone: Directional condenser, noise canceling, 39" cord,
3.5 mm mono plug (MIC 086)
Controls: On/Off switch, slide-type, Mute switch, slide-type
Mic Connector: 3.5 mm mono jack
Warranty: 5 years, parts and labor (90 days on accessories)
Dimensions: 3-5/8" L x 2-3/8" W x 7/8" H (92.1 mm x 60.3 mm x 22.2 mm)
Weight: 4.6 oz (130 g) with batteries
Color: Gray
Battery Type: Two (2) AA 1.5 V non-rechargeable Alkaline batteries (BAT 001),
14 mA nom. current drain, 80 hours approx. life (OR)
two (2) AA 1.5 V NiMH rechargeable batteries (BAT 026),
14 mA nominal current drain, 50 hours per charge approx.,
recharges in 14-16 hours, uses CHG 1600 Charger or CHG 200
Charger
FCC ID: CNM R30
Industry Canada Cert.: 13601021234
Operating Freq.: Pre-tuned, adjustable, 72 MHz-76 MHz *
Intermediate Freq.: 75 kHz
FM Deviation: 75 kHz
De-Emphasis: 75 µS
AFC Range: ± 120 kHz
Sensitivity: 4 µV at 12 dB Sinad with squelch defeated
Input Overload: 20 mV
Frequency Response: 100-10 kHz, ± 3 dB
Signal-to-Noise Ratio: 50 dB at 10 µV
Receive Antenna: Integral with earphone/headphone cord
Audio Output: 35 mW, max. at 16 Ω
Output Connector: 3.5 mm mono phone jack
Headphone: Deluxe folding headphone, 3.5 mm plug, 1m cord (HED 021)
Notes: The R30 Receiver can be field tuned to any of 10 wideband
channels using the PLT 005 Tuning Tool.
Warranty: 5 years, parts and labor (90 days on accessories)
*FCC rules limit the use of the 72–76 MHz band to hearing assistance for the handicapped only.
NOTE: SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
PFM T31 TRANSMITTER:
TGS R30 RECEIVER:

Williams Sound Corp.
10321 West 70th St., Eden Prairie, MN 55344
U.S.A. 800-328-6190 / 952-943-2252 / FAX: [phone]
www.williamssound.com
© 2005, Williams Sound Corp. MAN 118B
