Willoughby WODF-1-PET Series User manual

Rev. 10/2014
Installation &
Operation Manual
Willoughby Industries, Inc.
5105 West 78th Street
Indianapolis, IN 46268
Toll Free: [phone]
Local: [phone]
Fax: [phone]
www.willoughby-ind.com MADE IN THE U.S.A.

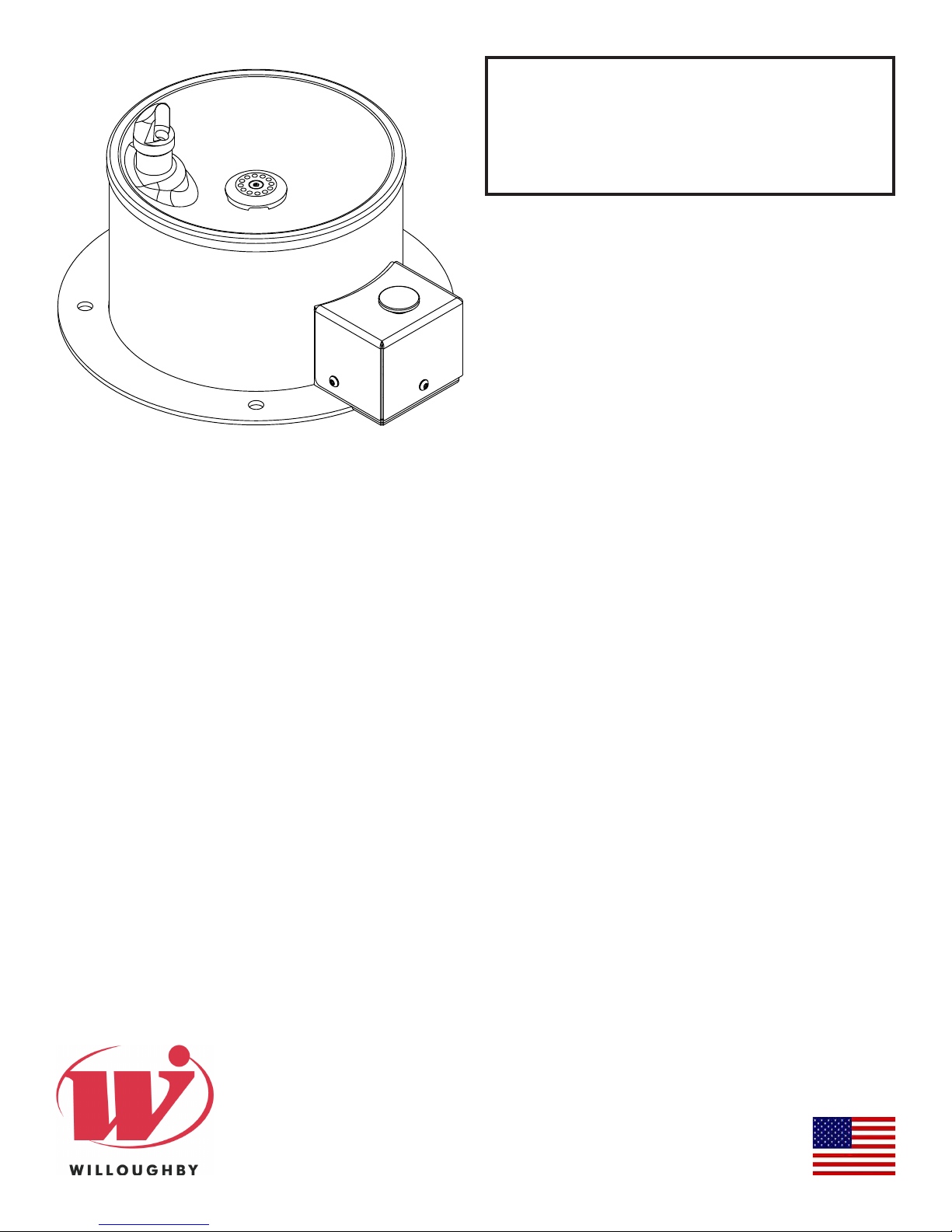

WODF-1-PET Series
Outdoor Pet Drinking Fountain
Table of Contents
Pre-Installation Information ��������������������������������������������2
Physical Dimensions��������������������������������������������������������4
Rough-In Dimensions������������������������������������������������������5
Hardware Identication Chart �����������������������������������������6
Installation Instructions ���������������������������������������������������7
Step 1: Fixture Installation �����������������������������������������7
Step 2: Adjusting Drinking Spout Flow ���������������������8
Care and Maintenance �����������������������������������������������������9
Troubleshooting�������������������������������������������������������������10
Fixture Assembly Drawings ������������������������������������������11
Warranty ������������������������������������������������������������������������14

Page 2Rev. 10/2014 www.willoughby-ind.com
Installation & Operation Manual
Outdoor Pet Drinking Fountain
WODF-1-PET Series
Willoughby Industries, Inc. TOLL FREE [phone] ● LOCAL [phone] ● FAX [phone]
Pre-Installation Information
Installation notice!
Check Rough-In location PRIOR to installation
Flush lines thoroughly PRIOR to hook-up
When installing the Willoughby Industries’ WODF outdoor drinking fountain:
Before step 1 of the installation instructions, ensure that rough-ins are in the correct location.
Prior to making nal connections to the drinking fountain, all water supply lines MUST BE
THOROUGHLY FLUSHED with clean, chemical-free water to remove small debris and any
previous ushing chemicals that are inherent with new construction projects.
Chemicals used in ushing plumbing systems can attack the bubbler, inline strainer, and internal
components of the valve, causing severe damage. Any system ushes using ushing chemicals
must be followed by a full ushing with pure water to clear any harsh chemicals remaining in the
system.
The components listed above WILL BE DAMAGED if the aforementioned debris and/or
chemicals are not removed. This damage can only be xed by replacing the valve, and WILL
NOT be covered by the manufacturer’s warranty.
Installation notice!
Check Rough-In location PRIOR to installation
Flush lines thoroughly PRIOR to hook-up

Page 3Rev. 10/2014 www.willoughby-ind.com
Installation & Operation Manual
Outdoor Pet Drinking Fountain
WODF-1-PET Series
Willoughby Industries, Inc. TOLL FREE [phone] ● LOCAL [phone] ● FAX [phone]
Pre-Installation Information (cont.)
Installation notice!
When installing the Willoughby Industries’ WODF or CWBF outdoor drinking fountains or bottle
llers:
Any ttings provided by the installer should be made of plastic to electrically isolate the unit from
the building or connected plumbing system.
The grounding of electrical equipment such as telephones, computers, etc. to water lines is a
common procedure. This grounding can cause electrical feedback into a water fountain or similar
xture, causing electrolysis, which results in a metallic taste of the water or an increase in the
metal content of the water. This can be easily avoided by using the proper materials as indicated.
Installation notice!

Page 4Rev. 10/2014 www.willoughby-ind.com
Installation & Operation Manual
Outdoor Pet Drinking Fountain
WODF-1-PET Series
Willoughby Industries, Inc. TOLL FREE [phone] ● LOCAL [phone] ● FAX [phone]
Physical Dimensions

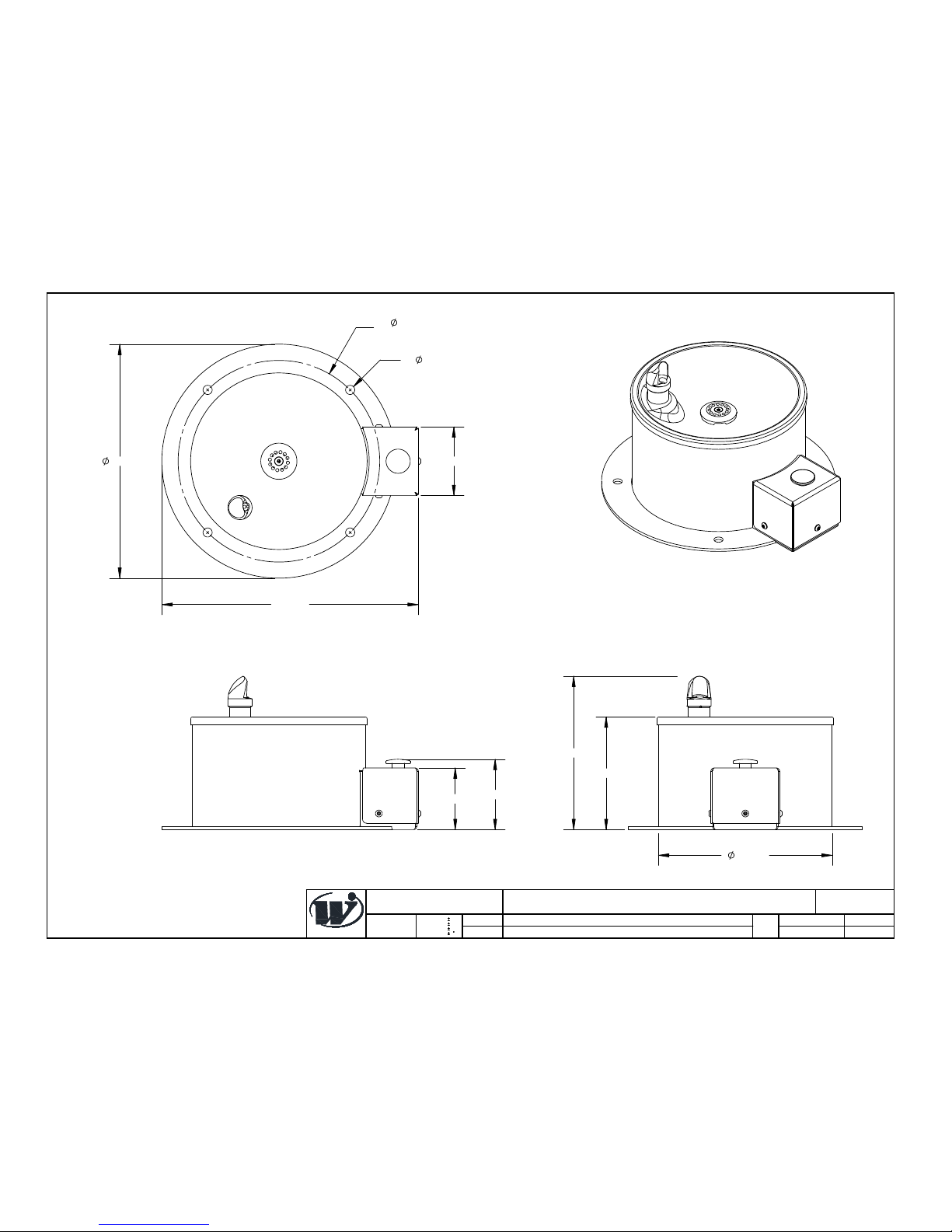

4X 9/16" THRU ALL
14-1/2"
15-7/8"
4-1/4"
12-1/2"
BOLT CIRCLE
7"
9-1/2"
10-3/4"
3-13/16" 4-3/8"
2 PLCS:
ABEH
1
10-08-14
P0711-0003
10-08-14BEH 1 OF 3
Indianapolis, Indiana
NOTED
A
SIZE:
OUTDOOR PET DRINKING FOUNTAIN
SHEET:REV.:
ORIG.:REVISION:
SCALE: REF.:
1:5
3 PLCS:
PART #:
MAT'L:
FRACTIONS:
TOLERANCES
EXCEPT AS
WODF-1-PET
TITLE / DESC.:
ANGLE:
0.03
0.015
1/32"
Willoughby Industries, Inc.
STANDARD
WILLOUGHBY

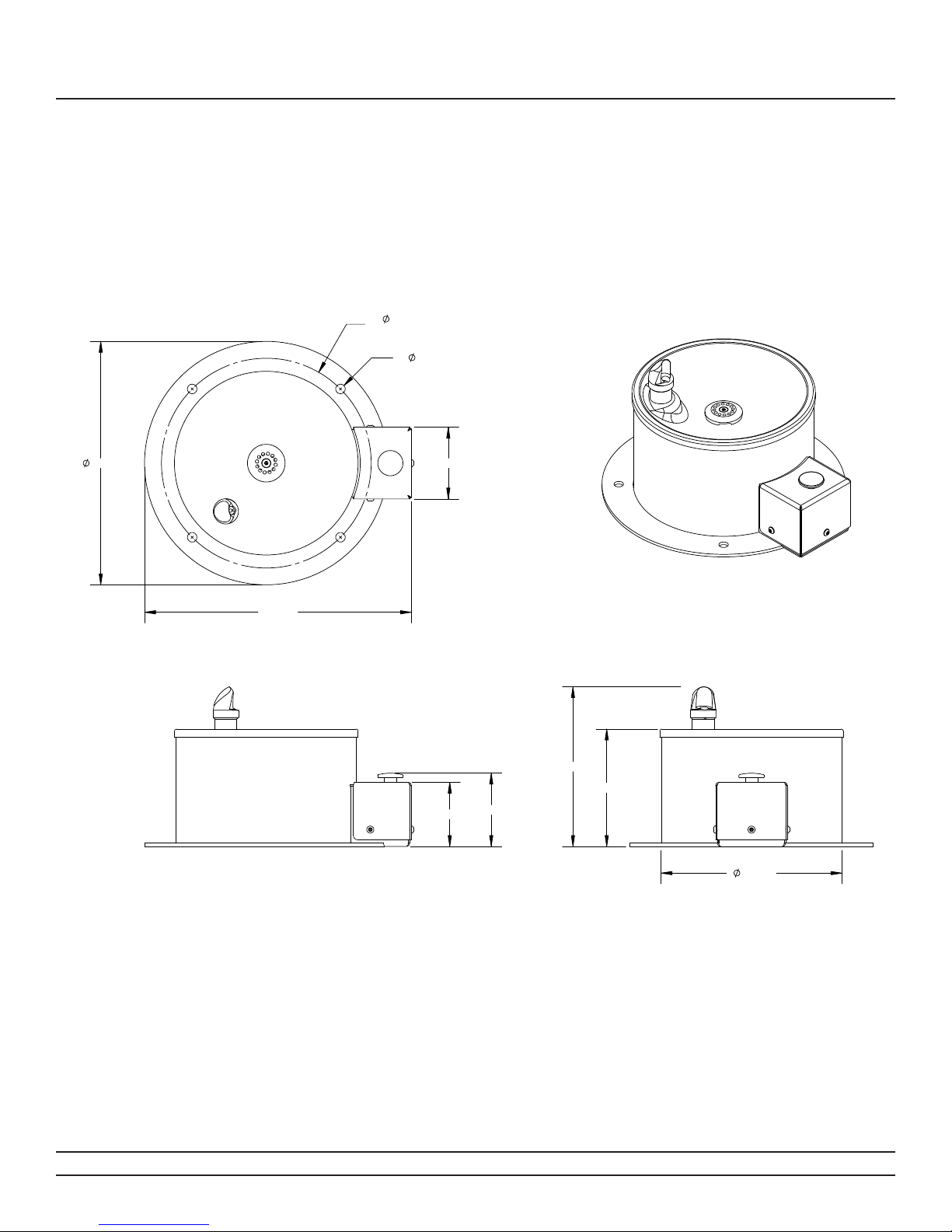

Figure 1 – Physical dimensions.

Page 5Rev. 10/2014 www.willoughby-ind.com
Installation & Operation Manual
Outdoor Pet Drinking Fountain
WODF-1-PET Series
Willoughby Industries, Inc. TOLL FREE [phone] ● LOCAL [phone] ● FAX [phone]

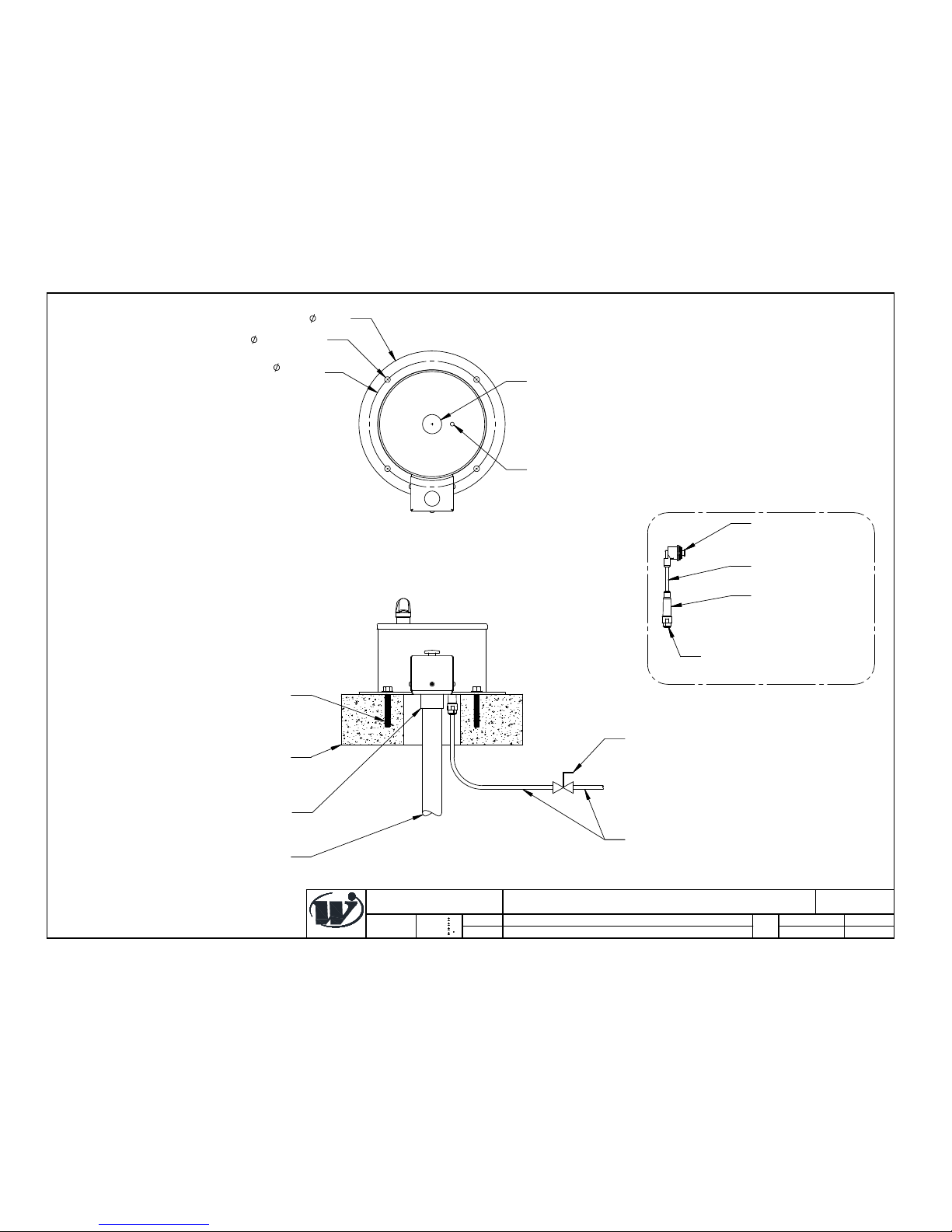

Rough-In Dimensions
#600285
VALVE CARTRIDGE
1/4" TUBE
#980632
INLINE STRAINER
1/4" TO 3/8" PRESS LOCK
NOTE:
3/8" O.D. SUPPLY CONNECTION
VALVE ASSEMBLY DETAIL
1
Indianapolis, Indiana
BEH
BEH 10-08-14
10-08-14
A3 OF 3
P0711-0003
1:8
2 PLCS: SIZE:
OUTDOOR PET DRINKING FOUNTAIN
SHEET:REV.:
ORIG.:REVISION:
SCALE: REF.:
MAT'L:
PART #:
A
ANGLE:
WODF-1-PET
TITLE / DESC.:
FRACTIONS:
3 PLCS:
EXCEPT AS
TOLERANCES
NOTED
0.03
0.015
1/32"
Willoughby Industries, Inc.
STANDARD
NOTE:
UNIT MUST BE DISCONNECTED AND DRAINED DURING
WINTERIZATION, PER THE FOLLOWING RECOMMENDED
PRACTICES:
SHUT OFF WATER SUPPLY TO FIXTURE (SUPPLY•
STOP AND WATER LINES BY OTHERS)
DISCONNECT AND REMOVE IN-LINE FILTER•
PRESS AND HOLD PUSHBUTTON FOR 10 SECONDS•
TO ALLOW WATER LINES TO DRAIN
1-1/2" SCHED. 40 PVC
DRAIN CONNECTION
WATER SUPPLY CONNECTION
3/8" TUBING
(LOCATION IS FLEXIBLE)
4X 9/16" THRU ALL
12-1/2"
BOLT CIRCLE
14-1/2"
SERVICE SHUT-OFF VALVE (BY
OTHERS)
WATER SUPPLY LINE
(BY OTHERS)
(BY OTHERS)
4X 1/2"-13 UNC X 4"
(BY OTHERS)
(BY OTHERS)
1-1/2" PVC COUPLING
CONCRETE PAD
CONCRETE ANCHORS
OPEN HUB DRAIN TO BE 1-1/2" IPS
MINIMUM TO A POROUS GRAVEL FILL OR
MAIN SEWER LINE LOCATED BELOW
FROST LINE (BY OTHERS)
WILLOUGHBY

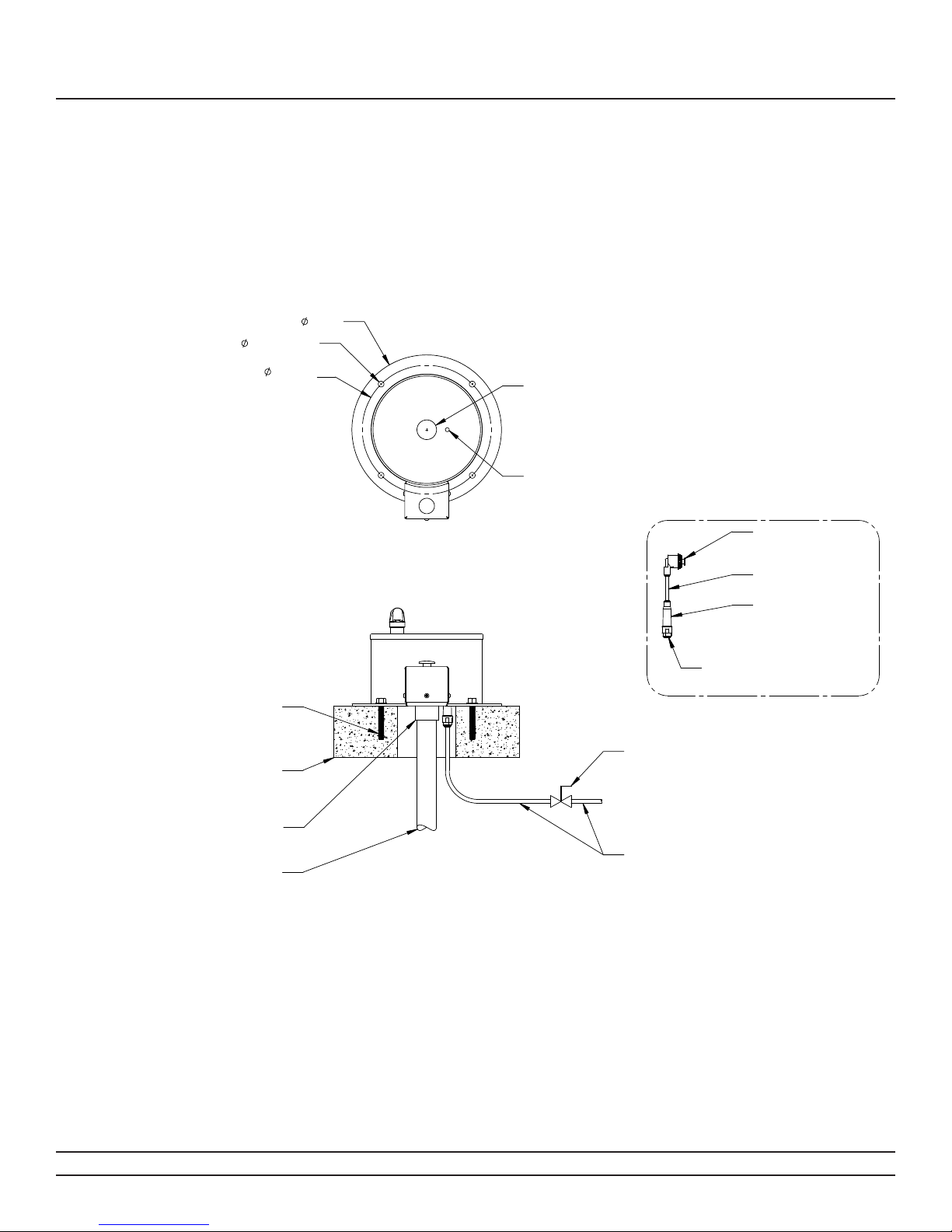

Figure 2 – Rough-in dimensions.

Page 6Rev. 10/2014 www.willoughby-ind.com
Installation & Operation Manual
Outdoor Pet Drinking Fountain
WODF-1-PET Series
Willoughby Industries, Inc. TOLL FREE [phone] ● LOCAL [phone] ● FAX [phone]

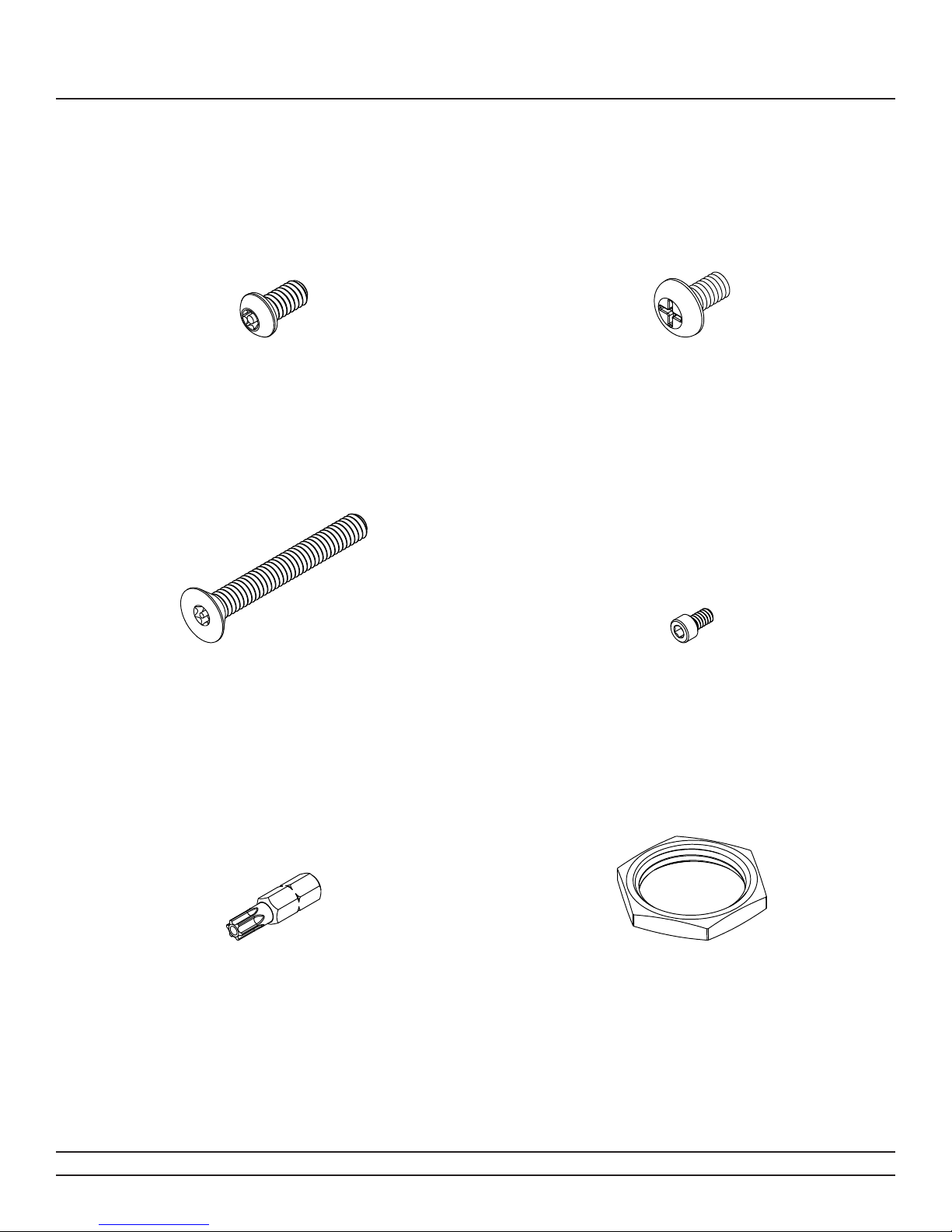

Hardware Identication Chart
1/4-20 x 1/2"
SECURITY SCREW
4500NSS
T27
1/4" PINNED TORX BIT
800115
1/4"-20 x 2"
FLAT HEAD SECURITY SCREW
4509SSN
3/4" NPT
BRASS LOCKNUT
600612N
6-32 x 1/4"
SOCKET HEAD CAP SCREW
800157
1/4"-20 x 1/2"
PHILLIPS SCREW
800144

Page 7Rev. 10/2014 www.willoughby-ind.com
Installation & Operation Manual
Outdoor Pet Drinking Fountain
WODF-1-PET Series
Willoughby Industries, Inc. TOLL FREE [phone] ● LOCAL [phone] ● FAX [phone]
Step 1: Fixture Installation
1.) The WODF outdoor drinking fountain is to be mounted on a at, level surface (concrete or
otherwise) with an adequate support structure.
2.) Refer to rough-in detail (Figure 2) for locating plumbing connections.
3.) Install service shut-off valve in water supply line (valve not furnished).
4.) Locate and install drinking fountain using 1/2"-13 x 4" concrete anchors (anchors not furnished).
5.) As noted previously, ush the water supply line with clean drinking water before making nal
connections to the drinking fountain.
6.) Connect water supply line to inline strainer inside drinking fountain using 3/8" plastic tubing
(extra tubing not furnished). Push tube straight into tting on lter about 3/4" until it reaches a
positive stop. Water supply connection must comply with local codes.
7.) Connect fountain drain line to drainage system. Drain is to be 1-1/2" IPS minimum to a porous
gravel ll or main sewer line located below frost line. Installer to provide waste trap downstream
of drain connection. Drain and waste trap must comply with local codes.
8.) Turn on water supply and check both the water supply lines and drain lines for leaks.
Installation Instructions

Page 8Rev. 10/2014 www.willoughby-ind.com
Installation & Operation Manual
Outdoor Pet Drinking Fountain
WODF-1-PET Series
Willoughby Industries, Inc. TOLL FREE [phone] ● LOCAL [phone] ● FAX [phone]
SPRING
VALVE BOX SCREWS
VALVE BOX COVER
w/ PUSHBUTTON
Figure 3 – Remove valve box cover.
Installation Instructions (cont.)
Step 2: Adjusting Drinking Spout Flow
1.) Remove valve box screws.
2.) Remove valve box cover and pushbutton (together).
3.) Remove spring.
4.) Insert a standard at-head screwdriver into adjustment opening of valve, as shown in Figure 4.
5.) Rotate screwdriver to adjust until desired ow is achieved.
a.) Rotate clockwise to increase ow.
b.) Rotate counterclockwise to decrease ow.
STANDARD SCREWDRIVER
(FLAT-HEAD)
Figure 4 – Adjust ow with screwdriver.

Page 9Rev. 10/2014 www.willoughby-ind.com
Installation & Operation Manual
Outdoor Pet Drinking Fountain
WODF-1-PET Series
Willoughby Industries, Inc. TOLL FREE [phone] ● LOCAL [phone] ● FAX [phone]
Care and Maintenance
Stainless Steel Care
Stainless Steels are basically alloys of iron and chromium and are corrosion resistant. Stainless
steel has a bright surface that is easy to clean and is free from oxides. Therefore, cleaning of
stainless steel is relatively simple and easy if done on a regular basis.
Frequency of cleaning should depend on the rate at which the xture becomes dirty. Remember
that fresh (soft) deposits of all kinds are relatively easy to remove, while removing older (hard)
deposits are much more difcult. Establish a cleaning SCHEDULE.
Routine cleaning should involve ordinary soap or detergent and water, applied with a sponge,
brush or cloth. Baking soda, borax or any of several non-abrasive commercial cleansing agents
can help hasten the cleaning action. After scrubbing, rinse THOROUGHLY and wipe dry.
DO NOT use common steel wool, scouring pads, scrapers, wire brushes, les or other steel tools to
clean stainless steel. Such items will scratch the surface or leave small particles of iron imbedded
in the surface, which will eventually rust and stain the surface - even appearing as if the stainless
itself was rusting.
Certain chemical compounds, if used on stainless steel, can give the appearance of rust and if
allowed to stand for long periods of time, can pit the surface of even stainless. Products containing
hydrochloric acid, muriatic acid or potassium hydrochloride can ruin the surface.
Unit Care
Willoughby Industries’ WODF Outdoor Drinking Fountains are not freeze resistant without the FRV
Freeze Resistant Valve option. The unit should be disconnected or shut off rom the water supply
and drained during the colder months. For more information, refer to the rough-in detail.
In order to ensure adequate ow and cleanliness of water, the inlne strainer in the supply line
should be cleaned or replaced regularly. New inline strainers can be ordered using Willoughby Part
No. 980632.

Page 10Rev. 10/2014 www.willoughby-ind.com
Installation & Operation Manual
Outdoor Pet Drinking Fountain
WODF-1-PET Series
Willoughby Industries, Inc. TOLL FREE [phone] ● LOCAL [phone] ● FAX [phone]
Troubleshooting
I. Insufcient Flow
A. Ensure the service shut-off valve is fully open (provided by installer).
B. Ensure water supply is within the normal operating range of 40-60 psi.
1. If pressure is too low, ow can be drastically reduced.
2. If pressure is too high, the strainer and/or valve may have been damaged.
3. The unit is rated for a maximum range of 30-105 psi.
C. Inspect the unit's valve for damage, and replace if necessary.
D. Inspect the inline strainer for damage and/or clogging, and clean or replace as necessary.
E. Check all ttings and tubing for damage and leaks. Replace components as necessary.
II. Unit has problems draining
A. Remove any debris from the drain.
B. Remove any debris from the PVC pipe and ttings.
C. Check and clear the waste trap (provided by installer).

Rev. 10/2014 Page 11www.willoughby-ind.com
4X 9/16" THRU ALL
14-1/2"
15-7/8"
4-1/4"
12-1/2"
BOLT CIRCLE
7"
9-1/2"
10-3/4"
3-13/16" 4-3/8"
2 PLCS:
ABEH
1
10-08-14
P0711-0003
10-08-14BEH 1 OF 3
Indianapolis, Indiana
NOTED
A
SIZE:
OUTDOOR PET DRINKING FOUNTAIN
SHEET:REV.:
ORIG.:REVISION:
SCALE: REF.:
1:5
3 PLCS:
PART #:
MAT'L:
FRACTIONS:
TOLERANCES
EXCEPT AS
WODF-1-PET
TITLE / DESC.:
ANGLE:
0.03
0.015
1/32"
Willoughby Industries, Inc.
STANDARD
WILLOUGHBY

Rev. 10/2014 Page 12www.willoughby-ind.com
9
19
18
13
17
6
7
9
14
10
15
11
16
12
2
4
5
120
22
3
8
23
24
21
27
25
3 PLCS:
ANGLE:
NOTED
2 PLCS: BEH 10-08-14
1:6
1A2 OF 3
EXCEPT AS
TOLERANCES
FRACTIONS:
A
SIZE:
OUTDOOR PET DRINKING FOUNTAIN
SHEET:REV.:
ORIG.:
Indianapolis, Indiana
TITLE / DESC.: PART #:
BEH
REVISION:MAT'L:
REF.: 10-08-14
P0711-0003
SCALE:
WODF-1-PET
0.03
0.015
1/32"
Willoughby Industries, Inc.
STANDARD
ITEM # PART # DESCRIPTION QTY.
1 S200223 WELDED BODY ASSEMBLY 1
2 S200031 RECEPTOR SUPPORT ASSEMBLY 1
3 800144 1/4-20 X 1/2" PHILLIPS TRUSS HEAD SCREW 3
4 320284 PVC THREADED ADAPTER, 1-1/2" 1
5 320280-2.9375 PVC PIPE, 1-1/2" SCHED. 40 X 2-15/16" LONG 1
6 S200033 ADA BOWL - 1-3/4" DEPTH 1
7 600601HE DECK MOUNTED DRINKING FOUNTAIN BUBBLER 1
8 600116 O-RING, #023, BUNA N-70 1
9 600612N HEXNUT, 3/4"-14 NPSM 2
10 320469 NIPPLE, 3/8" NPT X 2.5" LONG 1
11 320091 COUPLING, 3/8" FPT STAINLESS STEEL 1
12 320437 ADAPTER, 3/8" NPTF MALE X 1/4" TUBE PUSH-TO-CONNECT 1
13 380284 DRAIN, 1-1/2" 1
14 380274 GASKET FOR 1-1/2" DRAINS 1
15 380273 DRAIN WASHER, 1-5/8" 1
16 600043 NUT, 1 5/8"-12 THD FOR 1-1/2" DRAIN 1
17 4509SSN 1/4"-20 x 2" FH SECURITY SCREW 1
18 600285 SELF-CLOSING CARTRIDGE, 1.0 GPM 1
19 600286 NUT, CARTRIDGE MOUNTING 1
20 380112 SLEEVE FOR PET FOUNTAIN ADJUSTABLE PUSHBUTTON VALVE 1
21 980142 SPRING FOR PET FOUNTAIN ADJUSTABLE PUSHBUTTON VALVE 1
22 S200228 VALVE BOX COVER 1
23 380113 PUSH PIN FOR PET FOUNTAIN ADJUSTABLE PUSHBUTTON VALVE 1
24 800157 6-32 x 1/4" SH CAP SCREW 1
25 980632 STRAINER, IN-LINE, 1/4 TO 3/8 PRESS LOCK 1
26 600471 TUBING, 1/4" O.D. X 0.17" I.D. X 18" LONG 2
27 4500NSS 1/4-20 X 1/2" BUTTON HEAD SECURITY SCREW 3
NOTE: WILLOUGHBY PART #600471 - 1/4" TUBING
NOT SHOWN IN EXPLODED VIEW.
WILLOUGHBY

Rev. 10/2014 Page 13www.willoughby-ind.com
#600285
VALVE CARTRIDGE
1/4" TUBE
#980632
INLINE STRAINER
1/4" TO 3/8" PRESS LOCK
NOTE:
3/8" O.D. SUPPLY CONNECTION
VALVE ASSEMBLY DETAIL
1
Indianapolis, Indiana
BEH
BEH 10-08-14
10-08-14
A3 OF 3
P0711-0003
1:8
2 PLCS: SIZE:
OUTDOOR PET DRINKING FOUNTAIN
SHEET:REV.:
ORIG.:REVISION:
SCALE: REF.:
MAT'L:
PART #:
A
ANGLE:
WODF-1-PET
TITLE / DESC.:
FRACTIONS:
3 PLCS:
EXCEPT AS
TOLERANCES
NOTED
0.03
0.015
1/32"
Willoughby Industries, Inc.
STANDARD
NOTE:
UNIT MUST BE DISCONNECTED AND DRAINED DURING
WINTERIZATION, PER THE FOLLOWING RECOMMENDED
PRACTICES:
SHUT OFF WATER SUPPLY TO FIXTURE (SUPPLY•
STOP AND WATER LINES BY OTHERS)
DISCONNECT AND REMOVE IN-LINE FILTER•
PRESS AND HOLD PUSHBUTTON FOR 10 SECONDS•
TO ALLOW WATER LINES TO DRAIN
1-1/2" SCHED. 40 PVC
DRAIN CONNECTION
WATER SUPPLY CONNECTION
3/8" TUBING
(LOCATION IS FLEXIBLE)
4X 9/16" THRU ALL
12-1/2"
BOLT CIRCLE
14-1/2"
SERVICE SHUT-OFF VALVE (BY
OTHERS)
WATER SUPPLY LINE
(BY OTHERS)
(BY OTHERS)
4X 1/2"-13 UNC X 4"
(BY OTHERS)
(BY OTHERS)
1-1/2" PVC COUPLING
CONCRETE PAD
CONCRETE ANCHORS
OPEN HUB DRAIN TO BE 1-1/2" IPS
MINIMUM TO A POROUS GRAVEL FILL OR
MAIN SEWER LINE LOCATED BELOW
FROST LINE (BY OTHERS)
WILLOUGHBY

Page 14Rev. 10/2014 www.willoughby-ind.com
Installation & Operation Manual
Outdoor Pet Drinking Fountain
WODF-1-PET Series
Willoughby Industries, Inc. TOLL FREE [phone] ● LOCAL [phone] ● FAX [phone]
Warranty
Willoughby Industries, Inc. warrants to commercial and institutional purchasers only that each unit
will be free from defects in workmanship and materials under normal use and service upon the
following terms and conditions for a period of one (1) year from date of shipment.
This warranty does not cover installation or any other labor charges and does not apply to any
components damaged by accident, abuse, improper installation or improper maintenance. This
warranty does not cover any installation that did not comply with national, state and local building,
plumbing or electrical codes. The warranty is limited to replacing or repairing at manufacturer’s
option, transportation charges prepaid by the purchaser, any component or part which upon our
inspection shall be deemed as defective within the limitations of this warranty. The replacement or
repair of defective units as stated in this warranty shall constitute the sole remedy of the purchaser
and the sole liability of Willoughby Industries, Inc. Willoughby Industries, Inc. shall not otherwise be
liable under any indirect damages caused by defects in the repair or replacement thereof.
This warranty only extends to commercial and industrial purchasers and does not extend to any
others, including consumer customers of commercial institutional purchasers. This warranty is in
lieu of all other warranties, expressed or implied, including implied warranty of merchantability or
tness for a particular purpose or otherwise.
