Wilson Electronics 801105 User manual

Amplifier
Amplifier
Installation
G
u
ide
stallatio
stallat
In-Building
Wireless
Amplifier
Contents:
Guarantee and Warranty · · · · · · · · · · · · · · · · · · · · · · 1
Antenna Options and Accessories · · · · · · · · · · · · · · · 2
Before Getting Started / How It Works · · · · · · · · · · · · 3
Installation Overview · · · · · · · · · · · · · · · · · · · · · · · · · 4
Installing a Wilson Outside Antenna · · · · · · · · · · · · · · 5
Installing a Wilson Inside Antenna · · · · · · · · · · · · · · · 6
Installing a Wilson Amplifier · · · · · · · · · · · · · · · · · · · · 7
Powering Up a Wilson Amplifier · · · · · · · · · · · · · · · · · 8
Understanding the Amplifier Lights · · · · · · · · · · · · · · · 9
Understanding the Amplifier Lights · · · · · · · · · · · · · · · 10
Understanding the Amplifier Lights · · · · · · · · · · · · · · · 11
Warnings and Recommendations · · · · · · · · · · · · · · · 12
Factor Conversions · · · · · · · · · · · · · · · · · · · · · · · · · · 13
Distance Coverage Chart · · · · · · · · · · · · · · · · · · · · · 14
Amplifier Specifications · · · · · · · · · · · · · · · · Back Cover
Wilson
®
Electronics, Inc.
Warning: This manual contains
important safety and operating information.
Please read and follow the instructions
in this manual. Failure to do so could be
hazardous and result in damage to your
amplifier.
!

1
30-Day Money-Back Guarantee
All Wilson Electronics products are protected by Wilson’s 30-day money-back
guarantee. If for any reason the performance of any product is not acceptable,
simply return the product directly to the reseller with a dated proof of purchase.
1-Year Warranty
Wilson Electronics amplifiers are warranted for one (1) year against defects in
workmanship and / or materials. Warranty cases may be resolved by returning the
product directly to the reseller with a dated proof of purchase.
Amplifiers may also be returned directly to the manufacturer at the consumer’s
expense, with a dated proof of purchase and a Returned Material Authorization
(RMA) number supplied by Wilson Electronics. Wilson shall, at its option, either
repair or replace the product. Wilson Electronics will pay for delivery of the repaired
or replaced product back to the original consumer.
This warranty does not apply to any amplifiers determined by Wilson Electronics
to have been subjected to misuse, abuse, neglect, or mishandling that alters or
damages physical or electronic properties.
RMA numbers may be obtained by phoning Technical Support at 866-294-1660.
The Manufacturer’s rated output power of this equipment is for single carrier operation.
For situations when multiple carrier signals are present, the rating would have to be
reduced by 3.5 dB, especially where the output signal is re-radiated and can cause
interference to adjacent band users. This power reduction is to be by means of input power
or gain reduction and not by an attenuator at the output of the device.
Operation is subject to the following two conditions: (1) This device may not cause
interference and (2) this device must accept any interference, including interference that
may cause undesired operation of this device.
Disclaimer: The information provided by Wilson Electronics, Inc. is believed to
be complete and accurate. However, no responsibility is assumed by Wilson
Electronics, Inc. for any business or personal losses arising from its use, or for
any infringements of patents or other rights of third parties that may result from
its use.
Copyright © 2009 Wilson Electronics, Inc. All rights reserved.
3301 East Deseret Drive, St. George UT 84790
For additional Technical Support visit
www.wilsonelectronics.com
Phone: [phone] Fax: [phone]
Wilson
®
Electronics, Inc.

2
Installation Instructions for the Following Wilson Amplifiers:
In-Building Wireless Cellular Smart Technology™ 50 dB Amplifier
Model # 801105
FCC ID: PWO8011SB IC: 4726A-8011SB
In-Building Wireless Cellular Smart Technology™ 60 dB Amplifier
Model # 801106, Part # 801108, Part # 801110
FCC ID: PWO8011SB IC: 4726A-8011SB
In-Building Wireless PCS Smart Technology™ 60 dB Amplifier
Model # 801306
FCC ID: PWO8013SB IC: 4726A-8013SB
In-Building Wireless iDEN Smart Technology™ 50 dB Amplifier
Model # 804005
FCC ID: PWO8040SB IC: 4726A-8040SB
In-Building Wireless iDEN Smart Technology™ 60 dB Amplifier
Model # 804006
FCC ID: PWO8040SB IC: 4726A-8040SB
In-Building Wireless 900 MHz Smart Technology™ 60 dB Amplifier
Model # 801506, Model # 801606, Model # 801170, Model # 801370
Not for sale in the U.S. and Canada.
The term “IC” before the radio certification number only signifies that Industry
Canada technical specifications were met.
A13 dB 800 MHz Yagi Cellular Antenna (301111)
B1900 MHz Yagi PCS Antenna (301124)
C800 MHz Yagi Cellular Antenna (301129)
DDual-Band Panel Antenna (301135)
EDual-Polarity Dome Antenna (301123)
FDual-Band Dome Antenna (301121)
GSplitters (Multiple splitters available)
HAmplifier Soft Cases
I Omni-Directional Antenna (301201)
J Marine Antenna (301130)
Antenna Options & Accessories
A
B
C
DE
F
HIJ
G

3
Before Getting Started
This guide will help you properly install Wilson’s In-Building Wireless Smart
Technology™Amplifiers. It is important to read through all of the installation
steps for your particular application prior to installing any equipment. Read
through the instructions, visualize where all the equipment will need to be installed
and do a soft installation before mounting any equipment. If you do not understand
the instructions in full, seek professional help, or contact Wilson Technical Support at
866-294-1660.
Inside this Package

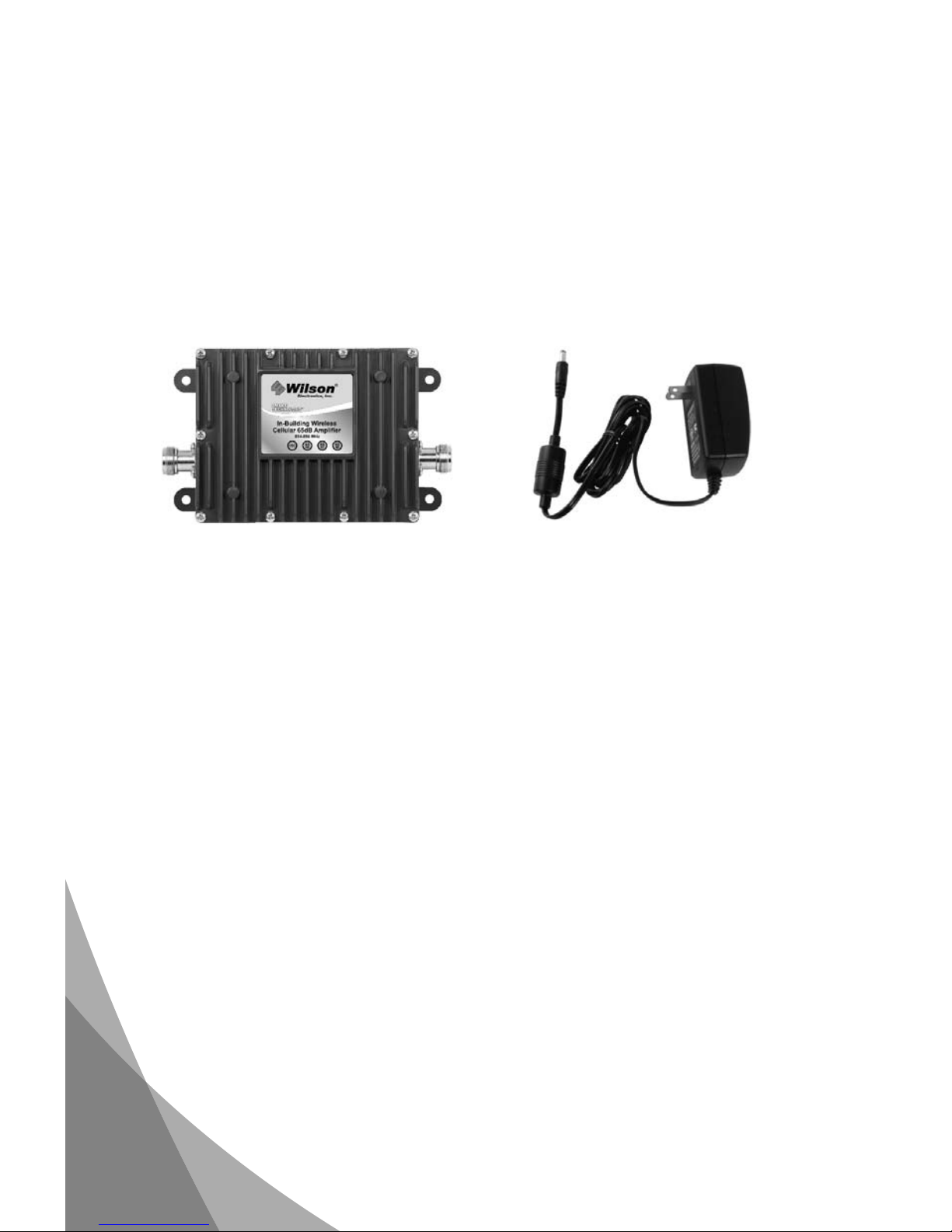

• In-building wireless amplifier
• AC/DC 110 volt power supply
Additional Required Equipment (sold separately)
• Outside antenna (Yagi recommended)
• Inside dome, panel or low-profile antenna
• Antenna coax cable
How it Works
Wilson amplifiers are small, portable, bi-directional devices that deliver service levels
consistent with what would be expected in areas of high cell network coverage. They
amplify a weak or shadowed signal in mobile, marine and in-building applications.
When using a Wilson amplifier in conjunction with Wilson antennas, the outside
antenna will collect the cell tower signal and send it through the cable to the
amplifier. The signal is then amplified and broadcast from the inside antenna
to the surrounding area. Cell phones and cellular data cards in that area then
communicate with the improved signal. When a cell phone or cellular device
transmits, the signal is received by the inside antenna, amplified by the amplifier
and broadcast back to the cell tower through the outside antenna.
In-building wireless
amplifier AC/DC plug-in power supply

4
Installation Overview
The following steps provide a summary of the amplifier/antenna installation
process. However, they are not a substitute for the complete installation
instructions on the following pages, which you should read thoroughly. Contact
Wilson’s Technical Support Department with any questions at 866-294-1660.
STEP 1 Install the Outside Antenna
Mount the Yagi antenna so that it points toward the cell site and away from where
the inside antenna will be located. Depending on your amplifier model, the two
antennas will need 50-75 feet of separation. (See illustrations on pages 5 and 7.)
STEP 2 Install the Inside Antenna
Select a location in the center of where the signal needs to be amplified. Refer
to the instructions included with the inside antenna. (See illustration on page 6 to
determine the inside antenna model that best meets your specific needs.)
STEP 3 Install the Amplifier
Position the amplifier in a well-ventilated location near a power outlet. Attach
the outside and inside antennas to the amplifier using Wilson 400 low loss coax
cable (available from Wilson Electronics).
STEP 4 Power up the Amplifier
IMPORTANT! Before connecting the power supply, ensure
that both the inside and outside antenna cables are
connected. Also ensure that all cell phones and cellular data
cards within 50 feet of the inside antenna are turned off. Plug
in the supplied 6-volt power supply into the amplifier and
then into a wall outlet.
STEP 5 Check the Amplifier Lights
The PWR light should be green, indicating that the amplifier
has power. If all other lights are also green, the amplifier is
operating properly; however, if you do not have the desired
signal coverage area, refer to pages 5, 6, 9 and 10.
Note: if you are using an outdoor Yagi antenna, it must be
adjusted for maximum signal.

5
Installing a Wilson Outside Antenna
Select a location on the roof of the
building to install the outside antenna,
using a cell phone in test mode to find
the strongest signal from the cell tower.
For test mode help, visit www.
wilsonelectronics.com or call Technical
Support at 866-294-1660.
Follow the specific antenna
installation instructions included with
the outside antenna.
Lightning protection is recommended
for all in-building installations. Take
extreme care to ensure neither you
nor the antenna come in contact with
any electrical power lines.
AYagi antenna must be installed
horizontally with the elements vertical
and the drip hole on the bottom.
Ensure there are three feet of
clearance in all directions surrounding
the antenna.
CORRECT

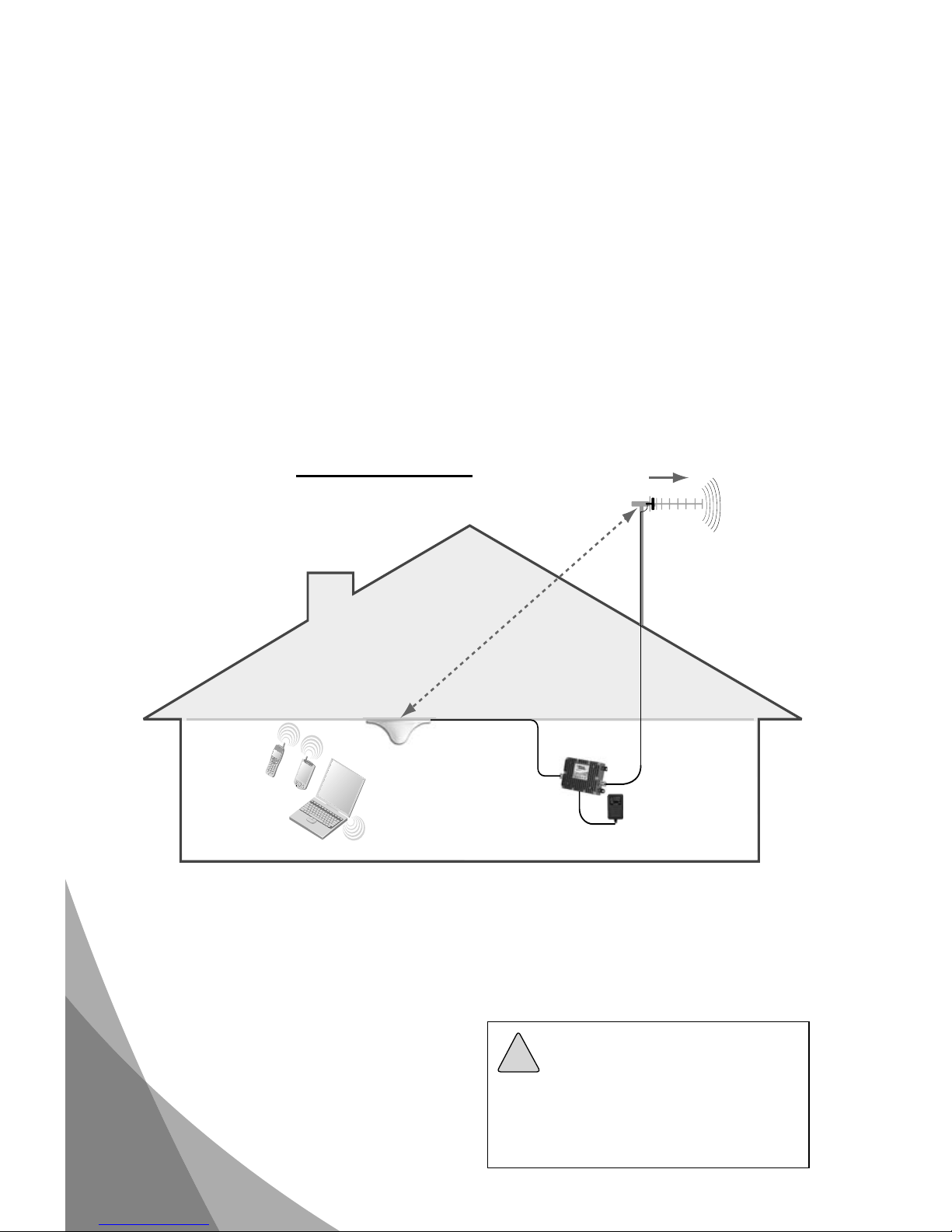

Cell Tower RF Signal
Yagi External Antenna
Warning: The outside antenna must
be installed on an outdoor permanent structure
with a separation of at least 20 feet from all
persons during normal operation.
!

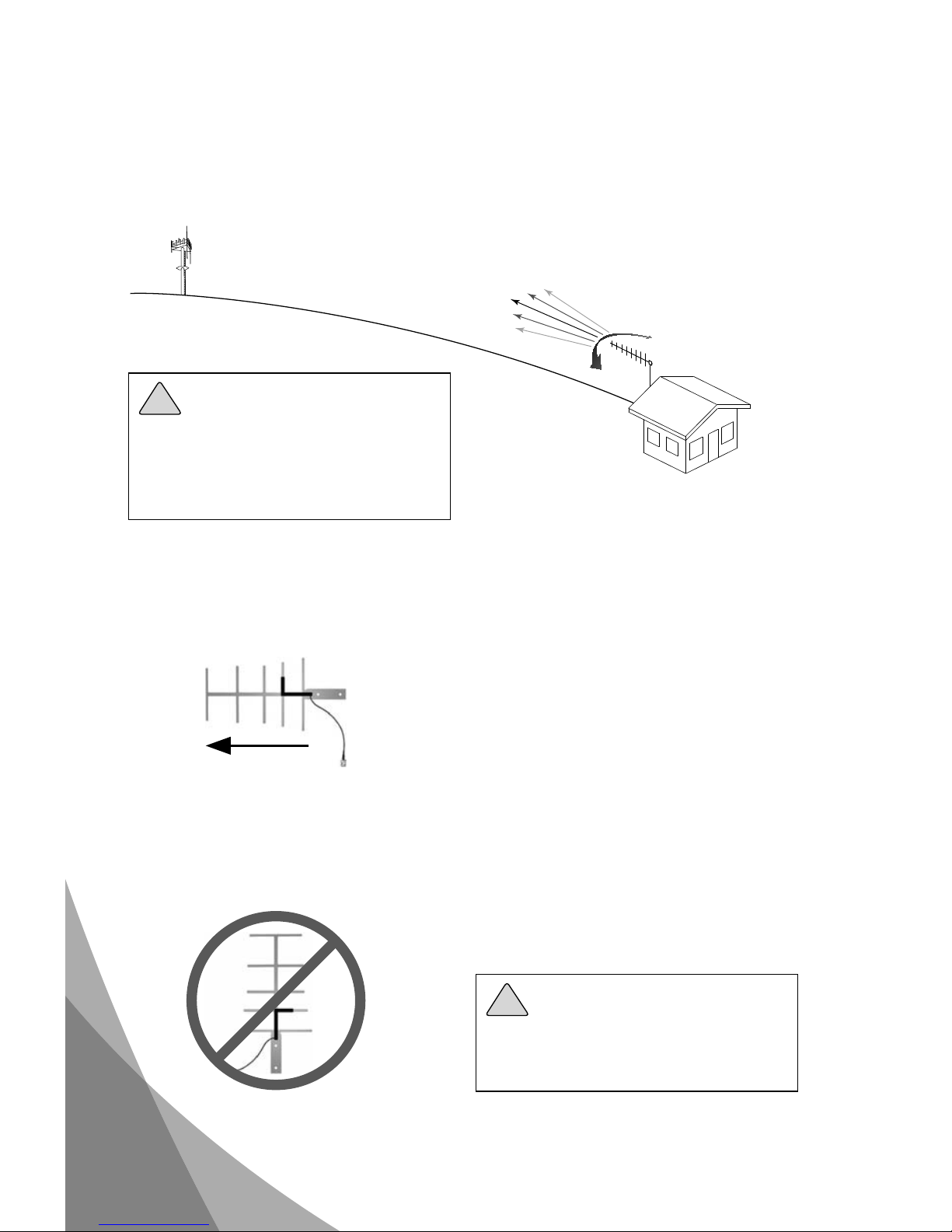

NOT
CORRECT
Warning: Never point the
front of the Yagi antenna toward
the inside antenna - oscillation will
result, causing amber light and gain
reduction.
!
Pointing toward
cell tower

6
Installing a Wilson Inside Antenna
Select a suitable location for the inside antenna, preferably in the center of where
the signal needs to be amplified. To determine signal strength and coverage
distance, refer to page 12 of this installation guide.
Follow the specific antenna installation instructions included with the inside antenna.
Wilson has several inside antenna options. The dome and panel antennas are
the most popular for in-building applications.
For a square room, a dome antenna will provide better coverage. (A)
For a rectangular room, a panel antenna will provide better coverage. (B)
In some cases, multiple inside antennas may be required (C & D). A signal may
be “split” by using a splitter. If using more than one inside antenna, a separation
of at least 20 feet is necessary between inside antennas.
= Dome Antenna
= Panel Antenna = Splitter
= Amplifier
Connect the coax cable from the amplifier to the inside antenna. For distances of 20
feet or more, use Wilson 400 low loss coax cable to prevent significant signal loss.
A
BC
D
Warning: An inside antenna must have
a separation distance from all persons that is at
least 12 inches for the 5.2 dBi dome antenna
and 15 inches for the 7 dBi panel antenna.
!

7
Installing a Wilson Amplifier
Select a location to install the amplifier that is away from excessive heat, direct
sunlight, moisture and that has proper ventilation. Do not place the amplifier in
an air-tight enclosure.
Recommended installation locations for in-building amplifiers are:
• On a wall
• On the ceiling
• Near a power outlet
Run the outside antenna cable to the amplifier and attach it to the N-Female
connector labeled “outside antenna” on the amplifier. Run the inside antenna
cable to the amplifier and attach it to the N-Female connector labeled “inside
antenna” on the amplifier.
Note: Be careful when plugging the connector in so as not to damage the center
pins on the connectors.
Connect the outside antenna to the amplifier with Wilson 400 low loss coax cable
(available from Wilson Electronics). Place the inside antenna in the center of
the area needing the amplified signal. It is important to have at least 50 feet of
separation between the inside and outside antennas for the 50 dB amplifiers, 68
feet of separation distance for the 60 dB PCS amplifiers and at least 75 feet of
separation distance for the 60 dB cellular amplifiers.
AC/DC
Power Supply
Amplifier
Supports
Multiple
Users
Inside Antenna
Optional Dome
Antenna Shown
Point Yagi antenna
away from inside
antenna
Outside
Antenna
1900 MHz Yagi
Antenna Shown
50 feet minimum
separation between inside
and outside antenna for
50 dB cellular amplifier
68 feet for 60 dB PCS amplifier
75 feet for 60 dB cellular
amplifier
Antenna Separation
Warning: Connecting the
amplifier directly to the cell phone
with use of an adapter will damage
the cell phone.
!

8
Powering up a Wilson Amplifier
1. IMPORTANT! Ensure that all cell phones and cellular data cards within 50 feet
of the inside antenna are turned off.
2. To verify proper installation of the amplifier and antennas, make sure that the
distance between the inside and outside antennas is a minimum of 50 feet for
the 50 dB amplifier, 68 feet of separation distance for the 60 dB PCS amplifier,
and 75 feet for the 60 dB cellular amplifier.
3. If you are using an outside Yagi antenna, never point the front of the Yagi
toward the inside antenna.
4. Ensure that both the outside antenna coax cable and the inside antenna coax
cable are connected to the amplifier before powering up the amplifier.
5. Plug the 6-volt power supply into the amplifier input marked “power” (carefully,
to avoid damaging the center pin) and then into a wall outlet.
Warning: Verify that both
the outside antenna and the inside
antenna are connected to the
amplifier before powering up the
amplifier.
!
Warning: Use only the power
supply provided in this package.
Use of a non-Wilson product may
damage your equipment.
!
NOTE: The aluminum casing of a Wilson amplifier will adjust very quickly to the
ambient temperature of its environment. For example, in the summer, when
the attic of a house can easily exceed 100 degrees Fahrenheit, the amplifier
temperature may be 10 or more degrees higher. The casing will be hot to the
touch. Such high temperatures will not damage the amplifier, nor do they pose
a fire risk. As recommended in these instructions, install the amplifier in a
location with adequate ventilation. Keep the area free of items that could block
air flow to the amplifier.

9
The amplifier is equipped with sensitive electronics designed to detect amplifier
oscillation or cell phone overload, both of which can hamper amplifier performance.
The amplifier is designed to automatically reduce gain or, if necessary, shut down
to prevent or compensate for these conditions. Oscillation or overload can be
caused by improper equipment installation -- understanding the amplifier lights will
help you identify and solve potential problems.
OSC 40 50 60 When the amplifier is initially powered on, the 60 light
will turn green. This indicates the amplifier is working
at the proper gain level.
If the 50 light is green, the outside signal is too strong
and the amplifier is powering down. Verify that the
outside Yagi antenna is pointed away from the inside
antenna and not across the roof of the building. If need
be, redirect the Yagi antenna so that it is pointing away
from the inside antenna. Then, reset the amplifier by
disconnecting and reconnecting the power supply.
If the 40 light is green, the amplifier is continuing to
power down. Try operating the cell phone farther away
from the inside antenna. If need be, redirect the Yagi
antenna so that it is pointing away from the inside
antenna. Then, reset the amplifier by disconnecting and
reconnecting the power supply.
If the OSC light is red, the amplifier has shut down due
to cell phone overload. Try operating the cell phone
farther away from the inside antenna. Verify that the
outside Yagi antenna is pointed away from the inside
antenna and not across the roof of the building. If need
be, redirect the Yagi antenna so that it is pointing away
from the inside antenna. Then, reset the amplifier by
disconnecting and reconnecting the power supply.
OSC 40 50 60
OSC 40 50 60
OSC 40 50 60
If your amplifier has this light
configuration refer to the
instructions below.
Understanding the Amplifier Lights

10
The amplifier is equipped with sensitive electronics designed to detect amplifier
oscillation or cell phone overload, both of which can hamper amplifier performance.
The amplifier is designed to automatically reduce gain or, if necessary, shut down
to prevent or compensate for these conditions. Oscillation or overload can be
caused by improper equipment installation -- understanding the amplifier lights will
help you identify and solve potential problems.
OSC 45 55 65 When the amplifier is initially powered on, the 65 light
will turn green. This indicates the amplifier is working
at the proper gain level.
If the 55 light is green, the outside signal is too strong
and the amplifier is powering down. Verify that the
outside Yagi antenna is pointed away from the inside
antenna and not across the roof of the building. If need
be, redirect the Yagi antenna so that it is pointing away
from the inside antenna. Then, reset the amplifier by
disconnecting and reconnecting the power supply.
If the 45 light is green, the amplifier is continuing to
power down. Try operating the cell phone farther away
from the inside antenna. If need be, redirect the Yagi
antenna so that it is pointing away from the inside
antenna. Then, reset the amplifier by disconnecting
and reconnecting the power supply.
If the OSC light is red, the amplifier has shut down due
to cell phone overload. Try operating the cell phone
farther away from the inside antenna. Verify that the
outside Yagi antenna is pointed away from the inside
antenna and not across the roof of the building. If need
be, redirect the Yagi antenna so that it is pointing
away from the inside antenna. Then, reset the
amplifier by disconnecting and reconnecting
the power supply.
OSC 45 55 65
OSC 45 55 65
OSC 45 55 65
If your amplifier has this light
configuration refer to the
instructions below.
Understanding the Amplifier Lights

11
The amplifier is equipped with sensitive electronics designed to detect amplifier
oscillation or cell phone overload, both of which can hamper amplifier performance.
The amplifier is designed to automatically reduce gain or, if necessary, shut down
to prevent or compensate for these conditions. Oscillation or overload can be
caused by improper equipment installation -- understanding the amplifier lights will
help you identify and solve potential problems.
PWR ABCD
PWR ABCD
PWR ABCD
PWR ABCD
PWR ABCD
PWR ABCD
The power light will turn green when the amplifier
is initially powered on.
A BLINKING red light indicates a cell phone
overload. Try operating the cell phone farther from
the inside antenna.
When the D light is green, the amplifier is working
at proper gain level (peak performance).
If light C is green but D is out, the combination of
outside signals is too strong and the amplifier is
powering down. To remedy this, turn the outside
antenna slightly away from the cell site until the D
light turns green.
If light B is green and C and light D are off, the
amplifier is continuing to power down due to cell
phone overload. Try operating the cell phone
farther from the inside antenna.
If light A is solid red, the amplifier has shut down
because the combination of outside signals is too
strong. To remedy this, turn the outside antenna
slightly away from the cell site. The amplifier
will reset automatically but may also be reset by
disconnecting and reconnecting the power supply.
Wilson
®
Electronics, Inc.
TMTM
Electronics, Inc.
T
T
MM
TM
If your amplifier has this light
configuration refer to the
instructions below.
Understanding the Amplifier Lights

12
Warnings and Recommendations
Warning: The Yagi antenna must always be located so the back or side
points to the inside antenna. Never point the front of the Yagi
antenna toward the inside antenna – oscillation will result,
causing amber light and gain reduction.
Warning: The outside antenna must be installed on an outdoor permanent
structure with a separation of at least 20 feet from all persons
during normal operation.
Warning: Connecting the amplifier directly to the cell phone with use of an
adapter will damage the cell phone.
Warning: Connect both the outside and inside antenna cables to the
amplifier before powering up the amplifier.
Warning: Use only the power supply provided in this package. Use of a
non-Wilson product may damage your equipment.
Warning: RF Safety: An inside antenna must have a separation distance
from all persons that is at least 12 inches for the 5.2 dBi dome
antenna and 15 inches for the 7 dBi panel antenna.
Lightning protection is recommended for all in-building installations.
Finding Signal Strength and Calculating Coverage Distance
Signal strength and the corresponding coverage distance you can expect to achieve
with your amplifier/antenna system are based on a combination of several factors:
the received signal strength of your cell phone alone, the signal gain achieved by
your amplifier and antennas and the signal loss from cables, taps and splitters you
may be using.
To calculate your approximate signal coverage distance, you can enter this
information into our CoverageArea Calculator on the Technical Support page on
our website (www.wilsonelectronics.com). If you prefer, you can manually calculate
your approximate signal coverage distance using the instructions on this and the
following two pages.
First, measure the Outside Signal Level (OSL) at the intended outside antenna
location using a cell phone in test mode. (For assistance, visit the Phone Test
Modes section on the Technical Support page on our website or call 866-294-1660.)
The OSL will always be a negative number. (Even if the cell phone shows a positive
number, you will need to change it to a negative for this calculation.) Maximum
signal strength is usually about -50. When the signal weakens to about -100 or
worse, the call may be dropped.
Depending on the model, your amplifier gain (AG) will be 50, 60 or 65 dB (see the
label on your amplifier or the specification table on the back cover of this guide).
Your inside and outside antennas will also add signal gain, again depending on the
antenna models you are using (see the table on page 13).
You will also experience some signal loss from cables, splitters and taps used to
connect your system (see the table on page 13).

13
Factor Conversions
Using the table below, find and circle the appropriate decibel (dB) numbers that
correspond to the equipment in your particular system. Be sure to choose your numbers
from the appropriate frequency column based on the service you receive (iDEN, Cellular
or PCS).
Frequency
iDEN
851 Cellular 869 PCS 1930
Antenna Factor (AF)
Low Profile (inside) +3 dB +3 dB +3 dB
Dual-Band Panel (inside) +7 dB +7 dB +7 dB
Dual-Band Dome (inside) +2 dB +2 dB +2 dB
Dual-Polarity Dome (inside) +5 dB +5 dB +5 dB
Yagi 806-939 MHz Cellular (outside) +13 dB +13 dB +13 dB
Yagi 800-900 MHz Cellular (outside) +10 dB +10 dB +10 dB
Yagi 1800-1900 MHz PCS (outside) +14 dB +14 dB +14 dB
Cable Factor (CF)
20’ RG 58 -4 dB -4 dB -7 dB
20’ 9913 -3 dB -3 dB -4 dB
30’ 9913 -3 dB -3 dB -5 dB
50’ 9913 -4 dB -4 dB -7 dB
100’ 9913 -7 dB -7 dB -10 dB
Splitter Factor (SF) -3 dB -3 dB -3 dB
Tap Factor (TF) (depends on model - refer to tap label) -6/-10 dB -6/-10 dB -6/-10 dB
Use the following formula to calculate your Signal Strength (S). Write in your numbers
as appropriate. Be sure to account for the length of all cable, inside and out. Add up the
numbers for all taps and/or splitters (if you are not using any, enter 0). Remember, AG and
AF will be positive numbers; OSL, CF, TF, SF and S will be negative.
OSL + AG + AF + CF + SF + TF = S
Once you have calculated your signal strength, use the graph on the following page to
determine approximate coverage distance. See below for a sample calculation.
Sample Signal Strength and Coverage Calculation
This example assumes an OSL of -90, use of a 60 dB cellular amplifier, an 806-939 MHz
Yagi antenna and a low profile inside antenna with 100 total feet of inside and outside
9913 cable with no splitters or taps.
OSL -90 (always a negative number) found on cell phone in test mode
AG +60 gain
AF +16 dB gain (+13 dB for the Yagi antenna and +3 dB for the low-profile antenna)
CF -7 dB loss
SF 0 (none used)
TF 0 (none used)
Formula: -90 + 60 + 16 + -7 + 0 + 0 = -21
With a signal strength of -21, coverage distance would be
approximately 120 feet from the inside antenna.

14
0
C
OVERAGE
D
IS
TAN
C
E
(f
t
)
F
O
RMUL
A
S
OLUTIO
N
50
1
00
1
50
20
0
2
50
3
0
0
3
5
0
4
00
-1
0
-1
5
-2
0
-2
5
-
30
-
35
-4
0
391
/
157
220
/
88
122
/
50
7
0
/
28
39
/
16
22
/
9
12
/
5
S
I
G
NAL
S
TREN
G
TH
IN
S
IDE B
U
ILDIN
G
CO
VERA
G
E DI
S
TAN
C
E
CO
VERA
G
E DI
S
TAN
C
E IN FT
800
MH
z
1
900
MH
z
When
y
ou complete the calculation on pa
g
e 13,
f
ind
y
our
S
i
g
nal
S
tren
g
th number on the horizontal axis
(
-10 to -40
)
. Then, follow the nearest vertical
g
ridline
up
ward to where it intersects with the 800 MHz o
r
1900 MHz line, as appropriate. You can then determine your approximate coverage distance in feet, as indicated on the vertical axis
(
0 to 400
)
.
NOTE
:
Your actual covera
g
e ma
y
var
y
f
rom at least
hal
f
to twice the indicated distance due to signal
fadin
g
, obstructions or reflections
.

Part #110434 - 022 / 06.29.09
In-Building Wireless Amplifier Specifications (iDEN, PCS, EGSM & DCS)
Model/Part
Number iDEN # 804005 iDEN # 804006 iDEN # 804070 PCS # 801306 PCS # 801365 EGSM #801506 DCS #801606
Not for sale in the U.S. or Canada
Frequency
Uplink 806-821 MHz 806-821 MHz 806-821 MHz 1850-1910 MHz1850-1910 MHz 880-915 MHz 1710-1755 MHz
Downlink 851-866 MHz 851-866 MHz 851-866 MHz 1930-1990 MHz1930-1990 MHz 925-960 MHz 1805-1880 MHz
Gain 50 dB 60 dB 50 dB / 70 dB 60 dB 65 dB 60dB 60dB
Max Output 3 watts 2 watts 3 watts
AGC Limit
(uplink/downlink) + 30 dBm / + 30 dBm +30 dBm / +30 dBm
Noise Figure 3-4 dB typical 4 dB typical 3 dB typical
Flatness
(uplink/downlink) ± 2.5 dB ± 4 dB
Isolation
(uplink/downlink) > 90 dB
Power
Requirements Input: 100-240 V AC 50/60 Hz 0.6A / Output: 6 V DC 3 A
Connectors N-Female 50 ohms
Dimensions 5.6 x 3.6 x 1.7 (inch) / 14.2 x 9.1 x 4.4 (cm)
Weight 1.5 lbs / 0.7 kg
In-Building Wireless Amplifier Specifications (GSM & Cellular)
Model/Part
Number GSM only # 801170 GSM only # 801370 Cellular # 801105 Cellular # 801106 Cellular #801108 Cellular #801110 Cellular #801165
Not for sale in the U.S. or Canada
Frequency
Uplink 824-849 MHz 1850-1910 MHz 824-849 MHz 824-849 MHz 824-835 MHz 835-849 MHz 824-849 MHz
Downlink 869-894 MHz 1930-1990 MHz 869-894 MHz 869-894 MHz 869-880 MHz 880-894 MHz 869-894 MHz
Gain 70 dB 50/65 dB 50 dB 60 dB Channel A
60 dB Channel B 60 dB 65 dB
Max Output up to 3 watts up to 2 watts 3 watts
AGC Limit
(uplink/downlink) + 30 dBm / + 30 dBm
Noise Figure 3 dB nominal 4 dB nominal 3-4 dB typical
Flatness
(uplink/downlink) ± 2.5 dB ± 4 dB ± 2.5 dB
Isolation
(uplink/downlink) >90 dB >90 dB >90dB
Power
Requirements Input: 100-240 V AC 50/60 Hz 0.6 A / Output: 6 V DC 3 A
Connectors N-Female 50 ohms
Dimensions 5.6 x 3.6 x 1.7 (inch) / 14.2 x 9.1 x 4.4 (cm)
Weight 1.5 lbs / 0.7 kg
