WilTec 61591 User manual

Operation Manual
Woodturning Lathe
61591

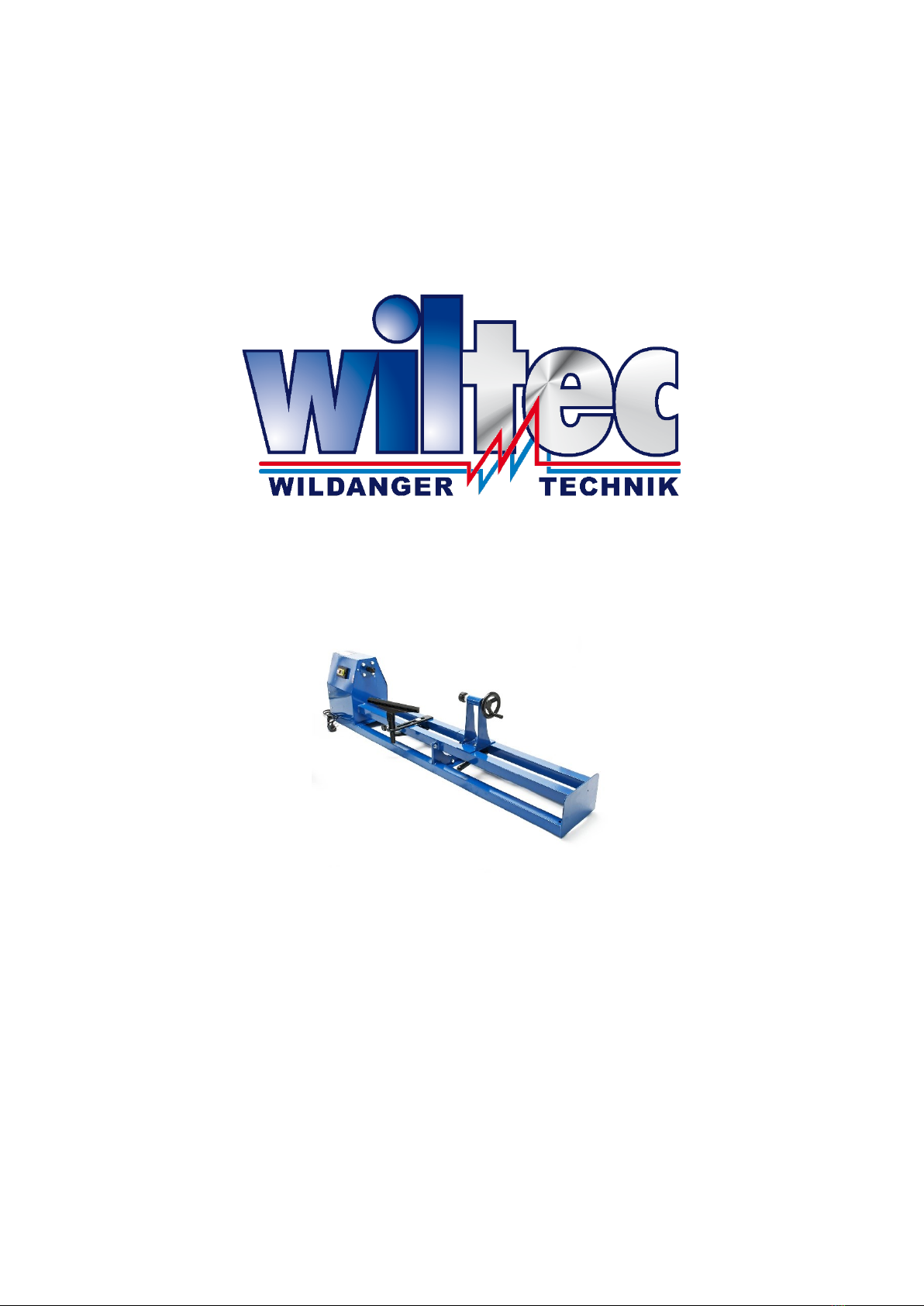

Illustration similar, may vary depending on model
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps and technical data can differ insignificantly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities, please contact us.

© by WilTec Wildanger Technik GmbH Item 61591 Page 2
http://www.WilTec.de
http://www.aoyue.eu 11 2021-1
http://www.teichtip.de
The information contained in this document may alter at any time without previous notice. It is prohibited
to copy or spread any parts of this document in any way without prior written allowance. All rights re-
served.
The WilTec Wildanger Technik GmbH cannot be held accountable for any possible mistakes in this
operating manual, nor in the diagrams and figures shown.
Even though, the WilTec Wildanger Technik GmbH has undergone biggest possible efforts to ensure
that the operating manual is complete, faultless and up to date, mistakes cannot be entirely avoided.
If you should find a mistake or wish to make a suggestion for improvement, we look forward to hearing
from you.
Send an e-mail to:
[email protected]
or use our contact form:
https://www.wiltec.de/contacts/
The most recent version of this manual in various languages can be found in our online shop via:
https://www.wiltec.de/docsearch
Our postal address is:
WilTec Wildanger Technik GmbH
Königsbenden 12
52249 Eschweiler
Germany
Do you wish to pick goods up? Our pick-up address is:
WilTec Wildanger Technik GmbH
Königsbenden 28
52249 Eschweiler
Germany
To shorten the waiting time and allow for a rapid on-site transaction, we ask you to call us previously or
placing your order via the webshop.
E-mail: [e-mail]
Tel:[phone]
Fax: [phone]
To return orders for exchange, repair or for other purposes, please use the following address. Attention!
To allow for a smooth execution of your complaint or return, it is important to contact our customer
service team before returning the goods.
Returns Department
WilTec Wildanger Technik GmbH
Königsbenden 28
52249 Eschweiler
E-mail: [email protected]o
Tel:[phone]
Fax: [phone]

© by WilTec Wildanger Technik GmbH Item 61591 Page 3
http://www.WilTec.de
http://www.aoyue.eu 11 2021-1
http://www.teichtip.de
Introduction
Thank you for purchasing this quality product. To minimize the risk of injury we urge that our clients
take some basic safety precautions when using this device. Please read the operation instruc-
tions carefully and make sure you have understood its content.
Keep these operation instructions safe.
Danger signs
Danger! To reduce the risk of injury, read the operating instructions before use!
Attention! Wear hearing protection. Noise exposure can cause hearing loss.
Attention! Wear a dust mask. When working with wood and other materials, harmful
dust can be generated. Material containing asbestos must not be processed.
Attention! Wear protective glasses. Sparks generated during the working process or
splinters, chips and dust emerging from the unit can lead to loss of visibility.
Danger! Risk of injury! Do not reach into rotating workpieces.
Direction of rotation!
Danger!
When using electrical equipment, some safety precautions must be observed to prevent injury
and damage to property. Please read these operating/safety instructions carefully. Keep them in
a safe place for future reference.
If you should lend the device to another person, also hand over these operating/safety instruc-
tions. We are not liable for accidents or damage caused by non-compliance with these instruc-
tions and the safety instructions.

© by WilTec Wildanger Technik GmbH Item 61591 Page 4
http://www.WilTec.de
http://www.aoyue.eu 11 2021-1
http://www.teichtip.de
Safety instructions
Danger! Read all safety instructions and notes. Failure to follow the safety precautions and instruc-
tions may result in electric shock, fire, and/or serious injury. Keep all safety instructions and notes
for future reference.
Warning: When power tools are used, basic safety precautions must be followed to eliminate the risk
of fire, electric shock and personal injury, including the following:
•Always wear safety glasses and head protection, e.g., a construction helmet.
•Wear tight-fitting work clothing that cannot get caught by moving parts.
•Connect the machine firmly to a surface.
Equipment description and scope of delivery
Please check the completeness of the item according to the described content of delivery. In case of
missing parts, please contact our customer service or the point of sale where you purchased the device
within 5 working days of the purchase of the item at the latest, presenting a valid proof of purchase:
•Open the packaging and carefully remove the device from the packaging.
•Remove the packing material as well as packing and transport locks (if present).
•Check that the scope of delivery is complete.
•Check the device and the equipment for transport damage.
•If possible, keep the packaging until the warranty expires.
Danger! Device and packaging material are not children’s toys! Children must not play with plas-
tic bags, foils, or small parts! There is a serious danger of ingestion and suffocation!
Scope of delivery
•Woodturning lathe
•Front end driver ring
•Tool support
•Counter bracket
•Handwheel
•Clamping lever (2×)
•Plate (2×)
•Locking grip
•Wrench for pinion shaft
•Face plate
•Crank handle
•Hexagon key
•Wrench for front end driver ring
•Small screw (3×)
•Small washer (6×)
•Spring washer (3×)
•Nut small (3×)
•Large screw (2×)
•Big washer (2×)
•Wing nut (2×)
•Washer for crank handle
•Original operating instructions
•Safety information
Intended use
•The woodturning lathe is only used to work on wood using a suitable turning iron.
•The machine may only be used for its intended purpose. Any further use beyond this is not
intended. The user/operator is liable for any damage or injury of any kind resulting from this, not
the manufacturer.
•Please note that our devices are not designed for commercial, technical or industrial use. We
do not supply any warranty if the device is used in commercial, craft or industrial enterprises as
well as in equivalent activities.

© by WilTec Wildanger Technik GmbH Item 61591 Page 5
http://www.WilTec.de
http://www.aoyue.eu 11 2021-1
http://www.teichtip.de
Technical data
Nominal voltage (V)
230
Nominal frequency (㎐)
50
Power (W)
400 (S2 30 min)
Idling speed (motor) (r⁄min)
1400
Spindle speed (r⁄min)
890 / 1260 / 1760 / 2600
Max. cutting length (㎜)
1000
Max. cutting diameter (㎜)
350
Max. turning diameter (㎜)
280
Protection type
IP20
Weight (㎏)
22
Load factor
The load factor “S2 30 min” (short-time operation) indicates this motor with a rated power of 400 W may
only be continuously used for the time specified on the data plate (30 min). Otherwise, it will heat up
excessively. During the pause, the motor will cool down again to its initial temperature.
Noise and vibrations
Danger! The noise and vibration values were determined in accordance with EN 61029.
Sound pressure level LpA (dB (A))
61
Uncertainty KpA (dB)
3
Sound power lever LWA (dB (A))
74
Uncertainty KWA (dB)
3
The stated values are emission values and therefore do not have to represent safe workplace values at
the same time. Although there is a correlation between emission and emission levels, it cannot be reli-
ably determined whether additional precautions are necessary or not. Factors that can influence the
current emission level at the workplace include the duration of the working process, the nature of the
workspace, other sources of noise, etc., e.g., the number of machines and other near-by processes.
Reliable workplace values can also vary from country to country. However, this information should en-
able the user to make a better evaluation of hazard and risk.
Wear hearing protection. Noise exposure can cause hearing loss.
Keep noise and vibration to a minimum!
•Only use faultless equipment.
•Regularly service and clean the unit.
•Adapt your mode of operation to the device.
•Do not overload the device.
•Have the device checked if necessary.
•Switch the device off when it is not in use.

© by WilTec Wildanger Technik GmbH Item 61591 Page 6
http://www.WilTec.de
http://www.aoyue.eu 11 2021-1
http://www.teichtip.de
Residual risks
Even if this power tool is operated correctly, there are always remaining risks. The following haz-
ards may occur in connection with the construction and design of this power tool:
•Lung damage if you do not wear a suitable dust mask.
•Hearing damage if you do not wear a suitable hearing protection.
•Damage to health resulting from hand-arm vibrations if the device is used for a long period of
time or is not properly operated and maintained.
Before starting the device
Before connecting the device, make sure that the data on the nameplate corresponds to the network
data. Warning! Always disconnect the mains plug before making any adjustments to the unit.
•The lathe must be securely set up, i.e., it should be bolted to a workbench or other fixed under-
frame.
•Before commissioning, all covers and safety devices must be properly installed.
•Before connecting, make sure that the data on the nameplate corresponds to the mains data of
your power supply system.
•Before you exchange tools on the machine (face driver/face plate) or adjust the speed, the
mains plug must always be disconnected in order to prevent unintentional switching on, e.g., by
other people.
•Transport the machine by lifting it to the machine bed. Observe the weight of the machine (see
“Technical data”) and, if necessary, call in another person for help.
Assembly
1. Screw the second half of the machine bed to the main frame. Use the screw, two washers, the
spring washer and the nut at each of the three bolting points.
2. Place the tool support on the machine bed. Screw it together with the screw, plate, washer and
the clamping lever. If the tool support is in a position where the clamping lever is too long, the
clamping lever can alternatively be replaced by the wing nut.
3. Screw the locking handle into the workpiece support.
4. Place the counter bracket on the machine bed. Screw it together with the screw, plate, washer
and the tension lever. If the counter bracket is in the position where the clamping lever is too
long, the clamping lever can alternatively be replaced by the wing nut.
5. Push the handwheel onto the counter bracket spindle. Make sure that the side of the handwheel
with the grub screw is guided over the flattened part of the counter bracket spindle. Tighten the
grub screw with the supplied Allen key and screw the crank handle with the washer to the hand-
wheel.
6. Mount the machine to a suitable surface (e.g., workbench or similar). The lathe can be mounted
in several places. Use suitable fixing material, e.g., carriage bolts for fixing to a metal base
frame. The fixing material is not included in the content of delivery and is available from special-
ist dealers.
Adjusting the counter bracket
•The counter bracket is adjusted after loosening the clamping lever located below the machine
bed or the wing nut.
•After setting the optimum clamping pressure using the handwheel, the counter bracket spindle
must be secured with the lock nut.
Adjusting the tool rest
•The height of the tool rest can be adjusted after releasing the locking handle.

© by WilTec Wildanger Technik GmbH Item 61591 Page 7
http://www.WilTec.de
http://www.aoyue.eu 11 2021-1
http://www.teichtip.de
•The adjustment of the tool support in longitudinal direction is possible after loosening the clamp-
ing lever or the wing nut below the machine bed.
•The tool rest must be brought as close as possible to the workpiece without touching it.
Warning! Make sure that the workpiece support is firmly tightened and cannot rotate into the workpiece.
Adjusting the speed
1. Remove the mains plug.
2. Loosen locking screw, open housing cover and loosen motor clamping screws. Lift the motor V-
belt to release the tension of the V-belt.
3. Fold the V-belt to the desired speed level (pay attention to the alignment!).
4. The belt tension is achieved by lowering the motor, the dead weight of the motor is sufficient.
5. Retighten the motor clamping screw after the speed adjustment, close housing cover and fix
with locking screw.
6. A table with the corresponding speeds can be found on the inside of the housing cover.
Choosing the correct speed
•For new turning pieces, always start with the lowest possible speed and increase it with de-
creasing unbalance of the turning piece.
•Preselect the speed according to the cutting speed table, for non-circular workpieces start with
zero speed.
•The choice of the correct speed depends on several factors when turning (e.g., size, balance,
material, etc. of the workpiece).
•Thumb rule: non-circular workpieces, large workpieces, hard woods = low speed.
Conversion from face driver to face plate
1. Place the wrench onto the wrench surface, which is on the spindle directly behind the face
driver.
2. Using another wrench, loosen the face driver counter-clockwise while holding the other wrench.
3. Now turn the face plate onto the thread of the spindle and tighten it with the wrench on the
spindle.
Face driver and accompanying grain tip
•The face driver transmits the motor power to the workpiece when turning between the tips.
•When working between the face driver and the centring point, make sure that the centring hole
is drilled sufficiently deep. The centring drill diameter should be 5–8 mm. Do not select a clamp-
ing pressure that is too high. Workpieces can become curved and break due to excessive clamp-
ing pressure.
•In order to avoid thread or bearing damage, the face driver must be driven with a rubber or wood
hammer on the face of the workpiece.
•The accompanying centring point prevents the centring hole to be drilled in the workpiece from
burning out.
Operation
Important notes on operation:
•When selecting your woodturning wood, please look for knots and dry cracks. Only use wood
without cracks and without larger knots (for small knots, carefully select the contact pressure of
the turning iron).
•Always check by hand that the wood to be turned is firmly placed.
Warning: Pull the mains plug!

© by WilTec Wildanger Technik GmbH Item 61591 Page 8
http://www.WilTec.de
http://www.aoyue.eu 11 2021-1
http://www.teichtip.de
•Only use original turning irons sharpened.
•When turning wooden discs, do not stand in the flight circle of the workpiece.
•Please use a band saw or scroll saw to cut large and unbalanced woodturning stock in the best
possible way. Large unbalance of the turning material endangers your health and the service
life of the machine.
•For new woodturning pieces, always start with the lowest possible speed and increase it with
increasing improvement of the turning force.
•Do not use wooden discs with shrinkage cracks, as there is a high risk of bursting due to cen-
trifugal force.
•Observe the maximum workpiece sizes (see “Technical data”).
•In case of blocked tools: pull out the mains plug before troubleshooting!
•Clamp workpieces between the face driver or face plate and the centring point. First tighten the
counter bracket with the clamping lever or the wing nut. Then clamp the workpiece by turning
the crank handle on the hand wheel.
•For turning, position yourself at the machine so that the cutting tools can be easily guided on
the tool support.
On/off switch
•The lathe is switched on by pressing the green “I” button.
•To switch the lathe off, press the red button “O.”
Cable change
Danger! If the power cord of this unit is damaged, it must be replaced by the manufacturer or a qualified
technician to avoid hazards. The lathe must not be put back into operation until it has been repaired.
Cleaning, maintenance and spare part supply
Danger! Disconnect the mains plug before carrying out any cleaning work!
Cleaning
•Keep guards, air vents and the motor housing as free of dust and dirt as possible. Clean the
unit with a clean cloth or blow it out with compressed air at low pressure.
•We recommend that you clean the unit immediately after each use.
•Clean the appliance regularly with a damp cloth and some mild detergent. Do not use cleaning
agents or solvents as they may attack the plastic parts of the unit. Make sure that no water can
get inside the unit. Penetration of water into an electrical appliance increases the risk of electric
shock.
Motor starting problems
Excessive clamping pressure in conjunction with excessive belt tension can lead to motor start-up prob-
lems, especially at high speeds.
Possible solutions:
•Loosen belt tension.
•Reduce the clamping pressure on the counter bracket hand wheel.
•Only set high speeds for final and fine treatment of the workpieces.
Maintenance
There are no other parts to be serviced inside the unit.

© by WilTec Wildanger Technik GmbH Item 61591 Page 9
http://www.WilTec.de
http://www.aoyue.eu 11 2021-1
http://www.teichtip.de
Spare parts supply
The following information should be provided when ordering spare parts:
•Device type
•Device item number
•Device identification number
•Number of required spare part
Disposal and recycling
The device is packaged to prevent damage during transport. This packaging is raw material and is
therefore reusable or can be returned to the raw material cycle. The device and its equipment consist
of various materials such as metal and plastics. Defective devices should not be disposed of with house-
hold waste. For proper disposal, the device should be disposed of at a suitable collection point. If you
do not know of a collection point, please contact your local administration or another local authority.
Storage
Store the device and its equipment in a dark, dry and frost-free area. The optimum storage temperature
is between 5 ℃and 30 ℃. Keep the power tool in its original packaging.

© by WilTec Wildanger Technik GmbH Item 61591 Page 10
http://www.WilTec.de
http://www.aoyue.eu 11 2021-1
http://www.teichtip.de

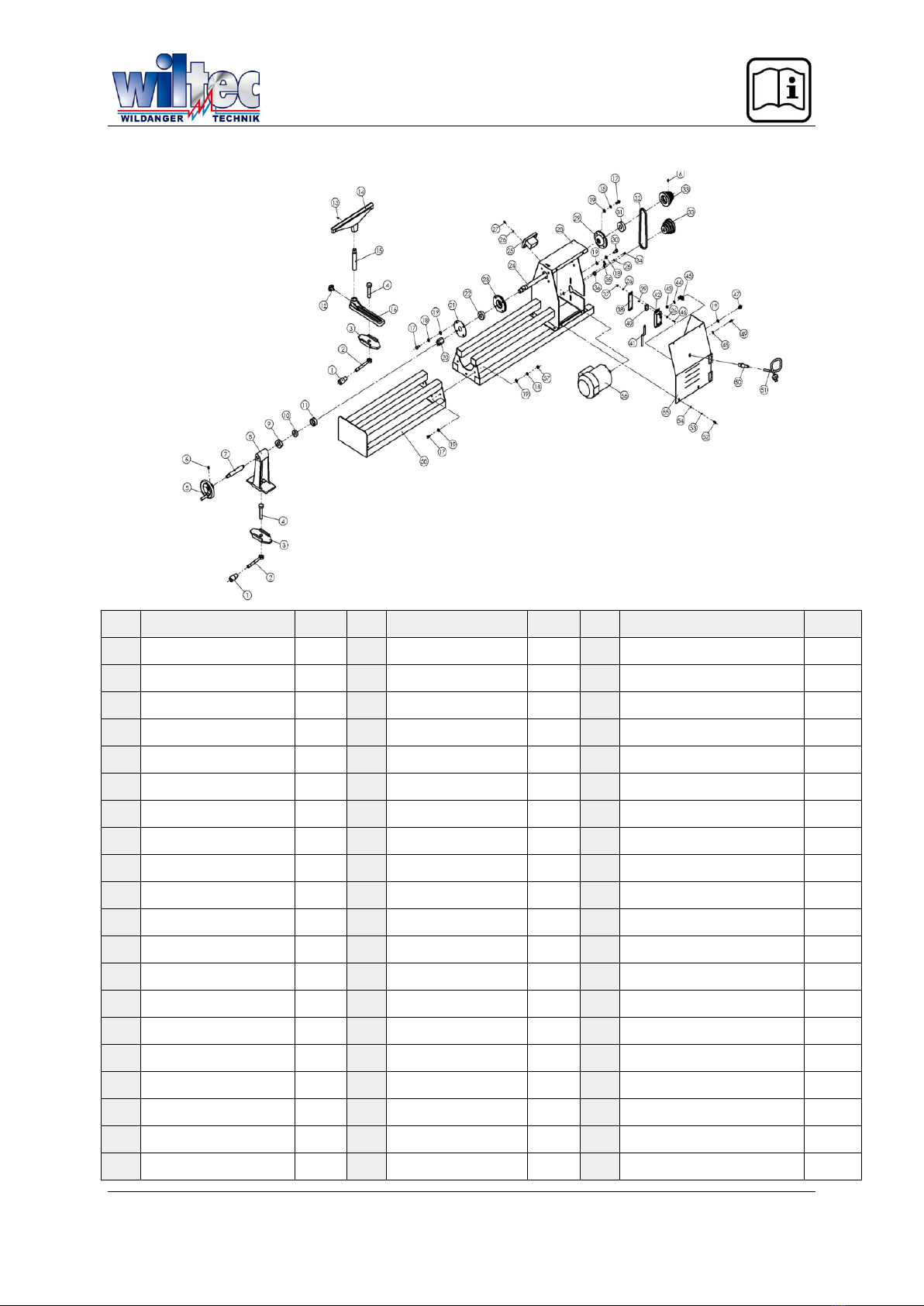

Exploded view and parts list
№
Name
Qty.
№
Name
Qty.
№
Name
Qty.
1
Handle cover
2
21
Baffle
1
41
Micro switch wire
1
2
Operating handle
2
22
Bearing
1
42
Switch Cover
1
3
Clamping plate
2
23
Bearing seat
1
43
Nut
1
4
Bolt
2
24
Axis
1
44
Elastic washer
1
5
Handwheel
1
25
Switch
1
45
Claw
1
6
Screw
3
26
Flat washer
6
46
Screw
2
7
Screw pole
1
27
Screw
4
47
Bolt
1
8
Counter bracket
1
28
Box
1
48
Flat washer
2
9
Nut
1
29
Bearing seat
1
49
Bolt
1
10
Bearing
1
30
Bolt
2
50
Cord sleeve
1
11
Center
1
31
Bearing
1
51
Cord and plug
1
12
Knob
1
32
Delta belt
1
52
Screw
4
13
Screw
1
33
Pulley
2
53
Elastic washer
4
14
Support bar
1
34
Screw
2
54
Flat washer
4
15
Pole
1
35
Cord clip
1
55
Back cover
1
16
Adjusting bar
1
36
Cord sleeve
1
56
Engine
1
17
Bolt
8
37
Nut
2
57
Nut
20
18
Elastic washer
20
38
Switch board
1
58
Bed
1
19
Flat washer
31
39
Screw
2
20
Drive centre
1
40
Micro switch
1

© by WilTec Wildanger Technik GmbH Item 61591 Page 11
http://www.WilTec.de
http://www.aoyue.eu 11 2021-1
http://www.teichtip.de
Disposal regulations
EU guidelines regarding the disposal of scrap electric appliances (WEEE, 2012/19/EU) were imple-
mented in the law related to electrical and electronic equipment and appliances.
All WilTec electric devices that fall under the WEEE regulations are labelled with the crossed-out
wheeled waste bin logo. This logo indicates that this electric equipment must not be disposed with the
domestic waste.
The company WilTec Technik GmbH has been registered in the German registry EAR under the WEEE-
registration number DE45283704.
Disposal of used electrical and electronic appliances
(intended for use in the countries of the European Un-
ion and other European countries with a separate col-
lection system for these appliances).
The logo on the article or on its packaging points out
that this article must not be treated as normal house-
hold waste but must be disposed to a recycling collec-
tion point for electronic and electrical waste equipment.
By contributing to the correct disposal of this article you
protect the environment and the health of your fellow
men. Environment and health are threatened by inap-
propriate disposal.
Material recycling helps reduce the consumption of raw materials.
Additional information on recycling this article can be provided by your local community, municipal waste
disposal facilities or the store where you purchased the article.
Address:
WilTec Wildanger Technik GmbH
Königsbenden 12 / 28
D-52249 Eschweiler
Important notice:
The reprint or reproduction, even of excerpts, and any commercial use, even in part, of this instruction
manual require the written permission of WilTec Wildanger Technik GmbH.
