Introduction
Thank you for purchasing this quality product. To minimise the risk of injury we urge you to take
some basic safety precautions when using this device. Please read the operating instructions
carefully and make sure you have understood its content.
Keep these operating instructions safe.
General notes
•This tool is used for stapling and nailing of cardboard, insulating materials, fabrics, foils, leather,
and similar materials on surfaces of wood or materials like wood.
•Read and understand this manual before using then device and keep it.
Main components
№
Name
№
Name
A
Lever for loading magazine
E
Trigger
B
Slider
F
Impact control selection wheel
C
Magazine
G
On/off switch
D
Staple head
Safety precautions
Warning! Read all instructions. Failure to follow all instructions listed below may result in electric
shock, fire, and/or serious injury. The term “power tool” in all of the warnings listed below refers to a
mains operated (corded) power tool or battery operated (cordless) power tool.
Working area safety
•Keep work area clean and well lit. Cluttered and dark areas invite accidents.
•Do not operate power tools in explosive atmospheres, e.g., in the presence of flammable
liquids, gases, or dust. Power tools create sparks which may ignite dust or fumes.
•Keep children and bystanders away while operating the power tool. Distractions can cause
loss of control.

https://www.XPOtool.com Item 61859 Page 4
The Tool Experts
05 2022-1
Electrical safety
•Power tool plugs must match the outlet. Never modify the plug in any way. Do not use
any adapter plugs with earthed power tools. Unmodified plugs and matching outlets will re-
duce risk of electric shock.
•Avoid body contact with earthed or grounded surfaces such as pipes, radiators, and re-
frigerators. There is an increased risk of electric shock if your body is earthed.
•Do not expose power tools to rain or wet conditions. Water entering a power tool will in-
crease the risk of electric shock.
•Do not misuse the cord. Never use the cord for carrying, pulling, or unplugging the power
tool. Keep the cord away from heat, oil, sharp edges, or moving parts. Damaged or entan-
gled cords increase the risk of electric shock.
Personal safety
•Stay alert, concentrate on what you are doing, and use common sense when operating a
power tool. Do not use the tool while you are tired or under the influence of drugs, alco-
hol, or medicine. A moment of inattention while operating the power tool may result in serious
personal injury.
•Use safety equipment. Always wear eye protection. Safety equipment such as dust mask,
non-slip safety shoes, a hard hat, or hearing protection used for appropriate conditions will re-
duce personal injuries.
•Remove any adjusting key or switch/wrench before turning the power tool on. A wrench
or key left attached to a rotating part of the power tool may result in personal injury.
•Do not overreach. Always keep proper footing and balance. This enables better control of
the power tool in unexpected situations.
•Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing, and
gloves away from moving parts. Loose clothes, jewellery, or long hair can be caught in mov-
ing parts.
•If devices are provided for the connection of dust extraction and collection facilities, en-
sure that these are connected and properly used. Use of these devices can reduce dust
related hazards.
Power tool use and care
•Do not force the power tool. Use the correct tool for your application. The correct power
tool will do the job better and safer at the rate for which it was designed.
•Do not use the power tool if the switch does not turn it on and off. Any power tool that
cannot be controlled with the switch is dangerous and must be repaired.
•Ensure that the switch is in the off position before making any adjustments, changing
equipment, or storing power tools. These preventive safety measures reduce the risk of the
power tool starting accidentally.
•Store tools out of the reach of children and other untrained people. Tools are dangerous
in the hands of untrained users.
•Maintain power tools. Check for misalignment or jamming moving parts, damaged parts,
and any other conditions that may affect the operation of the power tool. If damaged, the
power tool needs to be repaired before use. Many accidents are caused by poorly maintained
power tools.
•Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting
edges are less likely to jam and are easier to control.
•Use the power tool, equipment, and tool bits, etc. in accordance with these instructions
and in the way intended for the particular type of power tool, taking into account the
working conditions and the work to be carried out. Use of the power tool for operations
different from those intended could result in a hazardous situation.

https://www.XPOtool.com Item 61859 Page 5
The Tool Experts
05 2022-1
Repair
Have your power tool serviced by a qualified repair person using only original identical replace-
ment parts. This will ensure that the safety of the power tool is maintained. Do not use any damaged
tool. Do not repair a tool yourself if you are not qualified to do so.
Safety instructions for staplers
•Secure the workpiece (a workpiece clamped with clamping devices or in a vice is held more
securely than by hand) to avoid injuries.
•Never push the stapler head manually (there is a danger of injury when the trigger is activated
unintentionally at the same time).
•Never use the tool for fastening electrical wiring (contact with electrical wires can lead to
fire and electric shock).
•Avoid damage that can be caused by screws, nails, and other elements in your workpiece;
remove them before you start working.
•Always check that the supply voltage is the same as the voltage indicated on the type label of
the stapler (staplers with a rating of 230 V or 240 V can also be connected to a 220 V supply).
•In case of electrical or mechanical malfunction, immediately switch off the tool or unplug the
charger from the power source.
•Flawless functioning of the tool can only be ensured when original equipment is used.
•This tool should not be used by people under the age of 16. Underage persons and persons
with reduced mental or physical abilities should only use this kind of tools while being supervised
by a person responsible for their safety.
•Do not expose the tool to rain, wet conditions, or high air humidity.
Use
Loading staples/nails (see fig. 6)
1. Turn the tool upside down.
2. Press the lever A while pulling the slider B backwards.
3. Insert the staple/nail strip into the magazine C with the staple points facing up (max. capacity
100 staples).
4. Push the slider B against the stapler head D until it locks.
5. When inserting a nail strip (not supplied with the tool), tilt the tool, so that the nail strip rests
against the magazine side which corresponds with the nail symbol in the stapler head D (see
fig. 7).
Operating the tool (see fig. 8)
1. Timely press the stapler head D against the workpiece until it is pushed in a few millimetres.
2. Press the trigger E, then release it again.
3. The switch F is locked, as long as you do not press the stapler head D against the workpiece,
preventing accidental operation.
4. At 20 shots⁄min and after 30 min, the stapler should be allowed to cool down, as it is only rated for
short-time use.
Remove all staples/nails from the magazine after each use!
Impact control (see fig. 9)
1. The required impact level can be selected in steps with the wheel F.
2. The indicating arrow shows the selected impact level.
3. Use “–” for thin and light materials such as foils and fabrics.
4. Use “+” for thick and tough materials such as hard woods and similar materials.
5. Before starting, find the optimal impact level by testing out on spare material.

https://www.XPOtool.com Item 61859 Page 6
The Tool Experts
05 2022-1
Application advice

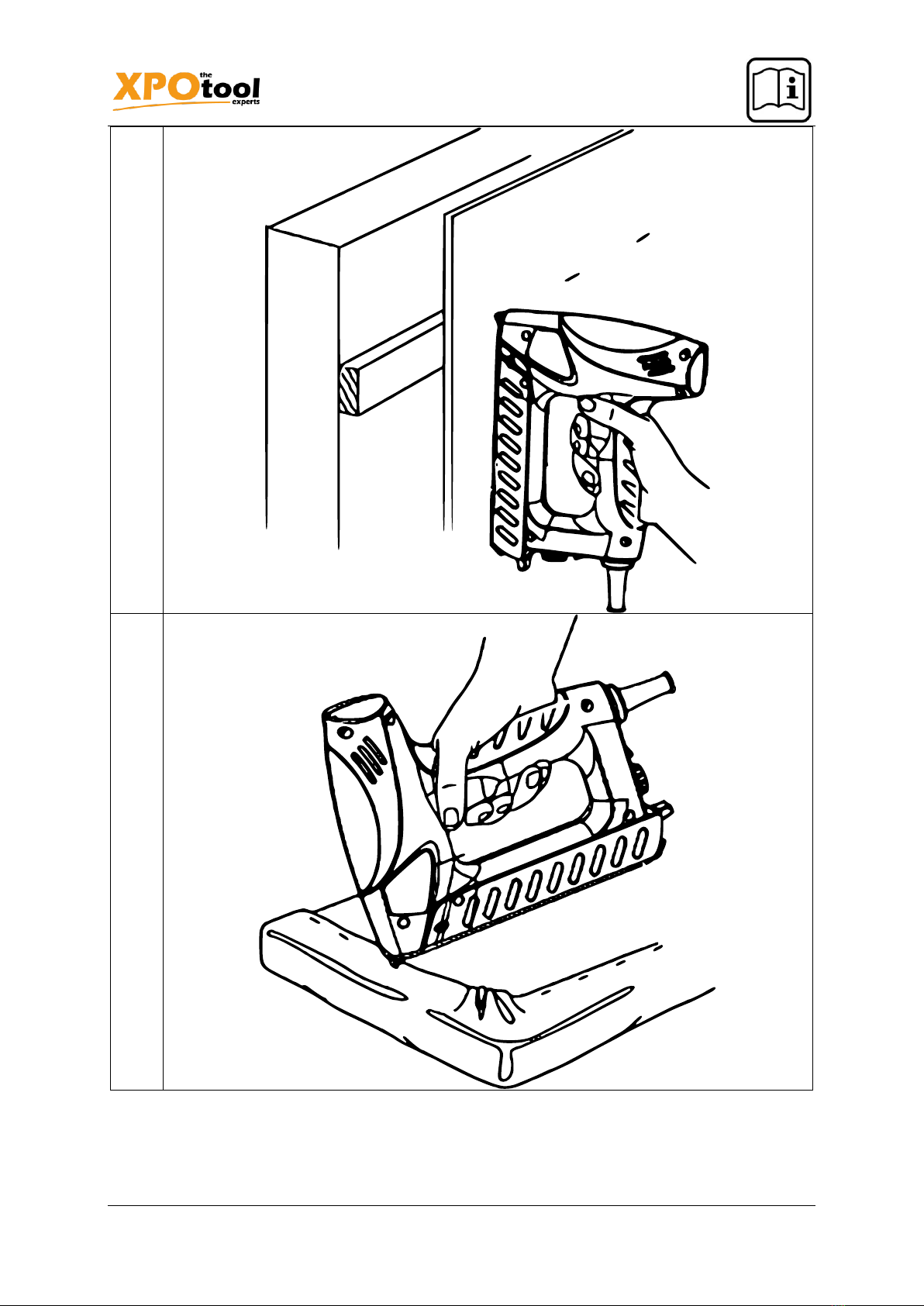

•Fasten panels (see fig. 10): Do not use the tool for fastening ceiling panels on profiled wood or
grooves.
•Fixing textiles (see fig. 11): Avoid blank shots to reduce the wear of the impact strike.
•Keep tool and charger clean. Unplug charger from power source before cleaning!
•We cannot be held responsible for any damage caused by normal wear and tear, overload, or
improper handling.
Figures and illustrations
1
220–240 V AC 50 Hz
20 pcs⁄min
Staple: Type 53
Nail: Type 48
1.1kg
Type 53
Type 48
2
4
6

https://www.XPOtool.com Item 61859 Page 7
The Tool Experts
05 2022-1
7
8
9

https://www.XPOtool.com Item 61859 Page 8
The Tool Experts
05 2022-1
10
11
