WilTec 62641 User manual

Operation Manual
Nass- Trockensauger 1600 W
62641
Similar to image, may vary depending on model
Read and follow the operating instructions and safety information before use.
Technical changes reserved!
Due to further developments, illustrations, functioning steps and technical data can differ slightly.

© by WilTec Wildanger Technik GmbH Artikel 00000 Seite 2
http://www.WilTec.de
http://www.aoyue.eu 11 2020-1
http://www.teichtip.de
The information contained in this document may alter at any time without previous notice. It is prohibit-
ed to copy or spread any parts of this document in any way without prior written allowance. All rights
reserved.
The WilTec Wildanger Technik GmbH cannot be held accountable for any possible mistakes in this
operating manual, nor in the diagrams and figures shown.
Even though, the WilTec Wildanger Technik GmbH has undergone biggest possible efforts to ensure
that the operating manual is complete, faultless and up to date, mistakes cannot be entirely avoided.
If you should find a mistake or wish to make a suggestion for improvement, we look forward to hearing
from you.
Send an e-mail to:
[email protected]
or use our contact form:
https://www.wiltec.de/contacts/
The most recent version of this manual in various languages can be found in our online shop via:
https://www.wiltec.de/docsearch
Our postal address is:
WilTec Wildanger Technik GmbH
Königsbenden 12
52249 Eschweiler
Germany
Do you wish to pick goods up? Our pick-up address is:
WilTec Wildanger Technik GmbH
Königsbenden 28
52249 Eschweiler
Germany
To shorten the waiting time and allow for a rapid on-site transaction, we ask you to call us previously
or placing your order via the webshop.
E-mail: [e-mail]
Tel:[phone]
Fax: [phone]
To return orders for exchange, repair or for other purposes, please use the following address. Atten-
tion! To allow for a smooth execution of your complaint or return, it is important to contact our custom-
er service team before returning the goods.
Returns Department
WilTec Wildanger Technik GmbH
Königsbenden 28
52249 Eschweiler
E-mail: [e-mail]
Tel:[phone]
Fax: [phone]

© by WilTec Wildanger Technik GmbH Artikel 00000 Seite 3
http://www.WilTec.de
http://www.aoyue.eu 11 2020-1
http://www.teichtip.de
Introduction
Thank you very much for purchasing this quality product. To minimise the risk of injury, we ask you to
comply with a few basic safety precautions when using this product. Please read this operating manu-
al thoroughly and ensure that you have understood it. Keep the operating manual safely for future
reference.
Safety Notes
•The device is only meant to be used in the household. It is not suitable for commercial or industri-
al purposes.
•The device is not suitable for:
1. Cleaning water-sensitive floors, such as unsealed cork floors –danger of damaging the
floors.
2. Vacuum cleaning sharp, pointy or bigger objects (shards, pebbles, etc.)
3. Do not use in close proximity to explosive or easily flammable liquids –danger of fire and
explosion
4. Cleaning carpets and carpet floors
•Never fill solvents, liquids containing solvents or undiluted acids in the water tank.
•Only use the device with original spare parts, otherwise the device will be damaged and the de-
vice’s safety will be affected.
•Only use the device as described in this operating manual. Any other use is considered improper.
•Do not use the device, if it has dropped or has been damaged any other way. Only have the de-
vice maintained or repaired by a qualified technician. Repair work carried out by unqualified peo-
ple, can lead to injury or serious faults.
•Never immerse the device into water or other liquids.
•The device always needs to be switched off and disconnected from the mains supply before
cleaning and maintaining it.
•Do not alter the device, if it is still attached to the mains adapter/ to the mains electricity supply.
•This device can be operated by children, older than 8 years of age, as well as people with limited
physical, sensory or mental abilities or with lack of knowledge and experience, if they are super-
vised or have been informed about the safe use of the device and the dangers resulting from it.
•Children are not allowed to play with the device.
•Children are not allowed to clean or maintain the device without being supervised.
•Keep the device and its electricity cable out of reach of children and animals.
•Keep sufficient distance to heating sources (e. g. cooker plates or ovens), as well as to open
fires, to avoid damages to the device.
•Do not use the device in rooms, in which easy to ignite substances or toxic, as well as explosive
vapours are located.
•Do not touch the device, electricity cable and the electricity plug with wet hands.
•Keep body parts and clothing away of moving parts, as well as openings of the device which is in
operation. Otherwise, these can be drawn in and cause injuries.
•Do not place any items into the openings of the device. Do not use the device, if an opening is
blocked. Remove blockages of dust, lint, hairs, etc., as these can reduce the suction power.
•When cleaning stairs, be especially careful!
•Switch the device off, before changing equipment.
•Check the device for damage before every use. Do not use a damaged device.
•Fill the fresh water tank only with max. lukewarm water. Do not use any hot or boiling water –
danger of burns!
•Do not fill in any acetic acid, descaling gent, essential oils or similar into the fresh water tank or
vacuum clean any.
•Protect the device from rain and store it dry.
•Do not lift the mounted device upright by its handle. There is a danger of material damage.
•The multi-functional cleaner must only be connected to a socket with an according earthing.

© by WilTec Wildanger Technik GmbH Artikel 00000 Seite 4
http://www.WilTec.de
http://www.aoyue.eu 11 2020-1
http://www.teichtip.de
•The multi-functional cleaner is designed for use with a single-phase alternating-current of 230 V~/
50 Hz and is protective insulated.
•Check whether the existing mains voltage matches the stated voltage rating on the type label of
the device.
•The exchange of the connection cable or plug is only allowed to be carried out by a qualified
technician.
•Ensure that there is no water near electric parts of the multi-functional vacuum cleaner and there
is no water near people in the working area.
•In connection with the vacuumed air, explosive vapours and mixtures can form.
•Never vacuum clean the following substances:
1. Dusts (reactive dusts), flammable or explosive liquids and gases.
2. In connection with acidic cleaning detergents and strong alkaline, reactive dusts e. g. alu-
minium, zinc, magnesium, etc.
3. Strong acids and leaches, if undiluted.
4. Organic solvents e. g. acetone, methanol, ethanol, petrol, etc.
If you should have questions regarding the use in combination with various materials, then contact a
qualified professional for help.
Please note that dusts, materials with led-based varnish, minerals, metals and some woods can be
harmful to the health. Inhaling and touching these can cause allergic reactions, irritations or respiratory
diseases. We recommend a cautious handling and wearing the according protective gear. Inform
yourself thoroughly beforehand when processing wood, as certain dusts, e.g. oak or beech tree dusts
are cancerous. Especially problematic are the connections with additives for wood processing, such as
wood preservatives or chromate.
Due to the integrated filter bag and the three-step HEPA filter system, the professional removal of dust
is no problem. The well-designed wheels of the cleaner enable an easy movement of the system and
the extensive equipment makes the work for various areas easy. When using the cleaner dry, the first
filter step catches coarse dirt in the dust bag, the second filter step is the water tank, the dust is col-
lected in the water. The third filter step is the HEPA filter, which removes the fine dust.
Replace the HEPA filter when vacuum cleaning wet with with a foam filter.
Technical Data
Nominal voltage
220 V ~
Frequency
50 Hz
Power consumption
1600 W
Suction power negative pressure
~ 18 kPa
Content of Delivery
Name
Amount
Wet and dry vacuum cleaner
1
Hose
1
Telescopic bar
1
Floor brush
1
Round brush
1
Crevice nozzle
1
Operating manual
1

© by WilTec Wildanger Technik GmbH Artikel 00000 Seite 5
http://www.WilTec.de
http://www.aoyue.eu 11 2020-1
http://www.teichtip.de
Parts List
No.
Name
No.
Name
1
Floor brush
8
Front intake
2
Telescopic bar
9
Push handle
3
Hose connection
10
Cable
4
Hose
11
Closing clip
5
Upper intake
12
Tank
6
Handle
13
Crevice nozzle
7
Switch
14
Round brush
Note
The wet and dry cleaner has a double intake system, which
enables the use in various areas. The upper intake (pic. A) is
designed for the use as a wet cleaner or for the automatic vac-
uum cleaning.

© by WilTec Wildanger Technik GmbH Artikel 00000 Seite 6
http://www.WilTec.de
http://www.aoyue.eu 11 2020-1
http://www.teichtip.de
The front intake (pic. B) is for the use as a wet cleaner.
The connection, which is not used needs to be closed off with a
cap.
Instructions
1. Switching the device on/ off
(1) Switching it on: Plug the mains plug into the socket and tilt
the switch into the position –to switch the multi-functional
cleaner on.
(2) Switching it off: Tilt the switch in the 0 position to turn the
cleaner off.
2. Installing the Hose
Place the hose on the required connection and turn it clock-
wise. Close the remaining connection with the cap.
3. Mounting the Handle to the Telescopic Bar
Place the handle in the telescopic bar and turn it clockwise, to
avoid a sliding.
4. Mounting the Floor Brush to the Telescopic Rod
Place the floor brush in the telescopic rod and turn it clockwise,
to avoid a sliding.
5. Installing the front Wheels
Tilt the cleaner, as seen in pic. 5 and install the wheels in the
designated intake.
6. Cable Drum
Beneath the push handle is the intake for the mains cable.
Please unwind the cable entirely when using the device.
7. Storing the Equipment
On the upper side of the device, are two intakes in which the
equipment can be stored.

© by WilTec Wildanger Technik GmbH Artikel 00000 Seite 7
http://www.WilTec.de
http://www.aoyue.eu 11 2020-1
http://www.teichtip.de
8. Blow-out function
On the front is a hose intake for the blow-out function. Place
the hose on the connection and turn it clockwise.
9. Tapping Function for Cleaning the HEPA Filter
Use the telescopic bar to remove the dust in the HEPA filter via
tapping. The fixture can be found on the top, next to the han-
dle. If there is a power loss, we recommend tapping 3 –5
times.
10. Inserting the Vacuum Cleaner Bag
Open the clear cover and insert the vacuum cleaner bag.
11. Exchanging or Emptying the Vacuum Cleaner Bag
Open the clear cover and exchange or empty out the vacuum
cleaner bag.
12. Taking the Top off
Release the quick coupling on each side and lift the top up.
13. Replacing the HEPA Filter
After removing the top, as described in step 12, the HEPA fil-
ters can easily be placed or exchanged.
14. Cleaning the HEPA Filter
Remove the filter from vacuum cleaner and clean it under a
water stream.
Let the filter dry and place it back again.
15. Cleaning the Equipment and the Connections
Remove the equipment needing to be cleaned and clean it
thoroughly under running water. Then, mount the it back to-
gether or store it in the designated intakes.

© by WilTec Wildanger Technik GmbH Artikel 00000 Seite 8
http://www.WilTec.de
http://www.aoyue.eu 11 2020-1
http://www.teichtip.de
16. Filling the Water Tank
Fill fresh water (without additives) into the tank up to the mark-
ing.
17. Speed Regulation
The suction power can be adjusted via the speed regulation.
Turn the controller clockwise to increase the suction power and
counter-clockwise to decrease the suction power.
18. Automatic Dust Suction
Connect the electric device with the suction hose and the
mains plug of the multi-functional cleaner.
Please check when using this vacuum cleaner to remove sanding dusts, that the type of dust is suita-
ble for the vacuum cleaner.
Switch the on/ off switch to the = position, after installing the connections. When turning the connected
electric device on, the vacuum cleaner will turn on with a short delay of approximately one second.
After using the electric device and switching it off, the vacuum cleaner will switch of after c. 10 sec-
onds.
Equipment
Floor nozzle –to clean carpets (dry cleaning) and hard surfaces (wet cleaning).
Crevice nozzle –for hard to reach areas e. g. corners, radiators.
Floor brush –to dust off highly sensitive furniture or scratch sensitive objects.
Wet/ dry nozzle –to vacuum moisture. Can also be used as a floor nozzle.
22. Emptying the Filter Bag
Open the clear cover on the top of the cleaner.
23. Emptying the Filter Bag
Open the filter bag on the bottom by removing the cover and
empty out the bag. Close it and place it back again.
24. Emptying the Water Container
Remove the upper part of the cleaner and remove the dirty
water. Clean the water container with clean water.

© by WilTec Wildanger Technik GmbH Artikel 00000 Seite 9
http://www.WilTec.de
http://www.aoyue.eu 11 2020-1
http://www.teichtip.de

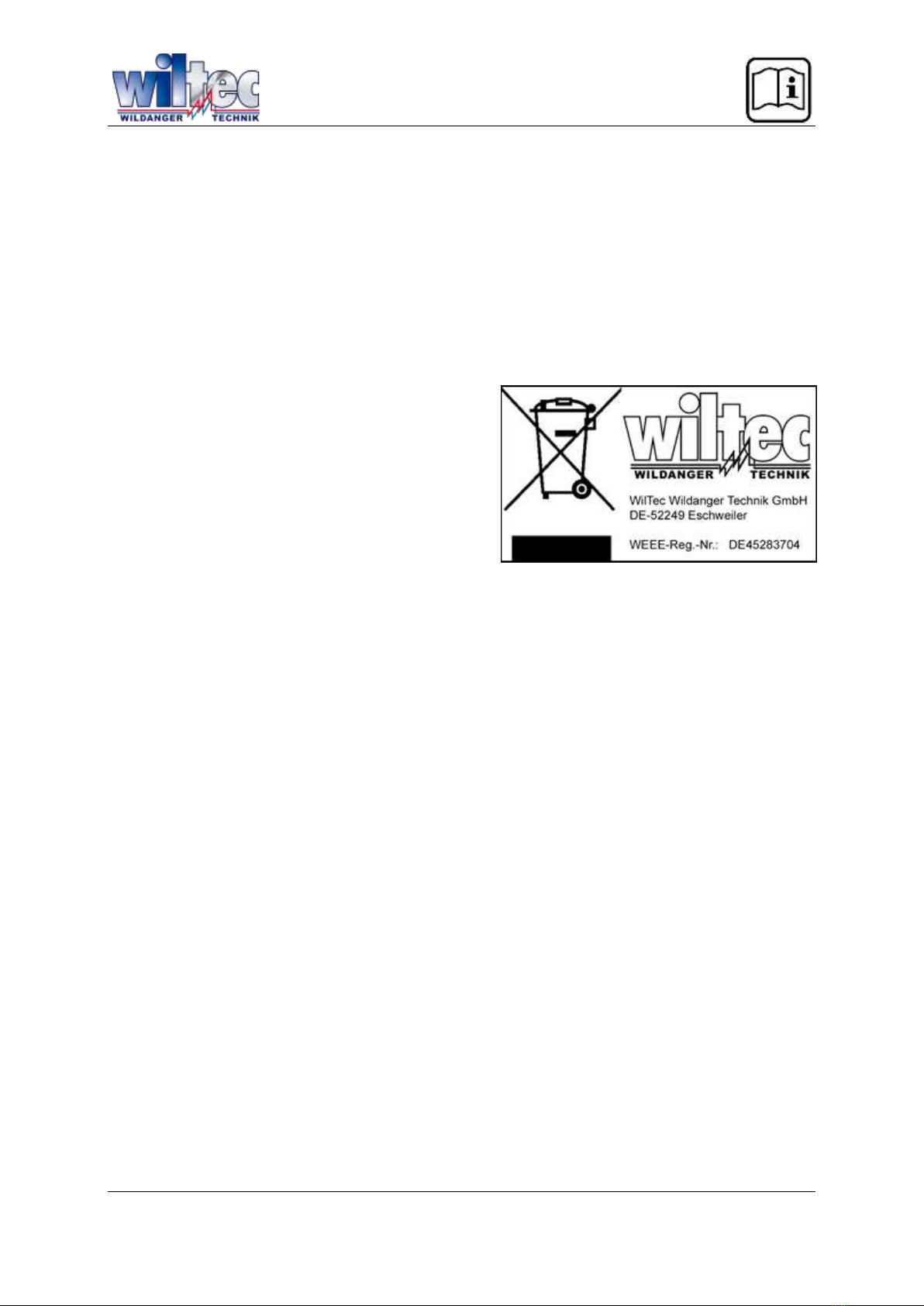

Disposal regulations
EU guidelines regarding the disposal of scrap electric appliances (WEEE, 2012/19/EU) were imple-
mented in the law related to electrical and electronic equipment and appliances.
All WilTec electric devices that fall under the WEEE regulations are labelled with the crossed-out
wheeled waste bin logo. This logo indicates that this electric equipment must not be disposed with
domestic waste.
The company WilTec Technik GmbH has been registrated in the German registry EAR under the
WEEE-registration number DE45283704.
Disposal of used electrical and electronic appliances
(intended for use in the countries of the European
Union and other European countries with a separate
collection system for these appliances).
The logo on the item or on its packaging points out
that this item must not be treated as normal household
waste but must be disposed of at a recycling collection
point for electronic and electrical waste equipment. By
contributing to the correct disposal of this item you
help protect the environment and the health of fellow
human beings. The environment and the health of
living beings are threatened by inappropriate disposal.
Recycling materials helps reduce the consumption of raw materials.
Additional information on recycling this item can be provided by your local community, municipal waste
disposal facilities or the shop where this item was purchased.
Address:
WilTec Wildanger Technik GmbH
Königsbenden 12/ 28
D-52249 Eschweiler
Important note:
The reprint or reproduction, even of excerpts, and any commercial use, even in part of this instruction
manual requires the written permission of the WilTec Wildanger Technik GmbH.
