WiMAX breezemax si User manual

Installing the BreezeMAX Si Residential Gateway
- 1 -
P/N: 215152 November 2008
Introduction
Overview
The WiMAX Residential Gateway is an indoor WiMAX subscriber station designed to
provide Internet access for a home or small office. The device provides a gateway function
between a WiMAX service provider and a local Ethernet LAN.
The WiMAX Residential Gateway includes up to four RJ-45 Ethernet switch ports for LAN
connections and two RJ-11 Voice over IP (VoIP) phone ports. An optional 802.11g module
is available for some models that provides a Wi-Fi access point service. All models provide a
web-based management interface for the configuration of all features.
Package Checklist
•WiMAX Residential Gateway
•AC power adapter
Detachable WiMAX Antennas
•Software Utilities and User Guide CD
Optional Extras
Backup power supply
Ethernet cable

Installing the BreezeMAX Si Residential Gateway
- 2 -
P/N: 215152 November 2008
Features
•Models for 2.3 GHz, 2.5 GHz or 3.5 GHz operation, with omnidirectional or
switched-beam antennas
•Includes up to 4 LAN ports and an optional Wi-Fi module
•Two VoIP ports that allow standard (analog) phones to make VoIP calls using
Session Initiation Protocol (SIP)
•Easy installation with a user-friendly interface for configuration
•Strong network security

Installing the BreezeMAX Si Residential Gateway
- 3 -
Scan Button:
•Press the button to perform a scan of
the known frequencies channels.
System Status Indicator:
•Green — WiMAX network access
completed. Blinking indicates
authentication in progress.
•Orange — WiMAX network entry in
progress or unit in scan mode.
Blinking indicates unit is restoring
factory default settings.
•Red — The unit has detected a
failure.
Wi-Fi Indicator:
•Green — The 802.11g radio is
enabled. Blinking indicates wireless
data is being transmitted or
received.
WiMAX Signal Indicators:
•Green (7 LEDs) — Displays the
received strength of the WiMAX
signal. The LEDs also turn on and
off or blink during scan mode.
P/N: 215152 November 2008

Installing the BreezeMAX Si Residential Gateway
- 4 -
Antennas:
•Two antennas for wireless communications.
Either omnidirectional or switched-beam
antennas, depending on model.
RJ-45 LAN Ports:
•Four 10/100 Mbps Ethernet ports for
connections to PCs or other Local Area
Network (LAN) devices. All ports support
auto-negotiation (half or full duplex, 10 or
100 Mbps) and automatic MDI/MDI-X
operation.
Link/Activity LEDs:
•Each RJ-45 port includes a built-in LED
indicator. When on green it indicates a valid
link. Blinking green indicates network traffic
on the port.
VoIP Phone Ports:
•Two RJ-11 telephone ports that connect
directly to a standard (analog) telephone
set. This allows a regular telephone to be
used for making VoIP calls over the
Internet.
Power Socket:
•The unit is powered on when connected to its
AC power adapter, and the power adapter
is connected to an AC power source
between 100-240 volts at 50-60Hz..
P/N: 215152 November 2008

Installing the BreezeMAX Si Residential Gateway
- 5 -
P/N: 215152 November 2008
Installation
Overview
Before installing the BreezeMAX Si Residential Gateway, verify that you have all the items
listed in the package checklist. If any of the items are missing or damaged, contact your
BreezeMAX Si service provider.
Select a Location
The indoor BreezeMAX Si Residential Gateway can be mounted on any horizontal surface,
such as a desktop or shelf. Be sure to select an suitable location for the device. Consider
these points:
•Select a cool, dry place, which is out of direct sunlight.
•The device should have adequate space (approximately two inches) on all sides for
proper air flow.
•The device must be near an AC power outlet that provides 100 to 240 V, 50 to 60 Hz.
•The device should be accessible for network cabling and allow the status LED
indicators to be clearly visible.
NOTE:If the BreezeMAX Si Residential Gateway displays a weak WiMAX receive signal, try
moving it to another location.
1. Power on the WiMAX Residential Gateway by connecting the AC power adapter and
plugging it into a power source. Check the status indicators for correct operation.
CAUTION:Use ONLY the power adapter supplied with the unit. Otherwise, the product may
be damaged.
2. Connect PCs to the unit’s LAN ports using Ethernet cables. Alternatively, you can
connect the LAN ports to an Ethernet switch or other devices.
Use Category 5 or better cables and make sure the length does not exceed 100 meters
(328 ft).

Installing the BreezeMAX Si Residential Gateway
- 6 -
P/N: 215152 November 2008

Installing the BreezeMAX Si Residential Gateway
- 7 -
3. Connect a standard (analog) telephone set to the RJ-11 VoIP ports using standard
telephone cable.
The WiMAX Residential Gateway enables VoIP calls to be made through the unit using
a regular (analog) telephone set connected to a VoIP port, or from PCs or other network
devices connected to the LAN ports. Standard Session Initiation Protocol (SIP)
technology is used to make VoIP calls.
4. From a connected PC, use a web browser to access the WiMAX Residential Gateway’s
web interface. The web interface allows you to configure gateway features, WiMAX
settings, and VoIP details.
Set the PC's IP settings to "Obtain an IP address automatically," then follow the
instructions below to access the web interface and start the Basic Setup.
•Open your web
browser and type
the default IP
address
192.168.1.1.
•Type the default
user name and
password “admin”
and then click the
Login button.
P/N: 215152 November 2008

Installing the BreezeMAX Si Residential Gateway
- 8 -
5.

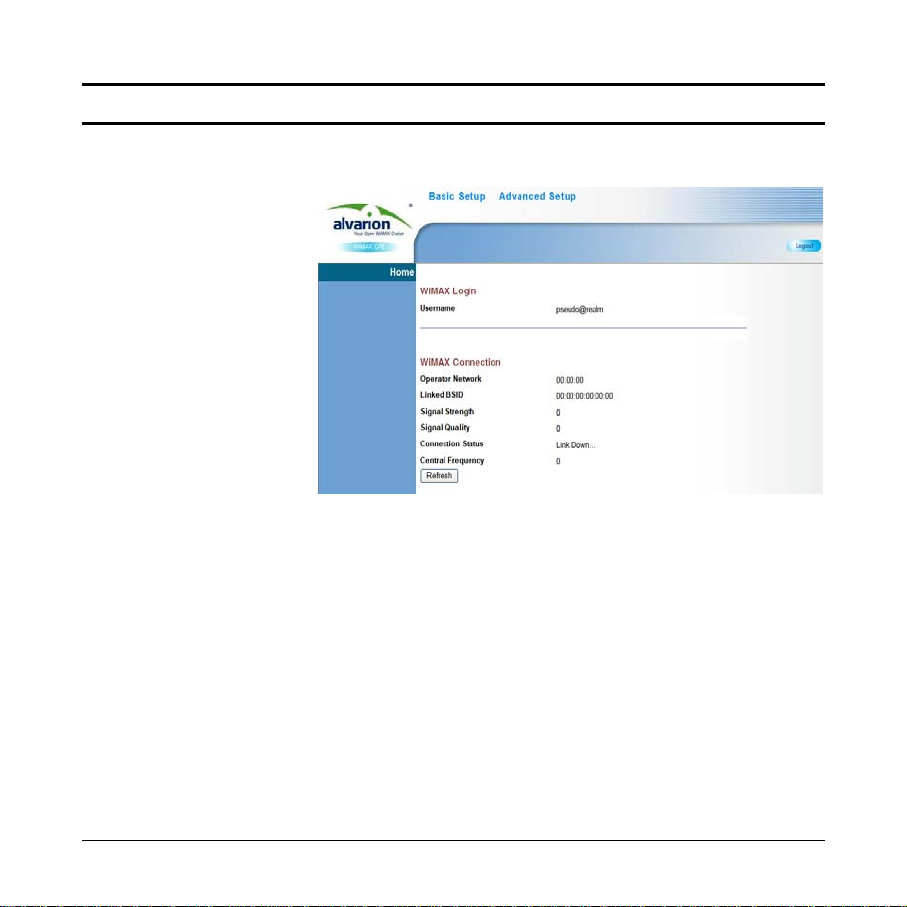

•From the home page,
click “Basic Setup” to
configure basic
settings.
For more information
on configuring the
WiMAX Residential
Gateway, refer to the
User Guide.
6. Place the Software Utilities and User Guide CD into the CD drive of the PC. This
enables the Basic Setup to copy the WiMAX operator's settings to the gateway.
P/N: 215152 November 2008

Installing the BreezeMAX Si Residential Gateway
- 9 -
7. In the WiMAX Login page, enter the user name and password required to gain
access to the WiMAX network and click Apply. The settings on the operator-
supplied CD are copied to the gateway, then the unit reboots and attempts to
connect to the specified WiMAX network.
8. The unit will prompt for confirmation of the Username and Password, click
‘OK’.
P/N: 215152 November 2008

Installing the BreezeMAX Si Residential Gateway
- 10 -
FCC Information:
The Subscriber Unit equipment has been tested and found to comply with the limits for a
class B digital device, pursuant to ETSI EN 301 489-1 rules and Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a residential environment notwithstanding use in
commercial, business and industrial environments. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
To comply with FCC RF exposure requirements in Section 1.1307and 2.1091 of FCC Rules,
the antenna used for this transmitter must be kept at a separation distance of at least 20 cm
from all persons and must not be co-located or operating in conjunction with any other
antenna or transmitter.
R&TTE Compliance Statement:
This equipment complies with the appropriate essential requirements of Article 3 of the
R&TTE Directive 1999/5/EC.
Disposal of Electronic and Electrical Waste
Pursuant to the WEEE EU Directive electronic and electrical waste must
not be disposed of with unsorted waste. Please contact your local recycling
authority for disposal of this product.
