Windsor COMPASS CMPS 10070050 User manual

Operating Instructions (ENG)
Read instructions before operating the machine.
C
86290230 04/20/07
MODEL : CMPS
10070050
CMPSR
10070080
FROM SN: 1000170681

MACHINE DATA LOG/OVERVIEW
CMPS 86290230 02/22/07
2
YOUR DEALER
Name: __________________________________________________________________________________________________
Address: _______________________________________________________________________________________________
Phone Number: _________________________________________________________________________________________
MODEL _______________________________________
DATE OF PURCHASE __________________________
SERIAL NUMBER ______________________________
SALES REPRESENTATIVE # _____________________
Copyright 2003 Windsor Industries, Printed in USA
OVERVIEW
The Compass™is a multi-functional cleaning machine intended for commercial use. The appliance
applies chemical at low pressure and uses high pressure to clean with. Then the soiled water is
vacuumed back into the recovery tank.

TABLE OF CONTENTS
CMPS 86290230 04/20/07
3
Machine Data Log/Overview.........................1
Table of Contents..........................................2
HOW TO USE THIS MANUAL
How to use this Manual.................................1-1
SAFETY
Important Safety Instructions........................2-1
Hazard Intensity Level. .................................2-2
Grounding Instructions..................................2-3

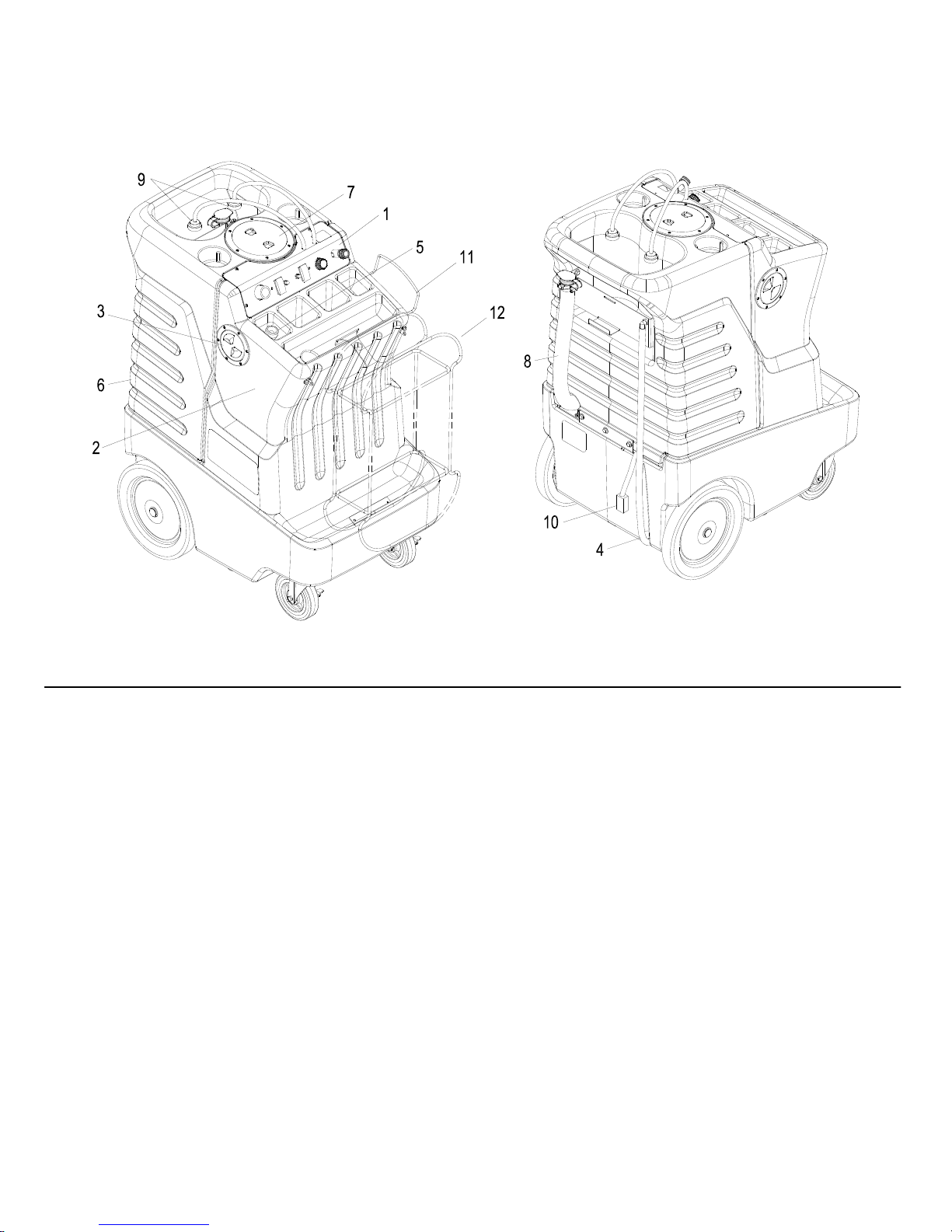

Safety Label Location. ..................................2-4
OPERATIONS

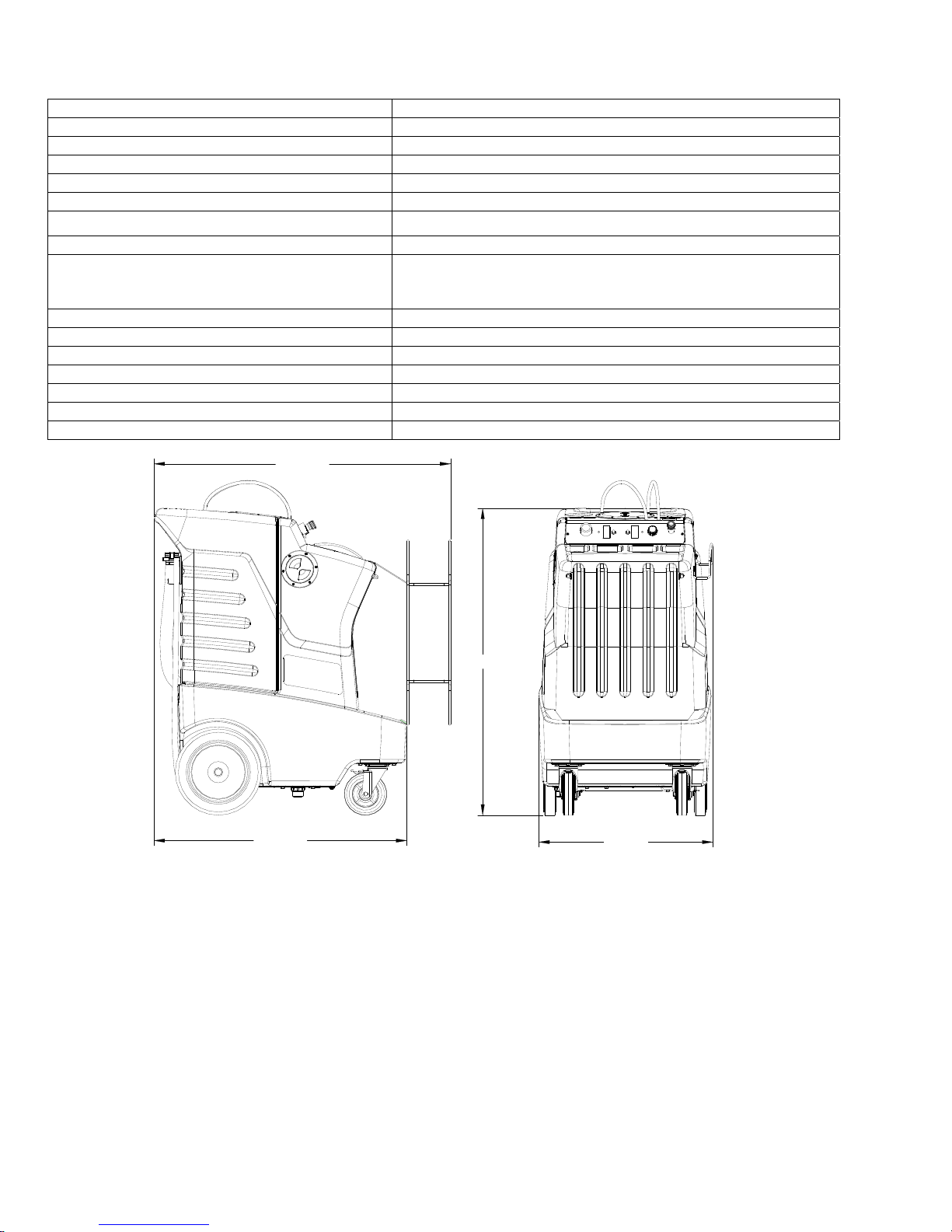

Technical Specifications. ..............................3-1
How the Machine Works...............................3-2
Components..................................................3-3
Controls.........................................................3-4
Machine Operation........................................3-6
Chemical Operations ....................................3-8
MAINTENANCE
Maintenance. ................................................4-1
Float Shut-Off..........................................4-2
Strainer....................................................4-2
Circuit Breakers.......................................4-2
Vacuum Motor Replacement...................4-3
Solution Pump Replacement...................4-4
Regulating Unloader…………………….. 4-4
Periodic/Daily Maintenance ..........................4-5
Service Schedule..........................................4-5
Machine Troubleshooting..............................4-6
Notes.............................................................4-7
GROUP PARTS LIST
Controls ........................................................5-1
Recovery Tank..............................................5-3
Solution Tank.............................................. 5-5
Vacuum....................................................... 5-7
Wheels & Frame ........................................ 5-9
Pump .......................................................... 5-11
Tools – Standard ........................................ 5-15
Vacuum Hose Rack – CMPSR................... 5-17
Wiring – Schematic..................................... 5-19
Suggested Spare Parts............................... 5-20
Dry Clean Option........................................ 5-21
Low Flow Spray Gun Option....................... 5-23
Grout Cleaner Option.................................. 5-25
High Pressure Wand Option....................... 5-27
Carpet Tool Option ..................................... 5-29
Storage Bag Option.................................... 5-31
Chemical Lock Option................................. 5-33
Notes .......................................................... 5-35
Warranty..................................................... 5-36

HOW TO USE THIS MANUAL
CMPS 86290230 02/22/07
This manual contains the following sections:
- HOW TO USE THIS MANUAL
- SAFETY
- OPERATIONS
- MAINTENANCE
- PARTS LIST
The HOW TO USE THIS MANUAL section will tell
you how to find important information for ordering
correct repair parts.
Parts may be ordered from authorized Windsor
dealers. When placing an order for parts, the
machine model and machine serial number are
important. Refer to the MACHINE DATA box which
is filled out during the installation of your machine.
The MACHINE DATA box is located on the inside of
the front cover of this manual.
1-1
The model and serial number of your machine is on
the bottom back-end of the machine.
The SAFETY section contains important information
regarding hazard or unsafe practices of the
machine. Levels of hazards is identified that could
result in product or personal injury, or severe injury
resulting in death.
The OPERATIONS section is to familiarize the
operator with the operation and function of the
machine.
The MAINTENANCE section contains preventive
maintenance to keep the machine and its
components in good working condition. They are
listed in this general order:
- Vacuum Motor
- Solution Pump
- Daily Maintenance
- Periodic Maintenance
- Service Schedule
- Machine Troubleshooting
MODEL _____________________________________
DATE OF PURCHASE ________________________
SERIAL NUMBER ____________________________
SALES REPRESENTATIVE # ___________________
DEALER NAME ______________________________
Copyright 2003 Windsor Industries, Printed in USA
The PARTS LIST section contains assembled parts
illustrations and corresponding parts list. The parts
lists include a number of columns of information:
- REF – column refers to the reference
number on the parts illustration.
- PART NO. – column lists the part
number for the part.
- PRV NO. – reference number
- QTY – column lists the quantity of the
part used in that area of the machine.
- DESCRIPTION – column is a brief
description of the part.
- SERIAL NO. FROM – column indicates
the first machine the part number is
applicable to. When the machine design
has changed, this column will indicate
serial number of applicable machine.
The main illustration shows the most
current design of the machine. The
boxed illustrations show older designs. If
column has an asterisk (*), call
manufacturer for serial number.
-NOTES – column for information not
noted by the other columns.
NOTE: If a service or option kit is installed on your
machine, be sure to keep the KIT INSTRUCTIONS
which came with the kit. It contains replacement
parts numbers needed for ordering future parts.
NOTE: The number on the lower left corner of the
front cover is the part number for this manual.

IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precaution
must always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.
This machine is for commercial use.
To reduce the risk of fire, electric shock, or injury:
!
WARNING:
Connect to a properly grounded outlet. See Grounding Instructions.
Do not leave the machine unattended. Unplug machine from outlet when not in use and before
maintenance or service.
Do not allow machine to be used as a toy. Close attention is necessary when used by or near
children.
Do not point spray gun at people.
Use only as described in this manual. Use only manufacturer’s recommended components and
attachments.
Do not use damaged electrical cord or plug. Follow all instructions in this manual concerning grounding
the machine. If the machine is not working properly, has been dropped, damaged, left outdoors, or
dropped into water, return it to an authorized service center.
Do not pull or carry machine by electrical cord, use as a handle, close a door on cord, or pull cord
around sharp edges or corners.
Do not run machine over cord. Keep cord away from heated surfaces.
Do not unplug machine by pulling on cord. To unplug, grasp the electrical plug, not the electrical cord.
Do not handle the electrical plug or machine with wet hands.
Do not operate the machine with any openings blocked. Keep openings free of debris that may reduce
airflow.
Do not vacuum anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
This machine is not suitable for picking up health endangering dust.
Turn off all controls before unplugging.
Machine can cause a fire when operating near flammable vapors or materials. Do not operate this
machine near flammable fluids, dust or vapors.
This machine is suitable for commercial use, for example in hotels, schools, hospitals,
factories, shops and offices for more than normal housekeeping purposes.
Maintenance and repairs must be done by qualified personnel.
If foam or liquid comes out of machine, switch off immediately.
SAVE THESE INSTRUCTIONS
CMPS 86290230 02/22/07 2-1

HAZARD INTENSITY LEVEL
CMPS 86290230 02/22/07
2-2
The following symbols are used throughout this guide as indicated in their descriptions:
HAZARD INTENSITY LEVEL
There are three levels of hazard intensity identified by signal words -WARNING and CAUTION and FOR
SAFETY. The level of hazard intensity is determined by the following definitions:
!WARNING
WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death.
!CAUTION
CAUTION - Hazards or unsafe practices which could result in minor personal injury or product or property
damage.
FOR SAFETY: To Identify actions which must be followed for safe operation of equipment.
Report machine damage or faulty operation immediately. Do not use the machine if it is not in proper
operating condition. Following is information that signals some potentially dangerous conditions to the
operator or the equipment. Read this information carefully. Know when these conditions can exist. Locate
all safety devices on the machine. Please take the necessary steps to train the machine operating
personnel.
FOR SAFETY:
DO NOT OPERATE MACHINE:
Unless Trained and Authorized.
Unless Operation Guide is Read and understood.
In Flammable or Explosive areas.
In areas with possible falling objects.
WHEN SERVICING MACHINE:
Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the
machine. Use Windsor approved replacement parts.
.

GROUNDING INSTRUCTIONS
CMPS 86290230 02/22/07 2-
3
THIS PRODUCT IS FOR COMMERCIAL USE
ONLY.
ELECTRICAL:
In the USA, this machine operates on a
standard 15 amp 115V, 60 Hz, A.C. power
circuit. The amp, hertz, and voltage are listed
on the data label found on each machine.
Using voltages above or below those indicated
on the data label will cause serious damage to
the motors.
EXTENSION CORDS:
If an extension cord is used, the wire size must
be at least one size larger than the power cord
on the machine, and must be limited to 50 feet
(15.5m) in length.
GROUNDING INSTRUCTIONS:
This appliance must be grounded. If it should
malfunction or break down, grounding provides
a path of least resistance for electric current to
reduce the risk of electric shock. This
appliance is equipped with a cord having an
equipment-grounding conductor and grounding
plug. The plug must be inserted into an
appropriate outlet that is properly installed and
grounded in accordance with all local codes
and ordinances.
This appliance is for use on a nominal 120-volt
circuit, and has a grounded plug that looks like
the plug in “Fig. A”. A temporary adaptor that
looks like the adaptor in “Fig. C” may be used to
connect this plug to a 2-pole receptacle as
shown in “Fig. B”, if a properly grounded outlet
is not available. The temporary adaptor should
be used only until a properly grounded outlet
(Fig. A) can be installed by a qualified
electrician. The green colored rigid ear, lug, or
wire extending from the adaptor must be
connected to a permanent ground such as a
properly grounded outlet box cover. Whenever
the adaptor is used, it must be held in place by
a metal screw.
Improper connection of the equipment-
grounding conductor can result in a risk of
electric shock. Check with a qualified
electrician or service person if you are in
doubt as to whether the outlet is properly
grounded. Do not modify the plug provided
with the appliance - if it will not fit the outlet;
have a proper outlet installed by a qualified
electrician.
GROUND-FAULT CIRCUIT-INTERRUPTER
PROTECTION
This pressure washer is provided with a
(GFCI) built into the plug of the power supply
cord. This device provides additional protection
from the risk of electric shock. Should
replacement of the plug or cord become
necessary, use only identical replacement parts
that include GFCI protection. If the GFCI is not
the AUTOMATIC RESET TYPE, it must be
manually TESTED and RESET each time the
cleaning system is plugged in. Press firmly to
assure internal spring activates switch. Push
“test“ then push “reset”. Motor will not start if
GFCl does not reset. Check circuit breakers or
outlet. If circuit breaker is not tripped and unit
will not reset, contact local service center.

SAFETY LABEL LOCATION
CMPS 86290230 02/22/07
NOTE: These drawings indicate the location of safety labels on the Compass™.If, at any time, the labels
become illegible contact your Windsor representative for prompt replacement.
WARNING LABEL 86242230
PRV NO. 500009
2-4

TECHNICAL SPECIFICATIONS
CMPS 86290230 02/22/07
ITEM DIMENSION/CAPACITY
Electrical 115V, 12A, 60HZ
Electric Pump Motor 1/3hp, 1725rpm
Solution Pump 500psi (34 bars), Axial plunger
Electric Vacuum Motor 2stage, 1.25hp (2.80m3/min.)
Waterlift 82 in. (208 cm)
Solution Capacity 29 gallons (111L)
Recovery Capacity 19 gallons (70L)
Wheels
- Front (2)
- Rear (2)
6 in. dia. (15.24cm) X 1.5
12 in. dia. ( 30.48cm)X 1.75
Dimensions – Weight (CMPS) 155 lb. (70kg)
Dimensions – Weight (CMPSR) 157 lb. (71kg)
Dimensions – Length (CMPS) 36 in. (91.4cm)
Dimensions – Length (CMPSR) 41.5 (105.4 cm)
Dimensions - Height 43 in. (109.2cm)
Dimensions - Width 24.75 in. (62.87cm)
Power Cable 50 ft. (127m) 14 gauge
LENGTH
CMPS WIDTH
HEIGHT
FRONT VIEWSIDE VIEW
LENGTH
CMPSR*
*NOTE: Hose rack standard ONLY on CMPSR.
SPECIAL NOTES:
The sound pressure level at 1m from the machine was measured to be 79 dBA. This was a nearfield,
broadband measurement taken in a typical industrial environment on a tile floor. This appliance
contains no possible source of impact noise. The instantaneous sound pressure is below 63 Pa.
The weighted root mean square acceleration at the operator’s arms was measured to be below
2.5m/s2. This was a tri-axial, third-octave-band measurement made during normal operation on a
composite tile floor. The measurement and related calculations were made in accordance with ANSI
S3.34-T986. 3-1

HOW THE MACHINE WORKS
CMPS 86290230 02/22/07
3-2
The Compass™is a multi-functional cleaning
machine intended for commercial use. The
appliance applies chemical at low pressure and
uses high pressure to clean with. Then the
soiled water is vacuumed back into the
recovery tank.
The machine's primary systems are the clean
water system, recovery system, chemical
system and pressure washer system.
The function of the clean water system is to
store clean water and deliver it to the available
tools. The clean water system consists of the
clean water tank, strainer and check valve. The
clean water tank stores water until it is delivered
to the tools. The strainer protects the check
valve and pump from debris.
The function of the recovery system is to
vacuum the soiled water back into the recovery
tank. The recovery system consists of the
wand and wheeled squeegee, vacuum motor,
float shut-off and recovery tank. The wand and
wheeled squeegee wipes the dirty solution off
the floor. The vacuum motor provides suction
to draw the dirty solution off the floor and into
the recovery tank. The float shut-off protects
the vacuum fan from over filling. The recovery
tank stores the dirty solution.
The function of the chemical system is to
dispense chemical into the clean water system.
The chemical system consists of the chemical
reservoir, chemical cap and a chemical-
metering selector. The chemical reservoir
stores and dispenses chemical into the clean
water system. The chemical-metering selector
meters the amount of chemical and selects
between chemical A or B and turn chemical off.
The function of pressure washer system is to
clean fixtures and other surfaces. The pressure
washer system consists of a pump, high-
pressure hose and spray gun. The pump
delivers cleaning solution to the tools. The
high-pressure hose connects the pump to the
spray gun. The spray gun is an adjustable Hi-Lo
that applies clean water and chemical to the
surface being cleaned.

COMPONENTS
CMPS 86290230 02/22/07
3-
3
1. Control Panel
2. Solution Tank
3. Solution Tank Lid
4. Solution Tank Drain Hose
5. Solution Tank Fill Hose
6. Recovery Tank
7. Recovery Tank Lid
8. Recovery Tank Drain Hose
9. Chemical Siphon Caps
10. Electrical Cord
11. High Pressure Hose Storage
12. Vac Hose Rack (Standard CMPSR only)

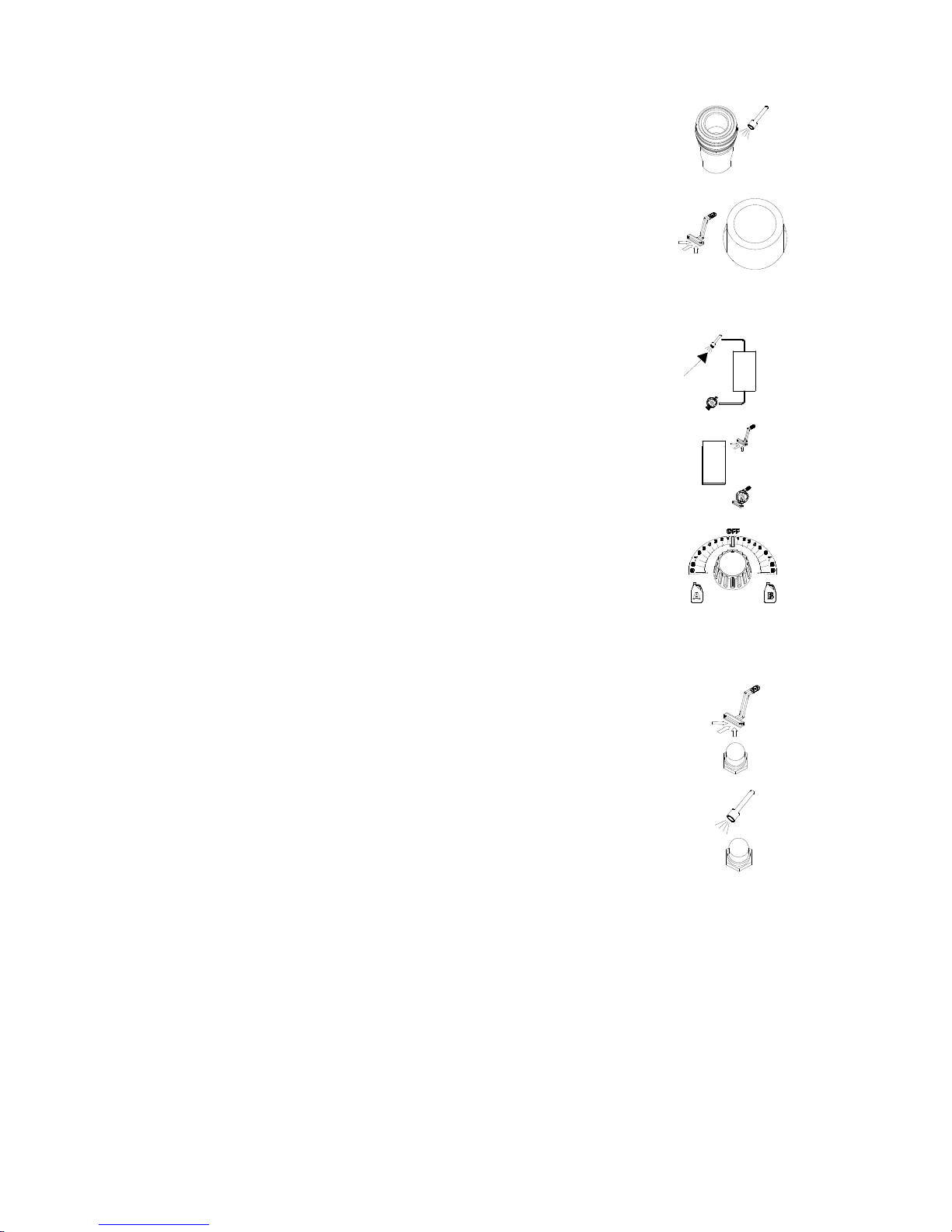

CONTROLS
CMPS 86290230 02/22/07
5
1
6
42 783
1. Solution Accessory Tool Hook-Up
2. Vacuum Accessory Tool Hook-Up
3. Pump Switch
4. Vacuum Switch
5. Chemical Selector and Metering Valve
6. Caster Lock
7. Vacuum Circuit Breaker
8. Pump Circuit Breaker
3-4

CONTROLS
CMPS 86290230 02/22/07
1. SOLUTION ACCESSORY TOOL HOOK-UP
Used for various auxiliary-cleaning tools.
2. VACUUM ACCESSORY TOOL HOOK-UP
To use accessory tool, remove hose from vac shoe and attach to
accessory tool adaptor.

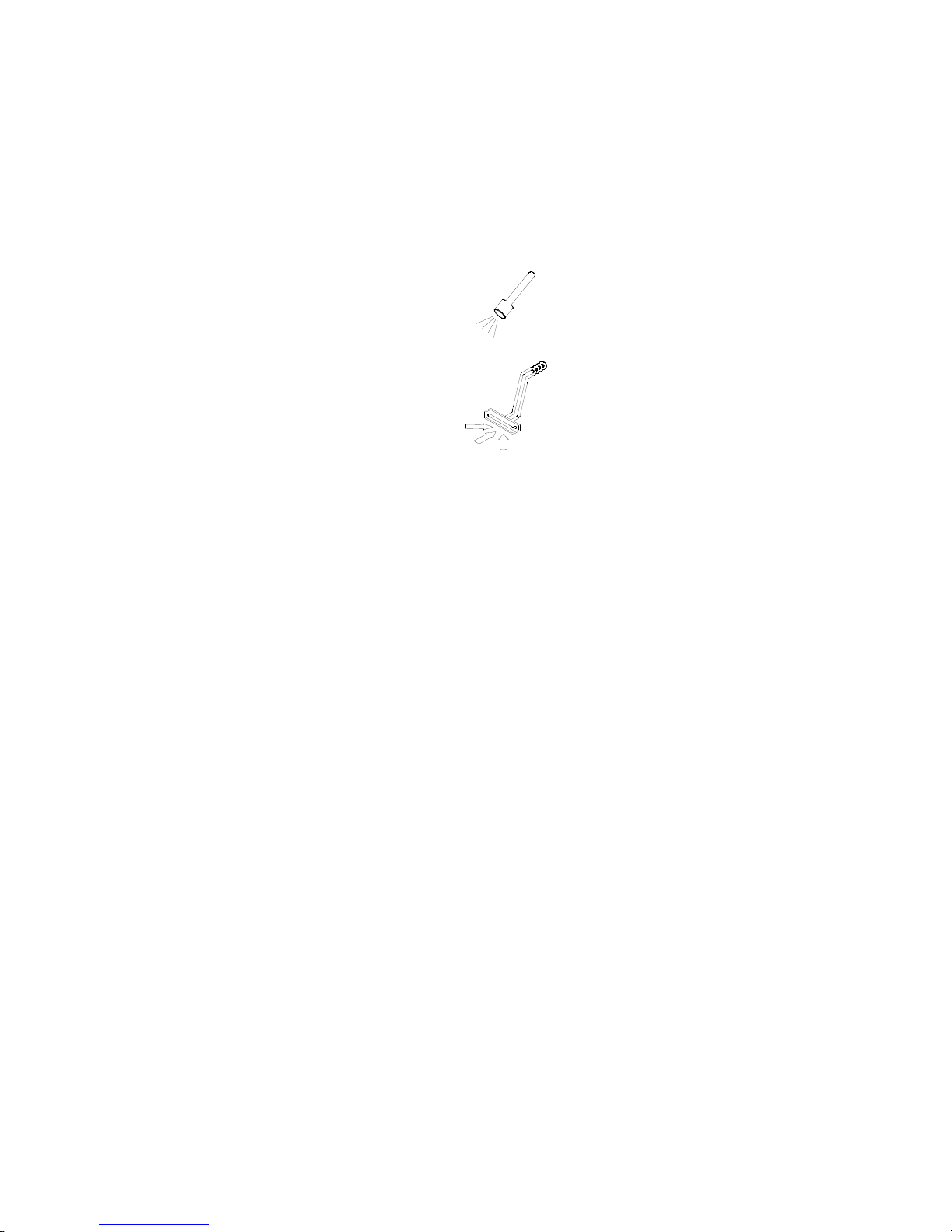

3. PUMP SWITCH
Turns the pump On and Off.
4. VACUUM SWITCH
Turns the vacuum motor On and Off.
3-
5
5. CHEMICAL SELECTOR AND METERING VALVE
Meters the amount of chemical being dispensed and selects between
chemical A or B and turn off.
6. CASTER LOCK
Locks the wheels in place to keep the machine from moving.
7. VACUUM CIRCUIT BREAKER
10 Amp. Protects the vacuum motor.
8. PUMP CIRCUIT BREAKER
6 Amp. Protects the pump motor.

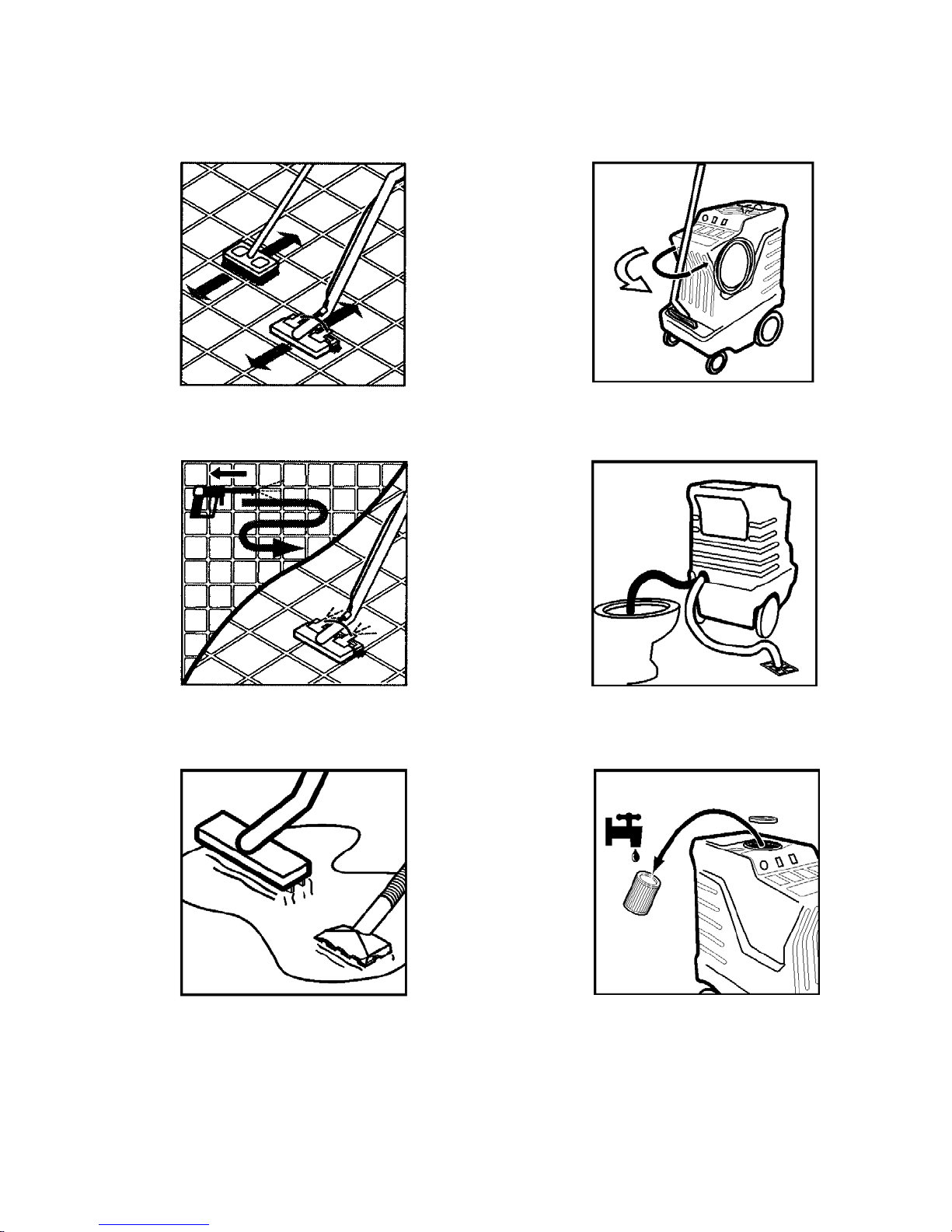

OPERATIONS
CMPS 86290230 02/22/07
FILLING THE MACHINE
Do not put defoamer, solvents
spotter or prespray chemicals in
the solution tank.
3-6
1. Always use gloves and eye protection. Never
spray solution towards people.
2. To fill Use fill hose or pour directly into solution
tank. Use COLD WATER. Add 1 ½ oz of
CompassRinse TM to each full solution tank.
3. Attach the adapter cap and intake hose to the
CompassTM Chemical bottle. Refer to the
CompassTM Chemical Label for the desired
dilution.
4. Position the CompassTM machine in the door
way, lock front casters. Start at furthest point in
the room and work towards the door.
5. Always Spray chemical using low pressure.

OPERATIONS
CMPS 86290230 02/22/07
3-
7
7. Use brush or grout tool for heavy soiled areas.
8. Turn Chemical off. Pressure clean by rinsing
surfaces at high pressure.
9. Use Squeegee or Gulper tool to remove
standing water.
10. Store and secure hoses and tools neatly.
11. Drain machine at proper disposal areas. Use
pressure gun to rinse and clean recovery tank.
12. When using dry filter, gently remove and wash
with water after every use. Allow to dry before
re-using.

OPERATIONS
CMPS 86290230 02/22/07
3-8
Care must be exercised in the use of all
chemicals. Chemicals are poisonous and
can pose a health risk. Read and follow
manfacturers instructions regarding
dangers and correct usages.
The internal parts of the pump used in the
machine are suitable for use with most carpet
cleaning chemicals. But they are susceptible to
chemical attack from some cleaning
substances, such as hydrocarbon solvents and
chlorinated bleaches. These non-compatible
materials are not of the type used for carpet
cleaning.
Only use chemicals approved for use with this
machine. Use of non-compatible chemicals
may cause machine damage and will not be
covered under the warranty. Carefully read
ingredients on manfacturer’s label before using
any product in this machine.
Do not let pump run dry.
Do not let pump run unattended.
CHEMICALS
Suitable Chemicals Non-Compatible
A
ldehydes
A
lkalis
Detergents
Hydroxides
Soaps
Vinegar
A
romatics Hydrocarbons
SP Butyls
Carbon Tetrachloride
Clorox*
Chlorinated Bleaches
Chlorinated Hydrocarbons
Lysol*
Methyl Ethel Ketone (MEK)
Perchorethylene (perc)
Phenolics
Trichlorethylene
D-Limonene

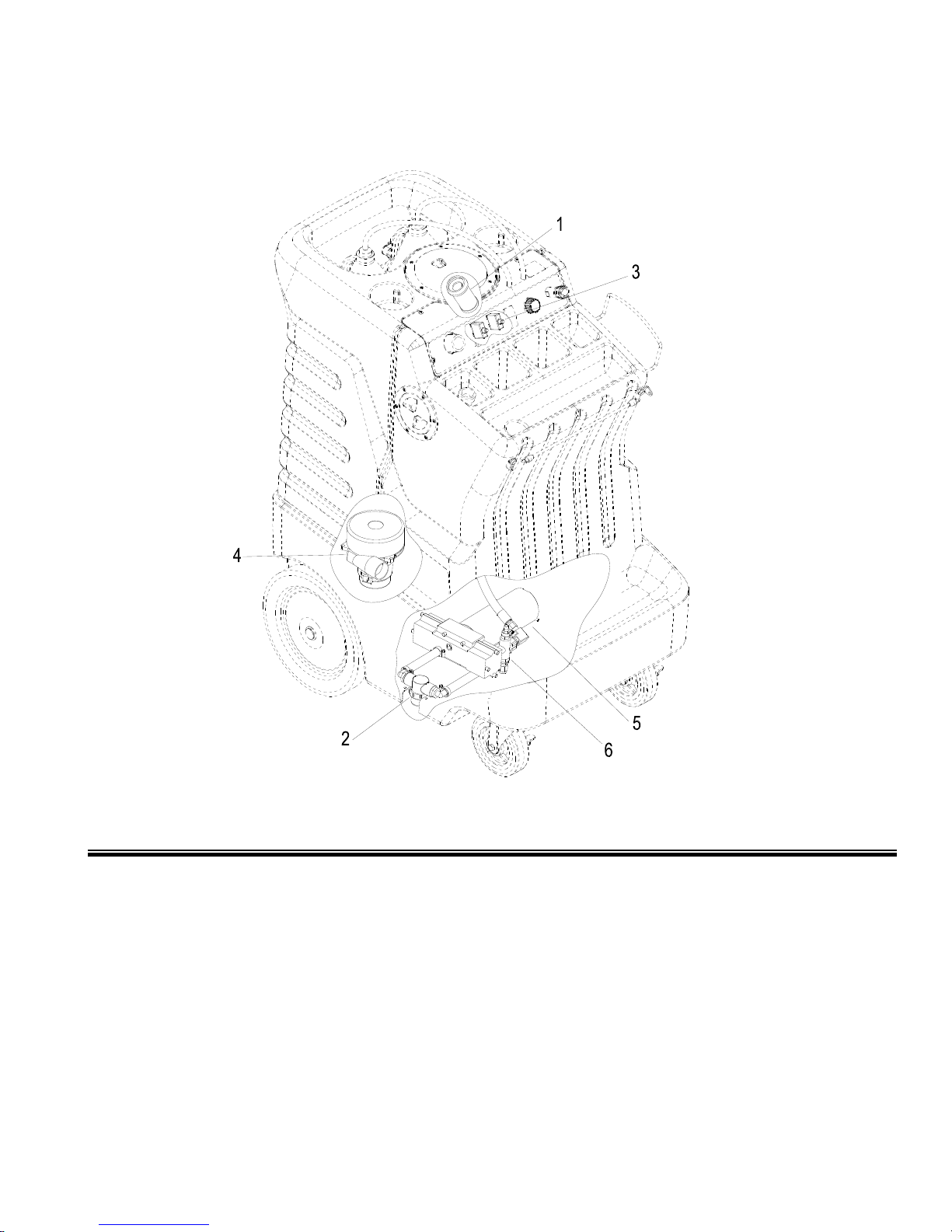

MAINTENANCE
CMPS 86290230 02/22/07
4-1
1. Float Shut-Off
2. Strainer
3. Circuit Breakers
4. Vacuum Motor
5. Pump
6. Adjustable Unloader Valve

MAINTENANCE
CMPS 86290230 02/22/07
1. FLOAT SHUT-OFF
The float shut-off is located inside the
recovery tank. The purpose of the float
shut-off is to notify the user that the
recovery tank is full. Remove daily and
clean any debris for maximum airflow.
2. STRAINER
The strainer is located on the lower right
side between the front and rear wheels.
The strainer protects the check valve and
pump from debris. If there is little or no
solution flow to the ground, check the
stainer for debris. Drain the solution tank
and clean the solution strainer. To remove
the strainer, turn the bottom part of the
strainer counterclockwise until the bottom is
separated. Clean out the debris from the
wire mesh and reassemble. Make sure the
o-ring gasket is in place when reassembled.
3. CIRCUIT BREAKERS
Circuit breakers interrupt the flow of power
in the event of an electrical overload. When
a circuit breaker is tripped, reset it by
pressing the exposed button. If a circuit
breaker continues to trip, the cause of the
electrical overload should be found and
corrected.
4-2
6 Amp. Protects the pump
motor.
10 Amp. Protects the vacuum
motor.

MAINTENANCE
CMPS 86290230 02/22/07
4. VACUUM MOTOR Vacuum Motor Carbon Brushes Replacement (Windsor)
WARNING: The green
ground wire must be
attached for safe operation.
See wiring diagram.
(Refer to vacuum group in the parts section of
manual). End Cap
4-
3
ONLY QUALIFIED MAINTENANCE PERSONNEL
ARE TO PERFORM THE FOLLOWING REPAIRS.
VACUUM MOTOR REPLACEMENT
1. Turn off all switches and unplug machine.
2. Remove recovery tank.
3. Remove the 5 screws holding the vacuum motor
cover to the solution tank.
4. Locate the vacuum motor wires and disconnect
at the connector.
5. Remove the vacuum motor.
6. Reverse process to install.
Carbon
Brushes
If armature commutator is grooved, extremely pitted or not
concentric, the motor will need to be replaced or sent to a
qualified service center.
Important:
These brushes wear quicker as the length shortens due to
increased heat. Spring inside brush housing will damage
motor if brushes are allowed to wear away completely.
Periodically check the length of the carbon brushes. Replace
both carbon brushes when either is less than 3/8" (9.5mm)
long.
3
8[9.5mm]

MAINTENANCE
CMPS 86290230 02/22/07

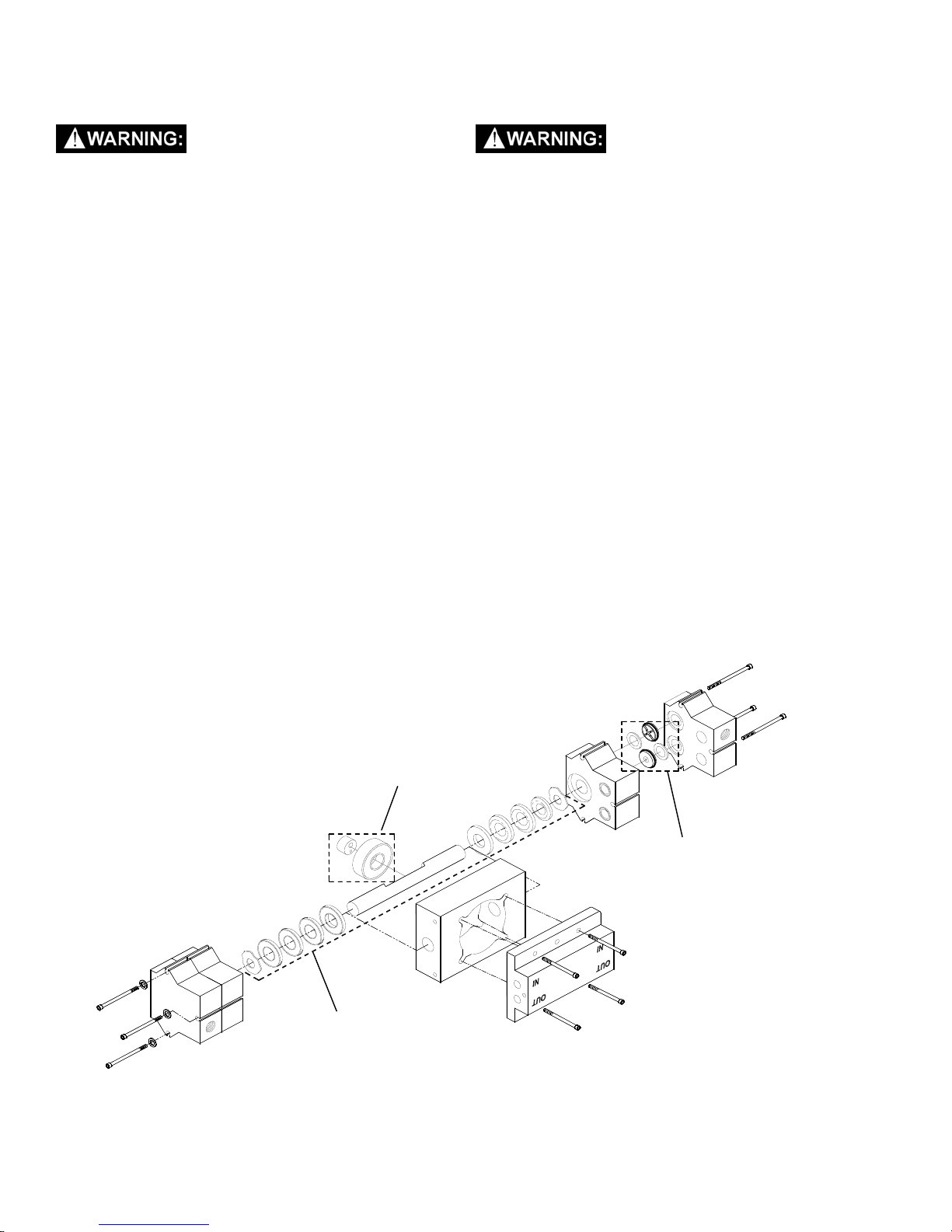

5. PUMP
4-4
ONLY QUALIFIED MAINTENANCE
PERSONNEL ARE TO PERFORM THE
FOLLOWING REPAIRS.
SOLUTION PUMP REPLACEMENT
1. Turn off all switches and unplug machine.
2. Tilt machine back so bottom is exposed.
3. Remove the 6 screws that fasten the frame
to the solution tank.
4. Remove the solution hoses from the fittings
on the pump.
5. Reverse process to install.
6. REGULATING UNLOADER
ONLY QUALIFIED MAINTENANCE
PERSONNEL ARE TO PERFORM THE
FOLLOWING REPAIRS.
UNLOADER REPLACEMENT
1. Turn off all switches and unplug machine.
2. Tilt machine back so bottom is exposed.
3. Remove the 6 screws that fasten the frame
to the solution tank.
4. Remove the solution hoses from the fittings
on the pump.
5. Remove the unloader.
6. Reverse process to install.
PUMP REPLACEMENT KITS
MOTOR ONLY 86290270
PUMP HEAD ONLY 86290280
CAM & BEARING KIT
86290330
VALVE & O-RINGS KIT
(BOTH SIDES)
86290340
PLUNGER & SEALS KIT
86290350
