Windsor Saber Glide 86037580 User manual

86037580 GLIDE 01/03/07
PARTS LIST

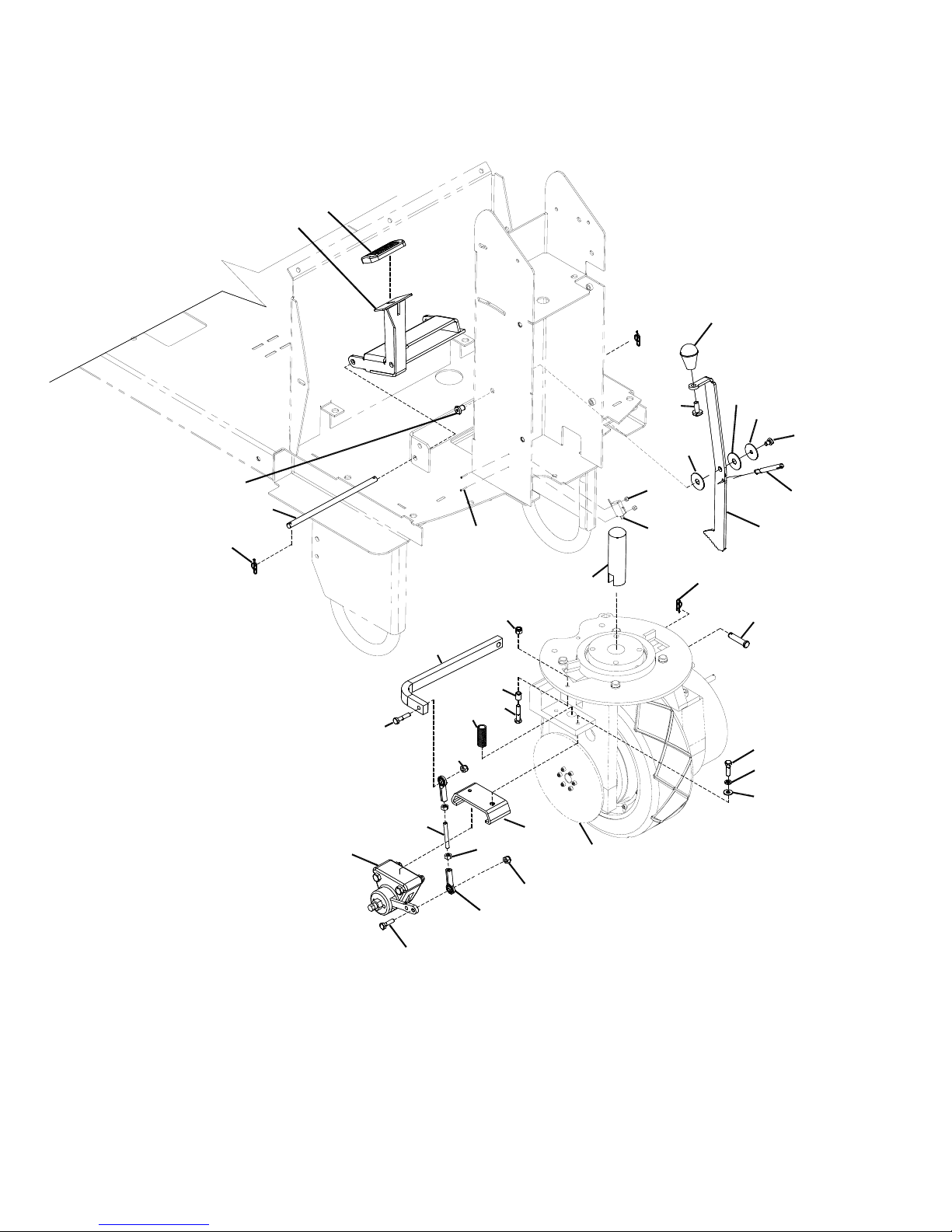

BRAKE
86037580 GLIDE 01/03/07
5-1
9
13
15
9
14 16
17
12
13
14
11
10
18
21
13
18 19
20
23
7
24
28
22 7
8
29
30
26
25
4
2
4
3
1
65
27

BRAKE
86037580 GLIDE 01/03/07
5-2
REF PART NO. PRV
NO. QTY DESCRIPTION SERIAL NO.
FROM NOTES:
1 86276880 70751 1 SCR, 1/4-20 X 3/8 HHCS SS
2 86278940 87008 1 WASHER, 1/4ID X 1-1/4OD PLTD
3 86255560 82855 1 SPRING, .31 X .04 X 3.0 EXT CS ZC
4 86279620 87200 2 WASHER, .4ID X 1.3OD NYLON
5 86009440 81972 1 PAD, BRAKE PEDAL
6 86093360 66363 1 PEDAL, BRAKE SRS
7 86008670 80606 3 COTTER, 3/8” RING
8 86248980 81438 1 PIN, CLEVIS 3/8” X 1.75 PLTD
9 86273810 70018 3 SCR, 1/4-20 X 1 HHCS SS
10 86010780 87162 2 WASHER, 1/4 SPLIT LOCK PLTD
11 86010630 87013 2 WASHER, 1/4ID X 5/8OD SS
12 86215650 29251 1 DISK, BRAKE
13 86005810 57245 3 NUT, 1/4-20 HEX NYLOCK SS
14 86073850 140466 1 CALIPER, CLOCKWISE BRAKE
14A 86135470 83050 1 CALIPER ACTUATING PIN SERVICE ONLY
14B 86134940 83051 1 BACKING PLATE, CALIPER SERVICE ONLY
14C 86135480 83052 1 PUCK CALIPER SERVICE ONLY
14D 86010330 83053 1 CALIPER, ANVIL SUB-ASSEMBLY SERVICE ONLY
15 86251790 67480 2 ROD END, BALL JOINT 1/4-28
16 86271600 57225 2 NUT, 1/4-28 HEX
17 86065800 05003 1 ARM, LOWER VAC CONTROL
18 86273820 70019 2 SCR, 1/4-20 X 1.25 HHCS
19 86254960 730266 1 SPRING, COMP .67 OD X 1.63 X .08
20 86066010 140458 1 ARM, BRAKE LEVER
21 86087430 73206 1 SPACER, 3/8OD X .058W X 1/2L CRS
22 86252040 67470 1 ROD, BRAKE PUSH
23 86078400 66356 1 PIN, CLEVIS 0.375 X 8.26L
24 86005860 57273 1 NUT, 1/4-20 X 12MM HEX BARREL
25 86276890 70752 1 SCR, 5/16-18 X 3/4 PTHMS SS
26 86077270 51367 1 LEVER, PARKING BRAKE
27 86004800 48030 1 KNOB
28 86006720 70245 2 SCR, 4-40 X 3/4 PPHMS
29 86028630 72082 1 SWITCH, SOL LEVER BENT
30 86271280 57163 2 NUT, 4-40 W/STAR WASHER

CIRCUIT BREAKER
86037580 GLIDE 01/03/07
5-3
12
3
4

CIRCUIT BREAKER
86037580 GLIDE 01/03/07
5-4
REF PART NO. PRV
NO. QTY DESCRIPTION SERIAL NO.
FROM NOTES:
1 86273990 70067 4/6 SCR, 6-32 X 3/8 PPHMS 4 per 28&32/6
per 36
2 86279300 87134 4/6 WASHER, #6 LOCK 4 per 28&32/6
per 36
3 86001920 14607 2/3 BREAKER, 25A 50VDC CIRCUIT 2 per 28&32/3
per 36
4 86008900 80845 2/3 BOOT, SEAL-PUSH BUTTON 7/16-28 2 per 28&32/3
per 36

CONTROL PANEL
86037580 GLIDE 01/03/07
5-5
30
15
14
13
21 22 23
24
25
8
1
2
63
4
7
5
27
28
17
16A
16C
16B
9
12
11
10
18
19
20
5
26
16D
29

CONTROL PANEL
86037580 GLIDE 11/05/08
5-6
REF PART NO. PRV
NO. QTY DESCRIPTION SERIAL NO.
FROM NOTES:
1 86270920 57049 2 NUT, 6-32 HEX NYLOCK SS
2 86005550 54183 1 MODULE, LCD
3A 86007190 72161 1 SWITCH, KEY DPST
3B 86004860 48073 REF KEY SERVICE ONLY
4 86007180 72160 1 SWITCH, EMERGENCY STOP
5 86257280 81371 1 SWITCH, PUSH BUTTON
6 86271820 57270 1 NUT, 5/16-18 CAPTIVE “J” PLTD
7 86238000 36216 1 GASKET, .06T X .25W X 26.5L
8 86093320 66364 1 PANEL CONTROL
9 86270990 57090 2 NUT, 10-32 HEX NYLOCK SS
10 86276900 70753 1 SCR, 5/16-18 X 1-1/4 PFHMS SS
11 86003230 27936 1 COVER, FRONT SMALL RIDER
12 86276890 70752 4 SCR, 5/16-18 X 3/4 PTHMS SS
13 86271910 57295 2 NUT, 5/16-18 FLEXLOCK
14 86010670 87029 2 WASHER, 5/16 FLAT SS
15 86068850 140219 2 BRACKET, CABLE ATTACH *(1)
16A 86002660 270070 1 CONTROLLER, GLIDE 28/32 28 IN & 32 IN,
WAS 27950
16B 86002670 270071 1 CONTROLLER, GLIDE 36 36 IN, WAS
27967
16C 86002680 270072 1 CONTROLLER, GLIDE 28/32 GEL
28 IN & 32 IN WITH SEALED
BATTERIES,
WAS 27972
16D 86027700 270075 1 CONTROLLER, GLIDE 36 GEL
36 IN WITH
SEALED
BATTERIES,
WAS 270009
17 86274410 70195 2 SCR, 10-32 X 1.25 SS
18 86273810 70018 2 SCR, 1/4-20 X 1 HHCS SS
19 86010780 87162 2 WASHER, 1/4 SPLIT LOCK
20 86010630 87013 2 WASHER, 1/4ID X 5/8 OD SS
21 86007520 730142 3 SWITCH, SPDT 3-POSITION MOM
22 86250190 66365 2 PLUG, DD .625-.550
23 86007480 730124 1 SWITCH ASM, SEALED
PUSHBUTTON
24 86007470 730123 1 SWITCH ASM, SEALED PUSH SQ
25 86243510 500563 REF LABEL, CONTROL PANEL
26 86007210 72165 1 SWITCH, DPDT 3-POSITION
ROCKER 36 IN. ONLY
27 86002010 14942 1 BOOT, 3/8 CIRCUIT BREAKER 36 IN. ONLY
28 86001450 140541 1 BREAKER, 2A 250VAC, 50VDC 36 IN. ONLY
29 86271940 57299 1 NUT, 1/4-20 ACORN SS
30 86275760 70540 2 SCR, 5/16-18 X 1 HHCS GR8 PLTD *(1)
*SEE SERIAL NUMBER PAGE.

DECAL GROUP
86037580 GLIDE 01/03/07
5-7
42
3 6
1
5A
5B
7
89

DECAL GROUP
86037580 GLIDE 01/03/07
5-8
REF PART NO. PRV
NO. QTY DESCRIPTION SERIAL NO.
FROM NOTES:
1 86004970 50990 1 LABEL, WINDSOR LOGO DOMED
2 86243510 500563 1 LABEL, CONTROL PANEL
3 86243570 500574 2 LABEL, GLIDE
4 86243500 500562 1 LABEL, SRS CHARGING
5A 86244130 500859 1 LABEL, CIRCUIT BREAKER GLIDE 28 IN & 32 IN
5B 86244140 500861 1 LABEL, CIRCUIT BREAKER 36 SRS 36 IN.
6 86248210 81349 1 OVERLAY, HORN
7 86243580 500575 1 LABEL, SOLUTION FILL GLIDE
8 86243810 500651 1 LABEL, DECK SHIFT 36 INCH 36 IN. ONLY
9 86243830 500662 1 LABEL, COVER SMALL RIDER
NOTE: SEE “SAFETY LABEL LOCATION” PAGE FOR SAFETY LABEL INFORMATION.

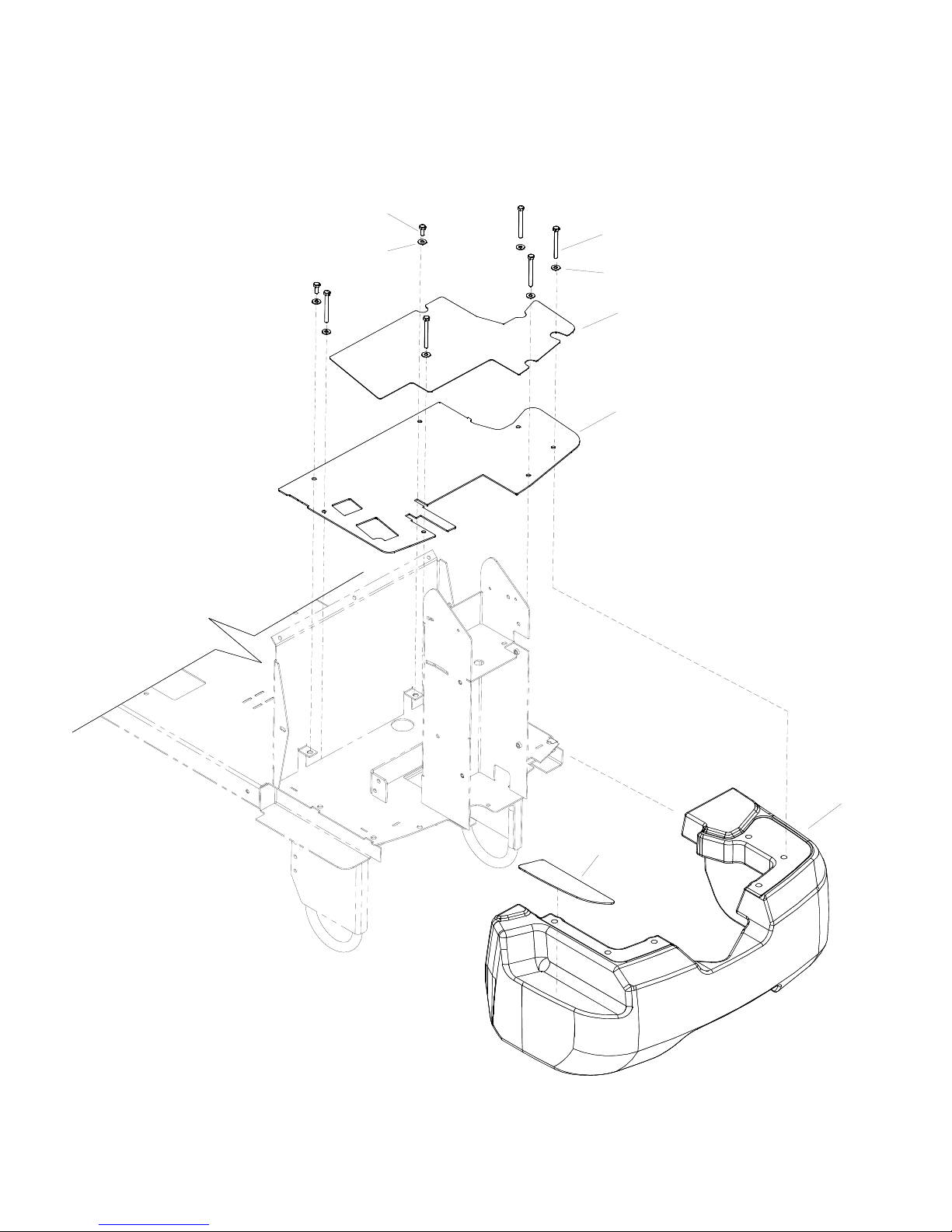

FRONT BUMPER & FLOOR
86037580 GLIDE 01/03/07
5-9
1
4
5
6
3
2
3
7

FRONT BUMPER & FLOOR
86037580 GLIDE 01/03/07
5-105-10
REF PART
NO. PRV NO. QTY DESCRIPTION SERIAL
NO. NOTES:
1 86248350 66360 1 PAD, FLOOR
2 86276780 70728 2 SCR, 5/16-18 X 3/4 HHCS SS
3 86010670 87029 7 WASHER, 5/16 FLAT SS
4 86204070 70754 5 SCR, 5/16-18 X 3 HHCS SS NP
5 86082320 62952 1 PLATE, FLOOR
6 86031820 27934 1 COVER, BUMPER SMALL RIDER
7 86248360 66361 1 PAD, STEP

FORWARD/REVERSE PEDAL
86037580 GLIDE 01/03/07
5-11
16
1
13 12
9
8
710
2
4
1
1
3
6
5
8
11
16
15
14
13 17

FORWARD/REVERSE PEDAL
86037580 GLIDE 01/03/07
5-12
REF PART NO. PRV
NO. QTY DESCRIPTION SERIAL
NO. NOTES:
1 86005810 57245 3 NUT, 1/4-20 HEX NYLOCK SS
2 86007380 730088 1 SPACER, .50D X .26ID X 1.5L
3 86078310 66382 1 PEDAL, SMALL RIDER
4 86273850 70022 1 SCR, 1/4-20 X 2 HHCS
5 86276940 70758 1 SCR, 1/4-20 X 3.5 HHCS SS NP
6 86248340 66346 1 PAD, FWD/REV PEDAL
7 86006330 66343 1 POTENTIMETER, TROTTLE
8 86276930 70757 2 SCR, 8X1/2 PPH TYPE B SMS SP
9 86093140 51379 1 LINK, SMALL RIDER THROTTLE
10 86278060 70759 2 SET SCR, M4 X 4MM NP
11 86089660 78532 1 TUBE, 3/8 OD X 2.96 L
12 86091500 140577 1 BASE, SMALL RIDER PEDAL
13 86228750 09082 2 BEARING, 3/8” FLANGED NYLON
14 86273780 70015 1 SCR, 1/4-20 X 3/4 HHCS SS NP
15 86010300 830117 1 BRKT, SPRING ALIGNMENT
16 86010290 830116 3 SPRING, FLAT
17 86010680 87030 2 WASHER, 3/8 ID X 3/4 OD NYLON

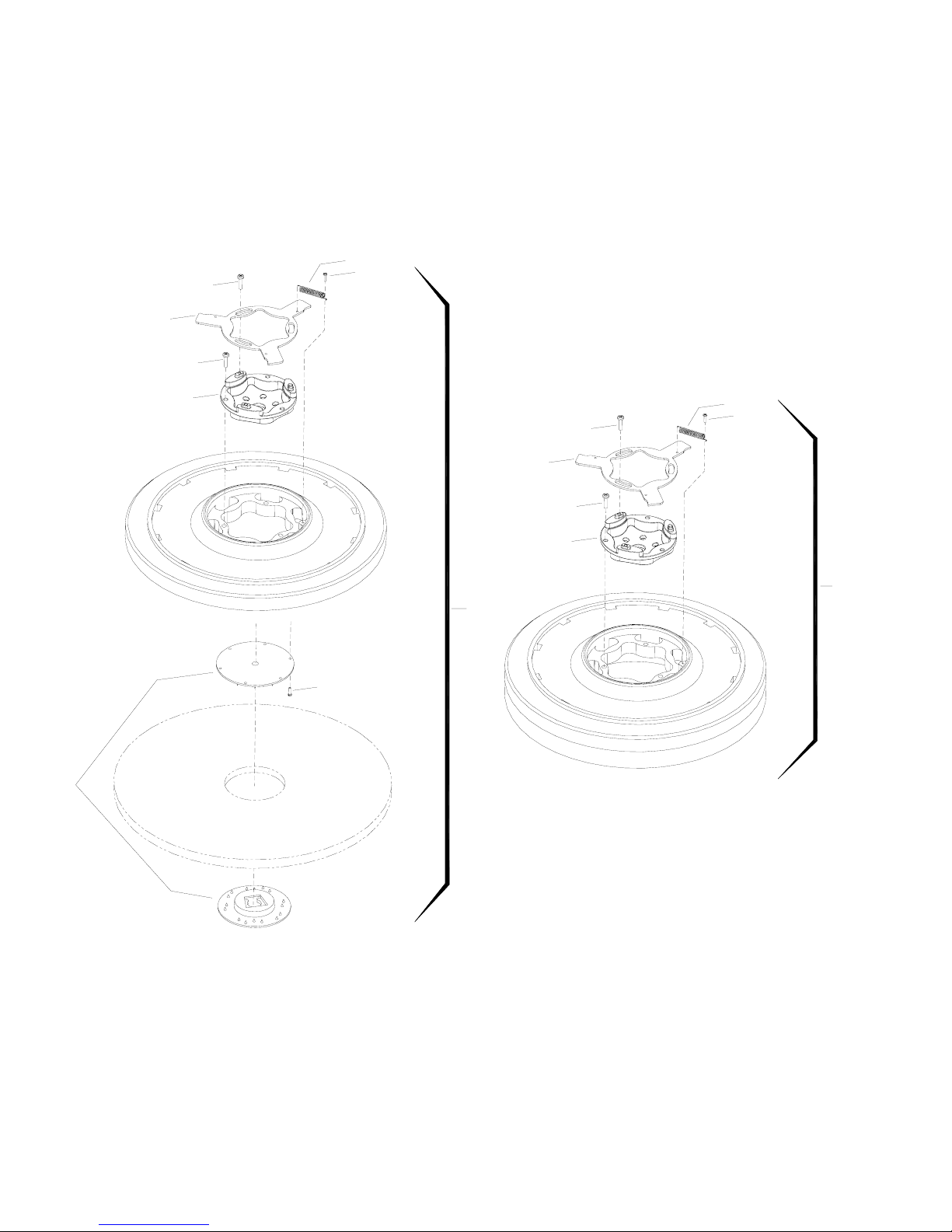

SCRUB BRUSHPAD /DRIVER
86037580 GLIDE 01/03/07
5-13
1
6
9
4
8
5
7
2B
2A
2C
3
5
2D
75
6
9
4
8

SCRUB BRUSH/PAD DRIVER
86037580 GLIDE 01/03/07
5-14
5-14
28 IN. DISK:
REF PART NO. PRV
NO. QTY DESCRIPTION SERIAL
NO. NOTES:
1 86000250 02412 2 PAD DRIVER, 14” SD
2A 86000260 02413 2 BRUSH, 14” POLYPROPYLENE SD
2B 86000270 02414 2 BRUSH, 14” NYLON SD
2C 86000280 02416 2 BRUSH, 14” MILD GRIT SD
2D 86283850 02417 2 BRUSH, 14” SUPER AGG SD
3 86005070 51284 1 LOCK, PAD CENTER SNAP, TWO
STEP
4 86276590 70695 3 SCR, #12 X 1 PPHSMS SS
5 86210940 70694 1 SCR, 8-32 X 3/4 PTHMS
6 86276600 70696 3 SCR, #10 X 3/4 PTHSMS SS
7 86007910 73817 1 SPRING, EXT .31 D X 2.0 L X .03 W SS
8 86007280 730011 1 SOCKET, DRIVE BRUSH
9 86005940 62852 1 PLATE, BRUSH RELEASE
32 IN. DISK:
REF PART
NO. PRV NO. QTY DESCRIPTION SERIAL
NO. NOTES:
1 86000290 02418 2 PAD DRIVER, 16” SD
2A 86000300 02419 2 BRUSH, 16” POLYPROPYLENE SD
2B 86000310 02420 2 BRUSH, 16” NYLON SD
2C 86000330 02422 2 BRUSH, 16” MILD GRIT SD
2D 86000340 02423 2 BRUSH, 16” SUPER AGG SD
3 86005070 51284 1 LOCK, PAD CENTER SNAP, TWO
STEP
4 86276590 70695 3 SCR, #12 X 1 PPHSMS SS
5 86276580 70694 1 SCR, 8-32 X 3/4 PTHMS
6 86276600 70696 3 SCR, #10 X 3/4 PTHSMS SS
7 86007910 73817 1 SPRING, EXT .31 D X 2.0 L X .03 W
SS
8 86007280 730011 1 SOCKET, DRIVE BRUSH
9 86005940 62852 1 PLATE, BRUSH RELEASE
36 IN. DISK:
REF PART NO. PART
NO. QTY DESCRIPTION SERIAL
NO. NOTES:
1 86000170 02400 3 PAD DRIVER, 12” SD
2A 86000180 02401 3 BRUSH, 12” POLYPROPYLENE SD
2B 86168070 02402 3 BRUSH, 12” NYLON SD
2C 86000200 02404 3 BRUSH, 12” MILD GRIT SD
2D 86283820 02405 3 BRUSH, 12” SUPER AGG SD
3 86005070 51284 1
LOCK, PAD CENTER SNAP, TWO
STEP
4 86276590 70695 3 SCR, #12 X 1 PPHSMS SS
5 86276580 70694 1 SCR, 8-32 X 3/4 PTHMS
6 86276600 70696 3 SCR, #10 X 3/4 PTHSMS SS
7 86007910 73817 1 SPRING, EXT .31 D X 2.0 L X .03 W SS
8 86007280 730011 1 SOCKET, DRIVE BRUSH
9 86005940 62852 1 PLATE, BRUSH RELEASE

SCRUB DECK-28 IN DISK
86037580 GLIDE 01/03/07
5-15
5
6
11
4
3
1
7
8
9
10
2
13
12
14
15
16
17
19
18
20
21
22
23
5
17
23
24
25
FROM
SOLUTION
STRAINER
26
27
31
29
28
30
29

SCRUB DECK-28 IN DISK
86037580 GLIDE 01/03/07
5-16
5-16
REF PART NO. PRV
NO. QTY DESCRIPTION SERIAL NO.
FROM NOTES:
1 86005250 53258 2 MOTOR ASM, 36V 330 RPM GEAR
1A 86001890 14418 REF BRUSH SET, MOTOR SERVICE ONLY
2 86279130 87083 2 WASHER, 5/16 SPLIT
3 86087940 730104 1 STRAP, REAR SQUEEGEE
4 86253910 730101 1 SKIRT, REAR
5 86276950 70772 10 SCR, 1/4-20 X 3/4 CARRIAGE SS
6 86093960 62962 1 SCRUB DECK, 28 SMALL RIDER
7 86276970 70774 8 SCR, 3/8-16 X 3/4 HHCS SS
8 86279530 87173 2
WASHER, .765 ID X 1.31 OD X .090 T
SS
9 86004810 48040 2 KEY, 1/4 SQ X 1.00
10 86003420 29220 2 DRIVER, BRUSH SD
11 86010790 87163 8 WASHER, 3/8 SPLIT LOCK
12 86007020 70673 2 SCR, 5/16-18 X 1.25 HHCS SS
13 86279630 87212 2 WASHER, .344ID X 1.13OD X .09T
14 86253900 730099 1 SKIRT, FRONT
15 86271830 57283 2 NUT, 3/8 NPT PLASTIC
16 86087930 730103 1 STRAP, FRONT SQUEEGEE
17 86005630 57022 3 NUT, 3/8-16 HEX NYLOCK THIN SS
18 86010890 89059 2 WHEEL, BUMPER
19 86276400 70642 1 SCR, 3/8-16 X 3 HHCS
20 86001550 40043 2 HOSEBARB, 3/8MPT X 3/8 90D
21 86003580 34327 1 FITTING, 1/8" X 3/8" X 3/8" RED
22 86009710 82312 1 VALVE, 36VDC SOL. 1/2" HOSEBARB
- 86003460 29260 - DIAPHRAGM SRVC PART SLND SERVICE ONLY
- 86136820 47395 - SOLENOID SPRING KIT SERVICE ONLY
23 86005810 57245 10 NUT, 1/4-20 HEX NYLOCK SS
24 86281480 39390 1 HOSE, 1/2 ID NYLOBRAID 14”
25 86280860 39053 2 HOSE, 3/8 NYLOBRAID X 7”
26 86282180 39613 1 HOSE, 1/2 ID NYLOBRAID X 17”
27 86233150 20042 1 CLAMP, 3/8 HOSE (D-SLOT)
28 86009200 81535 2 KNOB, 3/8-16 4 PRONG ALUM
29 86279620 87200 4 WASHER, .4 ID X 1.3 0D NYLON
30 86010770 87143 2 WASHER, 7/16 ID X 1 D X .08 FLT SS
31 86276920 70755 2 SCR, 3/8-16 X 1 HHCS SS NP

SCRUB DECK SIDE SQUEEGEE-28 IN DISK
86037580 GLIDE 01/03/07
5-17
4
5
12
18
13
16
5
15
17
23
20
22
19
21
14
34
8
7
1
2
6
9
10
11

SCRUB DECK SIDE SQUEEGEE-28 IN DISK
86037580 GLIDE 01/03/07
5-18
5-18
REF PART NO. PRV
NO. QTY DESCRIPTION SERIAL NO.
FROM NOTES:
1 86094220 730106 1 SKIRT, RIGHT
2 86082160 62923 1 PLATE, RIGHT DECK
3 86226830 73268 4 SPRING, EXT .68D X 3.00L X .098W
4 86007020 70673 6 SCR, 5/16-18 X 1.25 HHCS SS
5 86010670 87029 10 WASHER, 5/16 FLAT SS
6 86094230 730107 1 SKIRT, LEFT
7 86005810 57245 6 NUT, 1/4-20 HEX NYLOCK SS
8 86007420 730100 2 SQUEEGEE, SIDE BLADE LINATEX
9 86276960 70773 6 SCR, 1/4-20 X1.0 CARRIAGE SS
10 86087920 730102 2 STRAP, SIDE SQUEEGEE
11 86276900 70753 2 SCR, 5/16-18 X 1.25 PFHMS SS NP
12 86279380 87146 16 WASHER, 1/2” ID X 1” D X .08” NYL
13 86082170 62924 1 PLATE, LEFT DECK
14 86272580 80638 4 PIN, CLEVIS 3/8” X 1.25” PLTD
15 86228840 09124 8 BEARING, FLANGED .314 D X .502 OD
16 86270830 57023 8 NUT, 5/16-18 HEX NYLOCK SS
17 86065960 05162 4 ARM, SKIRT LINKAGE
18 86259410 87206 8 WASHER, THRUST .51 ID X 1 OD X .063
19 86277090 70786 2 SCR, 5/16-18 X 3 HHMS FL THD SS
20 86005650 57031 2 NUT, 5/16-18 HEX
21 86272380 66217 4 PIN, CLEVIS 3/8 X 3/4
22 86242120 48090 2 KNOB, 1.0 OD X 5/16-18
23 86226810 73245 2 SPRING, COMP .72D X 2.0L X .067W

SCRUB DECK LIFT-28 IN & 32 IN
86037580 GLIDE 01/03/07
5-19
21
25
16
18
26
1
18
23
24
22
2
3
345
6
7
6
8
18 9
11 1213
17 15 14
19
5
18
14
15
17
20
17
14
15
521
3
16 10
