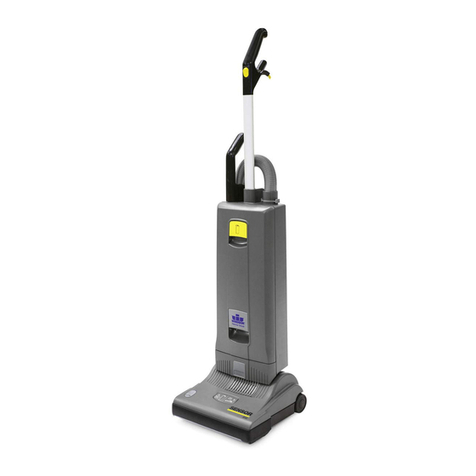

Windsor SENSOR S12 User manual

SENSOR S12 wRB
n

IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions must always befollowed,
includingthe following.
READ ALL INSTRUCTIONSBEFORE USING THIS MACHINE
WARN I NG 5 T O reducethe risk of fire, electric shock, or injury:
1 ; Do not leave appliance when pluggedin. Unplugfrom outlet when not in use and before servicing.
2.
Do not use outdoorsor on wet surfaces.
3.
Do not use near small children. Do not allow to be used as a toy. Close attentionis necessary when used
by or near children.
4. Use only as described inthis manual. Use only manufacturer's recommendedattachments.
5. Do not use with damaged cord or plug. If applianceis not working as it should has been dropped,
6
Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges
7. Do not unplug by pullingon cord. To unplug, grasp the plug, notthe cord.
8. Do not handleplug or appliancewith wet hands.
9.
Do not put any object into openings. Do not'use with any opening blocked; keep free of dust, lint, hair,
and anythingthat may reduceair flow.
10. Keephair, loose clothing, fingers, and all partsof body away from openingsand moving parts.,
Do not
placefingers or other body partsunder vacuum unless unplugged.
11.
Do not pick up anythingthat is burningor smoking, such as cigarettes, matches, or hot ashes.
12.
Do not use without dust bag and/or filters in place.
13. Turn
off all controls beforeunplugging.
14. Use extra care when cleaningon stairs.
15.
Do not use to pick upflammable or combustible liquidssuch as gasolineor use in areas where they may
16. Machines can cause a fire when operated near flammable vapors or materials.
Do not operate this
17. Maintenanceand repairs must be done by qualifiedpersonnel.
18. Use only identicalreplacement parts. See instructionsfor Servicing
of Appliances.
19.
Do not use machineas a step.
20. If used on plush carpet or carpet with thick padding, do not leave machine in one place with machine
21.
Do not use the handlein the dust bag housingcover to carry the machine.
22. Always turn
off this appliance beforeconnecting or disconnectingmotorizednozzle.
23. Brushmay unexpectedlyrestart.
To reducethe risk of injury from movingparts. - Unplugbeforeservicing.
24. The vacuum has a manual reset thermal protector. The protector is reset by switching off the vacuum.
The thermal protector needs some time to cool down after switching
off! Checkthe vacum for air blockages
or mechanicalfailures beforeswitchingon.
25. Storethe vacuum ina dry placeat roomtemperature. When the vacuum is not in use,you shouldwrapthe
cord on the cable hooks.
26. Any other servicingshould be performed by an authorizedservice representative.
damaged, left outdoors, or dropped into water, return
it to a service center.
or corners.
Do not run applianceover cord. Keep cord away from heatedsurfaces.
be present.
machine nearflammablefluids, dust or vapors.
turned on.
SAVE THESE INSTRUCTIONS

GROUNDING INSTRUCTIONS
This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path
of least resistance,for electric current to reduce the risk of electric shock. This appliance is equipped
with a cord having an equipment
- groundingconductor and grounding plug. The plug must be inserted
into an appropriate outlet that is properly installed.and grounded in accordance with all local codes
and ordinances.
WARNING
Improper connection of the equipment - grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or service person if you are in doubt as to whether the outlet is
properly grounded. Do not modify the plug provided with the appliance
- if it will not fit the outlet,
have a proper outlet installedby a qualified electrician.
This appliance is for use on a nominal 120
- volt circuit, and has a grounded plug that looks like the
plug illustrated in sketch
A. A temporary apaptor that looks like the adaptor illustrated in sketches 6
and C may be used to connect this plug to a 2 - pole receptacle as shown in sketch 6 if a properly
grounded outlet is not available. The temporary adaptor should be usedonly until a porperlygrounded
outlet is not available. The temporary adaptor should be used only until a properly grounded outlet
(sketch
A) can be installedby a qualifiedelectrician. The green colored rigid ear, lug, or the likeexten -
ding from the adaptor must be connected to a permanent ground such as a properly
grounded outlet box cover. Whenever the adaptor is used,
it must be held in place by a metal screw.
Note: In Canada, the use of a temporary adaptor is not permitted by the Canadian ElectricalCode.
-J AN
GROChlOED
-iWflEf Box
LIMITED WARRANTY
WINDSOR warrants to the original purchaseduser that this product is unconditionallyguaranteedfree
from defects in workmanship and materials under normal use and service for a period of one year.
The vacuum motor and beltsare warranted for a period of two years.
WINDSOR will, at its option, repair or replace without charge, except for transportations costs, parts
that fail under normal use and service when operated and maintained in accordance with the
InstructionsManual. This warranty does not apply to normalwear or to itemswhose life is dependent
on their use and care.
This warranty is in lieu of all other warranties, expressed or implied, and releases WINDSOR from all
other obligations and liabilities.
It is applicableonly inthe U.S.A. and Canada, and is extended only to
the original user/purchaser of this product.WINDSOR is not responsible for costs for repairs perfor
-
med by personsother than those specifically authorized by WINDSOR. This warranty does not apply
todamagefromtransportation,alterations byunauthorizedpersons, misuseor abuseof theequipment,
use of noncompatiblechemicals, or damage or lossesof incomedue to malfunctioningof the product.
If a difficultydevelopswith this product, you should contact the dealer from whom
it was purchased.

Accidentsdueto misusecanonly bepreventedbythoseusingthe machine. To guardagainstinjury,basicsafety
Thisvacuum cleaner isdesignedto besaf
electrical or mechanical parts, cleaner sh
using in order to avoid further damage to machine or physical injury to user.
A ould e aleckical shock and mise this possibility obse
fol
ot r ner ove
old.
Avoid closing doors on power cord, pulling it around sharp edges, or placingsharp - edged objects
ponit.
cor
If usedon plushcarpet or carpetwith thick padding,turn off unitwhen handleis inuprightposition.When using
accessorytools, keepfloor brush
off carpetby keepinghandleinlockedpositionand loweringhandlewith one
hand to raise brush
off flo
Always plugyourcleaner intoastandardwall
out1 Useofextensioncordar li
shock or fire hazard.
before Servicing, such as changin
e~ s@xddswitch ac
Operate accessories with other hand.
~
er from electric b6 turned on. Dis
electrical outlet
bef hing powerhead.
Do not useyour vacuum cleaner inareas where flammable and/or explosi
possibilityof fire
ar explosion.Some cleanin$fluids can producesuch vapors. Areas on which cleaning fluids
have been used should be c
To avoidfire hazard, do not pi
uumed.
al with cleaner.
I
Keepyourwork areawelllighted to avoidpickingupharmfulmaterials(suchasliquids,sharpobjects,or burning
sub ide
ngthe cleaner
on i
aldamage. Proper
aused bytrippi
S tor
CI
llowchildrento play

Picture 1
7 Frontcover
8 Housing release button
9 Base with brush
10 Cable
18 Pile adjustment knob
When the handle has been pushed down as
far as it will go press catch
(22) down. If the
handle is not pushed fully down the machine
will not work.
Connecting tube '(24), so that it clicks into
place.

A Filter level indicator
B Brush controller
Filter level indicator
The redwarning light (A) indicates a blockageor
afull bag,
so check:
a) Is the dust bagfull?
b) Isthere ablockageinthe hoseor power
head?
If the red light is disregardedthe machine will
shut
off and the lightwill flash.
Brush controller
The electronic brush controller continuously
monitorsthe operation of the brush.
If the red light
(B) stays off, the operation of the
brush is correct.
If the red light
(B) turns on in positions 1 - 4 of
the Pile adjustment knob adjust the brush by
turningthe Pile adjustment knob to a lower
position.
If the red light
(B) burns continuously in the
position
1, the brush must be changed for a
new one.
If the machineturns off and the red light (B) flas -
hes, the brush has becomeblockedand is not
turning. Switchthe machine off, unplugit from
the mains and clearthe blockage.
If there is no blockage, and machine turns
off
with brush lightflashing, raise brushto a higher
position.
When the machine is switched on in the upright
position the brush automatically rises from the
carpet. To release the machine from the upright
position, press down the foot pedal
(19). The
brushwillautomaticallylower.The handlecan be
loweredto an intermediatestop positionin order
to lift up the brush head. To lower the
handle to a horizontal position, the foot pedal
must be pressed a second time. The stop positi
-
on can be closed off by a slider on the swivel
neck
(25) so that the handlewill go from vertical
to horizontalinone movement.
To vacuum in corners etc.:
take hold of the telescopic handle grip, lift, it
away from the machine and stretch out the hose.
After use insert the telescopic attachment tube
intothe backof the machine. Raisethe handle of
the machine and the hose will automatically
retract. To use the hose without the tube as
shown inthe right handpicture,the hose will pull
out of the tube while the tube is fitted to the
machine. Alternatively, press the release catch
(27) on picture 2.
To vacuum under beds etc., the machine can be
fitted with an additional straighttune and the
floor nozzle.The machinewill then performas a
cylinder vacuum.
Never run over the cable with the brushlsuc-
tion head.
Alwayscarry the machineover steps andsills.

29 -
-
3
Maintenance
CAUTION - Always unplug machine at
mains outlet before dismantling any part
of machine.
If red light (A) shows, change paper filter bag.
To do this first pullcover release
(5) picture 1
forward and lift the cover from the dust bag
housing. Slide the dust bag sealing plate (28)
fromtheholder(29). Slidethesealing plate(28)
of anew bagintotheholderandpushfirmly in.
Insert cover into dust bag housing push is for
-
ward then lock it in placeby pushingdownthe
cover release
(5).
The micro hygiene filter (30) needs to be
changed when it becomes clogged with dust
or after approximately 20 paper bags have
been used. To change the hygiene filter first
removethe coverthen slide the filter out at the
bottom. To replace lift the lever and slide the
new filter in.
After 20 paper bags have been used also
change the exhaust filter (32). To remove the
exhaust filter push the catch (33) forward and
removethefilter cover (34) and filter.
Insertthe newfilter and replacethefiltercover.
To changethe brushroller(35)pushthe button
(36), removethe slide plate(37), turnthe brush
clockwiseaquarterof aturnand pullthebrush
roller out. Slide the new brush roller into the
brush housing and turn it until it locates into
position. Push the button (36) and press the
side plate(37) back intoplace.
Underneaththe machine isan inspectiondoor
to check for blockages(38).
Blockages in the neck (20
- picture 2) can be
checkedbyfirst lifting
off thedust bag housing
by pressingthecatch(8). Then releasethefoot
pedal, lowerthe neck and check intothe tube
next to the pedal.
Blockages in the hose can cleared by taking
the hose
off the machine and replacing it the
wrong way round in the connecting tube (24)
holding it upright with one hand blockingthe
top and switchingon the machine.
(If necessary quickly lift your hand on and off
the end of the hose).
The guarantee is invalidated if take out
parts not approved by
WINDSOR, eg. bags,
filters, brushroller, etc., are fmed!

ZBK SEmSI2
120 V GREY
P
U
1-
23 -
/
/'
I 25
u
16
15
W
J
-3a /
-39
50
/-49
i
c1
06747 C - 09.2002
Pos.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
Product-
No.
5625 UL
5296 EW
5359 hg
2301 1
0532 EW
5160 bl
5161 hg
5162
01 03
0846
5256
ER
01 29
5187
01 02
5040
hg
5045 hg
5803 hg
5319
5706
bl
5324
5360
5091
5800
WI
5300
5301
ER
5380 HG
51 64
5208
5210
1073
5099
5098
hg
01 87
5145
hg
5146
5144
hg
5424 dg
5281 hg
1823 hg
5084
5255
ER
5266
5043
5289
5163
5085
hg
5082 bl
5083
5215
UL
1491 JE
1092 JE
Description
Handlewith cable, cpl.
Handlegrip (incl.
Pos. 7 + 10)
Grommet
Powersupply cord
Switch, cpl.
Switchcap, blue
Switchcap holder
Cableclamp
ScrewC
3,9 x 16 DIN 7981
Antistatic - wire,cpl.
Handlecable
Screw,
M4 x 12
Handletube
Screw F
3,9 x 13 DIN 7981
Hose, cpl.
Extensiontube
Cover
Bag holder spring
Cover release, blue
Bagholder cpl.
(incl.
Pos. 20+21)
Safety catch
Safetycatch spring
Frontcover cpl.
Paper bag
MicroHygieneFilter
Internalcover, compl.
(incl. Pos.
43 +44)
Cableclamp
Filtersafety catch
Returnspring
Clamp
Handlelock plate
Lock catch
Lock pin 4 x 33,5
Carrying handle
Stop spring
Cable hook
Retainingring
Dust bag housing
Attachmentclip
Springfor locking rod
Internalcable
Cableclamp
Seal
Seal
Seal
Dust bag hous. bumperbase
Dust bag housing locking
Lockingrod
Dust bag housing
Upholstery nozzle
Crevicenozzle

120 V GREY
06747 C - 09.2002
P OS . Product-
No.
100 2831 WI
101 2846
102 2820
BL
103 2827 UL
104 2886
105 2494
106 0102
107 2835
108 0869
109 2825
110 2824
Ill 5479
112 5717
113 2890 ER
114 0864
115 5713bl
116 5103
117 5051 hg
118 5053
119
5059dg
120 2010
121
5055 hg
122 2014
123 5813
124 5287
bl
125 2869 hg
126 2868or
127 5303
128 5304
129 2861
130 5174
hg
131 2849
132 01010
133 2860
hg
134 2833
135 2862
hg
136 2834
137 2856
138 2867
139 2821
HG
140 5411 hg
141 2829 hg
142 0197
143 5401
144 5402
145 5005
hg
146 5469
05117
S
147 5462
148 5100
149 2826
BL
150 2839 sw
151 5129
153 5112sw
154 2881 ER
155 0107
156 0143
157 5464
158 511711
159 0104
160 5463
161 5110
162 5766
hg
163 0103
164 0140
165 0176TL
152 5107 - 1
Description
Powerhead cover S 12, cpl
Exhaust filter
Exhaust filter cover
Swivel neck assembly
Malecontact holder
Cable clamp
Screw
F 3,9x13 DIN 7981
Bypassvalve
Internalcable
Swivel neck bearing r.h
Swivel neck support r.h
Swivel neck support 1.h
Swivel neck bearing 1.h
PCB Powersupply
Internalcable
Brush roller release
Spring
Axle assembly
Axle
Foot pedal
Axle spring
Wheel, cpl.
Axle clamp
Brush roller
Bearing block right hand
Rubbing plate
Access door
(incl. Pos.
127 + 128)
Access door axle
Access door spring
Pileadjustment axle
Pileadjustment wheel
Axle clamp
Screw
AM4 x 16, DIN 7985
Cover
Thrust member
Pileadjustment knob
Thrust member
Clamp
Spring
Chassis
S12, cpl.
Front bottom plate, cpl
Rear bottom plate, cpl
(incl. Pos.
142)
Srew M4x12
Wire tie
Wire tie
Bumper, set
Motor
1 OOOW I 120V
Carbon brushset
Motor pulley
2MR
Rubbermounting
Motorcover
Cover for air channel
Support lever
Support spring
Motor pulley cover
Computer controller
Screw C
2,9x 13
Washer 3,2 DIN 125
Sensor X4 cpl.
Motor pulley
Screw C
3,9x25 DIN 7981
Belt 2MR-310-6
Belt 219 3M HTDII - 6
Bearingblock 1.h cpl.
Screw C
3,9x 16 DIN 7981
Washer 4,3
Screw AM4x30 DIN 7985 TL

IB
I
2~
1
U
I
C 2
1
A Attachments
1 UpholsteryNozzle
2 Crevice Nozzle
B OptionalAttachments
1 Extension Hose
2 StraightTube
3 Dusting Brush
4 Upholstery Nozzle, special
5 Wall - and Floor Brush
C Service Parts
1 Paper Bag
2 Micro - Hygiene - Filter
3 Exhaust Filter
3 Brush Roller
WARNING ! Electricshock could occur
A if used outdoors or on wet surfaces I
Technical Details
Vacuum motor.. .........
Water lift ...............
Air flow ................
Dust bagcapacity. .......
Workingwidth ...........
Brushdrive .............
Brushspeed ............
Flooradjustment. ........
Cable .................
Weight .................
Radiosupression. ........
1200 Watt
2300 mm (90”)
50 US (105 CFM)
5,3 liters
308 mm (1 2’3
tooth belt
2700 rpm
automaticallysensor
advised
12’2 m (40 ft)
7’4 kg (162 Ibs)
EN 5501 4 Verf. 242/91
Wiring diagram
.c mvr
P PP
dm
WINDSOR” INDUSTRIES, INC.
1351 West Stanford Ave.
Englewood, Colorado 801 10 USA
800 - 444 - 7654
303
- 762 - 1800
FAX: 303 - 762 - 0817
06747 - 09.200:
