Windster ISLAND Series User manual

-
www.windsterhood.com
User’s Manual
HI30SS
HI36SS
HI42SS
Please read this operation manual thoroughly before
using your range hood. Store it in a safe location for
when you need to reference it in the future.
NOTE: PLEASE INSPECT HOOD
IMMEDIATELY UPON RECEIVING.
CLAIM OF DAMAGE AFTER 7 DAYS
OF DELIVERY WILL BE DENIED.
This unit was designed for indoor
residential use only. DO NOT USE
OVER A WOOD GRILL OR MOUNT
IN OUTDOOR ENVIRONMENT.
ISLAND SERIES

1
TABLE OF CONTENTS
Table of Contents
Safety Information ..............................................................2 –3
Content Checklist .....................................................................4
Measurements ...........................................................................5
Preparation ................................................................................6
Installation ...........................................................................7 –8
Installation Diagram...................................................................9
Operation & Features .............................................................10
Cleaning & Maintenance .........................................................11
Troubleshooting ......................................................................12

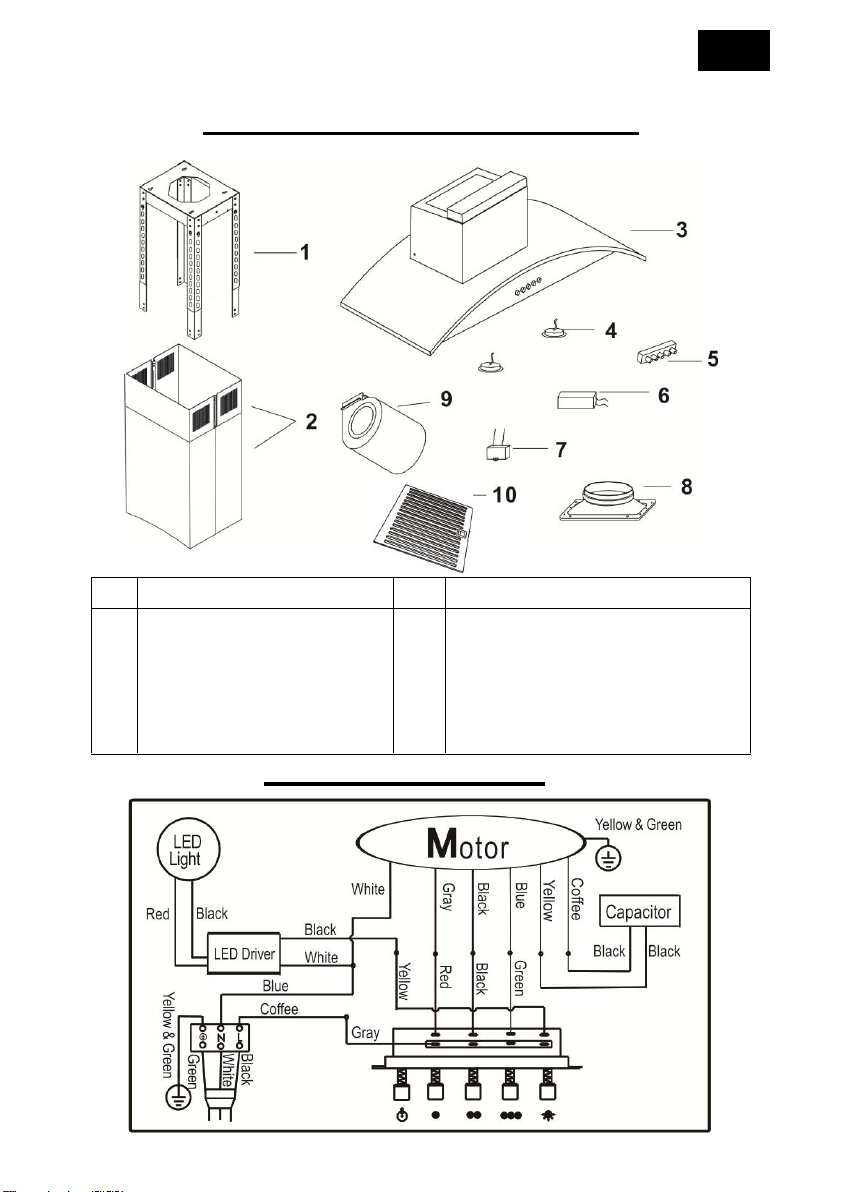

Part List / Replacement / Wiring Diagram .............................13
Warranty / Contact Us .....................................................14 –15

2
SAFETY INFORMATION
SAFETY INFORMATION
TO REDUCE THE RISK OF A FIRE, ELECTRICAL SHOCK,
AND/OR INJURY OBSERVE THE FOLLOWING:
Unit is intended for indoor residential use only. If you should have questions,
contact the manufacturer at the address or telephone number listed in the
warranty.
In case the unit should need to be cleaned or repaired, switch power off at
service panel and lock service disconnecting means to prevent power from
being switched on accidentally. When the service disconnecting means cannot
be locked, securely fasten a prominent warning device, such as a tag, to the
service panel.
Installation work and electrical wiring must be done by a qualified technician in
accordance with all applicable codes and standards, including fire-rated
construction.
Sufficient air is needed for proper combustion and exhausting of gases
through the flue (chimney) of fuel burning equipment to prevent back drafting.
Follow the heating equipment manufacturer’s guideline and safety standards
such as those published by the National Fire Protection Association (NFPA),
and the American Society of Heating, Refrigeration and Air Conditioning
Engineers (ASHRAE), and the local code authorities.
Because the unit is made of stainless steel, it may contain sharp edges. Be
careful to avoid cuts and abrasions by wearing protective gloves during
installation and cleaning.
Before you begin to cut or drill into the wall, verify that there is no electrical
wiring or any other hidden electrical components.
Ducted fans must always be vented to the outdoors.
The unit must be properly grounded and installed at the recommended height
before beginning operation.
To reduce the risk of fire, use only metal ductwork.
CAUTION: FOR GENERAL VENTILATING USE ONLY. DO NOT
USE TO EXHAUST HAZARDOUS OR EXPLOSIVE MATERIALS
AND VAPOR

3
SAFETY INFORMATION
.TO REDUCE THE RISK OF FIRE, OR ELECTRIC SHOCK, DO NOT
USE THIS FAN WITH ANY SOLID-STATE SPEED CONTROL DEVICE.
Regardless of heat level, never leave any surface materials unattended while
operating an open flame.
Always turn hood ON when cooking at high heat or when flambéing food (i.e.
Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
Depending on amount of usage, clean ventilating fans and filters frequently.
Grease should not be allowed to accumulate on fan or filter. For instructions
on the how to clean, see maintenance page.
Never leave surface units unattended at high settings. Boil-overs may cause
smoking and greasy spillovers may ignite as result. Heat oils slowly on low or
medium settings.
Use proper pan size. Always use cookware appropriate for the size of the
surface element.
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE
EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE
FOLLOWING:
SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then
turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not
go out immediately, EVACUATE AND CALL 911.
NEVER PICK UP A FLAMING PAN —Doing so may result in serious burns
and possibly spread the fire.
DO NOT USE WATER –Grease fire must be extinguished before further
action may be taken. Using water will agitate the grease and may cause a
violent steam explosion.
Use a Fire Extinguisher ONLY if:
You know you have a Class ABC extinguisher, and you already know
how to operate it.
The fire is small and contained in the area where it started.
The fire department is being called.
You are able to safely control the fire with your back to an open exit. *
Based on ―Kitchen Fire safety Tips‖ published by NFPA.

4
CONTENT CHECKLIST
CONTENT CHECKLIST
1. CONTENTS INCLUDED
a. (1) HI series range hood assembly (30‖, 36‖ or 42‖)
b. (1) Lower duct cover (16-1/2‖)
c. (1) Upper duct cover (22-3/4‖)
d. (1) User’s manual
e. (1) 7‖ Damper transition adapter collar
f. (1) Stainless Steel Baffle Filter (30‖ model)
g. (2) Stainless Steel Baffle Filters (36‖/42‖ model)
h. (1) Mounting packet
i. (1) Duct cover support bracket
2. OPTIONAL ACCESSORIES NOT INCLUDED
a. HILDC (Long duct cover)
b. HISDC (Special duct cover)
c. HIDK (Ductless kit)
d. HICF (Charcoal filter)
3. TOOLS REQUIRED (NOT INCLUDED)
a. Safety gloves
b. Safety glasses
c. Electric drill w/ starter bit
d. Utility knife
e. Spirit level
f. Measuring tape
g. Writing instrument (pen, marker, pencil)
h. Aluminum tape

5
MEASUREMENTS
28"

6
PREPARATION
PREPARATION
1. BEFORE YOU START
**BE SURE YOUR UNIT WILL FIT YOUR CEILING HEIGHT**
**DO NOT INSTALL IF DAMAGED**
**RETURN OR EXCHANGE WILL BE DENIED IF INSTALLED**
a. Be sure you have all the content of your purchase and required tools for
this installation.
b. Installation may take at least 2 to 3 hours from start to finish.
c. For more efficient air flow limit the amount of elbows or turns used in the
duct work.
d. Collar size may need to be increased if utilizing a long duct run.
e. Turns must be made after passing ceiling.
f. Do not attempt to install this unit by yourself, SERIOUS INJURY AND/OR
DAMAGE MAY OCCUR.
g. At least two people are needed for installation.
h. Hiring a certified installer and electrician is recommended.
2. LOCATION
**THIS MODEL MAY NOT FIT ALL CEILING HEIGHTS**
a. Determine the exact location you where want to install the range hood.
b. Distance between cooktop and range hood should be between 28‖-33‖.
c. Range hood should be mounted at stated measurements to ensure
performance and lifespan of electrical components.
d. Correctly measure the distance needed to install the unit.
3. HOOD
a. Inspect for any sign of defect or damage. (ie. scratches, dents, loose
seams, etc.)
b. Power up the unit to ensure it is working properly prior to installation.
Use Fig. 1a and 1b page 5 for measurements

INSTALLATION
7
INSTALLATION
1. STANDARD INSTALLATION
a. Make sure all preparation steps are completed.
b. Determine your ceiling height to verify if you will require an extension..
i. Unit height from edge of glass = 3-1/4‖ (30‖ model only)
ii. Unit height from edge of glass = 4-1/4‖ (36‖ model only)
iii. Unit height from edge of glass = 6‖ (42‖ model only)
iv. Standard DC height = 16-1/2‖ (lower) + 22-7/8‖ (upper w/ luvers)
v. Minimum height (Standard duct cover only) = 24-3/4‖
vi. Minimum height (Standard duct cover w/ DK) = 24-3/4‖
vii. Maximum height (Standard duct cover only) = 38-5/8‖
viii. (OPTIONAL) HILDC height = 22-7/8‖ (lower) + 36-1/4‖ (upper)
ix. (OPTIONAL) Long DC minimum height = 40‖
x. (OPTIONAL) Long DC maximum height = 55-1/8‖
xi. (OPTIONAL) HISDC height = 36-3/16‖ (lower) + 39-1/4‖ (upper)
xii. (OPTIONAL) Special DC Minimum height = 42-3/16‖
xiii. (OPTIONAL) Special DC Maximum height = 75-1/4‖
xiv. Standard Installation = Hood + standard DC
xv. 9’ – 11’ Installation = Hood + Long DC
xvi. 11’ – 12’ Installation = Hood + Special DC
c. Determine the location you want to install the range hood. (Fig. 2a)
d. Prepare ceiling and locate wood support.
e. Mount the unit upper support frame to the ceiling.
f. Cut a 7-1/2‖ round opening at the ceiling for ducting pipe.
g. Adjust the (4) arms to desired height.(Fig. 2b)
h. Attach upper duct cover to upper support frame.
i. Use a spirit level to ensure the support frame is leveled.
j. Slide lower duct cover toward ceiling and hold.(Fig. 2c)
k. Install ducting through the ceiling.
l. Secure hood from all sides with the (8) provided screws.(Fig. 2d)
m. Installation is complete when hood is securely in place. (Fig. 2e)

INSTALLATION
8
2. EXTENSION INSTALLATION (OPTIONAL)
a. AFTER COMPLETING STEP A –D OF STANDARD INSTALLATION,
replace the standard support frame and duct cover with either the
extension set or the short duct cover set.
b. REPEAT “STEP F – M” from STANDARD INSTALLATION.
3. DUCTLESS INSTALLATION (OPTIONAL)
a. AFTER COMPLETING Step A –E of STANDARD INSTALLATION
b. Remove the HIDK (ductless kit) and inspect for any sign of defect or
damage. (ie. dents, broken inlet)
c. Attach the ductless kit to the support frame and secure with the provided
screws.
d. Install the upper duct cover and secure it to the support frame.
e. Slide the lower duct cover up to the upper duct cover and hold in place.
f. Connect the 7‖ pipe between the ductless kit and the hood outlet.
g. REPEAT “STEP G – M” from STANDARD INSTALLATION.
Installation diagram available on next page

OPERATION & FEATURES
9

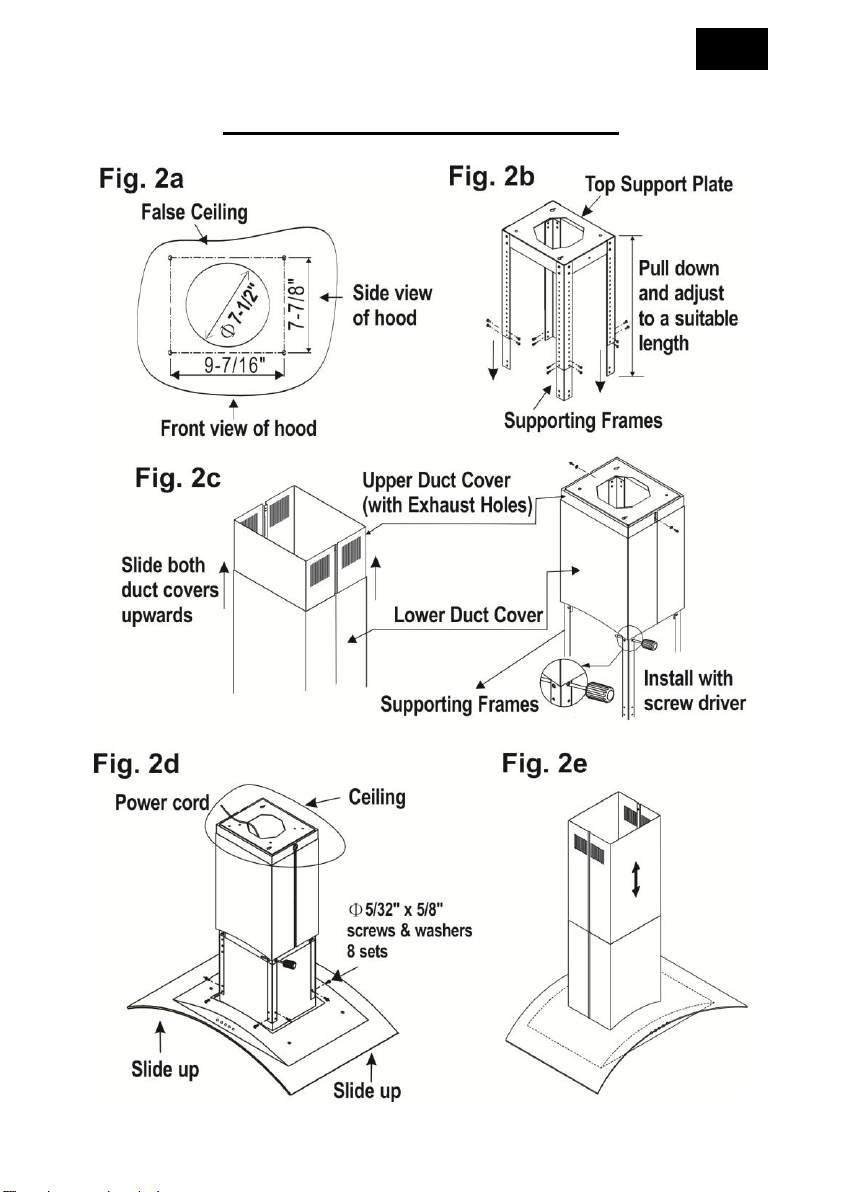

INSTALLATION DIAGRAM

OPERATION & FEATURES
10
OPERATION & FEATURES
1. EASY ACCESS CONTROL SWITCH (from left to right)
a. Button 1 –ON / OFF
b. Button 2 –Low Speed
c. Button 3 –Medium Speed
d. Button 4 –High Speed
e. Button 5 –Light Switch
2. STAINLESS STEEL BAFFLE FILTERS
a. (1) Stainless steel baffle filter (30‖ model)
b. (2) Stainless steel baffle filters (36‖ / 42‖ model)
3. CHARCOAL FILTERS
**DO NOT WASH CHARCOAL FILTERS! IT WILL DISSOLVE!!**
a. Replace safety filter with charcoal filter. (Fig. 3a)
b. Installation is complete after the charcoal filter is secured in place.
c. When to replace a charcoal filter will depend on:
i. How often you cook.
ii. How long you cook.
iii. Types of food you cook

CLEANING & MAINTENANCE
11
CLEANING & MAINTENANCE
.WARNING!!!.
To prevent the possibility of a fire and explosion, do not use
flammable liquids or solvents to clean the unit or any of its parts.
Check to make sure all power sources are disconnected
before servicing or taking unit apart for cleaning.
Please thoroughly clean the unit weekly as stainless steel
can rust under certain condition or by improper cleaning.
1. RANGE HOOD
a. Use household cleaner to remove grease or dirt from the outer shell of the
unit. Spray on wiping cloth or sponge and wipe in the direction of the grain
to avoid scratching the unit. (DO NOT SPRAY DIRECTLY ONTO UNIT)
b. Clean the inner working of the unit periodically to avoid grease build-up.
c. Do not open control switch panel while the hood is connected to power.
d. Use stainless steel cleaner to bring back the luster of the unit.
2. STAINLESS STEEL BAFFLE FILTER
a. Remove baffle filter from unit and place in warm soapy water.
b. Clean the filter regularly to maintain efficient suction power.
c. Do not drop filter.
d. Let it soak thoroughly and then clean it with a wiping cloth or sponge.
e. Filter may also be cleaned using residential dishwasher.

TROUBLESHOOTING
12
TROUBLESHOOTING
WARNING!!!
Check to make sure all power sources are disconnected
before starting any troubleshooting. Safety gloves and glasses
should be worn when working on the unit. Serious injury or death
may occur if safety precautions are not followed.
HI Series
Light issue LED (All not
turning on)
1. Locate and Replace defective Fixture (All Fixtures run on
same circuit).
2. New Transformer/ Driver replacement may be required
Speed Levels/Controls not
working correctly
1. Complete control switch replacement may be required.
2. Check Ventilation / Ducting if installed property.
Burnt / melted control
switch
1. Complete control switch replacement is required.
Speed levels not working
correctly
1. Ensure all Wiring from Control Switch and Top Junction
Box are correctly connected.
2. Complete Capacitor replacement may be required.
Unit lacking smoke intake
1. Check ducting for foreign object.
2. Ensure the ducting is properly sealed.
3. Clean filters to increase airflow.
Unit showing no power
indication
1. Ensure power source is working properly.
2. Ensure all Wiring from Control Switch and Top Junction
Box are correctly connected.
Unit making humming noise
/ motor not starting
1. Check Ducting / Dampers for proper installation.
2. Replace defective capacitor with new one.
3. Check / replace defective motor.
Load Grinding or Noise like
sound coming from motor
1. Check if fans are spinning property.
2. Ensure Articles have not fallen into Motor Housing
3. Complete Motor/Motor Housing may be required.
Defective LED Fixture
1. Replace LED Fixture with New LED Fixture

PART LIST / REPLACEMENT/ WIRING DIAGRAM
13
PART LIST / REPLACEMENT
#
Description
#
Description
1
Chimney Supporting Frames
6
Transformer
2
Duct cover
7
Capacitor
3
Hood body assembly
8
Transition collar
4
LED lights
9
Squirrel cage motor
5
Control switch
10
Baffle filter
WIRING DIAGRAM

WARRANTY / CONTACT US
14
WARRANTY / CONTACT US
LIMITED WARRANTY
Windster Hoods Inc. warrants its product against defects in material or workmanship as
follows:
Parts: Windster Hoods, Inc. will supply, at no charge, new or rebuilt replacements in
exchange for defective parts for a period of two (2) years. After the warranty period, you
must pay for all parts costs. During the "parts" warranty period, there will be no charge
for parts
Motor: Windster Hoods, Inc. will also provide, at no charge, new or rebuilt motor parts
in exchange for defective parts for a period of five (5) years, excluding motor cages.
After the warranty period, you must pay for all motor parts costs. During the ―motor‖
warranty period, there will be no charge for motor parts.
Please keep the original receipt. This will act as your proof of purchase. You must also
provide the serial number and model number of your unit for any replacement parts
during the warranty period. This warranty applies only to products purchased and
serviced in the United States.
For products purchased in Canada, please contact your local retailer where you
purchased the unit for service.
Windster Hoods, Inc. will not be held liable for removal and/or installation fees of the
malfunctioning, defective, and/or replacement unit.

WARRANTY / CONTACT US
15
*Windster Hoods, Inc. reserves the right to determine the validity of your warranty claim.
WHAT IS NOT COVERED BY MANUFACTURER WARRANTY
1. Damages resulting from any of the following:
a. Improper installation or maintenance
b. Any repair, modification, alteration or adjustment not authorized by
the manufacturer or an authorized service dealer
c. Misuse, accidents, and/or neglect
d. Incorrect electric current, voltage or power supply
e. Improper setting of any control (Pressing multiple selections at the
same time)
f. Improper chemical cleaning (commercial or industrial cleaning agents)
2. Products purchased for use in a commercial or industrial setting (such as in a
hotel, office, restaurant, or other business)
3. Damage resulting from natural disasters (earthquake, flood, storm, etc.)
4. Regular maintenance for the product
5. Aluminum Filters, Baffle Filters, Charcoal Filters, Mesh Filters
6. Oil Cups
7. Motor Cage
8. Light Bulbs
No returns refunds exchanges if the hood
Is missing parts
Been Installed
Been Used
CONTACT US
Windster Hoods, Inc.
www.windsterhood.com
Information subject to change without notice
