Windster WS-38U30SS User manual

OPERATION
Please read and save this guide through before using your range hood.
Store the guide away in a safe place so that you will know where it is,
when you want to refer to it.
WS-38U30SS
WS-38U36SS
WS-38U42SS
WS-38U48SS
MANUAL
(For residential and indoor use only)

Table of Contents
Important Safety Instructions ----------------------------
Safety Notes -------------------------------------------------
Tools and Materials Required -----------------------------
Accessory Package -----------------------------------------
Preparing the Range Hood --------------------------------
Preparing the Installation Location -----------------------
Providing Electrical Power ---------------------------------
Remove and Reinstall Baffle filters ----------------------
Maintenance Instruction ----------------------------------
Ducting -------------------------------------------------------
Vertical Rectangular Ducting -----------------------------
Rear Rectangular Ducting ---------------------------------
Mounting Range Hood to Cabinet ------------------------
Mounting Range Hood Without Cabinet ----------------
Making the Electrical Connection -------------------------
Use and Care -------------------------------------------------
Troubleshootings --------------------------------------------
Replace The LED Light --------------------------------------
Parts Layout Diagram ---------------------------------------
Circuit Diagram ----------------------------------------------
Recirculation Kit Installation ------------------------------
Body size -------------------------------------------------------
P.1
P.3
P.4
P.4
P.5
P.6
P.7
P.8
P.9
P.9
P.10
P.11
P.13
P.14
P.16
P.16
P.19
P.19
P.20
P.22
P.23
P.23
A.
B.
C.
D.
E.
F.
G.
H.
I.
J
K.
L.
M.
N.
P.
Q.
R.
S.
T.
U.
V.
W.
Due to sharp edge, please wear Safety Workman Gloves"
for installation, cleaning, light bulb changing and
dismantling to reduce the risk of any bodily injuries.
"
Safety Workman Gloves
WARNING

CAUTION- To reduce risk of fire and to properly exhaust air, make sure to properly
exhaust air. Be sure to duct air outside- Do not vent exhaust air into
spaces within walls, ceilings, attics, crawl spaces, or garages.
WARNING- To reduce the risk of fire or electric shock, do not use this fan with any
solid- state speed control device.
WARNING-
A. DO NOT spray any liquid form cleaner on hood surface including lights
and control switch. To clean the range hood, spray liquid form cleaner
directly onto cleaning cloth for hood cleaning.
B. Use this unit only in the manner intended by the manufacturer.
If you have questions, contact the manufacturer.
C. Before servicing or cleaning the unit, switch power off at service panel
to prevent power from being switched on accidentally.
D. When the service disconnecting means cannot blocked, securely
fasten prominent warning device such as a tag to service panel.
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY,
TO PERSONS,OBSERVE THE FOLLOWING:
CAUTION- For general ventilating use only. Do not use to exhaust hazardous
or explosive materials and vapours.
WARNING-
A- Never leave surface units unattended at high settings. Boil over cause
smoking and greasy spillovers that may ignite. Heat oils slowly on low
or medium settings.
B- Always turn hood on when cooking at high heat or when cooking flaming
foods. (ie, Craepes suzetter, charries jubilee, peppercorn beef flambe)
C- Clean ventilating fans frequently. Grease should not be allowed to
accumulate on fan or filter.
D- Use proper pan size. Always use cookware appropriate for the size of the
surface element.
TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
A. Important Safety Insturctions
1

WARNING- To reduce the risk of injury in the event of a range top grease
fire, observe the following:
A- with a close- fitting lid, cookie sheet,
or metal tray, then turn off the burner. Be careful to prevent
burns. If the flames do not go out immediately,
SMOTHER FLAMES
EVACUATE
AND CALL THE FIRE DEPARTMENT.
D-
1. You know you have a extinguisher, and you
already know how to operate it.
2. The fire is small and contained in the area where it started.
3. The fire department is being called.
4. You can fight the fire with your back to an exit.
USE AN EXTINGUISHER ONLY IF:
CLASS ABC
C- including wet dishcloths or towels-
a violent steam explosion will result.
DO NOT USE WATER
B- - You may be burned.NEVER PICK UP A FLAMING PAN
WARNING- Sufficient air is needed for proper combustion and
exhausting of gases through the flue (chimney) of fuel burning
equipment to prevent back drafting. Follow the heating equipment
manufacturer's guideline and safety standards such as these
published by the National Fire Protection Association (NFPA),and
the American Society for Heating. Refrigeration and Air
Conditioning Engineers (ASHRAE), and the local code authorities.
Keep the range hood clean.
WARNING- To reduce the risk of fire, use only metal duct work.
2

1. All electrical work must be done in accordance with local and/or national
electrical code as applicable for safety. This product must be grounded
if your are unfamiliar with methods of installing electrical wiring, secure
the services of a qualified electrician.
2. Turn off power at service entrance before installing wiring or servicing
this product. (120 volt for range hood. 220 volt for electric range if any)
3. Turn off power to avoid risk of fire, electric shock, or injury for cleaning
or maintenance such as lubrication.
4. Fireplaces, gas furnaces, water heaters, require proper flow of
combustion air and exhaust. Make sure this flow is not altered when
using any exhaust fan.
5. Please read specification label on product for further information and
requirements.
CAUTION- To reduce the risk of fire and to properly exhaust air, be
sure to duct air outside. Do not vent exhaust air into spaces
within walls or ceilings or into attics crawl spaces or garages.
6. Please wear "Safety Gloves" for installation, cleaning, light bulb
changing and dismantling to reduce the risk of any injuries.
B. Safety Notes
3

Drill, electric of ratchet driver, with 3/16" wood bit (for drilling starter
holes and 1 ” wood bit (to drill an access holes in the cabinet or
kitchen wall for the electric power line)
¼
Plier (for opening electrical knockout).
Two 1" (thick)x2" (wide)x12" (approximate length) wood strips for
recessed bottom kitchen cabinet installation only. (Purchase locally).
Electrical wire and supplies to comply with local cords.
Four 1 ” long flat head wood screws (purchase locally) to mount
wood strips.
¼
Pencil and ruler for marking locations. Saber saw or keyhole saw for
cutting the 1"x2" wood strips to length.
1. Wood screws 3/16" x 1" L 6pcs.
2. Wire connector with spring 3pcs.
3. Washer 6pcs.
One common screwdriver.
C. Tools and Materials Required
D. Accessory Package
4

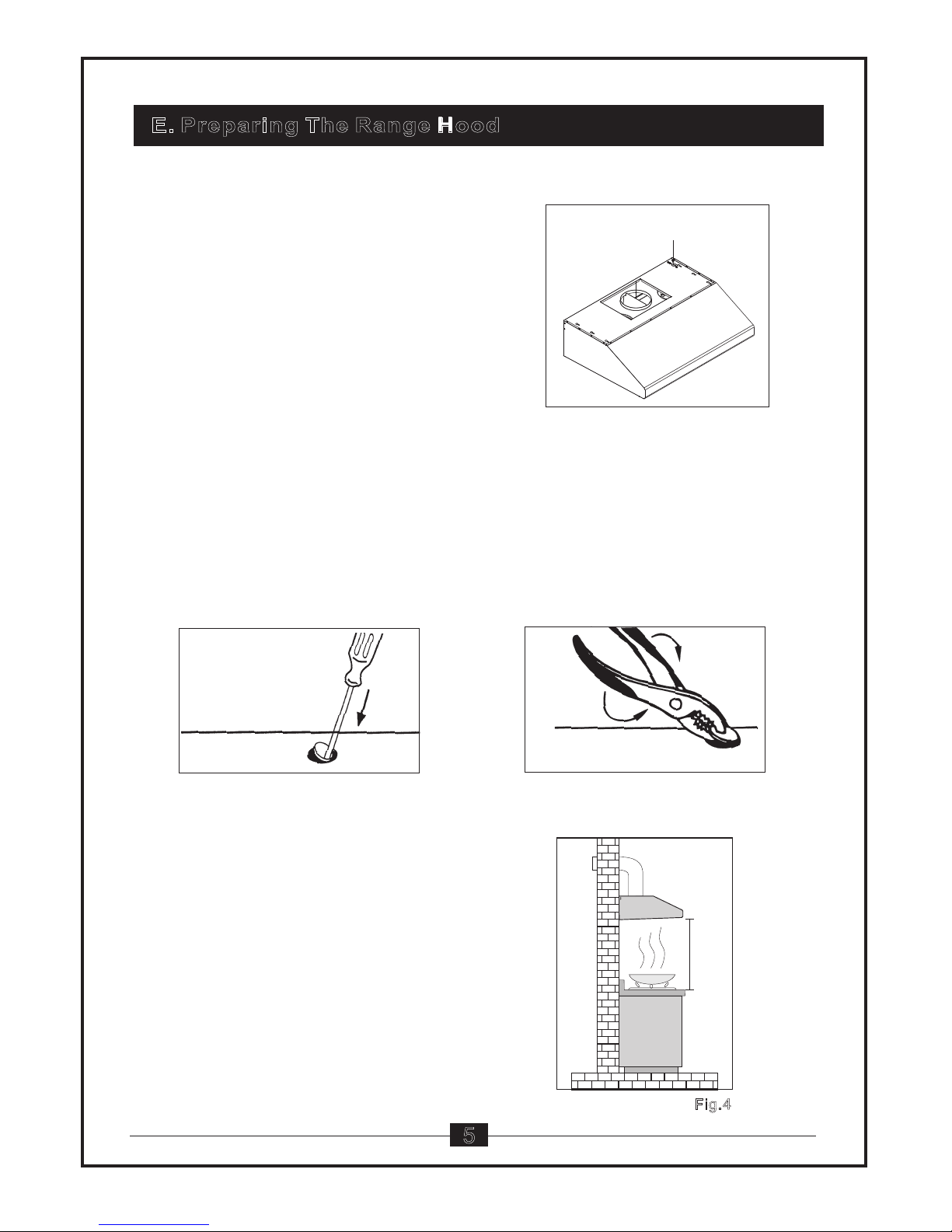

4. 6”/7” Vertical starting round collar 1pc.

Electrical Knockout
1. Remove the top electrical
knockout, you may plan to
bring power to the range
hood either through the
cabinet or through the wall
(Fig.1)
2. Insert a screwdriver into the knockout slot and bend the knockout
back and forth. (Fig.2)
3. You may have to use pliers to pull the loosened knockout free.(Fig.3)
4. When installed, the bottom edge
of your range hood should be
28" ~ 32" above the top of the
cooking surface. (Fig.4)
Fig.2 Fig.3
E. Preparing The Range Hood
5
Fig.1
Fig.4
28”-32”

1. If you want to move the electric range to make room for working on the cabinet
turn off the 220 volt power for the electric range at the service entrance.
2. Before moving a gas range, shut off the gas.
NOTE: SKIP FOLLOWING STEPS 3A THROUGH 3D IF THE HOOD IS TO BE
MOUNTED ON A CABINET WITH .A FLUSH BOTTOM
3. For installation onto a recessed bottom cabinet:
a. Measure the space (under the cabinet between the inside front edge and
inside back edge (Fig.5). With a saber saw, cut two 1"x2" wood filler strips
(purchased locally) to fill in the bottom of the cabinet.
b. Start a 1 " long wood screw (purchased locally) about 3" from each end
of the 1"x2" wood strips (Fig.6)
c. Position the strips on the cabinet bottom and screw the strips securely to
the cabinet (Fig.7)
d. For a more secure installation, drill four 3/16" holes from inside the cabinet,
down into the wood filler strips. Insert screws into the starter holes in
cabinet and tighten screws until wood filler strips are secured under cabinet.
¼
4. Center the hood in place beneath the cabinet and flush with the front of the
cabinet. Mark the following:
a. The six keyhole mounting slots for the hood. Mark these onto the bottom of
the cabinet; or, if the cabinet bottom is recessed. Onto the wood strips (Fig.7)
b. The electrical knockout hole. (Fig.1)
Fig.5 Fig.6
F. Preparing The Installation Location
6

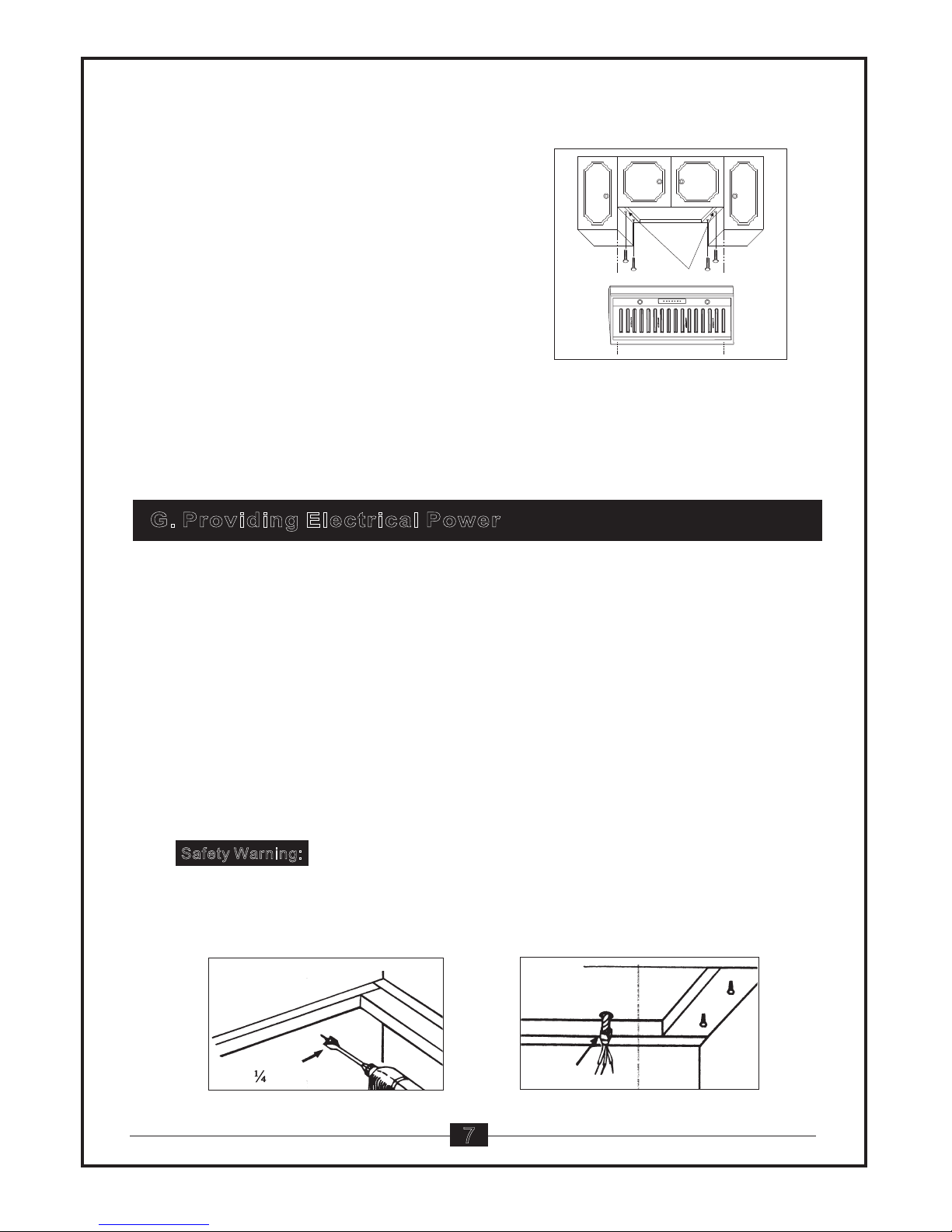

C. Screw the four 1" wood screws (for
mounting the hood) into the exact
center of the arrow and into the keyhole
mounting slots marked on the cabinet
bottom (for flush installations), or
marked on the 1”
recessed cabinet installation) (Fig.7)
Do not turn the mounting screws in all
the way. Allow 3/8" of screw to project,
so the hood can be fitted place.
(The screws will be tightened later)
x2” wood strips (for
If drilling into the walls, be careful not to cut existing electrical cables,
which would create a hazard.
Fig.9
Fig.8
1. After turning off the proper 120 volt circuit at the service entrance,
drill out the electrical power line access hole marked on the cabinet
bottom or wall. Use a 1 ”wood bit. (Fig. 8)¼
Color:
green/white/black
Connecter
1 " bit
Fig.7
G. Providing Electrical Power
7
Safety Warning:
2. Fish the electrical power line through the access hole drilled in the wall or
bottom of the cabinet. Attach an appropriate connector (purchased locally)
to the end of the power line for the type of wiring being installed. Follow all
codes. (Fig.9)
Strips secured

4. Pick up the inner oil collector.
NOTE : Reinstalling Baffle filters. Reverse the steps as removing Baffle filters.
For mounting under cabinet
1. After above step H, then continue the following steps.
2. Remove 2 screws on the spacer(s).
3. Remove spacer(s).
4. Key hole to mount to under cabinet.
①
②
8
! !

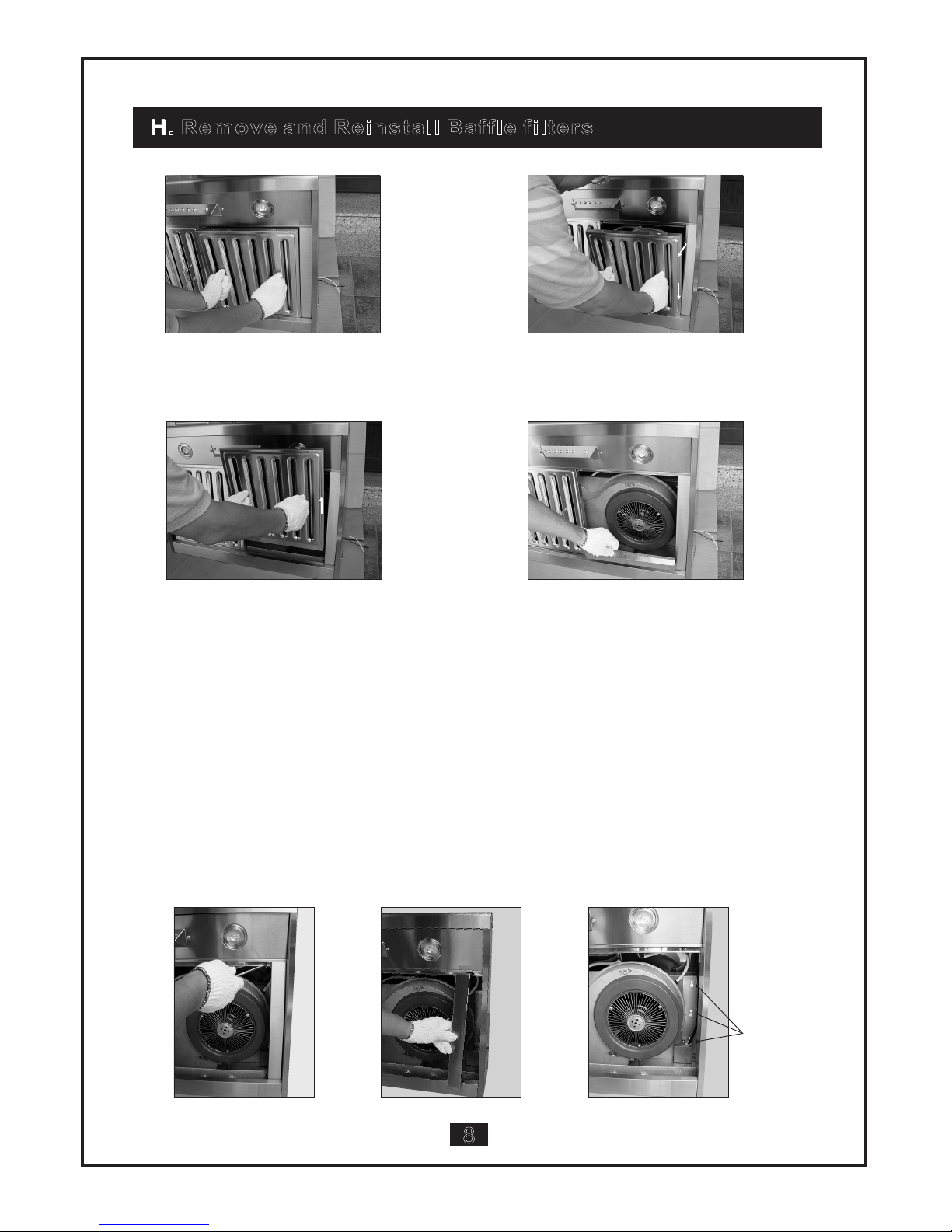

1. Wear safety workman gloves and
hold the handles of Baffle filter.
2. Push Baffle filter down ward
.
①,
then pull a little back ②
3. Lift up the Baffle filter .③
Key hole
H. Remove and Reinstall Baffle filters
③

2. After using the machine, wipes the machine by neutral detergent in
order to keep it clean and maintain the appearance with brightness
and sanitation.
3. When the level of dirty oil of the collector reached 4/5 of height, it has to
be removed in order to avoid overflowing and pollution.
This style of range must be vented via ducting to the outside of the house.
Follow general rules when ducting the hood: Use correct size of ducting
(6" or 7” round ), do not reduce size of ducting, make all turns gradual,
no short corners. If ducting ran will be longer than 10 feet enlarge duct by
at least 1" inch diameter after each 10 feet. Tape all joints in ducting and
all gasketed openings on hood for a tight seal.
Loosen 2 screws (Ref.1), fit the gray plastic round collar / 6” over the circular
opening on top (Ref.2) and fasten 2 screws (included) in order to provide a tight
seal for ducting to attach to (Ref.3), if you want to use 7” ducting, take 7” converter
(included) to join together with the 6” round collar(Ref.4).
For round ducting from the top:
I. Maintenance Instruction
J. Ducting
9
1. Maintenance shall be important than repair. Please take care of the
needed maintenance in order to secure and extend the excellent
functions and using life.
Note : Before repairing the range hood. Disconnect the power source.
1234
! ! !
Loosen 2 screws Fit 6" collar Fit 7” converter
Fasten 2 screws
Fasten
Loosen

10
F. Completely finished .
A. Remove the pre-mounted
6” round duct opening.
B. Put transition plate by first
installing on the
half round section.
(Optional)
4 screws
C. Take the rectangular starting
collar. (Optional)
D. Overlap the rectangular
starting collar on the top
of transition plate.
E. Mounting rectangular starting
collar with remaining screws.

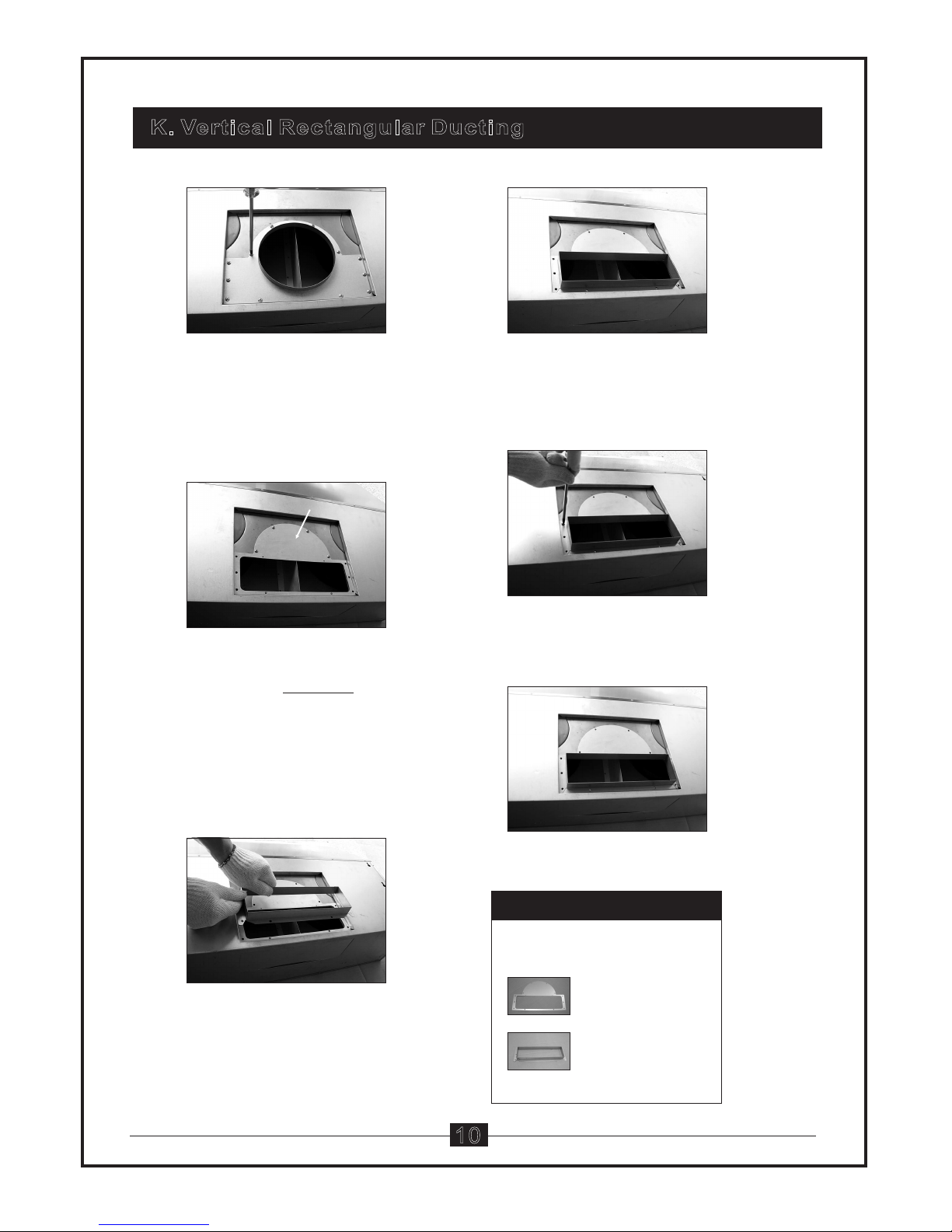

K. Vertical Rectangular Ducting
An optional kit for vertical
rectangular ducting :
NOTE :
Transition plate
Rectangular
starting collar
+
(Small)
Half round section

11
A. Remove the pre-mounted
6” round duct opening.
B. Put transition plate by first
installing on
the half round section.
(Optional)
4 screws
C. Use slotted screw driver,
(or whatever flat head)
to knock out the pre-mounted
rear rectangular cap.
D. Pre-mounted
rectangular plate.
E. Remove the pre-mounted
rectangular plate.
L. Rear Rectangular Ducting
- to be continued -

12
F. Take the pre-mounted
rectangular plate.
H. Insert appropriate rectangular
starting collar (optional)
(2 different size)
¼ ¾ (L x W x H)
11¼” x 3¾” x 3 (L x W x H)
ⓐ
ⓑ ⅛"
11 " x 3 " x 1"
I. Mount rectangular
starting collar.
( ¼ ¾ )
(optional)
11 " x 3 " x 1"
G. Mount the rectangular
plate (previous removed)
on top of transition plate.
J. Rectangular starting collar.
( 11¼” x 3¾” x 3 L x W x H )
(optional)
⅛"
!
!
!
L. Rear Rectangular Ducting
or
An optional kit for rear
rectangular ducting :
NOTE :
Transition plate
Rectangular
starting collar
+
or
(Small)
(Large)
(Small) (Large)

1. Position the hood in place so that :
2. Adjust the hood so the front is flush with the cabinet front.
a. The electrical line is routed through the appropriate Knockout
opening. This step will have to be accomplished while positioning
the hood (Fig.10)
b. The large part of the keyhole mounting slots on the hood fit onto
the hood mounting screws projecting from the bottom of the
cabinet. (Fig.11)
3. Tighten the hood mounting screws all the way into the cabinet or into
the 1" x 2" wood strips so the hood is secure.
Fig.10
Color:
green/white/black
Knockout opening

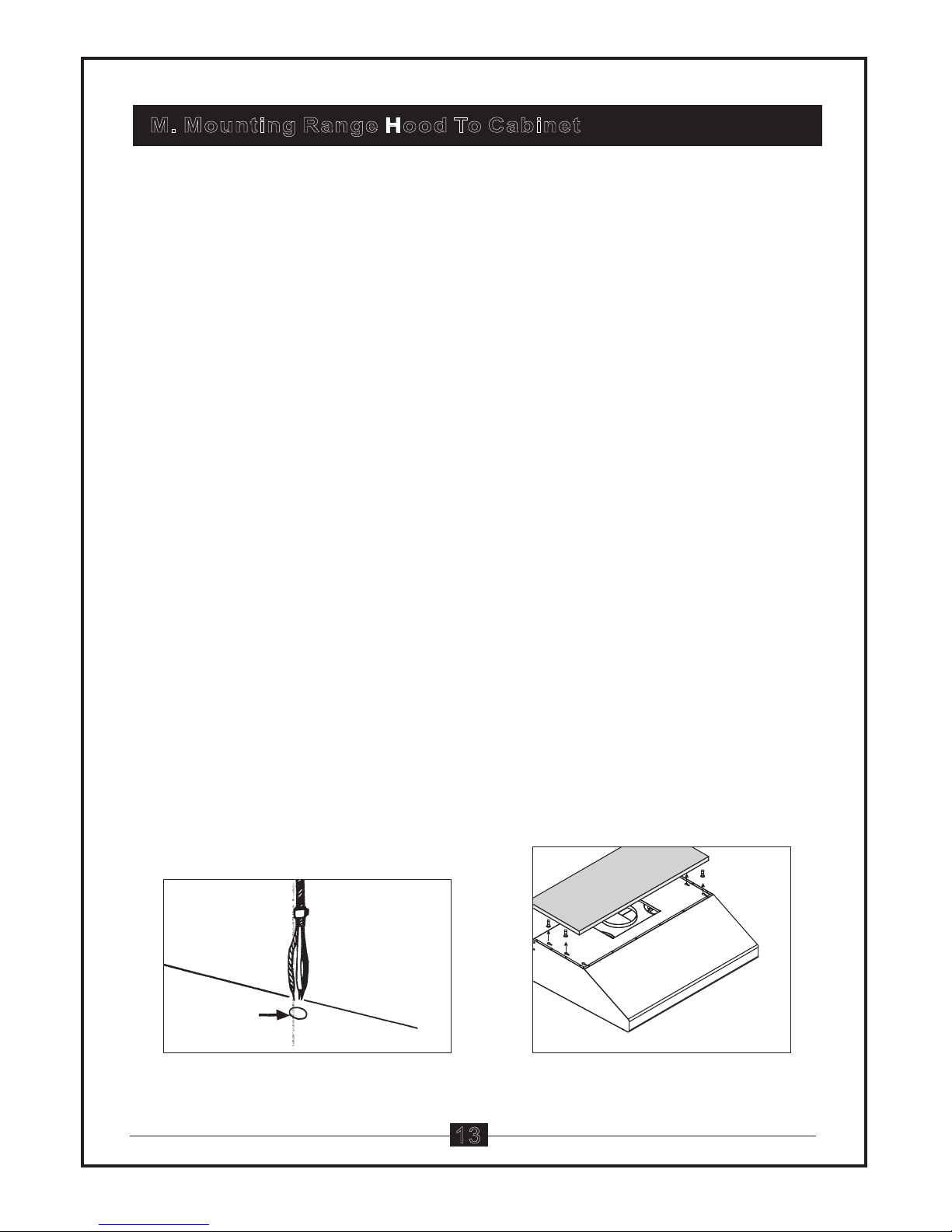

M. Mounting Range Hood To Cabinet
13
Fig.10
Fig.11
Fig.11
NOTE : Read “Remove and Reinstall Baffle filter”&“For mounting under cabinet”
on page 8.

1. Using metal brackets and screws
(included), center hood onto
board and install screw.
2. Remove the hood from the board and
nail the wood board onto the wall.
(Be sure the nail is in the center of
the stud)
3. Place the range hood on the board
and tighten the screw.
Bracket
Screw
4. Completely finished
N. Mounting Range Hood Without Cabinet
14

Install the range hood
to the desired position
Check and fix the
ower chimney
bracket
1. Set 6”round ducting
collar or
2. Set rectangular starting
collar (check manual)
Check the desired length of
chimney and mark the position
for upper chimney bracket then
fixed. each section 19-1/2”(50cm)
in length maxi extention length
38”(96.5cm)
Install the 6”piping tube or
7”piping tube (Ref fig 3-2
use converter), or rectangular
piping exhaust outlet.
all piping tubes are not
included.
Note:
1 2 3-1 3-2
4
5
7”round converter collar
(for 7”exhaust piping)
" " "
"
"
Tape all joints in ducting and all gasketed opening on hood for a tight seal.
Note:
Slide the chimney
(upper + lower)
into the base
Check 2 screw holes Fasten 2 screws
6
78 9
Extend the upper chimney
up to the desired position
""
"
9
>
Check 2 screw holes
and fastened
(complete finished)
10
"
"
1.Duct cover and extension duct cover fitment may vary depend on the mounting height of
the range hood.
2.Make sure you can easily peel the white protection pvc film after installation, otherwise
please peel it before chimney installation.
Note:
oo r
Chimney Installation Chart (optional)
?
Mounting range hood without cabinet
15

1. Remove stainless Baffle filters. ( Ref.P8-H)
2. Remove screws on wiring case,
fish out wires through the
knockout. (Fig.12)
3. Mark the electrical connection by
fastening all wires to the existing
wall wiring according to the their
colors. (Black to Black, White to
White, Green to Ground)
4. After connection is done, reinstall wiring case cover and bottom board.
5. Turn on power and check operation of fan and light.

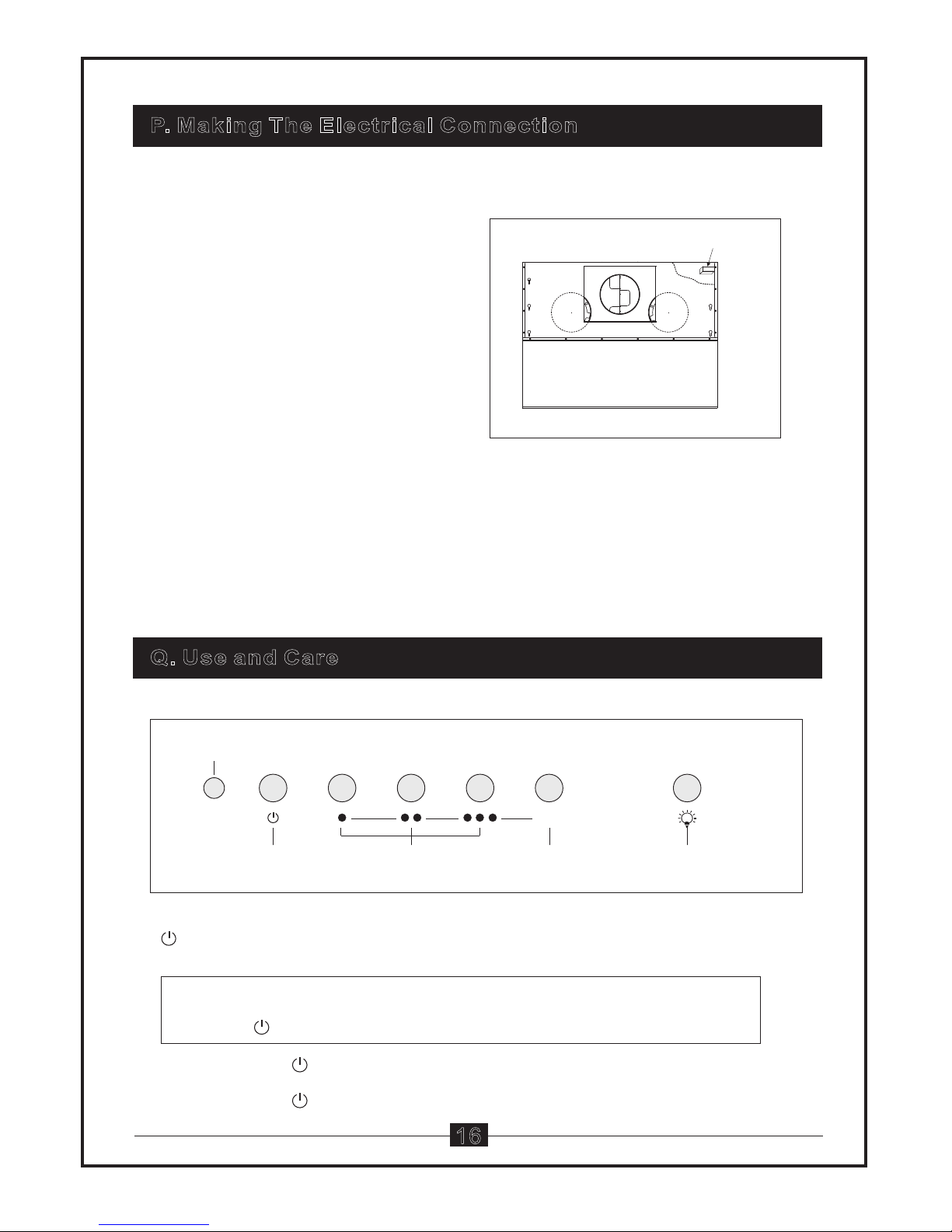

P. Making The Electrical Connection
16
Q. Use and Care
Fig.12
wire case
1.
A. By pressing , all functions are stand-by.
B. By pressing again, all functions will be turned off.
Main power button
NOTE: ALL FUNCTIONS CAN BE WORKED ONLY UNDER THE
MAIN POWER IS ON.
OFF
Night light sensor
Main power Fan OFF LED light
3 speed fan selection
6. After completely installation, reinstall the stainless Baffle filter and oil collector.
( Ref. P8-H)

17
2.
: Fan speed selection and fan off.
A. : When the main power button is being pressed, by pressing
button / / for desired fan speed.
- slow speed
- medium speed
- high speed
B. : To turn off the fan, just press the button, or press off
the main power button.
Use for Fan
Fan ON
Fan OFF
NOTE: a. The fan speed can be interchanged by pressing any one of above
3 buttons, however.
b. NEVER PRESS ANY OF TWO BUTTONS IN A TIME.
OFF
OFF
3.
NOTE:
A. Press to turn on the LED light.
B. Press again tor turn off the LED light.
4.
NOTE:
Use for Light
Use for Auto-sensor LED night light
MAKE SURE THE MAIN POWER BUTTON IS PRESSED BEFORE
TURNING ON THE LED LIGHT.
MAKE SURE THE MAIN POWER BUTTON IS PRESSED BEFORE
TURNING ON THE LED LIGHT.
A. The auto-sensor of LED night light will be automatically turn on at 20%
brightness compare to original when the surroundings is getting darker
(or dark).
B. When the surroundings is getting brighter (or bright), the auto-sensor
will turn the night light off automatically.
C. To turn off the auto-sensor night light button, after cooking turns off the
main power button. To keep this function, remain the main power
button always ON.

Note:
Care Instruction :
18
Range hood should be turn on either before or the same time when cooking
begins. After cooking, range hood should be kept on for about 3 more minutes
for complete ventilation of cooking odor.
Please always pull the plug out before cleaning or dismantling, wear
Safety gloves to reduce the risk of any injuries." "
Exterior : Can be cleaned with any type of non-abrasive detergent and a
clean cloth. Green Pad or any metal type cleaning pad is
not recommended for exterior.
" "
As those may scratch the
graphic wordings on control panel.
Interior : 1. Switch ON the fan at High, mix mild detergent with water in
mist-sprayer, at fine-spray mixture on to the blades for 60 seconds
with the fan running. ( mist sprayer is not included)
2. Leave fan on for an additional 3 minutes to dry oil basin.
3. Repeat on other turbine vane (can be cleaned simultaneously
with the first).
