User’s Manual
RA-3030SS
RA-3036SS
Please read this operation manual thoroughly before
using your range hood. Store it in a safe location for
when you need to reference it in the future.
NOTE: PLEASE INSPECT HOOD
IMMEDIATELY UPON RECEIVING.
CLAIM OF DAMAGE AFTER 7
DAYS OF DELIVERY WILL BE
DENIED.
This unit is designed for indoor
residential use only. DO NOT USE
OVER A WOOD GRILL OR MOUNT
IN OUTDOOR ENVIRONMENT.
UNDER CABINET SERIES

1TABLE OF CONTENTS
Table of Contents
Safety Information ..............................................................2 – 4
Content Checklist .....................................................................5
Measurements ...........................................................................6
Preparation ......................................................................... 7 – 8
Installation .................................................................................9
Operation & Features ..............................................................10
Step by Step Diagram .............................................................11
Cleaning & Maintenance .........................................................12
Troubleshooting ......................................................................13

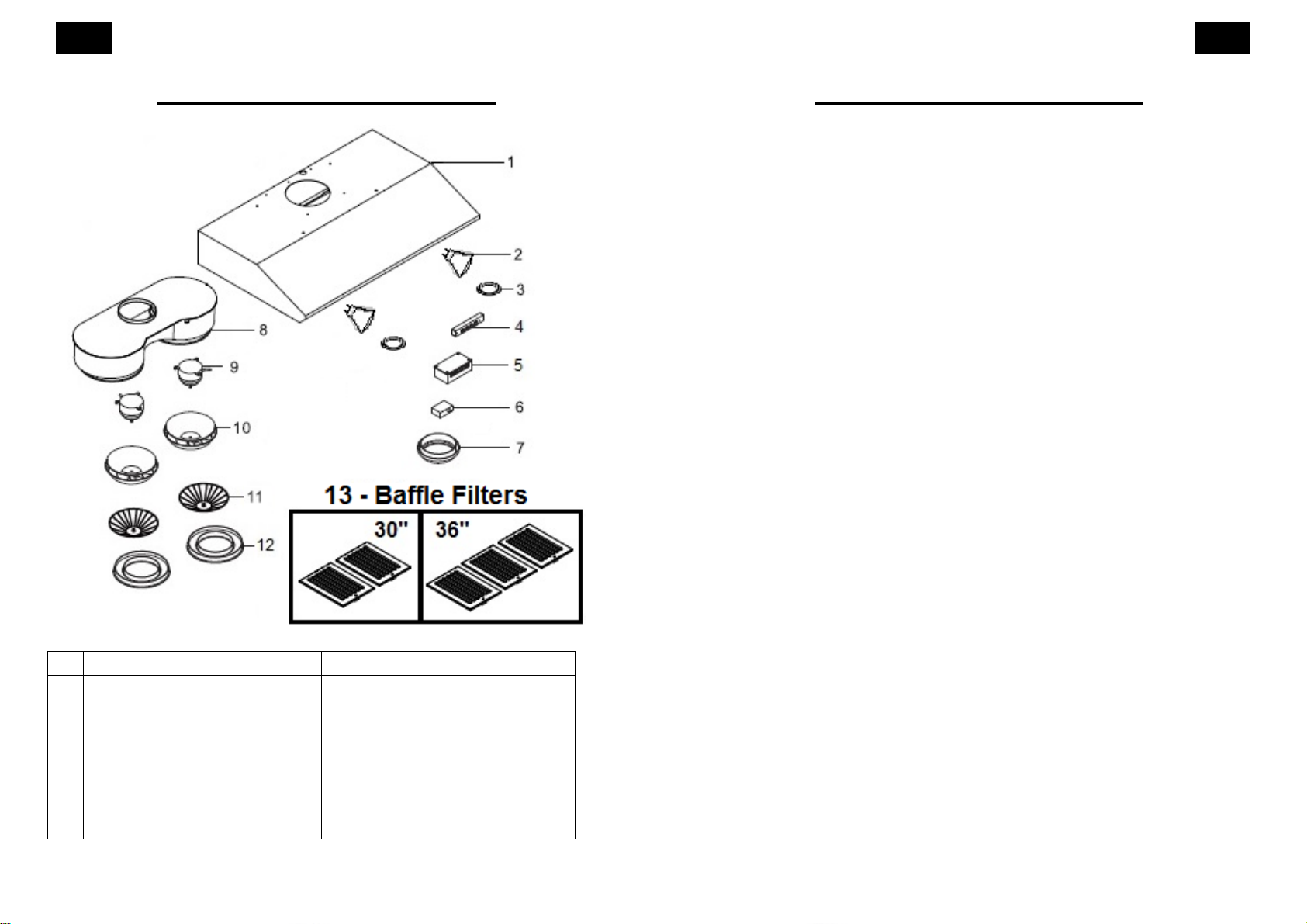

Part List / Replacement ..........................................................14
Warranty / Contact Us .....................................................15 – 17


2 SAFETY INFORMATION
SAFETY INFORMATION
TO REDUCE THE RISK OF A FIRE, ELECTRICAL SHOCK,
AND/OR INJURY OBSERVE THE FOLLOWING:
Unit is intended for indoor residential use only. If you should have questions,
contact the manufacturer at the address or telephone number listed in the
warranty.
In case the unit should need to be cleaned or repaired, switch power off at
service panel and lock service disconnecting means to prevent power from
being switched on accidentally. When the service disconnecting means cannot
be locked, securely fasten a prominent warning device, such as a tag, to the
service panel.
Installation work and electrical wiring must be done by a qualified technician in
accordance with all applicable codes and standards, including fire-rated
construction.
Sufficient air is needed for proper combustion and exhausting of gases
through the flue (chimney) of fuel burning equipment to prevent back drafting.
Follow the heating equipment manufacturer’s guideline and safety standards
such as those published by the National Fire Protection Association (NFPA),
and the American Society of Heating, Refrigeration and Air Conditioning
Engineers (ASHRAE), and the local code authorities.
Because the unit is made of stainless steel, it may contain sharp edges. Be
careful to avoid cuts and abrasions by wearing protective gloves during
installation and cleaning.
Before you begin to cut or drill into the wall, verify that there is no electrical
wiring or any other hidden electrical components.
Ducted fans must always be vented to the outdoors.
The unit must be properly grounded and installed at the recommended height
before beginning operation.
To reduce the risk of fire, use only metal ductwork.
CAUTION: FOR GENERAL VENTILATING USE ONLY. DO NOT
USE TO EXHAUST HAZARDOUS OR EXPLOSIVE MATERIALS
AND VAPORS.

3SAFETY INFORMATION
TO REDUCE THE RISK OF FIRE, OR ELECTRIC SHOCK, DO NOT
USE THIS FAN WITH ANY SOLID-STATE SPEED CONTROL DEVICE.
Regardless of heat level, never leave any surface materials unattended while
operating an open flame.
Always turn hood ON when cooking at high heat or when flambéing food (i.e.
Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
Depending on amount of usage, clean ventilating fans and filters frequently.
Grease should not be allowed to accumulate on fan or filter. For instructions
on the how to clean, see maintenance page.
Never leave surface units unattended at high settings. Boil-overs may cause
smoking and greasy spillovers may ignite as result. Heat oils slowly on low or
medium settings.
Use proper pan size. Always use cookware appropriate for the size of the
surface element.
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE
EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE
FOLLOWING:
SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then
turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not
go out immediately, EVACUATE AND CALL 911.
NEVER PICK UP A FLAMING PAN —Doing so may result in serious burns
and possibly spread the fire.
DO NOT USE WATER – Grease fire must be extinguished before further
action may be taken. Using water will agitate the grease and may cause a
violent steam explosion.
Use a Fire Extinguisher ONLY if:
You know you have a Class ABC extinguisher, and you already know
how to operate it.
The fire is small and contained in the area where it started.
The fire department is being called.
You are able to safely control the fire with your back to an open exit. *
Based on “Kitchen Fire safety Tips” published by NFPA.


4 SAFETY INFORMATION
PROP. 65 WARNING FOR CALIFORNIA RESIDENTS:
This product may contain chemicals known to the State of California to cause
cancer, birth defects, or other reproductive harm.

5CONTENT CHECKLIST
CONTENT CHECKLIST
1. CONTENTS INCLUDED
a. (1) RA-30 series (30” or 36”) hood assembly
b. (1) User’s manual
c. (1) Black 6” to 7” conversion collar
d. (2) Magnetic baffle filters (30” model only)
e. (3) Magnetic baffle filters (36” model only)
f. (1) Screw packet
g. (1) Light Fixture Tool
2. CONTENTS NOT INCLUDED
a. RA-30CFMR (CFM reducer)
b. 6” / 7” Aluminum or metal piping
3. TOOLS REQUIRED (NOT INCLUDED)
a. Safety gloves
b. Safety glasses
c. Electric drill w/ starter bit
d. Utility knife
e. Spirit level
f. Measuring tape
g. Writing instrument (pen, marker, pencil)
h. Aluminum tape


6 MEASUREMENTS

7PREPARATION
PREPARATION
1. BEFORE YOU START
**DO NOT INSTALL IF DAMAGED**
**RETURN OR EXCHANGE WILL BE DENIED IF INSTALLED**
a. Be sure you have all the content of your purchase and required tools for
this installation.
b. Installation may take at least 2 to 3 hours from start to finish.
c. Plan to use as few elbows or turns as possible for more efficient air flow.
d. Collar size may need to be increased if utilizing a long duct run.
e. At least 12” of vertical duct is required before any turn.
f. Do not try to install this unit by yourself, SERIOUS INJURY MAY OCCUR.
g. At least two people are needed for installation.
h. Hiring a certified installer and electrician is recommended.
i. Cold weather installation will require make-up air or a CFM reducer.
Check with your local building codes for more detail.
2. LOCATION
a. Determine the exact location you want to install the range hood.
b. Distance between cooktop and range hood should be between 27”-33”.
c. Range hood should be mounted at stated measurements to ensure
performance and lifespan of electrical components.
d. Correctly measure the dimension needed to install the unit.
Use Fig. 1a and 1b on page 5 for measurements


8 PREPARATION

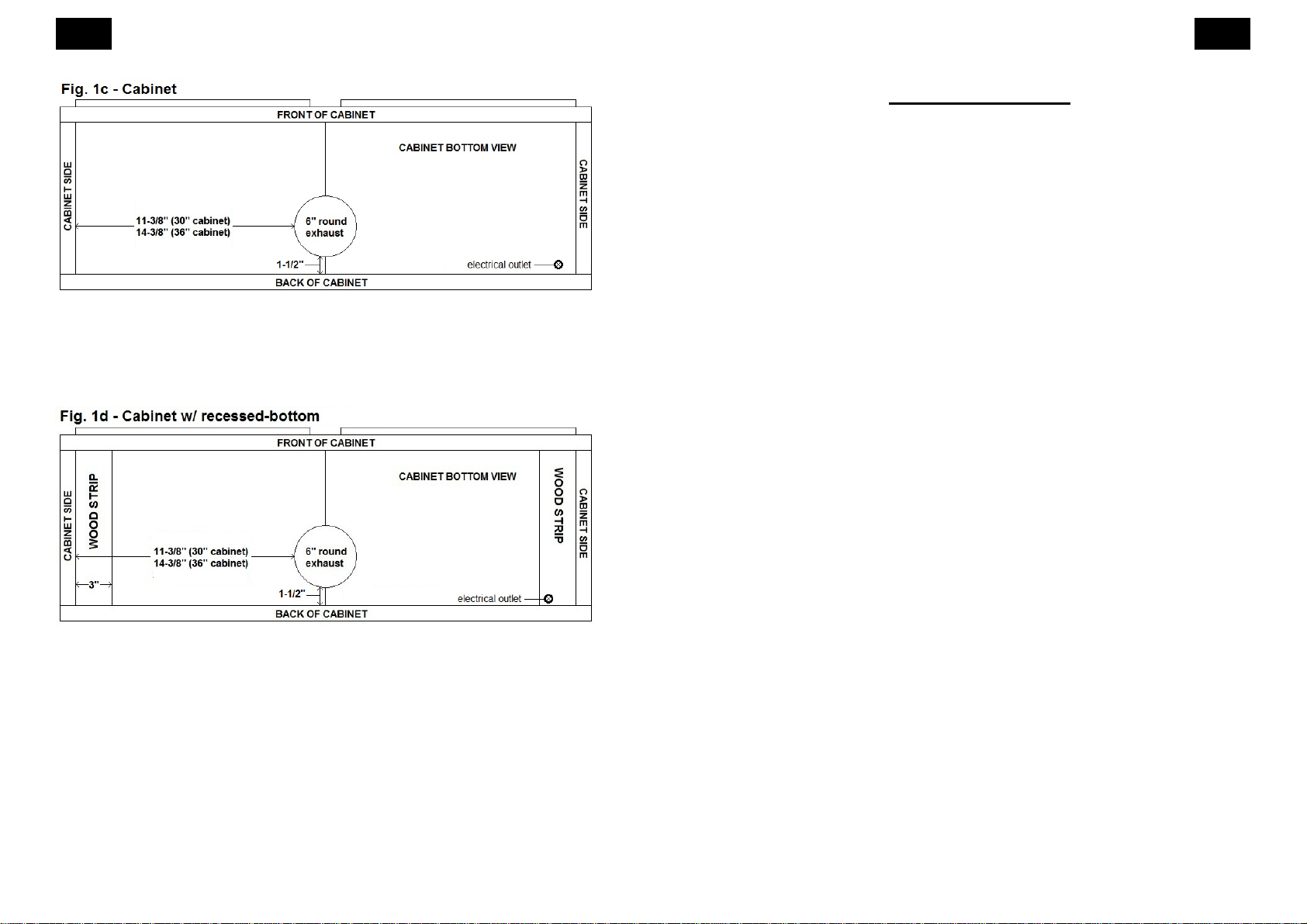

e. For cabinet with recessed-bottom, use (2) 3” x 12” or 15” wood strips on
both sides to balance the recession. Use (4) 1-1/4” long flat head screws
to secure the wood strips to cabinet. (Fig. 1d)
3. HOOD
a. Inspect for any sign of defect or damage. (ie. scratches, dents, loose
seams, etc.)
b. Power up the unit to make sure it is working properly.
c. Remove the protective film on the baffle filters and fillers.

9INSTALLATION
INSTALLATION
1. UNDER CABINET INSTALLATION
a. Make sure all preparation steps are completed.
b. Feed the wires coming out of the hood through the bottom of the cabinet.
c. Lift the unit up flush against the wall and bottom of the cabinet.
d. Using the screws and washers provided, insert into each of the keyhole
openings and tightly secure the unit against the bottom of the cabinet.
NOTE: Install more screws through the back of the unit if necessary.
e. Use the conversion collar for 7” ducting.
f. Connect 6” or 7” ducting to the collar of the hood.
g. Finish off by sealing the connection point with aluminum tape.
2. COLD WEATHER INSTALLATION (OPTIONAL)
a. Check with your local building codes to see if a 6” CFM reducer is an
acceptable alternative to make-up air.
b. Remove the RA-30CFMR (CFM Reducer) and inspect for any sign of
defect or damage. (ie. Cracks, broken flips)
c. For UNDER CABINET installation: COMPLETE Step A – D of Section
1 UNDER CABINET INSTALLATION THEN GO TO STEP E BELOW.
d. Place the CFM reducer onto the outlet of the unit and seal the connection
point with aluminum tape. (Be sure it is secure with no openings or gaps)
e. Connect a 6” ducting to the collar of the CFM reducer.
f. Finish off by sealing the connection point with aluminum tape.


OPERATION & FEATURES
10
OPERATION & FEATURES
1. EASY ACCESS CONTROL SWITCH (from left to right)
a. Button 1 – ON / DELAY SHUTOFF / OFF
b. Button 2 – Light control
c. Button 3 – Speed control
d. Blue color speed indicator
2. BAFFLE FILTERS
a. (2) 14-7/8” x 10-5/8” magnetic baffle filters (30” model only)
b. (3) 14-7/8” x 10-5/8” magnetic baffle filters (36” model only)
3. GU10 LED 5W LIGHT FIXTURES
a. A set of (2) GU10 5W LED light fixtures will be included.
b. Additional GU10 LED lamps may be purchased separately at your local
hardware store.
c. Light sock can accommodate both halogen and LED lamps without the
need to change the transformer.
4. REPLACING LIGHT SET
**NOTE: BE SURE THE LIGHTS ARE NOT HOT
* Use maximum of GU10 5W LED light bulb *
a. Unscrew outer light ring counter clock wise.
b. Outer light ring should drop down along with the light bulb.
c. Slightly pull the light away from the ring.
d. Move light to left or right side of the ring.
e. Twist light bulb counter clock wise to release it.
f. Replace light bulb.
Electrical Shock Hazard
Warning: To avoid electrical shock, replacement GU10 bulbs MUST
contain UL or CSA certification.
**STEP BY STEP DIAGRAM ON NEXT PAGE

11STEP BY STEP DIAGRAM
Using the light fixture tool provided, lineup each
corner of the fixture tool in parallel with the notches
located on the outer ring of the light fixture. Twist
the outer ring counter clockwise to unlock the
light fixture housing.
WARNING!!!
Check to make sure all power sources are disconnected
before starting any troubleshooting. Safety gloves and
glasses should be worn when working on the unit. Serious
injury or death may occur if safety precautions are not
followed.
Step 1
Twist light ring counter-
clock wise to unlock.
Step 2
Pull the light upward.
Step 3
Push light to left or
right side.
Step 4
Remove the light by turning
light counter-clock wise
Light Fixture Tool


12 CLEANING & MAINTENANCE
CLEANING & MAINTENANCE
WARNING!!!
To prevent the possibility of a fire and explosion, do not use
flammable liquids or solvents to clean the unit or any of its parts.
Check to make sure all power sources are disconnected
before servicing or taking unit apart for cleaning.
Please thoroughly clean the unit weekly as stainless steel
can rust under certain condition or by improper cleaning.
1. RANGE HOOD
a. Use household cleaner to remove grease or dirt from the outer shell of the
unit. Spray on wiping cloth or sponge and wipe in the direction of the grain
to avoid scratching the unit. (DO NOT SPRAY DIRECTLY ONTO UNIT)
b. Clean the inner working of the unit periodically to avoid grease build-up.
c. Do not open control switch panel while the hood is connected to power.
d. Use stainless steel cleaner to bring back the shine to the unit.
2. BAFFLE FILTERS
a. Remove baffle filters from unit and place in warm soapy water.
b. Clean the baffle filters regularly for the most efficient suction power.
c. Do not drop baffle filters.
d. Let it soak thoroughly and then clean it with wiping cloth or sponge.
e. Baffle filters may also be cleaned using residential dishwasher.

TROUBLESHOOTING 13
TROUBLESHOOTING
WARNING!!!
Check to make sure all power sources are disconnected
before starting any troubleshooting. Safety gloves and glasses
should be worn when working on the unit. Serious injury or death
may occur if safety precautions are not followed.
RA-30 Series
GU10 LED Light Issue
(One light not turning on
or all not turning on)
1. Replace old defective GU10 fixture with new GU10
LED 5W light fixtures found for your convenience at
your local hardware store.
Speed indicator not
showing speed levels 1. Complete Control switch replacement is required. 2. IC Board Replacement may be needed.
Burnt/melted control
switch 1. Complete Control switch replacement is required.
Speed levels not
working correctly
1. Check all wiring to and from the unit.
2. Complete control switch replacement is required.
3.IC Board Replacement may be needed
Unit lacking smoke
intake
1. Check ducting for foreign object.
2. Ensure that ducting is properly sealed.
3. Maintenance may be required to increase air-flow.
Unit showing no power
indication
1. Ensure 120v electrical power source is working
correctly.
2. IC Board Replacement may be required.
Unit making humming
noise/Motor not starting;/
LCD indicator displaying
speed levels.
1. Capacitor replacement is required.


PART LIST / REPLACEMENT
14
PART LIST / REPLACEMENT
# Description # Description
1 Hood body assembly 8 Motor housing
2 GU10 5W LED lights 9 Motor
3 Outer light ring 10 Fan blade
4 Control Switch 11 Grills
5 Motherboard 12 Oil funnel
6 Capacitor 13 Baffle filter
7 6” – 7” Collar

WARRANTY / CONTACT US 15
WARRANTY / CONTACT US
LIMITED WARRANTY
Windster Hoods Inc. warrants its product against defects in material or workmanship as
follows:
Labor: For a period of (1) year from the date of purchase, if the product is determined
to be defective, Windster will attempt to repair the product, at its option, at no charge.
After the warranty period has expired, the consumer will be responsible for all labor
fees. (All labor repairs are limited to the installation of internal components)
Parts: Windster Hoods, Inc. will supply, at no charge, new or rebuilt replacements in
exchange for defective parts for a period of two (2) years. After the warranty period,
consumer will be responsible for all parts costs. During the "parts" warranty period,
there will be no charge for parts.
Motor: Windster Hoods, Inc. will also provide, at no charge, new or rebuilt motor parts
in exchange for defective parts for a period of five (5) years, excluding motor cages.
After the warranty period, consumer will be responsible for all motor parts costs. During
the “motor” warranty period, there will be no charge for motor parts.
Please keep the original sales receipt, as it will constitute as your proof of purchase.
Consumer must provide the serial number and the original sales receipt to submit a
warranty claim. Warranty claims submitted without serial number and original sales
receipt will be denied. This warranty applies only to products purchased and serviced in
the United States.
For products purchased in Canada, please contact your local retailer where you
purchased the unit for service.
Windster Hoods, Inc. will not be held liable for removal and/or installation fees of the
malfunctioning, defective, and/or replacement unit.
*Windster Hoods, Inc. reserves the right to determine the validity of your warranty claim.


WARRANTY / CONTACT US
16
WHAT IS NOT COVERED BY MANUFACTURER WARRANTY
1. Damages resulting from any of the following:
a. Improper installation or maintenance
b. Any repair, modification, alteration or adjustment not authorized by
the manufacturer or an authorized service dealer
c. Misuse, accidents, and/or neglect
d. Incorrect electric current, voltage or power supply
e. Improper setting of any control (Pressing multiple selections at the
same time)
f. Improper chemical cleaning (commercial or industrial cleaning agents)
2. Products purchased for use in an outdoor, commercial, and/or industrial
setting (such as in a hotel, office, restaurant, or other business)
3. Damage resulting from natural disasters (earthquake, flood, storm, etc.)
4. Regular maintenance for the product
5. Wear and maintenance items such as:
a. Aluminum Filters, Baffle Filters, Charcoal Filters, Mesh Filters, Oil
cups, Lighting bulbs, light fixtures etc.
6. Corrosion
7. Oil Cup
8. Motor Cage
9. Light Bulbs
No returns refunds exchanges if the hood
Is missing parts
Been Installed
Been Used

WARRANTY / CONTACT US 17
CONTACT US
Windster Hoods, Inc.
www.windsterhood.com
Information subject to change without notice
