User’s Manual
WS-68N30SS
WS-68N36SS
WS-68N42SS
Please read this operation manual thoroughly before
using your range hood. Store it in a safe location for
when you need to reference it in the future.
NOTE: PLEASE INSPECT HOOD
IMMEDIATELY UPON RECEIVING.
CLAIM OF DAMAGE AFTER 7 DAYS
OF DELIVERY WILL BE DENIED.
This unit is designed for indoor
residential use only. DO NOT USE
OVER A WOOD GRILL OR MOUNT
IN OUTDOOR ENVIRONMENT.
ISLAND SERIES

1
TABLE OF CONTENTS
Table of Contents
Safety Information ..............................................................2 –3
Content Checklist .....................................................................4
Measurements ...........................................................................5
Preparation ................................................................................6
Installation ...........................................................................7 –8
Installation Diagram...................................................................9
Operation & Features .............................................................10
Cleaning & Maintenance .........................................................11
Troubleshooting ......................................................................12

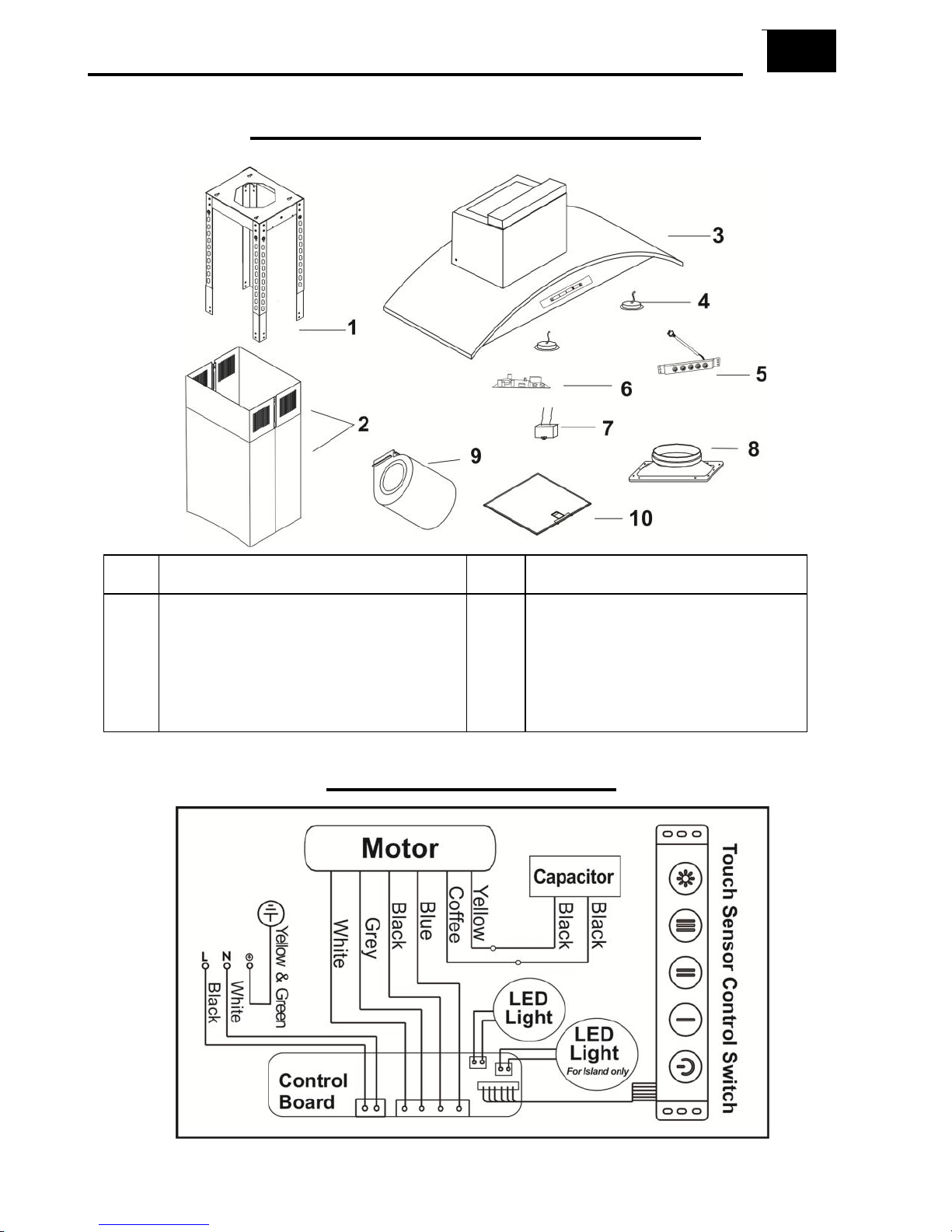

Part List / Replacement / Wiring Diagram .............................13
Warranty / Contact Us .....................................................14 –15

2
SAFETY INFORMATION
SAFETY INFORMATION
TO REDUCE THE RISK OF A FIRE, ELECTRICAL SHOCK,
AND/OR INJURY OBSERVE THE FOLLOWING:
Unit is intended for indoor residential use only. If you should have questions,
contact the manufacturer at the address or telephone number listed in the
warranty.
In case the unit should need to be cleaned or repaired, switch power off at
service panel and lock service disconnecting means to prevent power from
being switched on accidentally. When the service disconnecting means cannot
be locked, securely fasten a prominent warning device, such as a tag, to the
service panel.
Installation work and electrical wiring must be done by a qualified technician in
accordance with all applicable codes and standards, including fire-rated
construction.
Sufficient air is needed for proper combustion and exhausting of gases
through the flue (chimney) of fuel burning equipment to prevent back drafting.
Follow the heating equipment manufacturer’s guideline and safety standards
such as those published by the National Fire Protection Association (NFPA),
and the American Society of Heating, Refrigeration and Air Conditioning
Engineers (ASHRAE), and the local code authorities.
Because the unit is made of stainless steel, it may contain sharp edges. Be
careful to avoid cuts and abrasions by wearing protective gloves during
installation and cleaning.
Before you begin to cut or drill into the wall, verify that there is no electrical
wiring or any other hidden electrical components.
Ducted fans must always be vented to the outdoors.
The unit must be properly grounded and installed at the recommended height
before beginning operation.
To reduce the risk of fire, use only metal ductwork.
CAUTION: FOR GENERAL VENTILATING USE ONLY. DO NOT
USE TO EXHAUST HAZARDOUS OR EXPLOSIVE MATERIALS
AND VAPORS

3
SAFETY INFORMATION
TO REDUCE THE RISK OF FIRE, OR ELECTRIC SHOCK, DO NOT
USE THIS FAN WITH ANY SOLID-STATE SPEED CONTROL DEVICE.
Regardless of heat level, never leave any surface materials unattended while
operating an open flame.
Always turn hood ON when cooking at high heat or when flambéing food (i.e.
Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
Depending on amount of usage, clean ventilating fans and filters frequently.
Grease should not be allowed to accumulate on fan or filter. For instructions
on the how to clean, see maintenance page.
Never leave surface units unattended at high settings. Boil-overs may cause
smoking and greasy spillovers may ignite as result. Heat oils slowly on low or
medium settings.
Use proper pan size. Always use cookware appropriate for the size of the
surface element.
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE
EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE
FOLLOWING:
SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then
turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not
go out immediately, EVACUATE AND CALL 911.
NEVER PICK UP A FLAMING PAN —Doing so may result in serious burns
and possibly spread the fire.
DO NOT USE WATER –Grease fire must be extinguished before further
action may be taken. Using water will agitate the grease and may cause a
violent steam explosion.
Use a Fire Extinguisher ONLY if:
You know you have a Class ABC extinguisher, and you already know
how to operate it.
The fire is small and contained in the area where it started.
The fire department is being called.
You are able to safely control the fire with your back to an open exit. *
Based on ―Kitchen Fire safety Tips‖ published by NFPA.

4
CONTENT CHECKLIST
CONTENT CHECKLIST
1. CONTENTS INCLUDED
a. (1) WS68-N series (30‖, 36‖ or 42‖) hood assembly
b. (1) Lower duct cover (16-1/2‖)
c. (1) upper duct cover (22-3/4‖)
d. (1) User’s manual
e. (1) 7‖ Damper transition adapter collar
f. (1) Aluminum Filter (30‖ model)
g. (2) Aluminum Filters (36‖/42‖ model)
h. (1) Screw packet
i. (1) Duct cover support bracket
2. CONTENTS NOT INCLUDED
a. WS68-NLDC (Long duct cover)
b. WS68-NSDC (Special duct cover)
c. WS68-NBF (Baffle filter)
d. WS68-NDK (Ductless kit)
e. WS68-NCF (Charcoal filter)
f. WS68-NCFMR (CFM reducer)
g. 7‖ Aluminum or metal piping
3. TOOLS REQUIRED (NOT INCLUDED)
a. Safety gloves
b. Safety glasses
c. Electric drill w/ starter bit
d. Utility knife
e. Spirit level
f. Measuring tape
g. Writing instrument (pen, marker, pencil)
h. Aluminum tape

5
MEASUREMENTS

6
PREPARATION
PREPARATION
1. BEFORE YOU START
**BE SURE YOUR UNIT WILL FIT YOUR CEILING HEIGHT**
**DO NOT INSTALL IF DAMAGED**
**RETURN OR EXCHANGE WILL BE DENIED IF INSTALLED**
a. Be sure you have all the content of your purchase and required tools for
this installation.
b. Installation may take at least 2 to 3 hours from start to finish.
c. Plan to use as few elbows or turns as possible for more efficient air flow.
d. Collar size may need to be increased if utilizing a long duct run.
e. Turns must be made after passing ceiling.
f. Do not try to install this unit by yourself, SERIOUS INJURY MAY OCCUR.
g. At least two people are needed for installation.
h. Hiring a certified installer and electrician is recommended.
2. LOCATION
**THIS MODEL MAY NOT FIT ALL CEILING HEIGHTS**
a. Determine the exact location you where want to install the range hood.
b. Recommended distance between cooktop and range hood is 28‖ –33‖.
c. Range hood should be mounted at stated measurements to ensure
performance and lifespan of electrical components.
d. Correctly measure the dimension needed to install the unit.
3. HOOD
a. Inspect for any sign of defect or damage. (ie. scratches, dents, loose
seams, etc.)
b. Power up the unit to make sure it is working properly.

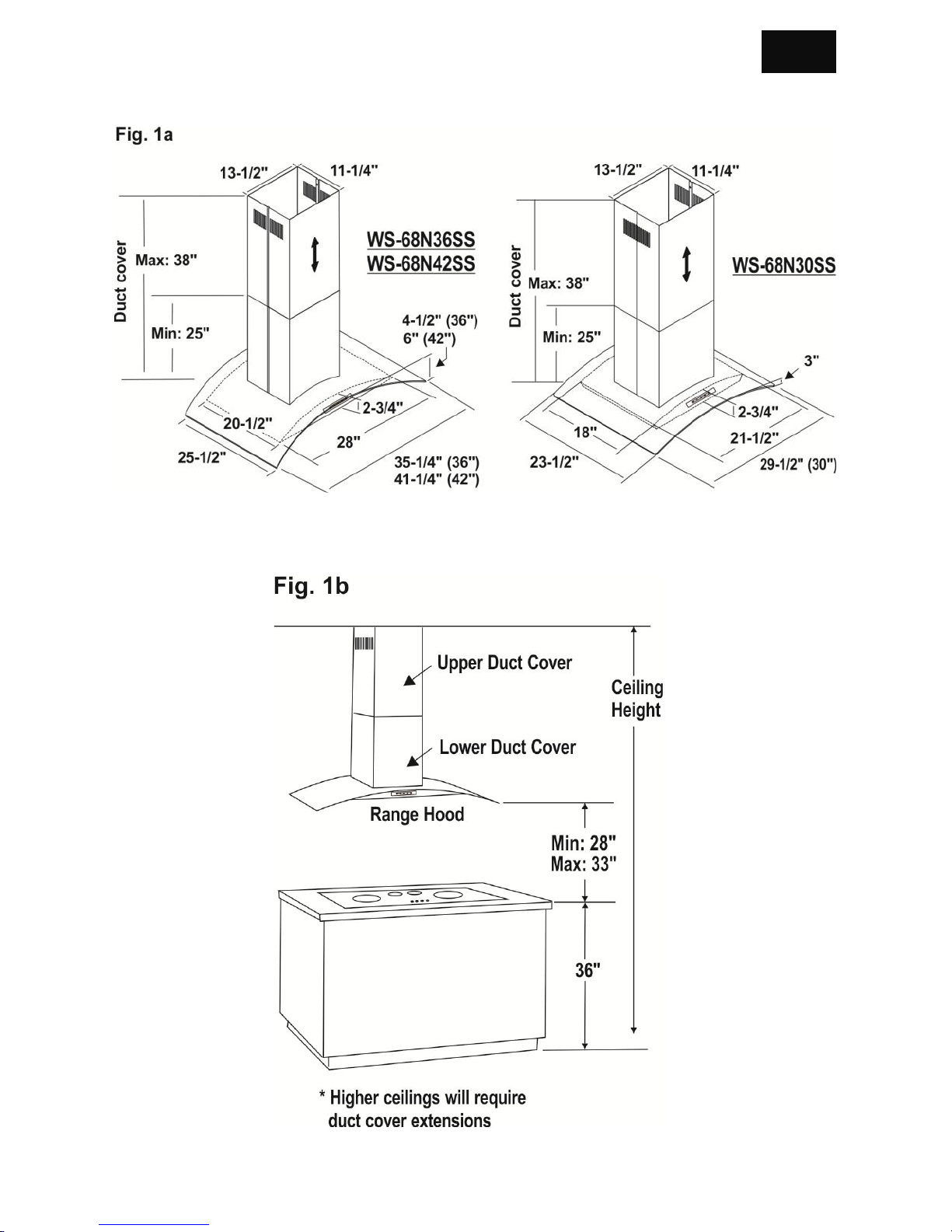

Use Fig. 1a and 1b on page 5 for measurements

INSTALLATION
7
INSTALLATION
1. STANDARD INSTALLATION
a. Make sure all preparation steps are completed.
b. Determine your ceiling height to see if you need an extension.
i. Hood unit (with glass) height = 3-1/4‖ (30‖ model only)
ii. Hood unit (with glass) height = 4-1/4‖ (36‖ model only)
iii. Hood unit (with glass) height = 6‖ (42‖ model only)
iv. Standard DC height = 16-1/2‖ (lower) + 22-7/8‖ (upper)
v. Minimum height (Standard duct cover only) = 24-3/4‖
vi. Minimum height (Standard duct cover w/ DK) = 24-3/4‖
vii. Maximum height (Standard duct cover only) = 38-5/8‖
viii. (OPTIONAL) WS-68NLDC height = 22-7/8‖ (lower) + 36-1/4‖ (upper)
ix. (OPTIONAL) Long DC minimum height = 40‖
x. (OPTIONAL) Long DC maximum height = 55-1/8‖
xi. (OPTIONAL) WS-68NSDC height = 36-3/16‖ (lower) + 39-1/4‖
(upper)
xii. (OPTIONAL) Special DC Minimum height = 42-3/16‖
xiii. (OPTIONAL) Special DC Maximum height = 75-1/4‖
xiv. Standard Installation = Hood + standard DC
xv. 9’ – 11’ Installation = Hood + Long DC
xvi. 11’ – 12’ Installation = Hood + Special DC
c. Determine the location you want to install the range hood. (Fig. 2a)
d. Prepare ceiling and locate wood support.
e. Mount the unit upper support frame to the ceiling.
f. Cut a 7‖ round opening at the ceiling for ducting pipe.
g. Adjust the (4) arms to desired height. (Fig. 2b)
h. Attach upper duct cover to upper support frame.
i. Use a spirit level to ensure the balance of the support frame is true.
j. Slide lower duct cover toward ceiling and hold. (Fig. 2c)
k. Install ducting through the ceiling.
l. Secure hood from all sides with the (8) screws. (Fig. 2d)
m. Installation is complete when hood is securely in place. (Fig. 2e)

8
INSTALLATION
2. EXTENSION INSTALLATION (OPTIONAL)
a. AFTER COMPLETING STEP A –D OF STANDARD INSTALLATION,
replace the standard support frame and duct cover with either the
extension set or the short duct cover set.
b. REPEAT “STEP F – M” from STANDARD INSTALLATION.
3. COLD WEATHER INSTALLATION (OPTIONAL)
a. Check with your local building codes to see if a CFM reducer is an
acceptable alternative to make-up air.
b. Remove the WS68-NCFMR (CFM Reducer) and inspect for any sign of
defect or damage. (ie. Cracks, broken flips)
c. AFTER COMPLETING Step A –J of STANDARD INSTALLATION,
place the CFM reducer onto the outlet of the unit and seal the connection
point with aluminum tape. (Be sure it is secure with no opening or gaps)
d. Connect piping to the outlet of the hood.
e. Installation is complete when hood is securely in place.
4. DUCTLESS INSTALLATION (OPTIONAL)
a. AFTER COMPLETING Step A –E of STANDARD INSTALLATION
b. Remove the WS68-NDK (ductless kit) and inspect for any sign of defect
or damage. (ie. dents, broken inlet)
c. Attach the ductless kit to the support frame and secure with screws.
d. Install the upper duct cover and secure it to the support frame.
e. Slide the lower duct cover up to the upper duct cover and hold in place.
f. Connect a 6‖ or 7‖ pipe between the ductless kit and the hood outlet.
g. REPEAT “STEP G – M” from STANDARD INSTALLATION.
Installation diagram available on next page

9
INSTALLATION DIAGRAM
INSTALLATION DIAGRAM

CLEANING & MAINTENANCE
10
OPERATION & FEATURES
1. TOUCH SENSOR CONTROL SWITCH (from left to right)
a. Sensor 1 –Dual purpose (Power / Delay Shut-off function 1 minute)
b. Sensor 2 –Low Speed
c. Sensor 3 –Medium Speed
d. Sensor 4 –High Speed
e. Sensor 5 –Light Switch
Remark:
During operation when press ―Sensor 1‖, then hood will automatically shut off
after 1 minute. If want to avoid the countdown process, just press ―Sensor 1‖
again, the hood will stop immediately.
2. ALUMINUM FILTERS
a. (1) Aluminum filter (30‖ model)
b. (2) Aluminum filters (36‖ / 42‖ model)
3. CHARCOAL FILTERS
**DO NOT WASH CHARCOAL FILTERS! IT WILL DISSOLVE!!**

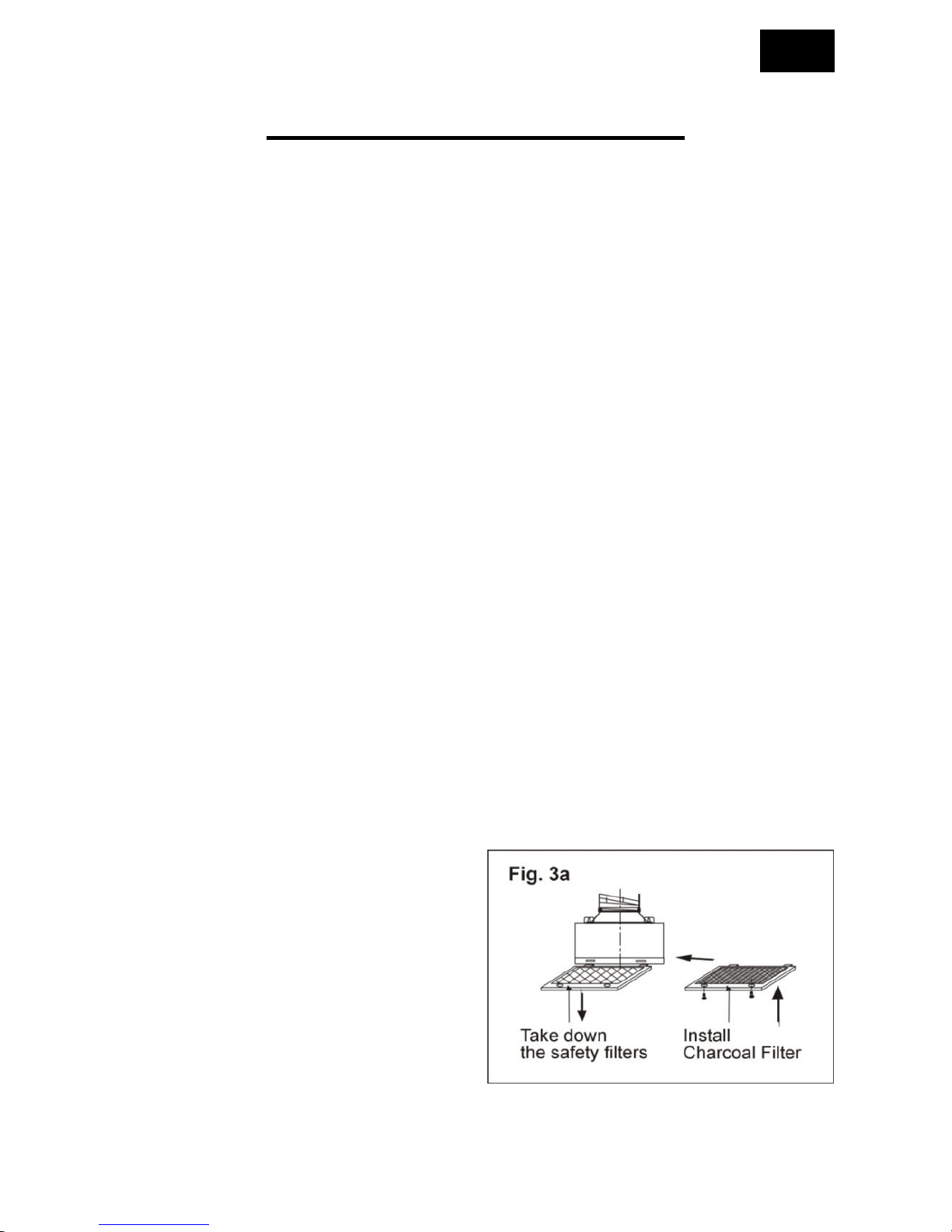

a. Replace safety filter with charcoal filter. (Fig. 3a)
b. Installation is complete after the charcoal filter is secured in place.
c. When to replace a charcoal filter will depend on:
i. How often you cook.
ii. How long you cook.
iii. Types of food you
cook

CLEANING & MAINTENANCE
11
CLEANING & MAINTENANCE
.WARNING!!!.
To prevent the possibility of a fire and explosion, do not use
flammable liquids or solvents to clean the unit or any of its parts.
Check to make sure all power sources are disconnected
before servicing or taking unit apart for cleaning.
Please thoroughly clean the unit weekly as stainless steel
can rust under certain condition or by improper cleaning.
1. RANGE HOOD
a. Use household cleaner to remove grease or dirt from the outer shell of the
unit. Spray on wiping cloth or sponge and wipe in the direction of the grain
to avoid scratching the unit. (DO NOT SPRAY DIRECTLY ONTO UNIT)
b. Clean the inner working of the unit periodically to avoid grease build-up.
c. Do not open control switch panel while the hood is connected to power.
d. Use stainless steel cleaner to bring back the luster of the unit.
2. ALUMINUM FILTER
a. Remove aluminum filter from unit and place in warm soapy water.
b. Clean the filter regularly to maintain efficient suction power.
c. Do not drop filter.
d. Let it soak thoroughly and then clean it with a wiping cloth or sponge.
e. Filter may also be cleaned using residential dishwasher.

TROUBLESHOOTING
12
TROUBLESHOOTING
.WARNING!!!.
Check to make sure all power sources are disconnected
before starting any troubleshooting. Safety gloves and glasses
should be worn when working on the unit. Serious injury or death
may occur if safety precautions are not followed.
WS-68N Series
Light issue LED (All not
turning on)
1. Locate and Replace defective Fixture (All Fixtures run on
same circuit).
2. New Transformer/ Driver replacement may be required
Speed Levels/Controls not
working correctly
1. Complete control switch replacement may be required.
2. Check Ventilation / Ducting if installed property.
Burnt / melted control
switch
1. Complete control switch replacement is required.
Speed levels not working
correctly
1. Ensure all Wiring from Control Switch and Top Junction
Box are correctly connected.
2. Complete Capacitor replacement may be required.
Unit lacking smoke intake
1. Check ducting for foreign object.
2. Ensure the ducting is properly sealed.
3. Clean filters to increase airflow.
Unit showing no power
indication
1. Ensure power source is working properly.
2. Ensure all Wiring from Control Switch and Top Junction
Box are correctly connected.
Unit making humming noise
/ motor not starting
1. Check Ducting / Dampers for proper installation.
2. Replace defective capacitor with new one.
3. Check / replace defective motor.
Load Grinding or Noise like
sound coming from motor
1. Check if fans are spinning property.
2. Ensure Articles have not fallen into Motor Housing
3. Complete Motor/Motor Housing may be required.
Defective LED Fixture
1. Replace LED Fixture with New LED Fixture

WARRANTY / CONTACT US
13
PART LIST / REPLACEMENT
WARRANTY / CONTACT US
#
Description
#
Description
1
Chimney Supporting Frames
6
Control Board
2
Duct cover
7
Capacitor
3
Hood body assembly
8
Transition collar
4
LED lights
9
Squirrel cage motor
5
Touch sensor control switch
10
Aluminum filter
WIRING DIAGRAM
PART LIST / REPLACEMENT / WIRING DIAGRAM

WARRANTY / CONTACT US
14
WARRANTY / CONTACT US
LIMITED WARRANTY
Windster Hoods Inc. warrants its product against defects in material or workmanship as
follows:
Labor: For a period of one (1) year from the date of purchase, if the product is
determined to be defective, Windster will attempt to repair the product, at its option, at
no charge. After the warranty period, customer must pay for all labor charges. During
the "labor" warranty period there will be no charge for any work done on the purchased
model. (All labor repairs are limited only to the installation of electrical components.)
Parts: In addition, Windster will supply, at no charge, new or rebuilt replacements in
exchange for defective parts for a period of two (2) years. After the warranty period, you
must pay for all parts costs. During the "parts" warranty period, there will be no charge
for parts
You must provide the serial number of your unit for any replacement parts during the
warranty period. This warranty applies to products purchased and serviced in the
United States only.
For products purchased in Canada, please contact your local retailer where you
purchased the unit for service.
* Windster Hoods, Inc. will attempt to repair malfunctioning units prior to shipping a
replacement. In the case that a unit cannot be repaired and must be replaced, Windster
Hoods, Inc. will not be held liable for removal / installation fees of the malfunctioning /
replacement unit.

WARRANTY / CONTACT US
15
WHAT IS NOT COVERED BY MANUFACTURE WARRANTY
1. Damages resulting from any of the following:
a. Improper installation or maintenance
b. Any repair, modification, alteration or adjustment not authorized by
the manufacturer or an authorized service dealer
c. Misuse and/or accidents
d. Incorrect electric current, voltage or power supply
e. Improper setting of any control (Pressing multiple selections at the
same time)
f. Improper chemical cleaning (commercial or industrial cleaning agents)
2. Products purchased for use in a commercial or industrial setting (such as in a
hotel, office, restaurant, or other business)
3. Damage resulting from natural disasters (earthquake, flood, storm, etc.)
4. Aluminum Filters, Baffle Filters, Charcoal Filters, and Oil Cup Filters
5. Light Bulbs
CONTACT US
Windster Hoods, Inc.
15210 Nelson Ave.
City of Industry, CA 91744
TEL: (626) 330 - 5800
FAX: (626) 330 - 5811
Toll Free: (877) 350 –5215
E-mail: [e-mail]
© Windster Hoods, Inc.
Information subject to change without notice
