winefit Duravin+ Duracombi User manual

WARNINGS:
ATTENTION! In case of Co2 leakages aerate the entire room at least for 15 minutes
ATTENTION! The device cannot be used by children under the age of 8 and by people with reduced
physical, sensory, or mental abilities unless under direct supervision.
ATTENTION! It cannot be used by people without the necessary knowledge and experience if they haven’t
received instructions on safe use and understanding the dangers inherent to them.
ATTENTION! Children must NEVER play with the appliance.
ATTENTION! Cleaning and maintenance should NEVER be carried out by unsupervised children.
ATTENTION! Duravin + must ONLY be used with the power supply unit supplied with the appliance.
ATTENTION! If the power cable of the external power supply is damaged, replace it with a special cable or
assembly provided by the manufacturer or the technical assistance service.
ATTENTION! Disconnect the machine at the end of the service and during the replacement of one of its
parts.
ATTENTION! NEVER touch the regulator during work procedures.
ATTENTION! If no maintenance is required, NEVER open the machine or remove its parts.
ATTENTION! NEVER use Duravin + on full bottles.
ATTENTION! NEVER shake bottles of sparkling wine or champagne.
ATTENTION! NEVER store bottles closed on one side.
ATTENTION! NEVER try to reseal damaged bottles.
ATTENTION! NEVER point the bottle at anyone when removing the cap.
ATTENTION! NEVER reclose more than 15 bottles in a five-minute period.
Technical assistance and support
[email protected] / [phone]
Winefit SrL www.winefit.com - [e-mail] Headquarters: Località Drove, 2 / G - 1 'Internal floor 4053036 - Poggibonsi - Siena - Italy
Plant and Offices: Via G. Mazzini 70 - 21020 Ternate - Varese - Italy P VAT number 05989390488
Equipment for preserving still and sparkling wines
using vacuum and Co2.
Boxed Contents:
1 Duracombi system including external 24Vdc
power supply
1 Box of 10 still wine stoppers
2 Boxes of 3 Champagne stoppers
1 Pre-set Co2 pressure regulator
You will require:
1 Food grade Co2 cylinder with universal connector
(W21.8X1/14” thread)
100/240 VAC power supply
QUICK START GUIDE

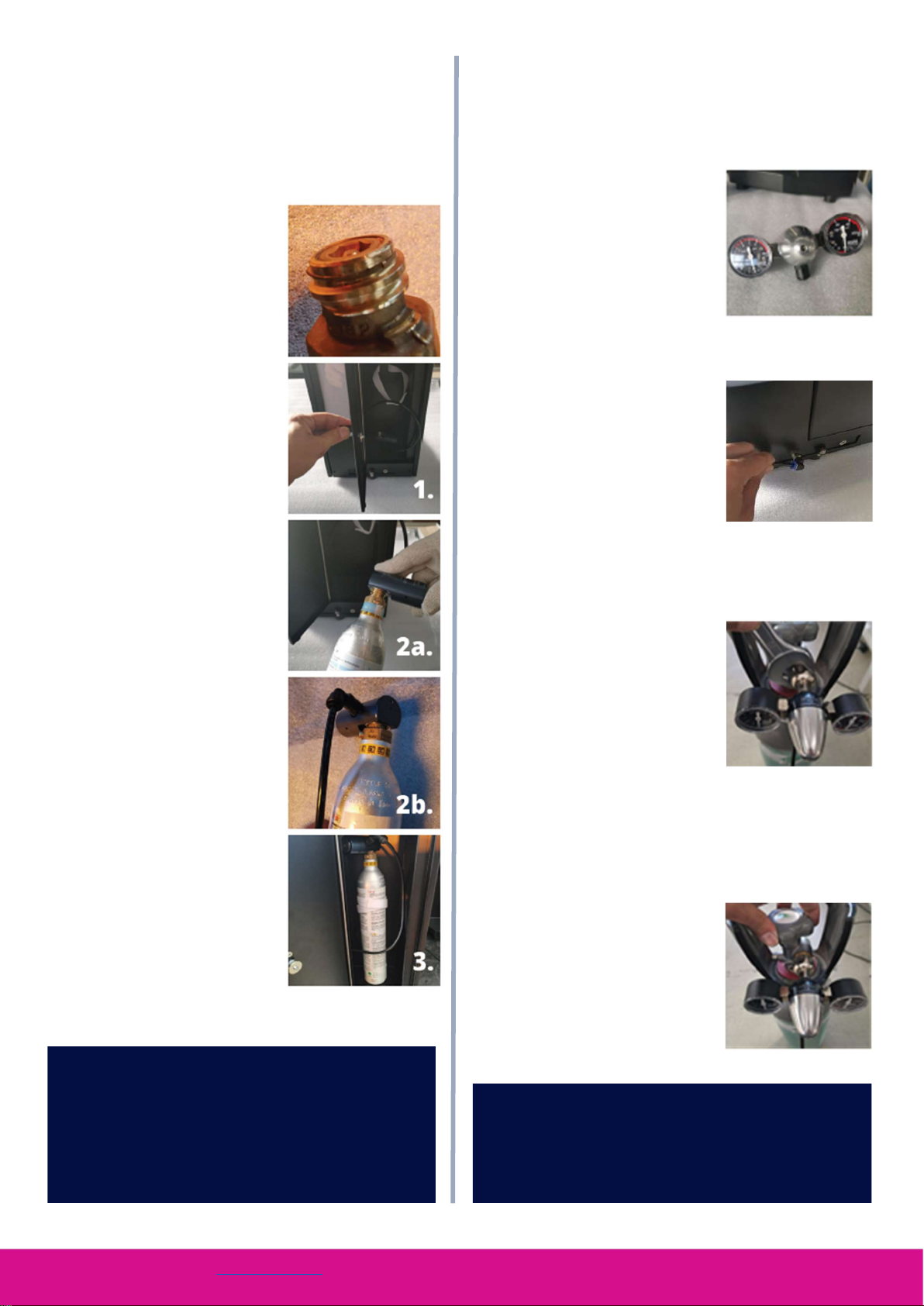

STEP 1
Connecting the regulator to the Co2
cylinder
INTERNAL Co2 cylinder
The regulator has a universal
fitting that fits all standard Co2
cylinders (W21.8X1/14”
thread). - In case of any other
Thread / pitch contact the
technical service for
assistance.
The working pressure is pre-
set and doesn’t require an
adjustment process.
1. Open the Duravin+
back door.
2. Take the pressure
regulator and connect
it to the hose. Gently
screw the pressure
regulator onto the
cylinder thread.
3. Place the Co2 cylinder
inside the
compartment and
attach the cylinder to
the adjustable strap.
4. Close the back door.
EXSTERNAL Co2 cylinder
The regulator has a universal fitting that fits all
standard Co2 cylinders (W21.8X1/14” thread). - In
case of any other Thread / pitch contact the technical
service for assistance.
The working pressure is pre-
set and doesn’t require an
adjustment process. Make
sure that the pressure is 2 bar
maximum.
1. Insert one end of the Co2 tube supplied in
the package into the
pressure regulator.
2. Insert the other end of
the tube into the Co2
inlet coupling of the
machine.
3. Take the regulator and gently screw the
connecting nut onto the
top of the cylinder.
4. Secure the pressure
regulator by tightening
the nut with a wrench.
5. Place the Co2 cylinder and the pressure
regulator in a safe place and in a vertical
position with the regulator upwards.
6.
Open the Co2 cylinder
and check for leaks
(hissing or recognizable
noises of leaks)
IMPORTANT!
-Be sure Co2 cylinder is well placed
-Be sure don’t staple the flexible hose into
the backdoor
2.
4.
6.
IMPORTANT!
-
Make sure that the pressure of the Co2 cylinder is 2
bar maximum.
Winefit SrL www.winefit.com - [e-mail] Headquarters: Località Drove, 2 / G - 1 'Internal floor 53036 - Poggibonsi - Siena - Italy
Plant and Offices: Via G. Mazzini 70 - 21020 Ternate - Varese - Italy P VAT number 05989390488

STEP 2
Connecting power supply
1. Plug the end of the
power cord into the
socket on the back of
the device.
2. Insert the plug into the
socket.
3. Verify that there is
electricity.
4. Turn on the device
operation switch.
Duravin+ is ready to
use.
STEP 3
Replacing the Co2 cylinder
INTERNAL Co2 cylinder
1. Turn off the device.
2. Open the rear door and remove the
Co2 cylinder.
3. Unscrew the empty CO2 cylinder from
the regulator and screw the new
cylinder onto the regulator.
4. Place the new Co2 cylinder with the
regulator in the back door.
5. Close the rear door
6. Turn on the device.
EXSTERNAL Co2 cylinder
1. Close the Co2 bottle.
2. Push the Co2
nozzle inwards to
empty the Co2
circuit.
3.
Turn off the
device.
4. Unscrew the
regulator and
screw in the new
Co2 bottle.
5. After checking that all
connections are tight,
reopen the Co2 tap.
6. Turn on the device.
Illuminated
nozzles:
The Duravin +
system is equipped
with illuminated nozzles.
By pressing the "+" and "-" buttons you can
change the intensity of the chosen colour.
By pressing the coloured capacitive button, it
is possible to interchange 7 different colours.
Regardless of the selected colour, during the
reclosing and pressurization process, the
nozzle turns red and then green once the
operation is complete.
Once the bottle is removed, the nozzles will
return to the set colour.
TECHNICAL INFORMATION:
Model: DURACOMBI Degree of protection: Class III
Freq./Volt.: 100-240VAC 24VAC, 50/60Hz Vacuum pressure: -0.6 bar
Current: 1.4A 2.5A Co2 pressure: +1.6 bar
Po
wer
:
90
W
Acoustic pressure
: 75 db(A) max
Winefit SrL www.winefit.com - [e-mail] Headquarters: Località Drove, 2 / G - 1 'Internal floor 4053036 - Poggibonsi - Siena - Italy
Plant and Offices: Via G. Mazzini 70 - 21020 Ternate - Varese - Italy P VAT number 05989390488

ATTENTION!
Use Duravin + only with the Mean Well power supply unit - GST90A24-P1M.
Transport and installation of Duravin +
The machine is shipped in its cardboard box with adequate protection inside.
It is advisable to examine the condition of the machine upon arrival to verify that it has not been
damaged during transport.
During the operations of loading, lifting, handling, and unloading of the machine, use the
appropriate PPE supplied to each operator.
The machine is supplied assembled in all its parts and able to start the activity.
Do not place the machine near liquid and heat sources that could cause damage and pose a risk
to the user.
It is necessary to leave a space of about 15-20 cm on the side of the appliance to facilitate air
circulation.
Disposal of the appliance
This appliance is marked in accordance with the European directive 2012/19 / EU and
the regulations on waste electrical and electronic equipment (WEEE).
This symbol indicates that this product must not be disposed of with other household
waste in the EU territory to prevent damage to the environment or human health due
to improper disposal.
Explanation of symbols
Class III Separable power unit
Compliance of the appliance with EU directives
Winefit SrL www.winefit.com - [e-mail] Headquarters: Località Drove, 2 / G - 1 'Internal floor 4053036 - Poggibonsi - Siena - Italy
Plant and Offices: Via G. Mazzini 70 - 21020 Ternate - Varese - Italy P VAT number 05989390488
VIDEO MANUALS AND FURTHER INSTRUCTIONS FOR THE
DURAVIN + RANGE AVAILABLE ON OUR
CLOU
D
Final Use Instructions:
 The top of the bottles must always be clean and free of wine residues.
 The caps must be cleaned regularly. Use a mild cleanser and rinse them
thoroughly. You could soak them overnight.
 Monitor the performance of all caps. If a cap cannot hold the vacuum, set it
aside immediately and replace it with a new one.
 Make sure glasses are thoroughly cleaned and dried before use.
The company relieves itself of any responsibility for a use other than that suggested for both the
machine and the accessories.
