TimelapseCam®
User’s Guide
For Models:
WCT-00122 TimelapseCam
10/21/13

Page 19
TimelapseCam User Guide
Page 2
TimelapseCam User Guide
SETUP MODE
< OPTIONS >
RESET TO
FACTORY DEFAULTS
ERASE ALL IMAGES
(FORMAT CARD)
WI-FI SD CARD?
DATE & TIME
UPGRADE
FIRMWARE
TIME LAPSE
INTERVAL
T.L. PROGRAM #1
START
T.L. PROGRAM #1
STOP
IMPRINT INFO PROGRAM
SECURITY CODE
IMPRINT INFO PHOTO QUALITY MANAGED
MEMORY
T.L. PROGRAM #2
START
T.L. PROGRAM #2
STOP
T.L. PROGRAMS
PER DAY
AC CONNECTED?
CAMERA NAME
Wingscapes TimelapseCam
DEFAULT SETTINGS
DATE/TIME: 11/11/11 11:11pm
TIME LAPSE INTERVAL: 10 SECONDS
TIME LAPSE PROGAMS/DAY: 2 PROGRAM
T.L. PROGRAM #1 START TIME: 6 AM
T.L. PROGRAM #1 STOP TIME: 9 AM
T.L. PROGRAM #2 START TIME: 4 PM
T.L. PROGRAM #2 STOP TIME: 7 PM

Page 18
TimelapseCam User Guide
Page 3
TimelapseCam User Guide

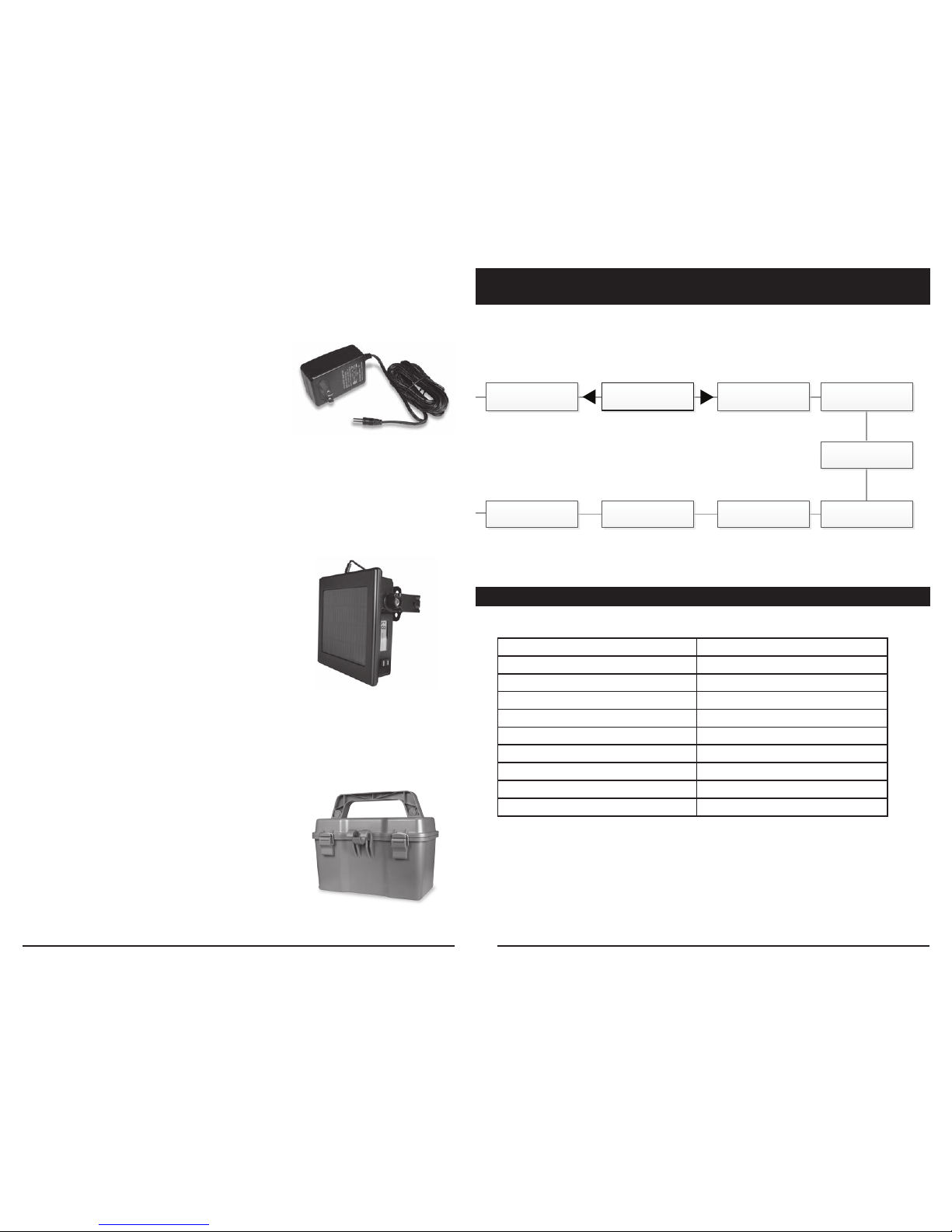

Using the Moultrie Camera Power Panel
Place near the tree where the camera is mounted.
Place for best exposure to sun. To attach to a
tripod secure the power panel to the tripod
angled upward for best exposure. Plug the power
panel to the Power Panel Plug. This will extend the
life of your camera in the field.
Note: Leave internal batteries in the camera
during use. The Camera Power Panel needs
4 hours of sunlight to fully power the camera.
Using the Moultrie Battery Box
Extend the eld life of your Moultrie camera with a
long-lasting, rechargeable external power source.
Place near the tree where the camera is mounted.
Plug the Battery Box to the Power Panel Plug.
This will extend the life of your camera in the field.
Using the Moultrie AC Adapter
Keep your Moultrie camera running in the eld with
the constant power of an AC adapter. Plug into a
standard 110-240VAC 50-60Hz electrical outlet and
then connect to the External Power Port on your
Moultrie camera.
Note: Leave internal batteries in the camera during
use. In the event of power loss to the outlet into which
the AC adapter is plugged, the internal batteries will
keep your camera running.
Camera Accessories Menu Map
SETUP MODE
< OPTIONS >
RESET TO
FACTORY DEFAULTS
ERASE ALL IMAGES
(FORMAT CARD)
WI-FI SD CARD?
DATE & TIME
UPGRADE
FIRMWARE
TIME LAPSE
INTERVAL
T.L. PROGRAM #1
START
T.L. PROGRAM #1
STOP
IMPRINT INFO PROGRAM
SECURITY CODE
IMPRINT INFO PHOTO QUALITY MANAGED
MEMORY
T.L. PROGRAM #2
START
T.L. PROGRAM #2
STOP
T.L. PROGRAMS
PER DAY
AC CONNECTED?
CAMERA NAME
UPGRADE FIRMWARE: NO
PROGRAM SECURITY CODE: 00000
AC CONNECTED?: NO
WI-FI SD CARD?: NO
CAMERA NAME: TIMELAPSECAM
IMPRINT INFO: YES
PHOTO QUALITY: HIGH (5 MP)
MANAGED MEMORY: DO NOT OVERWRITE
ERASE IMAGES: NO
RESET TO FACTORY DEFAULTS: NO

Page 4
TimelapseCam User Guide
Page 17
TimelapseCam User Guide
Customer Support
Phone: 888.811.WING (9464)
Fax: [phone]
Email: [email protected]
Web: www.wingscapes.com/support
Address: Wingscapes
150 Industrial Road
Alabaster, AL 35007
Photogallery: wingscapes.com/photogallery
YouTube: youtube.com/wingscapes
Blog: wingscapes.com/blog
Facebook: facebook.com/Wingscapes
Twitter: @wingscapes (or tweet with hashtags #birdcam
or #plantcam)
Find Us Online
Tripods

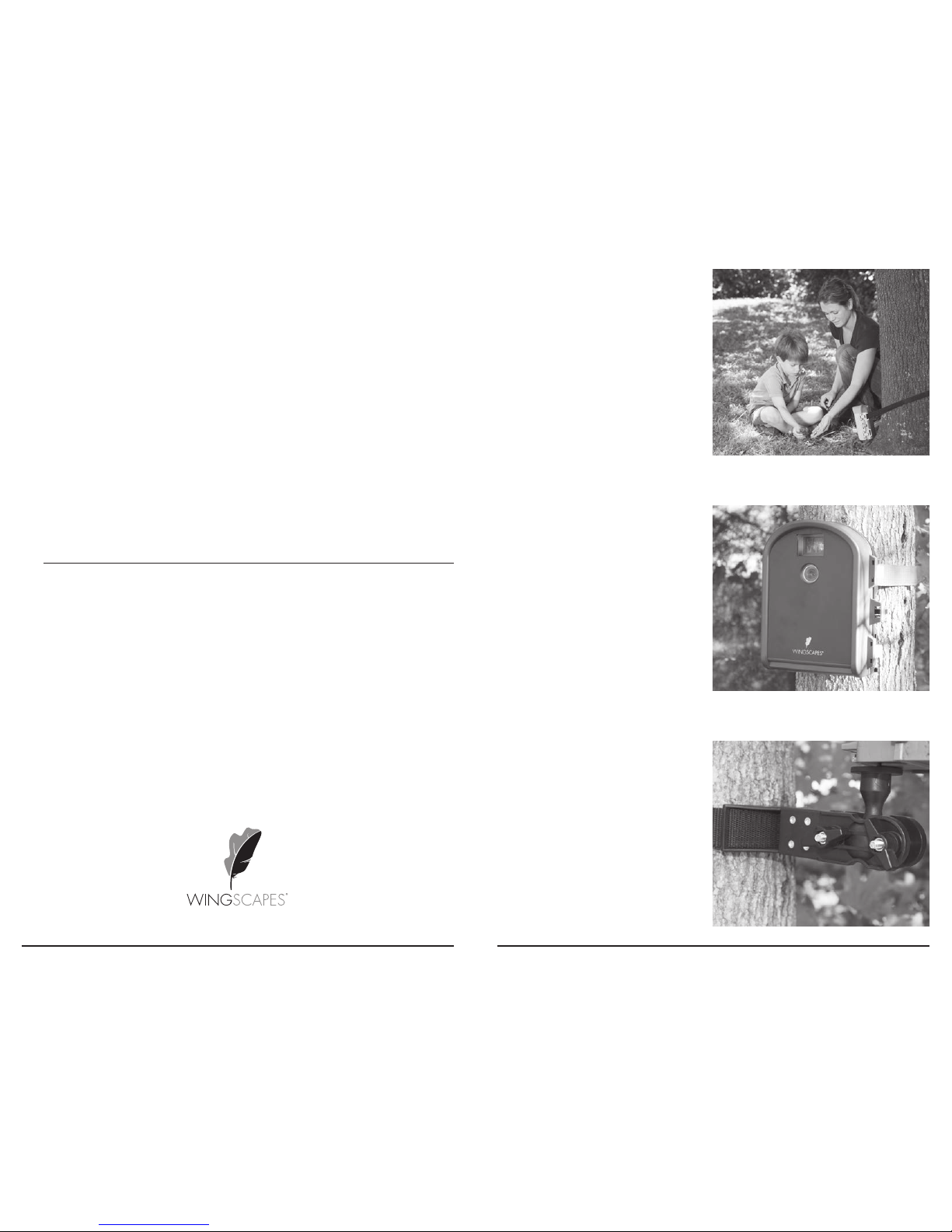

For very precise placement and aiming,
no mounting method will beat a camera
tripod. A standard threaded tripod mount
(¼”-20) is
embedded into the bottom and
rear of the
TimelapseCam. This allows
users to attach the TimelapseCam
to any
tripod or any of thousands
of 3rd-party
camera mounting accessories – providing
users with a world of creative opportunities
through angle and height adjustment.
Mounting Strap
The TimelapseCam comes with a
Mounting Strap to facilitate mounting.
You will find slots in the rear of the
TimelapseCam through which a strap
can be threaded. Many users will
tighten the TimelapseCam to a tree,
then wedge a stick or piece of bark
between the TimelapseCam and the
tree to facilitate aiming.
Mounting Arm Accessories
Wingscapes an optional mounting
accessory for the TimelapseCam:
Camera Multi-Mount
(MCA-12669)
This accessory will allow you to easily
mount the TimelapseCam to a common
bird feeder pole, a post, a stake, a wall,
or a tree. Numerous angle settings and
360° rotation make this mounting arm
one of the most versatile setup options.
Your Wingscapes TimelapseCam offers
nearly limitless mounting opportunities,
allowing you to capture images of wildlife
in practically any situation.
To read more about attracting wildlife to
your backyard and TimelapseCam, visit our
website at www.wingscapes.com.

Page 5
TimelapseCam User Guide
Page 16
TimelapseCam User Guide
Quick Start Guide
Use the steps below as a guide to quickly set up your camera so it will function using the
factory default settings.
STEP 1
Open camera cover. Press the Battery Chamber Release button. Install 6 C-cell alkaline
batteries. Recommended for use: Duracell®or Energizer®batteries. Reinsert the Battery
Chamber into the camera until you hear an audible click.
Rechargeable batteries are not recommended.
Do not use lithium batteries.
STEP 2
Insert SD Memory Card (label side up) until you hear an audible click. Camera will not
operate without SD Card. Slide the power switch to SETUP. Set the time and date by
pressing the RIGHT button until DATE & TIME appear on screen. Press OK to begin
entering the Time and Date, using +/- buttons to adjust the values and LEFT/RIGHT to
move between fields.
STEP 3
Mount Camera in desired location using a mounting strap or other accessories offered by
Wingscapes (visit www.wingscapes.com for more information on mounting accessories).
See page 16 for helpful mounting tips.
STEP 4
Slide the power switch to the ON position. The
camera will operate using default settings for the
respective mode selected. You may also customize the
settings if desired in SETUP. Press the Right (>) button
to begin taking photos or videos.
The key to taking great photos and videos
is proper mounting and placement
of
the TimelapseCam. We designed the
TimelapseCam so that it can be mounted
many different ways.
Take a moment to
learn more about mounting
your
TimelapseCam properly, and you will
quickly see improvement in your images.
Basic Principles
1. Stability - Mount the TimelapseCam
securely so that it does not move. It should
never be hung from above or mounted
to an object that moves in the wind. If the
TimelapseCam is moving, it will cause the
motion sensor to trigger incorrectly.
2. Focus - Note that the TimelapseCam lens
can be focused manually. This is a snap. Use
the included measuring tape to measure the
distance between the TimelapseCam and its
target. Set the lens accordingly.
3. Lighting - As with all cameras, it is best to
avoid aiming the TimelapseCam at the source
of light (for instance, the sun). Ideally during
daytime, position the TimelapseCam so it is
facing its target, e.g. a bird feeder, but facing
away from the sun.
On the Ground
Set up is simple, even on the ground. Just
position your TimelapseCam directly on the
ground. If you’re concerned about it falling
over, use the included Stretch Cords to
secure the TimelapseCam to the base of a
tree, a post, or other solid feature (a brick
works great).
Mounting your TimelapseCam

Page 6
TimelapseCam User Guide
Page 15
TimelapseCam User Guide
System Requirements
OS: Microsoft® Windows® XP with Service Pack 2 or Service Pack 3
(recommended); Windows Vista® Home Premium, Business,
Ultimate, or Enterprise with Service Pack 1; or Windows 7
Hard disk space: 100MB or above
CPU: Intel® Pentium® 4 or AMD Athlon® 64 processor or above
Memory: 1GB of RAM
Specifications
Operational Mode Time Lapse
Resolution 8.0 MP
Still Resolutions JPEG
Low 640 x 480, Medium 1600 x 1200, High 2592 x 1944,
Enhanced 3264 x 2448
Image Output USB OUT, SD Card
Housing Weather-resistant and lockable
Display LCD
SD Memory Card Up to 32 GB SD card (not included)
Format JPEG
USB Output Requires PC / MS Windows XP / Vista / 7
Picture Delay Variable 10 sec, 30 sec; 1, 5, 10, 15, 30 mins; 1, 2, 3, 6, 12 hrs
Standby Time 300 Days
Run Time 180 days
Focus 6” - Infinity
Infrared Sensor Passive
Easy Read Bar Moon Phase / Camera Name / Date / Time
Power Supply 6 C-Cell Alkaline batteries (not included)
External Power port 12V
Size 6.9” x 5.4” x 2.8”
Downloading & Viewing Images
There are a number of ways for you download and view
pictures and videos in the field or at another location.
Important
Make sure that the camera is in the OFF position
before removing SD card.
Removing the SD Card
To remove the SD Memory Card, open the camera cover
and push gently on the SD card and it will pop out slightly
allowing you to remove it. Load the SD card into the
player or card reader to view or move stored images to
another location.
ln the Field
You can download the pictures and videos with the aid
of external devices. To download, use an external player
or card reader that is supported by a Mini USB Jack.
At Home
Remove the entire camera and transport to another location to download images. To connect
the camera to a PC computer, turn the camera ON, press the OK button once to change to
SETUP Mode. Connect the USB cord (not included) between the USB out port and the PC
computer. The computer will recognize the camera as a removable drive. The unit works
with Windows XP/Vista/7. Copy the images and videos from the camera onto your PC for
further editing or printing. When the USB cable is disconnected, the camera will go back
to SETUP mode.
See the full line of Wingscapes camera accessories at www.wingscapes.com

Page 7
TimelapseCam User Guide
Setting Options
When you press the Right button from the Setup Mode screen, the LCD Display will
automatically display the different features within Options. Using the navigation
process, set the features you desire. Press the Right button to begin setting the user options.
Setting Date and Time
Press the OK button. Use the Left/Right buttons to move from one value to the next and the
Up/Down buttons to adjust each value. Press the OK
button to lock in selections. When all your
selections
have been made, and the date and time has been set, press the Right button to
move to the next option.
DATE & TIME
11/11/11 11:11pm
SETUP MODE
< OPTIONS >
Page 14
TimelapseCam User Guide
Setup and ProgrammingMemory & Storage
Your camera supports external SD memory card ONLY and will accept up to a 32GB card.
Using large memory cards can slow the camera response. The camera cannot capture any
photo or video without external memory. Please insert an SD memory card to operate camera.
Estimates are based on the most common types of memory cards that can be purchased at
electronic stores, office supply stores, or online. Estimates may vary based on camera settings
or environmental conditions.
Important
Always turn the unit off when inserting or removing an SD memory card to avoid damage and
ensure that the camera properly updates the memory information.
Auto Mode
SD Card Size: 2 GB 16 GB
ENHANCED 3264 x 2448 740 5920
HIGH 2592 x 1944 1100 8800
MED 1600 x 1200 3000 24000
LOW 640 x 480 17950 143600
Actual capacity will vary based on image properties.
Warnings & Regulations
Wingscapes, a division of Plastic Research and Development Corporation
TimelapseCam
FCC Statements
Note: changes and modifications not expressly approved by the party responsible could void
the user’s authority to operate this device.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED
MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE
EQUIPMENT.
NOTE: This device complies with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This device generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- lncrease the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This product may not comply with California Proposition 65 standards, known to the state of California to cause
birth defects or other reproductive harm.
TIMELAPSE
INTERVAL 10 SEC
Interval Time Setting
Press the OK button. Use the Up/Down buttons to choose between 10, 30 seconds / 1, 5, 10, 15,
or
30 minutes / 1, 2, 3, 6, 12 hours or 1 day. When your selection has been made, press the
Right but ton
to go to the next option.
T.L. PROGRAMS
PER DAY 2
Setting Multi-Program
Press the OK button. Use the Up/Down buttons to choose between 2 available settings:
1 PROGRAM or 2 PROGRAM. This indicates the number of cycles the camera will operate within a
24 hour period. Press the OK button. Press Right button to go to the next option.

Page 8
TimelapseCam User Guide
Page 13
TimelapseCam User Guide
UPGRADE FIRMWARE
PLANT-131018 NO
Upgrade Firmware
The firmware version is displayed. Press Up/Down to choose setting.
YES - To upgrade firmware.
NO - Keep current firmware.
Make sure that an SD card with the new firmware is inserted into the camera. Press the
OK button to make selection. Make sure the process is completed before pressing other
buttons or powering the camera Off. Press the Right button to move to the next option.
PROGRAM SECURITY
CODE 00000
Security Code
Press the OK button. Use the Up/Down and Left/Right buttons to select a 5 digit security code
for your camera. Press the OK button to confirm the selection. Press the Right button to move
to the next option.
NOTE: Please remember your security code. If the code is lost, you can contact
Wingscapes customer
support to reset the password (charges may apply). Also, use
caution when navigating through the Security Code option as not to set a code by
mistake. For no Security Code, the setting should remain as “00000”.
To turn photo sequences into Time Lapse Video
Reasons you may want to create a video with your images:
• Makes it easier to e-mail your image sequences.
• Allows you to select the range of images you want included, to eliminate uninteresting images.
• Allows you to store the images as a video rather than a large number of images.
1. Download time lapse images to Time Lapse Software.
(see section on downloading images).

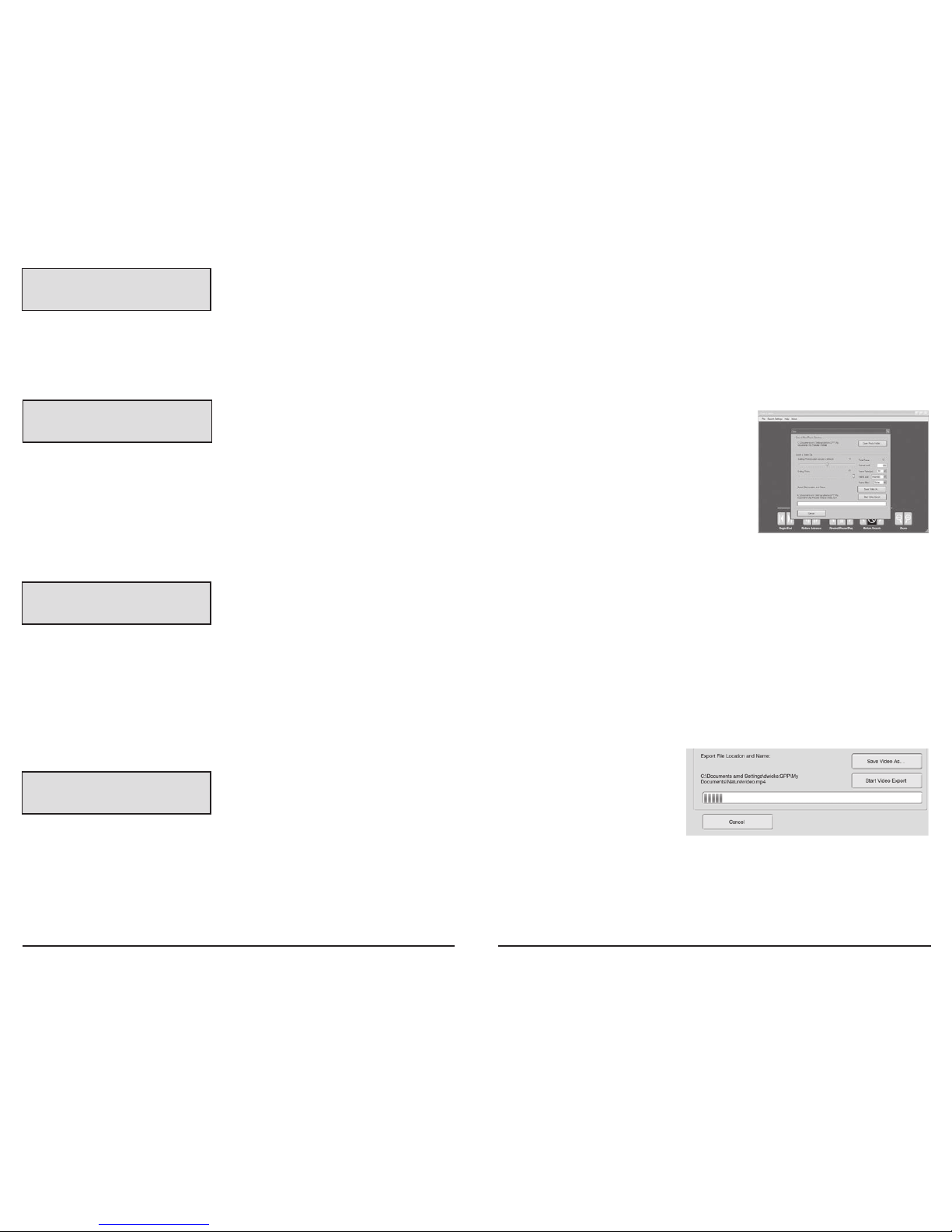

2. Click on File. You will see the screen image to the right.
3. Choose a starting image (frame) and an ending
image (frame). Note: The frame limit is 300.
4. Choose the frame rate. Options include 1, 5, 10, 20,
and 30 frames per second (fps).
Note: The frame rate says how many images of a video are displayed every second a video is
played. The higher frame rate a video has the smoother movement appears in the video. However,
a higher frame rate video will create a larger le and will require more memory.
5. Choose the video resolution:
Note: The higher the resolution, the sharper the image. However, higher resolutions create
a larger file and will require more memory. VGA (640x480) / 720p / 1080p
6. Choose frame filter: None, Low, Medium, or High.
7. Click on Save the Video As. Name the video and choose the location file folder you wish
to save it in.
8. Click Start Video Export. The program will start to convert the images to video based on the
settings chosen above. The green bars will advance until the conversion is complete.
Note: Click on Cancel to abort the transfer.
To View Time Lapse Video
1. Find the video in the folder
you saved it into.
2. Click on the video.
3. The video will be open up
automatically in QuickTime
player. To install a free version
of QuickTime, follow the on screen
instructions at www.apple.com/quicktime/download.
4. Press play to view your time lapse video.
T.L. PROGRAM #1
STOP 10AM
Setting Program Sleep
When wakeup time is set, the camera will automatically move to the Sleep option. Set the sleep time
after the wakeup time you already set. This will set the wake up and sleep during the time lapse
photography. Press the OK button. Press Right button to go to the next option.
NOTE: Repeat the above steps for each Program to be set.
T.L. PROGRAM #1
START 6AM
Setting Program Wake up
Press the OK button. Use the Up/Down buttons to choose between 24 dierent settings: any hour
from MlDNlGHT to 11 PM. This will determine what time the camera will wake up during the program
and begin its time lapse program. Press Right button to go to the next option.

Page 9
TimelapseCam User Guide
Page 12
TimelapseCam User Guide
Imprint Info?
Use the Up/Down buttons to choose between:
YES - Camera Name, Time, etc, information will be imprinted at the bottom of the image/
video as an information bar
Note: Remember to input the camera name in the setup and set the clock accordingly.
NO - No information bar will be imprinted.
Press the OK button to confirm the selection. Press the Right button to move to the next op tion.
IMPRINT INFO?
YES
CAMERA NAME
TIMELAPSECAM
Setting Camera Name
Press the OK button. Use theUp/Down and Left/Right buttons to select an identity for your
camera. For example, you can use a name or a location; the identity you wish to use is up
to you. Press the OK button to confirm the selection. Press the Right button to move to the
next option.
WI-FI SD CARD?
NO
Wi-Fi SD Card
Select option when using a Wi-Fi enabled SD card. Turning this feature on will keep the SD
port powered for a set amount of time to allow the files to transfer off the card to the Wi-Fi
network set up.Press the OK button to confirm the selection. Press the Right button to move
to the next option.
NOTE: Wingscapes does not offer technical support for Wi-Fi SD cards. Please contact your
Wi-Fi card’s manufacturer for support. Before use, you must set up your Wi-Fi SD card on
your wireless network.
NOTE: Use of a Wi-Fi SD Card will decrease the battery life of the camera.
This easy-to-use software allows you to advance through the series of images a number of dierent ways:
SEARCH REGION
Click on Set Search Region Button.
This allows you to define a specific search
area, rather than the whole photo. Drag the
red outline to the area you want to search.
This allows you to focus on a very precise area
if required.
SEARCH STEPS
This allows for even faster scans by skipping
the selected amount of images (1-50). The
higher this setting, the lower the search
results as it is ignoring selected photos. You
may find this option helpful if you have a
very large quantity of photos to scan.
Click OK.

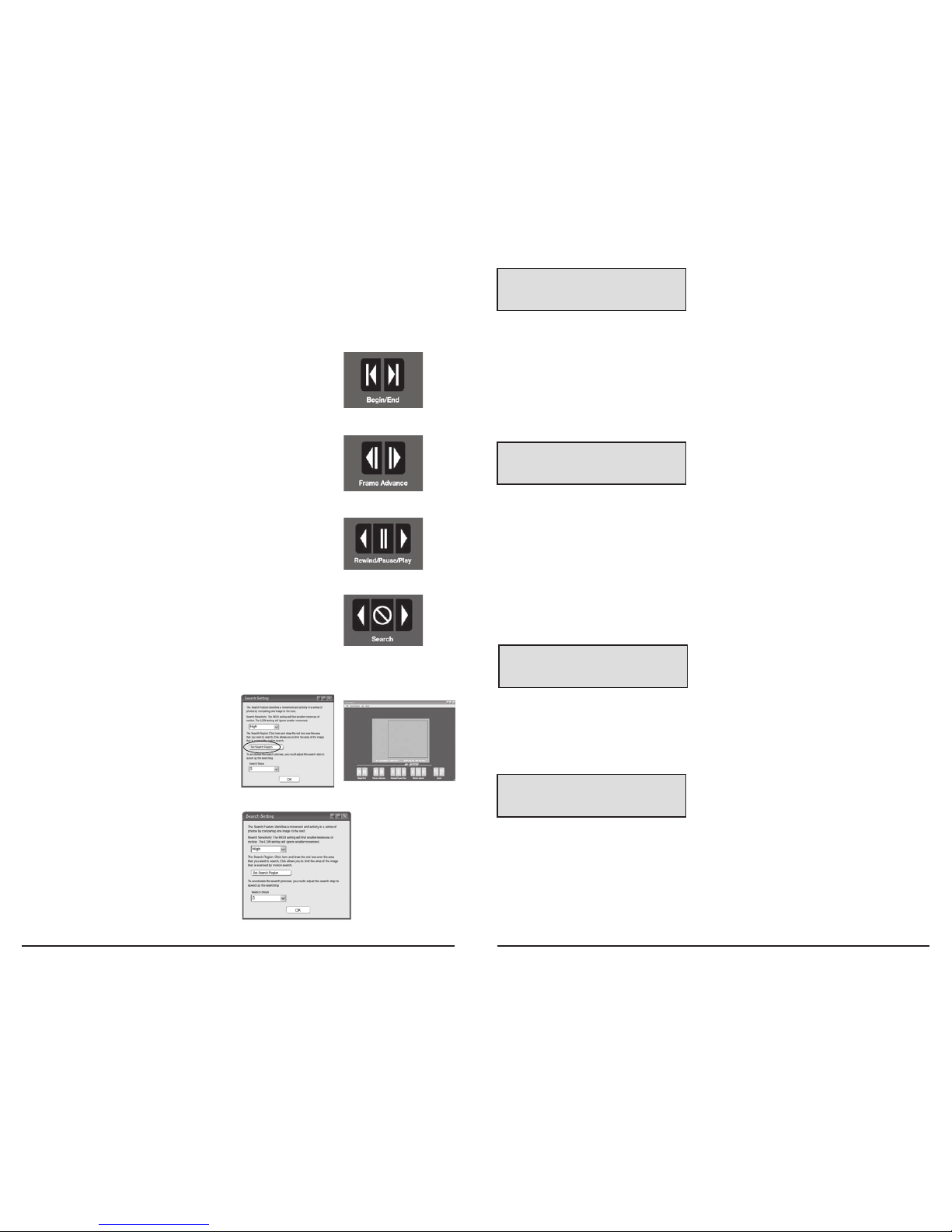

Click on Motion Search Advance button.
BEGIN/END
Goes to the rst or last photo in the Plot File.
FRAME BY FRAME SEARCH
Individually step forward or backward through each photo.
REWIND/PAUSE/PLAY
Play photos in sequence, pause, or play the photos in reverse order.
These functions simulate a video and are useful for manually searching
changes in the photos. When a sequence is being played, press
fast-forward or fast-rewind multiple times to increase speed. (1x-5x)
SEARCH
This function allows quick scanning of images foreword and back. The
scan pauses when the software detects a change in pixel content from
the last photo viewed. We detect change based on averages so it
will not be as accurate as a manual frame by frame search.
Viewing Time Lapse
AC CONNECTED?
NO
AC Connected
Press the OK button. When the camera is connected to an AC power supply and this option is
selected, the camera will remain on instead of going to a sleep state between detection and
capture sequences. This will greatly improve camera speed and performance and can be used
in conjunction with most external supplies, but is only recommended when connected to an
AC power supply. In the event this option is selected but no external supply is detected, it will
default to the NO state. Press the OK button to confirm the selection. Press the Right button
to move to the next option.

Page 11
TimelapseCam User Guide
Page 10
TimelapseCam User Guide
MANAGED MEMORY
DO NOT OVERWRITE
Managed Memory
Selecting the OVERWRITE OLDEST option will cause the oldest files to be overwritten with
new captures when the SD card reaches its capacity. With the DO NOT OVERWRITE option
selected, the camera will cease image capture once the SD card reaches capacity.
Press the
OK button to select. When your selection has been made, press the Right button to go to
the next option.
Erase Images
Press the OK button. Use the Up/Down buttons to choose between Yes - erase all images, or
No - does not change stored images. Press the OK button to select. When your selection has
been made, press the Right button to move to the next option.
NOTE: This will also format your SD card for use in your camera.
ERASE ALL IMAGES
NO
Reset to Default settings
You can reset your camera to the factory default settings. Press UP or DOWN to choose:
YES - all setups restored to factory default
NO - keep custom settings
Press the OK button again to make selection. Press the Right button to go to the Main Screen.
RESET TO FACTORY
DEFAULTS? NO
Download Images
1. Double-click on Time Lapse
Icon to open the software.
2. Click on File -> Open Photo Folder
3. Browse through your files to
the folder where the images you
wish to view are stored.
4. Once the folder is selected, click OK.
5. The images saved in the folder are
now available to view through
the Time Lapse Software.
INTRODUCTION
In time lapse photography a series
of still photos are taken at regular
time intervals. The PlotStalker
Software allows you to load the
time lapse le that was captured
from your Moultrie Game Camera
and scroll backward and forward
through your photos, single step,
search for activity in a designated
area, and save the les.
SYSTEM REQUIREMENTS
Computer: Intel® Pentium® 4 or AMD Athlon® 64 processor or above; 1GB RAM minimum;
100 MB hard disk space minimum.
Operating System: Microsoft® Windows® 32 bit - XP with Service Pack 2 or later; Windows Vista®
Home Premium, Business, Ultimate, or Enterprise with Service Pack 1;
or Windows 7
SOFTWARE INSTALLATION
Download your free Time Lapse software at www.moultriefeeders.com/timelapsesoftware
NOTE: When installing this software, you must be logged in as an Administrator.
Time Lapse Software
Setting Photo Quality
Press the OK button. Use the Up/Down buttons to choose between 4 image resolution settings.
1. Enhanced: 3264 x 2448
2. High: 2592 x 1944
3. Medium: 1600 x 1200
4. Low: 640 x 480
Press the OK button to confirm the selection. Press the Right button to move to the next op tion.
PHOTO QUALITY
HIGH (5MP)
