Winmate R19L-PM Series User manual

Please read this instructions before operating the device and retain them for future reference.
Panel Mount Display
5.7”~32”
User Manual
Version 1.4
Document Part Number: 91521110101F

2 5.7"~32" Panel Mount Display User Manual
Contents
Preface 3
About This User Manual 6
Chapter 1: Introduction 7
1.1 Overview ................................................................................................................ 8
1.2 Product Features.................................................................................................... 8
1.3 Package Contents.................................................................................................. 8
1.4 Product Overview................................................................................................... 9
1.5 Connectors ........................................................................................................... 10
1.6 OSD Control Panel............................................................................................... 10
1.6.1 Control Buttons........................................................................................... 10
1.6.2 LED Indicators............................................................................................ 11
Chapter 2: Installation 12
2.1 Wiring Requirements............................................................................................ 13
2.2 Mounting Guide.................................................................................................... 14
2.2.1 Panel Mount ............................................................................................... 14
2.2.2 VESA Mount............................................................................................... 15
2.3 Cable Mounting Considerations........................................................................... 16
2.4 Connecting Power................................................................................................ 16
2.5 Connecting Peripherals........................................................................................ 17
2.5.1 VGA Connector .......................................................................................... 17
2.5.2 HDMI Connector......................................................................................... 17
Chapter 3: Operating the Device 18
3.1 Turning on the System ......................................................................................... 19
3.2 OSD Menu Navigation ......................................................................................... 20
3.3 Troubleshooting Guide......................................................................................... 21
Appendix 22
Appendix A: Resolution Table.................................................................................... 23
Appendix B: Frequency Table.................................................................................... 23

3
Preface
Preface
Copyright Notice
No part of this document may be reproduced, copied, translated, or transmitted in any form or
by any means, electronic or mechanical, for any purpose, without the prior written permission
of the original manufacturer.
Trademark Acknowledgement
Brand and product names are trademarks or registered trademarks of their respective owners.
Disclaimer
We reserve the right to make changes, without notice, to any product, including circuits and/or
software described or contained in this manual in order to improve design and/or performance.
We assume no responsibility or liability for the use of the described product(s) conveys no
license or title under any patent, copyright, or masks work rights to these products, and make
no representations or warranties that these products are free from patent, copyright, or mask
work right infringement, unless otherwise specified. Applications that are described in this
manual are for illustration purposes only. We make no representation or guarantee that such
application will be suitable for the specified use without further testing or modification.
Warranty
Our warranty guarantees that each of its products will be free from material and workmanship
defects for a period of one year from the invoice date. If the customer discovers a defect, we
will, at his/her option, repair or replace the defective product at no charge to the customer,
provide it is returned during the warranty period of one year, with transportation charges
prepaid. The returned product must be properly packaged in its original packaging to obtain
warranty service. If the serial number and the product shipping data differ by over 30 days, the
in-warranty service will be made according to the shipping date. In the serial numbers the third
and fourth two digits give the year of manufacture, and the fifth digit means the month (e. g.,
with A for October, B for November and C for December).
For example, the serial number 1W16Axxxxxxxx means October of year 2016.
Customer Service
We provide a service guide for any problem by the following steps: First, visit the website of
our distributor to find the update information about the product. Second, contact with your
distributor, sales representative, or our customer service center for technical support if you
need additional assistance.
You may need the following information ready before you call:
Product serial number
Software (OS, version, application software, etc.)
Description of complete problem
The exact wording of any error messages
In addition, free technical support is available from our engineers every business day. We are
always ready to give advice on application requirements or specific information on the
installation and operation of any of our products.

4 5.7"~32" Panel Mount Display User Manual
Naming Rule
R19LXXX-PMXX, R19LXXX-PMXXHB
Item Description
R Panel Type
19 Panel Size
LXXX Product Size
PM Mechanical Type (Panel Mount)
XX Panel Model
HB High Brightness
Advisory Conventions
Four types of advisories are used throughout the user manual to provide helpful information or
to alert you to the potential for hardware damage or personal injury. These are Notes,
Important, Cautions, and Warnings. The following is an example of each type of advisory.
Note:
A note is used to emphasize helpful information
Important:
An important note indicates information that is important for you to know.
Caution A Caution alert indicates potential damage to hardware and
explains how to avoid the potential problem.
Attention Unealerted’ attention indique un dommage possible à
l’équipement et explique comment éviter le problem potentiel.
W
arning! An Electrical Shock Warning indicates the potential harm from
electrical hazards and how to avoid the potential problem.
Avertissement! Un Avertissement de Choc Électriqueindique le potentiel
de chocssur des emplacements électriques et comment éviterces problèmes.
Earth Ground The Protective Conductor Terminal (Earth Ground) symbol
indicates the potential risk of serious electrical shock due to improper
grounding.
Mise à la Terre Le symbole de Miseà Terre indique le risqué potential de
choc électrique grave à la terre incorrecte.

5
Preface
Safety Information
Warning! Always completely disconnect the power cord from your chassis
whenever you work with the hardware. Do not make connections while the
power is on. Sensitive electronic components can be damaged by sudden
power surges. Only experienced electronics personnel should open the PC
chassis.
Avertissement! Toujours débrancher le cordon d’alimentation du chassis
lorsque vous travaillez sur celui-ci. Ne pas brancher de connections lorsque
l’alimentation est présente. Des composantes électroniques sensibles
peuvent être endommagées par des sauts d’alimentation. Seulement du
personnel expérimenté devrait ouvrir ces chassis.
Caution Always ground yourself to remove any static charge before
touching the CPU card. Modern electronic devices are very sensitive to static
electric charges. As a safety precaution, use a grounding wrist strap at all
times. Place all electronic components in a static-dissipative surface or static-
shielded bag when they are not in the chassis.
Attention T oujours verifier votre mise à la terre afin d’éliminer toute
charge statique avant de toucher la carte CPU. Les équipements
électroniques moderns sont très sensibles aux décharges d’électricité
statique. Toujours utiliser un bracelet de mise à la terre comme précaution.
Placer toutes les composantes électroniques sur une surface conçue pour
dissiper les charge, ou dans un sac anti-statique lorsqu’elles ne sont pas
dans le chassis.
Safety Precautions
For your safety carefully read all the safety instructions before using the device. Keep
this user manual for future reference.
Always disconnect this equipment from any AC outlet before cleaning. Do not use
liquid or spray detergents for cleaning. Use a damp cloth.
For pluggable equipment, the power outlet must be installed near the equipment
and must be easily accessible.
Keep this equipment away from humidity.
Put this equipment on a reliable surface during installation. Dropping it or letting it
fall could cause damage.
The openings on the enclosure are for air convection and to protect the equipment
from overheating.
Before connecting the equipment to the power outlet make sure the voltage of the
power source is correct.
Position the power cord so that people cannot step on it. Do not place anything over
the power cord.
If the equipment is not used for a long time, disconnect it from the power source to
avoid damage by transient over-voltage.
Never pour any liquid into an opening. This could cause fire or electrical shock.
Never open the equipment. For safety reasons, only qualified service personnel
should open the equipment.
All cautions and warnings on the equipment should be noted.
Always ground yourself to remove any static charge before touching the board.

6 5.7"~32" Panel Mount Display User Manual
About This User Manual
This User Manual provides information about using the Winmate® Panel Mount Display. The
documentation set provides information for specific user needs, and includes:
Panel Mount Display User Manual – contains detailed description on how to use the
display, its components and features.
Note:
Some pictures in this guide are samples and can differ from actual product.
Document Revision History
Version Date Note
1.0 25-Aug-2017 New document release.
1.1 22-Nov-2018 Add 24-inch display.
1.2 2-Feb-2019 Revise format.
1.3 1-Sep-2020 Standard video input change to
1 x VGA (D-sub 15), 1 x HDMI (Type-A).
1.4 11-Sep-2020 Revise resolution table, frequency table.

7
Chapter 1: Introduction






Chapter 1: Introduction
This chapter gives you product overview, describes features and
hardware specification. You will find all accessories that come
with the display device in the packing list. Mechanical dimensions
and drawings included in this chapter.

8 5.7"~32" Panel Mount Display User Manual
1.1 Overview
Congratulations on purchasing Winmate® Panel Mount Display. Versatile display designed for
panel mount and VESA mount with integrated bracket design for industrial applications.
1.2 Product Features
Winmate® Panel Mount Display features:
5.7-32” TFT LCD
Standard 1 x VGA (D-sub 15), 1 x HDMI (Type-A)
Panel mount housing, supports VESA mount
Sleek and flush mounts
Suitable for industrial applications
1.3 Package Contents
Carefully remove the box and unpack your display. Please check if all the items listed below
are inside your package. If any of these items are missing or damaged contact us immediately.

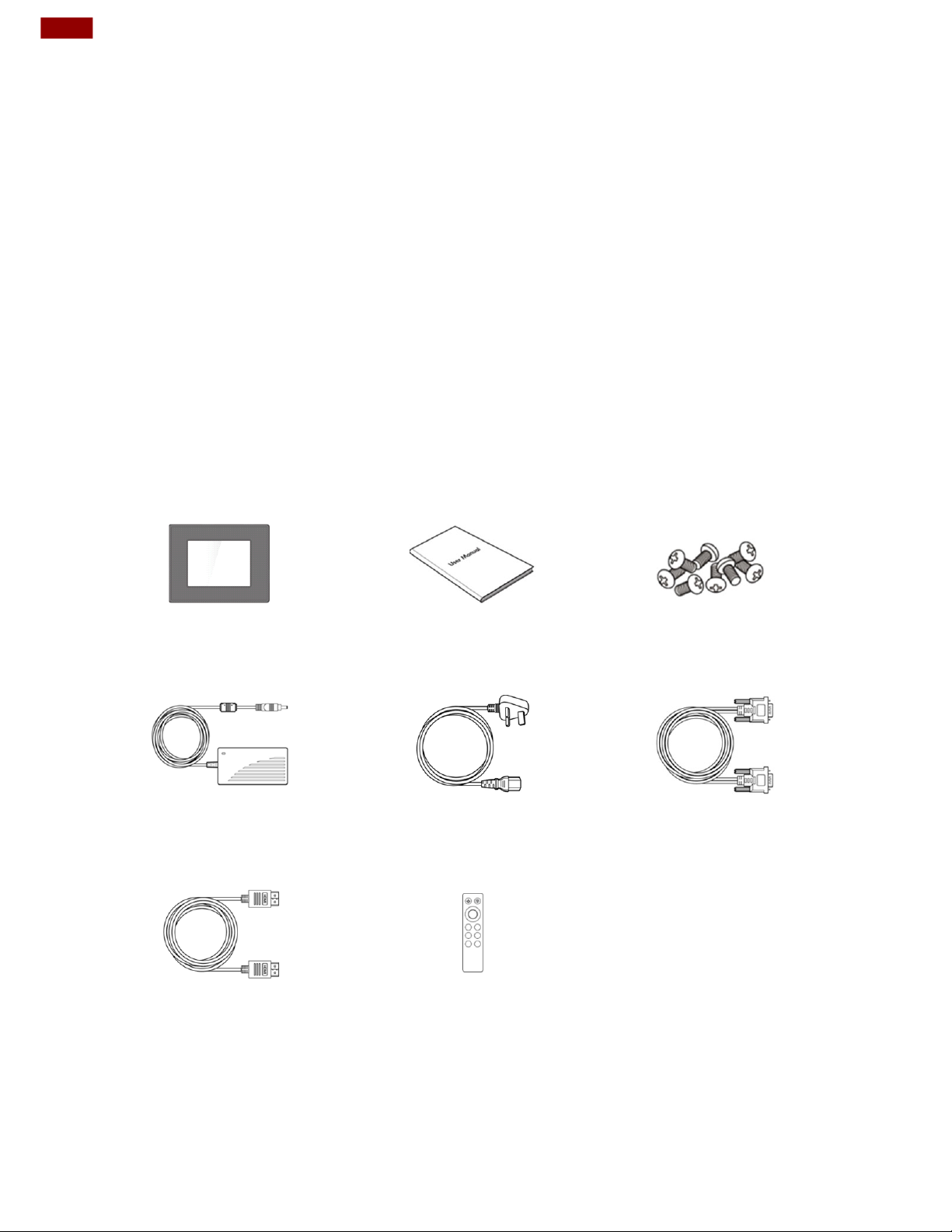

Standard factory shipment list:
Display User Manual (Hardcopy) Black screw bolts**
Varies by product Part No. 91521110101F Varies by product
110~240V AC Power
Adapter Power Cord VGA Cable
Varies by product Varies by country Part No. 9441151150P4
HDMI Cable Remote Control
(Optional)
Part No.94E0190190P3 Part No. 9B0000000418
**Notice: Screw bolts provided by Winmate only to be used to screw the display onto a console
from the rear side. If you prefer your own bolts, please make sure to use M4 and 30mm in
length.

9
Chapter 1: Introduction

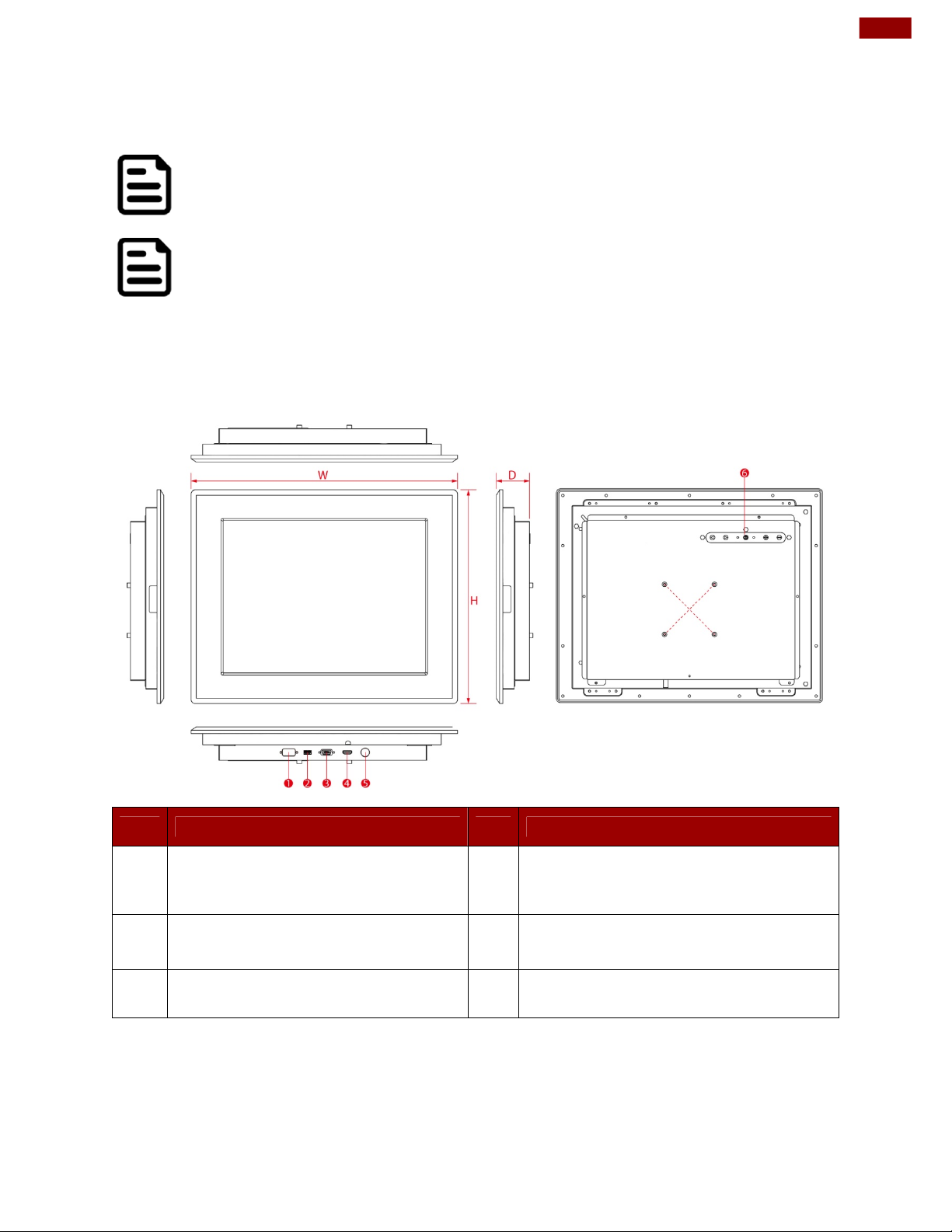

1.4 Product Overview
This section describes physical appearance of the Panel Mount Display.
Note:
Notice that standard input terminals include VGA and HDMI. Your device may
be equipped with other input terminals based on your order.
Note:
Notice that input and output connectors vary by product size and specifications.
The picture above shows only a prototype model for information purposes only.
The location of OSD panel may vary by model. Refer to a product datasheet for
more details.
№Description №Description
①*RS232 (Remote control)(Optional) ④HDMI
②*RS232/USB (for Touch) (Optional) ⑤DC-in
③VGA ⑥OSD Control Panel*

10 5.7"~32" Panel Mount Display User Manual

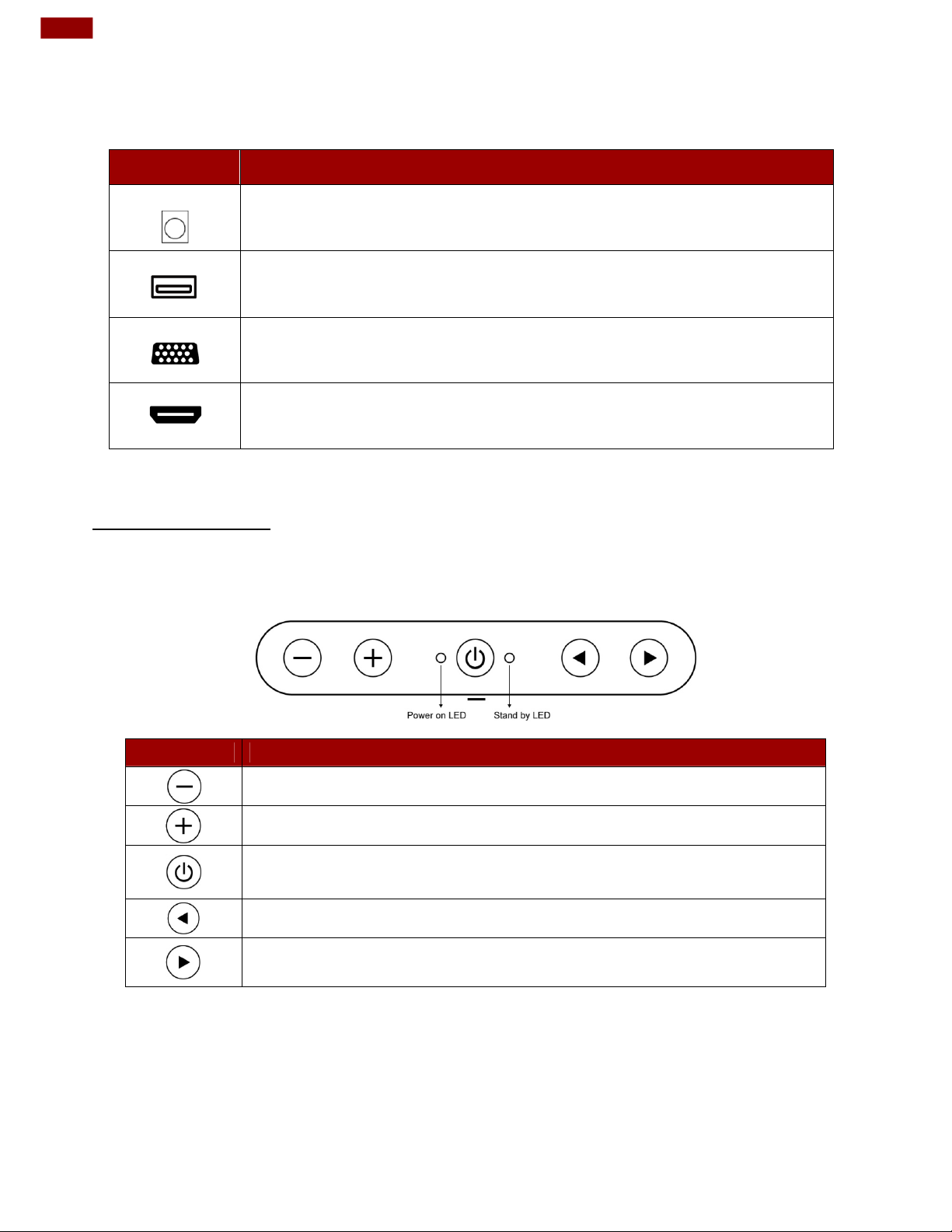

1.5 Connectors
Display input and output connectors are located on the bottom side.
Item Description

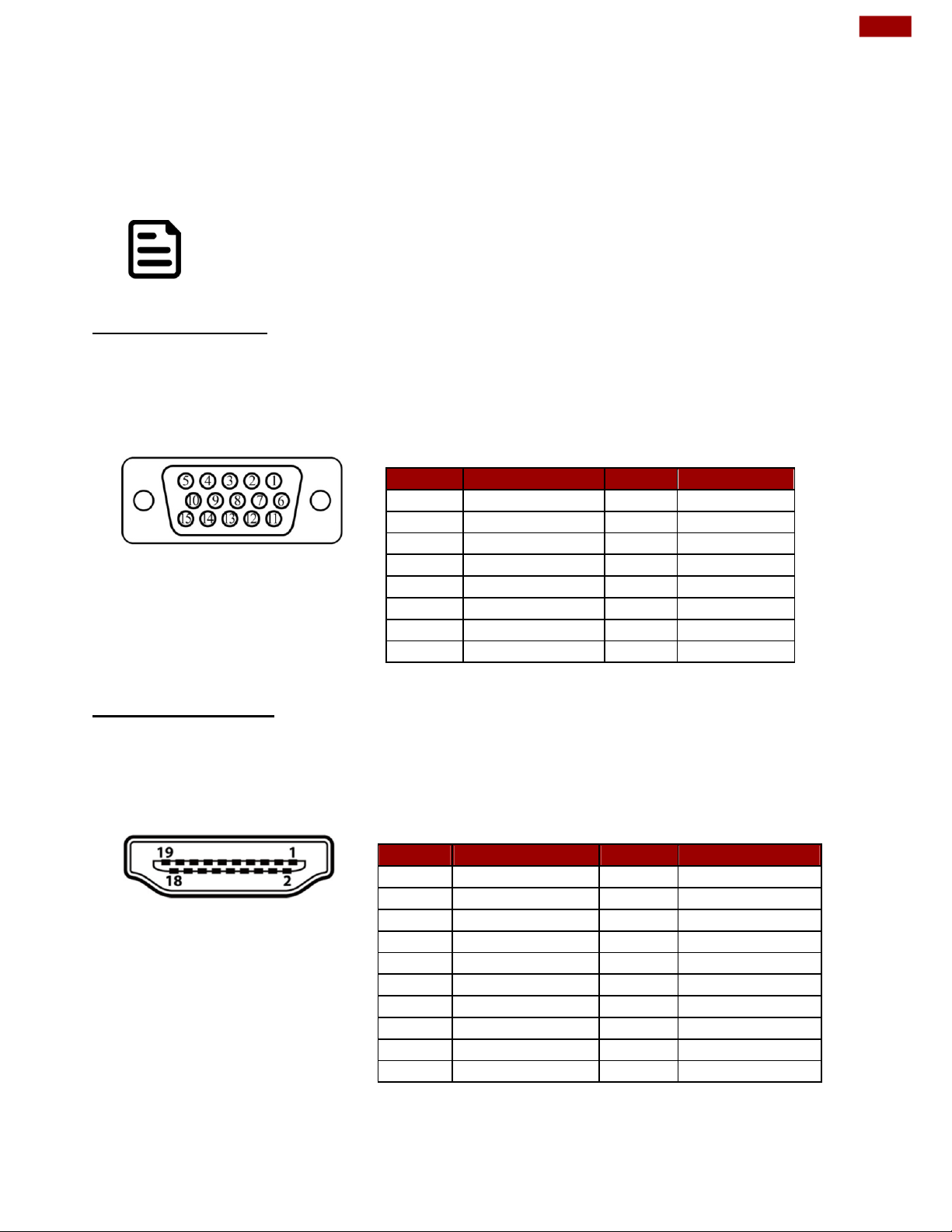

Power Jack – Connects computer to source of power.
USB for Touch - Connects USB for touch capabilities.
VGA (RGB) –Transmits video from a PC to a monitor.
Example: A notebook PC to a monitor.
HDMI –Transmits and protects copyrighted digital video and audio.
Example: An HD tuner to an HD ready TV.
1.6 OSD Control Panel
1.6.1 Control Buttons
OSD control panel varies by product specifications. Refer to a product datasheet to check the
OSD control panel type of a particular model.
Type A
Icon Function
Decrease the value / Select up
Increase the value / Select down
Power switch
Select left
Select right / Call main OSD menu

11
Chapter 1: Introduction
Type B
Icon Function
Decrease the value / Select up
Increase the value / Select down
Power switch
Exit / Auto adjustment
Enter / Call main OSD menu
1.6.2 LED Indicators
LED indicators are located on the OSD control panel the rear side of the display.
Icon Description Function
Power Lights up in "Green" when the monitor turn on
Stand by Lights up in "Orange" when the device cannot detect any
input source

12 5.7"~32" Panel Mount Display User Manual






Chapter 2: Installation
This chapter provides hardware installation instructions and
mounting guide for all available mounting options. Pay attention
to cautions and warning to avoid any damages

13
Chapter 2: Installation
2.1 Wiring Requirements
The following common safety precautions should be observed before installing any electronic
device:
Strive to use separate, non-intersecting paths to route power and networking wires. If
power wiring and device wiring paths must cross make sure the wires are perpendicular
at the intersection point.
Keep the wires separated according to interface. The rule of thumb is that wiring that
shares similar electrical characteristics may be bundled together.
Do not bundle input wiring with output wiring. Keep them separate.
When necessary, it is strongly advised that you label wiring to all devices in the system.
Caution/ Attention
Do not run signal or communication wiring and power wiring in the same conduit. To
avoid interference, wires with different signal characteristics (i.e., different interfaces)
should be routed separately.
Be sure to disconnect the power cord before installing and/or wiring your device.
Verify the maximum possible current for each wire gauge, especially for the power
cords. Observe all electrical codes dictating the maximum current allowable for each
wire gauge.
If the current goes above the maximum ratings, the wiring could overheat, causing
serious damage to your equipment.
Be careful when handling the unit. When the unit is plugged in, the internal components
generate a lot of heat which may leave the outer casing too hot to touch.

14 5.7"~32" Panel Mount Display User Manual
2.2 Mounting Guide
The Panel Mount Display can be applied for several different installation methods, including
panel mount, VESA mount. Refer to sub-sections below for more details.
Caution Follow mounting instructions and use recommended mounting
hardware to avoid the risk of injury.
Attention Suivez les instructions de montage et d'utilisation
recommandé le matériel de montage pour éviter le risque de blessure.
2.2.1 Panel Mount
The Panel Mount Display comes with clamp mounts that enable you to install the unit onto a
wall (where space has been cut out to accommodate the rest of the hardware).
Installation Instruction

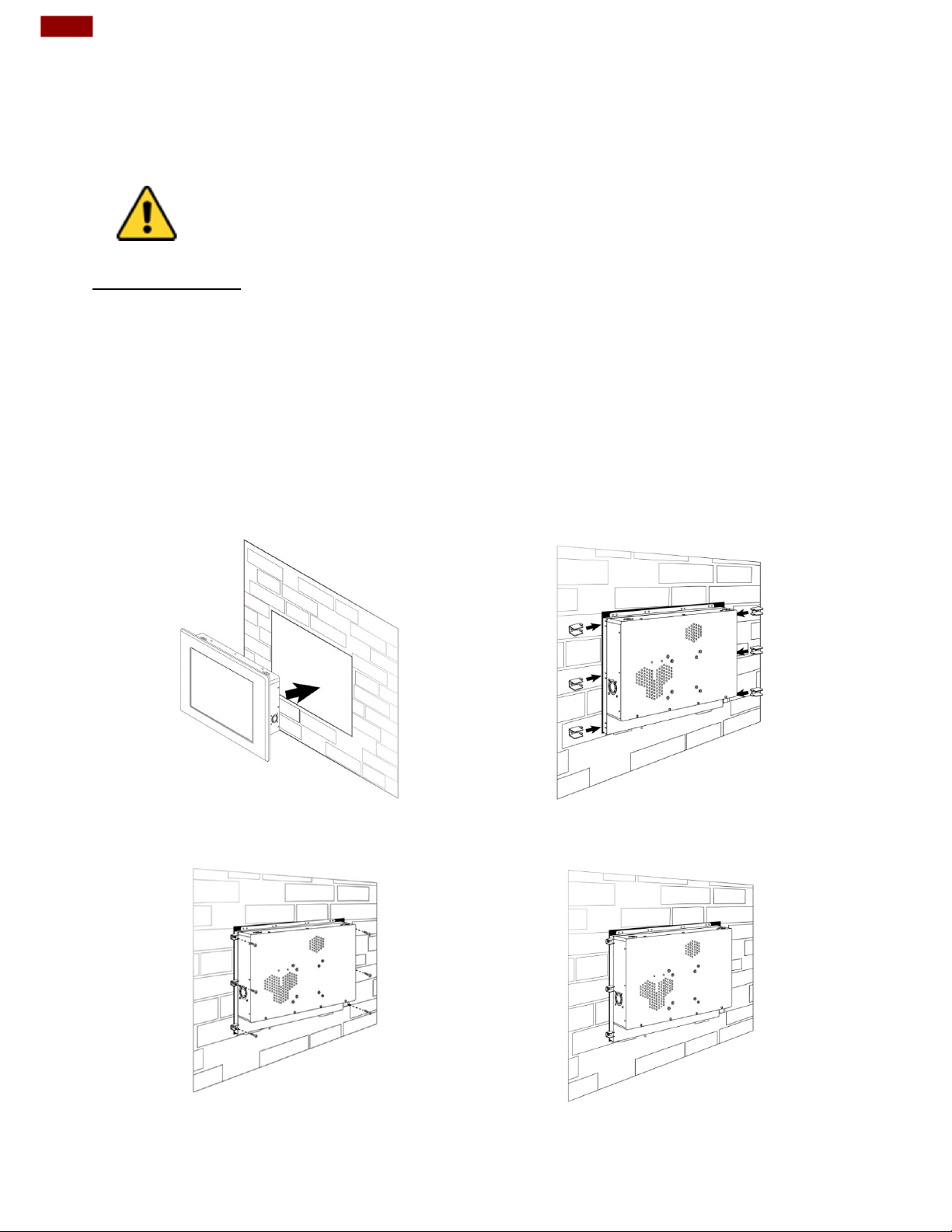

1. Make a cutout on the fixture (ex. wall) according to the cutout dimensions of the display.
Based on the drawing, mark screw holes on a front side of the fixture. Place display on
the fixture from the rear side.
2. Install mounting clamps to its location all around the perimeter of the display.
3. Use electric screwdriver to fasten M3 screws from the front side.
4. You complete the installation. Please connect all the peripherals if needed.
❶ ❷
❸ ❹

15
Chapter 2: Installation
2.2.2 VESA Mount
Panel Mount Display comes with VESA Mount holes for mounting.
Installation Instruction:

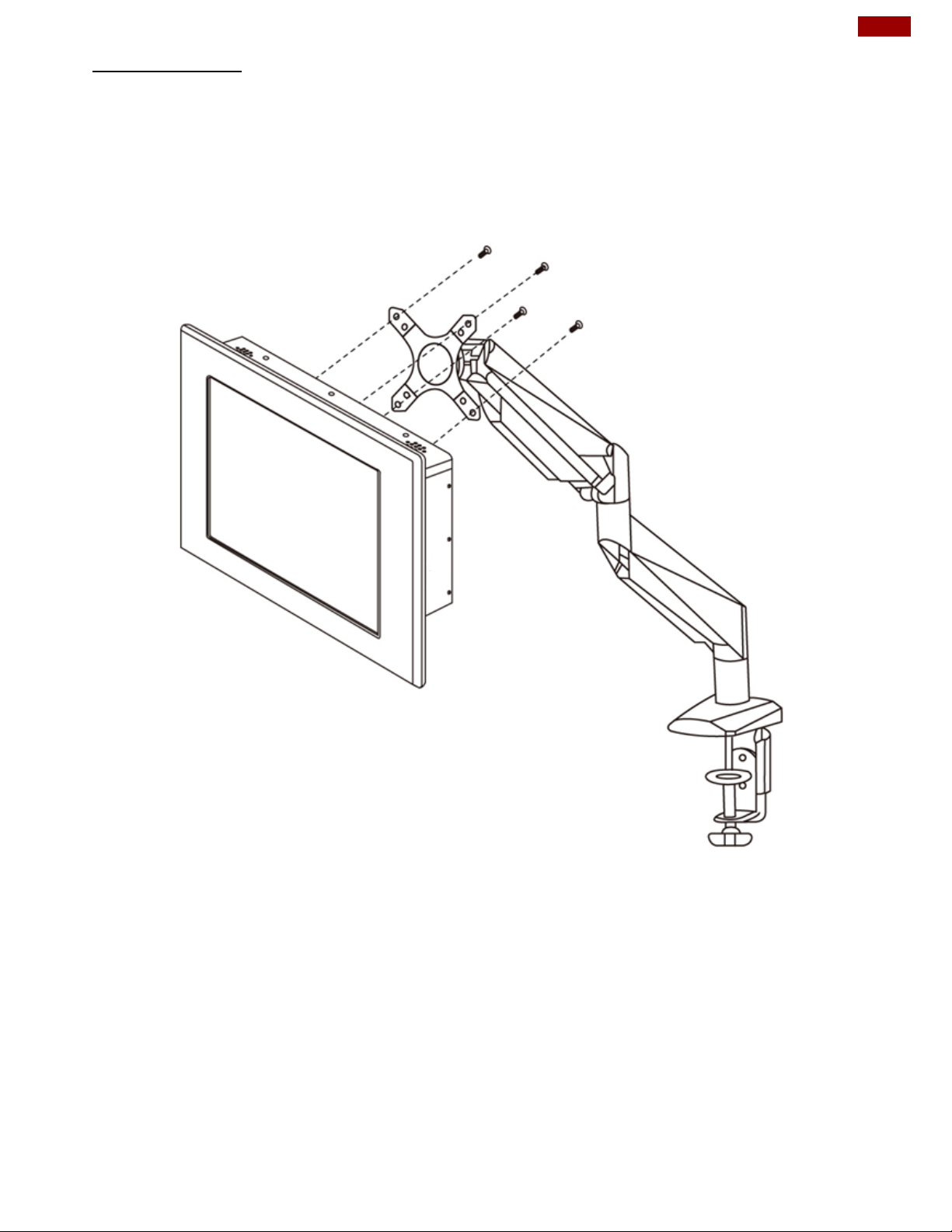

1. Screw VESA bracket to the fixture (ex. swing arm) with four VESA screws.
2. Place the device on VESA bracket.
Notice that VESA stand and mounting kit are not provided by Winmate.

16 5.7"~32" Panel Mount Display User Manual
2.3 Cable Mounting Considerations
For a nice look and safe installation, make sure cables are neatly hidden behind the device.
Caution Observe all local installation requirements for connection cable
type and protection level.
Attention Suivre tous les règlements locaux d’installations, de câblage et
niveaux de protection.
Caution Turn off the device and disconnect other peripherals before
installation.
Attention Éteindre l’appareil et débrancher tous les périphériques avant
l’installation.
2.4 Connecting Power
This section provides information on how to use connectors on the Panel Mount Display. Be
cautious while working with these modules. Please carefully read the content of this chapter in
order to avoid any damages.
Installation instruction:
1. Connect the AC cord to the AC IN terminal on the AC adaptor.
2. Connect the DC OUT terminal of the AC adaptor to the DC IN terminal on the monitor.
3. Align the notch on the cord connector with the guiding groove and plug it in.
4. Connect the AC cord plug to the power outlet.

17
Chapter 2: Installation
2.5 Connecting Peripherals
The panel control port is designed for monitors that work with a variety of compatible video
sources. Due to the possible deviations between these signal sources, you may have to make
adjustments to the monitor settings from the OSD menu when switching between these
sources.
Note:
Notice that standard input terminals include VGA and HDMI. Your device
may be equipped with other input terminals based on your order.
2.5.1 VGA Connector
Panel Mount Display uses standard 15pin D-sub connector. Plug 15-pin VGA signal cable to
the VGA connector in the rear of motherboard, and plug the other end to the monitor. Secure
cable connectors with hexagonal copper pillars M3x4mm.
Pin assignment and signal names for VGA connector
2.5.2 HDMI Connector
Plug HDMI signal cable to the HDMI connector on the rear side of PC system, and plug the other
end to the monitor.
Pin assignment and signal names for HDMI connector

Pin №Signal Name Pin №Signal Name
1 RED 2 GREEN
3 BLUE 4 NC
5 GND 6 AGND
7 AGND 8 AGND
9 VGA_5V 10 GND
11 NC 12 DDCSDA
13 H Sync 14 V Sync
15 DDCSCL
Pin №Signal Name Pin №Signal Name
1 HDMI_RX2+ 2 GND
3 HDMI_RX2- 4 HDMI_RX1+
5 GND 6 HDMI_RX1-
7 HDMI_RX0+ 8 GND
9 HDMI_RX0- 10 HDMI_RXC+
11 GND 12 HDMI_RXC-
13 HDMI_CON_CEC 14 NC
15 HDMI_CON_SCL 16 HDMI_CON_SDA
17 GND 18 +5V_HDMI
19 HDMI_CON_HP

18 5.7"~32" Panel Mount Display User Manual






Chapter 3: Operating the Device
In this chapter you will find instructions on how to operate the
display.

19
Chapter 3: Operating the Device
3.1 Turning on the System
To turn on the system:
1. Connect the power adapter cable to the DC IN of the display.
2. Connect the power cord to the power adapter.
3. Connect the power cord to a power outlet.
4. Press the power button located on the OSD control panel on the rear to turn on the system.

20 5.7"~32" Panel Mount Display User Manual
3.2 OSD Menu Navigation
OSD Icon Sub-menu Settings Note
BRICONTRAST
BRIGHTNESS slider bar Default 50
Use to adjust the screen’s brightness. Range 0 to 100
CONTRAST slider bar Default 50
Use to adjust the screen’s contrast. Range 0 to 100
POSITION
H POSITION slider bar Default 50
Use to adjust the image to the left or right on the screen.
Range 0 to 100
V POSITION slider bar Default 50
Use to adjust the image up or down on the screen. Range 0 to 100
AUTO Select and execute
Use to choose the best settings for the current input signal
CLOCK slider bar Default 50
Use to adjust the value of horizontal image. Range 0 to 100
PAHSE slider bar Default 50
Use to adjust the phase control (Phase adjustment may be required to
optimize the display quality)
WHITE BALANCE Select and execute
Use to set RGB signal voltage level
COLOR
USER R.G.B slider bar
Choose RED/GREEN/BLUE to set value of color temperature brightness to
suit your own preference
9300K Select and execute
Use to set value of monitor for the CIE coordinate 9300 color temperature
6500K Select and execute
Use to set value of monitor for the CIE coordinate 6500 color temperature
ADC RIGHTNESS slider bar Default 50
Set value of monitor for ADC Brightness. Range 0 to 100
GAMMA
GAMMA 0 Select and execute Default
GAMMA0
Choose the parameter of GAMMA 0 as default setting.
GAMMA 1 Select and execute
Choose the parameter of GAMMA 1 as default setting.
GAMMA 2 Select and execute
Choose the parameter of GAMMA 2 as default setting.
OP
OPTION
VR Brightness ON/OFF Default OFF
Choose the brightness control mode by VR control
Volume slider bar Default 10
Use to set value of Volume
Speaker ON/OFF Default OFF
Use to set value of Volume Speaker
