Winmate IA30 User manual

3.5” Fanless SBC w/IntelAtom N270
1.6GHz Processor,, VGA, LVDS,
Dual Giga Ethernet, and Mini-PCI
Interface.
USER MANUAL Version 1.0
IA30 Motherboard

FCC Statement
This device complies with part 15 FCC rules. Operation is subject to
the following two conditions：
zThis device may not cause harmful interference.
zThis device must accept any interference received including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a class "a"
digital device, pursuant to part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at him
own expense.
IA30 Motherboard User Manual
II

Copyright Notice
No part of this document may be reproduced, copied, translated, or transmitted in any
form or by any means, electronic or mechanical, for any purpose, without the prior
written permission of the original manufacturer.
Trademark Acknowledgement
Brand and product names are trademarks or registered trademarks of their respective
owners.
Disclaimer
We reserve the right to make changes, without notice, to any product, including
circuits and/or software described or contained in this manual in order to improve
design and/or performance. We assume no responsibility or liability for the use of the
described product(s), conveys no license or title under any patent, copyright, or masks
work rights to these products, and makes no representations or warranties that these
products are free from patent, copyright, or mask work right infringement, unless
otherwise specified. Applications that are described in this manual are for illustration
purposes only. Winmate Communication Inc. makes no representation or warranty
that such application will be suitable for the specified use without further testing or
modification.
Warranty
We warrant that each of its products will be free from material and workmanship
defects for a period of one year from the invoice date. If the customer discovers a
defect, We will, at its option, repair or replace the defective product at no charge to
the customer, provided it is returned during the warranty period of one year, with
transportation charges prepaid. The returned product must be properly packaged in its
original packaging to obtain warranty service.
If the serial number and the product shipping data differ by over 30 days, the
in-warranty service will be made according to the shipping date. In the serial numbers
the third and fourth two digits give the year of manufacture, and the fifth digit means
the month (e. g., with A for October, B for November and C for December).
For example, the serial number 1W07Axxxxxxxx means October of year 2007.
IA30 Motherboard User Manual
III

Packing List
Before using this Motherboard, please make sure that all the items listed below are
present in your package：
¾IA30 Motherboard
¾User Manual
¾HDD IDE Cable
¾User’s Manual & Driver CD
¾RS232 Cable
If any of these items are missing or damaged, contact your distributor or sales
representative immediately.
Customer Service
We provide service guide for any problem as follow steps：The first, contact with
your distributor, sales representative, or our customer service center for technical
support if you need additional assistance. You may have the following information
ready before you call：
¾Product serial number
¾Peripheral attachments
¾Software (OS, version, application software, etc.)
¾Description of complete problem
¾The exact wording of any error messages
In addition, free technical support is available from our engineers every business day.
We are always ready to give advice on application requirements or specific
information on the installation and operation of any of our products. Please do not
hesitate to call or e-mail us.
IA30 Motherboard User Manual
IV

7Safety Precautions
Warning!
Always completely disconnect the power cord from your chassis
whenever you work with the hardware. Do not make connections
while the power is on. Sensitive electronic components can be
damaged by sudden power surges. Only experienced electronic
personnel should open the PC chassis.
Caution!
Always ground yourself to remove any static charge before
touching the CPU card. Modern electronic devices are very
sensitive to static electric charges. As a safety precaution, use a
grounding wrist strap at all times. Place all electronic components
in a static-dissipative surface or static-shielded bag when they are
not in the chassis.
IA30 Motherboard User Manual
V

Safety and Warranty
1. Please read these safety instructions carefully.
2. Please keep this user's manual for later reference.
3. Please disconnect this equipment from any AC outlet before cleaning. Do not use
liquid or spray detergents for cleaning. Use a damp cloth.
4. For pluggable equipment, the power outlet must be installed near the equipment
and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation. Dropping it or letting
it fall could cause damage.
7. The openings on the enclosure are for air convection. Protect the equipment from
overheating. DO NOT COVER THE OPENINGS.
8. Make sure the voltage of the power source is correct before connecting the
equipment to the power outlet.
9. Position the power cord so that people cannot step on it. Do not place anything
over the power cord.
10. All cautions and warnings on the equipment should be noted.
11. If the equipment is not used for a long time, disconnect it from the power source
to avoid damage by transient over-voltage.
12. Never pour any liquid into an opening. This could cause fire or electrical shock.
13. Never open the equipment. For safety reasons, only qualified service personnel
should open the equipment.
14. If any of the following situations arises, get the equipment checked by service
personnel:
A. The power cord or plug is damaged.
B. Liquid has penetrated into the equipment.
C. The equipment has been exposed to moisture.
D. The equipment does not work well, or you cannot get it to work according to
the user’s manual.
E. The equipment has been dropped and damaged.
F. The equipment has obvious signs of breakage.
15. Do not leave this equipment in an uncontrolled environment where the storage
temperature is below -20° C (-4°F) or above 60° C (140° F). It may damage the
equipment.
IA30 Motherboard User Manual
VI

Revision History
Version Date Note Author
1.0 2009.01.15 Initial Draft Randy Chang
IA30 Motherboard User Manual
VII

Contents
CHAPTER 1 GENERAL INFORMATION.....................................2
1.1 INTRODUCTION............................................................................ 2
1.2 FEATURE ..................................................................................... 2
1.3 MOTHERBOARD SPECIFICATIONS.................................................. 3
1.4 FUNCTION BLOCK ....................................................................... 4
1.5 BOARD DIMENSIONS .................................................................... 5
CHAPTER 2 INSTALLATIONS ......................................................7
2.1 MEMORY MODULE（SO-DIMM）INSTALLATION........................ 7
2.2 I/O EQUIPMENT INSTALLATION .................................................... 8
2.3 JUMPERSAND CONNECTORS....................................................... 10
2.4 JUMPER SETTING ....................................................................... 12
2.5 CONNECTORSAND PIN ASSIGNMENT.......................................... 14
CHAPTER 3 GRAPHIC DRIVER INSTALLATION...................22
3.1 STANDARD CMOS FEATURE............................................................ 22
3.2 PANEL RESOLUTION SETTING......................................................... 26
CHAPTER 4 CHIPSET DRIVER INSTALLATION ....................29
4.1 STANDARD CMOS FEATURES........................................................ 29
CHAPTER 5 ETHERNET DRIVER INSTALLATION.................34
5.1 INTRODUCTION ............................................................................. 34
5.2 INSTALLATION OF ETHERNET DRIVER......................................... 35
CHAPTER 6 AUDIO DRIVER INSTALLATION ........................39
6.1 INTRODUCTION ............................................................................. 39
6.2 INSTALLATION OF AUDIO DRIVER............................................... 39
CHAPTER 7 AMI BIOS SETUP....................................................42
7.1 STARTING SETUP ....................................................................... 42
7.2 SYSTEM OVERVIEW ................................................................... 43
7.3 ADVANCED SETTING ..................................................................... 44
NOTE1: DIGITAL I/O SAMPLE CODE...........................................76
IA30 Motherboard User Manual
VIII

General Information
C H AP T E R
1
This chapter includes the IA30 Motherboard background
information.
Sections include:
zIntroduction
zFeature
zMotherboard Specification
zFunction Block
zBoard Dimensions
IA30 Motherboard User Manual
1

Chapter 1 General Information
1.1 Introduction
The IA30 SBC is integrated with Intel 945GSE North Bridge and Intel
ICH7M South Bridge. IA30 is designed for use with Intel’s mobile Intel®
Atom Processor. Comparing to previous 855GME chipset, Intel Atom
Processor with 45nm low power design enables down to 50% less average
power consumption and the chipset delivers up to 4x improvement in
graphics performance and enables up to 50% higher data transfer bus
speed rate.
In peripheral connectivity, IA30 SBC features with Mini-PCI I/O ports,
two Serial ATA connectors, and Four Hi-Speed USB 2.0 connectors.
Additionally, IA30 SBC build-in a 12V DC-IN power adapter.
Thus, the IA30 SBC is designed to satisfy most of the applications in the
industrial computer market, such as Gaming, POS, KIOSK, Industrial
Automation, and Programmable Control System. It is a compact design to
meet the demanding performance requirements of today’s business and
industrial applications.
1.2 Feature
¾3.5-inch Form Factor ( 146mm x 101mm)
¾Supports Intel® Atom N270 1.6GHz processors
¾System memory up to 2GB SO-DIMM 400/533, 1 x SO-DIMM
¾Integrated Intel 945GSE + ICH7M Chipset
¾Intel® GMA950 Integrated Graphics Engine.
¾Dual Gigabit Ethernet
¾1 x Mini PCI, 2 X COM, 4 x USB2.0, 2 x SATA, 8 x GPIO ports, 1 x
PATAand CF Card Type I/II
IA30 Motherboard User Manual
2

1.3 Motherboard Specifications
CPU Type Intel Atom N270 1.6GHz Processor
CPU Speed 1.6GHz
CPU FSB 533MHz
Chipset Intel 945GSE / ICH7M
BIOS AMI 4M Flash
VGA Intel® GMA950 Integrated Graphics Engine
Up to 224MB shared with system memory
LVDS Intel® GMA950 Integrated Graphics Engine built-in, single-
or dual-channel panel support up to UXGA panel
resolution.
LAN 2 x Giga LAN ( Realtek RTL8111B + Realtek RTL8111B
Giga LAN Controller )
Memory Type 1 x SO-DIMM socket, supports up to 2GB SO-DIMM
400/533 SDRAM
LPC I/O Winbond W83627EHG integrated hardware monitoring
Keyboard/Mouse 1 x PS/2 Keyboard/Mouse connectors
IDE Interface One channels; supports Ultra DMA 33/66/100
Sound Realtek ALC655 5.1 channel (Line-out, Line-in & Mic in)
USB 4 ports, USB 2.0 (2 x USB Connector, 2 x USB
pin-header )
Edge Connectors
1 x DC-IN Jack
1 x PS/2 connector for keyboard/mouse
1 x VGA out connector
2 x Gigabit LAN RJ-45
1 x Dual USB stack connector
On Board
Pin-Header
Connectors
1 x 44 pins box-header
2 x SATA connector for SATAI/II 3.0 Gb/s
1 x 10pins pin-header for Front Panel(2x5)
1 x 8pins pin-header for 5V/12V external power
1 x 3pins pin-header for CPU Fan
1 x 3pins pin-header for NB Fan
1 x 2pins pin-header for 5V external power
1 x 2pins pin-header for 12V external power
1 x 10pins pin-header for Front Audio(2x5)
1 x 8pins pin-header for USB 3/4(2X4)
1 x 10pins Digital I/O(2x5)
2 x 10pins pin-header for COM 1(RS232) (2X5)
1 x 5pins pin-header for COM1 (RS422/485)
1 x 4pins ATX 12V connector
1 x 40pins DF13 Connector for LVDS
1 x 3pins digital panel backlight brightness controller
1 x 7pins digital panel inverter
Power Connector Input: 4-pin ATX 12V Power input
Expansion Slots 1 x Mini-PCI, 1 x CF Card Type I/II
Form Factor 3.5 inch
Dimensions 146mm x 101mm
Mechanical &
environmental
Operating temperature: 0 deg. C to 60 deg. C
Operating Humidity: 10 ~ 90% Relative humidity,
non-condensing
Shock: Operating 15G, 11ms duration
Vibration: Operating 5 Hz~500Hz / 1Grms / 3 Axis
Certification: CE, FCC, RoHS
IA30 Motherboard User Manual
3

1.4 Function Block
Intel Atom N270
1.6GHz
Intel 945GSE
FSB 533
2GB/s
CRT
LVDS
18bit 62',00 
DDR2 400/0D[*%
IDE Host
SATA II 1, SATAII 2
ATA100
3GB/s
&)&DUG6ORW
0LQL3&,
0+]
LAN
USB1, USB2 0%V
$XGLR
Su
p
HU,2
W
W8 83 32 26 67 7E EH HG G
RO0FWH
R
Re eD D
l
lt te ek kA AL LC C6 65 55 5
Intel ICH70
IA30 Motherboard User Manual 4

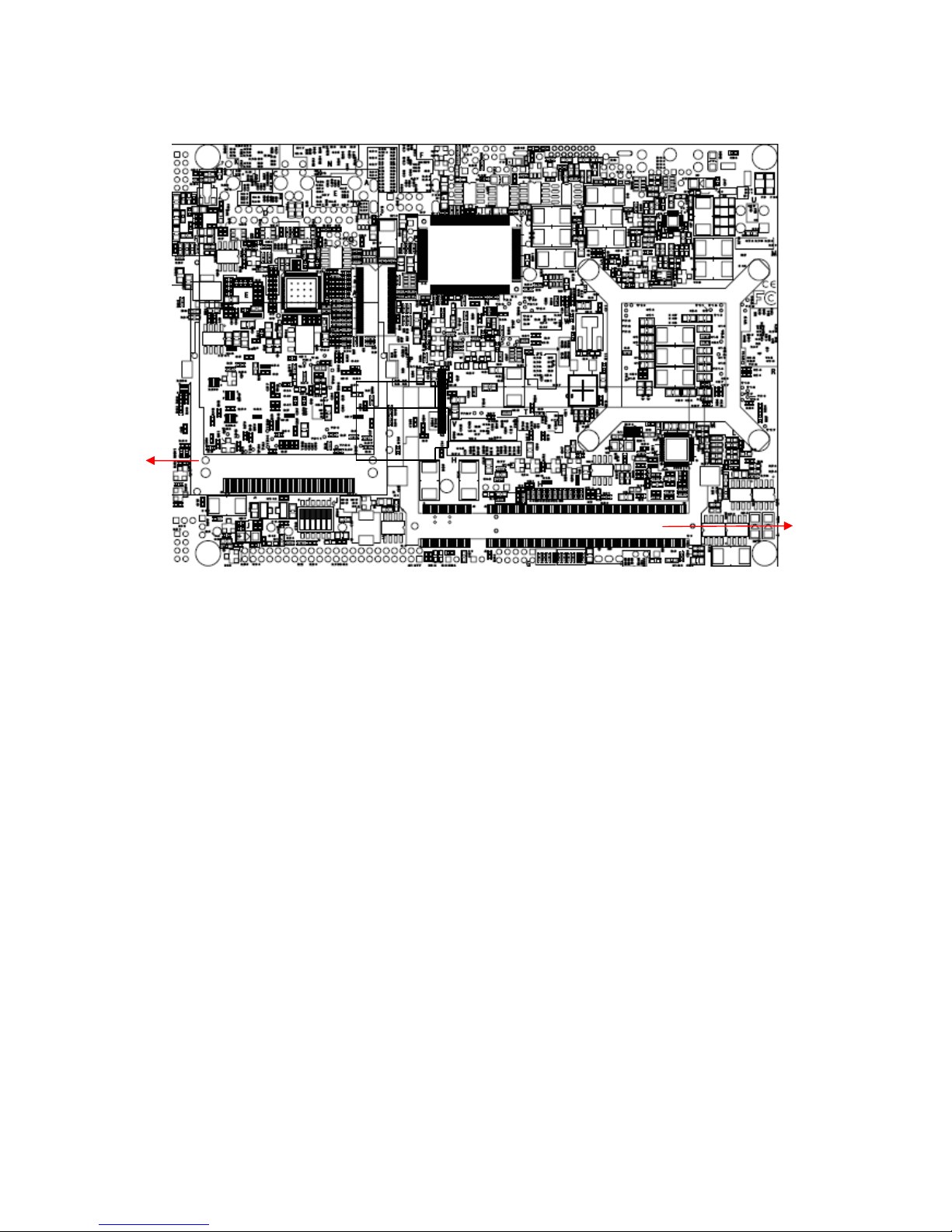

1.5 Board dimensions
IA30 Motherboard User Manual
5

C H AP T E R
2
Installations
This chapter provides information on how to use the
jumps and connectors on the IA30 Motherboard.
The Sections include:
zMemory Module Installation
zI / O Equipment Installation
zSetting the Jumpers
zConnectors on IA30 Motherboard
IA30 Motherboard User Manual
6

Chapter 2 Installations
2.1 Memory Module（SO-DIMM）Installation
The IA30 Motherboard provides one 200-pin SODIMM slot. The socket supports up
to 2GB DDR2 400/533 SDRAM. When installing the Memory device, please follow
the steps below：

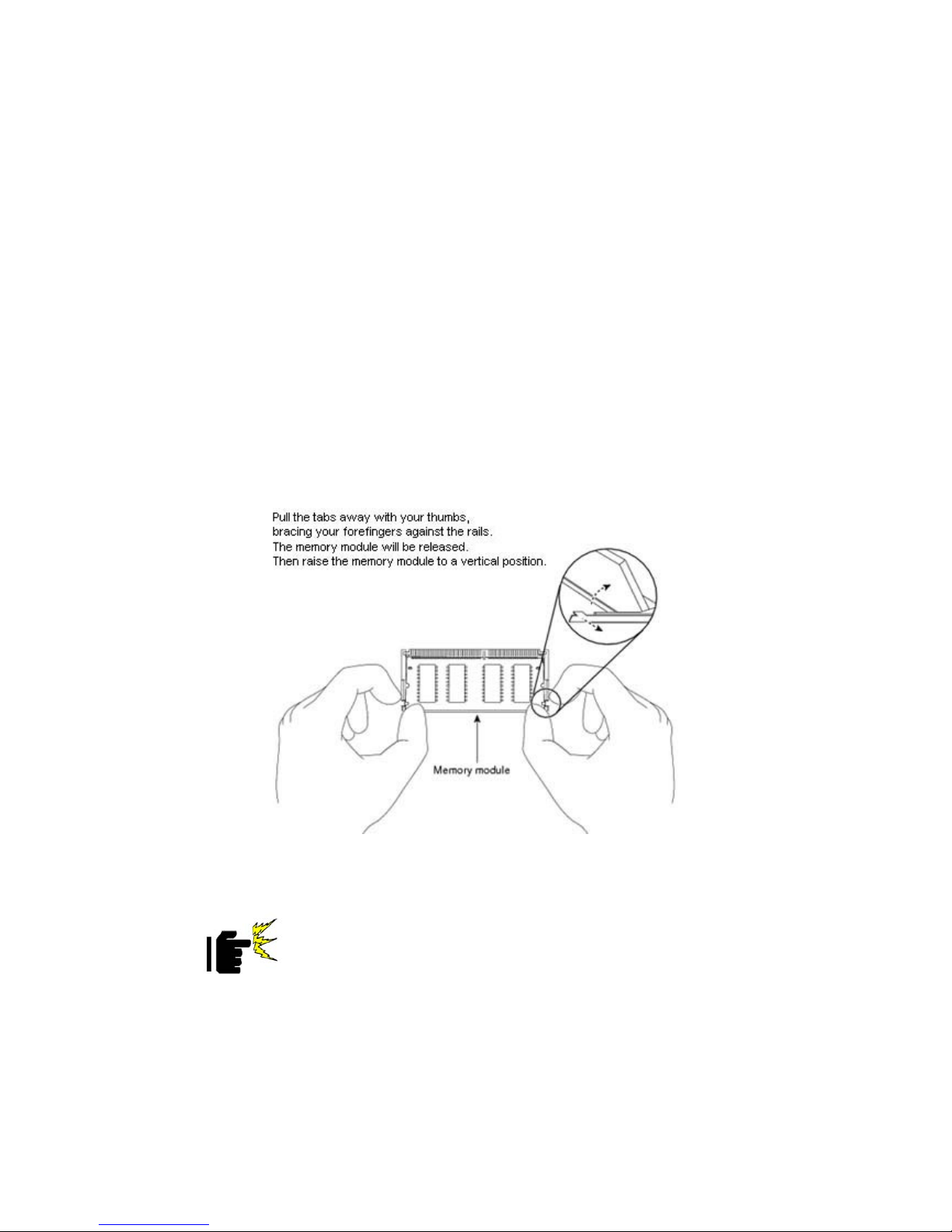

Step.1. Firmly insert the SO-DIMM at an angle into its slot. Align the SO-DIMM on
the slot such that the notch on the SO-DIMM matches the break on the slot.
Step.2. Press downwards on SO-DIMM until the retaining clips at both ends fully
snap back in place and the SO-DIMM is properly seated.
¾Caution!
The SO-DIMM only fits in one correct orientation. It will cause
permanent damage to the development board and the SO-DIMM if
the SO-DIMM is forced into the slot at the incorrect orientation.
IA30 Motherboard User Manual
7

2.2 I/O Equipment Installation
2.2.1 12V DC-IN
The Motherboard allows plugging 12V DC-IN jack on the board without another
power module converter under power consumption by Intel Atom N270 1.6GHz
Processor in 945GSE with ICH7M chipset.
2.2.2 PS/2 Keyboard or PS/2 Mouse
The Motherboard provides One Mini-DIN connector supports PS/2 interface.
Mini-DIN connector supports Keyboard or Mouse. In other cases, especially in
embedded applications, a mouse is not used. Therefore, the BIOS standard setup
menu allows you to select* “All, But Keyboard” under the “Halt On”. This allows
no-keyboard operation in embedded system applications without the system halting
under POST.
2.2.3 Serial COM ports
Two RS-232 connectors build in the rear I/O. One optional COM ports support
RS-422/485. When an optional touch-screen is ordered with PPC, serial com port can
connect to a serial or an optional touch-screen.
2.2.4 External VGA
The Motherboard has one VGA port that can be connected to an external CRT/ LCD
monitor. Use VGA cable to connect to an external CRT / LCD monitor, and connect
the power cable to the outlet. The VGA connector is a standard 15-pin D-SUB
connector.
2.2.5 Ethernet interface
The Motherboard is equipped with Realtek RTL8111B + Realtek RTL8111B chipset
which is fully compliant with the PCI 10/100/1000 Mbps Ethernet protocol
compatible. It is supported by major network operating systems. The Ethernet ports
provide two standard RJ-45 jacks.
2.2.6 USB ports
Four USB devices (Two with pin headers) may be connected to the system though an
adapter cable. Various adapters may come with USB ports. USB usually connect the
external system to the system. The USB ports support hot plug-in connection.
Whatever, you should install the device driver before you use the device.
IA30 Motherboard User Manual
8

2.2.7 Audio function
The Audio 5.1 channel capabilities are provided by a Realtek ALC655 chipset
supporting digital audio outputs. The audio interface includes two jacks: line-in and
line-out.
IA30 Motherboard User Manual
9

2.3 Jumpers and Connectors
TOP
CON11
IDE901
CON10
CON12
CPU NFA
CON13
PANEL1
JP5
NB Fan
SATA1 SATA2
USB1
JP2
JP4
ATX 12V 1
JP3
JP6
J5
J4
J7
CON904
JP1
CON3
CON6
CON4
IA30 Motherboard User Manual
10

BOTTOM
CF Card Slot
SO-DIMM
Locating Jumpers and Connectors (rear side)
IA30 Motherboard User Manual
11

2.4 Jumper Setting
A pair of needle-nose pliers may be helpful when working with jumpers. If you have
any doubts about the best hardware configuration for your application, contact your
local distributor or sales representative before you make any changes. Generally, you
simply need a standard cable to make most connections.

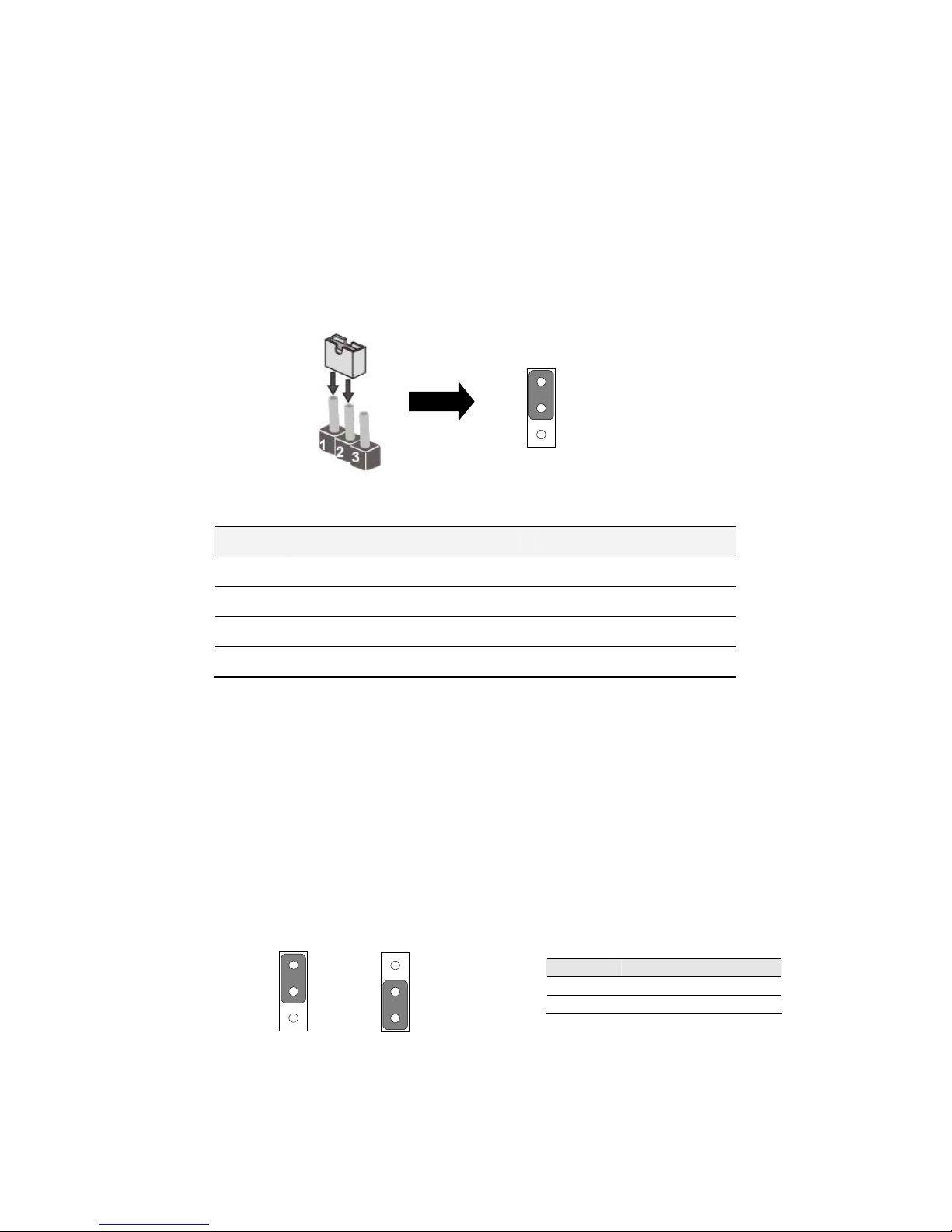

The jumper setting diagram is as below. If a jumper shorts pin 1 and pin 2, the setting
diagram is shown as the right one.
1
2
3
The following tables list the function of each of the board's jumpers.
Label Function Note
JP1 Clear CMOS 3x1 header , pitch 2.0mm
JP5 RS232 / RS422 / RS485 Selector 2x3 header , pitch 2.0mm
JP2 CF CARD PRIORITY 3x1 header , pitch 2.0mm
JP6 LVDS VOLTAGE 2x3 header , pitch 2.0mm
2.4.1 JP1: Clear CMOS
User must make sure the power supply to turn off the power supply before setting
Clear CMOS. Users remember to setting jumper back to Normal before turning on the
power supply. Default: 2short3.
Clear CMOS Normal
1
2
3
Pin No. Functions
1 Short 2 Clear CMOS
2 Short 3 Normal
1
2
3
IA30 Motherboard User Manual
12
