Winmate IV32 User manual

IV32 Motherboard
3.5” SBC with Intel ® 3rd Generation Core™i7 Processors
HDMI, LVDS, VGA, Dual Giga Ethernet, Mini PCIe Interface
User Manual / Engineering Spec.
Version 1.1

IV32 Motherboard User Manual
II
FCCStatement
This device complies with part 15 FCC rules. Operation is subject to
the following two conditions：
﹒This device may not cause harmful interference.
﹒This device must accept any interference received including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a class "a"
digital device, pursuant to part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at him
own expense.

IV32 Motherboard User Manual
III
CopyrightNotice
No part of this document may be reproduced, copied, translated, or transmitted in any
form or by any means, electronic or mechanical, for any purpose, without the prior
written permission of the original manufacturer.
TrademarkAcknowledgement
Brand and product names are trademarks or registered trademarks of their respective
owners.
Disclaimer
We reserve the right to make changes, without notice, to any product, including
circuits and/or software described or contained in this manual in order to improve
design and/or performance. We assume no responsibility or liability for the use of the
described product(s), conveys no license or title under any patent, copyright, or masks
work rights to these products, and makes no representations or warranties that these
products are free from patent, copyright, or mask work right infringement, unless
otherwise specified. Applications that are described in this manual are for illustration
purposes only. Winmate Communication Inc. makes no representation or warranty
that such application will be suitable for the specified use without further testing or
modification.
Warranty
We warrant that each of its products will be free from material and workmanship
defects for a period of one year from the invoice date. If the customer discovers a
defect, We will, at its option, repair or replace the defective product at no charge to
the customer, provided it is returned during the warranty period of one year, with
transportation charges prepaid. The returned product must be properly packaged in its
original packaging to obtain warranty service.
If the serial number and the product shipping data differ by over 30 days, the in-
warranty service will be made according to the shipping date. In the serial numbers
the third and fourth two digits give the year of manufacture, and the fifth digit means
the month (e. g., with A for October, B for November and C for December).
For example, the serial number 1W13Axxxxxxxx means October of year 2013.

IV32 Motherboard User Manual
4
Packing List
Before using this Motherboard, please make sure that all the items listed below are
present in your package：
IV32 Motherboard
User Manual
 User‟sManual&DriverCD
HDD SATACable
If any of these items are missing or damaged, contact your distributor or sales
representative immediately.
Customer Service
We provide service guide for any problem as follow steps：The first, contact with your
distributor, sales representative, or our customer service center for technical support if
you need additional assistance. You may have the following information ready before
you call：
 Productserialnumber
 Peripheralattachments
 Software (OS, version, applicationsoftware, etc.)
 Descriptionofcompleteproblem
 The exact wording ofanyerror messages
In addition, free technical support is available from our engineers every business day.
We are always ready to give advice on application requirements or specific
information on the installation and operation of any of our products. Please do not
hesitate to call or e-mail us.

IV32 Motherboard User Manual
5
SafetyPrecautions
。Warning!
Always completely disconnect the power cord from your chassis
whenever you work with the hardware. Do not make connections
while the power is on. Sensitive electronic components can be
damaged by sudden power surges. Only experienced electronic
personnel should open the PC chassis.
。Caution!
Always ground yourself to remove any static charge before
touching the CPU card. Modern electronic devices are very
sensitive to static electric charges. As a safety precaution, use a
grounding wrist strap at all times. Place all electronic components
in a static-dissipative surface or static-shielded bag when they are
not in the chassis.

IV32 Motherboard User Manual
6
Safety and Warranty
1. Please read these safety instructions carefully.
2. Please keep this user's manual for later reference.
3. Please disconnect this equipment from any AC outlet before cleaning. Do not
use liquid or spray detergents for cleaning. Use a damp cloth.
4. For pluggable equipment, the power outlet must be installed near the equipment
and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation. Dropping it or letting
it fall could cause damage.
7. The openings on the enclosure are for air convection. Protect the equipment
from overheating. DO NOT COVER THE OPENINGS.
8. Make sure the voltage of the power source is correct before connecting the
equipment to the power outlet.
9. Position the power cord so that people cannot step on it. Do not place anything
over the power cord.
10. All cautions and warnings on the equipment should be noted.
11. If the equipment is not used for a long time, disconnect it from the power source
to avoid damage by transient over-voltage.
12. Never pour any liquid into an opening. This could cause fire or electrical shock.
13. Never open the equipment. For safety reasons, only qualified service personnel
should open the equipment.
14. If any of the following situations arises, get the equipment checked by service
personnel:
A. The power cord or plug is damaged.
B. Liquid has penetrated into the equipment.
C. The equipment has been exposed to moisture.
D. The equipment does not work well, or you cannot get it to work according to
the user‟s manual.
E. The equipment has been dropped and damaged.
F. The equipment has obvious signs of breakage.
15. Do not leave this equipment in an uncontrolled environment where the storage
temperature is below -20° C (-4°F) or above 60° C (140° F). It may damage the
equipment.

IV32 Motherboard User Manual
VII
RevisionHistory
Version
Date
Note
Author
1.1
2015.03.26
Jumper , Connector
Austin Chang
1.0
2013.06.25
Initial Draft
Pirson Liang

IV32 Motherboard User Manual
VIII
Contents
CONTENTS ..................................................................................... VIII
CHAPTER 1 GENERALINFORMATION ......................................2
1.1 INTRODUCTION.................................................................................. 2
1.2 FEATURE.............................................................................................. 2
1.3 MOTHERBOARD SPECIFICATIONS ................................................ 3
1.4 FUNCTION BLOCK ............................................................................. 4
1.5 BOARD DIMENSION........................................................................... 5
CHAPTER 2 INSTALLATIONS ........................................................7
2.1 MEMORY MODULE（SO-DIMM）INSTALLATION..................... 7
2.2 I / O EQUIPMENT INSTALLATION................................................... 8
2.3 JUMPER AND CONNECTOR LOCATION ........................................ 9
2.4 JUMPERS ........................................................................................... 10
2.5 CONNECTORS AND PIN ASSIGNMENT ....................................... 14
CHAPTER 3 DRIVERINSTALLATION .......................................25
3.1 INSTALLATION OF ALL DRIVERS ............................................... 25
3.2 INSTALLATION OF COM PORT‟S DRIVER ................................. 27
CHAPTER 4 BIOS SETUP ...............................................................31
4.1ENTERING BIOS SETUP .................................................................... 31
4.2ADVANCED SETTING .......................................................................33
4.3CHIPSET CONFIGURATION .............................................................. 51
4.4 BOOT SETTING .................................................................................. 57
4.5SECURITY SETUP ............................................................................... 59
4.6SAVE & EXIT ....................................................................................... 60

IV32 Motherboard User Manual
1
C
H
A
P
T
E
R
1
GeneralInformation
This chapter includes the IV32 Motherboard background
information.
The section includes:
• Introduction
• Feature
• Motherboard Specification
• Function Block
• Board Dimension

IV32 Motherboard User Manual
2
Chapter 1 General Information
1.1 Introduction
The IV32 SBC is integrated with Intel® Express Chipset HM76 (22x22mm) and
3rd Generation Intel® CoreTM i7 Processors which offers a high performance
computing platform with low power consumption. The new motherboard
supports 204-pin SO-DIMM DDR3 at speeds of 1333/1600 MHz, up to 8GB.
One SATAII 3.0Gb/s and one SATAIII 6.0Gb/s interfaces provide ample capacity.
With dual Gigabit Ethernet, four COM ports, three USB 3.0 and four USB 2.0,
IV32 SBC meets the requirements of today‟s various applications.
Display requirements are met with rich interfaces, such as HDMI, LVDS, and
CRT. The graphic engine adopts Intel® Express Chipset HM76 to offer high
definition display function, and it also supports 24-bit Dual-Channel LVDS.
With all of the integrated features, IV32 SBC is designed to satisfy most of the
applications in the industrial computer market, such as Gaming, POS, KIOSK,
Industrial Automation, and Programmable Control System. It is a compact
design to meet the demanding performance requirements of today‟s business and
industrial applications.
1.2 Feature
 3.5-inch Form Factor (146mm x102mm / 5.7 x 4 inches)
 Support 3rd Generation Intel®CoreTMi7 processors
 Intel®ExpressChipsetHM7
 204-pinSO-DIMM DDR 1333/1600MHz, upto 8GB
 Intel® GraphicAccelerator4000IntegratedGraphicsEngine
 VGA, 18/24-bit Dual-Channel LVDS, 2 x HDMI
 Intel® 82579-LM GbE PHYand Intel® WG82574L GbE
1 x Mini PCIe, 1 x Mini Card Slot (for mSATA SSD), 4 x COM, 3 x USB
3.0, 4 x USB 2.0, 1 x SATAII, 1 x SATAIII, 12-bit GPIO, 1 x 1394b
 +12Vonlyoperation

IV32 Motherboard User Manual
3
1.3 MotherboardSpecifications
Processor
Intel® Core i7-3555LE 2.5GHz / Core i7-3517UE 1.7GHz
Chipset
Intel® Express Chipset HM76
BIOS
AMI 16Mbit Flash
Graphic
Intel® Graphic Accelerator 4000 support DX11, OpenGL 3.1
LCD Interface
Dual-Channel 18/24-bit LVDS up to 1920 x 1200 @ 60Hz
Resolution
Up to 1920 x 1200 for VGA, HDMI
LAN
2 x Giga LAN
(Intel® 82579-LM GbE PHY and Intel® WG82574L GbE)
System Memory
204-pin SO-DIMM DDR 1333/1600 MHz, up to 8GB
Super I/O
Fintek F81866
Sound
Realtek ALC886 HD Audio Codec
USB
3 x USB 3.0, 4 x USB 2.0
COM
4 x COM ports
Edge Connectors
1x DC-IN Power Jack (+12V)
1 x RS232/422/485
2x USB 3.0
1x HDMI
2x Gigabit LAN RJ-45
On Board
Pin-Header
Connectors
3 x RS-232 / 10-pin(2x5)
1 x USB 3.0 / 10-pin(2x5)
4 x USB 2.0 / 8-pin(2x4)
1 x LVDS / 40-pin(2x20) DF-13 connector
1 x SATAII 3.0Gb/s
1 x SATAIII 6.0Gb/s
1 x SATAPower
1 x Digital I/O(12-bit GPIO) / 14-pin(2x7)
1 x Power-input / 2-pin
1 x +12V for external power(Yellow) / 2-pin
1 x +5V for external power(Red) / 2-pin
1 x +3.3V for external power(Blue) / 2-pin
1 x Fan / 3-pin
1 x Panel inverter / 7-pin
1 x Front panel / 10-pin(2x5)
1 x Backlight brightness controller / 3-pin
2 x Speaker with Amp. / 2-pin
1 x HDMI (DVI-D) / 20-pin(2x10)
1 x VGA/ 10-pin(2x5)
1 x 1394b / 10-pin(2x5)
1 x Audio (Mic-in / Line-in / Line-out) / 12-pin(2x6)
1 x Battery / 2-pin
Power Connector
2-pin Power-input connector
Expansion Slots
1 x Mini PCIe for wireless, 1 x Mini Card Slot for mSATA SSD
Form Factor
3.5 inch
Dimensions
146mm x 102mm
Environmental
Operating Temperature: 0~60°C (32~140°F)
Operating Humidity: 10~90% Relative Humidity,
non-condensing
Shock: Operating 15G, 11ms duration
Vibration: Operating 5 Hz~500Hz / 1Grms / 3 Axis
Certification: CE, FCC, RoHS

IV32 Motherboard User Manual
4
1.4 Function Block

IV32 Motherboard User Manual
5

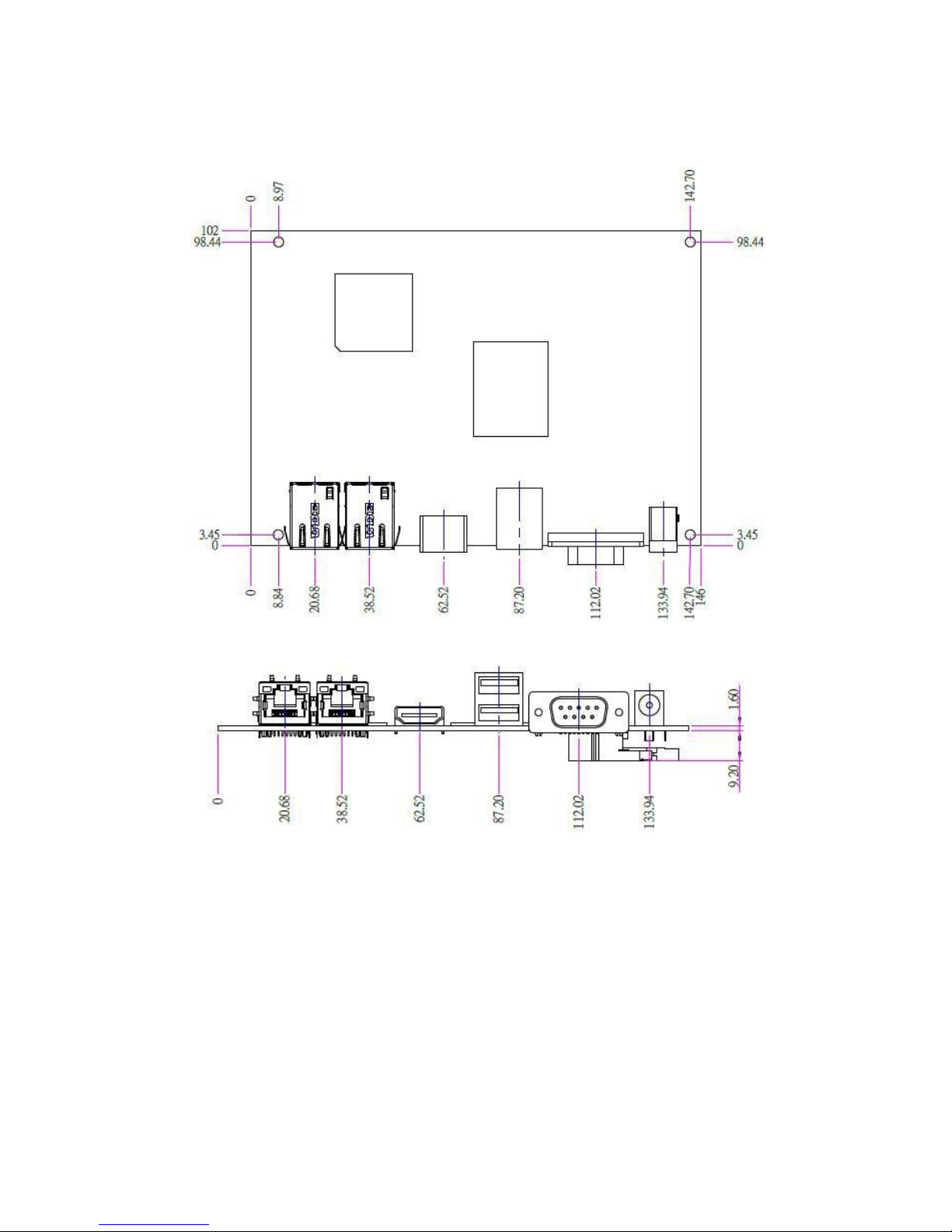

1.5 Board Dimension

IV32 Motherboard User Manual
6
C
H
A
P
T
E
R
2
Installations
This chapter provides information on how to use the jumpers
and connectors on the IV32 Motherboard.
The section includes:
﹒ Memory Module Installation
﹒ I / O Equipment Installation
﹒ Jumper and Connector Location
﹒ Jumpers
﹒ Connectors and Pin Assignment

IV32 Motherboard User Manual
7
Chapter 2 Installations
2.1 Memory Module （ SO-DIMM ） Installation
The IV32 Motherboard provides one 204-pin SO-DIMM slot, and it supports up to
8GB DDR3 1333/1600MHz. When installing the Memory device, please follow the
steps below：
Step 1. Firmly insert the SO-DIMM at an angle into its slot. Align the SO-DIMM on
the slot such that the notch on the SO-DIMM matches the break on the slot.
Step 2. Press downwards on SO-DIMM until the retaining clips at both ends fully
snap back in place and the SO-DIMM is properly seated.
y Caution !
The SO-DIMM only fits in one correct orientation. It will cause
permanent damage to the development board and the SO-DIMM if
the SO-DIMM is forced into the slot at the incorrect orientation.

IV32 Motherboard User Manual
8
2.2 I / O Equipment Installation
2.2.1 12V DC-IN
The Motherboard allows plugging 12V DC-IN jack on the board without another
power module converter under power consumption of 3rd Generation Intel® CoreTM
Processor (Socket FCBGA1023) with Express Chipset HM76.
※Without power/reset OSD, short circuit pin 5 and 6 together to boot up the
motherboard.(Front Panel Connector)
2.2.2 Serial COM ports
One COM port connector which supports RS232/422/485 function by jumper setting
has been built-in the rear I/O, and one internal COM port can be connected to a serial
or an optional touch-screen when an optional touch-screen is ordered with Panel PC.
2.2.3 External HDMI
The Motherboard has one HDMI port that can be connected to an external LCD
monitor by using HDMI cable, and it also needs to be connected to the outlet by
power cable. The HDMI connector is a standard 19-pin Type Aconnector.
2.2.4 Ethernet interface
The Motherboard is equipped with Intel® Gigabit Ethernet Controller which is fully
compliant with the PCI 10/100/1000 Mbps Ethernet protocol compatible. It is
supported by major network operating systems. The Ethernet ports provide two
standard RJ-45 jacks.
2.2.5 USB ports
Seven USB devices (five with pin headers) may be connected to the system through
an adapter cable. Various adapters may come with USB ports. USB usually connect
the external system to the system. The USB ports support hot plug-in connection.
Whatever, you should install the device driver before you use the device.
※Note

IV32 Motherboard User Manual
9
2.3 Jumper and Connector Location
ComponentSide
Solder Side

IV32 Motherboard User Manual
10
2.4 Jumpers
2.4.1 Jumper List
The following table lists the function of each of the board's jumpers.
Label
Function
Note
JP1
Clear CMOS
3x1 header , pitch 2.0mm
JP3
COM1 Setting (RS232/422/485)
2x3 header , pitch 2.0mm
JP4
COM1 Setting (RS232 or RS422/485)
3x4 header , pitch 2.0mm
JP5
Backlight Inverter VCC Selection
3x1 header , pitch 2.0mm
JP6
Backlight Inverter VCC Control
3x1 header , pitch 2.0mm
JP7
Operating VDD Selection
3x1 header , pitch 2.0mm
JP8
Backlight Brightness Control Mode Selection
3x1 header , pitch 2.0mm
JP9
DC Capacitor
3x1 header , pitch 2.0mm
CON1
LCD Panel Voltage Selection
2x3 header , pitch 2.0mm
2.4.2 Jumper Settings
A metal-bridge jumper used to close an electric circuit, and it usually consists of two
metal pins and one small clip protected by a plastic cover that slides over the pins to
connect them. Users can connect the pins with the clip to close a jumper, and remove
the clip to open a jumper. Generally, a jumper will have three pins which labeled 1, 2,
and 3. In this case, you would connect either pins 1 and 2, or 2 and 3.

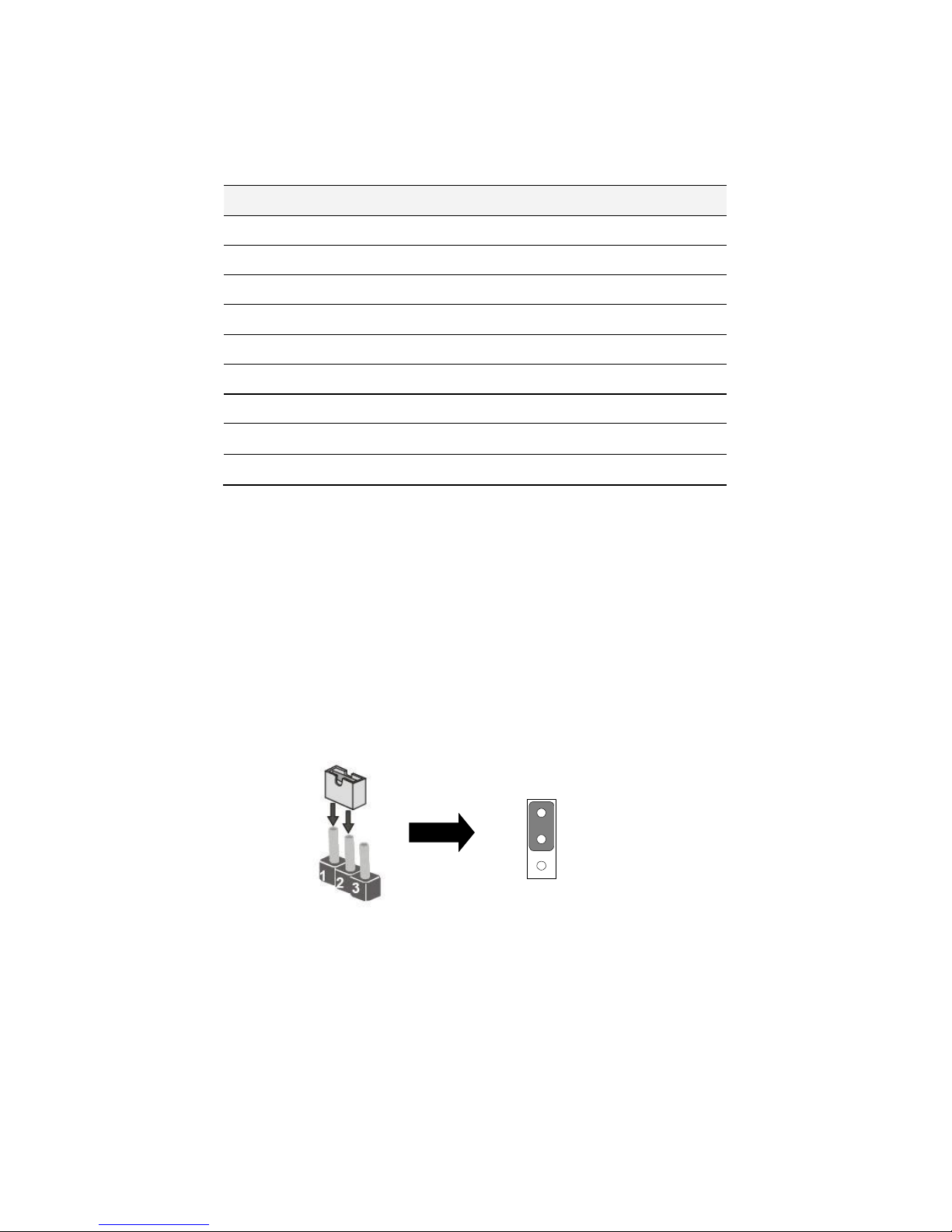

The jumper setting diagram is as below. If a jumper shorts pin 1 and pin 2, the setting
diagram is shown as the right one.
1
2
3
A pair of needle-nose pliers may be helpful when working with jumpers. If you have
any doubts about the best hardware configuration for your application, contact your
local distributor or sales representative before you make any changes.

IV32 Motherboard User Manual
11
JP1: Clear CMOS
Pin No. Functions
1-2 Clear CMOS
2-3 Normal (Default)
JP3: COM1 Setting (RS232/422/485)
Pin No. Functions
1-2 RS232 (Default)
3-4 RS422
5-6 RS485
JP4: COM1 Setting (RS232 or RS422/485)
RS232 (Default)
RS422 / 485
1-2
2-3
4-5
5-6
7-8
8-9
10-11
11-12

IV32 Motherboard User Manual
12
JP5: Backlight Inverter VCC Selection
+5V +12V
Pin No. Functions
1-2 +5V (Default)
2-3 +12V
JP6: Backlight Inverter VCC Control
BIOS GND
Pin No. Functions
1-2 BIOS (Default)
2-3 GND
JP7: Operating VDD Selection
+3.3V +5V
Pin No. Functions
1-2 +3.3V (Default)
2-3 +5V
