Winmate FA33 User manual

FA33 Motherboard
SBC with Freescale iMX6 Dual Core Processor
User Manual / Engineering Spec.
Version 1.1

FA33 Motherboard User Manual
I
FCC Statement
This device complies with part 15 FCC rules. Operation is subject to
the following two conditions：
This device may not cause harmful interference.
This device must accept any interference received including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a class "a"
digital device, pursuant to part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at him
own expense.

FA33 Motherboard User Manual
II
Copyright Notice
No part of this document may be reproduced, copied, translated, or transmitted in any
form or by any means, electronic or mechanical, for any purpose, without the prior
written permission of the original manufacturer.
Trademark Acknowledgement
Brand and product names are trademarks or registered trademarks of their respective
owners.
Disclaimer
We reserve the right to make changes, without notice, to any product, including
circuits and/or software described or contained in this manual in order to improve
design and/or performance. We assume no responsibility or liability for the use of the
described product(s), conveys no license or title under any patent, copyright, or masks
work rights to these products, and makes no representations or warranties that these
products are free from patent, copyright, or mask work right infringement, unless
otherwise specified. Applications that are described in this manual are for illustration
purposes only. Winmate Communication Inc. makes no representation or warranty
that such application will be suitable for the specified use without further testing or
modification.
Warranty
We warrant that each of its products will be free from material and workmanship
defects for a period of one year from the invoice date. If the customer discovers a
defect, We will, at its option, repair or replace the defective product at no charge to
the customer, provided it is returned during the warranty period of one year, with
transportation charges prepaid. The returned product must be properly packaged in its
original packaging to obtain warranty service.
If the serial number and the product shipping data differ by over 30 days, the
in-warranty service will be made according to the shipping date. In the serial numbers
the third and fourth two digits give the year of manufacture, and the fifth digit means
the month (e. g., with Afor October, B for November and C for December).
For example, the serial number 1W11Axxxxxxxx means October of year 2011.

FA33 Motherboard User Manual
III
Declaration
Note!
Winmate Products are shipped without root access to Android operating system.
However, Winmate can provide support for access upon special request by contacting
Winmate Sales
Caution!
Rooting is a process that allows users to attain root access to the Android Operating
System Code. It gives users privileges to modify the software code on the device or
install any software without any permission. Any modifications to the system that
could result in accidents where device can become beyond repair. Gaining root access
also entails circumventing the security restrictions put in place by the Android
operating system

FA33 Motherboard User Manual
IV
Packing List
Before using this Motherboard, please make sure that all the items listed below are
present in your package：
FA33 Motherboard
User Manual
If any of these items are missing or damaged, contact your distributor or sales
representative immediately.
Customer Service
We provide service guide for any problem as follow steps：The first, contact with
your distributor, sales representative, or our customer service center for technical
support if you need additional assistance. You may have the following information
ready before you call：
Product serial number
Peripheral attachments
Software (OS, version, application software, etc.)
Description of complete problem
The exact wording of any error messages
In addition, free technical support is available from our engineers every business day.
We are always ready to give advice on application requirements or specific
information on the installation and operation of any of our products. Please do not
hesitate to call or e-mail us.

FA33 Motherboard User Manual
V
Safety Precautions
Warning!
Always completely disconnect the power cord from your chassis
whenever you work with the hardware. Do not make connections
while the power is on. Sensitive electronic components can be
damaged by sudden power surges. Only experienced electronic
personnel should open the PC chassis.
Caution!
Always ground yourself to remove any static charge before
touching the CPU card. Modern electronic devices are very
sensitive to static electric charges. As a safety precaution, use a
grounding wrist strap at all times. Place all electronic components
in a static-dissipative surface or static-shielded bag when they are
not in the chassis.

FA33 Motherboard User Manual
VI
Safety and Warranty
1. Please read these safety instructions carefully.
2. Please keep this user's manual for later reference.
3. Please disconnect this equipment from any AC outlet before cleaning. Do not
use liquid or spray detergents for cleaning. Use a damp cloth.
4. For pluggable equipment, the power outlet must be installed near the equipment
and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation. Dropping it or letting
it fall could cause damage.
7. The openings on the enclosure are for air convection. Protect the equipment
from overheating. DO NOT COVER THE OPENINGS.
8. Make sure the voltage of the power source is correct before connecting the
equipment to the power outlet.
9. Position the power cord so that people cannot step on it. Do not place anything
over the power cord.
10. All cautions and warnings on the equipment should be noted.
11. If the equipment is not used for a long time, disconnect it from the power source
to avoid damage by transient over-voltage.
12. Never pour any liquid into an opening. This could cause fire or electrical shock.
13. Never open the equipment. For safety reasons, only qualified service personnel
should open the equipment.
14. If any of the following situations arises, get the equipment checked by service
personnel:
A. The power cord or plug is damaged.
B. Liquid has penetrated into the equipment.
C. The equipment has been exposed to moisture.
D. The equipment does not work well, or you cannot get it to work according to
the user’s manual.
E. The equipment has been dropped and damaged.
F. The equipment has obvious signs of breakage.
15. Do not leave this equipment in an uncontrolled environment where the storage
temperature is below -40°C (-40°F) or above 70° C (157°F). It may damage the
equipment.

FA33 Motherboard User Manual
VII
Revision History
Version
Date
Note
Author
1.0
2015.04.13
First Release
Jimmy Chen
1.1
2015.09.01
CPU changed to
dual core
Jimmy Chen

FA33 Motherboard User Manual
VIII
Contents
Chapter 1 General Information ....................................................................... 2
1.1 Introduction..................................................................................................... 2
1.2 Feature............................................................................................................ 2
1.3 Motherboard Specifications ............................................................................. 3
1.4 Function Block ................................................................................................. 4
1.5 Platform Descriptions....................................................................................... 5
1.5.1 Summary...........................................................................................................................5
1.5.2 System Memory: 1.35V DDR3L SDRAM ............................................................................5
1.5.3 LAN Chip: AR8031 integrated 10/100/1000 Mbps Ethernet Transceiver .........................5
1.5.4 HD Audio Codec: WM8962 Ultra-Low Power Stereo CODEC with Audio Enhancement ..5
Chapter 2 Installations.................................................................................... 7
2.1 I/O Connector Description................................................................................ 7
2.1.1 DC Jack (CN24) Power Conn (CN29) ........................................................................7

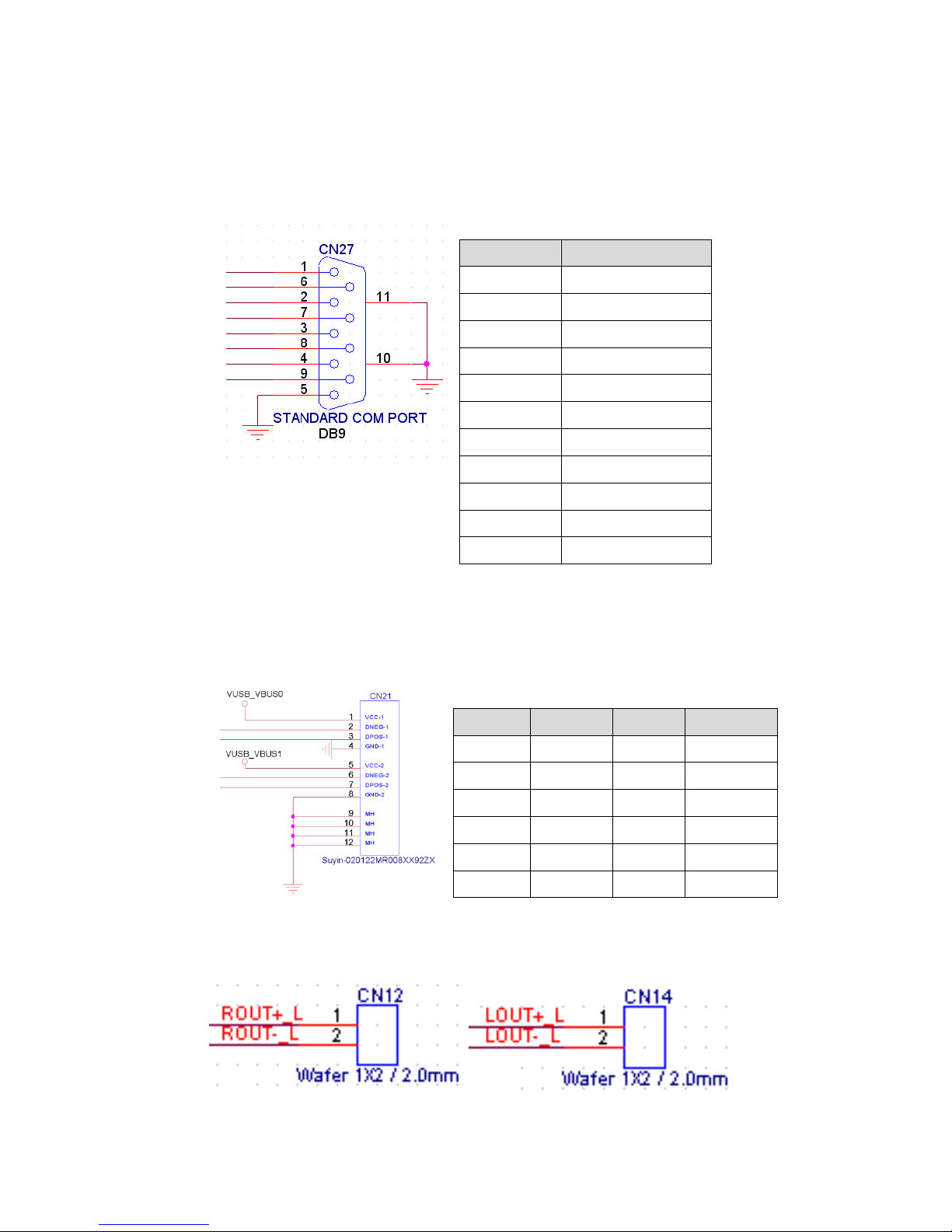

2.1.2 D-Sub 9 COM Port (CN27 & CN28)....................................................................................8
2.1.3 External USB 2.0 (CN21) ...................................................................................................8
2.1.4 Speaker Out (CN12 & CN14) .............................................................................................8
2.1.5 MIC connector (CN10) ......................................................................................................9
2.1.6 HDMI Connector (HDMI 1) ...............................................................................................9
2.1.7 Backlight Connector (JP2) .................................................................................................9
2.1.8 LVDS connector (CN4).....................................................................................................10
2.1.9 Internal USB 2.0 Connector (USB 1 , USB 2) ...................................................................10
2.1.10 mSATA card slot (CN15)..............................................................................................11
2.1.11 RJ45 POE connector (LAN1) .......................................................................................12
2.1.12 Debug Connector (J1).................................................................................................12
2.1.13 CAN BUS Connector (CN3) .........................................................................................13
2.1.14 UART Connector (CN19).............................................................................................13
2.1.15 Buzzer Connector (CN16)...........................................................................................14
2.1.16 MIPI Camera Connector (CON1) ................................................................................14
2.1.17 DIDO Connector (CN9) ...............................................................................................14
2.1.18 Light Sensor Connector (CN7) ....................................................................................15
2.1.19 SPI Connector (CN18).................................................................................................15
2.1.20 OTG (CN32) ................................................................................................................15
2.2 Jumper Setting Description............................................................................. 16

FA33 Motherboard User Manual
IX
2.2.1 Boot Modes (SW1)..........................................................................................................16
2.2.2 Backlight power selector (JP2)........................................................................................16
2.2.3 Panel Power Selector (JP1) .............................................................................................16
2.2.4 Brightness Adjust Mode Selector (JP4) ...........................................................................17

FA33 Motherboard User Manual
1
General Information
This chapter includes the FA33 Motherboard background information.
Sections include:
Introduction
Feature
Motherboard Specifications
Function Block
Board Dimensions
CHAPTER
1

FA33 Motherboard User Manual
2
Chapter 1 General Information
1.1 Introduction
FA33 SBC is an integrated package that provides customers a complete
RISC platform for project evaluation, application development and
solution feasibility testing that decreases lead-time and lowers initial cost
and investment.
In peripheral connectivity, FA33 SBC features with two COM port, two
USB 2.0 A-type connectors, one LAN port support PoE function, one DC
input with Phoenix type terminal block, one Micro HDMI, one Micro SD
card slot.
1.2 Feature
146 mm x 101 mm (3.5” Form Factor)
Supports Freescale CortexTM –A9 iMX6 Dual Core 1GHz processor
(Optional for Quad Core)
Android 4.4 / Linux supported
LVDS interface by pin-header
1 x RJ-45 10/100/1000 LAN (Optional for PoE function)
2 x USB 2.0 A-type
1 x Micro SD Card Slot
1 x USB OTG
1 x Micro HDMI
1 x I2C touch supported(by pin-header)
1 x Digital I/O with 3.3V (8-PIN GPIO)
1 x CANbus by pin-header (non-isolation)-optional
1 x Reset by Pin-header (optional for reset button)

FA33 Motherboard User Manual
3
1.3 Motherboard Specifications
CPU Type
Freescale Cortex A9 iMX6 Dual Core (optional for Quad
Core)
CPU Speed
1 GHz
LCD interface
LVDS interface
LAN
10/100 /1000 (Optional for PoE)
Memory Type
1GB DDR3
Storage
On Board 16GB eMMC /mSATA
External I/O
1 x 2.5Ø DC Jack
2 x USB A-type (Host)
2 x RS232/422/485 selectable
1 x RJ-45 10/100/1000 (Optional for PoE function)
1 x Micro SD Card Slot
1 x Micro HDMI
1 x USB OTG
Internal I/O
1 x LVDS by pin-header
1 x I2C Touch by pin-header
4 x USB by 2 pin-header (4 x 2 pin)
1 x RS232/422/485 by pin-header
1 x CANbus by pin-header (non-isolation) (optional)
1 x Digital I/O with 5V (8-pin GPIO)
1 x Reset by pin-header (optional for Reset button)
Dimensions
146 mm x 101 mm (3.5” form factor)
Mechanical &
environmental
Operating temperature: -25 deg. C to 65 deg. C
Operating Humidity: 10 ~ 90% Relative humidity,
non-condensing
Power Input
DC IN 12V
Power
Consumption
3W

FA33 Motherboard User Manual
4
1.4 Function Block

FA33 Motherboard User Manual
5
1.5 Platform Descriptions
1.5.1 Summary
Features
i.MX 6 Dual(Quad)
Core
Dual-Lite Cortex-A9
Memory
1GB DDR3
Storage
16G eMMC/mSATA/Micro SSD (up to 64GB)
L2 Cache
1 MB unified I/D L2 cache, shared by quad core
IPU
Two autonomous and independent IPUs
Graphics
acceleration
Three independent, integrated graphics processing
units:
OpenGL ® ES 2.0 3D graphics accelerator with
four shaders
2D graphics accelerator
Dedicated OpenVGtm 1.1 accelerator
1.5.2 System Memory: 1.35V DDR3L SDRAM
1.5.3 LAN Chip: AR8031 integrated 10/100/1000 Mbps Ethernet Transceiver
1.5.4 HD Audio Codec: WM8962 Ultra-Low Power Stereo CODEC with
Audio Enhancement

FA33 Motherboard User Manual
6
Installations
This chapter provides information on how to use the jumps and connectors
on the FA33 Motherboard.
The Sections include:
I / O Connector Description
Jumpers Setting Description
CHAPTER
2

FA33 Motherboard User Manual
7
Chapter 2 Installations
2.1 I/O Connector Description
2.1.1 DC Jack (CN24) Power Conn (CN29)
CN24
CN29
Pin No
SYMBOL
Pin No
SYMBOL
1
VIN
1
VIN
2
GND
2
VIN
3
GND
3
GND
4
GND

FA33 Motherboard User Manual
8
※VIN:12V
2.1.2 D-Sub 9 COM Port (CN27 & CN28)
2.1.3 External USB 2.0 (CN21)
2.1.4 Speaker Out (CN12 & CN14)
Pin No
SYMBOL
1
DCD
2
SIN
3
SOUT
4
DTR
5
GND
6
DSR
7
RTS
8
CTS
9
RI(5V)
10
GND
11
GND
Pin No
Symbol
Pin No
Symbol
1
5V
7
DP
2
DM
8
GND
3
DP
9
GND
4
GND
10
GND
5
5V
11
GND
6
DM
12
GND

FA33 Motherboard User Manual
9
CN12
CN14
Pin No
SYMBOL
Pin No
SYMBOL
1
ROUT+_L
1
LOUT+_L
2
ROUT-_L
2
LOUT-_L
2.1.5 MIC connector (CN10)
Pin Assignment
No
Name
1
MIC_IN +
2
MIC_IN -
2.1.6 HDMI Connector (HDMI 1)
Pin Assignment
No
Name
No
Name
1
HP_DET_OUT
2
NC
3
HDMI_D2P
4
GND
5
HDMI_D2M
6
HDMI_D1P
7
GND
8
HDMI_D1M
9
HDMI_D0P
10
GND
11
HDMI_D0M
12
HDMI_CLKP
13
GND
14
HDMI_CLKM
15
HDMI_CEC_OUT
16
GND
17
H_CLK_OUT
18
H_DAT_OUT
19
HDMI_5V
20
GND
2.1.7 Backlight Connector (JP2)
Connector type: Wafer 7 PIN pitch 2.0 mm
Pin Assignment
No
Name
No
Name
1
+BKLPWR
5
BRIGHTNESS
2
+BKLPWR
6
GND
3
+BKLPWR
7
Backlight enable
4
GND
Refer to JP4 jumper setting for brightness mode select.

FA33 Motherboard User Manual
10
2.1.8 LVDS connector (CN4)
Connector Type : DF13 20pin pitch 1.25mm
Pin Assignment
No
Name
No
Name
1
LCDVDD
2
LVDS0_TX0_N
3
LCDVDD
4
LVDS0_TX0_P
5
LCDVDD
6
LVDS0_TX1_N
7
GND
8
LVDS0_TX1_P
9
GND
10
LVDS0_TX2_N
11
GND
12
LVDS0_TX2_P
13
GND
14
LVDS0_CLK_N
15
GND
16
LVDS0_CLK_P
17
GND
18
LVDS0_TX3_N
19
GND
20
LVDS0_TX3_P
21
GND
22
LVDS1_TX0_N
23
GND
24
LVDS1_TX0_P
25
GND
26
LVDS1_TX1_N
27
GND
28
LVDS1_TX1_P
29
GND
30
LVDS1_TX2_N
31
GND
32
LVDS1_TX2_P
33
GND
34
LVDS1_CLK_N
35
GND
36
LVDS1_CLK_P
37
GND
38
LVDS1_TX3_N
39
GND
40
LVDS1_TX3_P
41
GND
42
GND
43
NC
44
NC
2.1.9 Internal USB 2.0 Connector (USB 1 , USB 2)
Connector type : 2*4p Wafer, P:2.0mm
Pin Assignment (USB 1)
No
Name
No
Name
1
VUSB_VBUS5
2
VUSB_VBUS4
3
USB_PN5
4
USB_PN4
5
USB_PP5
6
USB_PP4
7
GND
8
GND
