WinSystems SYS-427 User manual

WINSYSTEMS, Inc. | 2890 112th Street, Grand Prairie, Texas 75050 | 817-274-7553 | [email protected] | www.winsystems.com
SYS-427
Industrial Embedded Computer with
Intel®Atom™ E3900 processor,
Dual Ethernet, Multi-Display, and Expansion
Product Manual

SYS-427
v1.0 www.winsystems.com Page 2
Revision History
Copyright and Trademarks
Copyright 2021, WINSYSTEMS, Inc.
No part of this document may be copied or reproduced in any form or by
any means without the prior written consent of WINSYSTEMS, Inc. The
information in the document is subject to change without notice. The
information furnished by WINSYSTEMS, Inc. in this publication is believed
to be accurate and reliable. However, WINSYSTEMS, Inc. makes no
warranty, express, statutory, implied or by description, regarding the
information set forth herein or regarding the freedom of the described
devices from patent infringement. WINSYSTEMS, Inc. makes no warranty
of merchantability or fitness for any purpose. WINSYSTEMS, Inc. assumes
no responsibility for any errors that may appear in this document.
Trademark Acknowledgments
WINSYSTEMS is a registered trademark of WINSYSTEMS, Inc.
Intel and Intel Atom are trademarks of Intel Corporation or its subsidiaries
in the U.S. and/or other countries.
Mili-grid and MXMag are trademarks of Molex, Inc.
DisplayPort, the DisplayPort logo, and VESA are trademarks owned by the
Video Electronics Standards Association (VESA) in the United States and
other countries.
All other marks are the property of their respective companies.
Document
Version
Last Updated
Date Brief Description of Change
v1.0 12/9/19 Initial release
v1.1 5/11/2020 Maximum power usage, maximum input power ratings, and input wire/
cable input wire/cable flammability rating
v1.2 6/5/2020 Added compliance safety data under specification table.
v1.21 9/9/2021 Updated compliance section and added FCC and CE certifications.

SYS-427
v1.0 www.winsystems.com Page 3
1 Before You Begin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.1 Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
2 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3 Functionality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
4 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
5 General Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5.1 System Block Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
6 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
7 Compliance and Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
8 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
8.1 Component Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
8.1.1 Front Panel Connectors View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
8.1.2 Top View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
8.1.3 Bottom View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
8.2 System Mounting Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
8.3 Watchdog Timer (WDT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
8.3.1 WDT Register Usage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
8.4 Real-time Clock/Calendar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
8.5 System Management Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
8.6 Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
8.6.1 J20 - Input Power Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
8.6.2 J12 - Power Module Header (Internal). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
8.6.3 J8 - External Battery Header (Internal) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
8.6.4 J7 - SATA Power Header (Internal) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
8.6.5 J13 - External Fan Header (Internal). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
8.6.6 J6 - LVDS Data and Backlight Header (Internal) . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
8.6.7 J504 - USB Touchscreen Header (Internal) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
8.6.8 J18/J19 - DisplayPort . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
8.6.9 SP500 - Speaker (Internal). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Table of Contents

SYS-427
v1.0 www.winsystems.com Page 4
8.6.10 J2 - HD Audio Header (Internal) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
8.6.11 J1 - Legacy RS232 Header (Internal). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
8.6.12 J4 - Serial Ports (RS232/422/485) Header (Internal). . . . . . . . . . . . . . . . . . . . . . . . 23
8.6.13 J10/J11 - USB 2.0 Port 2x Headers (Internal). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
8.6.14 J17 - USB 3.1 Gen 1 Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
8.6.15 J3 - Serial ATA 6Gbps Connector (Internal) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
8.6.16 J500 - System Memory (Internal) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
8.6.17 J15/J16 - Ethernet (LAN) RJ45 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
8.6.18 J5 - GPIO General-Purpose Input/Output Header (Internal) . . . . . . . . . . . . . . . . 26
8.6.19 J14 - Analog Inputs (Analog to Digital) Header (Internal) . . . . . . . . . . . . . . . . . . . 27
8.6.20 J502 - WINSYSTEMS Modular IO80 (Internal) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
8.6.21 J503 - M.2 Socket 1, with E key (Internal) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
8.6.22 J501 - Mini PCIe (with mSATA Support) (Internal) . . . . . . . . . . . . . . . . . . . . . . . . . 29
8.7 Jumpers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
8.7.1 JP1 - Board Configuration Jumpers (Internal). . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
8.8 LED Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
9 BIOS Functionality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
9.1 Software Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
9.1.1 Software Design Specification: UEFI Operating System Support . . . . . . . . . . . . 30
9.1.2 Software Design Specification: Legacy Operating System Support . . . . . . . . . . 30
9.1.3 Software Design Specification: Boot Device Configuration . . . . . . . . . . . . . . . . . 31
9.1.4 Software Design Specification: BIOS Update Mechanisms . . . . . . . . . . . . . . . . . 31
9.1.5 Software Design Requirements: BIOS Components. . . . . . . . . . . . . . . . . . . . . . . 31
9.2 BIOS Update with UEFI Shell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
9.2.1 Scope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
9.2.2 Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
9.3 Embedded Controller (EC) Update with UEFI Shell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
9.3.1 Scope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
9.3.2 Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
10 Accessories and Cables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
11 Software Drivers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
A Best Practices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
B Mechanical Drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
C Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

SYS-427/Before You Begin
v1.0 www.winsystems.com Page 5
1. Before You Begin
Review the warnings in this section and the best practice
recommendations (see “Best Practices” on page 36) when using and
handling the WINSYSTEMS SYS-427 embedded computer. Following these
recommendations provides an optimal user experience and prevents
damage. Read through this document and become familiar with the SYS-
427 before proceeding.
1.1 Warnings
Only qualified personnel should configure and install the SYS-427. While
observing best practices, pay particular attention to the following:.
2. Introduction
This manual provides configuration and usage information for the SYS-
427. If you still have questions, contact Technical Support at (817) 274-
7553, Monday through Friday, between 8 AM and 5 PM Central Standard
Time (CST).
Refer to the WINSYSTEMS website at http://www.winsystems.com/ for
other accessories (including cable drawings and pinouts) that can be used
with your SYS-427.
3. Functionality
The SYS-427 is a rugged, embedded computer featuring the latest
generation Intel Apollo Lake-I SOC processor.
This full-featured embedded computer supports three independent video
displays (two DisplayPort and one LVDS video), dual Ethernet, two USB 3.1
Gen 1 ports, four USB 2.0 ports, eight general purpose I/O (GPIO) lines, two
channels analog-to-digital converter (ADC), stereo audio, and a Trusted
Platform Module (TPM 2.0)
FAILING TO COMPLY WITH THESE BEST PRACTICES MAY DAMAGE THE SYS-427
AND VOID YOUR WARRANTY.
Avoid Electrostatic Discharge (ESD)
Only handle the circuit board and other bare electronics when electrostatic
discharge (ESD) protection is in place. Having a wrist strap and a fully grounded
workstation is the minimum ESD protection required before the ESD seal on
the product bag is broken.

SYS-427/Features
v1.0 www.winsystems.com Page 6
Solid state storage options include an mSATA socket and optional soldered
down eMMC device for operating systems (OS) and applications.
Additionally, the computer supports an external SATA device.
Expansion options are provided through the M.2 Socket 1 with E key,
Mini PCIe socket (with mSATA support) and WINSYSTEMS Modular IO80
interface. For additional enclosure expansion options, contact a
WINSYSTEMS Applications Engineer at [phone].
The SYS-427 computer supports up to 8 GB of socketed SODIMM DDR3L
Error Correcting Code (ECC) SDRAM.
4. Features
The SYS-427 provides the following features.
Embedded Computer
• Multi-core Intel Atom E3900 processors
– X5 E3930 dual core, up to 1.8 GHz (base frequency 1.3 GHz)
– X5 E3940 quad core, up to 1.8 GHz (base frequency 1.6 GHz)
– X7 E3950 quad core, up to 2.0 GHz (base frequency 1.6 GHz)
Operating Systems (compatibility)
• Windows 10 x64, IoT Core, and Professional
•Linuxx64
• Most x86 operating systems
Memory
• Up to 8 GB ECC DDR3L SODIMM (socketed)
BIOS
• AMI UEFI-compliant BIOS in SPI flash device
Video Interfaces (supports three simultaneous displays)
• 2x DisplayPort (version 1.2)
– 4096 x 2160 at 60 Hz
• Single-channel, low-voltage differential signaling (LVDS)
– 18 and 24 bpp color panel support
– Supports up to 1440 x 1080 or 1600 x 900 at 60 Hz resolution
Ethernet
• 2x Intel 10/100/1000 Mbps controllers using Intel i210
• Wake-on-LAN support, both channels

SYS-427/Features
v1.0 www.winsystems.com Page 7
Storage
• SATA 6Gb/s port
• mSATA SSD support (Mini PCIe card)
• eMMC solid state disk
Data Acquisition
• 8x GPIO bidirectional lines
• 2x analog to digital (ADC) lines
Bus Expansion
• WINSYSTEMS Modular IO80
– 2x PCIe x1 Gen 2 (one PCIe x1 lane is software switchable to 1x
USB 3.1 Gen 1 port)
–2xUSB2.0
–1xI2C
–1xSPI
–4xGPIO
–1xLPC
–HDstereoaudio
• M.2 Socket 1, with E key, type 2230
• Mini PCIe card (mPCIe, USB, mSATA)
Serial Interface
• 2x RS232/422/485 serial ports
USB
• 2x USB 3.1 Gen 1 ports
•9xUSB2.0ports
– 4x USB 2.0 available on USB header
– 2x USB 2.0 on WINSYSTEMS Modular IO80
–1xUSB2.0onM.2
–1xUSB2.0onMiniPCIecard
– 1x USB 2.0 on Touch Controller
Power
• Supports a wide range DC input power: 10 V to 50 V
• External battery connector, operates with no battery connected
• +5 V and +12 V SATA power

SYS-427/Features
v1.0 www.winsystems.com Page 8
Industrial Operating Temperature
• -40 to +85°C (-40 to +185°F)1
Additional Features
• Hardware security - Trusted Platform Module (TPM) enabled
•Watchdogtimeradjustable from 1 second to 255 minute reset
•RoHScompliant
• Backlight power supported
• Custom splash screen on startup
• Intel low-power Gen9 graphics engine
• Intel security engine
1. Requires airflow and high temperature grade DRAM.

SYS-427/General Operation
v1.0 www.winsystems.com Page 9
5. General Operation
5.1 System Block Diagram
WINSYSTEMS’ SYS-427 supports three independent video displays (two
DisplayPort and LVDS video), dual Ethernet, two USB 3.1 Gen 1 ports, four
USB 2.0 ports, eight general purpose I/O (GPIO) lines, two channels
analog-to-digital converter (ADC), stereo audio, and a watchdog timer.
The WINSYSTEMS SYS-427 features a dual or quad-core processor and up
to 8 GB of socketed SODIMM DDR3L ECC SDRAM. The embedded
computer includes an mSATA socket and optional soldered down eMMC
device for solid state storage of operating systems and applications.
Additionally, the computer supports an external SATA device.
The SYS-427 has expansion capabilities via a M.2 Socket 1 with E key,
Mini PCIe socket (with mSATA support) and WINSYSTEMS Modular IO80
interface.
The embedded computer supports Linux, Windows 10, DOS, and other
x86-compatible real-time operating systems. Drivers are available from
the WINSYSTEMS website.

SYS-427/Specifications
v1.0 www.winsystems.com Page 10
6. Specifications
The SYS-427 adheres to the following specifications and requirements.
Feature Specification
Electrical
VCC Supports a wide range DC input power: 10 V to 50 V
Models SYS-4275064-8A-1-1
5= CPU (3= E3930, 4= E3940, 5= E3950)
064 = EMMC (0, 32, 64, 128) future (256, 512)
8= RAM SIZE (4 GB, 8 GB) (all have ECC, so it’s not listed)
A= RAM TEMP (A=Automotive, H=High, I=Industrial)
1= Flex-Power Module (Number for 1=Button/433, 2=PoE/
434, 3=UPS/435, etc.)
1 = Flex-IO Module (Number for 0=none, 1=USB/445,
tbd=SPI/tbd, tbd=GPIO/tbd, tbd=AIO/tbd, etc.)
Processor X5 E3930 dual core, up to 1.8 GHz (base frequency 1.3 GHz)
X5 E3940 quad core, up to 1.8 GHz (base frequency 1.6 GHz)
X7 E3950 quad core, up to 2.0 GHz (base frequency 1.6 GHz)
Maximum Power
Usage
30 W
Mechanical
Dimensions 6.50 in. x 4.53 in. (165 mm x 115 mm)
Weight 2.0 lb. (0.92 kg)
PCB thickness 0.078 in. (1.98 mm)
Environmental
Temperature -40 to +85°C (-40 to +185°F)a
a. Requires airflow and high temperature grade DRAM.
Humidity (RH) 5% to 95% non-condensing
Mechanical shock
testing
IEC 60068-2-27
40 g half-sine, 6 ms, 18 shocks
Random vibration
testing
IEC 60068-2-64
7 g rms for all X, Y, and Z directions; 3 hours
Mean time
between failure
(MTBF) b
b. A MTBF measurement is based on a statistical sample and is not intended to pre-
dict any one specific unit's reliability; thus MTBF is not, and should not be con-
strued as, a warranty measurement.
MTBF (hours) 171370.5013
MTBF (years) 19.5628
RoHS compliant Yes
Operating Systems
Runs 64-bit Windows, Linux, and other x86-64-compatible operating systems.

SYS-427/Compliance and Safety
v1.0 www.winsystems.com Page 11
7. Compliance and Safety
8. Configuration
This section describes the SYS-427 components and configuration.
8.1 Component Layout
8.1.1 Front Panel Connectors View
NOTE Configuration shown includes Power button module ADP-PS-433 and dual
USB module ADP-USB-445.
2x DisplayPort
2x USB 2.0
2x USB 3.1
Gen 1
2x ENET
Power
Power
button

SYS-427/Configuration
v1.0 www.winsystems.com Page 12

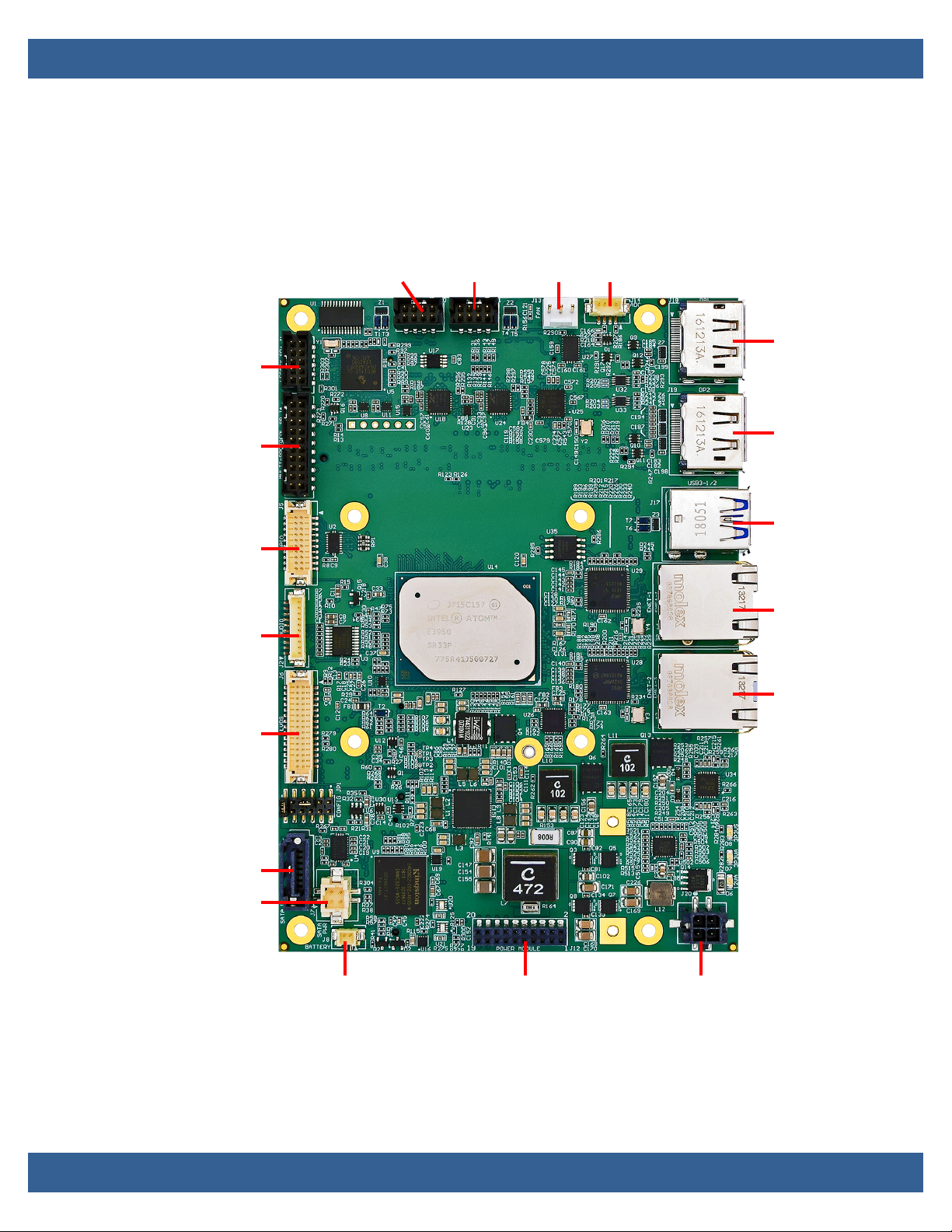

8.1.2 Top View
The removable rear panel provides easy access to the top view headers.
Additionally, a WINSYSTEMS Front Panel Expansion Module can support
connectors such as USB 2.0, serial ports, and analog to digital (ADC) (the
default module is dual USB 2.0 Type A connectors (ADP-USB-445).
2x USB 2.0
ENET
8x GPIO
2x USB 2.0
DisplayPort
POWER
Fan ADC
2x USB 3.0
DisplayPort
ENET
2X RS232/
422/485
LVDS and
Backlight
AUDIO
SATA
SATA POWER
1X RS232
POWER
MODULE
BATTERY

SYS-427/Configuration
v1.0 www.winsystems.com Page 13
Item Description Reference
J1 Legacy RS232 Header page 23
J2 HD Audio Header page 22
J3 SATA 6Gb/s Port page 25
J4 Serial Ports (RS232/422/485) Header page 23
J5 GPIO General-Purpose Input/Output Header page 26
J6 LVDS Data and Backlight Header page 20
J7 SATA Power Header page 19
J8 External Battery Header page 18
J10/J11 USB 2.0 Port 2x Headers page 24
J12 Power Module Header page 18
J13 External Fan Header page 19
J14 Analog Inputs (Analog to Digital) Header page 27
J15/J16 Ethernet (LAN) RJ45 page 25
J17 USB 3.1 Gen 1 Ports page 25
J18/J19 DisplayPort page 21
J20 Input Power Header page 17
JP1 Board Configuration Jumpers page 29

SYS-427/Configuration
v1.0 www.winsystems.com Page 14

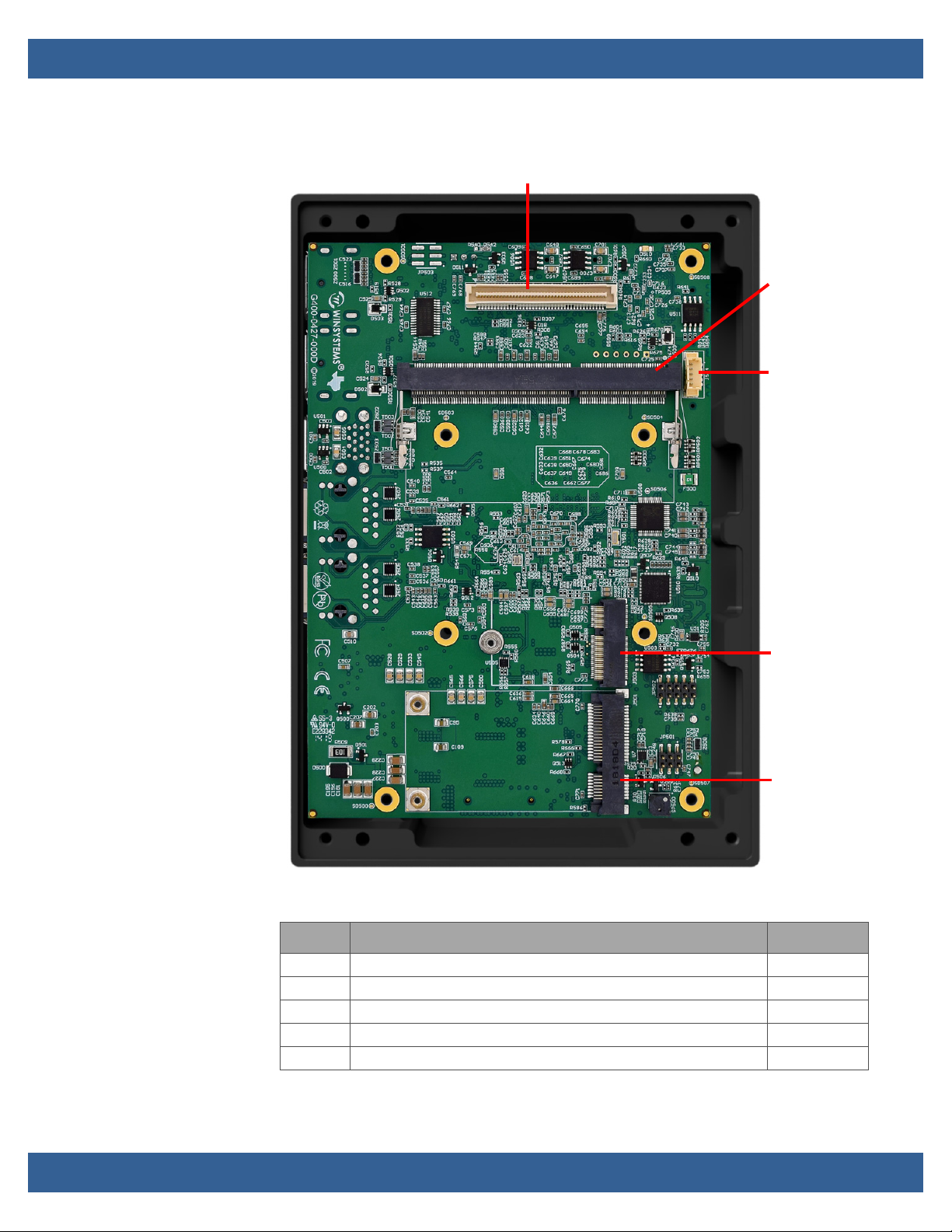

8.1.3 Bottom View
M.2 (E key)
Mini PCIe
Modular IO80
USB
Touchscreen
System
Memory
Item Description Reference
J500 System Memory page 25
J501 Mini PCIe (with mSATA Support) page 29
J502 WINSYSTEMS Modular IO80 page 28
J503 M.2 Socket 1, with E key page 29
J504 USB Touchscreen Header page 21

SYS-427/Configuration
v1.0 www.winsystems.com Page 15
8.2 System Mounting Options
WINSYSTEMS provides optional brackets and DIN rail mounting hardware
for mounting the SYS-427 rugged enclosure to your system. See the
diagram below for hardware type and product part numbers.
8.3 Watchdog Timer (WDT)
8.3.1 WDT Register Usage
The Watchdog Timer (WDT) implemented in the SYS-427’s embedded
controller (EC) can be used to reset the system if a lock-up prevents a
software task from periodically resetting the watchdog timer. The WDT is
controlled through a set of virtual registers that are exposed to Apollo
Lake applications by the EC on the SYS-427. The WDT can be programmed
VESA Mount Bracket (optional)
100x100 mm
75x75 mm
WINSYSTEMS PN: KIT-MNT-427-VESA
Floor Mount Bracket (optional)
WINSYSTEMS PN: KIT-MNT-427-FLAT
DIN Rail Mount Bracket (optional)
WINSYSTEMS PN: KIT-MNT-427-DIN

SYS-427/Configuration
v1.0 www.winsystems.com Page 16
to count in either seconds or minutes; it has a minimum granularity of 1
second, and a maximum granularity of 255 minutes.
8.4 Real-time Clock/Calendar
A real-time clock is used as the AT-compatible clock/calendar. It supports a
number of features including periodic and alarm interrupt capabilities. In
addition to the time and date-keeping functions, the system configuration
is kept in CMOS RAM contained within the clock section. A battery must be
enabled for the real-time clock to retain time and date during a power
down.
WINSYSTEMS has software available for manipulating the CMOS RTC from
a high-level application.
8.5 System Management Software
The system management software for the SYS-427 consists of a set of
library functions and example applications that demonstrate the
functionality of the system management software. The software is
available for both Windows 10 and Ubuntu Linux.
The system management software is custom software designed to use the
built-in functionality of the SYS-427’s embedded controller (MicroChip
MEC1418) to perform system management tasks such as reporting of
board voltages (3.3 V, 5 V, 12 V, Vddq, Vcore, Vbat, and the pair of user ADC
inputs), the control of the system fan, reporting of the ambient
temperature and setting of temperature sensor thresholds. Additional
functionality allows applications to determine the version of the EC
firmware, report the boot image used when the system started, and allow
the EC to update its own firmware image. The EC contains a pair of
identical images for redundancy and rolls over to a correct image if the
first image is compromised.

SYS-427/Configuration
v1.0 www.winsystems.com Page 17
8.6 Connectors
8.6.1 J20 - Input Power Connector
Use this connection to supply power to the SYS-427. This computer
supports a wide range DC input power from 10 V to 50 V.
Layout and Pin Reference
Connector
• Phoenix Contact Terminal Block Header
Part Number: 1827868
Matching Connector
• Phoenix Contact Terminal Block Plug
Part Number: 1827703
For alternative power input options such as PoE PD and UPS backup,
contact a WINSYSTEMS Applications Engineer at [phone].
Pin Name Pin Name
1 Ground (GND) 2 Voltage In (VIN)
VINGND

SYS-427/Configuration
v1.0 www.winsystems.com Page 18
8.6.2 J12 - Power Module Header (Internal)
This connection accepts WINSYSTEMS power modules providing
additional power options such as PoE PD, and UPS backup. Contact a
WINSYSTEMS Applications Engineer at [phone].
Layout and Pin Reference
Connector
• Samtec SQW series 2.00 mm rugged sockets
Part Number: SQW-110-01-F-D-VS-A-K-TR
Matching Connector
• Samtec TW series 2.00 mm flex stack
Part Number: TW-10-03-F-D-280-SM-A
8.6.3 J8 - External Battery Header (Internal)
An external battery connected to the SYS-427 provides standby power for
the real-time clock.
Layout and Pin Reference
Connector
• Hirose DF13 series 1.25 mm 2-pin
Part Number: DF13C-2P-1.25V (51)
Diagram Pin Name Pin Name
1VIN 2GND
3VIN 4GND
5VIN 6GND
7VIN 8GND
9VIN 10GND
11 VIN 12 GND
13 V12_RUN 14 PM_GPIO0
15 I2C_PM_SCL 16 PM_GPIO1
17 I2C_PM_SDA 18 PMU_RSTBTN_N
19 ALL_SYS_PWRGD 20 PM_PWRBTN_N
2
2019
1
Pin Name
1VBAT
2GND
1

SYS-427/Configuration
v1.0 www.winsystems.com Page 19
Matching Connector
• Hirose DF13C 1.25 mm 2-pin
Part Number: DF13C-2S-1.25C
8.6.4 J7 - SATA Power Header (Internal)
Power is supplied to the SATA device via the connector at J7.
Layout and Pin Reference
Connector
• Hirose DF11 series 2.00 mm dual-row 4-pin
Part Number: DF11C-4DP-2V(57)
Matching Connector
• Hirose DF11 series 2.00 mm crimping socket 4-pin
Part Number: DF11-4S-2C
8.6.5 J13 - External Fan Header (Internal)
Layout and Pin Reference
Connector
• Hirose DF13 series 1.25 mm 3-pin
Part Number: DF13C-3P-1.25V (51)
Pin Name Pin Name
1 +12 V SB 2 +5 V SB
3GND 4GND
1
Pin Name
1TACH_EC
2+12VDC
3GND
1

SYS-427/Configuration
v1.0 www.winsystems.com Page 20
Matching Connector
• Hirose DF13C 1.25 mm 3-pin
Part Number: DF13C-2S-1.25C
8.6.6 J6 - LVDS Data and Backlight Header (Internal)
The SYS-427 supports single channel LVDS flat panel displays with
resolutions up to 1440 x 1080 or 1600 x 900 at 24 bpp.
The LVDS output signals are odd bus, differential signals to the LVDS
receiver. Each LVDS Poutput makes a differential pair with LVDS N.
Layout and Pin Reference
Connector
• Hirose DF13 Series 1.25 mm double row 30-pin
Part Number: DF13EA-30DP-1.25V(51)
Matching Connectors
• Hirose DF13C 1.25 mm double row 30-pin
Part Number: DF13-30DS-1.25C
Pin Name Description Pin Name Description
1LVDSAO_P ChannelA-PositiveLVDS Output 2 LVDSBO_P Channel B - Positive LVDS Output
3 LVDSAO_N Channel A - Negative LVDS
Output
4 LVDSBO_N Channel B - Negative LVDS Output
5 GND Ground 6 GND Ground
7 LVDSCO_P Channel C - Positive LVDS Output 8 LVDSDO_P Channel D - Positive LVDS Output
9 LVDSCO_N Channel C - Negative LVDS
Output
10 LVDSDO_N Channel D - Negative LVDS Output
11 GND Ground 12 GND Ground
13 LVDSCKO_P Positive LVDS Clock Output 14 DDC_SCL Open-drain DDC Data I/O
15 LVDSCKO_N Negative LVDS Clock Output 16 DDC_SDA Open-drain DDC Clock I/O
17 GND Ground 18 GND Ground
19 I2C_TC_SCL I2C Touch Control Clock 20 VCC_LVDS +3.3 VDC
21 I2C_TC_SDA I2C Touch Control Data 22 VCC_LVDS +3.3 VDC
23 GND Ground 24 GND Ground
25 BKLTPWM Backlight PWM brightness control 26 BKLT_PWR Backlight Power (+5 VDC or +12 VDC)
27 BKLT_EN Backlight Enable 28 BKLT_PWR Backlight Power (+5 VDC or +12 VDC)
29 SEL68 Select 8/6-bit 30 BKLT_PWR Backlight Power (+5 VDC or +12 VDC)
1
2
29
30
