LP-4611
User's Manual

Introduction
Thank you for purchasing LP-4604+ radio manufactured by
Wintec. Based on the ever-changing innovative technology, we
have been able to develop many different wireless products that
have gained widely consumers' affection. Besides our
appreciation for your love of our products, we even wish you to
be attentive to new product information. Your precious comment
will be appreciated by us. Please read through the manual
carefully to learn whole features of this model.
Safety Information
1. Use only the supplied antenna. Unauthorized antennas,
modifications or attachments could damage the radio and
changes or modifications not expressly approved by the party
responsible for the compliance could void the authority to
operate the radio.
2. Avoid storing in high temperature or humid place for long time.
3. If strange smell or smoke comes off the radio, dispatch it to
service center immediately.
4. Turn to lowest volume if external mic/speaker is used, then
adjust appropriately.
5. Never use other power sources for charging other than the
standard charger set designed for this radio model.
6. Take off battery pack if out of use for long time.

Features
High-capacity (2600mAh) battery designed.
Max. 7 Watt output power.
Voice notification. (Chinese / English)
16 levels of VOX (Voice-Activate feature) with quick VOX
capability ON / OFF.
Auto-power saving mode / Auto-power–off / Transmit
time-out-timer.
Low power warning and auto lower output power to extend
operation time.
16 programmable channels / 1 programmable function keys.
262 CTCSS / DCS / User Define supported.
End of Call confirmation tone and 7-Call alert tone.
SOS / PRI. / SCAN channel setting.
Channel / PRI. SCAN supported.
Voice scramblers supported.

Contents
Radio Controls / Functions-----------------------------------------
Operation Guide-------------------------------------------------------
Low Battery Power Warning----------------------------------------

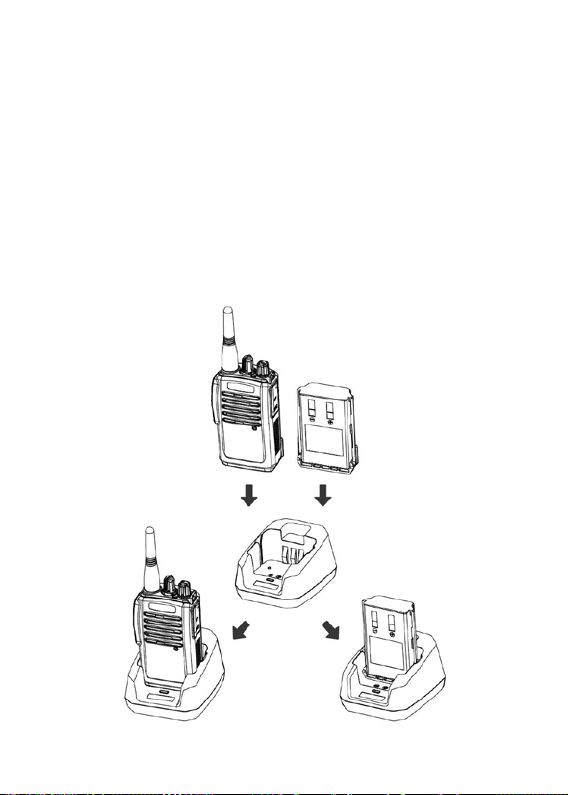

Installing / Removing Battery Pack-------------------------------
Battery Charging------------------------------------------------------
CTCSS Code Table---------------------------------------------------
DCS Normal and Inverse Code------------------------------------
Specifications-----------------------------------------------------------
1
2
9
10
11
11
13
14

1

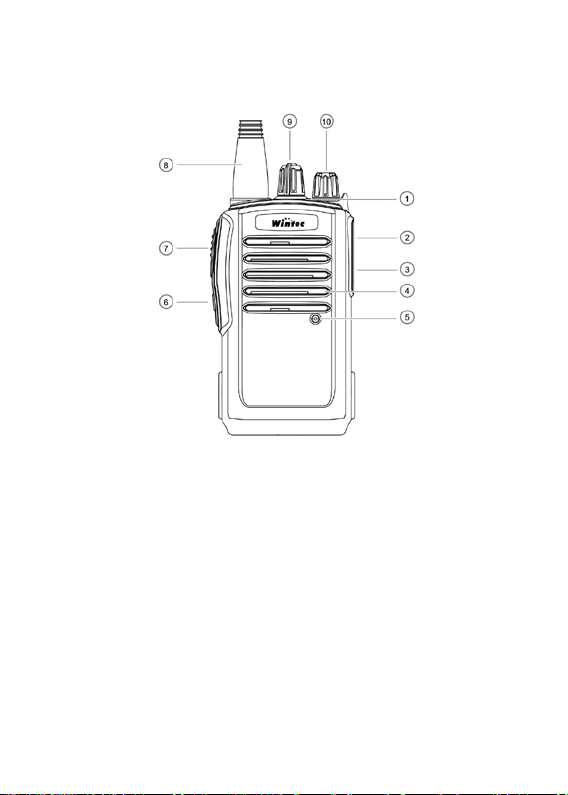

Radio Controls / Functions
1. LED indicator 6. Programmable key P0
P0 Default: Monitoring
2. External speaker jack 7. PTT key (Push-To-Talk)
3. External microphone jack 8. Antenna
4. Speaker area 9. 16 channel knob
5. Microphone 10. Power / Volume knob

2
Operation Guide
Power ON / OFF
Rotate the Power / Volume knob clockwise to switch power
ON. When the click sound of switch and the melody is heard,
the transceiver is powered.
Rotate the Power / Volume knob anticlockwise to switch the
power OFF. When the click sound of switch is heard, the
transceiver's power is turned off.
Transmitting / Receiving
Rotate the Channel knob to the desired channel, press and hold
PTT button. The LED lamp turns red during transmission.
Release PTT button for the transceiver for receiving. During
receiving, LED light turns to green.
※Keep about 5~10cm from microphone area when speaking
slowly and clearly.
Volume Adjustment
Rotate the Power /Volume knob slowly to avoid outburst of
sound harmful to ears. Adjust volume to an appropriate level.
Rotate the Power /Volume knob in clockwise direction to
increase volume. Rotate Power/Volume knob anticlockwise
to decrease volume.
※Caution: For external mic/ear user, adjust volume starting
from the lowest level.

3
Assignment of channels
※Prog ram the frequency of channels in advance.
There are channels 1 ~ 16 selectable by Channel knob.
If select any unedited channel, speaker sounds beeps and
LED lamp stays on red.
If no mark the option " Do not lock the channel knob when
the key is locked " when programming, it will lock all
keypads and unable to rotate channel knob. Once adjust
channel knob, the speaker sounds beeps continuously and
LED stays on red lamp.
Scan Channels
To activate this function, need to assign “ Normal SCAN ” in
programming key setting.
Long press defined key enables start or stop scanning.
During programming, assign desired channels as " Scan CH".
EX: If channels CH1, CH2, CH5, CH9, CH12 are assigned as "
Scan CH", these channels will be scanned in this sequence
continuously till a busy channel is found.
Transceiver will stay on that busy channel for reception or to
transmit and according to "SCAN setting" (BR/TR) to decide on
when can again go on scanning. BR: Till signal disappears for 3
seconds to continue scanning. TR: Staying on the busy channel
exceed setting (3/5/10sec.), transceiver will continue scanning
no matter the signal disappears or not. While there is no signal
and if [PTT] is pushed, transmission is done from self original
channel.
If scanned-out the signal, transmission is done from busy

4
channel. It will again go on scanning after 5 seconds at the end
of reception or radio-communication.
※When scanning, monitor the current channel if press
[Monitoring]. It will again go on scanning after releasing
[Monitoring] 5 seconds.
※In the case of no signal or press the [PTT] or [Monitoring],
LED lamp will be flashing green to indicate in scanning.
※VOX is invalid, when scan in progress.
※This function is not allowed at the [CTCSS/DCS OFF] / [Talk
around] / [TX power adjustment].
Priority Channel Scanning
To activate this function, need to assign “ Pri. SCAN ” in
programming key setting.
Long press defined key enables start or stop scanning.
During programming, assign a channel as " PRI.CH " and "
Scan CH ". Transceiver will scan these channels
interchangeably. Ex: If channel 1 is assigned to be "PRI.CH"
and CH1, CH2, CH5, CH6 assigned to be "Scan CH ", scan
sequence will be CH1(P), CH1, CH1(P), CH2 , CH1(P),CH5,
CH1(P),CH6, CH1(P).
Transceiver will stay on that busy channel for reception or to
transmit and according to " SCAN setting " (BR / TR) to decide
on when can again go on scanning. BR: Till signal disappears
for 3 seconds to continue scanning. TR: Staying on the busy
channel exceed setting (3 / 5 / 10sec.), transceiver will continue
scanning no matter the signal disappears or not.
※Pri. channel is not supported TR SCAN setting.

5
If scanned-out channel is not priority channel, transceiver will
leave it for 3 sec. and will stay standby on priority channel to
check if there is any signal. It will change to " SCAN CH " after 3
sec. from the end of reception or radio-communication. While
there is no signal and if [PTT] is pushed, transmission is done
from priority channel.
If scanned-out the signal, transmission is done from busy
channel. It will again go on scanning after 5 seconds at the end
of reception or radio-communication.
※W hen scanning, monitor the current channel if press
[Monitoring]. It will again go on scanning after releasing
[Monitoring] 5 seconds.
※In the case of no signal or press the [PTT] or [Monitoring],
LED lamp will be flashing green to indicate in scanning.
※VOX is invalid, when scan in progress.
※This function is not allowed at the [CTCSS / DCS OFF] / [Talk
around] / [TX power adjustment].
VOX ON / OFF
To activate this function, press and hold PTT and push [P0]
simultaneously. To deactivate, repeat the same procedure. A
ding-dong melody will be heard at the end of activation and
deactivation of VOX.
※While VOX is enabled, press of [PTT] is no longer required
during transmission. Just talk into the microphone area with
appropriate sound (depending on VOX sensitivity).

6
Sensitivity Adjustment of VOX
Press and hold P0 and simultaneously turn on the power and
wait for 3 seconds to activate VOX adjustment mode.
(Following 3 beeps, and the red LED lamp will flash three times)
Use Channel knob to select 1~16 sensitivity level of VOX (1
being the highest, 16 being the lowest in sensitivity.) Talk to
MIC speaker to find suitable sensitivity level (VOX will send out
a short beep at the beginning of operation, the LED lamp turns
red without transmitting.) When desired sensitivity is reached,
press and hold [P0]. One beep can be heard when transceiver
completes setting and exists VOX adjustment mode.
SOS (Emergency) Channel
To activate this function, need to assign “ TO SOS CH ” in
programming key setting.
Long press defined key enables to switch SOS channel. Repeat
the same procedure to switch the current channel where the
channel knob located.
※In advance to assign the desired channel to SOS channel
when programming.
Priority Channel
To activate this function, need to assign “ TO Pri. CH ” in
programming key setting.
Long press defined key enables to switch priority channel.
Repeat the same procedure to switch the current channel
where the channel knob located.
※In advance to assign the desired channel to Pri. channel

7
when programming.
CTCSS / DCS ON / OFF
To activate this function, need to assign “RX Sub-Tone Disable”
in programming key setting.
Long press defined key enables to turn off CTCSS/DCS
reception on the current channel.
Rotate channel knob or press defined key repeatedly,
transceiver will restore to CTCSS / DCS setting.
※If CTCSS / DCS is not set in the channel, this function is
invalid.
Monitoring
To activate this function, need to assign “Mointer” in
programming key setting.
Hold on [○] for about 1 sec. Static is heard if the channel is
clear or any voice on this channel can be heard regardless of
CTCSS or DCS setting. LED glows green.
※Monitoring is used for below purposes:
1. To receive weak signals due to distance or for signal
intermittently received.
2. To receive all signals on same channel even with different.
※There are A / B types selectable by programming setting.
A: Long press and hold [○] enables to monitor till release
button the monitoring is stopping.(Default)
B: Press [○] enables to monitor and press again the monitoring
is to stop.

8
Keypad Lock / Unlock
To activate this function, need to assign “ Key Lock ” in
programming key setting.
Hold on defined key for about 1.5 sec to until speaker sounds
beeps to lock keypad. Repeat the same procedure to unlock
keypad.
※To prevent accidental function changes, only [PTT], [Key
Lock] and [Mointer] are valid when keypad lock is enabled.
Tone Call
To activate this function, need to assign “ Call Tone ” in
programming key setting.
Holding [PTT], temporarily press defined key to send tone call
to other receivers.
※Hold [Tone Call] button to play call tones repeatedly. When
the button is released, it will be selected as the current " call
tone " sound.
※If assign [P0] to [Call Tone], please mark option “ Always
Disable Vox Function " when programming. Otherwise, this
function is invalid.
TX Power Adjustment
When switch TX power adjustment, beep two sounds is
indicated high power and one sound is indicated low power.

9
Talk Around
To activate this function, need to assign “ Talk Around ON /
OFF ” in programming key setting.
Hold on defined key to enable this function, the frequency of
transmission channel and DCS / CTCSS setting are identical to
the receiving channel. Repeat the same procedure to OFF
function.
Low Battery Power Warning
1. When battery is low, you will hear a beep sound.for every
transmission to remind user battery is low. At main time,
power output will automatically change to L level automa.
2. When battery is extremely low, you will hear twice beep
sounds for every transmission. At main time, power output
will automatically change to L Level.
3. When battery is used up, radio will automatically turn OFF.

10
Installing / Removing Battery Pack
To Install
1. Place the battery pack into batterycompartment as in illus #1.
2. Push battery pack forward as in illus #2. It will lock into
compartment.
To Remove
1. Holding the radio in one hand, push down battery latch as in
illus #1.
2. Slide battery pack backwards as in illus #2.
Safety Lock
Press Down Safety Lock

11
Battery Charging
There are two methods to charge, the main body (including
battery) charging and battery separately.
LED Indicator
Green On: Charger Normal
Green Flash: Charge Complete
Red On: Charging
Red Flash: Charger Abnormal

12
CTCSS Code Table
1 67.0 11 97.4 21 136.5 31 192.8 41 159.8
2 71.9 12 100.0 22 141.3 32 203.5 42 165.5
3 74.4 13 103.5 23 146.2 33 210.7 43 171.3
4 77.0 14 107.2 24 151.4 34 218.1 44 177.3
5 79.7 15 110.9 25 156.7 35 225.7 45 183.5
6 82.5 16 114.8 26 162.2 36 233.6 46 189.9
7 85.4 17 118.8 27 167.9 37 241.8 47 196.6
8 88.5 18 123.0 28 173.8 38 250.3 48 199.5
9 91.5 19 127.3 29 179.9 39 69.3 49 206.5
10 94.8 20 131.8 30 186.2 40 62.5 50 229.1
51 254.1
★CTCSS ud: 60 Hz

13
DCS Normal and Inverse Code
1 023 19 131 37 261 55 431 73 654 91 252
2 025 20 132 38 263 56 432 74 662 92 255
3 026 21 134 39 265 57 445 75 664 93 266
4 031 22 143 40 271 58 464 76 703 94 274
5 032 23 152 41 306 59 465 77 712 95 325
6 043 24 155 42 311 60 466 78 723 96 332
7 047 25 156 43 315 61 503 79 731 97 356
8 051 26 162 44 331 62 506 80 732 98 446
9 054 27 165 45 343 63 516 81 734 99 452
10 065 28 172 46 346 64 532 82 743 100 454
11 071 29 174 47 351 65 546 83 754 101 455
12 072 30 205 48 364 66 565 84 036 102 462
13 073 31 223 49 365 67 606 85 053 103 523
14 074 32 226 50 371 68 612 86 122 104 526
15 114 33 243 51 411 69 624 87 145
16 115 34 244 52 412 70 627 88 212
17 116 35 245 53 413 71 631 89 225
18 125 36 251 54 423 72 632 90 246
★DCS ud: 001

14
Specifications
Frequency Range 400~480MHz
Channel Spacing 12.5 / 20.0 / 25.0KHz
Channel Number 16
Frequency Stability ±1.5PPM
Sub-Audio Type CTCSS / DCS
Antenna Impedance 50Ω
Power Voltage Range 7.4V
Operating Temperature -30℃~ +70℃
Weight 280g (with antenna & battery)
Dimension(H×W×D) 100×60×43mm
(w / o antenna & knob)
Max. Output Power 7W
Modulation 16K0F3E, 11K0F3E
Spurious Emissions 70dB
Sensitivity (12dB SINAD) -120dBm
Adjacent Channel Selectivity >60dB
Intermodulation >60dB
Spurious & Image Rejection >60dB
Audio Output Power 650mW@8Ω For 3% THD
