Wintech 301 User manual

1
OPERATION AND MAINTENANCE MANUAL
for
STANDARD UPRIGHT ELECTRIC BARGE WINCHES
Form MHD56001
25 TON MODELS 50 TON MODELS
601 611 621
631 641
301 311 321
331 341 351
25 ton Barge Winch
READ THIS MANUAL BEFORE USING THESE PRODUCTS. This manual
containsimportantsafety,installation,operationandmaintenanceinformation. Make
this manual available to all persons responsible for the operation, installation and
maintenanceoftheseproducts.
Donotusethiswinchforlifting,supporting,ortransportingpeopleorliftingorsupportingloadsover
people.
Always operate, inspect and maintain this winch in accordance with American National Standards
InstituteSafetyCode(ANSIB30.7)andanyotherapplicablesafetycodesandregulations.
Referallcommunicationsto WintechInternationalInc. oryournearestDistributor.
FormMHD56001
Edition2
June 2003
71006746
©1999 Wintech International, L.L.C.
WARNING

2
• Electricalinstallationshouldbeperformedbylicensed
electriciansinaccordancewiththelatesteditionofthe
NationalElectricalCode(ANSI/NFPA70)andany
applicablelocal,stateandnationalelectricalcodesand
ordinances.
The National Safety Council, Accident Prevention Manual
for Industrial Operations, Eighth Edition and other recog-
nized safety sources make a common point: Employees
who work near material handling equipment or assist in
hooking on or arranging a load should be instructed in safe
rigging procedures. From a safety standpoint, one factor is
paramount: conduct all pulling operations in such a manner
that if there were an equipment failure, no personnel would
be injured. This means keep out of the line of force of any
load.
Tothe best ofour knowledge,Wintech International
Material Handling winches are manufactured in accordance
with the latest standards in effect at time of manufacture.
However, contrary to common belief, the Occupational
Safety and Health Act of 1970, as we understand it,
generally places the burden of compliance with the user,
not the manufacturer. Many OSHA requirements are not
concerned or connected with the manufactured product but
are, rather, connected with the final installation: “It is the
owner’s responsibility and user’s responsibility to deter-
mine the suitability of a product for any particular use.
Check all applicable industry, trade association, federal,
state and local regulations. Read all operating instructions
and warnings before operation.”
Rigging: It is the responsibility of the operator to exercise
caution, use common sense and be familiar with proper
riggingtechniques. SeeANSI/ASMEB30.9 for rigging
information, AmericanNationalStandards Institute,1430
Broadway,NewYork,NY10018.
•UsingotherthangenuineWintechInternationalparts
willresultinthevoidofwarranty.
Inspection and safety information contained in this manual
is based, in part, on the American National Standards
Institute Safety Code (ANSI B30.7). However, it should be
noted that ANSI B30.7 covers "Base Mounted Hoists" and
does not specifically apply to winches used as barge
pullersor in horizontalpulling applications.
This manual provides important information for all person-
nel involved with the safe installation, operation and proper
maintenance of this product. Even if you feel you are
familiarwith this orsimilar equipment,you must readand
understand this manual before operating the product.
Danger,Warning,CautionandNotice
Throughout this manual there are steps and procedures
which,if not followed, may resultin ahazard. The follow-
ing signal words are used to identify the level of potential
hazard.
Danger is used to indicate the
presence of a hazard which will
cause severe personal injury, death,
or substantial property damage if the
warning is ignored.
Warning is used to indicate the
presence of a hazard which can
cause severe personal injury, death,
or substantial property damage if the
warning is ignored.
Caution is used to indicate the
presence of a hazard which will or
can cause minor personal injury or
property damage if the warning is
ignored.
Notice is used to notify people of
installation,operation,ormainte-
nanceinformation which is important
but not hazard-related.
SafetySummary
•Donotusethiswinchforliftingorloweringloadsorfor
supporting,ortransportingpeople.
•Thesupportingstructuresandload-attachingdevices
usedinconjunctionwiththiswinchmustprovidean
adequatesafetyfactortohandletheratedload,plusthe
weightofthewinchandattachedequipment. Thisisthe
customer’sresponsibility. Ifindoubt,consultaqualified
structuralengineer.
SAFETY INFORMATION
DANGER
CAUTION
NOTICE
WARNING
NOTICE
WARNING
WARNING

3
SAFE OPERATING INSTRUCTIONS
winch has a rated capacity equal to or more than the
load. This provides adequate safety in the event of a
sudden load shift or failure of one winch.
10. Never place your hand in the throat area of a hook or in
the vicinity of the wire rope as it spools onto the drum.
11. Position load correctly. Do not attach load on hook
except in a straight pulling line. Do not “side pull” or
“yard”.
12. Keep hands, clothing, etc., clear of moving parts.
13. Do not force a hook into place by hammering.
14. Be certain the load is properly seated in the saddle of
the hook.
15. Do not pull the load on the tip of the hook.
16. Never run the wire rope over a sharp edge. Use a
sheave.
17. Pay attention to the load at all times when operating
the winch.
18. Make sure all people are clear of the loadpath.
19. Never use the winch for lifting or lowering loads and
never allow anyone to stand on a moving load.
20. Ease the slack out of the wire rope when starting a pull.
21. Never weld or cut on a load held by the winch.
22. Do not operate winch ifjamming, overloading,or
binding occurs.
23. After use, properly secure winch and all loads.
24. Always rig loads properly and carefully.
The following warnings and operating instructions have
been adapted in part from American National (Safety)
Standard ANSI B30.7 and are intended to avoid unsafe
operating practices which might lead to personal injury or
property damage.
WintechInternationalrecognizesthatmostcompanies
who use winches have a safety program in force at their
facility. In the event that some conflict exists between a
rule set forth in this publication and a similar rule already
set by an individual company, the more stringent of the two
should take precedence.
Safe Operating Instructions are provided to make an
operator aware of dangerous practices to avoid and are not
necessarilylimited tothe following list. Refer to specific
sections in the manual for additional safety information.
1. Only allow qualified personnel (trained in safety and
operation) to operate and maintain the winch.
2. Only operate a winch if you are physically fit to do so.
3. When a “DO NOT OPERATE” sign is placed on the
winch, do not operate the winch until the sign has
been removed by designated personnel.
4. Before each shift, the operator should inspect the
winchforwear ordamage.
5. Never use a winch which inspection indicates is
defective.
6. Do not use winch if hook latch on a hook has been
sprung or is broken.
7. Only pull loads less than or equal to the rated capacity
of the winch. See warning labels attached to the
winch.
8. Check that the hook latches are engaged before using.
9. When using two winches on one load ensure that each
WARNING TAG
Each winch is supplied from the factory with the warning
tag shown. If the tag is not attached to your winch, order a
new tag and install it. See the parts list for the part
number. Read and obey all warnings and other safety
information attached to this winch. Tag may not be shown
actual size.

4
SPECIFICATIONS
Wire rope capacities are calculated for full drum storage and do not comply with ANSI or any other standards
which may require that the top layer not exceed a specified distance below the drum flange diameter. Figures
may vary from those published elsewhere.
Model Capacities (lbs) Holding (lbs) Line Speed (fpm) Phase Weight
No. Rated Stall* Hand Electric Dog Tested to No Rated Cycle, Net
Pull Pull Pull Brake (US tons) Load Pull HP Volts (lbs)
301 3,200 9,000 20,000 55,000 50,000 40 50 42 5230/460-3-60 728
311 4,200 11,500 20,000 55,000 50,000 40 35 31 5230/460-3-60 728
321 4,800 13,000 20,000 55,000 50,000 40 50 42 7.5 230/460-3-60 859
331 6,400 17,500 20,000 55,000 50,000 40 23 21 5230/460-3-60 728
341 6,400 17,500 20,000 55,000 50,000 40 35 31 7.5 230/460-3-60 859
351 8,500 23,500 20,000 55,000 50,000 40 17 15 5230/460-3-60 728
601 4,500 15,500 40,000 70,000 100,000 65 34 30 5230/460-3-60 1,290
611 6,500 22,000 40,000 70,000 100,000 65 34 30 7.5 230/460-3-60 1,331
621 8,500 28,000 40,000 70,000 100,000 65 17 15 5230/460-3-60 1,331
631 12,000 40,000 40,000 70,000 100,000 65 17 15 7.5 230/460-3-60 1,361
641 12,000 40,000 40,000 70,000 100,000 65 23 20 10 230/460-3-60 1,361
Metric
Model Capacities (kgs) Holding (kgs) Line Speed (m/m) Phase Weight
No. Rated Stall* Hand Electric Dog Tested to No Rated Cycle, Net
Pull Pull Pull Brake (US tons) Load Pull HP Volts (kgs)
301 1,452 4,082 9,072 24,948 22,680 40 15 13 5230/460-3-60 330
311 1,905 5,216 9,072 24,948 22,680 40 10.7 9.5 5230/460-3-60 330
321 2,177 5,897 9,072 24,948 22,680 40 15 13 7.5 230/460-3-60 390
331 2,903 7,938 9,072 24,948 22,680 40 76.4 5230/460-3-60 330
341 2,903 7,938 9,072 24,948 22,680 40 10.7 9.5 7.5 230/460-3-60 390
351 3,856 10,660 9,072 24,948 22,680 40 5.2 4.6 5230/460-3-60 330
601 2,041 7,031 18,144 31,752 45,360 65 10.4 9.1 5230/460-3-60 585
611 2,948 9,979 18,144 31,752 45,360 65 10.4 9.1 7.5 230/460-3-60 604
621 3,856 12,700 18,144 31,752 45,360 65 5.2 4.6 5230/460-3-60 604
631 5,443 18,144 18,144 31,752 45,360 65 5.2 4.6 7.5 230/460-3-60 617
641 5,443 18,144 18,144 31,752 45,360 65 76.1 10 230/460-3-60 617
Note: Capacities are rated on first layer.
* Stall pull rated at specific voltage with holding dog engaged.
Drum Wire Rope Capacity ft. (m)
Length 5/8 16 mm 3/4 18 mm 7/8 22 mm 1 26 mm 1-1/8 28 mm 1-1/4 32 mm
(in.)
Series 300
9286
86 196 62 130 40 116 24 --- --- --- ---
17 559 169 386 123 258 80 232 48 --- --- --- ---
35 1174 356 813 259 546 168 493 103 --- --- --- ---
52 1755 532 1216 387 818 251 740 155 --- --- --- ---
69 2336 708 1620 515 1090 335 986 206 --- --- --- ---
Series 600
11 --- --- --- --- 210 65 133 40 119 37 67 20
21 --- --- --- --- 418 129 265 79 240 74 136 41
41 --- --- --- --- 834 256 531 158 481 149 274 83
62 --- --- --- --- 1271 390 810 242 734 227 418 126
82 --- --- --- --- 1686 518 1075 321 975 302 556 168
(TBL.CAPACITY)
(TBL.SPECCHRT)

5
Model Code 341 L - RC - B17 - 12 - D
Series 25 Ton Standard Upright Winch (301, 311, 321, 331, 341 and 351)
50 Ton Standard Upright Winch (601, 611, 621, 631 and 641)
Configuration
L= Left Hand*
R = Right Hand*
RC = Remote Control Ready
VoltageA = 230-3-60
B= 460-3-60
C = Other Voltage
Drum Length
Distance Between Drum Flanges (in.).
Available lengths 25 Ton 9, 17, 35, 52 and 69.
Available lengths 50 Ton 11, 21, 41, 62 and 82.
Wire Rope Size
Number equals wire rope size in sixteenths, e.g. 3/4 in. (12/16 in. enter 12)
OptionsDB = Angle Deck Bracket.
C = Disengaging Clutch.**
G = Drum Grooving.**
D= Drum Divider Flange and additional wire rope anchor.**
F = Flange Mounted Ball Bearings.**
T = Torque Limiter Clutch.**
Control Systems require the following:
• Magnetic Reversing Starter
• Push Button Control
• Control Cord
Refer to Winch Controls on page 25 for additional information.
Model Code Explanation
* Left and right hand models are determined by which side of the winch the handwheel is mounted on. As illus-
trated,standingbehind the winch,facingthe wireropetake-off direction istheproper orientation fordetermining
rightorlefthandrequirements.
**Options arenot coveredin this manual. For additional information contactWintech Internationalor your
distributor.
(Dwg. MHTPA0253)(Dwg. MHTPA0261)
WIRE ROPE
TAKE-OFF WIRE ROPE
TAKE-OFF
DOG DOG
HANDWHEEL
HANDWHEEL
25T LEFT HAND
MODEL 25T RIGHT HAND
MODEL
WIRE ROPE
TAKE-OFF WIRE ROPE
TAKE-OFF
DOG DOG HANDWHEEL
HANDWHEEL
50TLEFTHAND
MODEL 50T RIGHT HAND
MODEL

6
8. Mounting bolts or screws must be 3/4 in. diameter (19
mm) Grade 8 or better. Use self-locking nuts or nuts
with lockwashers.
9. Tighten mounting bolts evenly and torque to 380 lb.
ft. (52 kg.m) dry. If the fasteners are plated, lubri-
cated or a thread locking compound is used torque to
280 lb.ft. (39 kg.m).
Bolt Pattern Dimensions
Series "A" "B" "D"
in. (mm) in. (mm) in. (mm)
300 4 102 14 356 23/32 18
600 4 102 13 330 23/32 18
300 Series 600 Series
Drum "C" Drum "C"
Length (in.) in. (cm) Length (in.) in. (cm)
9 20-1/4 51 11 25 63.5
17 28-1/4 72 21 35 89
35 46-1/4 118 41 55 140
52 63-1/4 161 62 76 193
69 80-1/4 204 82 96 244
(Dwg. MHTPA0206)
Safe Installation Procedures
1. Do not use wire rope as a ground (earth) for welding.
2. Do not attach a welding electrode to winch or wire
rope.
3. Never run the wire rope over a sharp edge. Use a
correctly sized sheave. See instruction 4 under
"MOUNTING".
4. Do not weld to any part of the winch.
5. Always maintain at least three full wraps of wire rope
on the drum.
6. Check gears are lubricated before using winch. See
"LUBRICATION" section.
Prior to installing the winch, carefully inspect it for
possible shipping damage.
Winches are supplied fully lubricated from the factory.
• Owners and users are advised to examine specific,
local or other regulations, including American
National Standards Institute and/or OSHA Regulations
which may apply to a particular type of use of this
product before installing or putting winch to use.
Mounting
1. Mount the winch on a rigid surface which is capable
of supporting the winch and will prevent deflecting or
distortion of the winch under maximum load.
2. Choose a site that uses as short a wire rope as
practical.
• The winch is not a balanced load. Use extreme care
when lifting winch into position.
3. When a lead sheave is used, it should be aligned with
the center of the drum. The diameter of the lead
sheave must be at least 18 times the diameter of the
wire rope.
4. Maintain a fleet angle between the sheave and winch
of no more than 1-1/2 degrees. For every inch ofdrum
length, the lead sheave must be at least 1.6 feet (0.5
m) from the drum.
5. Make sure the mounting surface is flat to within
1/16 in. (1.6 mm). Shim winch if necessary.
6. Position the winch so there is adequate room for the
operator and service personnel to access the winch.
The handwheel rotation must be a full 360 degrees
unobstructed. Reposition winch if necessary.
(Dwg. MHTPA0217)
7. The winch can be mounted using the straight type
deck bracket when welding to a steel deck or the
angle type deck bracket when bolting the winch to the
mounting surface.
INSTALLATION
CAUTION
WARNING
STRAIGHT TYPE
DECK BRACKET ANGLE TYPE
DECK BRACKET
3/8 in. FILLET
WELD (min)

7
Wire Rope
• Maintain at least 3 wraps of wire rope on the drum at
all times.
• Install the wire rope to come off the drum in an
underwind position.
Wire Rope Selection
Consult a reputable wire rope manufacturer or distributor
for assistance in selecting the appropriate type and size of
wire rope and, where necessary, a protective coating. Use
a wire rope which provides an adequate safety factor to
handle the actual working load and meets all applicable
industry, trade association, federal, state and local
regulations.
When considering wire rope requirements the actual
working load must include not only the static or dead load
but also loads resulting from acceleration, retardation and
shock load. Consideration must also be given to the size
of the winch wire rope drum, sheaves and method of
reeving.
• Check wire rope diameter provides adequate safety
factor.
Model Min. Wire Rope Dia. Max. Wire Rope Dia.
in. (mm) in. (mm)
25 ton 5/8 16 1 26
50 ton 7/8 22 1-1/4 32
The maximum wire rope diameter is limited by the size of
the wire rope anchor hole.
Installing Wire Rope
• Position the wire rope so that it comes off the bottom
of the drum (underwind).
1. Cut wire rope to length and fuse end to prevent
fraying of strands in accordance with the wire rope
manufacturer's instructions.
2. Feed the fused end of the wire rope into the wire rope
anchor hole. Position the end of the wire rope just
beneath the drum surface. (See Dwg. MHTPA0218)
3. Make sure the wire rope wedge is the correct size for
the wire rope.
4. Install the wire rope wedge into anchor hole. Install
the wedge from the side of the hole with the wire rope
end. Position the wedge so the serrated surface is on
the wire rope. Insert the narrow end of the wedge
first. The wedge must be positioned so it is nearer the
surface of the drum.
(Dwg. MHTPA0218)
5. Hammer the wedge into the wire rope anchor hole to
secure the wire rope.
6. While keeping the wire rope under tension, wind the
wire rope onto the drum.
• Make sure the first wrap of wire rope is flush against
the drum flange.
Wire Rope Spooling
To allow for uneven spooling and decrease in line pull
capacity as the drum fills up, use as short a wire rope as
practical. To rewind wire rope apply tension to eliminate
slack. This helps achieve level winding and tight spool-
ing
Rigging
Make sure all wire rope blocks, tackle and fasteners have
sufficient safety margin to handle the required load. Do
not allow wire rope to contact sharp edges or make sharp
bends which will cause damage to wire rope, use a sheave.
Refer to wire rope manufacturer's handbook for proper
sizing, use and care of wire rope.
Safe Wire Rope Handling Procedures
1. Always use gloves when handling wire rope.
2. Never use wire rope which is twisted, frayed or
kinked.
3. Never use wire rope as a sling.
4. Always ensure wire rope is correctly spooled and first
layer is tight.
Wiring
Be sure phase, cycle and voltage of motor, magnetic
reversing starter and controls all match the electrical
service being used. Check power supply is correctly
grounded. All electrical connections must be properly
insulated and enclosed.
CAUTION
WARNING
WIRE ROPE
WEDGE WIRE ROPE
DRUM
CAUTION
CAUTION

8
• Never use a 230V motor with a 115V power supply.
The motor can be permanently damaged.
• Switches and starter enclosures must be grounded to
electrical supply system.
Power supply voltage must be within 4%. For 460V
motor, the power supply should be greater than 442V and
must not exceed 478V. For a 230V motor, the power
supply should be greater than 221V and not exceed 239V.
Brake Connections
Brake power connections depend on winch power voltage
and brake operating voltage. Drawings MHTPA0247 and
MHTPA0249 show the three possible combinations for
230/460V motors. See drawing MHTPA0198 for location
of brake power connection lines.
(Dwg. MHTPA0247)
(Dwg. MHTPA0249)
Controls
A momentary contact reversing drum switch is recom-
mended for the winch control unless remote or automatic
control of the winch is required. Refer to parts section for
recommended switches. See Wiring Diagram Dwg.
MHTPA0201 for three phase motors.
If remote or automatic control is required, an electromag-
netic reversing starter is recommended. The starter can be
used with either a hand held pendant or with a wall
mounted control station. Automatic control depends on
application. Refer to wiring diagrams for winches using
starters. For three phase motors see Dwg. MHTPA0198.
Contact your nearest distributor or the factory for recom-
mendations on specific applications.
WARNING
TO BRAKE
TO STARTER
T1
MOTOR
230V MOTOR & 230V
BRAKE CONNECTIONS
T7
T2
T8
T3
T9
T4
T5
T6
TO BRAKE
TO STARTER
MOTOR
T1
T2
T3
T4
T7
T5
T8
T6
T9
460V MOTOR & 460V
BRAKE CONNECTIONS

9
WIRING DIAGRAM
DRUM SWITCH CONNECTION DIAGRAM
(Dwg. MHTPA0201)
Top of Drum Switch Diagram is
Handle End, Knob Toward Viewer
230 Volt Three Phase
L1
L2
L3
T1
T7
T2
T8
T3
T9
T4
T5
T6
Motor
Drum Switch
To 230V
Brake
460 Volt Three Phase
Motor
Drum Switch
To 460V
Brake
L1
L2
L3
T1
T2
T3
T4
T7
T5
T8
T6
T9
Brake
Power
Brake
Motor
T3
T2
T1
RD
WH
BK
Pendant or
Control Station
X2
115V
460V
Transformer
460V Connection
2
3
1
FWD
VW
765
4REV
VW
Magnetic Reversing Starter (based on FURNAS class 22 starters)
L1 L2 L3
Transformer
230V Connection
230V
115V
H1 H2
H3
H4
X2 XF X1
H1 H2 H3
H4
X2 XF X1
FWD
REV
230/460 Volt, 3 Phase:
(Dwg. MHTPA0198)

10
The four most important aspects of winch operation are:
1. Follow all safety instructions when operating the
winch.
2. Allow only qualified people to operate the winch.
3. Subject each winch to a regular inspection and main-
tenance procedure.
4. Be aware of the winch capacity and weight of load at
all times.
• Only allow qualified personnel (trained in safety and
operation) to operate a winch.
• To avoid damage to the rigging, the structure sup-
porting the rigging, and the winch, do not “two-block”
the end of the wire rope.
Power Operation
• A creeping load can cause death or injury. Do not
rely on the gear reduction or brake to hold a load.
• Operating winch for time periods longer than sug-
gested may result in damage to the motor.
The motor on the winch has a intermittent duty rating of
15 minutes. This is the number of minutes the motor may
be operated during a one hour period when the winch is
carrying the full rated load.
When operating the winch avoid unnecessary jogging of
the controls.
OPERATION

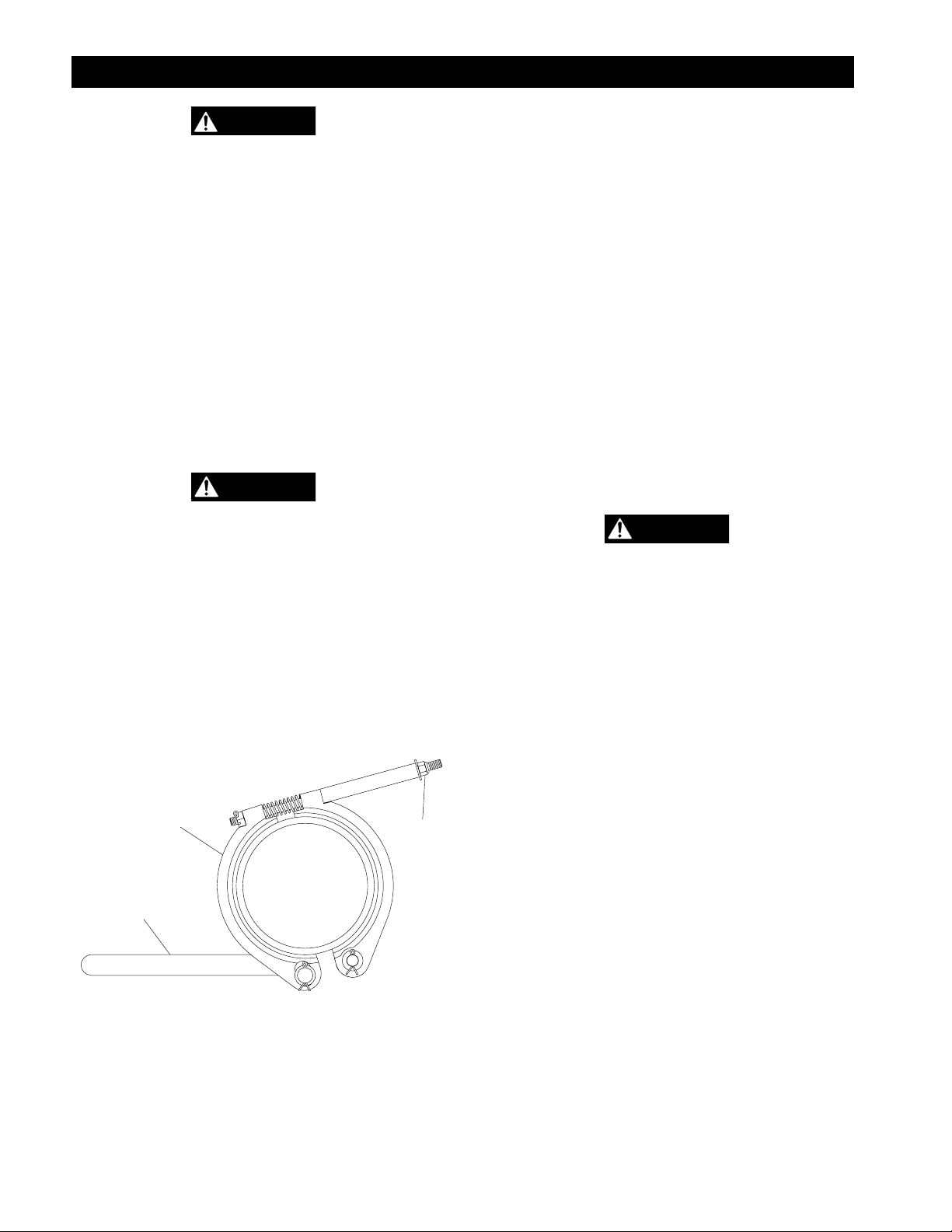

Free Spool
• Never disengage the dog with tension on the wire rope
or if the drum is moving.
To disengage the dog (free spool) pull out spring loaded
plunger pin and rotate until plunger pin tab is clear of dog
lever. Dog lever will pivot to the lower position. Release
plunger pin to engage over the dog lever.
To engage the dog pull out spring loaded plunger pin and
rotate until plunger pin tab is clear of dog lever . Lift dog
lever to engage dog. Release plunger pin to engage under
the dog lever.
Hand Wheel Operation
A 28 in. (71 cm) diameter handwheel is available as an
option with the winch. Install the handwheel on the
square end of the power drive assembly and clamp into
position with setscrews.
• To avoid injury to personnel and damage to equip-
ment due to handle flying off while winch is operating,
remove handwheel before operating winch with motor.
In the event of a power failure the hand wheel can be used
to take-up wire rope after the wire rope has been con-
nected to the load. Place holding dog release lever in the
up position to engage the holding dog, take up the slack
with the handwheel while making sure the wire rope is
being uniformly spooled onto the drum. Tensioning may
be accomplished with the handwheel by firmly grasping
the rim of the handwheel with two hands and rotating.
WARNING
WARNING
WARNING
CAUTION
WARNING

11
b. Corrosion, nicking and wear of crown wires.
c. Wear of crown wires. Replace at 1/3 wear of the
original diameter of any crown wire.
d. Broken wires or strands, particularly at connec-
tions. Replacement is necessary if one wire is
broken at a connection; six broken wires within
one lay; three broken wires in one strand within
one lay.
4. WIRE ROPE REEVING. Check reeving and ensure
wire rope is properly secured to the drum.
5. LUBRICATION. See "LUBRICATION" section for
recommended procedures.
Periodic Inspection
According to ANSI/ASME B30.7, frequency of periodic
inspection depends on the severity of usage: NORMAL,
yearly; HEAVY, semi-annually; SEVERE, quarterly.
Disassembly may be required for HEAVY or SEVERE
usage. Keep accumulative records of periodic inspections
to provide a basis for continuing evaluation. Inspect all
items in “Frequent Inspection” also inspect the following:
1. MEMBERS. Check for deformed, cracked or corroded
main components. Replace damaged parts if neces-
sary.
2. FASTENERS. Check rivets, cotter pins, capscrews
and nuts on winch, including mounting bolts. Replace
if missing and tighten if loose.
3. DRUM. Check for cracks, wear or damage. Replace if
necessary.
4. ALL COMPONENTS. Inspect for wear, damage,
distortion and cleanliness. If external evidence
indicates the need, for example poor performance or
excessive noise, disassemble and inspect. Check pins,
gears, shafts, bearings, sheaves, covers, etc. Replace
worn or damaged parts.
5. MOTOR. Make sure it operates properly and con-
forms to applicable specifications. Check wiring
connections are clean, dry and secure.
6. BRAKE. Inspect the brake lining after every 50 hours
of use. When any part of the lining on either brake
shoe measures 1/16 in. (2 mm) or less, the brake
shoes should be replaced.
7. SUPPORTING STRUCTURE. Check for distortion,
wear and continued ability to support the winch and
load.
8. LABELS AND TAGS. Check for presence and
legibility. Replace if necessary.
9. ELECTRICAL COMPONENTS. Check for loose
wires, corrosion or other signs of deterioration.
10. DRIVE CHAIN. Check for excessive wear of chain
drive sprockets and for chain stretch. Check chain for
elongation. Lay the used chain on a flat surface and
using a caliper-type gage, check the dimension from
the edge of one chain pin to the corresponding edge of
another pin for the number of pitches per foot. If
elongation exceeds 1/4 in. (6.3 mm) in 12 in.
INSPECTION
There are two types of inspection, the frequent inspection
performed by the operator and more thorough periodic
inspections performed by qualified personnel. Careful
inspection on a regular basis will reveal potentially
dangerous conditions while still in the early stages,
allowing corrective action to be taken before the condition
becomes dangerous.
Any deficiency revealed through inspection must be
reported to an appointed person. A determination must be
made as to whether a deficiency constitutes a safety hazard
before resuming operation of the winch.
Records and Reports
Some form of inspection record should be maintained for
each winch, listing all points requiring periodic inspec-
tion. A written report should be made monthly on the
condition of the critical parts of each winch. These reports
should be dated, signed by the person who performed the
inspection, and kept on file where they are readily
available to authorized personnel.
• Never use a winch that inspection indicates is defective.
Frequent Inspection
On winches in continuous service, frequent inspection
should be made at the beginning of each shift. In addition,
visual observations should be conducted during regular
service for any damage or evidence of malfunction.
1. OPERATION. Check for visual signs or abnormal
noises which could indicate a defect. Do not operate
a winch unless the wire rope feeds onto the winch
drum smoothly. If wire rope binds or jumps, clean
and lubricate the wire rope. If problem persists,
check wire rope fleet angle as described in the
"INSTALLATION" section or replace the wire rope.
Make sure the drive mechanism operates properly,
check for sticking or other signs of malfunction.
Repair if necessary. Do not operate the winch until
all defects have been corrected. To test brake, apply a
pull to the end of the wire rope and check that the
brake does not slip.
2. LIMIT DEVICES. If used, check that they operate
properly.
3. WIRE ROPE. Lubricate if necessary. Replace the wire
rope if damaged or excessively worn. Consult the wire
rope manufacturer’s inspection information or a
recognized safety source, such as the latest edition of
National Safety Council, Accident Prevention Manual
for Industrial Operations or ANSI/ASME B30.7. At a
minimum, visually inspect for the following and
replace if necessary:
a. Damage, such as: bird cages, kinking, core
protrusion, crushing, heat damage, and main
strand displacement.
WARNING

12
(305 mm) the chain shall be replaced. For example, a
3/4 in. (19 mm) pitch chain should measure 12 in.
(305 mm) over 16 pitches. Chain shall be rejected if
measurement over 16 pitches exceeds 12-1/4 in.
(311 mm).
11. WIRE ROPE.
Besides the items in a frequent inspection, inspect for
the following:
a. Build-up of dirt and corrosion. Clean if
necessary.
b. Loose or damaged end connection. Replace if
loose or damaged.
c. Check wire rope anchor is secure.
d. Changes in the size of the wire rope diameter.
Periodically measure the diameter of the wire
rope from crown-to-crown throughout the life of
the wire rope. The actual diameter should be
recorded when the wire rope is under equivalent
loading and in the same operating section. If the
actual diameter of the wire rope has decreased
more than 1/64 in. (0.4 mm) a through examina-
tion of the wire rope should be conducted by an
experienced inspector to determine the suitability
of the wire rope to remain in service. (see Dwg.
MHTPA0056).
(MHTPA0056)
Winches Not in Regular Use
A winch which has been idle for a period of one month or
more, but less than six months, shall be given an inspec-
tion conforming with the requirements of "Frequent
Inspection" before being placed into service.
A winch which has been idle for a period of over six
months shall be given a complete inspection conforming
with the requirements of "Periodic Inspection". Standby
winches shall be inspected at least semi-annually in
accordance with the requirements of "Frequent Inspec-
tion". If abnormal operating conditions apply winches
may require a more frequent inspection.
Testing
Operational Tests
Prior to initial use, all new, altered or repaired winches
shall be tested to ensure proper operation.
a) Operate winch in both directions with no load.
b) Check operation of brake, and holding dog.
c) Check operation of limit switches, and locking or
safety devices when provided.
d) Check all tie-downs are secure.
Load Test
Prior to initial use, all new, extensively repaired, or
altered winches shall be load tested by or under the
direction of a qualified person, and a written report
furnished confirming the rating of the winch. Test loads
shall not be more than 110% of the rated line pull.
CROWN
TO
CROWN

13
Lubricate grease fittings, chain and wire rope monthly. The
lubrication intervals are based on intermittent operation of
the winch eight hours each day, five days per week. If the
winch is operated almost continuously or more than the
eight hours each day, more frequent lubrication will be
required. Also, the lubrication types are based on opera-
tion in an environment relatively free of dust, moisture, and
corrosive fumes. Use only those lubricants recommended.
Other lubricants may affect the performance of the winch.
Approval for the use of other lubricants must be obtained
from Wintech International or your nearest distributor.
Failure to observe this precaution may result in damage to
the winch and/or its associated components.
Bushings and Pivot Points
Lubricate all grease fittings monthly with 2 or 3 pumps from
a grease gun, or more frequently, depending on severity of
service. Rotate components slowly as grease is applied.
If the winch is disassembled, clean all parts thoroughly and
coat bushings and shafts with clean grease. Use sufficient
grease to provide a good protective coat. For temperatures
-20° to 50° F (-29° to 10° C) use a multipurpose lithium-
based EP 1 grease. For temperatures 30° to 120° F (0° to 49°
C) use a multipurpose lithium-based EP 2 grease.
Gears
Lubricate working surfaces of all gear teeth. Brush with
grease as often as necessary to keep teeth liberally
covered. If grease becomes contaminated with sand, dirt or
other abrasive materials clean off old grease and relubricate.
Use the same grease that is recommended for the bushings
and pivot points.
DriveChain
Roller chains must be kept clean and free from rust.
Excessively dirty chains should be soaked in a clean acid-
free solvent. Chains must be agitated in the solvent to
ensure that all joints are free from grit and foreign matter.
Lubricate roller chain with a good quality automotive motor
oil SAE grade 20 or 30. DO NOT USE GREASE. Oil should
be applied liberally with a brush or oil can at least once
every eight hours of operation.
• Do not lubricate chain while winch is running. Shut off
power to the winch during all maintenance operations.
Motor
No lubrication required.
Wire Rope
Follow the wire rope manufacturer’s instructions. At a
minimum, observe the following guidelines.
1. Clean with a brush or steam if there is dirt, rock dust or
other foreign material on the surface of the rope.
• Do not use an acid-based solvent. Only use cleaning fluids
specified by the wire rope manufacturer.
2. Apply a wire rope lubricant or SAE 30W oil.
3. Brush, drip or spray lubricant weekly, or more
frequently, depending on severity of service.
LUBRICATION
CAUTION
CAUTION

14
• Before performing maintenance, disconnect the load
from the winch. A falling load could cause death,
injury or property damage.
• Disconnect electrical power source before performing
any maintenance. Accidental operation or contact with
exposed power supply could cause death, injury or
property damage.
• Before starting maintenance, tag winch: DANGER -
DO NOT OPERATE - EQUIPMENT BEING RE-
PAIRED.
• Only allow qualified service personnel to perform
maintenance.
• After performing maintenance on load bearing parts,
test unit to 110% of its rated capacity before returning
to service.
Brake Adjustment
• Allow brake to cool before adjusting.
If the brake lining and brake solenoid are satisfactory,
then check brake adjustment as follows:
1. Raise brake lever (53) to the top of its stroke and
hold.
2. Adjust nut (40) on adjustment stud (39) until top of
nut is flush with the end of the adjustment stud (39).
Brake shoes (44) and (45) must be free of the brake
drum diameter. Brake lever (53) should be located in
the upper part of the adjustment range.
(Dwg. MHTPA0259)
3. Operate winch with no load while gradually tighten-
ing nut (40) to make adjustment.
4. Brake should be correctly adjusted when brake lever
(53) is parallel to the ground and plunger (29) is
1/2 in. (13 mm) clear of the motor base (7).
5. Check brake for ability to stop drum rotation by
pushing down on the brake lever.
Adjustment Label (25 ton winch)
If brake lever falls out of adjustment range (see adjustment
label) or fails to stop drum rotation recheck adjustment
and position of anchor eccentric (47). If brake does not
stop drum rotation brake shoes may be worn or distorted
and require replacement.
• Do not allow plunger (29) to contact the motor base.
Chain Adjustment
Check the condition of the chain per instructions in the
"INSPECTION" section. Check the chain adjustment as
follows:
1. Place a straight edge on top of the chain (62)
bridging the two chain sprockets.
2. Place a measuring rule on the top of the chain
midpoint between the two chain sprockets. Apply an
inward force perpendicular to the chain. Proper chain
tension is 3/8 in. (10 mm) on the rule.
3. To increase chain tension, loosen motor adapter plate
nuts (12), adjust nuts (12) to increase height of motor
adapter plate (3) and re-tighten nuts (12). Repeat if
necessary until proper chain tension is attained.
General Disassembly
The following instructions provide the necessary informa-
tion to disassemble, inspect, repair, and assemble the
winch. An exploded drawing of the winch is provided in
the Parts Section to assist part indentification. If a winch
is being completely disassembled for any reason, follow
the order of the topics as they are presented. It is recom-
mended that all maintenance work on the winch be
performed in a clean dust free work area.
In the process of disassembling the winch, observe the
following:
1. Never disassemble the winch any further than is
necessary to accomplish the needed repair. A good
part can be damaged during the course of disassem-
bly.
MAINTENANCE
WARNING
CAUTION
CAUTION
ADJUSTIN
G
NUT
BRAKE
LEVER
BRAKE
SHOE

15
2. Never use excessive force when removing parts.
Tapping gently around the perimeter of a part with a
soft hammer should be sufficient to loosen the part.
3. Do not heat a part with a flame to free it for removal,
unless the part being heated is already worn or
damaged beyond repair and no additional damage
will occur to other parts.
In general, the winch is designed to permit easy disassem-
bly and assembly. The use of heat or excessive force
should not be required.
4. Keep the work area as clean as practical, to prevent
dirt and other foreign matter from getting into
bearings or other moving parts.
Disassembly
Disconnect all power to the winch. Remove wire rope and
limit switches if equipped.
1. Remove screws (4) and lift off brake and solenoid
cover (2).
2. Disconnect and remove connector cord (21) between
solenoid (24) and motor (1).
3. Remove gear guard nuts (37) and lift off gear guards
(38) and (65).
4. Remove master chain link (129) and roller chain (62).
Loosen setscrews (60) and remove motor sprocket
(59).
5. Remove screws (4) and lift off motor base cover (5).
6. Remove motor base locknuts (11) and with the aid of
a sling and overhead hoist lift the motor and motor
adapter plate from the motor base (7).
7. Remove nuts (15), lockwashers (14) and capscrews
(13) to separate motor (1) from motor adapter plate
(3).
8. Remove solenoid link pin (54) and nut (48) to
disconnect solenoid connector link (33) and brake
lever (53).
9. Remove solenoid link pin (31) and nut (48). Remove
solenoid connector link (33) and compression spring
(30). Carefully remove bellows boot (32) from
recessed boss in the underside of motor base (7).
10. Remove solenoid spacer capscrews (16) and
lockwashers (17). Remove solenoid spacers (28) and
lift off solenoid assembly. Remove solenoid studs (6),
nuts (15) and lockwashers (14) from motor base (7).
11. Remove adjustment nut (40), washer (41) and
adjustment spacer (42) from adjustment stud (39).
Remove adjustment stud (39) and adjustment spring
(49).
12. Remove capscrews (9) and lockwashers (8) from
motor base (7) and lift motor base (7) from side
frames (76) and (101).
25 ton winches (instructions 13 and 14 only)
13. Remove lever retainer ring (95) from dog lever (97).
Pull dog lever assembly from side frame (101). Tap
pin (104) from plunger pin (103).
14. Remove spacer nut (82), nut (90) and capscrew (96).
Lift off dog bracket (92), bracket spacers (91) and
(94) and plunger spring (93).
50 ton winches (instructions 15 through 17 only)
15. Remove "C" clip (119) from groove in plunger pin
(103) and pull out plunger pin (103), washer (120)
and spring (122)
16. Remove complete dog assembly from side frame by
removing capscrews (13) and lockwashers (125).
17. Loosen setscrew (131) in collar (130). Remove
capscrew (36) and slide out D-E shaft (111) while
providing support for D-E gear (113). Remove D-E
gear (113) and collar (130).
All winches
18. Make sure cluster gear (106) 25 ton or B-C gear (106)
50 ton is adequately supported then remove capscrew
(36) and slide cluster shaft (70) 25 ton or B-C shaft
(70) 50 ton out off side frames (76) and (101).
Remove cluster or B-C gear (106).
19. Remove capscrew (69) from anchor eccentric (47).
Remove brake shoe and anchor eccentric assembly
from side frame (76). Remove brake shoe retainer
ring (46) to separate the anchor eccentric (47) from
brake shoe (44).
20. With the aid of a hoist, support the weight of the
drum assembly (110). Remove capscrew (36) and
slide out drum shaft (72). Carefully lower drum
assembly to the ground after drum shaft (72) has been
removed.
21. Remove spacer nuts (82) from spacer shafts (85) and
(64) on side frame (101) side. Remove side frame
(101).
22. Remove brake lever retainer ring (56) and brake lever
washer (55). Remove power drive assembly (51). Lift
out the brake lever and brake shoe assembly.
23. Remove brake lever retainer ring (56) and separate
brake lever (53), brake shoe (45) and brake lever
washer (55).
24. With the aid of a hoist support the weight of the drum
assembly (110) and lift drum assembly (110) through
the wire rope guard (63).
25. Remove screw (81) and nut (71). Tap out brake lever
bushing (57) and remove brake doubler plate (67).
26. Wire rope guard (63) is welded to spacer shafts (64)
and (85) at assembly. Wire rope guard (63) and
spacer shafts (64) and (85) should not be separated
unless absolutely necessary. Remove nuts (82).
Remove spacer shafts (64) and (85) with wire rope
guide (63) from side frame (76).
Cleaning, Inspection and Repair
Use the following procedures to clean, inspect, and repair
the components of the winch.
Cleaning
Clean all winch component parts in solvent (except for the
brake shoe). The use of a stiff bristle brush will facilitate
the removal of accumulated dirt and sediments on the
gears, frames and drum. If bushings have been removed it
maybe necessary to carefully scrape old Loctite from the
bushing bores. Dry each part using low pressure, filtered

16
compressed air. Clean the brake shoe using a wire brush or
emery cloth. Do not wash the brake shoe in liquid. If the
brake shoe lining is oil soaked, it must be replaced.
Inspection
• Bushings that are loose, worn or rotate in the frame,
gears or drum must be replaced. Failure to observe this
precaution will result in additional component damage.
(See Bushing Chart).
All disassembled parts should be inspected to determine
their fitness for continued use. Pay particular attention to
the following:
1. Inspect all gears for worn, cracked, or broken teeth.
2. Inspect all bushings for wear, scoring, or galling.
Bushing Chart
25 ton winch
50 ton winches
3. Inspect shafts for ridges caused by wear. If ridges
caused by wear are apparent on shafts, replace the
shaft.
4. Inspect all threaded items and replace those having
damaged threads.
5. Inspect the brake shoe lining for oil. If the brake shoe
lining is oil-soaked, replace the brake shoe. If the
brake shoe is glazed, sand it lightly using fine emery
cloth.
6. Measure the thickness of the brake shoe lining. If the
brake shoe lining is less than .062 in. (2 mm) at any
point along its edge replace the brake shoe (45).
Repair
Actual repairs are limited to the removal of small burrs
and other minor surface imperfections from gears and
shafts. Use a fine stone or emery cloth for this work.
1. Worn or damaged parts must be replaced. Refer to the
applicable Parts Listing for specific replacement parts
information.
2. Inspect all remaining parts for evidence of damage.
Replace or repair any part which is in questionable
condition. The cost of the part is often minor in
comparison with the cost of redoing the job.
3. Smooth out all nicks, burrs, or galled spots on shafts,
bores, pins, or bushings.
4. Examine all gear teeth carefully, and remove nicks or
burrs.
5. Polish the edges of all shaft shoulders to remove small
nicks which may have been caused during handling.
6. Remove all nicks and burrs caused by lockwashers.
Winch Assembly
1. Position side frames (76) and (101) in a vertical
position with a temporary brace.
2. Install spacer shafts (64) and (85) on side frame (76)
with nuts (82).
3. Slide wire rope guard (63) onto spacer shafts (64) and
(85). Wire rope guard (63) is welded to spacer shafts
(64) and (85) during initial assembly at the factory. If
weld was broken during disassembly wire rope guard
will require to be repositioned and welded after all
gears and shafts have been installed.
4. Position brake doubler plate (67) on the outside of
side frame (76) and tap brake lever bushing (57) into
position through the brake doubler plate (67) and side
frame (76) until bushing is flush with inside surface
of the side frame.
5. Install plate locator bushing (68) in side frame (76)
with screw (81) and nut (71). Countersunk bore side
of the plate locator bushing (68) must face away from
the doubler plate (67).
6. If new power drive bushings (66) are being installed
in the side frames (76) and (101) it will be necessary
to drill new 1/8 in. (3 mm) diameter lubrication holes
to provide a grease passage. Use the existing grease
fitting hole as a guide. Install grease fittings (52).
7. If drum bushings (107) are being replaced press new
drum bushings (107) into the drum assembly (110).
Drum bushings (107) must be flush with the outer
surface of the drum. With the aid of a hoist (1/2 ton
capacity or more) install drum assembly (110)
through the large hole in the drum guard (63) so the
flange without the gear teeth enters first.
8. Attach brake lever (53) to brake shoe (45) with brake
lever washer (55) and brake lever retainer ring (56).
Install grease fitting (52) in the brake lever (53).
9. Position brake lever and brake shoe assembly on
power drive assembly (51) brake diameter and install
power drive assembly (51) in side frame (76) so
square end of power drive assembly is on the handle
side. Ensure brake lever (53) locates in the hole in the
CAUTION
Bushing
Location
Frame (76)
Gear (106)
Drum (110)
Gear (113)
Discard bore
size
in. (mm)
1.570 40
2.827 72
4.080 104
1.822 46
Original bore
size
in. (mm)
1.508 39
2.765 70
4.018 102
1.760 45
Bushing
Item No.
66
105
107
114
Bushing
Location
Frame (76)
Gear (106)
Drum (110)
Discard bore
size
in. (mm)
1.195 30.4
2.261 57.4
3.078 78.2
Original bore
size
in. (mm)
1.133 28.8
2.199 55.9
3.016 76.6
Bushing
Item No.
66
105
107

17
side frame (76) and brake lever bushing (57). Install
brake lever washer (55) and brake lever retainer ring
(56). Check brake lever (53) rotates freely.
10. Install second side frame (101) to accept the power
drive assembly (51). Push side frame (101) into
position so it lines up with spacer shafts (85) and
(64). On 50 ton models it may be necessary to install
D-E gear (113), D-E shaft (111) and collar (130)
before pushing side frame (101) into position.
11. Install spacer nuts (82) on spacer shafts (85) and (64)
to secure side frame (101). Torque nuts to 270 lb. ft
(37 kg.m). Ensure correct nuts (82) are used they are
NF (National Fine Thread).
12. Liberally coat drum bushings (107) and drum shaft
(72) with grease. Suspend the drum assembly with the
hoist used earlier and install the drum shaft (72)
through side frame (76) and drum assembly (110)
from the handle side. Secure drum shaft to side frame
(76) with capscrew (36) and torque to 18 lb. ft.
(2.5 kg.m).
13. Install anchor eccentric (47) in second brake shoe
(44) and secure in position with brake shoe retainer
ring (46). Install brake shoe assembly on power drive
assembly (51) so anchor eccentric (47) passes through
side frame (76) and loosely fasten with capscrew (69).
Adjust anchor eccentric (47) so brake shoe (44) has
good contact all around the brake drum diameter.
When correct adjustment has been established torque
capscrew (69) to 225 lb. ft (31 kg.m).
14 If cluster or B-C gear bushings (105) are being
replaced press new gear bushings (105) into the
cluster or B-C gear (106) bore so they are flush with
the outer surface of the gear. On 25 ton models only a
third gear bushing (105) must be pressed into the bore
from the small gear side. Lubricate and slide cluster
shaft (70) through side frame (76) and cluster gear
(106) until it locates in the second side plate (101).
15. Secure cluster or B-C shaft (70) at handle side with
capscrew (36) and torque to 18 lb. ft (2.5 kg.m).
16. Install motor base (7) so it rest on the side frames (76)
and (101) and secure in position with capscrews (9)
and lockwashers (8).
17. Install slotted nut (50) and pin (43) on adjustment
stud (39). Feed brake screw assembly through first
brake shoe (45) from the solenoid side. Slide screw
through adjustment spring (49) and second brake
shoe (44). Install adjustment spacer (42) and loosely
install washer (41) and adjustment nut (40).
• Do not tighten adjustment nut (40) at this time. Brake
adjustment must be completed with winch running.
18. Install three solenoid studs (6) in motor base (7) and
secure with nuts (15) and lockwashers (14). Screw
fourth solenoid stud (6) directly into motor base (7).
Position solenoid assembly on top of the solenoid
studs (6). Install solenoid spacers (28) and solenoid
spacer capscrews (16) with lockwashers (17) so
solenoid spacer capscrews (16) screw into solenoid
studs (6).
19. Install bellows boot (32) over the recessed boss in the
underside of the motor base (7). Care must be taken
not to damage the bellows boot during this operation.
Bellows boot may be heated in warm water to make
installation easier.
20. Slide compression spring (30) over the bellows boot
(32). Insert solenoid connector link (33) through the
bellows boot (32) and compression spring (30) into
the solenoid plunger (29). Secure with solenoid link
pin (31) and nut (48).
21. Attach solenoid connector link (33) to brake lever
(53) with solenoid link pin (54) and nut (48). Select
the hole in the brake lever which allows the solenoid
connector link (33) to be in a vertical position.
25 ton models (instructions 22 through 25 only)
22. Partially install dog (98) on dog lever (97) with dog
spring (99). Locate the ends of the dog spring (99) in
the holes provided in the dog lever (97) and dog (98).
The long end of the spring must fit in the dog.
Depress dog (98) and dog spring (99) all the way onto
the dog lever (97) and install dog retainer ring (100).
23. Install dog lever assembly on the inside of side frame
(101). Position bracket spacers (91) and (94) with dog
bracket (92) on the outside of side frame (101).
Notched spacer (91) must be located at the top.
Loosely install capscrew (96).
24. Install plunger pin (103) through side frame (101).
Install plunger spring (93) so slot locates in groove on
plunger pin (103) top edge of spring is positioned
under the notch in bracket spacer (91).
25. Install nuts (82) and (90). Install lever retainer ring
(95) in the groove on dog lever (97). Tap pin (104)
into plunger pin (103). Check plunger pin (103)
freely springs back into position after being pulled
out.
50 ton models (instructions 26 through 29 only)
26. Partially install dog (98) in dog lever (116) with dog
spring (99). Locate the ends of the dog spring (99) in
the holes provided in the dog lever (116) and dog
(98). The long end of the spring must fit in the dog.
Install dog (98) and press dog shaft (117) all the way
into the dog lever (116).
27. Line up hole in dog shaft (117) with pin (118) hole in
dog lever (116). Install pin (118). Drive pin in until
flush. Install dog lever assembly in dog bracket (124)
and secure with retainer screw (123).
28. Install assembled dog assembly on side frame (101)
and secure with capscrews (126) and lockwashers
(125).
29. Install plunger pin (103) through dog bracket (124),
washer (120) and spring (122). Press plunger pin
(103) all the way into the dog bracket (124) until
groove is visible. Install "C" clip (119) in groove so it
is between the washer (120) and dog bracket (124).
NOTICE

18
Install pin (104) in the end of plunger pin (103) so it
is centered.
All models
30. Attach motor (1) to motor adapter plate (3) with
capscrews (13), lockwashers (14) and nuts (15).
31. Install two nuts (12) on each stud in the bottom of the
motor adapter plate (3). Using an overhead hoist and
the lifting eyes provided in the top of the motor lower
the motor and motor adapter plate onto the motor
base (7). Secure with motor base locknuts (11).
32. Tap pin (80) into lock out bar bracket (79). Install
lock out bar (83) on the inside of side frame (76) and
lock out bar bracket (79) on the outside with capscrew
(84) and nut (78).
33. Install grease fitting (52) in dog (98). On 50 ton
winches install grease fitting (52) in dog bracket
(124).
34. Install motor base cover (5) on top of the motor base
(7) and secure with screws (4).
35. Install key (58) in motor shaft and slide motor
sprocket (59) into position. Cut roller chain (62) to
length and install around motor sprocket (59) and
power drive assembly (51). Install master chain link
(129).
36. Using a straight edge position motor sprocket (59) so
it aligns with the roller chain sprocket on the power
drive assembly (51). Tighten capscrews (60).
37. Adjust the height of the motor (1) to achieve the
correct chain tension.
50 ton models (instruction 38 only)
38. Slide D-E gear (113) against side frame (101).
Position collar (130) 1/16 in. (1.6 mm) from the D-E
gear (113) and secure on D-E shaft (111) with
setscrew (131).
39. Install capscrews (36) with gear guard nuts (37) in
holes provided in the top spacer shafts (64). Install
gear guards (38) and (65) so they locate on capscrews
(36) and secure with nuts (37).
40. Run connector cord (21) from junction box on motor
(1) to solenoid (24). Connector cord (21) should pass
underneath the motor adapter plate (3) then up
through grommet (10) located in the motor base (7) to
the solenoid (24).
41. Install brake and solenoid cover (2) over chain and
solenoid and secure in position with screws (4).
42. Adjust brake as described under Brake Adjustment in
the "MAINTENANCE" section.
Solenoid Disassembly
1. Remove plunger (29) and capscrews (27). Remove
base plate (20) and pole piece (23).
2. Gently pry up guides (22) and remove. Tap out brass
guides (25).
3. If new coil (24) is being installed remove coil (24).
Solenoid Assembly
1. Install coil (24) in frame (26). Install brass guides
(25). Install guides (22) so notch in guide is against
stop tab in frame (26).
2. The brass guides are bent to apply pressure on the
edges of guides (22). If after installing guides (22)
looseness in evident, remove guide (22) and guide
(25) and rebend to increase pressure.
3. Install pole piece (23) and base plate (20). Secure base
plate (20) to frame (26) with capscrews (27),
lockwashers (19) and nuts (18).
4. Install plunger (29).
Testing
Operational Test
Prior to initial use, all new, altered or repaired winches
shall be tested to ensure proper operation.
a. Operate winch for several minutes in both directions
with no load.
b. Check operation of brake.
c. Check operation of limit switches, and locking or
safety devices when provided.
d. Check winch is firmly secured before beginning
operation. (See "INSTALLATION" section)
e. Install guards and warning labels when provided.

19
The use of replacement parts other than Wintech Interna-
tional products will invalidate the Company’s warranty.
For prompt service and genuine Wintech International
parts, provide your nearest Distributor with the following:
1. Complete model number as it appears on the nameplate
and the winch capacity.
2. Part number and part description as shown in manual.
3. Quantity required.
The winch nameplate is located on the side frame next to
the square end of the power drive assembly on the
handwheel side.
For your convenience and future reference it is recom-
mended that the following information be recorded.
WinchModelNumber.....................................................
WinchSerialNumber......................................................
DatePurchased................................................................
Return Goods Policy
Wintech International will not accept any returned goods
for warranty or service work unless prior arrangements
have been made and written authorization has been
provided from the location where the goods were pur-
chased.
•Continuing improvement and advancement ofdesign may
cause changes to this winch which are not included in this
manual. Manuals are periodically revised to incorporate
changes. Always check the manual edition number on the
front cover for the latest issue.
PARTS ORDERING INFORMATION
NOTICE

300 SERIES BARGE WINCH ASSEMBLY DRAWING
(Dwg. MHTPD0262
)
This manual suits for next models
10
Table of contents
Popular Winch manuals by other brands

VIME INDUSTRIAL
VIME INDUSTRIAL EPH 10000 Installation and operating service manual

BRADEN
BRADEN HP100B Installation maintenance and service manual

Winchmax
Winchmax WMSL13500 Fitting and Operating Guide

Andersen
Andersen 40ST FS product manual

Ramsey Electronics
Ramsey Electronics RE 50,7 owner's manual

FITOP
FITOP CTS Series instruction manual
