Winterhalter Gastronom GS 501 User manual

89005828
07/00
2SHUDWLQJLQVWUXFWLRQV
IRU:LQWHUKDOWHU*DVWURQRPGLVKZDVKHU*6
&RQWHQWV
Page
1 Intended use .................................................................................................................... 1
2 Installation and commissioning ....................................................................................... 1
3 Safety instructions ........................................................................................................... 2
4 Operating and control elements ...................................................................................... 3
5 Functioning of the dishwasher ......................................................................................... 3
6 Preparation for washing ................................................................................................... 4
Detergent dosage............................................................................................................. 5
7 Washing ........................................................................................................................... 6
Wash pause...................................................................................................................... 7
8 After washing.................................................................................................................... 8
9 Maintenance and care ..................................................................................................... 9
Descaling..........................................................................................................................10
13 Faults................................................................................................................................11
14 Emission values................................................................................................................11
Declaration of EU conformity
ZL
Q
W
W
HH
K
U
U
O

89005828 1
2SHUDWLQJLQVWUXFWLRQV
IRU:LQWHUKDOWHU*DVWURQRPGLVKZDVKHU*6
These operating instructions must always be kept within easy reach of the dishwasher.
Failure to observe this sign can lead to danger for operators.
Failure to observe this sign can lead to damage to the dishwasher.
This sign indicates that the use of high pressure cleaners or steam jet cleaners
is prohibited.
This sign indicates recommendations and special features.
 ,QWHQGHGXVH
The :LQWHUKDOWHU *DVWURQRP GLVKZDVKHU *6  may only be used for washing items from the
catering industry and related trades. Any change in design or use of the dishwasher carried out with-
out the written permission of Winterhalter Gastronom GmbH, leads to the guarantee and product li-
ability becoming null and void. If damage is caused to the dishwasher due to failure to observe the
instructions given in this manual, no claims under guarantee can be made to Winterhalter Gastronom
GmbH.
 ,QVWDOODWLRQDQGFRPPLVVLRQLQJ
Installation of the dishwasher and connection to the customer’s water inlet, waste water drainage and
electricity connections are to be carried out according to national and local criteria by qualified fitters in
accordance with the “Installation instructions for Winterhalter Gastronom glass washers, dishwashers
and cutlery rinsing machines“.
Main fuses and main switch to be provided by customer.
After proper connection to the customer’s water and electricity connections, contact the Winterhalter
representative for your area.
Commissioning and instruction in operating the dishwasher is to be carried out by the Winterhalter
customer service. For this purpose, use the “Commissioning regulation for Winterhalter Gastronom
dishwashers and equipment washers”.

289005828
 6DIHW\LQVWUXFWLRQV
•The dishwasher may only be used once the operating instructions have been
read and understood. Receive instruction in the operation and functioning
personally from the Winterhalter custommer service.
•Only operate the dishwasher in the manner described in this manual.
•In the event of danger or faults, switch the dishwasher off immediately.
•Do not open any machine casings or machine parts if tools are necessary to do
so.
•Work on the electrical equipment is only to be carried out by specilist
personnel.
First diconnect the dishwasher from the mains.
•The water in the dishwasher is not drinking water.
•In the event of faults which are not due to the customer’s water or electricity
supply, contact the Winterhalter customers service.
•In the event of faults with unknown causes, do not swith the dishwasher on a-
gain until the cause is known. If necessary, contact the Winterhalter customer
service.
•Only use detergent and rinse additive which are suitable for industrial dish-
washers. We recommend the products developed by Winterhalter Gastronom.
These are specially suited to Winterhalter Gastronom dishwashers. All quanti-
ties given refer to Winterhalter Gastronom products. Observe danger instruc-
tions printed on packaging.
•During daily cleaning, make sure that no rusting foreign bodies remain inside
the dishwasher. This can cause the interior to rust. The rust particles may
come from non-stainless items to be washed, cleaning aids, damaged wire
trays or baskets or from supply lines which have not been rust proofed.
•Leave the hood open until the next time you put the machine into operation, so
that the inside of the machine can dry out. This is important for long-lasting
protection against corrosion, even with high grade stainless steel.
•Protect the dishwasher against frost. Systems carrying water can be damaged
if they freeze.
•Do not use normal washing-up liquid. This leads to large amounts of foam
building up in the dishwasher.

89005828 3
•KH GLVKZDVKHU LV VSODVKSURRI 'R QRW VSUD\ WKH RXWVLGH ZLWK D KLJK
SUHVVXUHRUVWHDPMHWFOHDQHU
•Check the FI-residual current operated device for functioning regularly accor-
ding to the regulations by pressing the test button.
•In addition to daily cleaning, we recommend that you have the dishwasher ser-
viced at least twice a year by Winterhalter customer service.
 2SHUDWLQJDQGFRQWUROHOHPHQWV
2Q2IIVZLWFK
3UHVV On/Off switch: dishwasher is switched on.
Indicator lamp in On/Off switch lights up.
3UHVV On/Off switch: dishwasher is switched off.
Indicator lamp in On/Off switch does not light up.
,QGLFDWRUODPSFDQRQO\OLJKWXSZLWKIXOOWDQN
Indicator lamp illuminated: heating phase of tank.
Indicator lamp extinguished: heating phase completed.
3URJUDPPHVZLWFK
Press programme switch: short programme.
Release programme switch: long programme.
The indicator lamp in the programme switch lights up while the programme is in
progress.
23 ,21$/)($ 85(
3XVKEXWWRQVZLWFKIRUGUDLQSXPS
3UHVV switch: drain pump pumps out tank water (switch lights up)
5HOHDVH switch: drain pump not in operation (switch does not light up.)
 )XQFWLRQLQJRIWKHGLVKZDVKHU
After it is switched on, the dishwasher heats up the boiler. During this heating up phase, the tank is
filled in batches with water and simultaneously heated up. The temperature indicator lamp lights up
after filling of the tank is completed until the pre-set target temperature is reached. Then the indicator
lamp goes out. It lights up repeatedly during the heating phases of the tank.
Once the tank has been filled completely, a wash cycle is started automatically to signal readiness for
operation.
The dishwasher is fitted with an automatic hood start. When closing the hood, slight pressure has to
be applied to overcome the hood catch position. The pre-set programme starts as soon as the lid has
been closed.
The container for rinse additive is installed separately from the dishwasher. Dosage for the rinse addi-
tive is controlled automatically by the dishwasher.

489005828
 3UHSDUDWLRQIRUZDVKLQJ
2SHQ stop valve of water supply
6ZLWFK on customer’s main switch
&KHFN level in rinse additive container and detergent container (only with auto-
matic detergent dosage)
5HSODFH or ILOOup empty containers.
Observe safety instructions on packaging.
Screw standpipe into wash tank with slight turning movement.
&KHFN whether drainage filter, pump suction filter and surface strainers are in-
stalled.
Do not load dishes.
&ORVH hood.

89005828 5
Switch on dishwasher:
3UHVV On/Off switch: dishwasher is switched on.
Indicator lamp in On/Off switch is illuminated.
Tank is filled by the boiler and heated up.
Once the tank is filled completely, a wash cycle is started automatically to signal
readiness for operation.
The programme switch lights up.
Indicator lamp illuminated: heating phase.
Indicator lamp extinguished: heating phase completed.
='HWHUJHQWGRVDJH
If the dishwasher is fitted with an external detergent dosage pump, there is no need for manual dos-
age. In this case, detergent dosage is carried out automatically by the dishwasher.
With an external detergent dosage pump, please observe the operating instructions belonging to it.
0DQXDOGHWHUJHQWSUHGRVDJH
Pour detergent powder into surface strainer with cup.
Dosage: Approx. 120g
We recommend Winterhalter Gastronom detergent powder. Observe
the Winterhalter Gastronom recommended dosage.
Observe safety instructions on the detergent packaging.
&ORVH hoodWash programme is started.

689005828

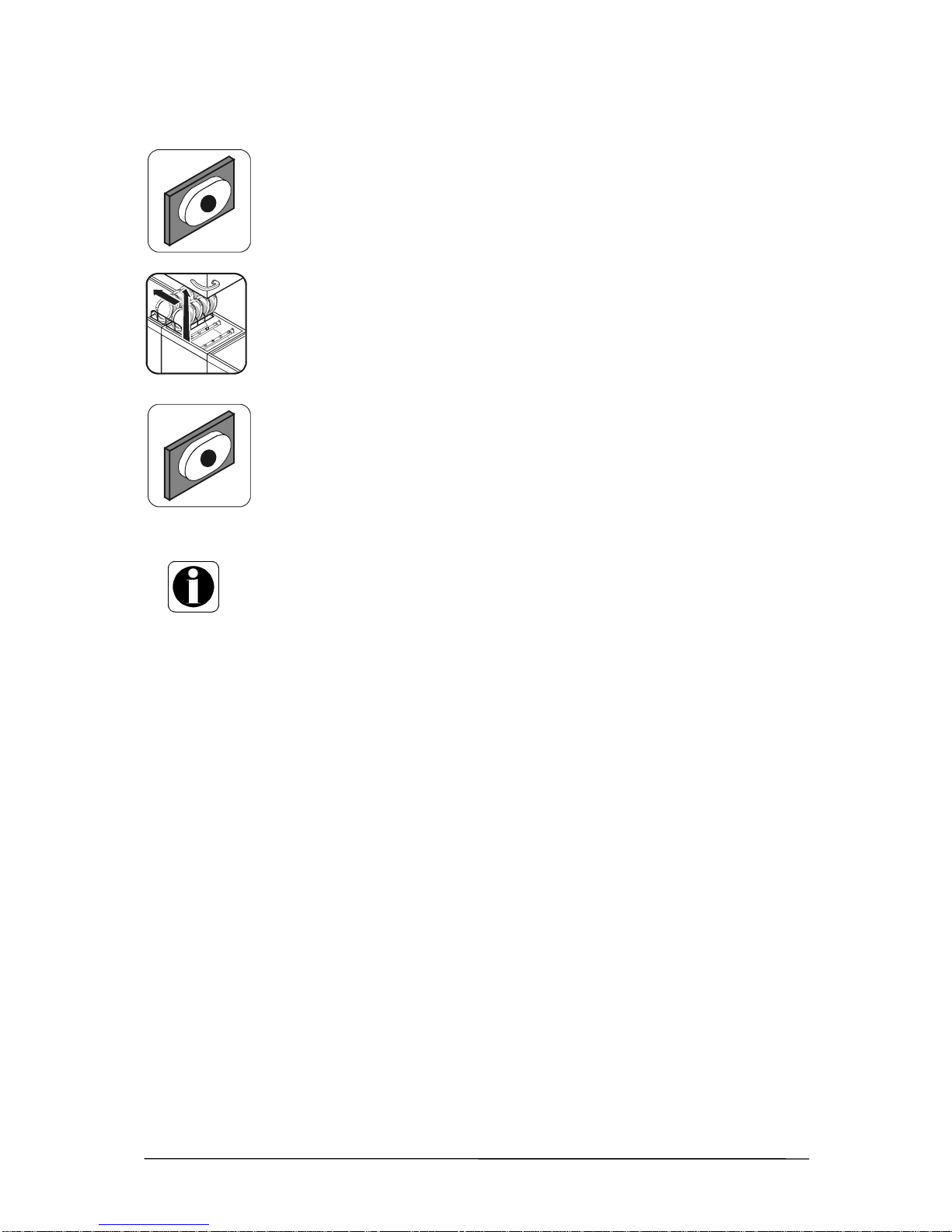

Programme switch illuminated: wash programme in progress.
Programme switch extinguished: wash programme completed.
0DQXDODGGLWLRQRIGHWHUJHQW
Manual addition of detergent powder must be repeated after approx. every 5
wash cycles. Pour 60g of detergent powder onto the surface strainer. Then
start the wash programme.
 :DVKLQJ Pre-clean dishes (if necessary pre-wash with spraying nozzle), SODFH in wash
rack:
Upper surface of plate facing forward.
Cups and bowls, opening facing down.
,QVHUWcutlery in one layer only.
To select programme length:
Press programme switch: short programme
Release programme switch: long programme
Note: The indicator lamp in the programme switch does not light up yet
&ORVH hood. The wash programme starts automatically.

89005828 7
Programme switch illuminated: wash programme in progress.
Programme switch extinguished: wash programme completed.
2SHQhood.
5HPRYH rack
When the hood is opened, the programme switch lights up again briefly and the
wash programme switches to standby.
As soon as the programme switch is extinguished again (after approx. 5 se-
conds), a new programme can be started.
•The programme starts automatically when the lid is closed.
•Check surface strainers occasionally for contamination and clean if
necessary.
•Check tank water for soiling. If necessary, drain and re-fill machine.
=:DVKSDXVH
Do not close hood completely but leave in the lower rest position, since on complete closure a wash
programme is immediately triggered.

889005828
 $IWHUZDVKLQJ
2SHQ hood and remove wash rack.
5HPRYH and FOHDQ surface strainers.
5HPRYH standpipe, tank is drained.
1RWH If the dishwasher is fitted as an optional extra with a drain pump for
pumping off the tank water, the white switch must be pressed after removing the
standpipe. The switch then lights up.
Pumping is ended by pressing the switch again.
Spray inside of dishwasher and clean.
Check whether the interior has been cleaned completely.
Remove any remains with a soft scraper or a soft brush.
If necessary, spray the inside of the dishwasher again.
For machines with a drain pump, check whether tank has been completely
drained.
If necessary, press the white switch again.
After draining, release the switch again.
Re-insert parts removed (standpipe, surface strainers, pump suction filter).

89005828 9

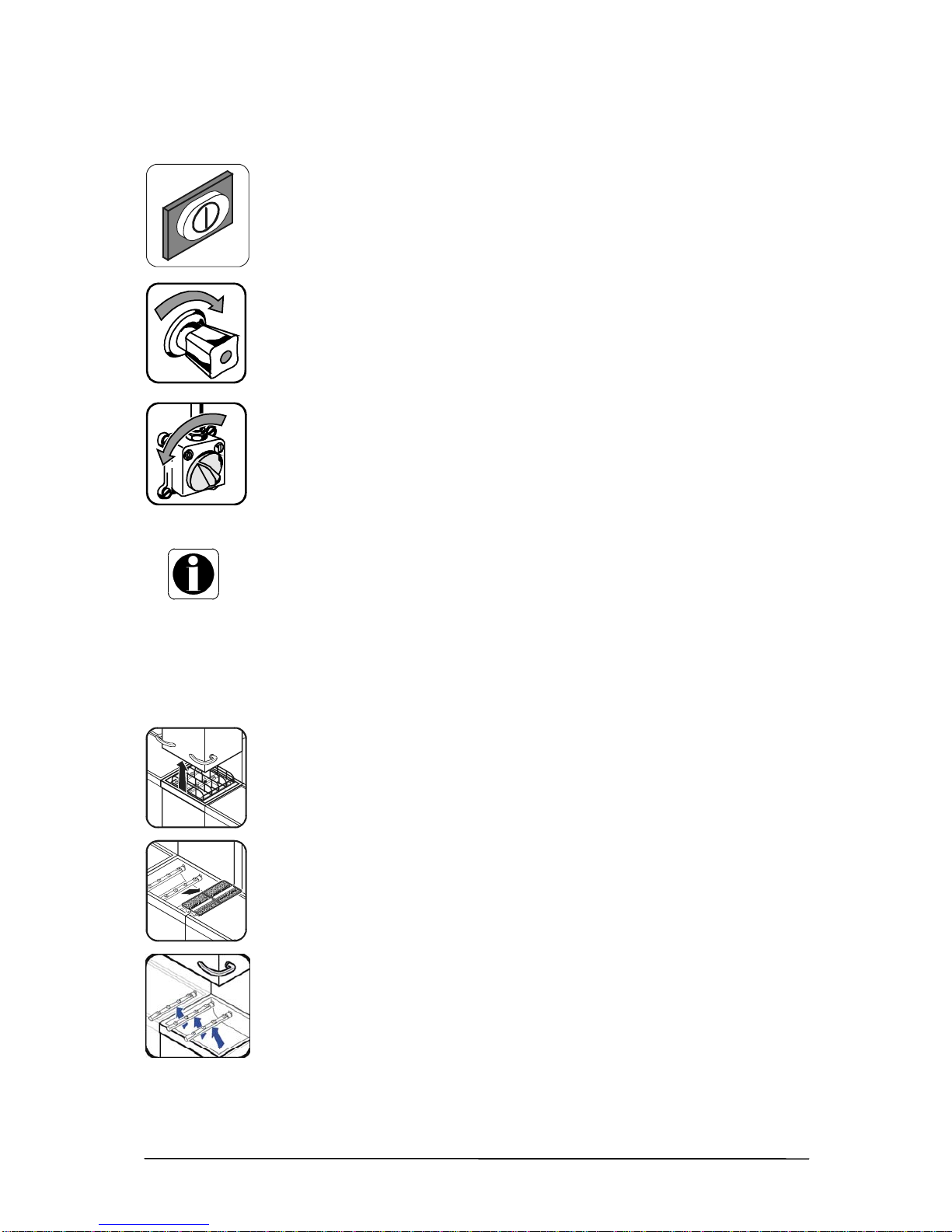

Switch off dishwasher.
Press On/Off switch: dishwasher is switched off.
Indicator lamp in On/Off switch is extinguished.
Close stop valve of water supply.
6ZLWFKRII customer’s main switch.
2QO\QRZLVWKHPDFKLQHLVRODWHG
•Leave hood open. In this way the interior can dry out.
•Clean the outer walls of the dishwasher with cleaning products for high
grade stainless steel. We recommend Winterhalter Gastronom high-grade
stainless steel cleaner and Winterhalter Gastronom high-grade stainless
steel protection.
 0DLQWHQDQFHDQGFDUH
2SHQhood.
5HPRYH and FOHDQ surface strainers.
5HPRYH and FOHDQ pump suction filter.
5HPRYH wash arms and check nozzles for blockages.

10 89005828
Re-insert parts removed.
Clean the outer walls of the dishwasher with cleaning products for high-grade
stainless steel. We recommend Winterhalter Gastronom high-grade stainless
steel cleaner and Winterhalter Gastronom high-grade steel protector.
'HVFDOLQJ
'UDLQ machine.
,QWHUUXSW detergent supply:5HPRYHsuction pipe from the detergent canister.
5HILOOmachine.
$GGLWLRQ of the descaling solution according to manufacturer’s instructions.
2EVHUYHWKHSULQWHGVDIHW\LQVWUXFWLRQV
6WDUWwash programme 3-5 times (max. 10 minutes circulation). This loosens the coating of scale.
'UDLQ machine.
1HYHU OHDYH WKH GHVFDOLQJ VROXWLRQ LQ WKH PDFKLQH IRU D SHULRG RI VHYHUDO
KRXUV
Put detergent supply into operation again.
Re-fill machine.
Operate machine 3-5 times more.
Drain machine or use for the current wash programme.

89005828 11
 )DXOWV
)DXOW &DXVH(IIHFW 5HPHG\
Appliance does
not start up Customer’s main switch is not switched on Switch on customer’s main switch
Dishwasher does
not fill up Stop valve closed
For machines with drain
pump, white switch is
pressed and illuminated
Open stop valve
Press switch. Indicator lamp
must go out.
Wash pro-
gramme does not
start
Hood is not completely
closed
Programme not on standby
Close hood completely.
Press hood over hood catch
Open hood again briefly until
indicator lamp in programme
switch is extinguished
Items are not
clean Too low dosage of detergent or detergent container
empty
Surface strainer blocked
Wash nozzles in the wash
arms blocked
Functional fault in the water
treatment
Top up detergent container or
add detergent powder
Clean surface strainer
Clean wash nozzles
Call Winterhalter customer
service
 (PLVVLRQYDOXHV
Noise emission values
The values refer to the workplace. (DIN EN ISO 11202)
LpAeq = 67 dB
