WINYCAM HX200 User manual

User Guide
WINYCAM
www.winycam.com
HX200

1
WINYCAM HX200
Contents
1. Safety Precautions
2. Before Use
3. Product feature
4. Package
5. Product Parts
6. Installation
7. External GPS Installation
8. How to Record
9. REC Time
10. LED Operation Guide
11. Voice Guide
12. LCD Configuration
13. PC Viewer Program Installation
14. How to use PC Viewer
15. Playback
16. How to display Front/Rear Screen
17. How to save video file on your PC
18. How to separate video
19. Firmware Upgrade
20. SD card format & Set breaking voltage
21. Specifications
22. Certificates
23. A/S Guide
Warranty
2
4
5
6
7
8
11
12
13
14
15
16
17
18
20
23
24
25
26
27
28
29
30
32

2
WINYCAM HX200
Do not operate the product during driving. It may cause
accident.
The product must be installed at a point which would not
obstruct the driver’s view.
Do not allow unauthorized disassembly or alteration to the
product. It may cause malfunction, and the consequent
product damage will not be covered under the warranty.
If the product is damaged or power is cut off by a serious
accident, the product may not be able to record such event
Always keep the windshield clean to enable normal
recording.
Since the product is purpose to record video data during
driving, video quality may be deteriorated when in/out the
tunnel, and at night or by contrast and backlight.
Contaminated camera lens may deteriorate the video
quality. Keep the lens clean.
Do not place the product under direct sunlight or inside the
closed vehicle as it may cause malfunction.
Do not use chemicals or detergent to clean the product.
Clean gently with soft cloth.
Use of the product at temperature below -20℃ or above
70℃ may cause malfunction or breakdown. (This caution
should be applied when product is unused.)
Do not use the product in places in high temperature/
humidity.
Do not exert excessive force to the product as it may cause
breakdown.
Operate the product for 3-5 minutes to check for correct
recording, before each use.
Prolonged exposure to sunlight and high temperature in
the summer may cause malfunction.
Do not turn off power, or remove the SD card during
firmware upgrading as it may cause malfunction.
Do not touch a cigar lighter cable with wet hand as it may
cause electric shock.
Do not use a damaged cigar lighter cable as it may cause
electric shock or fire.
Do not place the cigar lighter cable in near heating devices.
Do not leave the product connected to the cigar lighter
without using for a long period of time. Remove the cable
from the product.
Insert the cigar lighter securely.
Do not bend or pull the cigar lighter cable by excessive
force, or place heavy objects on the cable.
(It may damage the cord and as a result it may cause
electric shock or fire.)
Caution on Operation and Storage
1. Safety Precautions

3
WINYCAM HX200
Due to an SD card is consumables, if it is used for a long
time, you may lose the data or it may not record caused an
error, so please check it periodically.
When the product is in recording or the power is on, do
not eject the SD card forcibly. It may cause a failure of the
SD card and data loss.
If temperature gets too high in the vehicle, data storing
may be disabled, or data may be damaged. Park your
vehicle in the shade in the summer.
When identify the car's accident or damage, please keep
the SD card separately. Due to overwrite, important data
may be deleted.
When turn off the power of the body and remove the SD
card before LED is turned off, the last recording file may not
be saved, so please be careful.
When driving a vehicle, do not remove the SD card. Make
sure to remove it safely when a vehicle is in parking or stop.
After turning on the power, make sure that it is in normal
operation.
Please note that the warranty period of an SD card is
six (6) months, and replace it at the time of more than
six (6) months. Please purchase and use SD Card that
manufacture recommended specification.
The SD card randomly purchased others than the one we
provided, it shall be excluded from the warranty, and we
shall not take any responsibility for loss and damage of the
data recorded in the SD card in any case.
Caution on SD Card

4
WINYCAM HX200
Thank you for purchasing HX200
This User Manual contains important information
about the proper use and cautions in use of the
product. Please read carefully before use.
HX200 is an auxiliary product to alert users for
safe driving and prevent accidents, by recording
video on driving. Also purpose for evidence of
an accident.
HX200 does not however guarantee that all
accidents are recorded. Minor shock may not
detect sensor to record.
CONBUZZ shall not be liable for any loss or
damage to data or to the product which may be
caused by accident or impact.
All rights vested in the design and software of
HX200 are the property of CONBUZZ Co., Ltd.
and protected by the Copyright Law.
HX200 may change without priority notice for
further function improvement.
This User Manual is published based on the
current state of the product, and may contain
typographical errors or omissions.
Contents of this User Manual may be modified,
changed or supplemented without notice for
further improvement.
2. Before Use

5
WINYCAM HX200
3. Product Feature
High Quality Lens and High Image Quality
Resolution support
ㆍFront/Rear 1 mega pixel image sensor
ㆍWide angle mega lens
ㆍFront/Rear HD(1280x720) high image quality resolution
and total 60fps (Front 30 + Rear 30)
Various Recording Function and Video Data
Acknowledgement
ㆍTouch LCD display apply, recording image and recorded
image can be confirmed on LCD
ㆍConstant(Normal), Manual, Event, Motion and auto
change to Parking recording mode
ㆍDriving records can be saved with GPS data. (optional)
ㆍG sensor built-in Automatic parking recording mode
change and event recording mode.
ㆍConfiguration setting is available on LCD menu.
ㆍPC viewer program are provided to change various setting
values and map data can be checked when using GPS.
(In the general video player (e.g. Windows media player),
recorded video can be played)
ㆍSD card can be formatted as the product itself, without
connecting to a PC.
ㆍEach capacity of a constant(normal)/ event/ motion folder
can be set in PC Viewer
High Quality Voice Record and Voice Guidance
ㆍOperating instructions service by voice guidance
ㆍVoice recording On/Off function and speaker output On/
Off function
ㆍHigh performance microphone built-in
Back-up battery and vehicle constant power
discharge protection function
ㆍSaved recorded image safety by built-in high-capacity
capacitor when power is off
ㆍVehicle constant power discharge protection function
(Selectable ON/OFF on viewer, Not required another
equipment for this function)
Consume less than 300uA when power shutdown
(Based on 12V)
ㆍWhen using vehicle constant power discharge protection
functions, If user vehicle voltage is 12V and the voltage
of less than 11.8V is maintained for more than 5 minutes
the product power will be shuts-off (Note: Shutdown
time depend on the Type of vehicle and condition.)
Other
ㆍSoft look and emotional design. (easy removable body)
ㆍSecurity LED light are built-in front body (LED Lighting
function On/Off can be set in PC viewer / LCD menu)

6
WINYCAM HX200

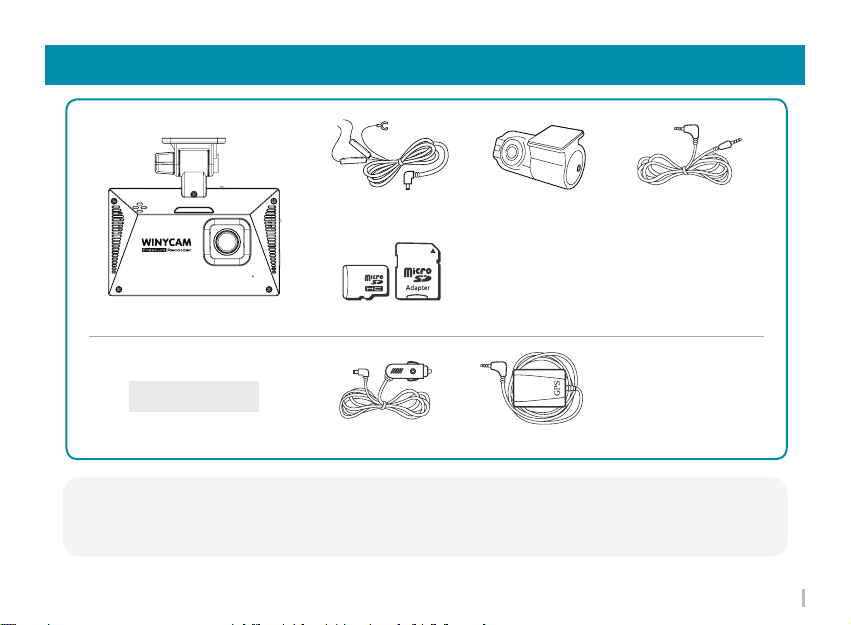

Rear Camera Cable
Standard Package
Optional Item
HX200
Hardwire Cable
Cigar Lighter Cable GPS Module
ㆍThe packaged product picture of the user manual may differ from the actual product.
ㆍVideo input type is different and check the user manual of monitor.
Micro SD Card & Adaptor
Rear Camera
4. Package

7
WINYCAM HX200
5. Structure
MICSpeaker
Security LED
Front Camera
Power button
SD Card Socket
GPS
DC-IN
Rear Camera
GPS LED
REC LED

8
WINYCAM HX200
1. Insert Micro SD card to SD card slot of
the device.
(Check the defection of SD card.)
6. Arrange the wire using by the cable
clip.
2. Remove the protective tape from the
bracket.
4. Attach the bracket on the windshield
of the left of center behind the rearview
mirror.
3. Connect the Power cable to DC-IN of
the device.
5. Plug the cigar jack cable into car power
socket.
1. Front Camera Installation
6. Installation

9
WINYCAM HX200
2. Arrange the wire using by the cable clip.
4. Connect Video Cable
Plug (ㅡ) shape's rear end of the plug to
the camera connection, (ㄱ) shape's one to
the device.
※Caution ※
Please noted that if the direction changes, the video will
not be output.
5. Check an Operation
Turn the device on and check whether
to record properly.
Please power off a car and Dashcam
before installation.
1. Shutdown a Car Battery and Power 2. Install a Rear Camera 3. Adjust a Rear Camera Angle
6. Arrange a Front/Rear Camera Cable
Arrange the wire by using the cable clip.
Remove the protective tape from the rear
camera and attach the camera in the
proper place.
Adjust the camera angle and fix it.
(To adjust the angle, the horizon is seen
above the right center of the screen.)

10
WINYCAM HX200
1. How to install a Fuse Cable
Fuse cable has 3 lines. ( To use hardwire cable)
Battery Line (Red) : Connect to Emergency Light
ACC Line (Yellow) : Connect to Fuse Power
Ground Line (Black) : GND
1
2
3
3
1
2
3. Fuse Cable Installation

11
WINYCAM HX200
Connect the external GPS to GPS
connection on the device.
Fix the external GPS into appropriate
place, and tidy up the cable.
Caution on GPS Installation
ㆍThis feature may not be available in some countries.
ㆍOther electronic devices may interfere with GPS signal if placed too close to the device.
Keep its distance from them as much as possible.
ㆍGPS may be affected by weather conditions, satellite signal, or surrounding geographical features.
Coated windshields can interfere with GPS signal which may result in poor or blocked GPS reception.
7. External GPS Installation

12
WINYCAM HX200
1. Recording : HX200 is automatically boot at power on, and an Normal recording starts as an initial
recording mode.
2. Recording Mode : It is classified into driving recording mode and Parking (motion) recording mode.
3. Recording Type : It is classified into an Normal recording, Event recording, motion recording.
※ For automatic recording and manual recording methods, please refer the below table.
※ After changed to Parking mode, LCD will be on for 30sec nevertheless you set screen saving time as
30sec/60sec/always.
※ When turned to “Parking Mode” G-sensor sensitivity will be more sensitive than driving mode.
REC Mode
Driving
Mode
Parking
(Motion)
Mode
REC Method
Normal - Memory save
Event In G-sensor detect shock
Motion -
Including before
10 sec Event/
Motion detect
Event In G-sensor detect shock
Auto REC Mode REC Time
8. How to Record

13
WINYCAM HX200
▶ Default Setting
ㆍBy Time : If there is insufficient storage space, the old recording files are automatically deleted from the oldest recording file.
ㆍBy Type: When saving a recording file, set the memory usage ratio by recording type. if the memory space is full then the
recording files are automatically deleted sequentially.
Therefore, accident video recording files may also be deleted..
CH
1CH
2CH
Video
Quality Camera
16GB 32GB 128GB64GB
Super High
Super High
Front
High
High
Front
Normal
Normal
Front
Front/Rear
Front/Rear
Front/Rear
Normal
(50%)
Normal
(50%)
Normal
(50%)
Normal
(50%)
Motion
(20%)
Motion
(20%)
Motion
(20%)
Motion
(20%)
Event
(30%)
Event
(30%)
Event
(30%)
Event
(30%)
3-5. 녹화 시간
(Unit : Minute)
9. REC Time
250
324
460
130
171
250
100
129
184
52
69
100
150
194
276
78
103
150
499
647
920
261
343
499
200
259
368
104
137
200
300
388
552
157
206
300
999
1295
1840
522
685
999
399
518
736
209
274
399
599
777
1104
313
411
599
1997
2589
3679
1043
1371
1997
799
1036
1472
417
548
799
1198
1553
2208
626
822
1198

14
WINYCAM HX200
※ GPS Icon : ** w/o GPS: Gray, w/GPS : White
10. LED Guide
OFF
Item Front Security
LED(White)
Rear LED
GPS LED(Blue)
Connected GPS
GPS is ON No GPS Signal
Recording
LED (Red) Disconnected
GPS
System Booting ON
Blinks Slowly
Blinks Slowly
Blinks Slowly Blinks Slowly Blinks Slowly Blinks Slowly
Blinks Slowly
OFF
ON
ON
Blinks Quickly
ONON ON
ON
Update Firmware
Blinks Quickly
Blinks from side to side Blinks Slowly
OFF
Normal Mode
Recording(N)
Impact Detected(E)
Parking Mode(P)
Non SD card

15
WINYCAM HX200
Situation Voice Guide
Remove SD card / SD card Error “Please check your SD card”
Firmware update start “ The firmware update is starting”
*Event recording start(in booting) “Event recording will start”
Parking recording start “ The recording will start”
REC end “ The recording will end”
when an event shock detection “ Ding-Dong”
※ Only when event REC mode is set in the configuration, the voice guiding "event recording will start“ will announce
11. Voice Guide

16
WINYCAM HX200

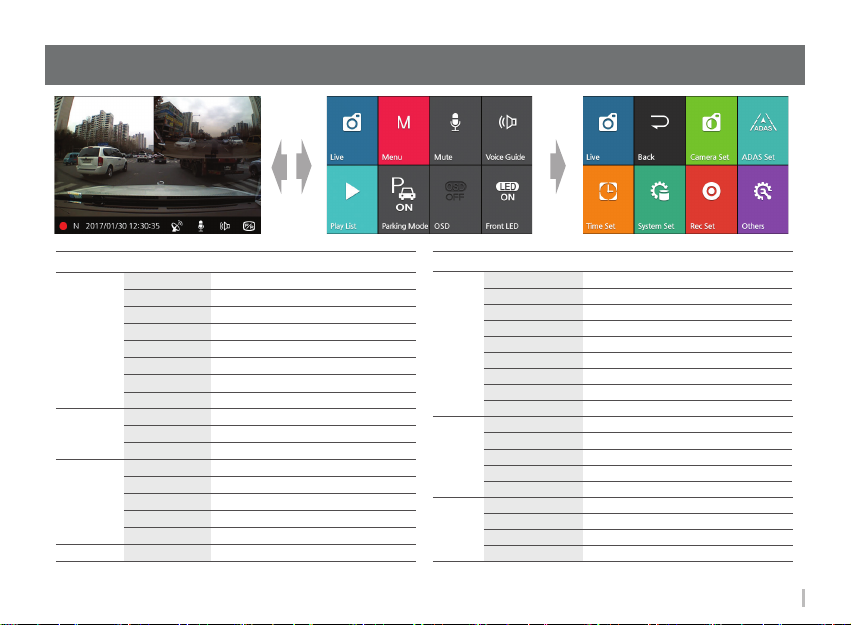

12. LCD Configuration
Night Vision
Menu Menu Function Function
Live Live Image
Quick Menu
Time Set
System Set
Camera Set
Menu Setting Menu
Mute Voice REC ON/OFF
Voice Guide Speaker ON/OFF
Time Set Set Time on product
Play List
ParkingREC
Playback List
Parking mode ON / OFF
Standard Time Set Set Standard Time
Summer Time
Cut Off Voltage
Auto LCD Off
Language
High Temp Cut off
Speaker Volume
Set Summer Time
Set voltage for car constant power discharge
Normally off after 30sec / on 60sec
Set Language
Set High Temperature Cut off
Set Speaker Volume
OSD OSD On/Off
Camera Set Adjust Brightness, Contrast, Chroma on Camera
Front LED LED On/Off
REC Set
Others
ADAS
REC CH
Touch Calibration
Set More Bright under nighttime parking mode
Calibrate Touch Screen
Set REC Channel
Front Video Quality Set Front Video Quality
Rear Video Quality
REC Mode
Set Rear Video Quality
Continuous / Shock
Mic Volume Set REC Volume
Shock Level(N) Set Shock Sensor Level (Driving)
Shock Level(P) Set Shock Sensor Level (Parking)
Motion Level Set Motion Sensor Level
System Info
Memory Adjustment
Display System Information
Adjust REC Folder Capacity Rate
Factory Init
Operating Speed
Alert
ADAS Setting
FVSA
Initialize Configuration
Set ADAS Operating Speed
Set ADAS Alert ON/OFF
Set the detection area to operate ADAS
Set FVSA Warning during Driving
SD Card Format Format Micro SD Card

17
WINYCAM HX200
1. System Requirements
2. Install
Windows XP(32bit), Windows Vista(32bit), Windows7(32/64bit), Windows8(32/64bit),
Windows10(32/64bit)
Pentium4 2.8GHz & RAM 1GB
Display monitor resolution : 1024 X 768
DirectX support (WPF)
Download the latest Winy BB Viewer from our website (http://www.winycam.com)
If you run “setup.exe”, Winy BB Viewer will be installed
And then, installation will be continued according to the installation sequence of setup dialog box.
13. PC Viewer Program Installation

18
WINYCAM HX200
14. How to use PC Viewer
2 3 4 5 6 7 8
9
10
1
28
11
13 14 15 16 17 18 19 20 21 22
23 24 25 26 27
12

19
WINYCAM HX200
Full Screen
Item ItemFunction Function
1CH / 2CH View Rewind 5 sec
Viewer Configuration Playback or Pause
System Configuration Stop
Print Forward 5 sec
Screen Capture File Skip
Zoom Control Volume
Play List / Map Button
Total File Time / Playback Time
File Location Search
Brightness / Contrast
REC File List / Map Display
GPS Signal Condition
Playback Video Image
Driving Speed
Playback Control Latitude / Longitude
G-sensor Information
Flip Horizontal
Split Image
Flip Vertical
File Skip Back
1
16
2
17
3
18
4
19
5
20
6
21
7
22
8
23
9
24
10 25
11 26
12 27
13 28
14
15
