WINYCAM Winner User manual

User Manual
WINYCAM Vehicle Drive Recorder
www.winycam-eng.com

1
WINYCAM Winner
1. Safety Precautions
2. Before use
2-1. Product Feature
2-2. Package
2-3. Product Parts
3. How to use
3-1. Front Camera Installation
3-2. Rear Camera Installation
3-3. GPS / TV-OUT Cable Installation
3-4. How to record
3-5. LED Operation
3-6. Voice Guide
3-7. LCD Configuration
3-8. PC Original Viewer Program Installation
3-9. PC Original Viewer – Screen Configuration
3-10. PC Original Viewer – Viewer Configuration
3-11. PC Original Viewer – Configuration
3-12. Configuration Default Setting
3-13. Playback (Vehicle Drive Recorder)
3-14. Playback (General video player)
3-15. Playback (PC original viewer)
3-16. Playback (TV / Vehicle Navigation)
3-17. How to display Front / Rear screen
3-18. To save video file on your PC
3-19. How to separate video
3-20. Firmware Upgrade
3-21. SD Card Format & Set breaking voltage
3-22. REC Time
3-23. Specification
4. FAQ
Warranty
2
4
5
6
7
8
8
9
11
12
13
14
15
16
19
21
23
27
28
29
30
31
32
33
34
35
36
37
38
39
40
Contents

2
WINYCAM Winner
How to use How to use
1. Safety Precautions
Safety Precautions
Caution on Operation and Storage
Do not operate the product during driving. It may cause
accident.
The product must be installed at a point which would not
obstruct the driver’s view.
Do not allow unauthorized disassembly or alteration to the
product. It may cause malfunction, and the consequent
product damage will not be covered under the warranty.
If the product is damaged or power is cut off by a serious
accident, the product may not be able to record such event
Always keep the windshield clean to enable normal recording.
Since the product is purpose to record video data during
driving, video quality may be deteriorated when in/out the
tunnel, and at night or by contrast and backlight.
Contaminated camera lens may deteriorate the video quality.
Keep the lens clean.
Do not place the product under direct sunlight or inside the
closed vehicle as it may cause malfunction.
Do not use chemicals or detergent to clean the product. Clean
gently with soft cloth.
Use of the product at temperature below -20℃ or above 70℃
may cause malfunction or breakdown. (This caution should
be applied when product is unused.)
Do not use the product in places in high temperature/humidity.
Do not exert excessive force to the product (especially to LCD
buttons and to bracket) as it may cause breakdown.
Operate the product for 3-5 minutes to check for correct
recording, before each use.
Prolonged exposure to sunlight and high temperature in the
summer may cause malfunction.
Do not turn off power, or remove the SD card during firmware
upgrading as it may cause malfunction.
Do not touch a cigar lighter cable with wet hand as it may
cause electric shock.
Do not use a damaged cigar lighter cable as it may cause
electric shock or fire.
Do not place the cigar lighter cable in near heating devices.
Do not leave the product connected to the cigar lighter
without using for a long period of time. Remove the cable
from the product.
Insert the cigar lighter securely.
Do not bend or pull the cigar lighter cable by excessive force,
or place heavy objects on the cable.
(It may damage the cord and as a result it may cause electric
shock or fire.)
Do not touch the LCD excessive force as it may cause
malfunction.

3
WINYCAM Winner
How to use
Caution on SD Card
Because an SD card is consumables, if it is used for a long
time, you may lose the data or may not record due to an
error, so please check it periodically.
When the product is in recording or the power is on, do
not eject the SD card forcibly. It may cause a failure of the
SD card and data loss.
If temperature gets too high in the vehicle, data storing
may be disabled, or data may be damaged. Park your
vehicle in the shade in the summer.
When identify the car's accident or damage, please keep
the SD card separately. Due to overwrite, important data
may be deleted.
When turn off the power of the body and remove the SD
card before LED is turned off, the last recording file may not
be saved, so please be careful.
When turn off the power of the body and remove the SD
card before LED is turned off, the last recording file may not
be saved, so please be careful.
When driving a vehicle, do not remove the SD card. Make
sure to remove it safely when a vehicle is in parking or stop.
After turning on the power, make sure that it is in normal
operation.
Please note that the warranty period of an SD card is
six (6) months, and replace it at the time of more than
six (6) months. Please purchase and use SD Card that
manufacture recommended specification.
The SD card randomly purchased other than the one we
provide, shall be excluded from the warranty, and we shall
not take any responsibility for loss and damage of the data
recorded in the SD card in any case.
Safety Precautions

4
WINYCAM Winner
How to use How to use
Thank you for purchasing Winner
This User Manual contains important information
about the proper use and cautions in use of the
product. Please read carefully before use.
Winner is an auxiliary product to alert users for
safe driving and prevent accidents, by recording
video during driving. Also purpose for evidence
of an accident.
Winner does not however guarantee that all
accidents are recorded. Minor shock may not
detect sensor to record.
WinyTechnology shall not be liable for any loss or
damage to data or to the product which may be
caused by accident or impact.
All rights vested in the design and software of
Winner are the property of Winy Technology
Co., Ltd. and protected by the Copyright Law.
Winner may change without notice for further
function improvement.
This User Manual is published based on the
current state of the product, and may contain
typographical errors or omissions.
Contents of this User Manual may be modified,
changed or supplemented without notice for
further improvement.
2. Before Use
Before use

5
WINYCAM Winner
How to use
High Quality Lens and High Image Quality
Resolution support
Front 5 Mega Pixel / Rear 2 Mega Pixel image sensor
Wide mega lens
FHD(1920×1080) High Image Quality Resolution
and total 50fps(Front 20 + Rear 30).
Various Recording Function and Video
Data Acknowledgement
Touch LCD display apply, recording image and recorded
image can be confirmed on LCD
Constant(Normal), Manual, Event, Motion and auto change
to Parking recording mode
Driving records can be stored with GPS data. (optional)
G sensor built-in Automatic parking recording mode change
and event recording mode.
External video output. (Real-time video image can be checked
on another monitor)
Configuration setting is available on LCD menu.
PC viewer program are provided to change various setting
values and map data can be checked when using GPS. (In the
general video player (e.g. Windows media player), recorded
video can be played)
SD card can be formatted as the product itself, without
connecting to a PC.
Each capacity of a constant(normal)/ event/ motion folder
can be set in PC Viewer
High Quality Voice Record and Voice
Guidance
Operating instructions service by voice guidance
Voice recording On/Off function and speaker output On/Off
function
High performance microphone built-in
Back-up battery and vehicle constant
power discharge protection function
Stored recorded image safety by built-in high-capacity
capacitor when power is off
Vehicle constant power discharge protection function
(Selectable ON/OFF on viewer, Not required another
equipment for this function)
Consume less than 2.5mA when power shutdown (Based
on 12V)
When using vehicle constant power discharge protection
functions, If user vehicle voltage is 12V and the voltage of
less than 11.8V is maintained for more than 5 minutes the
product power will be shuts-off (Note: Shutdown time
depend on the Type of vehicle and condition.)
Other
Soft look and emotional design. (easy removable body)
Security LED light are built-in front body (LED Lighting
function On/Off can be set in PC viewer / LCD menu)
2-1. Product Feature
Before use

6
WINYCAM Winner
How to use How to use
Option
Accessories
Standard Package
Winner Body
Cigar Lighter
Cable Clip
Fuse Cable GPS Module Video Splitter Cable
(Y-Type)
Bracket
The packaged product picture of the user manual may differ from the actual product.
The video cable can be purchased separately and used after verifying the PLUG Pin specification of Navigation AV IN.
Video input type is different and check the user manual of monitor.
Micro SD card SD card Adaptor
Rear Camera Rear Camera
Video Cable
2-2. Package
Before use

7
WINYCAM Winner
How to use
Front Camera
GPS LED
REC LED
Speaker Reset
Security LED
2-3. Product Parts
Before use
DC-IN R-CAM GPS DC-IN R-CAM GPS
Mic
SD Card Slot
Power Button
GPS
Connection
Power Connection
Rear Camera Connection
(TV-OUT)
OFF ON

8
WINYCAM Winner
How to use How to use
1. Insert Micro SD card to Winner
SD card slot.
(Check the SD card direction)
6. Arrange a power cable.
2. Remove the protect sticker.
4. Attach the Winner in place on the
top of front windshield or middle o left
and right of the mirror.
3. Connect Cigar lighter cable to Power
connection of product.
5. Connect cigar lighter to a cigar
socket.
3-1. Front Camera Installation

9
WINYCAM Winner
How to use
The default is N(Normal).
Please power off Winner When flip on
switch.
N(Normal), M(Reverse of Left, Right)

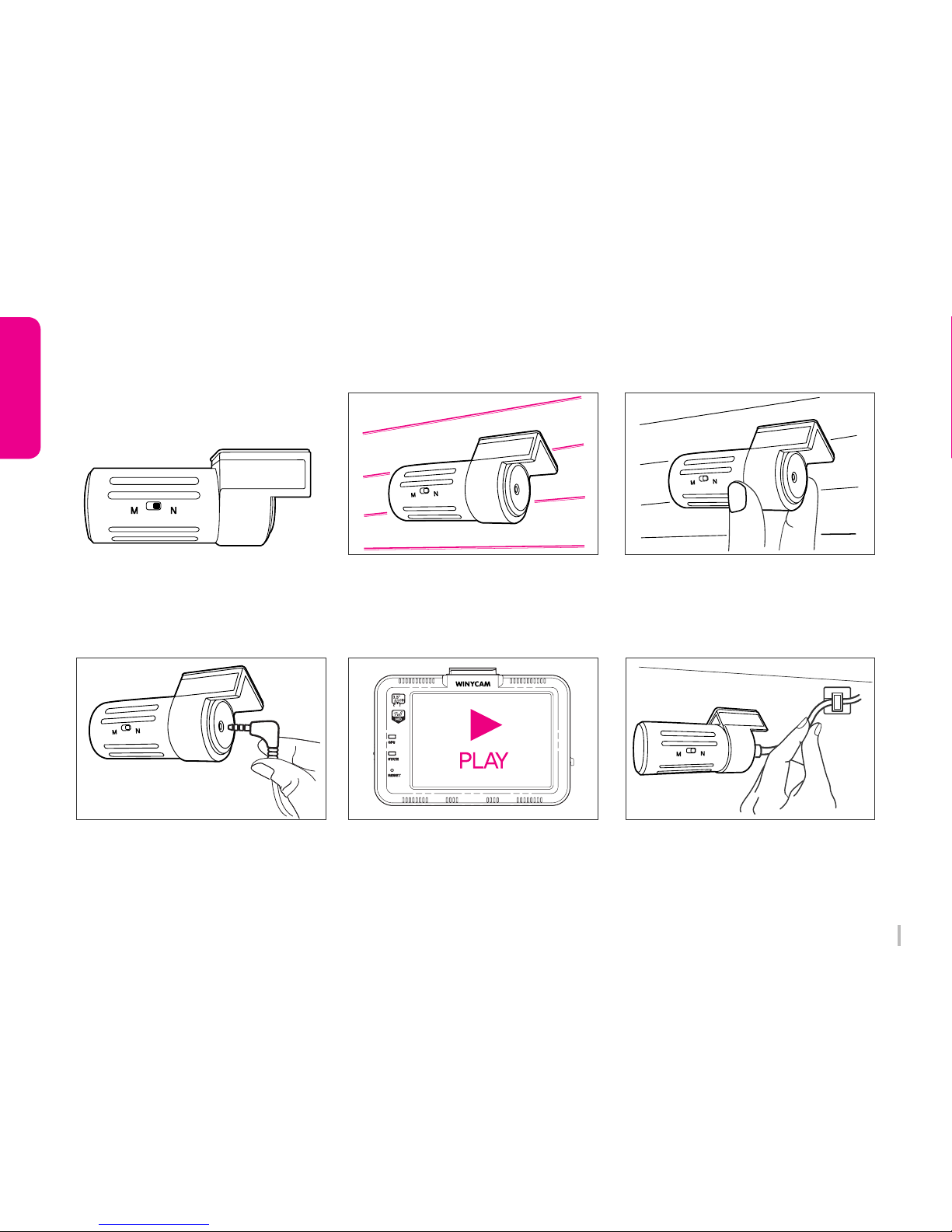

1. Please power off a vehicle
and Winner before installation.
4. Connect video cable
2. Install a rear camera
5. Check an operation
3. Adjust a rear camera angle
6. Arrange a front/rear camera cable
After checking recording operation, well-
arrange a cable.
If you embed cable to vehicle wall, please
check cable connection. Also after embedded
double-check if Winner can record properly.
Remove a protect sticker and attach a rear
camera in proper location in windshield.
Connect a rear camera cable to rear camera
connection slot and to connect the R-CAM
terminal on the main body.
Adjust a camera angle and fix it. To adjust
the angle, the horizon is seen above the
right center of the screen.
Power on Winner and check to playback a
REC video correctly.
3-2. Rear Camera Installation


10
WINYCAM Winner
How to use How to use
Fuse cable has 3 lines.
(When use constant power discharge protection function)
Battery Line : Connect to Emergency light
ACC Line : Connect to Fuse Power
Ground Line : GND
1. How to install a Fuse Cable
2. How to connect Video Splitter & Rear camera Cable (TV-OUT)
3
11
2
3
2
Fuse Cable Installation
Video Splitter Cable
(Y-Type)
Connect TV-Out terminal
TV-Out signal line
Rear camera connection cable

11
WINYCAM Winner
How to use
Connect External GPS
to GPS connection on
Winner body.
Connect a TV-Out
cable to the Video
splitter cable(Y-Type)
on a Winner body.
(Please refer 10P)
Attach GPS module
at well visual place
and tidy up a cable.
Connect a TV-Out
cable to AV-IN jack your
vehicle navigation.
▶External GPS Installation ▶TV OUT Cable Installation
3-3. GPS / TV-OUT Cable Installation
When connecting to your vehicle navigation, you need an
applied vehicle navigation video cable.
With a specific vehicle navigation, installation may be
restricted, and/or extra service charge may be incurred.
Connect to body after checking the location of each
connection. Wrong connection may cause malfunction,
and the consequent product damage will not be covered
under the warranty.
Caution on GPS Installation Caution on TV－OUT Connection
GPS module may be affected by main body or by other
electronic devices if it is too close each other. Keep a
distance as much as possible.
The receiving signal may become poor depending
on the climate, satellite status and geography in the
neighborhood.
The receiving signal may become poor if the windshield is
heavy sun-coated or fixed with metallic materials.

12
WINYCAM Winner
How to use How to use
1. Record : Winner is automatically boot at power on, and a constant(normal) recording starts as an initial recording mode.
2. Recording Mode : it is classified into driving recording mode and parking (motion) recording mode.
3. Recording Method : it is classified into a Constant(normal) recording, event recording, motion recording.
※ For automatic recording and manual recording methods, please refer the below table.
※ After changed to Parking mode, LCD will be on for 30sec nevertheless you set screen saving time
as 30se/60sec/always.
※ When turned to “Parking Mode” G-sensor sensitivity will be more sensitive than driving mode.
REC Mode
Driving
Mode
Parking
(Motion)
Mode
REC Method
Constant(normal)
REC -Memory save
Event REC In G-sensor detect shock
Motion REC -Including before 10 sec
Event/Motion detect
Event REC In G-sensor detect shock
Auto REC Mode REC Time
3-4. How to record

13
WINYCAM Winner
How to use
※ GPS Icon : GPS Icon : w/o GPS : Grey, w/ GPS : white
3-5. LED Operation
OFF
Item CH Front LED
Rear LED
GPS LED
GPS Connection
GPS ON GPS OFF
REC LED Normal
(NO GPS)
Booting -
-
1CH
1CH
1CH
1CH
2CH
2CH
2CH
2CH
-
ON
ON
Red ON
Red ON
Red ON 0.5 / OFF 2.5 sec
Red ON 0.5 / OFF 0.5 sec
Green ON 0.5 / OFF 2.5 sec
Green ON 0.5 / OFF 0.5 sec
Red/Green flashing
interval at 0.5 sec
Red/Green flashing
interval at 1.5 sec
Red ON
Red ON
Green ON Orange On
(Green/Red)
FW update
1sec ON /
1sec OFF
0.5sec ON /
0.5sec OFF
0.25sec ON /
0.25sec OFF
5 LED flashing interval
0.5 sec to right and left
OFF OFF
Continuous / Event REC
Standby (N)
In detect a Shock (E)
Parking REC (P)
Parking REC
standby
No micro SD Card
(including an error)

14
WINYCAM Winner
How to use How to use
Situation Voice Guide
Remove SD card / SD card Error “ Please check your SD card. ”
Firmware Update Start “ The firmware update is starting. ”
Firmware Update Completed “ The firmware update has been completed. ”
Constant (Normal) Recording Start (In booting) “ Constant Recording will start. ”
* Event Recording Start (In booting) “ Event Recording will start. ”
Parking Recording start “ Parking Recording will start. ”
Recording end “ The Recording will end. ”
Alarm tone in a Rear Camera disconnect
(the error for 2CH REC) “ Ding-Dong ”
※ Only when event REC mode is set in the configuration, the voice guiding "event recording will start"
will announce
3-6. Voice Guide

15
WINYCAM Winner
How to use
3-7. LCD Configuration All configuration cab be set in LCD menu.
Driving/Event REC
Menu Menu Function Function
Live Live Image
Quick Menu
Time Set
System Set
Menu Setting Menu
Mute Voice REC ON/OFF
Voice Guide Speaker ON/OFF
Time Set Set Time on Winner
Play List
Driving/Parking REC
Playback List
N(Driving), P(Parking) REC
Standard Time Set Set Standard Time
Summer Time Set Summer Time
OSD OSD On/Off
Cut Off Voltage
Set voltage for car constant power discharge
Front LED LED On/Off
Auto LCD Off Normally off after 30sec / on 60sec
TV-OUT Set TV our format (OFF/NTSC)
High Temp Cutoff
Speaker Volume
Set High Temperature Cut off
Set Speaker Volume
REC Set
Others
REC CH
Memory Adjustment
Camera SetCamera Set
Set REC Mode
Adjust REC Folder Capacity Rate
Adjust Brightness, Contrast, Chroma on Camera
Set REC Channel
Front Video Quality Set Front Video Quality
Rear Video Quality Set Rear Video Quality
Drive REC Time Memory Capacity Saving
Mic Volume Set REC Volume
Shock Level(N) Set Shock Sensor Level (Driving)
Shock Level(P) Set Shock Sensor Level (Parking)
Motion Level Set Motion Sensor Level
System Info Display System Information
SD Card Format Format Micro SD Card
Touch Calibration Calibrate Touch Screen
Factory Init Initialize Configuration

16
WINYCAM Winner
How to use How to use
3-8. PC Original Viewer Program Installation
1. System Requirements
2. Install
Windows XP(32bit), Windows Vista(32bit), Windows7(32/64bit), Windows8(32/64bit)
Pentium4 2.8GHz & RAM over 1GB.
Display monitor resolution: 1024 X 768
DirectX Support (WPF)
Download the latest Winy BB Viewer from our website (http://www.winycam-eng.com)
If you run “setup.exe”, Winy BB Viewer will be installed
And then, installation will be continued according to the installation sequence of setup dialog box.

17
WINYCAM Winner
How to use
2. Select file location and click “Next”
󱮦
Please click “Cancel” if you
need to stop installation.
1. NEXT
※ Installation may tale long depend
on PC Usage environment.

18
WINYCAM Winner
How to use How to use
4. Installing
󱮦
󱮦
5. Complete installation
3. NEXT

19
WINYCAM Winner
How to use
23456 728
8
9
1
10
11
13 14 15 16 17 18 19 20 21 22
23 24 25 26 27
12
3-9. PC Original Viewer – Screen Configuration
