WINYCAM SX5 User manual

User Manual
SX5
www.winycam-eng.com

1
SX5
Contents
1. Safety Precautions
2. Before Use
3. Product Feature
4. Package
5. Product Parts
6. Installation
7. Internal GPS Installation
8. How to record
9. REC Time
10. LED Operation Guide
11. Voice Guide
12. PC Viewer Program Installation
13. Using Multi-Key
14. How to use PC Viewer
15. Playback
16. Mobile Application Guide (Wi-Fi)
17. To save video file on your PC
18. Firmware Upgrade
19. SD card format
20. Specification
21. FAQ
2
4
5
6
7
8
11
12
13
14
15
16
17
18
20
22
28
29
29
30
31

2
SX5
1. Safety Precautions
Caution on Operation and Storage
Do not operate the product during driving. It may cause
accident.
The product must be installed at a point which would not
obstruct the driver’s view.
Do not allow unauthorized disassembly or alteration to the
product. It may cause malfunction, and the consequent
product damage will not be covered under the warranty.
If the product is damaged or power is cut off by a serious
accident, the product may not be able to record such event
Always keep the windshield clean to enable normal recording.
Since the product is purpose to record video data during
driving, video quality may be deteriorated when in/out the
tunnel, and at night or by contrast and backlight.
Contaminated camera lens may deteriorate the video quality.
Keep the lens clean.
Do not place the product under direct sunlight or inside the
closed vehicle as it may cause malfunction.
Do not use chemicals or detergent to clean the product. Clean
gently with soft cloth.
Use of the product at temperature below -20℃ or above 70℃
may cause malfunction or breakdown. (This caution should
be applied when product is unused.)
Do not use the product in places in high temperature/humidity.
Do not exert excessive force to the product as it may cause
breakdown.
Operate the product for 3-5 minutes to check for correct
recording, before each use.
Prolonged exposure to sunlight and high temperature in the
summer may cause malfunction.
Do not turn off power, or remove the SD card during firmware
upgrading as it may cause malfunction.
Do not touch a cigar lighter cable with wet hand as it may
cause electric shock.
Do not use a damaged cigar lighter cable as it may cause
electric shock or fire.
Do not place the cigar lighter cable in near heating devices.
Do not leave the product connected to the cigar lighter
without using for a long period of time. Remove the cable
from the product.
Insert the cigar lighter securely.
Do not bend or pull the cigar lighter cable by excessive force,
or place heavy objects on the cable.
(It may damage the cord and as a result it may cause electric
shock or fire.)

3
SX5
Caution on SD Card
Due to an SD card is consumables, if it is used for a long
time, you may lose the data or it may not record caused an
error, so please check it periodically.
When the product is in recording or the power is on, do
not eject the SD card forcibly. It may cause a failure of the
SD card and data loss.
If temperature gets too high in the vehicle, data storing
may be disabled, or data may be damaged. Park your
vehicle in the shade in the summer.
When identify the car's accident or damage, please keep
the SD card separately. Due to overwrite, important data
may be deleted.
When turn off the power of the body and remove the SD
card before LED is turned off, the last recording file may not
be saved, so please be careful.
When driving a vehicle, do not remove the SD card. Make
sure to remove it safely when a vehicle is in parking or stop.
After turning on the power, make sure that it is in normal
operation.
Please note that the warranty period of an SD card is
six (6) months, and replace it at the time of more than
six (6) months. Please purchase and use SD Card that
manufacture recommended specification.
The SD card randomly purchased others than the one we
provided, it shall be excluded from the warranty, and we shall
not take any responsibility for loss and damage of the data
recorded in the SD card in any case.

4
SX5
2. Before Use
Thank you for purchasing SX5
This User Manual contains important information
about the proper use and cautions in use of the
product. Please read carefully before use.
SX5 is an auxiliary product to alert users for safe
driving and prevent accidents, by recording video
during driving. Also purpose for evidence of an
accident.
SX5 does not however guarantee that all
accidents are recorded. Minor shock may not
detect sensor to record.
KGP shall not be liable for any loss or damage to
data or to the product which may be caused by
accident or impact.
All rights vested in the design and software
of SX5 are the property of KGP Co., Ltd. and
protected by the Copyright Law.
SX5 may change without notice for further
function improvement.
This User Manual is published based on the
current state of the product, and may contain
typographical errors or omissions.
Contents of this User Manual may be modified,
changed or supplemented without notice for
further improvement.

5
SX5
3. Product Feature
High Quality Lens and High Image Quality
Resolution support
ㆍHigh Quality Video Recording(Day and night)
ㆍFront Full-HD(1080P) / Rear Full-HD(1080P)
Front/Rear total 60fps (Front 30 + Rear 30)
ㆍWireless Control(Wi-Fi Dongle)
Various Recording Function and Video
Data Acknowledgement
ㆍConstant(Normal), Manual, Event, Motion and auto change to
Parking recording mode
ㆍDriving records can be saved with GPS data. (optional)
ㆍ
G sensor built-in Automatic parking recording mode change and
event recording mode.
ㆍ
External video output. (Real-time video image can be checked
on another monitor)
ㆍPC viewer program are provided to change various setting
values and map data can be checked when using GPS. (In the
general video player (e.g. Windows media player), recorded
video can be played)
ㆍSD card can be formatted as the product itself, without
connecting to a PC.
ㆍEach capacity of a constant(normal)/ event/ motion folder
can be set in PC Viewer
High Quality Voice Record and Voice
Guidance
ㆍOperating instructions service by voice guidance
ㆍVoice recording On/Off function and speaker output On/Off
function
ㆍHigh performance microphone built-in
Back-up battery and vehicle constant
power discharge protection function
ㆍSaved recorded image safety by built-in high-capacity
capacitor when power is off
ㆍVehicle constant power discharge protection function
(Selectable ON/OFF on viewer, Not required another
equipment for this function)
Consume less than 300uA when power shutdown
(Based on 12V)
ㆍWhen using vehicle constant power discharge protection
functions, If user vehicle voltage is 12V and the voltage of less
than 11.8V is maintained for more than 5 minutes the product
power will be shuts-off (Note: Shutdown time depend on the
Type of vehicle and condition.)
Other
ㆍSoft look and emotional design. (easy removable body)
ㆍSecurity LED light are built-in front body (LED Lighting function
On/Off can be set in PC viewer)

6
SX5
SX5 Body
Cigar Lighter Cable
Hardwire Cable
GPS Bracket
※Note : Please save the viewer program on your PC before using the micro SD card.
(If the viewer program is deleted in SD card, you can download from our web site.)
The packaged product picture of the user manual may differ from the actual product.
Rear(HD)Camera Rear Camera Video Cable
Micro SD Card & Adaptor
Cable Clip
4. Package
Standard Package
Option Accessories

7
SX5
Bracket
Rear Camera Jack
MIC Urgent REC
Speaker
Front Camera
REC LED
Power LED
Security LED
SD Card Slot
DC Jack
GPS Jack

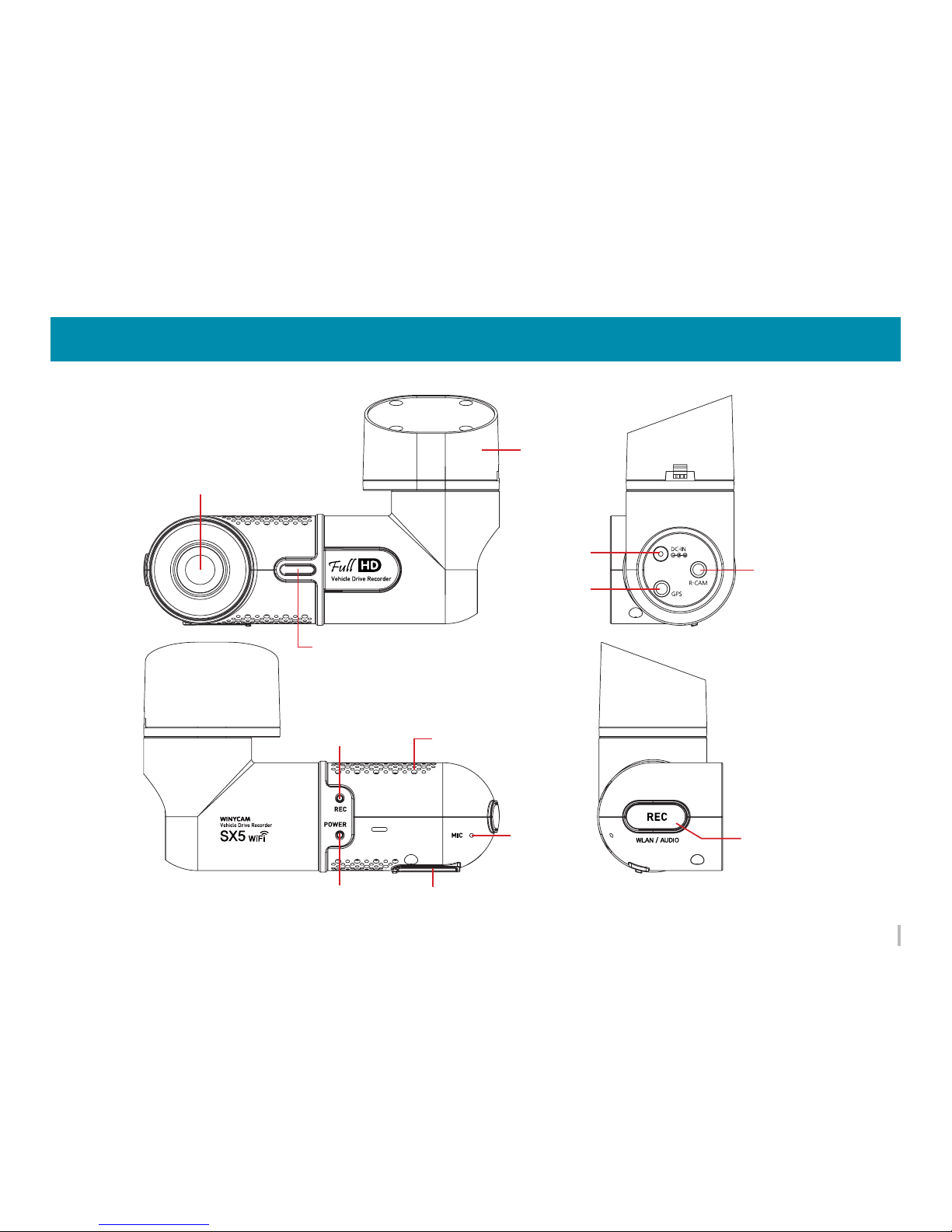

5. Product Parts

8
SX5
1. Insert Micro SD card to SD card slot of
the device.
(Check the defection of SD card.)
6. Arrange the wire using by the cable
clip.
2. Remove the protective tape from the
bracket.
4. Attach the bracket on the windshield
of the left of center behind the rearview
mirror.
3. Connect the cigar jack cable to DC-IN
of the device.
5. Plug the Hardwire Cable into car
power socket.
1. Front Camera Installation
6. Installation

9
SX5
Please power off a car and Dashcam
before installation.
(Disconnect the power connection)
1. Shutdown a car battery and power

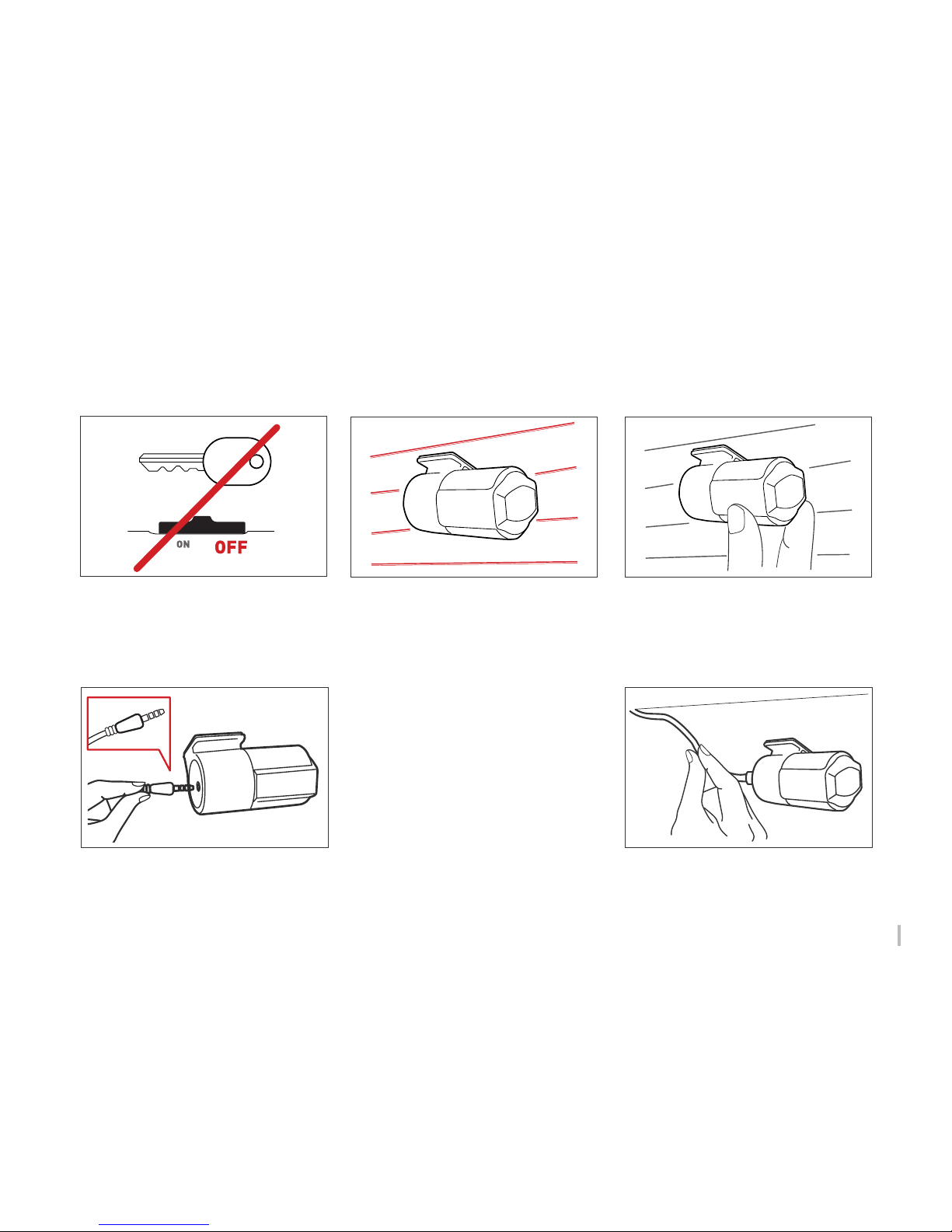

4. Connect video cable
2. Install a rear camera
5. Check an operation
3. Adjust a rear camera angle
6. Arrange a front/rear camera cable
Arrange the wire by using the cable clip.
Remove the protective tape from the rear
camera and attach the camera in the
proper place.
Plug (ㅡ) shape's rear end of the plug to
the camera connection, (ㄱ) shape's one to
the device.
Adjust the camera angle and fix it.
(To adjust the angle, the horizon is seen
above the right center of the screen.)
Turn the device on and check whether
to record properly.
2. Rear Camera Installation

10
SX5
▶ How to install a Hardwire Cable
Hardwire cable has 3 lines.
(When use constant power discharge protection function)
Battery Line (Red) : Connect to Emergency light
ACC Line (Yellow) : Connect to Fuse Power
Ground Line (Black) : GND
1
2
3
3
1
2
3. Hardwire Cable Installation

11
SX5

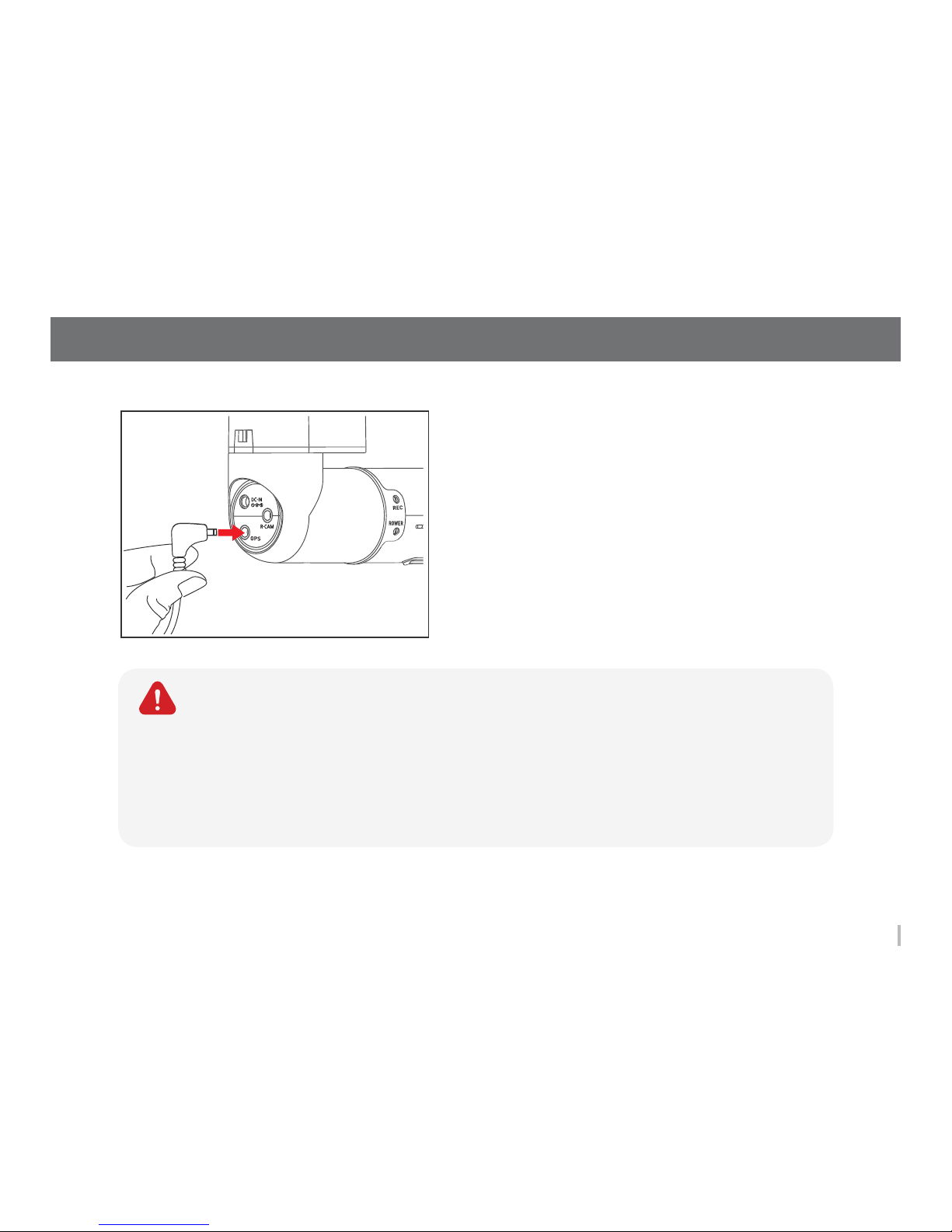

Connect the Internal GPS to GPS
connection on the device.
7. Internal GPS Installation
Caution on GPS Installation
ㆍThis feature may not be available in some countries.
ㆍOther electronic devices may interfere with GPS signal if placed too close to the device. Keep its distance
from them as much as possible.
ㆍGPS may be affected by weather conditions, satellite signal, or surrounding geographical features.
ㆍCoated windshields can interfere with GPS signal which may result in poor or blocked GPS reception.

12
SX5
8. How to record
1. Record : Product is automatically boot at power on, and a constant(normal) recording starts as an initial recording mode.
2. Recording Mode : it is classified into driving recording mode and parking (motion) recording mode.
3. Recording Method : it is classified into a Constant(normal) recording, event recording, motion recording.
※ For automatic recording and manual recording methods, please refer the below table.
※ When turned to “Parking Mode” G-sensor sensitivity will be more sensitive than driving mode.
REC Mode
Driving
Mode
Parking
(Motion)
Mode
REC Method
Constant(normal)
REC -Memory save
Event REC In G-sensor detect shock
Motion REC -Including before 10 sec
Event/Motion detect
Event REC In G-sensor detect shock
Auto REC Mode REC Time

13
SX5
▶ Default set
3-5. 녹화 시간
9. REC Time
ㆍBy Time : If there is insufficient storage space, the old recording files are automatically
deleted from the oldest recording file.
ㆍBy Type: When saving a recording file, set the memory usage ratio by recording type.
if the memory space is full then the recording files are automatically deleted sequentially.
Therefore, accident video recording files may also be deleted.
CH
1CH
2CH
Video
Quality Camera
16GB 32GB 128GB64GB
Super High Front
High Front
Normal Front
Super High Front/Rear
High Front/Rear
Normal Front/Rear
Normal
(50%)
Normal
(50%)
Normal
(50%)
Normal
(50%)
Motion
(20%)
Motion
(20%)
Motion
(20%)
Motion
(20%)
Event
(30%)
Event
(30%)
Event
(30%)
Event
(30%)
(Unit : Minute)
189 76593 38172 29035 145108 43553 217
231 935114 46672 29035 145108 43553 217
297 1202146 59972 29035 145108 43553 217
95 38247 19138 15319 7657 22928 114
116 46757 23346 18723 9369 28034 140
149 60173 29959 24029 12089 36144 180

14
SX5
Item Front LED Rear LED
REC LEDPWR LED
Booting ON
Blinking (0.5s)
YELLOW ON YELLOW ON
YELLOW Blinking (0.5s) YELLOW Blinking (0.5s)
* Power state
FW update
Blinking (1s) WIFI ON : RED/GREEN Cross
Blinking (1s)
WIFI OFF : RED Blinking (1s)
Blinking (0.05s) Blinking (0.05s)
Blinking (0.25s) Blinking (0.25s)
ON
Booting FW update No GPS GPS Signal
Non-received
GPS Signal
Received
ON
OFF
YELLOW ON YELLOW
Blinking (0.5s) RED Blinking (1s) YELLOW Blinking (1s)
RED/GREEN Cross
Blinking (1s)
OFF
Normal REC (N)
In detect a Shock (E)
Parking REC (P)
Parking REC standby
Rear
* Power state
No micro SD Card
(including an error)
POWER LED
(RED/GREEN/YELLOW)
10. LED Operation Guide

15
SX5
11. Voice Guide
Situation Voice Guide
Remove SD card / SD card Error “ Please check your SD card. ”
Firmware Update Start “ The firmware update is starting. ”
Firmware Update Completed “ The firmware update has been completed. ”
Constant (Normal) Recording Start (In booting) “ Constant Recording will start. ”
* Event Recording Start (In booting) “ Event Recording will start. ”
Parking Recording start “ Parking Recording will start. ”
Recording end “ The Recording will end. ”
Alarm tone in a Rear Camera disconnect
(the error for 2CH REC) “ Ding-Dong ”
※ Only when event REC mode is set in the configuration, the voice guiding "event recording will start"
will announce

16
SX5
1. System Requirements
2. Install
Windows XP(32bit), Windows Vista(32bit), Windows7(32/64bit), Windows8(32/64bit),
Windows10(32/64bit)
Display monitor resolution: 1024 X 768
DirectX Support (WPF)
Download the latest Winy BB Viewer from our website (http://www.winycam-eng.com)
If you run “setup.exe”, Winy BB Viewer will be installed
And then, installation will be continued according to the installation sequence of setup dialog box.
12. PC Viewer Program Installation

17
SX5
13. Using Multi-Key
item
Short key
※ (*1) “Ding-dong” sounds after 1 time (2 sec.), 2 times (4 sec.), 3 times (6 sec.), 4 times (8 sec.)
in order while pushing the manual button.
The default setting should be Wi-Fi ON and the Wi-Fi setting is automatically to OFF at boot time.
When there is no Wi-Fi for 30minutes in Wi-Fi ON, it is automatically Wi-Fi OFF with voice comment.
1 time
2 time
3 time
4 time
Push time Function Ref.
Alarm ("Ding-dong")
within 0 sec none Manual verification
1Mic On/Off *1
*1
*1
WLAN On/Off
Default
Korean / English /
Japanese/ Chinese / Thai
2
3
Language
within 2 sec
within 4 sec
within 6 sec
within 8 sec

18
SX5
14. How to use PC Viewer
2 3 4 5 6 7 8
9
10
1
28
11
13 14 15 16 17 18 19 20 21 22
23 24 25 26 27
12
1. Screen Configuration

19
SX5
Full Screen
Item ItemFunction Function
1CH / 2CH View Rewind 5 sec
Viewer Configuration Playback or Pause
System Configuration Stop
Print Forward 5 sec
Screen Capture File Skip
Zoom Control Volume
Play List / Map Button
Total File Time / Playback Time
File Location Search
Brightness / Contrast
REC File List / Map Display
GPS Signal Condition
Playback Video Image
Driving Speed
Playback Control Latitude / Longitude
G-sensor Information
Flip Horizontal
Split Image
Flip Vertical
File Skip Back
1
16
2
17
3
18
4
19
5
20
6
21
7
22
8
23
9
24
10 25
11 26
12 27
13 28
14
15
