Installation Instruction
For One Piece Toilet
Model:WZ5028/AN5028
IMPORTANT!
PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE
The toilet must be installed by a fully insured and licenced plumber only.
Also be sure the installation conforms to local plumbing and building codes.
TOOLS REQUIRED FOR INSTALLATION
Soft Cloth
or Blanket
Silicone Silicone/
Caulk Gun
Tape
Measure
Pencil/Marker Knife
Adjustable
Wrench Screwdriver Level
Putty Knife
INSTALL NEW TOILET
REMOVE OLD TOILET Shut off main water supply prior to installation!
1. Shut off water supply line. If you do not have shut-off valve near the toilet shut off main water supply line.
2. Flush the old toilet and make sure that tank is empty.
3. Disconnect and remove water supply line connected to the toilet's tank.
4. Remove old toilet, bolts, nuts from the closet flange.
5. Clean closet flange area from old wax ring and putty sealant using putty knife from the base area.
6. Clean any remaining debris and wipe any water at the installation area
7. Temporarily plug flange on a floor with a flange plug or towel to prevent gasses from escaping
,03257$177KHPRXQWLQJVXUIDFHDUHDPXVWEHFOHDQGU\
DQGOHYHOHGSULRUWRLQVWDOODWLRQRIWKHQHZWRLOHW
127(,QVSHFWWKHH[LVWLQJFORVHWIODQJHIRUGDPDJHV,I
GDPDJHGUHSODFHLWWRQHZIODQJHEHIRUHSURFHHGLQJWRWKH
LQVWDOODWLRQ
Thanks for your selecting our products. To ensure this product is installed properly, please read these instructions carefully before you begin.
1. If it is a new bathroom, install water supply ,shut-off valve,
and toilet flange as necessary to conform to the roughing-in
dimensions.
Bathroom
Wall
Bathroom
Floor
Closet Flange
12"
Rough-in
Figure 1
Step 1 Step 2
90º
90º
3. Cover the floor with the soft-cloth blanket.
Carfeully turn the toilet on it’s side or
upside-down on the blanket. Install wax ring on
the toilet outlet.(see Figure 2)
Figure 2
4. Lift and carefully put the toilet over the
closet flange so the closet bolts can go through
the mounting holes in the toilet's base. Apply
full body weight to rim of bowl for proper
gasket seal.(see Figure 3)
Bolt cap
Nut
Bolt Cap Base Washer
Plastic cover
5.Install bolt cap bases, washers,nut
and bolt cap over the closet bolts via
the opening holes on both side of
bowl. Do not tighten the nuts. It may
and will cause damage to the toilet's
ceramic base. Then cover the opening
holes with supplied plastic cover. (see
Figure 4)
6. Connect the water supply line,and
turn on the water. Flush several times,
check for leaks. (see Figure 5)
7. If necessary, adjust the water level
in the water tank. Turn the adjusting
screw clockwise to raise the water or
Turn the screw counter-clockwise to
reduce water. (see Figure 5)
Refill Tube
Adjusting Screw Waterline
Supply Line
Shut-off Valve
8. Make sure the refill tube is
properly inserted into the
overflow pipe of the flush valve.
Refill tube should be positioned
higher than water level. (see
Figure 6)
Overflow Pipe
9. Install the push button on the tank
lid.Make sure the button rods could
touch the top surface of flush valves
and ensure the buttons match the half
and full flush.
(Button rods could be adjusted by
turning the adjustment nuts)
2. Inser 2 floor bolts inside of the toilet flange and slide the bolts
through the holes and align bolts horizontaly. (see Figure 1)
Figure 3
Figure 4
Figure 5
RIGHTWRONG
Water
Level
Figure 6
WinZo
Button Rods
Adjustment nuts
Tank lid
Button Nut
Flush Valve
Half
flush Full
flush
10. Put the tank lid on the tank.
Install the seat cover in accordance
with detailed manual on Page 3)
(see Figure 8)
Figure 8
Figure 7
1/3
4-1/2”

WINZO
WINZO WINZO
WINZO WINZO
WINZO

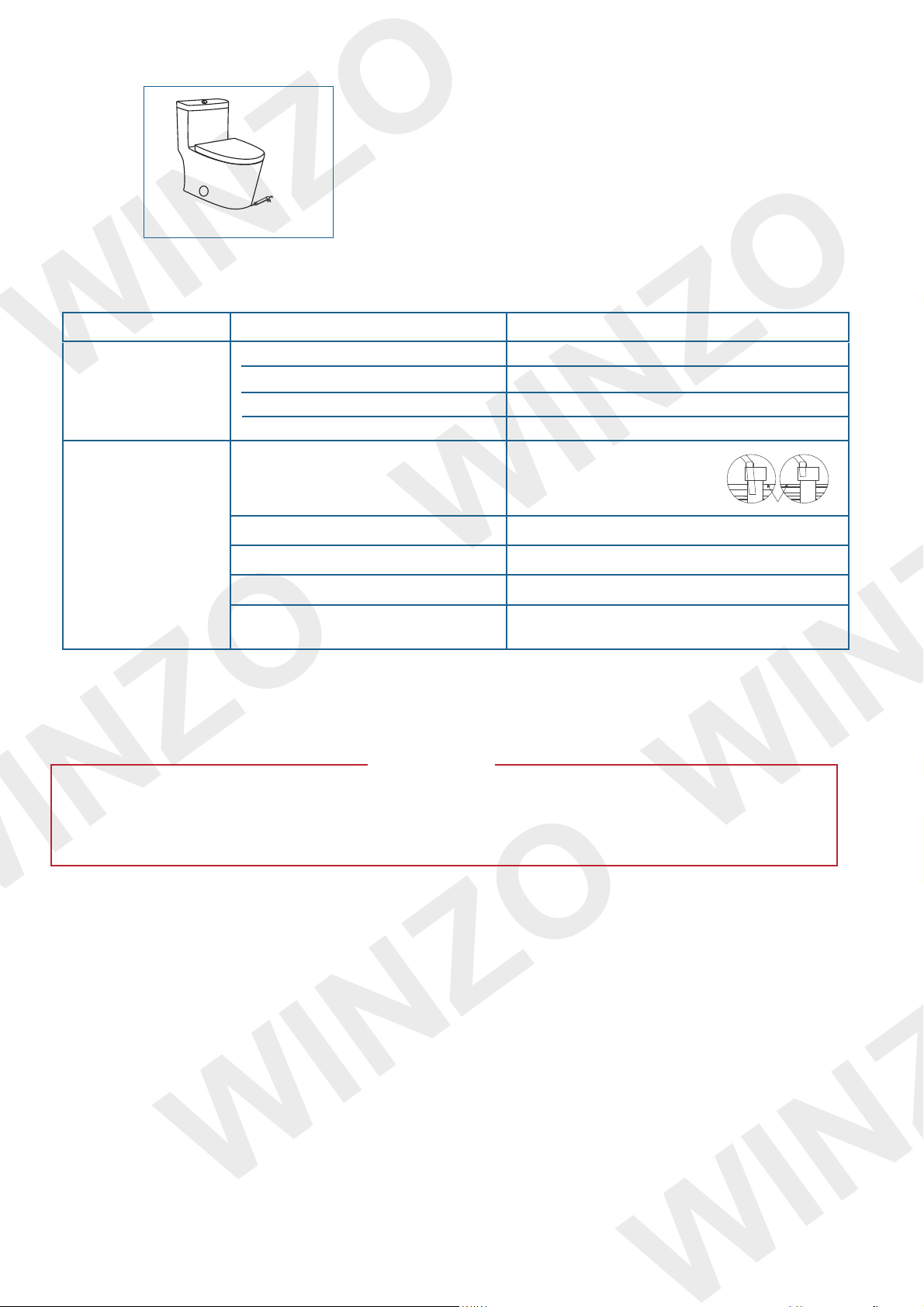

11. Apply the silicone around the base of the toilet. When the silicone is dry, check for leaks for the next several days (see
Figure 9)
Figure 9
TROUBLESHOOTING
Poor Flush / little or no
flush volume water level is too low Adjust the water level
Install refill tube correctly (see
diagram on the right)
Issue Cause Solution
RIGHTWRONG
Water Level
Leaking/water in tank
fails to shut off.
Refill tube wasn’t installed
properly.
Push button rod too long Cut-off the extra length then re-adjust.
Inlet valve float crashed against ceramic wall Adjust inlet valve position
Debris in water is affecting the flush valve Remove flush valve ,clean and reassemble
The flush valve and base,rubber gasket does
not fit properly. Remove flush valve ,adjust gasket, reassemble.
Shut-off valve is not fully open Turn on the valve fully
Push button rods too short Re-adjust length of the rod (outward rotation
Filter screen is clogged due to dirty water Clean the filter screen
CARE AND CLEANING
For general cleaning, wash with warm water, a soft sponges or soft-cloths. Always rinse thoroughly any cleaning solutions
immediately after cleaning. Do not any chemical remain on the surface for extended periods of time.
Do not pour any mounts of chlorine or any other chemicals into the tank. Use of chemical products will result in damage to the fill valve and
flush valve components and may cause flood and property damage.
IMPORTANT!
'212786($EUDVLYHFOHDQHUVVXFKDVDFLGDPPRQLDEOHDFKDQGVLPPLODUVROXWLRQV8VHRIVXFKVROXWLRQVPD\FDXVHFRUURVLRQ
ILQLVKSHHOLQJDQGRUGXOOWKHVXUIDFH
'212786($EUDVLYHVSRQJHVRUFORWK1HYHUXVHVWHHOZRRORUZLUHGEUXVKHVWKDWZLOOSHUPDQHQWO\VFUDWFKWKHVXUIDFH
2/3
WARRANTY
Vitreous China is guaranteed for five years from date of purchase subject to the conditions below.
Internal valving and plastic components are guaranteed for one year from date of purchase subject to the conditions below.
CONDITIONS
· This product has been installed by a licensed plumber in accordance with the installation instructions.
· This product has been installed for home use only.
· Failure is due to a fault in the manufacturer of the product.
· No additives have been introduced into the toilet tank.
· Only soft sponges or soft- cloths has been used to clean the product.
· Proof of purchase is required for warranty claims

WINZO
WINZO WINZO
WINZO WINZO
WINZO
1.Insert the fixing bolt set into the
seat holes of pan.
2. Using a screwdriver to temporarily
tighten the bolts. (Do not full tighten).
Adjustability is required at this step
in order to position the seat in following
steps.
3.Place the seat vertically,align holes
to pins and press down insert.
4. Close the toilet seat onto pan,
adjust until the seat is located in a satisfactory
position.
5.Push two release buttons to release the seat.
Carefully lift the seat so that the postion of the
seat will not shift,then firmly tighten the screws.
6.Place the cover caps over the fixing base.
And put the toilet seat back on the pins.
CLEANING
The toilet seat may be removed for cleaning -depress two release buttons and lift
up. (see step 5)
Clean only with a soft cloth or sponge usingwarm water and mild soap or detergent.
Do not use any abrasive cleaning materials.
Do not use any solvents or corrosive liquids.
Cover capx2 Fixing Bolt setsx2
Toilet seat x 1
Fixing bolt sets assembly
(normally it has been assembed)
123
456
Screw
Washer
Fixing base
Flex-washer
Expansion fitting
Pin
$obѴ;|";-|mv|-ѴѴ-ঞommv|u1ঞom
