This product is designed to radiate low levels of radio energy in accordance
with global government approved regulatory standards. It features Adaptive
Power Output. APO automatically adjusts the RF power output in accordance
with signal required. This features limits and reduces extraneous radiated radio
energy. This also helps minimize battery consumption and extends battery shift
life.
Do not touch the antenna when operational. Keep Handset antenna 25mm
(1”) or more away from your face and body to ensure exposure levels remain
at or below the maximum levels. Keep your body at least 20cm/8” from exter-
nal antennas connected to the gateway mobile charger unit.
Ne touchez pas l’antenne lorsque opérationnel. Gardez sécurisé antenne de
microphone 25mm (1“) ou plus loin de votre visage et le corps pour assurer des
niveaux d’exposition restent égales ou inférieures aux teneurs maximales. Gar-
dez votre corps au moins 20cm/8 “des antennes externes connectés à l’unité
de chargeur mobile gateway.
ANTENNA CONNECTION
ALWAYS ATTACH THE ANTENNA OR SMA CABLE CONNECTOR
FIRMLY TO THE GATEWAY CRADLE ANTENNA PORT BEFORE
CONNECTING XMC-RJ45/XIC-1.5 INTERFACE CABLE.
The standard supplied XMCA 1/4 wave stub antenna, can be
tted directly to the base of the X10DR Lite Gateway cradle
when only limited range is required. For optimum range
performance it should be mounted on the supplied L Bracket
and placed on an unobstructed area of a vehicle roof rack,
fender, or similar and connected via the supplied low loss
coax cable kit to the RP-SMA-F output on the mobile charger.
Alternatively, a high performance XMPA muti-polarity roof
mount antenna is approved and available as an accesory
for those who require enhanced “non line of sight” coverage.
Keep your body at least 20cm away from vehicle mounted external
antenna� See page18 for other important details.
IMPORTANT

X10DR
®
4 5
Lite Handset
Wireless Microphone
Lite Gateway
Mobile Charger
Antenna
PTT
Charging
Microphone
Speaker
Status light
Status light
Charging
contacts
Gateway Off/On: press for 1 second, gateway and Blue LED
turns on. Press again for 1 second and gateway and Blue LED
turn off.
Handset Off/On: OFF: press PTT, Vol + & Vol - together for 2
seconds, handset and Blue LED will turn off. ON: Put handset
in powered gateway to turn on handset. Start up tones will
sound.
Volume + : adjusts speaker volume louder.
Volume - : adjusts speaker volume softer.
Microphone: Speak 2 to 3cm from Mic port with a normal
strength voice. Do not yell.
PTT: press to talk - release to listen.#
Charging: Handset beeps to notify correct seating when rst
placed in gateway. The Status LED momentarily blinks every
10 seconds to indicate charging mode. Constant blue means
battery is fully charged.
Speaker: Delivers received speaker audio. Normally mutes
when inserted into gateway.
Status light: glows blue when fully operational. Flashes when
“out of range” or when its paired unit is turned off.
Antenna Connector: Allows connection of longer range
external antenna or replacement of the short range internal
type.
# When out of range the unit will slowly beep.
Gateway Off/On
Antenna Connector
Volume +
Volume -
Wearing the X10DR Handset
Note: Your X10DR will provide longer
range when worn with the antenna
protruding above your shoulder.
Always wear on your shoulder
for best performance
Operation

X10DR
®
Operational Description
Congratulations on choosing the revolutionary X10DR® Lite
Wireless Microphone. Pronounced “extender”. This incredibly
compact, lightweight personal accessory extends the power
of the mobile radio to the palm of your hand, whether in
or out of the vehicle. X10DR has since its launch in 2012 re-
dened mobile network design by increasing user mobility
whilst dramatically improving the effectiveness of your
infrastructure investment. This visionary solution provides
users out of vehicle communications with the power and
performance of their mobile radio.
X10DR Lite simply cuts the cord and puts the microphone
and radio system access into the palm of the users hand
when away from the vehicle, delivering true mobility without
system compromise. Users can feel totally condent their
private communications are kept secure due to the smart
and secure 64 bit encryption functionality.
X10DR Lite unleashes the power of your mobile radio
allowing wireless communication with a xed located or
vehicle mounted radio: up to 300 meters or more.* Our
EVR™ enhanced voice resilience audio ensures users can
communicate with clean clear audio, with the power and
range of their mobile radio, whilst not being tied to the vehicle
allowing the user to be truly mobile in every operational
environment.
Finally, if you go out of range, the blue LED will ash and the
unit will sound a warning tone if you press the PTT button so
you know to move back into your communication zone or
to be simply aware. This ability to now communicate whilst
outside your vehicle signicantly enhances a safer and more
secure work environment for everyone who carries an X10DR
Lite Wireless Microphone.
6
SECURE WIRELESS COMMUNICATION
via your vehicle’s mobile radio
YOUR
MOBILE
Press the X10DR Lite PTT button and your voice is transmitted over your vehicle’s selected radio channel / talkgroup. Let go to listen to all conversations on your radio channel... for up to 300 meters (1000’) from your vehicle ...simple as that.
How it works

X10DR
®
Basic Operation
Power On & Off
Turn off the gateway charger by pressing the front grey button for
3 seconds and the blue LED will extinguish. Turn off the handset by
pressing the grey PTT button while simultaneously pressing the two
blue buttons below it. The microphone will sound a de-escalating
tone. To power on the gateway, press the grey button, releasing
the button once the LED lights. To power on the microphone simply
place it into a powered on gateway and it will sound an escalating
tone. The blue LED on both units will ash for a few seconds and then
go solid once they’re connected.
Volume Control
First ensure your mobile radio’s volume is set to a comfortable listening
level. You may then adjust the handset volume by pressing the top
blue button to increase or the bottom button to decrease. There are
5 listening levels. The minimum level is not zero but is designed so you
can still quietly hear radio trafc and not inadvertently turn off the
audio.
Transmitting/Receiving
Use like any two way radio speaker microphone
i.e. press the large grey PTT button to talk and release to listen. A short
talk permit tone sequence will sound when activated. Speak with a
normal strong clear voice about 2-3 cm from the microphone port.
Do not yell as this causes loss of clarity.
Out of Range Indication
X10DR Lite provides the user with feedback should the user move out
of range from their vehicle. If you walk out of range the blue status
LED will ash. If you then push the PTT an alert tone will sound to let
you know your call is not getting thru. NB, you may nd you need to
walk back about 10 meters closer to your vehicle to re-connect -
Blue status light will then glow solid.
Charging Conrmation Tone
X10DR provides the user with a discrete tone whenever the X10DR
handset is returned to the charging cradle. This discrete chirp ensures
the user has a positive indication that the X10DR handset is charging
and seated correctly in the cradle.
8 9
Re-connection - Pairing
Each X10DR Lite Wireless Microphone is uniquely connected
to a specic Gateway mobile charger in the factory. This
ensures that all communications between the two units are
secure and cannot be compromised or interfered with by
a third party. In the event of a Secure Wireless Microphone
being lost, it can be permanently erased from the Gateway
by master resetting. You can do this by turning it off and then
holding the On button for about 10 seconds until the LED
momentary blinks. It is now ready to pair with a new handset.
How to pair: hold the powered on handset while pressing
both the blue volume controls until the blue LED ashes and
the handset beeps. (~8 secs.) Now place the handset back
into the gateway. After a few seconds the handset will sound
conrmation tones and the blue LED on both units will glow
solid to indicate connection is complete.
Audio adjustments
When installing the X10DR system you may
need to rst carefully adjust the transmit
and receive audio levels via the trimpots on
the bottom of the gateway using a jewellers
miniature scredriver for optimum transmit and
receive volume.
Qualied service personnel only!
VR1-
Tx VR2 - Rx
TRANSMIT: while listening on another radio, talk into the
handset and adjust VR1 so it sounds the same volume and
clarity as the host mobiles wired microphone.
RECEIVE: Using another radio, talk into its microphone and
adjust VR2 so that the audio received thru the X10DR speaker
is loud and clear with the X10DR Volume turned up near
maximum.
IMPORTANT - READ THIS

X10DR
®
Replacing the battery pack
When you notice the X10DR sounding a small chirp every
couple of minutes, it indicates the battery is nearly at and
should be re-charged. The unit will self power down after
about 30 minutes when voltage drops to the minimum level.
When you notice this occurring far more often than usual, it
may mean it is time for the battery to be replaced.
Like all re-chargeable products, periodic replacement
of the internal battery is required. The X10DR Lite Wireless
Microphone features a high capacity Lithium Ion battery. To
maximize the life of a Lithium battery its is better to keep it
topped up by returning it to the charger often rather than
waiting for it to rst go at - which was the opposite case with
older nickel based batteries. Typically you can expect to get
about 500 re-charge cycles before the battery will require
replacement.
The process is simple and should only take your radio service
supplier about 5 minutes to replace and test. Replacement
of the battery should be ONLY undertaken by a qualied
service technician so as to ensure no damage occurs to
internal circuitry and to ensure the housing’s weatherproof
integrity is not compromised. The new replacement battery
part number is: XSMB-C14: 1450mA Lithium Polymer battery�
After replacement, the X10DR Lite Wireless Microphone
should be rst placed back into the mobile charger and
charged for 4 hours prior to commencement of use. (In some
rare cases it may also need to be “re-connected” to the
mobile gateway charging unit)
1110
When the microphone is correctly seated in the
X-Ponder cradle it will sound a double beep
and then its LED will momentarily ‘blink’ every 10
seconds while in charge mode. The blink will end
when the battery is near full capacity.
Simply place the mic into charging cradle and the X10DR Lite will beep
to show correct placement.
Battery - Charging
The X10DR Lite Wireless Microphone should be charged
overnight before initial use. Thereafter it may be left in the
charger unit between calls, or may be worn all day and
placed back at the end of the work day. The unit is designed
to provide about 15-24 hours operation between charges
even on the busiest radio channels. On quiet channels it
can last up to 3-4 days. When the battery does start to go
at, a short beep will sound once every 2 minutes. It will then
automatically power down after 30 minutes, so you should
plan to re-charge the unit as soon as is practical once the
chirps are heard.
A fully discharged battery will typically recharge in less than
3-4 hours, or less if only partially discharged. The battery will
re-charge even if the mobile charger unit has been turned
off providing the cradle has been correctly wired. The
microphone’s blue status light will indicate charging mode.
Please recycle thoughtfully
NB: do not allow debris to ll the pocket
as it may prevent the microphone from
making contact with the charging pins
Keep all liquids well away from the
charging cradle at all times.
Li-PO

X10DR
®
1� Power: connected via a 1 amp in-line fuse preferably direct
to a vehicle’s 12V battery via a 11 ohm series resistor but
can be any voltage source from about 10-16VDC. Current
consumption is typically 60mA/Max current <200mA.
Note: internal speaker microphone battery will still charge
when the unit is turned off.
2� Not used
3� Receive Audio: Receive audio from the host mobile radio
that you wish to be sent to the Wireless Microphone. Ideally,
it should be sourced pre-volume control but can be post, as
long as the host mobile radio’s speaker audio has rst been
sent for a comfortable listening level in the vehicle. If required
Adjust VR2 for desired maximum volume. VR2 is preset for
~100mVRMS input.
4� External Mic Audio: Audio from the Wireless Microphone that
is to be transmitted over the host mobile radios transmitter. It
is factory set for nominally 80mV RMS. IMPORTANT: If required
Adjust VR1 so X10DR audio matches the level from the radio’s
mobile mic. VR1 is preset for 80-100mVRMS output.
5� Radio Mic Lo: This is microphone audio ground.
6� COR/squelch/audio unmute: Input designed to monitor the
receive status of the host mobile radio. Ideally, it is driven by
an “audio unmute” switched ground command in the host
mobile. i.e. when the radio’s speaker unmutes to pass audio
then the COR input should toggle to ground in sync. Where
radio COR status is not available, the X10DRs voice detect
circuit in most cases allows satisfactory operation.
7� Ext� PTT: Switched ground output designed to cause the
host mobile radio to transmit.
8� Not used
Shield� Ground: DC /Digital ground connection.
RJ45 Interface Pinouts
12 13
X10DR Lite RJ45 interface Specication
Not used Ext PTT to radio COR/ Audio unmute from radio Mic Lo Ext Mic Hi Output/Radio On detect Radio Receive audio Not used Power nominal +12VDC DC Ground
13 6 8 3 2 4 7 5 9& Sh 1
shield/drain
8 7 6 5 4 3 2 1 Sh
Female RJ45 shielded
100K
Female DB15 shielded
22 ohm 2W 22 ohm 2W
~8VDC
Connects to X10DR Gateway DB15
Connects to XIC-1�5 interface
cable to XCA radio adaptor

X10DR
®

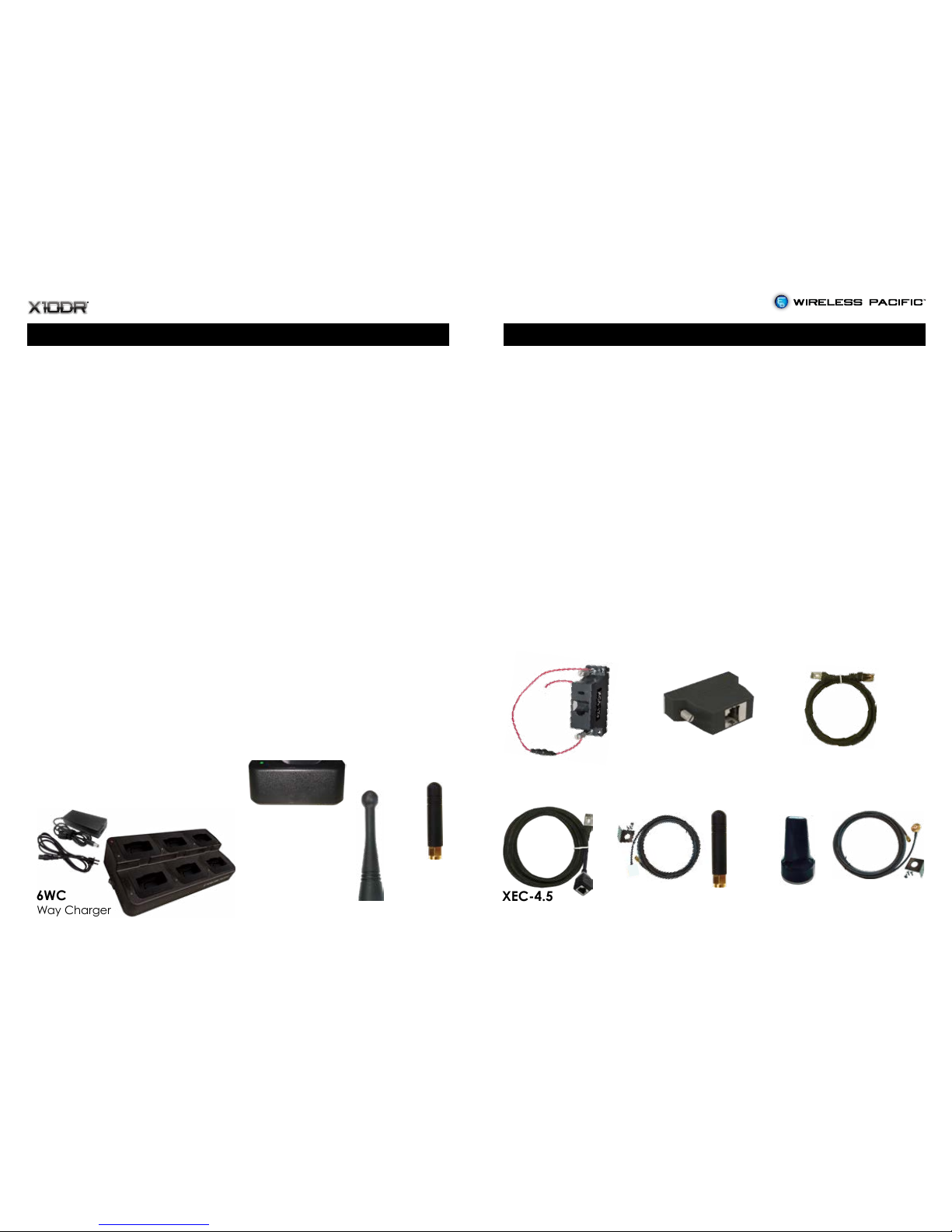

Replacement Parts & Installation Accessories
14 15
XSMA antenna
XMCA
antenna
Desktop Chargers:
X6WC-* 6 way desktop charger includes AC/12VDC PSU
XDTC-* Desktop charger includes AC/12VDC plug pack.
* indicate AC plug type: US/EU/UK/AU
Installation Accessories and Spares:
XPB-C14B 1450mA “after hours” re-charge power bank
XMCAK Replacement rack mount 2dBi antenna kit
Incl. 5.2m LMR200 type coax w/tted RP SMA.
XMPA Shark Fin multi-polarity NMO roof or rack mount
2dBi antenna kit Includes 5.2m LMR200 type
coax w/tted RP SMA-M.
XCA-** Spare Radio Interface cable adaptor. (see over)
XIC-1.5 Spare 1.5m shielded Cat 6 cable, Black M-M.
XEC-4.5 4.5m shielded Cat 6 extension cable, Black M-F.
XMC-RJ45 Spare DB15F to RJ45F Cable Adaptor for X10DR Lite.
XSMA Spare handset antenna
XMCA Spare gateway antenna
X6WC
6 Way Charger
XDTC
Desktop Charger XMPA Multipolarity
roof mount antenna kit
XCA-**
radio adaptor
** see above
XMCAK 1/4 wave
roof mount antenna kit
XMC-RJ45
Adaptor
XIC-1�5
1.5m interf.cable
XEC-4�5
4.5m extension.cable
**XCA Radio Cable Adaptors
XCA-M26 Suits Motorola 26 pin Mototrbo Type 1
XCA-M26T Suits Motorola 26 pin MTM5400 Type 1
XCA-M16 Suits Motorola 16 pin Type 1
XCA-K25 Suits Kenwood DB25: NX700/TK5710/TK7180 Type 1
XCA-K25M Suits Kenwood DB25 TK690 Type 2
XCA-K15M Suits Kenwood DB15HD for NX720 Type 2
XCA-RJK Generic Kenwood (uses Radio Mic socket) Type 3
XCA-I25A Suits Icom DB25 Type 2
XCA-I25M Suits Icom DB25 F5400/6400 Type 2
XCA-I15M Suits Icom DB15HD Type 2
XCA-V25M Suits Vertex DB25 Type 2
XCA-T15M Suits Tait DB15 Type 2
XCA-H26M Suits Hytera MD68/78X Type 2
XCA-JM Suits EFJohnson VM900 DB25 Type 2
XCA-R25M Suits RELM DB25 Type 2
XCA-R15M Suits RELM G/DMH Type 2
XCA-U25M Generic RJ45F-DB25M (partially terminated) Type 2
XCA-U15M Generic RJ45F-DB15M (partially terminated) Type 2

X10DR
®
INDUSTRY CANADA:
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may
not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables
aux appareils radio exempts de licence. L’exploitation est autorisée aux deux
conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2)
l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d’en compromettre le fonctionnement.
Wireless Corporation Ltd (WCL) warrants each new product sold by WCL to be
free from defects in material and workmanship under normal use and service.
The obligation and liability of WCL under this warranty is limited to the repair or
replacement at its factory, at the option of WCL, of any such product which
proves defective within the quoted warranty period, twelve (12) months for
Wireless Pacic products after delivery, and is found to be defective in material
and workmanship by WCL inspection. Products of warranty consideration shall
be returned with all transportation charges prepaid to WCL or our nominated
local service supplier in shipping containers which are adequate to prevent
loss or damage in shipment. WCL will pay the return carriage costs for Wireless
Pacic products. Products repaired or replaced under this warranty are
warranted for the unexpired portion of the original warranty. This warranty is
invalid if the factory-applied serial number, date code label, or product label
has been altered or removed from this product . WCL shall not be obligated
or liable under the warranty for apparent defects which examination
discloses are due to tampering, misuse, neglect, improper storage, acts of
nature, physical abuse, normal wear and all cases where the products are
disassembled by other than authorised WCL representatives. In addition, WCL
shall not be obligated or liable under this warranty unless the date of delivery
to the rst end user shall be within one (1) month from the date of delivery to
the original purchaser, if different from the rst end user, and further provided
that written notice of any defect shall be given to WCL within thirty (30) days
from the date such defect is rst discovered. In no event will WCL accept
consequential damages for products supplied and are then found to have
become defective.
Repairing or Modifying X10DR:
Never attempt to repair or modify X10DR yourself. X10DR does not contain
any user-serviceable parts, Disassembling an X10DR, including the removal
of external screws and back cover, may cause damage that is not covered
under the warranty. If an X10DR has been submerged in water, punctured, or
subjected to a severe fall, do not use it until you take it to an WCL Authorized
Service Provider. Service should only be provided by WCL or an WCL Authorized
Service Provider. If you have questions or for service information, contact WCL
or an WCL Authorized Service Provider.
RADIO AND TELEVISION INTERFERENCE
The equipment described in this manual generates, uses, and radiates radio-
frequency energy. If it is not installed and used correctly—it may cause
interference with radio and television reception.
CE DECLARATION
This equipment has been tested and found to comply with the following
harmonised European Norms:
•EN300328 (radio and telecommunications terminal equipment)
•EN55024 (electromagnetic immunity) •EN55022 Class B (electromagnetic
emissions) •EN 60950 (electrical safety) •EN301489 (electromagnetic
compatibility and radio spectrum matters) Based on the results of these
tests, Wireless Corporation declares that the above mentioned devices
conform to Article 10.1 of the European Council Directive 89/336/EEC, and
their amendment Directive 93/68/EEC, and to the Directive 1999/5/EC and
indicates this conformity by the CE-sign on each device. The device must
be installed and operated in strict accordance with the instructions given in
this user manual. Any changes or modications to this product that were not
specically authorised will invalidate this declaration.
FCC NOTICE
This equipment complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
You can determine whether the equipment is causing interference by
disconnecting power. If the interference stops, it was probably caused by the
equipment. If the equipment does cause interference to radio or television
reception, you may be able to correct the interference by using one or more
of the following measures:
•Rotate the television or radio’s antenna until the interference stops.
•Move the Wireless Microphone farther away from the television or radio.
If necessary, consult your two way radio dealer or an experienced radio/
television technician for help. Changes or modications to this product not
authorized by Wireless Corporation Ltd could void the FCC Certication and
negate your authority to operate the product.
Notice : Changes or modications not expressly approved by the party for
compliance could void the user’s authority to operate the equipment.
Type Acceptance
Warranty
16 17

X10DR
®
To avoid injury, read all operating instructions and the following safety
information before using X10DR.
Radio Frequency Interference:
Radio frequency emissions from electronic equipment can negatively affect
the operation of other electronic equipment, causing them to malfunction.
Although X10DR is designed, tested and manufactured to comply with
regulations governing radio frequency emission in countries such as the United
States, Canada, the European Union, and Japan, the wireless transmitters and
electrical circuits in the X10DR may cause interference in other electronic
equipment. Therefore, please take the following precautions:
i/Aircraft: Use of X10DR may be prohibited while travelling in aircraft.
ii/Vehicles: radio frequency emissions from X10DR may affect electronic
systems in motor vehicles. Check with the manufacturer or its representative
regarding your vehicle.
iii/Pacemakers: The Health Industry Manufacturers Association recommends
that a minimum separation of 15 cm (6 inches) be maintained between a
handheld wireless phone and a pacemaker to avoid potential interference
with the pacemaker. Persons with pacemakers:
• Should always keep X10DR more than 15 cm (6 inches) from the
pacemaker when turned on.
• Should not carry X10DR in a breast pocket.
• Should use the ear opposite the pacemaker to minimize the potential
• for interference If you have any reason to suspect that interference is
taking place, turn X10DR off immediately.
• X10DR may interfere with some hearing aids. If you experience
interference, consult the hearing aid manufacturer or your physician
for alternatives or remedies.
v/ Other Medical Devices: If you use any other personal medical device,
consult the device manufacturer or your physician to determine if it is
adequately shielded from radio frequency emissions from X10DR.
vi/Health Care Facilities: Hospitals and health care facilities may use equipment
that is particularly sensitive to external radio frequency emissions.
Turn X10DR off when staff or posted signs instruct you to do so.
vii/Blasting Areas and Posted Facilities: To avoid interfering with blasting
operations, turn off the X10DR when in a “blasting area” or in areas posted
“Turn off two-way radio.” Obey all signs and instructions.
18 19
Important Safety and Handling Information
WARNING: Failure to follow these safety instructions could result in re,
electric shock, or other injury or damage to X10DR or other property.
Pour éviter toute blessure, lisez toutes les instructions et les consignes de sécurité suivantes avant
d’utiliser X10DR. Pour les versions téléchargeables de la dernière version du Guide de l’utilisateur de
X10DR, visitez: www.wirelesscorpltd.com
Radio Frequency Interference:
L’émission de fréquences radio émises par les équipements électroniques peuvent affecter
négativement le fonctionnement des autres appareils électroniques, les obligeant à un
dysfonctionnement. Bien X10DR est conçu, testé et fabriqué conformément aux règlements régissant
l’émission de radiofréquences dans les pays comme les États-Unis, le Canada, l’Union européenne
et le Japon, les émetteurs sans l et les circuits électriques dans le X10DR peut provoquer des
interférences avec d’autres équipements électroniques. Par conséquent, s’il vous plaît prendre les
précautions suivantes:
i / Avion: L’utilisation de X10DR peut être interdite dans les avions.
ii / Véhicules: les émissions de radiofréquences par des X10DR peuvent affecter les systèmes
électroniques des véhicules à moteur. Vériez auprès du fabricant ou de son représentant votre
véhicule.
L’exposition à l’énergie radioélectrique :
L’unité émet et reçoit des fréquences radio (RF) par l’intermédiaire de ses antennes. Les antennes
sont situés au niveau du bord supérieur de l’unité . Le Président de microphone sans l est conçu
et fabriqué pour respecter les limites d’exposition à l’énergie RF xées par les organismes de
réglementation internationaux, y compris la FCC des États-Unis , du Canada IC , MIC du Japon , et
l’avocat de l’Union européenne , entre autres . L’appareil a été testé et répond aux FCC , IC , et
l’Union européenne RF normes d’exposition applicables 802.15 opération. Pour assurer des niveaux
d’exposition restent égales ou inférieures aux limites maximales de sécurité , pour transporter l’appareil
, utilisez uniquement le Président de microphone sans l avec fourni des vêtements clip de fabricant
ou un support non métallique qui assure l’antenne reste supérieure à 25 mm (1 po) du votre corps à
tout moment. Une antenne externe est connectée au connecteur de sortie du chargeur mobile ou
au connecteur de sortie de l’amplicateur bidirectionnel XBDA . Toujours garder votre corps au moins
20 cm ( 8 “ ) de thevehicle antenne externe installée . Le XBDA n’est approuvé pour une utilisation
avec l’unité X - Ponder lorsque conformément à la réglementation en matière d’homologation de
chaque pays .
Atmosphères explosibles:
Désactiver X10DR dans des zones avec une atmosphère potentiellement explosive. Ne chargez pas
X10DR, et respectez tous les panneaux et instructions. Des étincelles dans de telles zones pourraient
causer une explosion ou un incendie, causant des blessures graves ou même la mort.
Les zones à atmosphère potentiellement explosive sont souvent, mais pas toujours, clairement
indiquées. Les zones potentielles comprennent: les zones de carburant (comme les stations d’essence),
au-dessous du pont des bateaux, de carburant ou de transfert ou au stockage de produits chimiques,
les véhicules utilisant du gaz de pétrole liquéé (comme le propane ou le butane), des zones où l’air
contient des produits chimiques ou des particules (le grain, la poussière ou les poudres métalliques) et
tout autre endroit où il vous serait normalement recommandé d’arrêter le moteur de votre véhicule.
Informations importantes de sécurité et de manutention
AVERTISSEMENT: Le non-respect de ces consignes de sécurité peut provoquer
un incendie, de choc électrique ou d’autres blessures ou de dommages à
X10DR ou d’autres biens. Lisez toutes les instructions de sécurité pour tous les
produits et accessoires avant d’utiliser avec X10DR. CMT n’est pas responsable
de l’exploitation, ou tout dommage causé par des accessoires tiers ou de leur
conformité aux normes de sécurité et réglementaires.
Read all safety instructions for any products and accessories before using with
X10DR. WCL is not responsible for the operation of, or any damage caused
by, third-party accessories or their compliance with safety and regulatory
standards.

X10DR
®
Exposure to Radio Frequency Energy:
The unit transmits and receives radio frequency (RF) energy through its
antennas. The antennas are located at the top edge of the unit. The Wireless
Speaker Microphone is designed and manufactured to comply with the limits
for exposure to RF energy set by international regulatory agencies, including
the FCC of the United States, IC of Canada, MIC of Japan, and the Counsel
of the European Union, among others. The unit has been tested and meets
the FCC, IC, and European Union RF exposure guidelines for 802.15 operation.
To ensure exposure levels remain at or below the maximum safe levels,
when carrying the unit ONLY use the Wireless Speaker Microphone with the
manufacturer’s supplied clothing clip or a non-metalic holder that ensures
the antenna remains greater than 25mm (1 inch) from your body at all times.
An external antenna is connected to the output connector on the mobile
charger. Always keep your body at least 20cm (8”) from the vehicle mounted
external antenna.
Potentially Explosive Atmospheres:
Turn off X10DR when in any area with a potentially explosive atmosphere. Do
not charge X10DR, and obey all signs and instructions. Sparks in such areas
could cause an explosion or re, resulting in serious injury or even death.
Areas with a potentially explosive atmosphere are often, but not always,
marked clearly. Potential areas may include: fuelling areas (such as gas
stations); below deck on boats; fuel or chemical transfer or storage facilities;
vehicles using liqueed petroleum gas (such as propane or butane); areas
where the air contains chemicals or particles (such as grain, dust, or metal
powders); and any other area where you would normally be advised to turn
off your vehicle engine.
Battery Replacement:
Do not attempt to replace the rechargeable battery in X10DR
yourself. The battery should be replaced only by WCL or an WCL
Authorized Service Provider. The battery should be re-cycled/
disposed of thoughtfully.
Antenna Replacement:
Only use the antennas supplied. Use of other antenna types will
void type approval.This radio transmitter (IC:11443A-X10DRMD) was
approved by Industry Canada to operate with the antenna types
listed in this manual with the maximum permissible gain and required
antenna impedance for each antenna type indicated. Types of
antennas is not included in this list, having a higher gain than the
maximum gain indicated this type are strictly prohibited for use with this device
and will void type approval.
2120
Cet émetteur radio (identier le dispositif par numéro de certication ou le
numéro de modèle de la catégorie II) a été approuvé par Industrie Canada
pour fonctionner avec les types d’antenne énumérés ci-après le gain maximal
autorisé et de l’impédance d’antenne requise pour chaque type d’antenne
indiqué. Types d’antennes ne sont pas inclus dans cette liste, ayant un gain
supérieur au gain maximum indiqué
ce type sont strictement interdits pour une utilisation avec cet appareil.
Charging your X10DR Lite :
To charge X10DR, use only the WCL mobile or desktop charger.
When you use the WCL desktop charger to charge X10DR, make sure that the
power adapter is fully assembled before you plug it into a power outlet. Then
insert the WCL AC/DC plug pack rmly into the power outlet. Do not connect
or disconnect the WCL AC/DC plug pack with wet hands. The WCL AC/DC
plug pack may become warm during normal use. Always allow adequate
ventilation around the WCL AC/DC plug pack and use care when handling.
Unplug the WCL AC/DC plug pack if any of the following conditions exist:
1/ The power cord or plug has become frayed or damaged.
2/ The adapter is exposed to rain, liquid, or excessive moisture.
3/ The adapter case has become damaged.
4/ You suspect the adapter needs service or repair.
5/ You want to clean the adapter.
Cleaning your X10DR Lite :
Clean X10DR immediately if it comes into contact with any contaminants that
may cause possible malfunctions—for example, ink, dyes, makeup, dirt, food,
oils, and lotions. To clean X10DR, unplug all cables and turn off X10DR (press
and hold the manual On/Off button). Then use a soft, slightly damp cloth.
Don’t use abrasive household or industrial cleaners, aerosol sprays, solvents,
alcohol, ammonia to clean X10DR.
Connectors and Press Buttons:
Never force a connector into a port or apply excessive pressure to a button,
because this may cause damage that is not covered under the warranty. If
the connector and port don’t join with reasonable ease, they probably don’t
match. Check for obstructions and make sure that the connector matches
the port and that you have positioned the connector correctly in relation to
the port.
Proper Care & Handling Information

X10DR
®
22
X10DR
®
Subject to change or improvement without notice
Specications
23
FCC ID: I7OBT-24H / I7OBT-24D
0681
IC:11443A-X10DRSM
IC:11443A-X10DRMD
Location of labelling
Type Acceptance
X10DR Lite has been designed to meet the following global
specications:
Models: X10DR-LU1 Lite (X10DR-XU1)
Dimensions: 88 x 28 x 63mm (spk mic) 80 x 80 x 60 (chgr)
3.46 x 1.1 x 2.48” (spk mic) 3.15 x 3.15 x 2.36” (chgr)
Weight: 149 grams (spk mic) 125 grams (chgr)
5.25 oz (spk mic) 4.4oz (chgr)
Frequency: 2.40-2.48GHz FH Spread Spectrum
Protocol: 802.15.4 based derivative
RF Power: <100mW
Battery Type: 3.7V @1450mA Lithium Polymer
Battery Life: >15 Hours @ 30% receive time
Encryption: SAFER+ 64Bit
RF Connectors: RP SMA Female
Rated Audio/Distortion: >250mW @5% THD
Operating Voltage: 7-16VDC
Operating Temperature: -20ºC to +55ºC /-4ºF to +122ºF
Shock & Vibration: Mil Std 810 C/D/E/F
Humidity/Rain/Dust: IEC529, IP55 (spk mic only)
Type Acceptance: CE, FCC, IC, Aust/NZ, SIN, Qatar, Brazil,
Acceptable Temperature Extremes:
X10DR is designed to be normally operated and stored in temperatures
between -20º and 55ºC (-4º to 122ºF). Lower or higher temperatures might
shorten battery life or cause X10DR to temporarily stop working correctly.
Leaving X10DR in a parked vehicle or in direct sunlight can cause X10DR to
exceed these storage or operating temperature ranges. Avoid dramatic
changes in temperature or humidity when using X10DR, as condensation
may form within the unit. When you’re using X10DR or charging the battery,
it is normal for X10DR to get warm. Battery will only charge when its ambient
temperature is within safe limits.
Driving Safely:
Use of X10DR while driving a vehicle or riding a motorbike may be distracting. If
you nd using X10DR disruptive or distracting while driving or riding, pull off the
road and park before making or answering a call. Use of X10DR while driving
or riding is not recommended and is illegal in some countries. Check and obey
the laws and regulations regarding the use of mobile devices like X10DR in the
areas where you drive or ride.
Air Bag Equipped Vehicles:
An air bag inates with great force. Do not store X10DR or any of its accessories
in the area over the air bag or in the air bag deployment area.
Carrying and handling X10DR:
X10DR contains sensitive components. Do not drop, disassemble, microwave,
burn, paint, or insert foreign objects into X10DR. Do not use X10DR if it has been
damaged—for example, if X10DR is cracked, punctured, or damaged by
water.

X10DR
®
All rights reserved Wireless Corporation Limited ©2018
Wireless Pacic, X10DR, X10DR Lite and their logos are trademarks or regis-
tered trademarks of Wireless Corporation Limited : Manual revision O
