Wista AF100L User manual

Suzhou Wista Lighting Technology Co., Ltd.
INSTALLATION GUIDE
IMPORTANT SAFEGUARDS：
1. Read and follow all safety instructions.
2. Lights must be installed by professional electrician.
3. This instruction is for AF100L & AF150L
4. Should you have any question, please contact us or local distributors for help.
5. Disconnect power before installation.
TO INSTALL:
Part 1
Part 2 insert hole size

Suzhou Wista Lighting Technology Co., Ltd.
STRAIGHT ARM MOUNT FOR ROUND POLE
STEP 1.
Verify there there is access from top of the pole. Use dimension on Picture 1 for drilling if pole is not pre-drilled. (Template is
not to scale)
Picture 1
STEP 2.

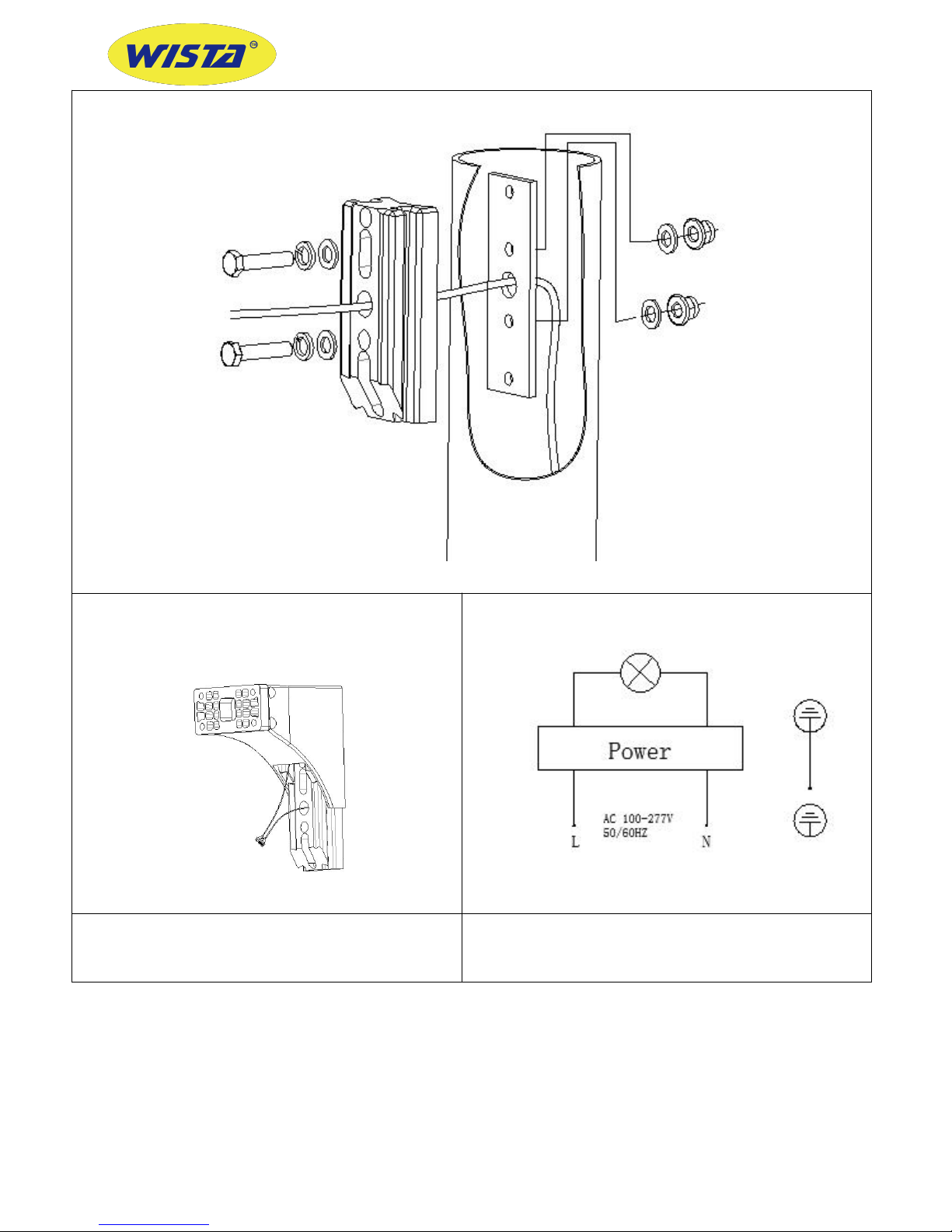

From top of the pole put Nut Plate in, install Insert on the pole by assembling 2 bolts on Nut Plate. Then route the cord
coming from the pole through the hole of Insert. See Picture 2;

Suzhou Wista Lighting Technology Co., Ltd.
Picture 2
STEP 3.
Slide the mounting arm to the third of insert. See Picture 3.
(Mounting arm has been installed on the fixture already.)
STEP 4.
See the Electrical Connections Diagram for wiring instructions.
Electrical Connections Diagram
STEP 5.
Get wires into the bracket compartment. Then slide the
mounting arm to the insert till fully clamped. See Picture 4；
STEP 6.
Install Top Cover. See Picture 5；

Suzhou Wista Lighting Technology Co., Ltd.
Picture 4
Picture 5
STEP 7.
Tighten M4 Screw on the top of arm to fix mounting arm.
See Picture 6;
Picture 6
STEP 8.
Slot the Bottom Cover.
