WIT-COLOR Ultra-9000 User manual

k
1

Firstly, we congratulate you that you own a high capability ultra9000
printer—Wit-Color Ultra 9000 printer. Then thank you for your support. You need
to solve problems according to this manual, so you need to read it carefully. Based
on the catalogue, you will find the content easily.
Attention
Wit-Color is the brand of Shanghai Wit-Color Digital Science & Technology
Co., Ltd. Wit-Color has the copyright of Ultra 1000 2000 3000 4000 9000 solvent
printer and ultra9000 printer，include every spare parts, boards and software.
Every company and individual can not copy, especially can not copy and transmit
this manual without any authorization.
Ultra 9000 has passed 3Q Conformity of Quality Manangement System
Certification,QC Quality Certification, ISO9001 Quality Certification. And Ultra
9000 is up to the standard of printing equipments. Please pay attention the
following enviroment when you use the printer:
1. Please keep the printer away from electromagnetism: Television、High
speed electirc machine、High-tension cable、mobile phone、radio, etc. These
equipments will produce electromagnetic interference.
2. Please keep the room temperature between 15 and 30 Celsius degree while
printer is working. Too high and low temperature will reduce the using life and
affect the quality of the image.
3. The room should be in smooth grand and connet with grand wire.
4. Please avoid putting the machine under sunlight, the printer should be in
ventilation and favorable humidity.
5. Please keep the room clean, avoid operating the machine under dust.
During carry the printer, displacement is unavoidable. If this situation happen,
the engineer will adjust it. You can not return back or ask for compensating
according to this issue.
Within the warranty time, we will provide service for life except the
damanged by human, bilging and lighting strike. Please read this manual carefully,
if you have any questions, contact with the distributor or maintainer as soon as
possible. Out of warranty time, we will provide servece based on the agreement.
If the information of products is changed, we will not announce.
The description and picture is based on the real packing container.
Please obey above description to avoid unnecessary issue.
2

3
Character：
Epson generation 5th print head—DX5
Ultra 9000 adopt the new-type micro piezoelectric printhead with a resolution of
144dpi. Total is 1440 nozzles divided into 8 lines, every lines have 180 nozzle,
every color in two lines. Hence, DX5 printhead has high precision and high speed
character.
Depending on different output types, variable ink drop technology can generate 3
kinds of micro ink drops in different sizes. Ink size is freely optional between
3.5pl-9pl. Achieve a pretty, fine, smooth and particle-free tone transition. In
conjunction with RIP software, variable ink drop technology makes this printer
even highly applied in appreciation field for flawless quality.
Falut-Tolerant Feather Technology
Both Ultra9000 printer could make perfact printing,because the new generation
system had made the optimal calibrations in software and internal parameters of
EPSON print head.By thin technology,when the users print solid color image,not
only the color is vivid and bright,but also the ink consumption is less
obviously.Thus the printing cost was saved effectively.
LCD Control panel
New LCD control panel could run the machine independently. The new functions
are cleanout, absorb the ink, flash, print test strip, formfeed, go back and
replacement. In the new Ultra 9000, you can print the image from the USB
directly.
USB control board
Eco-solent print adopt USB control board and USB2.0. Only one USB cable can
achieve printing, also USB control board has memory, they will record the data
automatically.
High Speed system
The AC servo motor of the ultra9000 printer has high speed and high precise
position-setting character. In mechanical part, adopt imported linear rail, timing
belt with steel wire and copper gear. Also adopt 180dpi encoder strip.
Discrete ink control system
Ultra9000 printer adpot discrete ink control system: indepent ink control board,
indepent sub tank and electric pumb to make the printing smooth. The new
inductor has ink lact warning system.
Qucik heating and air drying system
Two units heating and air drying system are the new function of the ultra9000
printer. The pre-heating is good for media to absorb the ink, to make the image

4
more vivid. After heating is good for ink to coagulate, superadd the air dtying
system, the media will dry as the printing finish.
Auto feeding and take-up system
The feeding system adopt photoelectricity system, it can afford 100 KG media.
Also the double feeding roller can make feeding more smooth.

5

6

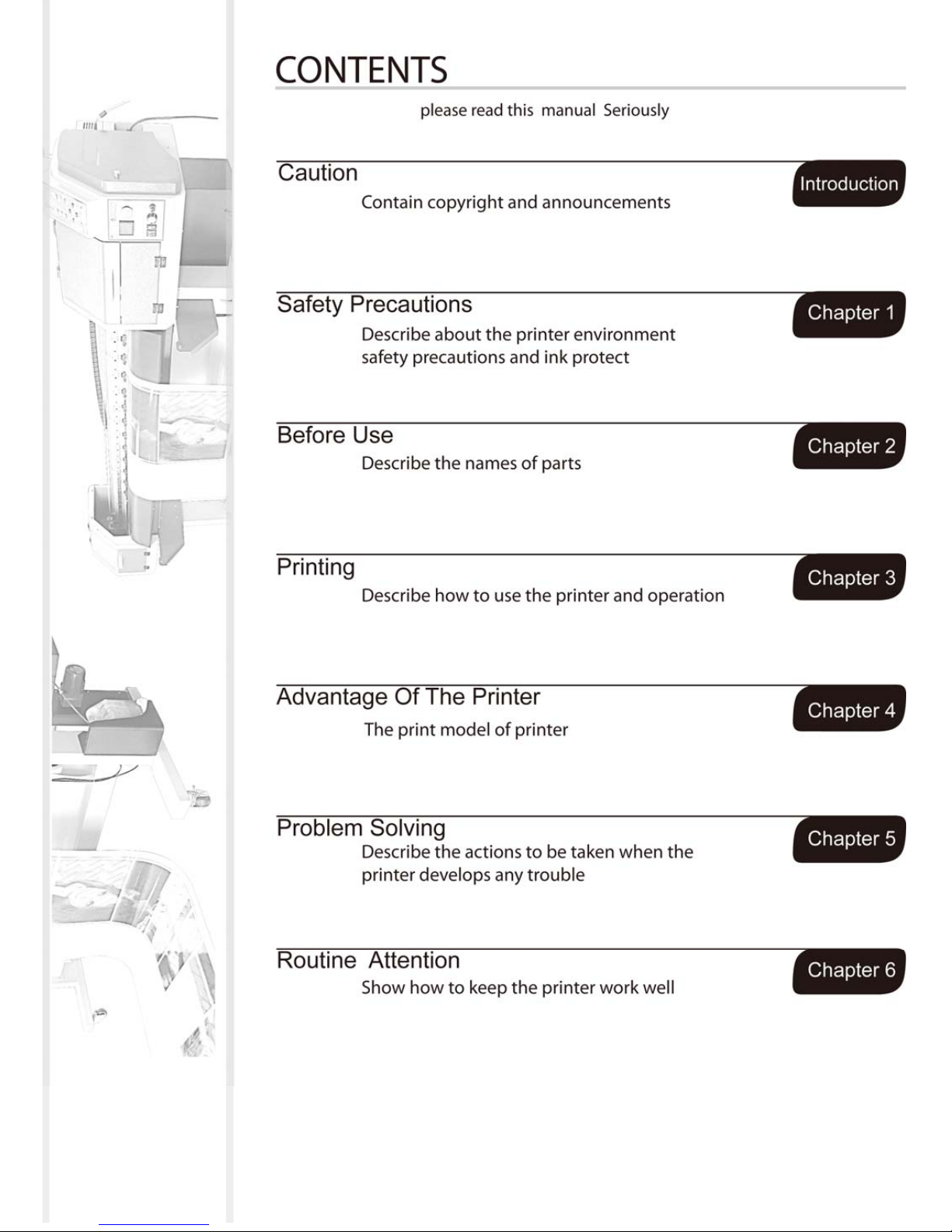

Foreword………………………………………………………………… 2-5
Chapter One
Safty
Safty sign…………………………………………………………………8

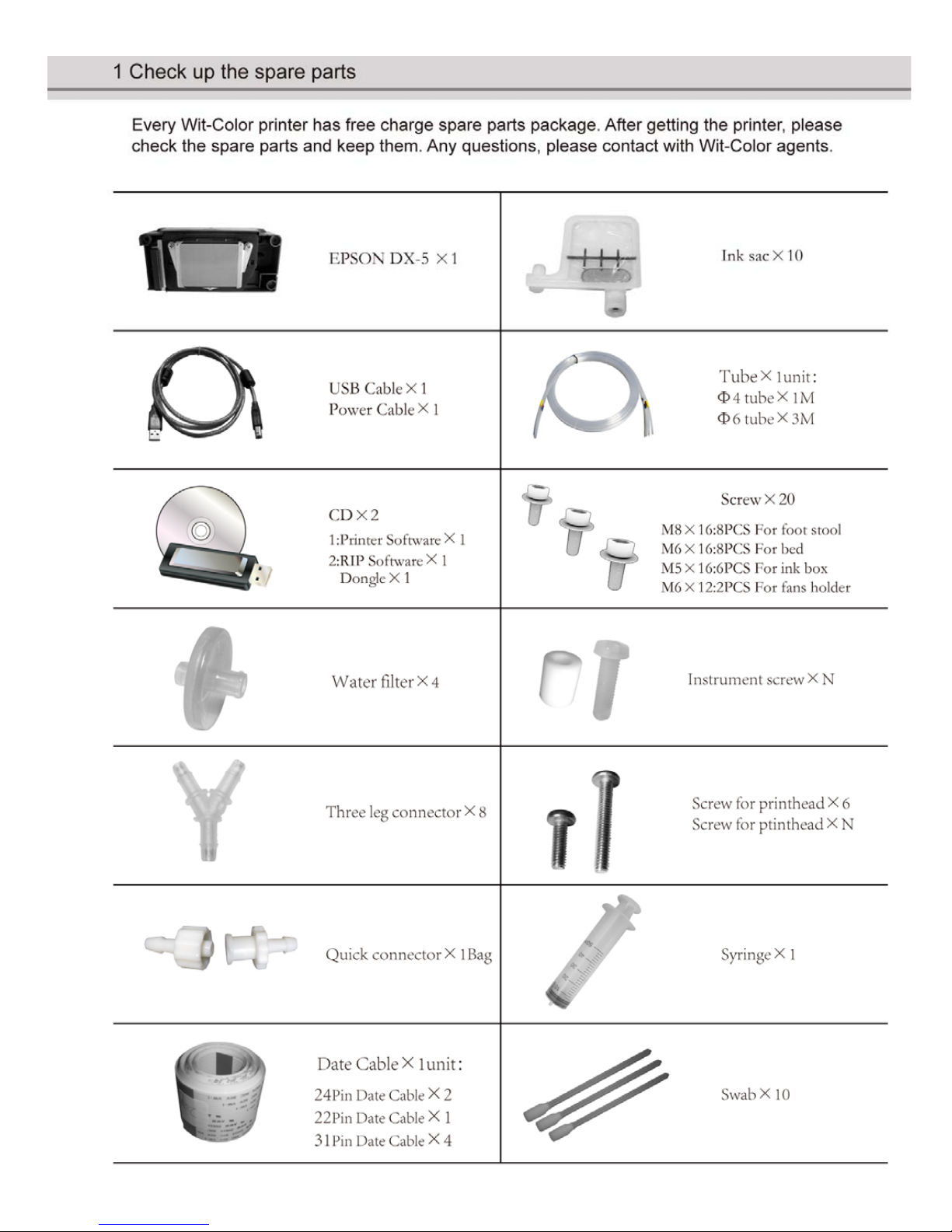

Spare parts inspection…………………………………………………… 9
Before installation Notice…………………………………………………10-12
Chapter Two
Ultra9000 Pirnter
Ultra9000 printer configuration…………………………………………12-13
Spare parts name………………………………………………………… at last
Parameter……………………………………………………………… 14-15
Installation Notice……………………………………………………… 15
Equipment installation……………………………………………… 16-18
Self checking…………………………………………………………18
Ink sac and print head installation.……………………………………18-24
How to install ink.………………………………………………………25
Chapter Three
Printing
Software guide…………………………………………………………… 26
Software installation…………………………………………………26-31
Software operation introduction………………………………………32-37
Manual control board introduction……………………………………38-39
Maintenance--Testing………………………………………………………39
Testing step……………………………………………………………40
Mechanical adjustment…………………………………………………41
Physical adjustment Suction nozzle and print head adjustment………41-45
Software adjustment suction nozzle, blade and printhead adjustment…46-53
Printhead horizontal adjustment…………………………………54-58
Speed setting carriage speed…………………………………………58-59
Software calibration bi-direction printing ………………………………60-61
Media feeding calibration……………………………………………… 62-64
Internet setting(TCP\IP)& driver setting …………………………………64-65
Maintop printing setting……………………………………………………65
Input Maintop to printer……………………………………………… 65-70
Picture and paper setting…………………………………………………71-75
Chapter Four
Ultra9000 printer advantage
Ultra9000 printer precision mode…………………75-77
Ultra9000 printer printhead maintain…………………………………78-79

7
Chapter Five
Problem
Principle of operation…………………………………………………… 79-84
Chapter Six
Maintenance
Maintenance detail…………………………………………………………86

8
S
Si ig gn n： ：
Please pay attention to the sign during reading
Serious operation will cause serious consequence.
Warning operation, wrong operation will destroy printer.
Hint operation, hint for detail information.
"Have to read" sign.

9

10
C
Ch ha ap pt te er r O On ne e B Be ef fo or re e i in ns st ta al ll la at ti io on n N No ot ti ic ce e
Ultra9000 print dimension and installation position:
Ultra 9000 1601 printer
Packing wooden case dimension：
Length*width*height:3.2*1*1.2(meter)
Priner dimension：
Length*width*height:285*85*126(cm)
You need to leave some space around the machine, like at least 150CM for before
and back, at least 100CM for left and right.
Power supply：
1、To make sure the connection with ground wire is right, one machine for one
power bar.
2、Power supply：use 50Hz 220V AC （±10%）
3、Machines rated power is 2000 watts，The UPS must be higer than 2500watts

4、Don’t use damaged power line, please ues the power line which is above
3000W.
5、Don’t use extensive USB cable and the USB cable with shield function.
6、When the machine shut down, you can connect or pull out the power supply.
Environment：
1、Please stay enough space for machine, and keep away from magnetic
equipments.
2、Please keep the room clean and comfortable.
3、The printer should be on the smooth grond and avoid leaning, because leaning
will cause printing percision.
4、The printer should not be in the aisle and keep the air flowing in the room.
5、The printer should not under the sun or near the heater, also avoid changing
the temperature and humidity suddenly.
6、Working requirments：temperature：15-30 celsius，humidity：40%-70%, too
high and low temperature will cause the image.
7、Keeping away from caustic liquid and gas.
Please follow the right order to operate.
11
Removing package note：
The package is made of wood, only the technician can remove the package by
screwdriver independently. Please do not use hand to work.
1、The weight of the equipment is 300KG, so using forklift is necessary for
carrying.
2、Working gloves can protect your hands from scratching.
3、Please loss all the screw from the top to the bottom.
4、Because the length of screw is 5cm, please throw it everywhere.
Removing ultra9000 printer：
1、Please removed the machine by at least 6 people.
2、You need to carry the body of the machine, do not carry the bilateral chassis.
3、For safty, please avoid lefting anything in the machine, and locking the side
cover.
4、When lifing and putting, please pay attention to avoid colliding.
5、Don’t pull the carriage if it is not in the original position.

Be careful with printer.
12
Ink notice：
1、Please keep the ink bottle away from children, pregnant women and the old.
2、If ink drop on skin, please use soap to clean. If ink spary in your eyes, wash
eyes immediately, or go to hospital when you feel uncomfortable.
3、Please store the ink in a shady and cool place.
4、If you want to get the best printing image, please use the ink within two
months.
5、Don’t open the ink cap totally, just a small piece for the ink tube.
6、Don’t shake the ink bottle, or the ink will leak out.
7、Don’t throw the discarded ink bottles everywhere.
8、Keeping dust away from ink.
Avoiding throwing ink bottle from environment.
Avoiding dust from going into ink to block printhead.
Chapter Two Ultra9000 printer
1、Ultra9000 printer structure

13

14
2、Spare parts name（attached sheet at bottom）
3、Parameter
Model Ultra 9000 1801(W\S)
Technology Piezoelectric printing technology-DX5（water-based）
Amount 2 \ 1unit(s)
Color 4 color
Resolution 1440dpi\2160dpi\2880dpi
Print
head
Injection
distance
2~5 MM
Type WITCOLOR Ultra9000 Ink M、Y、C、K、
Ink Ink supply
system
Sub-tank\Ink cartridge(√)
Heating
system
Work plate heating ：temperature controller
30C°adjustable
Output drying：10~60C° manual regulation
Heating
Drying
Drying
system
Fan outside air draft inside
Dimension Valid dimension：1800mm
Type Photo paper、lightbox tablets、PP paper、indoor
media
Media
Maximum
weight
100KG
Transmission USB2.0
RIP software
Photoprint \ Maintop(√)
System WindowsXP VISTA

15
Environment
temperature ：15～30 humidity ：
30 ～90%
Power Supply frequency：50Hz voltage：220 AC（±10%）
Power
Maximum power：2000W，Printing power：
800W
Machine
Dimension
Length*weight*height 290×78×120 (cm)
Machine
Weight
220kg
Model m2/h（1heads）m
2/h（2 heads）
4PASS 16 32
6PASS 12 24
Output
8PASS 8 16
4、Installation notice
One．Removing the package：
1、First you need to loss screws on the top, and then remove the top cover.
2、Second you need to loss the side screws, and then remove the side cover.
3、The machine is fixed on the wooden frame by three screws, you need to loss
three screws, then you can remove the machine.
4、Third take off the firmware on the machine.
5、Finally open the machine package, accessory package and adjunct package.
Please check the machine and accessory is complete.
The machine is packed by packing diaphragm. The following items are under the
machine: two units foot stands, beam, feeding roller, ink trank and an accessory
package.

Two．Equipment installation：
Please install the machine from the bottom to the top, and all the Hexagon
socket head cap screw need shrapnel and shim.
1、Machine’s frame installation：left foot stand + right foot stand，When you install
the beam，the media feeding sensor and dry frame should be in the opposite
position and you should use eight Hexagon socket head cap screws.
2、After frame installation, you need to lock the truckles. Four people carry the
body part on the frame, and use three screws to fixup which is under the body.
3、The body part and foot stand should be fixuped by six Hexagon socket head cap
screws which on the sides. Four units M6*16 and two units M5*16. The tool
should be less than M5 screwdriver.
16

4、The side screws will fixup the body and frame and when you fixup the right
side, you need to fixup the ink case at the same time.
5、To install the drying fun by M6*12 Hexagon socker head cap screws.
6、Finally loss the screws on the carriage and move it.
Attention：During installation, please do not screw down all the screws
17

one by one, you need to screw down all the screws at the same time. Also do
not screw down so hard, you should take off the body, and install again.
Pay attention to any cables which will not damanged by any
machine part.
Three．Inspection work after installation
1、After installation, push and pull the carriage to make sure the distance
between carriage and working plate is the same and the plate is smooth.
2、Then check the the encoder sensor parallel with the encoder stripe.
3、After that, make sure the machine is grounding and static voltage is less than
1V.
4、When you plug in power, the blade, printhead maintenance station and
carriage will do testing. The process is below: the blade moves
down→printhead maintenance station moves down→carriage moves
right→carriage replace→printhead maintenance station moves up.
Attention：Do not install the print heads in first testing.
5、Self testing done, using multimeter tests every voltage：42.5V、14、5V.Turn off
the power, and install the print head.
You have to read if this is your first time to install the printer.
Four、Ink system and print head installation
Before installation, please adjust the suction nozzle position.
18

1.Ink sac and filter installation：
Ink Sac：function of ink sac is to save ink and provide stable ink to printhead. The
memory steel disk in ink sac, when the ink sac lacks of ink, sub tank will offer the
ink. Usually the amount of ink should be above 50% in the ink sac. (If not, please
contact with technical or Wit-Color factory.)
For the safty of the ink filter and damper, the technician needs to install them
by himself. Please take it carefully, or it will damange.
Ink Sac installation picture
19

Two print heads
Every print head has four group of ink, the order from left to right is K C M Y.
How to install ink sac：
1.From spare parts package, you need to take a φ4 ink tube, and divide it into 8 pieces, and
every piece is 6-8CM. Showed in picture one, and take the screw cover and rubber ring.
2.Put the ink tube with rubber ring into ink sac, and tighten screw. Attention：
Don't push ink sac during installation. See picture two.
3.After install the printhead, then install ink sac and printhead connection.
After installing printhead, put the ink sac on printhead, and cut the extra ink tube.
The detail showed in picture three.
Picture One
20
