Integrated Electric Fryer Module
MODEL IF15/S
Dimensions in parentheses are in
millimeters unless otherwise specified.
7/06
1
Model IF15/S
Classic Stainless Steel
To round out your options for the ideal kitchen, you
must have a fryer to choose from and Wolf offers a
great option that the market has never seen. Dinner
specialties that you never tried before will be at your
fingertips when your client uses this module.
The accurate temperature control will enable your
customer to seal in that great flavor of the food
without absorbing any unnecessary grease. In addition,
the extremely deep fryer will enable you to handle large
portions of small items or a whole chicken.
Let Wolf, the corporate companion and kitchen soul
mate of Sub-Zero, fuel your passion for cooking and
kitchen design.
The Wolf Model IF15/S 15" (381)
integrated fryer module is available in the
classic stainless steel finish.

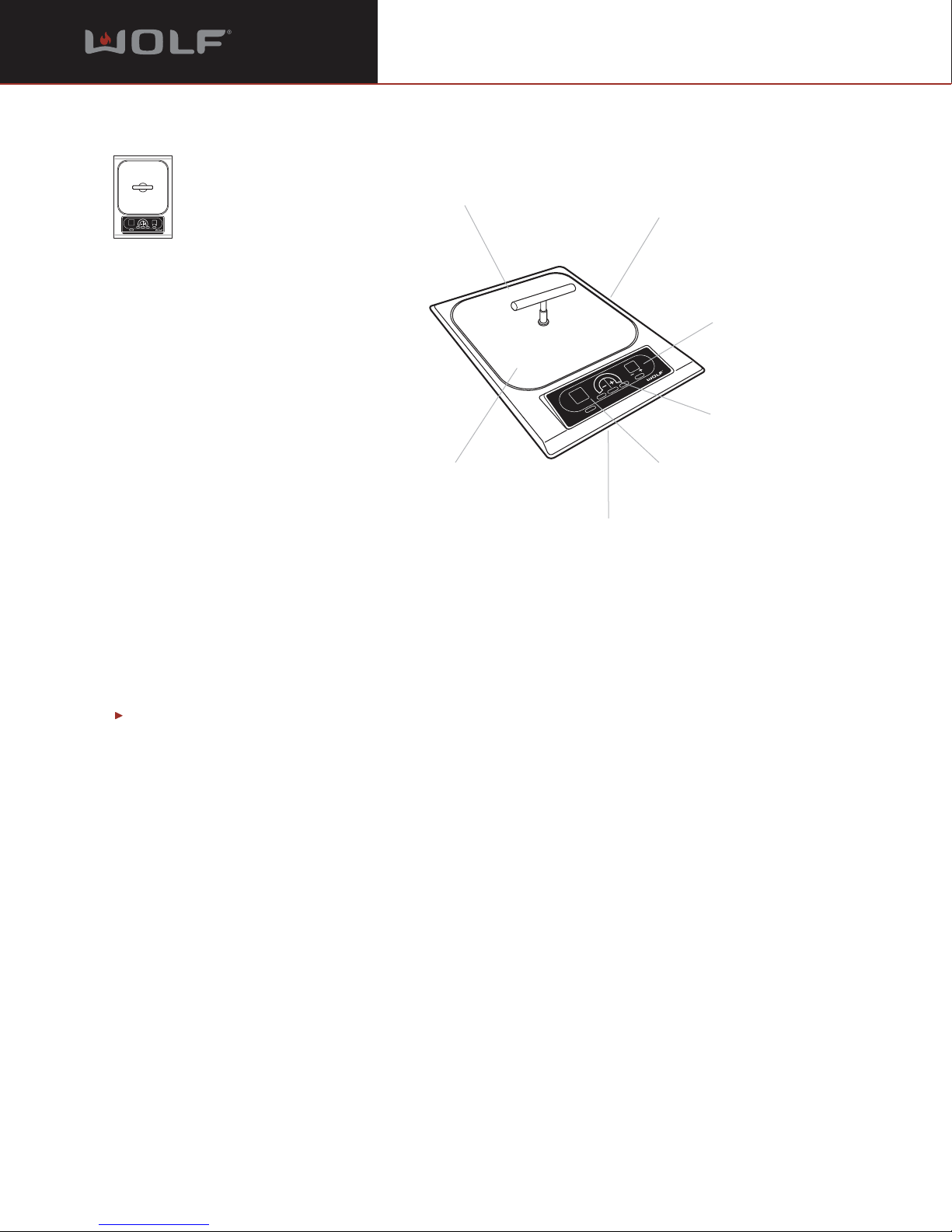

Hidden 2600-watt
heating element
Low profile lid
Graduated
control lighting
Illuminated electronic
touch controls
Deep drawn pan Digital temperature
readout
Location of
rating plate

Planning Information
Integrated Electric Fryer Module
MODEL IF15/S
Dimensions in parentheses are in
millimeters unless otherwise specified.
Dimensions may vary by ±
1
/ 8 " (3).
2
FEATURES
Integrated design allows for installation of
multiple cooktops or modules
Stainless steel top construction with classic
stainless steel finish
Hidden 2600 -watt heating element
Illuminated electronic touch controls with
graduated control lighting
Large 11/4gallon (3.8 L) capacity tub
Three baskets included—one large and two
small side by side, each with wire basket
hanger
Low-profile lid
Melt feature for shortening or lard
Independent digital timer
Digital temperature readout and preheat
indicator
Easy manual locking drain capability
CSA certified for US and Canada
Two and five year residential warranty –
exclusions apply; warranty information can
be found on our website, wolfappliance.com

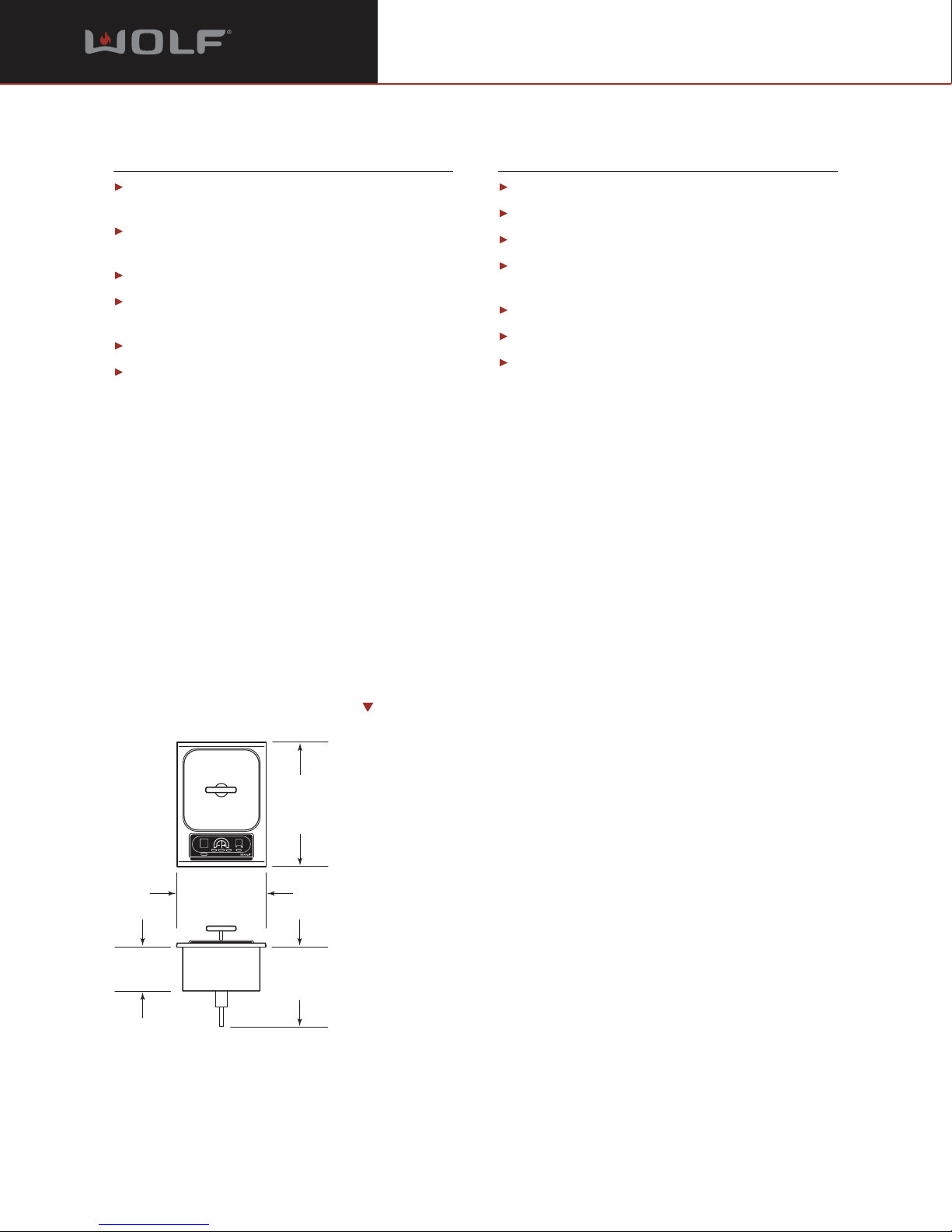

OVERALL DIMENSIONS
15" (381)
OVERALL WIDTH
21"
(533)
OVERALL
DEPTH
131/2" (343)
TO DRAIN
OUTLET
71/2"
(191)

Planning Information
Integrated Electric Fryer Module
MODEL IF15/S
Dimensions in parentheses are in
millimeters unless otherwise specified.
3
SPECIFICATIONS
Overall Width 15" (381)
Overall Height 131/2" (343)
Overall Depth 21" (533)
Countertop Cut-Out Width 14" (356)
Countertop Cut-Out Depth 19 1/4" (489)
Minimum Cabinet Depth 22 3/4" (578)
Minimum Height Clearance 131/2" (343)
Heating Element 2600 W
Electrical Supply Requirements 240/208 V AC, 60 Hz
15 amp dedicated circuit
Conduit 4 ft (1.2 m) flexible 3-wire
Electrical Rating 2.6 kW at 240 V
1.9 kW at 208 V
Shipping Weight 30 lbs (14 kg)
Special Note Module can be installed in combination
with other cooktops or modules
Specifications are subject to change without notice.
TRIM FINISH
Classic Stainless Steel IF15/S
VENTILATION OPTIONS
30" (762) Cooktop or Pro wall
hood or liner
36" (914) Cooktop or Pro island
hood
For additional information, refer to the
Wolf Cooktop Ventilation or Pro
Ventilation sections of our website,
wolfappliance.com.
ACCESSORIES
Filler strip
Accessories are available through your
Wolf dealer. To obtain local dealer
information, visit the Locator section of
our website, wolfappliance.com.
Model IF15/S
Classic Stainless Steel

Planning Information
Integrated Electric Fryer Module
MODEL IF15/S
Dimensions in parentheses are in
millimeters unless otherwise specified.
4
INSTALLATION SPECIFICATIONS
DIMENSIONS
Countertop Cut-Out Width 14" (356)
Recommended Cabinet Width 33" (838)
Countertop Cut-Out Depth 191/4" (489)
Minimum Cabinet Depth 223/4" (578)
Location of Electrical Within shaded area
See Installation Instructions shipped with unit for detailed specifications.
7"*min (178)
CUT-OUT TO
COMBUSTIBLE
MATERIALS
(BOTH SIDES)
14" (356)
COOKTOP CUT-OUT
WIDTH
14" (356)
COOKTOP CUT-OUT
WIDTH
33" (838) RECOMMENDED
CABINET WIDTH
18"
(457)
NOTE: Application shown allows for installation of two 15" (381) modules side-by-side with 33" (838) recommended cabinet width. 18" (457)
recommended cabinet width for installation of single 15" (381) cooktop or module. NOTE: Fryer module must be installed in a base cabinet with
access to manual valve at base of unit to drain oil into heat resistant receptacle. *Minimum clearance from both side edges of cooktop cut-out
to combustible materials up to 18" (457) above countertop. **Minimum clearance from rear edge of cooktop cut-out to combustible materials up
to 18" (457) above countertop.
191/4" (489)
COOKTOP CUT-OUT
DEPTH
21/2"min
(64)
36" (914)
STANDARD
FLOOR TO
COUNTERTOP
HEIGHT
13" max
(330) 30" (762)
COUNTERTOP TO
COMBUSTIBLE
MATERIALS
ABOVE COOKTOP
FRONT OF COUNTERTOP
21/2"min
(64)
191/4" (489)
COOKTOP
CUT-OUT DEPTH
75/8"
(194)
123/8"
(314)
DRAIN OUTLET
LOCATION
E
131/2"
(343)
15"
(381)
15"
(381)
123/8"
(314) 6"
(152)
DRAIN OUTLET
LOCATION
2"**
(64)

Planning Information
Integrated Electric Fryer Module
MODEL IF15/S
Dimensions in parentheses are in
millimeters unless otherwise specified.
5
INSTALLATION NOTES
Refer to the illustrations and specifications
for overall dimensions, cut-out dimensions and
installation specifics.
Wolf recommends using 33" (838) wide
cabinets for installation of two 15" (381)
modules side by side. An 18" (457) wide
cabinet is recommended for installation of a
single 15" (381) cooktop or module.
IMPORTANT NOTE: Review specific installation
instructions for product to product capabilities
When multiple cooktops or modules are
installed side by side, refer to the countertop
cut-out dimensions on page 6.
A Wolf Cooktop or Pro ventilation hood is
recommended. When installing a ventilation
hood, refer to the specific requirements of the
hood for the minimum dimension to countertop.
Also refer to Ventilation Recommendations in
the Cooktop Ventilation or Pro Ventilation
sections of our website, wolfappliance.com.
IMPORTANT NOTE: Wolf does not recommend
the use of downdraft ventilation with the inte-
grated fryer module.
The Wolf integrated fryer module requires a
separate, grounded 3-wire 240/208 V AC, 60
Hz, 15 amp service with its own circuit breaker.
The unit is provided with a 4' (1.2 m) flexible
3-wire conduit for connection at the electrical
supply. Locate electrical within the shaded area
shown in the Installation illustration on page 4.
You must follow all National Electrical Code
regulations. In addition, be aware of local codes
and ordinances when installing your service.
The integrated fryer module must be
installed in a base cabinet with access to the
bottom of the unit to drain the oil through a
manual valve. The consumer must supply a
heat resistant bucket to accept the drained oil.
Refer to the Installation illustration on page 4
for location of the drain outlet.
Refer to the installation instructions
shipped with each Wolf product for detailed
specifications.
This cooktop is intended for indoor use only.
This fryer module must be installed at least
15" (381) away from any open flame
cooking device. The open flame may cause
ignition of oil.
This fryer module must be installed at least
15" (381) away from a Wolf steamer
module, as contact between water and hot
oil may cause burns from steam and hot oil.

Planning Information
Integrated Electric Fryer Module
MODEL IF15/S
Dimensions in parentheses are in
millimeters unless otherwise specified.
6
Countertop cut-out dimensions for installation of multiple cooktop units.
INTEGRATED MODULES—
MULTIPLE UNIT INSTALLATION
With Wolf's integrated modules, you have the
ultimate in customization. You can create your
own design by mixing and matching the various
components within this system. And when you
couple these modules with other cooktops
within the Wolf inventory you and your client will
truly understand freedom of choice.
Some Wolf integrated modules can be installed
together or with a 30" (762) or 36" (914)
cooktop. When multiple units are installed side
by side, the cut-out dimensions that are shown
in the illustration are derived by adding 11/4" (32)
additional space for each additional unit, to give
you your total cut-out width. Refer to the illus-
tration below for countertop cut-out dimensions
for installation of multiple cooktops.
IMPORTANT NOTE: Refer to the pages for each
specific integrated module for installation
limitations.
IMPORTANT NOTE: Where multiple cooktops
and/or modules are installed side by side, each
unit must have its own separate recommended
electrical circuit. When multiple gas cooktops
and/or modules are installed next to one
another, they can receive their gas supply from a
common line. However, each unit must have its
own regulator installed between the mainline
and the cooktop or module.
When two or more cooktops or modules are
installed together, an integrated module filler
strip is recommended. Contact your Wolf dealer
for information on this accessory component.
For electrical requirements, additional specifica-
tions and installation limitations, refer to the
Installation Notes on page 5.
IMPORTANT NOTE: Review specific installation
instructions for product to product capabilities.
21/2"min
(64)
FRONT OF COUNTERTOP
191/4"
(489)
CUT-OUT
DEPTH
29
1
/ 4 " (743)
TWO MODULES WIDTH
44
1
/ 2 " (1130) THREE MODULES WIDTH OR
44
1
/ 4 " (1124) 30" COOKTOP AND ONE MODULE
59
3
/ 4 " (1518) FOUR MODULES WIDTH OR
59
1
/ 2 " (1511) 30" COOKTOP AND TWO MODULES OR
50
1
/ 4 " (1276) 36" COOKTOP AND ONE MODULE
14"
(356)
CUT-OUT
WIDTH
