Introducing the Wolf Grill Module 5
Safety Instructions and Precautions 6
Wolf Grill Module Features 8
Wolf Grill Module Use & Care 9
Wolf Service Information 16
ESPÃNOL
Presentación del módulo de parrilla Wolf 19
Precauciones e instrucciones de seguridad 20
Características del módulo de parrilla Wolf 22
Uso y mantenimiento del módulo de
parrilla Wolf 23
Información de mantenimiento de Wolf 30
F R A N A I S
Présentation du gril Wolf 33
Instructions et mesures de sécurité 34
Caractéristiques du gril Wolf 36
Utilisation et entretien du gril Wolf 37
Service après-vente Wolf 44
I TA L I A N O
Presentazione del modulo grill Wolf 47
Precauzioni e istruzioni di sicurezza 48
Caratteristiche del piano grill Wolf 50
Uso e manutenzione piano grill Wolf 51
Informazioni sull’assistenza Wolf 58

As you read this Use & Care Information,
take particular note of the CAUTIO and
WAR I G symbols when they appear.
This information is important for safe and
efficient use of the Wolf equipment.
In addition, this Use & Care Information may
signal an IMPORTA T OTE which highlights
information that is especially important.
signals a situation where minor injury or
product damage may occur if you do not
follow instructions.
states a hazard that may cause serious
injury or death if precautions are not
followed.
WOLF®is a registered trademark of Wolf Appliance, Inc.

5
INTRODUCING THE W O L F G R I L L M O D U L E
T H A N K YO U
Your purchase of a Wolf electric grill module
attests to the importance you place upon the
quality and performance of your cooking
equipment. We understand this importance
and have designed and built your grill module
with quality materials and workmanship to
give you years of dependable service.
We know you are eager to start cooking, but
before you do, please take some time to read
this Use & Care Information. Whether you are
a beginning cook or an expert chef, it will be
to your benefit to familiarize yourself with the
safety practices, features, operation and care
recommendations of the Wolf electric grill
module.
If service is necessary, refer to the model and
serial number of the grill module. Both
numbers are listed on the product rating plate
located on the underside of the module. Refer
to the illustration below.
IMPORTA T OTE: Installation and service
must be performed by a qualified installer or
service agency.
IMPORTA T OTE: A ventilation hood is
recommended (but not required) for use with
the Wolf electric grill module.
IMPORTA T OTE: To avoid electrical shock
when disconnecting the grill module, all
poles/wires must be disconnected from the
power supply box.
IMPORTA T OTE: The complete appliance
must be properly grounded at all times when
electrical power is applied.
CONTACT
INFORMATION
Website:
wolfappliance.com
Rating plate location
ocation of rating
plate under module

6
W H AT TO D O
IMPORTA T OTE: Read all
instructions before using this
appliance.
Read this Use & Care Information
carefully before using your new grill
module to reduce the risk of fire,
electric shock or injury to persons.
Make certain your unit is properly
installed and grounded by qualified
personnel.
Use sturdy, properly insulated
gloves or pot holders. Dish towels
or other substitutes can become
entangled, causing burns. Keep pot
holders dry. Wet pot holders create
steam and cause burns. Keep pot
holders away from open flames
when lifting or moving utensils.
Always properly clean and maintain
the appliance as recommended in
the Use & Care Information.
SAFETY INSTRUCTIONS AND PRECAUTIONS
To eliminate the risk of burns or
fire when reaching over heated
surface units, cabinet storage
space located above the surface
units should be avoided. If
cabinet storage is to be provided,
the risk can be reduced by
installing a ventilation hood that
projects horizontally a minimum
of 127 mm beyond the bottom
cabinets.

7
W H AT N OT TO D O
Children should not be left alone or
unattended in an area where the
grill module is being used. Never
allow them to sit, stand or play on or
around the grill at any time. Do not
store items of interest to children
around or below the grill.
When using the grill module, do not
touch the grill or immediate
surrounding areas.These surfaces
become extremely hot and could
cause burns. Be certain that all
controls are turned off by touching
the touch pad and that the
unit has cooled before touching or
cleaning any surfaces.
ever leave the grill module
unattended. High flame and fatty
meats will promote flare-ups.
Do not use water on grease fires.
Smother fire or flame or use dry
chemical or foam-type extinguisher.
Clothing fires are potential hazards.
Do not wear long flowing sleeves
around the grill module.They are
easily caught on pan handles or
ignited by flare-ups. Highly flamma-
ble clothing, especially synthetic
fabrics, should not be worn while
cooking.
Do not repair or replace any part
of the grill module unless specifi-
cally recommended in literature
accompanying this appliance. All
service is to be referred to a Wolf
authorized service center.
Do not line the drip pan or radiator
plates or cover the entire grate with
aluminum foil. Small foods, such as
vegetables, can be wrapped and
cooked in aluminum foil packets.
Do not use the grill module for
warming a room.
This appliance is for household use
only and must not be put to any
other use.
Do not store combustible, flamma-
ble or explosive materials near the
grill module or adjacent cabinets.
Do not heat unopened glass or
metal containers of food on the grill.
Pressure may build up and cause the
container to burst, resulting in
serious personal harm or damage to
the grill.
Flavor enhancers, such as charcoal
briquettes or wood chips, are not to
be used with this appliance.

8
W O L F G R I L L M O D U L E FEATURES
G R I L L M O D U L E F E AT U R E S
Integrated design allows for use with
multiple modules or cooktop units
Stainless steel top construction with classic
stainless steel finish
Two 1400-watt individually controlled
heating elements—front and back—for
even grilling
Illuminated electronic touch controls with
graduated-control lighting
ow-profile, one-piece cast iron grilling
grate with matte porcelain finish
MODEL ICBIG15/S
Electric Grill Module
Two 1400-watt
heating elements
Cast iron grilling grate
Illuminated electronic
touch controls
Removable grease
collection pan
Black porcelain-coated grease deflection
plates
Easy-to-clean, removable porcelain-coated
grease collection pan
Independent digital timer
Child safety lock mode
Classic stainless
steel finish
Graduated-control
lighting
This appliance is certified by Star-K
to meet strict religious regulations in
conjunction with specific instructions
found on www.star-k.org.
Model ICBIG15/S

9
W O L F GRILL MODULE U S E & C A R E
Grease deflection
plates
Grease collection pan
Electric element
Outer grill pan

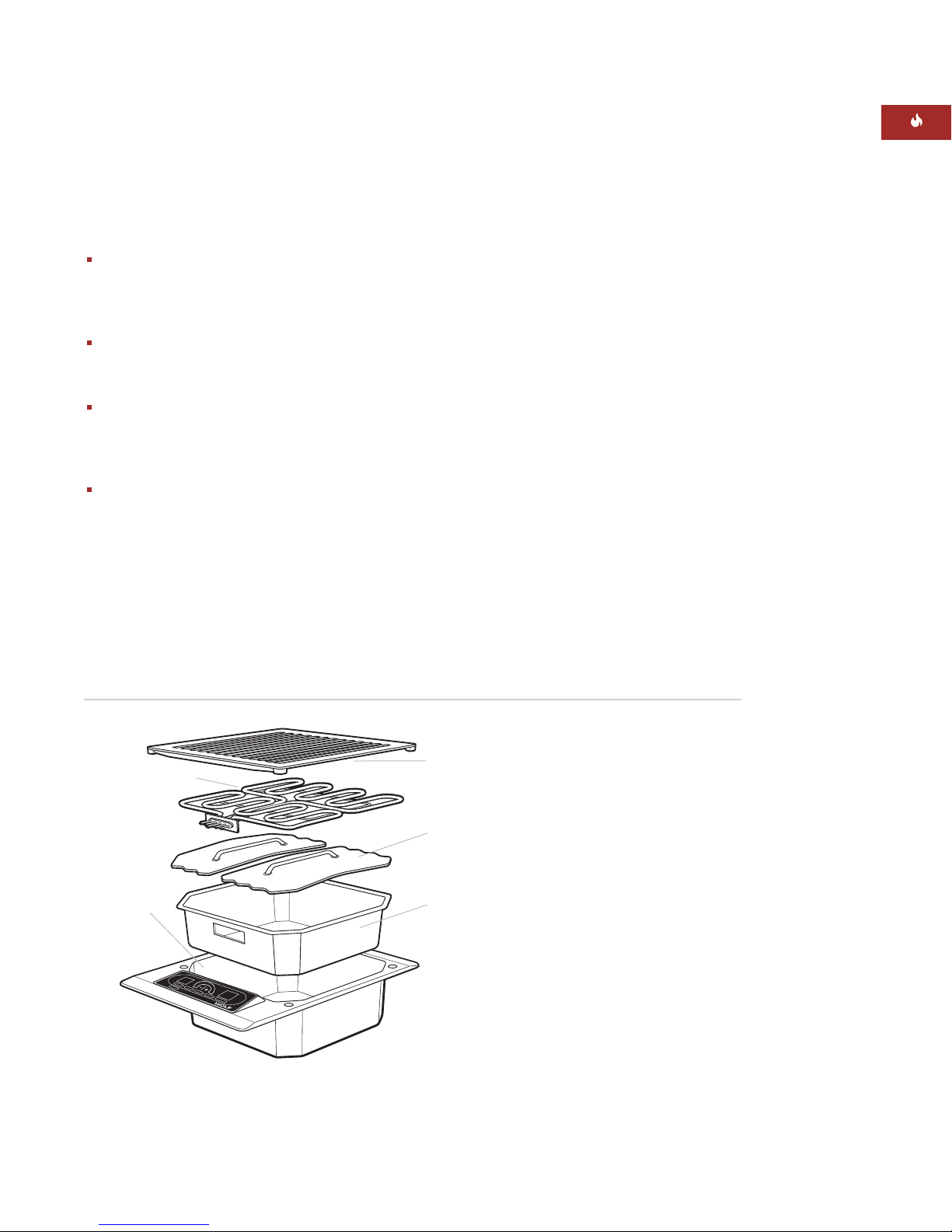

Grill module assembly
G R I L L M O D U L E ASSEMBLY
For proper operation, the electric grill module
must be assembled in the correct alignment.
Refer to the illustration below.
Insert the grease collection pan into the
stainless steel outer grill pan with the hole
for the receptacle facing toward the front of
the module.
Insert the two grease deflection plates into
the grease collection pan, with the handles
running front to back.
Plug the electric element into the receptacle
in the front of the module. Be sure the
element is plugged into the receptacle
completely.
Position the grilling grate with feet seated
into the dimples on the stainless steel outer
grill pan.The slots of the grate run front to
back.
ACCESSORIES
Optional
accessories are
available through
your Wolf dealer.
Grilling grate

10
W O L F G R I L L M O D U L E U S E & C A R E
G R I L L M O D U L E OPERATION
BEFORE USING FOR THE FIRST TIME
Wash the grilling grate, grease deflection
plates and grease collection pan in warm
soapy water.This removes any residual oil and
grease left on the surface from the manufactur-
ing process.The electric grill module must be
reassembled in the correct alignment as shown
on page 9.
Refer to Care Recommendations on page 15.
Apply a stainless steel polish to protect the
finish and add luster.
Allow a burn-in period of approximately 10
minutes before use. During the initial period of
use, you may smell a light burning odor or see
light smoke. Both these conditions are normal
with a new grill module.
C O N T R O L OPERATION
The Wolf electric grill module operates by
automatically cycling the heating elements
between zero power and full power. As the
heat is increased on the control panel, the
element will stay at full power for longer
periods and have shorter periods of zero
power.
MODES OF OPERATION
LOCK MODE
In
Lock mode , all touch pad operations on
the control panel are disabled and the heating
element is deenergized. A steady glowing light
in the touch pad indicates that the unit
is locked. Refer to the illustration below for
location of the touch pad.
To lock the control panel, touch and hold
the symbol for 3 seconds. The unit
will beep three times and the light in the
touch pad will illuminate. The
control unit is now in
Lock mode .
To unlock the control panel, touch and hold
the symbol for 3 seconds. The unit
will beep twice and the light in the
touch pad will go out. The control unit is
now in
Idle mode .
IMPORTA T OTE: When the unit is powered
up for the first time or if there has been a
power outage, the grill module will default to
Lock mode .
IDLE MODE
After unlocking the control panel as described
in ock Mode, the unit enters the
Idle mode of
operation.The valid touch pad operations are
,, ”
+ ” or ” – ” and the Lock mode
.
ED display
indicator lights
ock ”key”
touch pad
Power indicator
bar graph
SE ECT
touch pad
Temperature
adjustment
OFF ON
touch pad
Timer ED
display
C EAR
touch pad

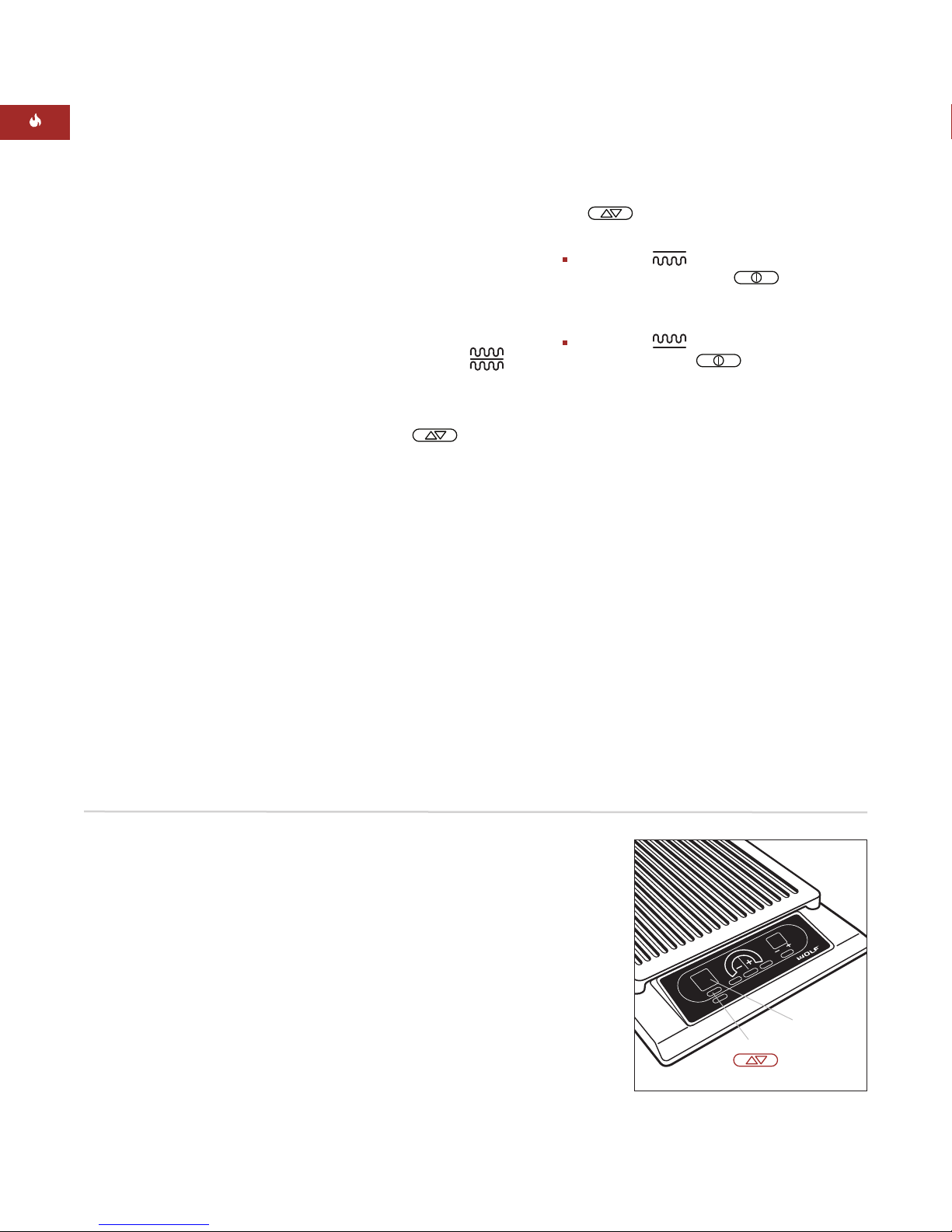

Touch control panel

11
W O L F GRILL MODULE U S E & C A R E
G R I L L M O D U L E OPERATION
SETTING CONTROLS
The control panel of your electric grill module
is illuminated and features touch controls
with graduated-control lighting. Refer to the
illustration below.
To activate the grill module, first touch the
touch pad on the touch control panel.
The power indicator bar graph will begin to
blink and show a half-power status. To
complete the activation, one of the following
must be done while the bar graph is still
blinking:
Touch the ”
+ ” symbol to set the power
output at half power and complete the
activation.
Touch the ”
– ” symbol to set the power
output at half power and complete the
activation.
Touch to set the power output to full
power and complete the activation.
Touch to set the power output to the
lowest power and complete the activation.
To change the power level setting once the
unit is activated and the bar graph lights are
no longer blinking:
Touch the ” + ” symbol to increase the power
level by one light on the bar graph.
Touch the ”
– ” symbol to decrease the
power level by one light on the bar graph.
Touch to increase the power level
directly to full power.
Touch to decrease the power level
directly to the lowest power.
Touch o turn the unit off.
Touch controls
touch pad
”+” and ”–”
symbols
touch pad
touch pad

12
S E L E C T FEATURE
The Select feature allows each of the two
1400-watt elements to be operated at the same
power level or independently. With the front
element set at a different power level than the
rear element, you can grill a variety of foods at
the same time.
SELECT TOUCH PAD OPERATION
During normal start-up operation, the
indicator light is illuminated, meaning both the
front and rear elements are energized and set
at the same power level. Refer to the illustra-
tion below for location of the touch
pad and indicator lights.
W O L F G R I L L M O D U L E U S E & C A R E
Select touch pad
To turn the elements on individually, touch
the touch pad to select either the front
or rear element.
When the indicator light is
illuminated, touch the touch pad
and any power level setting for the front
element.
When the indicator light is illumi-
nated, touch the touch pad and any
power level setting for the rear element.
If after five seconds no power level is entered,
the unit will return to the
Idle mode .
Indicator
lights
touch pad

13
To change the power level setting of the
elements individually
, touch the
touch pad to select either the front or rear
element.
When the indicator light is
illuminated, adjustments can be made to
the power level of the front element.
When the indicator light is illumi-
nated, adjustments can be made to the
power level of the rear element.
The settings can be adjusted using the
and touch pads or the “
+ ” and “ – ”
symbols.
Once individual power levels are set, the
and indicator lights will illuminate
alternately.To change an individual setting,
either wait until the desired indicator light is
illuminated or touch the touch pad to
select either the front or rear element.
W O L F GRILL MODULE U S E & C A R E
To change individual power level settings
to the same setting,
touch the
touch pad until the indicator light is
illuminated.
Enter any power level setting within five
seconds and both elements will be set to
that power level.
If only one element is energized and no
other setting is entered, both elements will
be set to the power level of that element.
If after five seconds no power level is
entered, both elements will be set to the
lower of the two power level settings.
To turn an element off individually, touch the
touch pad to select the element, then
touch within 5 seconds. If the
touch pad is touched after 5 seconds, the entire
unit will turn off.
To turn both elements off, touch the
touch pad until the indicator light is
illuminated, then touch the touch pad
within 5 seconds to turn off both elements.

14
W O L F G R I L L M O D U L E U S E & C A R E
T I M E R OPERATION
The control panel of the grill module has an
independent 99-minute timer. Refer to the
illustrations below.This function can be used
with or without the unit in operation. However,
the grill must not be in
Lock mode .
To start the timer, touch the ”
+ ” or ” – ”
symbol until the correct amount of time is
shown in the timer display.The timer will
begin its countdown after a two-second
delay.
A warning beep will sound when the timer
has one minute left and begins to count-
down in seconds starting at 59.
A signal will beep when time has expired
and will continue to beep every 30 seconds.
Touch to reset the timer.
Timer controls
Timer
display
”+” and ”–”
symbols
Clear touch pad
touch pad

15
W O L F GRILL MODULE U S E & C A R E
C A R E RECOMMENDATIONS
COMPONENT CARE RECOMMENDATION
Grill Module
Frame and Outer
Grill Pan
Stainless steel
CAUTIO :
Make sure the grill module is off and all surfaces are cool before
cleaning any part of the unit.
Exterior Cleaning: Use a soft, nonabrasive stainless steel cleaner like
Signature Polish (see side note) and apply with a soft lint-free cloth. To bring
out the natural luster, lightly wipe the surface with a water-dampened
microfiber cloth, followed with a dry microfiber cloth. All work should follow
the same grain direction as the finish. Best results are obtained by keeping
the cloth in continuous contact with the metal.
For best results, wipe up spills and spatters as they occur and immediately
after the module has cooled. If splatters are allowed to dry, they may perma-
nently damage or stain the finish.
CAUTIO : Do not use abrasive cleaners; they will permanently scratch the
surface.
Before cleaning, remove all excess grease and burned on food particles.
Wash in hot water with a mild detergent. Rinse and dry.
CAUTIO : Do not immerse in water! If food particles are burned-on, wipe
clean by hand using a damp cloth.
Before cleaning, remove all excess grease and burned-on food particles.
Wash in hot water with a mild detergent. Rinse and dry.
Use warm soapy water with a soft cloth to remove fingerprints and residual
food and water stains from the control panel. Apply cleaner to the cloth
before wiping panel. Do not use aggressive commercial cleaners, as they
may damage the assembly.
Grilling Grate
Porcelain-coated
cast iron
Radiator Plates and
Grease Collection
Pan
Porcelain-coated
steel
Control Panel
Ceran glass
Electric Element
Calrod

16
W O L F S E R V I C E INFORMATION
The information and images are the copyright
property of Wolf Appliance, Inc., an affiliate
of Sub-Zero, Inc. either this book nor any
information or images contained herein may
be copied or used in whole or in part without
the express written permission of Wolf Appli-
ance, Inc., an affiliate of Sub-Zero, Inc.
©Wolf Appliance, Inc. all rights reserved.
S E R V I C E INFORMATION
When requesting information, literature,
replacement parts or service, always refer to
the model and serial number of your grill
module. Both numbers are listed on the
product rating plate located on the underside
of the module. Refer to the illustration on
page 5. Record the rating plate information
below for future reference.
Model Number
Serial Number
Installation Date
Wolf Dealer and Phone
B E F O R E C A L L I N G F O R S E RV I C E
If the grill module does not operate, refer to
the following troubleshooting steps before
calling your Wolf dealer or regional distributor:
Check to make sure the grill module is not
in
Lock mode .
Check the household fuse or circuit breaker
to see if it has been blown or tripped.
Check that the electrical connection to the
appliance has not been disconnected. A
power outage may also have caused a
disruption in service.
Have an electrician verify that the proper
voltage is being applied to the module.
CONTACT
INFORMATION
Website:
wolfappliance.com

Cuando lea esta guía de uso y mantenimiento,
deberá prestar especial atención cuando
aparezcan los símbolos de PRECAUCIÓ y
ADVERTE CIA. Esta información es impor-
tante para utilizar de forma segura y eficaz el
equipo de Wolf.
Además, esta guía de uso y mantenimiento
puede incluir una OTA IMPORTA TE para
resaltar información especialmente importante.
indica una situación en la que pueden
producirse heridas personales leves o
daños secundarios en el producto si no
se siguen las instrucciones.
indica que existe peligro de que se
produzcan heridas personales graves o
incluso puede provovar la muerte si no
se siguen las instrucciones.
WOLF®es una marca comercial registrada de Wolf Appliance, Inc.

19
PRESENTACIÓN DEL M Ó D U LO D E PA R R I L L A W O L F
G R A C I A S
a compra de un módulo de parrilla eléctrico
Wolf confirma la importancia que usted da a
la calidad y al rendimiento de su equipo de
cocina. Entendemos esta importancia y
hemos diseñado y creado el módulo de
parrilla con materiales y mano de obra de
primera calidad para proporcionarle muchos
años de servicio seguro y eficaz.
Sabemos que está deseando empezar a
cocinar, pero antes de hacerlo, debe leer esta
guía de uso y mantenimiento.Tanto si es un
cocinero novato como si es un chef experto,
le resultará útil familiarizarse con las prácticas
de seguridad, las funciones, el
funcionamiento y las recomendaciones de
mantenimiento del módulo de parrilla eléc-
trico Wolf.
Cuando necesite solicitar asistencia técnica
debe proporcionar la referencia del modelo y
el número de serie del módulo de parrilla.
Esta información se muestra en la placa de
datos de voltaje del producto situada en la
parte inferior del módulo. Observe la si-
guiente ilustración.
OTA IMPORTA TE: a instalación y el
mantenimiento deben ser realizados por un
instalador cualificado o por un centro de asis-
tencia técnica.
OTA IMPORTA TE: Se recomienda utilizar
una campana extractora con el módulo de
parrilla eléctrico de Wolf, aunque no es
obligatorio.
OTA IMPORTA TE: Para evitar que se
produzca una descarga eléctrica al desconec-
tar el módulo de parrilla, debe desconectar el
aparato de la red eléctrica.
OTA IMPORTA TE: El aparato debe estar
conectado a tierra de manera correcta
siempre que esté conectado a la red eléctrica.
INFORMACIÓN
D E C O N TA C TO
Página Web:
www.sub-zero.eu.com
Ubicación de la placa de voltaje
Ubicación de la placa
de datos de voltaje
debajo del módulo

20
Q U É D E B E H A C E R
OTA IMPORTA TE: Lea las instruc-
ciones antes de utilizar este aparato.
Lea con detenimiento esta guía de
uso y mantenimiento antes de
utilizar el nuevo módulo de parrilla
para reducir el riesgo de que se
produzca un incendio, una descarga
eléctrica o lesiones personales.
Asegúrese de que la unidad ha sido
instalada y conectada a tierra de
manera correcta por un técnico
cualificado.
Utilice guantes o elementos
aislantes adecuados. os paños de
cocina u otro tipo de bayetas pueden
enredarse y provocar quemaduras.
os elementos aislantes deben
mantenerse secos. os elementos
aislantes húmedos crean vapor y
pueden causar quemaduras.
Mantenga los elementos aislantes
lejos del foco del calor cuando
levante o mueva los utensilios.
Mantenga siempre el aparato limpio
y en óptimas condiciones tal y como
se recomienda en la guía de uso y
mantenimiento.
PRECAUCIONES E INSTRUCCIONES DE SEGURIDAD
Para eliminar el riesgo de que se
produzcan quemaduras o un
incendio al tocar superficies
calientes, debe evitar que haya
armarios situados encima de las
unidades. Si va a colocar armarios,
el riesgo se puede reducir insta-
lando una campana de extracción
que sobresalga horizontalmente
un mínimo de 127 mm de los
armarios inferiores.
