Wolf CMJ24 User manual

Item #_____________ C.S.I. Section 11420
Wolf Range Company
Division of ITW Food Equipment Group LLC
[phone]
www.wolfrange.com
F-39080 (04-07)
BASIC MODELS:
CMJ24 24" cheesemelter broiler.
CMJ34 34" cheesemelter broiler.
CMJ36 36" cheesemelter broiler.
CMJ48 48" cheesemelter broiler.
CMJ60 60" cheesemelter broiler.
CMJ72 72" cheesemelter broiler.
KEY FEATURES:
➤Stainless steel front, top, bottom and sides.
➤Equipped with heavy-duty pre-mix atmospheric infrared
burners.
➤Standing pilot ignition system.
➤Heavy-duty chrome plated grid rack and 3 position rack
guide.
➤Removable full width spillage pan.
➤¾" rear gas connection and gas pressure regulator.
➤One year limited parts and labor warranty.
OPTIONAL FEATURES:
➤Set of stainless steel wall mount brackets.
➤Set of four 4" legs with adjustable feet.
DESCRIPTION:
Gas infrared cheesemelter broiler, Wolf Model No. _______.
Stainless steel exterior. Equipped with heavy-duty pre-mix
atmospheric infrared burners. Heavy-duty chrome plated grid
rack and 3 position rack guide. ¾" rear gas connection and gas
pressure regulator.

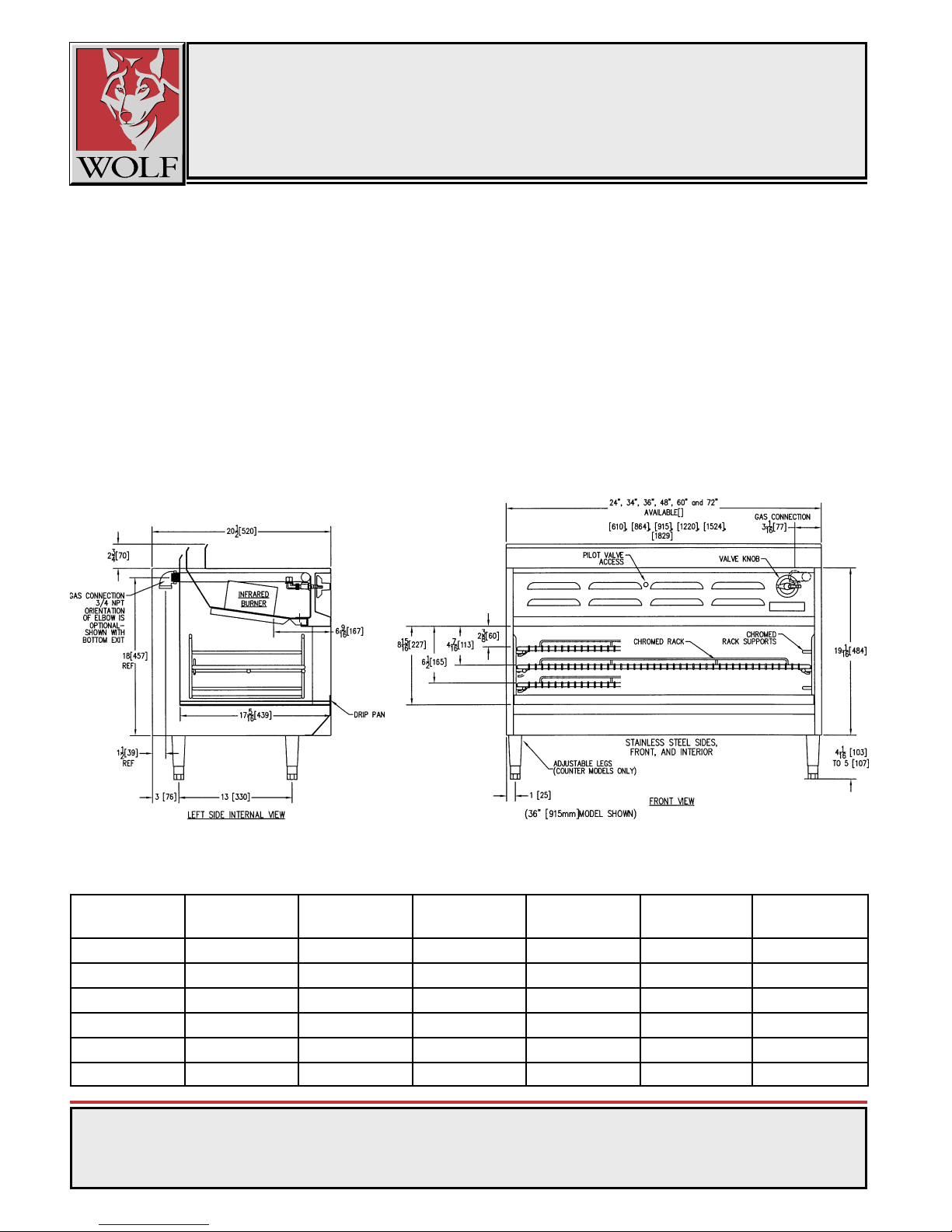

Exterior dimensions: ____"w x 20½"d x 19¹⁄₁₆"h.
MODEL: CMJ SERIES Gas Infrared Cheesemelter
Approved by_______________________
Date: _____________________________
SPECIFY TYPE OF GAS WHEN ORDERING.
SPECIFY ALTITUDE WHEN ABOVE 2,000 FT.
Model CMJ36
CSA design certified. NSF listed.
MODEL: CMJ SERIES
GAS INFRARED CHEESEMELTER

NOTE: In line with its policy to continually improve its product, Wolf Range Company
reserves the right to change materials and specifications without notice.
This appliance is manufactured for commercial use only and is not intended for home use.
F-39080 (04-07)
Model CMJ Series
Gas Infrared Cheesemelter
INSTALLATION REQUIREMENTS:
1. A gas pressure regulator sized for this unit is included.
Natural Gas 5.0" W.C. Propane Gas 10.0" W.C.
2. Gas line connecting to appliance must be ¾" diameter or
larger. If flexible connectors are used, the inside diameter
must be the same as the ¾" iron pipe.
3. An adequate ventilation system is required for commer-
cial cooking equipment. Information may be obtained
by writing to the National Fire Protection Association,
1 Batterymarch Park, Quincy, MA 02169, www.NFPA.org.
When writing, refer to NFPA No. 96.
4. These units are manufactured for installation in accordance
with National Fuel Gas Code, ANSI-Z223.1/NFPA #54 (lat-
est edition). Copies may be obtained from The American
Gas Association, Accredited Standards Committee Z223
MODEL NUMBER OF TOTAL APPROX. SHP.
NO. WIDTH DEPTH HEIGHT BURNERS BTU/hr. WT. (lbs./kg)
CMJ24 24" 20½" 19¹⁄₁₆" 1 18,000 106/48
CMJ34 34" 20½" 19¹⁄₁₆" 1 24,000 159/72
CMJ36 36" 20½" 19¹⁄₁₆" 1 24,000 159/72
CMJ48 48" 20½" 19¹⁄₁₆" 2 36,000 212/95
CMJ60 60" 20½" 19¹⁄₁₆" 2 42,000 265/119
CMJ72 72" 20½" 19¹⁄₁₆" 2 48,000 318/143
@ 400N. Capital St. NW, Washington, DC 20001, or the
Secretary Standards Council, NFPA, 1 Batterymarch Park,
Quincy, MA 02169-7471.
NOTE: In the Commonwealth of Massachusetts
All gas appliances vented through a ventilation hood or
exhaust system equipped with a damper or with a power
means of exhaust shall comply with 248 CMR.
5. Clearances:
Combustible Non-Combustible
Rear 2" 0"
Sides 20" 0"
Bottom 10" 4"
