Wolf SO36U User manual

Planning Information
LSeries 36" (914) Built-In Single Oven
MODEL SO36U
1
Dimensions in parentheses are in
millimeters unless otherwise specified.
9/07
The Wolf L Series Model SO36U
unframed 36" (914) built-in single oven
is available in the classic, platinum and
carbon stainless steel finishes.
It’shard to put into a few words the differences you
will see in the Wolf L Series built-in ovens compared to
others on the market. Some of those differences are
very dramatic and some are very subtle. Suffice to say
that you and your clients will notice the differences.
The unframed door style is sleek and contemporary in
appearance.
Did you notice that the control panel closes? It’san
attractive feature and will enable you to hide that control
panel that many of us have labored to make functional
and tried to makebeautiful.
Inside, the beauty, design and functionality continue.
Brilliant halogen lights illuminate the beautiful blue
interior. As you open the oven door, feel the smoothness
of the door damper system. Pull that bottom oven rack
all the way out and notice how it is nestled on the door
rails. With the dual convection fans, all L Series models
offer ten different cooking modes.

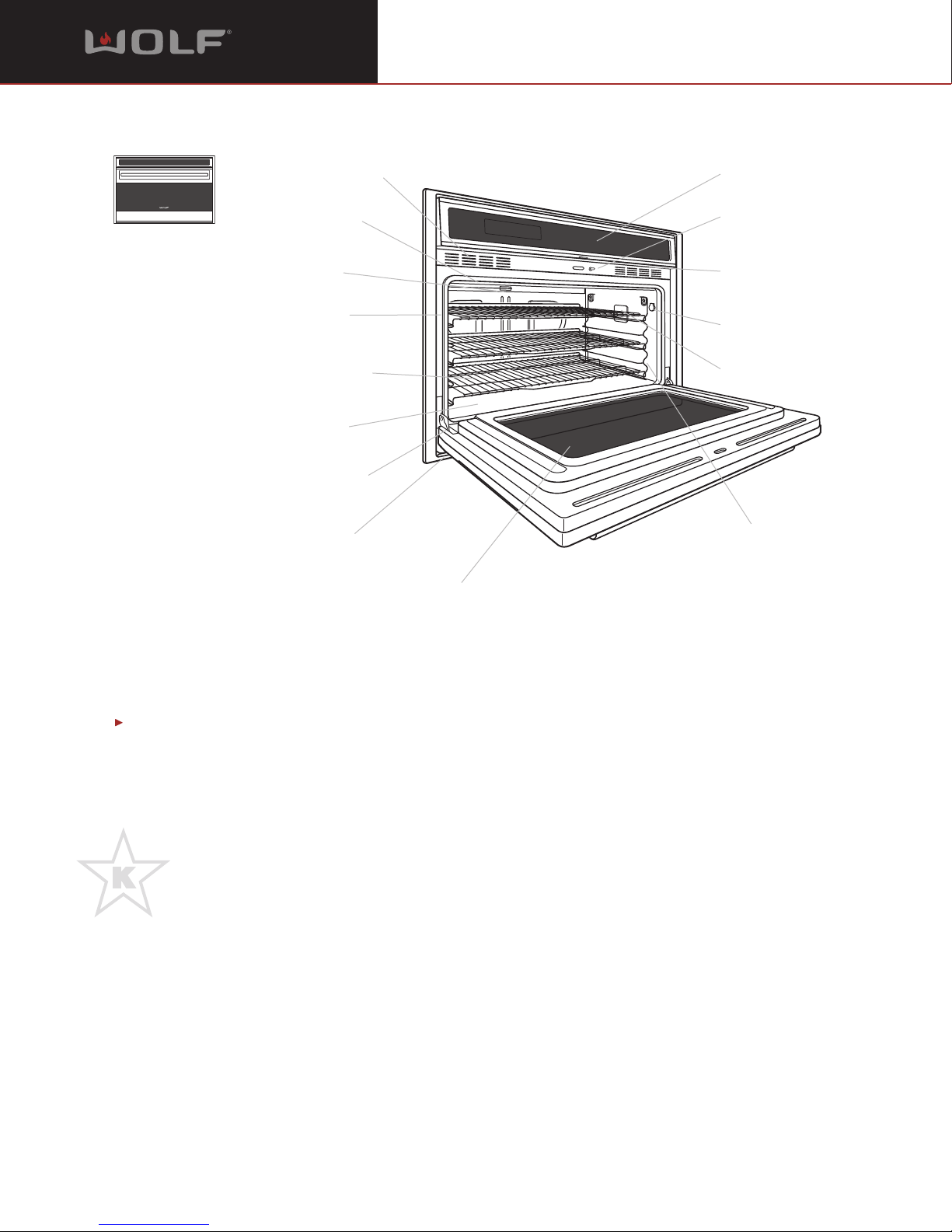

Model SO36U
Unframed
Rotating electronic
control panel
Electronics and
door cooling vents
Recessed broil
element
Probe receptacle
Halogen lights
Removable five-level
rack guides
Three removable
racks
Hidden bake
element
Triple-pane window
Door hinge with
hydraulic damper
Exhaust vent
Location of rating
plate
Oven door light
switch
Thermostat
Oven gasket
This appliance is certified by Star-K
to meet strict religious regulations in
conjunction with specific instructions
found on www.star-k.org.

Planning Information
LSeries 36" (914) Built-In Single Oven
MODEL SO36U
2
24" (610)
BEHIND FRAME
243/8"
(619)
355/8"
(905)
24"
(610)
23" (584)
INSIDE
SIDE TRIM
CONDUIT
CHANNEL
OPEN OVEN DOOR
TOP VIEW
341/8"
(867)
3311/16"
(870)
3"
(76)
173/4"
(451)
11/4"
(32)
17/8"
(48)
17/8"
(48)
RIGHT SIDE VIEW
OVERALL DIMENSIONS
FEATURES
Unframed door style
Classic, platinum and carbon stainless steel
finishes
Dual convection logic control system
Ten cooking modes—bake, roast, broil,
convection bake, convection roast, convec-
tion broil, convection, bake stone (accessory
required), dehydrate (accessory required) and
proof
Rotating glass touch control panel
Cobalt blue porcelain oven interior
Three removable racks, five-level rack guides
and full-extension bottom rack
Large viewing triple-pane window
Dual interior halogen lighting
Hidden bake element and recessed broil
element
Temperature probe and receptacle
Self-clean, delayed start and Sabbath
features
Door hinge with hydraulic damper assures
smooth opening and closing of the door
Factory-installed trim
CSA certified for US and Canada
Two and five year residential warranty—
exclusions apply; warranty information can
be found on our website, wolfappliance.com
Dimensions in parentheses are in
millimeters unless otherwise specified.
Unit dimensions may vary by ± 1/8"(3).

Planning Information
LSeries 36" (914) Built-In Single Oven
MODEL SO36U
Dimensions in parentheses are in
millimeters unless otherwise specified. 3
SPECIFICATIONS
Overall Oven Width 35 5/8"(905)
Overall Oven Height 24 3/8"(619)
Overall Oven Depth 24" (610)
Open Oven Door Clearance 17 3/4"(451)
Overall Oven Interior Capacity 4.4 cu ft (125 L)
Overall Interior Dimensions 30" W x 131/4"Hx19" D
(762 x 337 x 483)
Usable Interior Dimensions 261/2" W x 131/4" H x 16 3/8"D
(673 x 337 x 416)
Recommended Cabinet Width 39" (991)
Minimum Cabinet Width 36" (914)
Minimum Cabinet Depth 24" (610)
Minimum Base Support 250 lbs (113 kg)
Opening Width 341/2"(876)
Opening Height 241/16"(611)
Trim Overlaps 3/16"(5) top, 1/8"(3) bottom
3/4"(19) each side
Electrical Supply Requirements 240/208 V AC, 60 Hz
30 amp circuit
Conduit 3 ft (.9 m) flexible 4-wire
Electric Rating 5.1 kW at 240 V
3.8 kW at 208 V
Total Amps 21
Shipping Weight 288 lbs (131 kg)
Specifications are subject to change without notice.
MODEL OPTIONS
Unframed Door Style –
Classic Stainless Steel SO36U/S
Platinum Stainless Steel SO36U/P
Carbon Stainless Steel SO36U/B
ACCESSORIES
Bake stone accessory, includes
stone, rack and peel
Two-piece broiler pan and
temperature probe
Set of three oven racks
Dehydration racks with door stop
Accessories are available through your
Wolf dealer. To obtain local dealer
information, visit the Showroom Locator
section of our website, wolfappliance.com.
Model SO36U
Unframed
Unit dimensions may vary by ± 1/8"(3).

Planning Information
LSeries 36" (914) Built-In Single Oven
MODEL SO36U
Dimensions in parentheses are in
millimeters unless otherwise specified. 4
241/16"
(611)
OPENING
HEIGHT
341/2"(876)
OPENING WIDTH
5"
(127) E
39" (991)
RECOMMENDED CABINET WIDTH
36"min (914)
24"min (610)
OPENING DEPTH
E
E
E
4"
(102)
ELECTRICAL LOCATION
WITHIN OPENING APPLIES
ONLY TO CABINETS
DEEPER THAN 24"(610)
33/4"min (95)
E
5"
(127)
39" (991)
RECOMMENDED CABINET WIDTH
36"min (914)
73/4"(197) rec
43/4"(121) min
241/16"
(611)
OPENING
HEIGHT
341/2"(876)
OPENING WIDTH
24"min (610)
OPENING DEPTH
4"
(102)
36" (914)
STANDARD
FLOOR TO
COUNTER
HEIGHT
ELECTRICAL LOCAT I ON
WITHIN OPENING APPLIES
ONLY TO CABINETS
DEEPER THAN 24"(610)
E
WALL INSTALLATION
IMPORTANT NOTE: Unless you are using cabinets deeper than
24" (610), it is recommended that the electrical supply be placed
in an adjacent cabinet within reach of the conduit. Choose the
location shown in the illustrations that best suits your installation.
UNDERCOUNTER INSTALLATION

Planning Information
LSeries 36" (914) Built-In Single Oven
MODEL SO36U
Dimensions in parentheses are in
millimeters unless otherwise specified. 5
INSTALLATION NOTES
Refer to the illustrations and specifications
for overall dimensions, finished rough opening
dimensions and installation specifics.
For ease of installation, Wolf recommends
using a 39" (991) wide cabinet with the
LSeries 36" (914) single oven. You will need a
minimum 24" (610) of usable cabinet depth.
The cabinet base platform must be able to
support 250 lbs (113 kg).
Wolf L Series built-in ovens have a face trim
on all four sides and will overlap stiles and rails.
The trim overlaps 1/8"(3) on the bottom, 3/16"
(5) on the top and 3/4"(19) on each side.
L Series single ovens require a separate,
grounded 4-wire 240/208 V AC, 60 Hz, 30 amp
service with its own circuit breaker. It is
provided with a 3' (.9 m) flexible 4-wire conduit
for connection at the electrical supply.
IMPORTANT NOTE: Unless you are using
cabinets deeper than 24" (610), it is recom-
mended that the electrical supply be placed in
an adjacent cabinet within reach of the conduit.
A2" (51) diameter hole to route the conduit
through cabinetry will be required. Refer to the
illustrations on page 4 for location of electrical
supply.
You must follow all National Electrical Code
regulations. In addition, be aware of local codes
and ordinances when installing your service.
A Wolf L Series single oven maybe installed
below an induction, electric or gas cooktop.
Unless you are using cabinets deeper than 24"
(610), it is recommended that the electrical
supply be placed in the base cabinet to the
right of the oven within reach of the conduit.
When an L Series 36" (914) single oven is
installed below a cooktop, it is recommended
that the opening for the oven be 7 3/4"(197)
from the floor to ease the use of the oven door.
IMPORTANT NOTE: Wolf built-in ovens are
designed and agency approved for installation
with Wolf cooktops only. A built-in oven cannot
be installed below a Wolf rangetop. For addi-
tional specifications, refer to the induction,
electric and gas cooktop sections of our
website, wolfappliance.com.
An L Series single oven may be installed in
combination with a Wolf microwave and
warming drawer. Refer to page 6 for specifica-
tions.
An L Series single oven may be installed next
to another L Series single oven. You must allow
for a 21/2"(64) space between the oven rough
openings. Also, a separate inner wall is required
for each oven between openings.
An L Series 36" (914) single oven maybe
installed above another 36" (914) oven. You
must allow enough space between the oven
openings to accommodate a base support for
the top oven. Each base cabinet support must
be able to support 250 lbs (113 kg).
Refer to the installation instructions
shipped with each Wolf product for detailed
specifications.

Planning Information
LSeries 36" (914) Built-In Single Oven
MODEL SO36U
Dimensions in parentheses are in
millimeters unless otherwise specified. 6
Installation specifications for an L Series 36" (914) single oven installed with convection microwave with L Series
36" (914) trim and warming drawer with integrated drawer front.

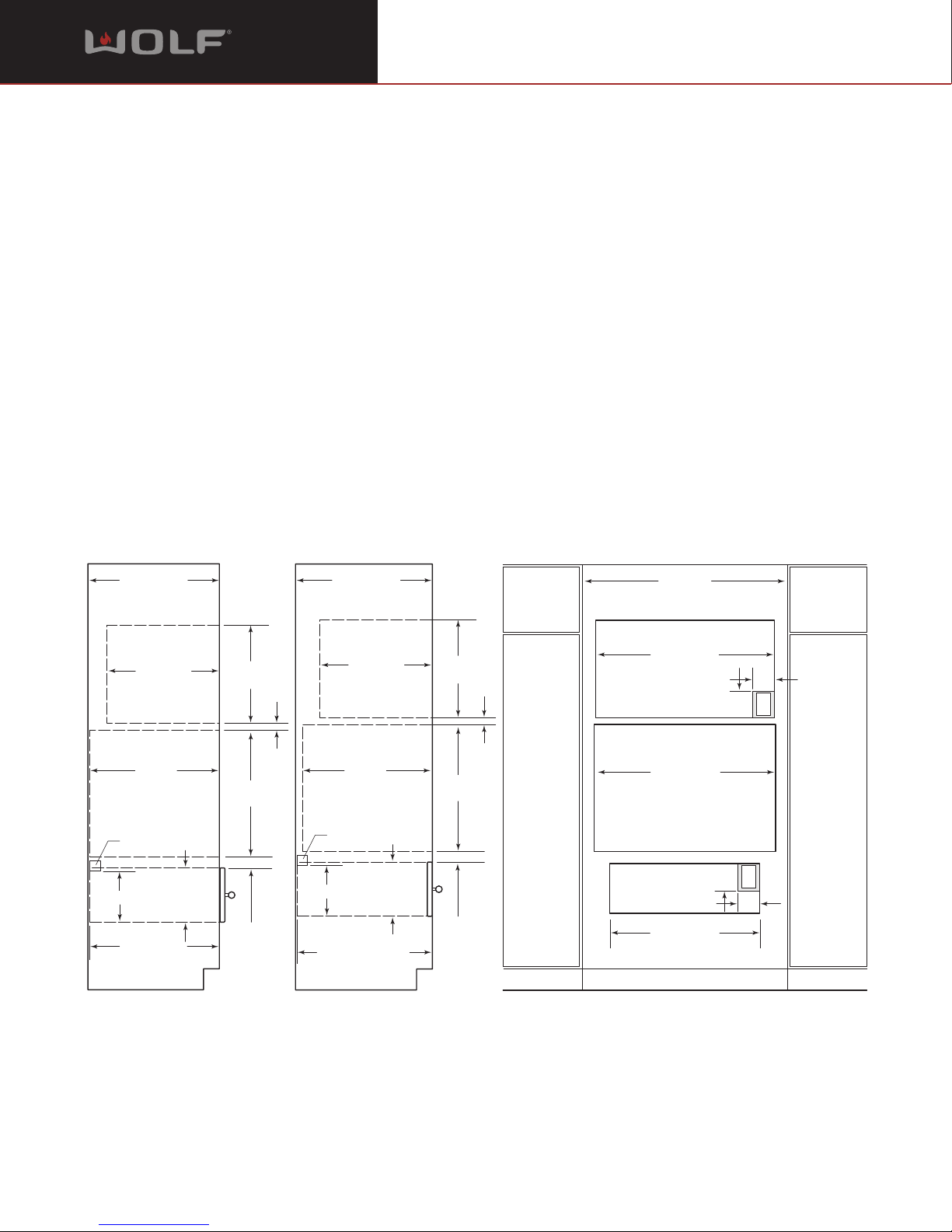

COMBINATION INSTALLATION
AWolf L Series 36" (914) built-in single oven
may be installed in combination with a Wolf
convection microwave with L Series 36" (914)
trim and warming drawer with integrated drawer
front.
Keep in mind that the width of the custom
panel for the warming drawer with integrated
drawer front will vary according to the specific
installation.
Wolf recommends using 39" (991) cabinets with
this installation. Also, you need a minimum 24"
(610) of usable cabinet depth for the oven.
The base platform for the oven must be able to
support 250 lbs (113 kg), the platform for the
microwave must be able to support 125 lbs
(57 kg) and the warming drawer platform must
be able to support 200 lbs (91 kg).
Ananti-tip block or platform must be installed
to prevent the warming drawer from tipping
forward when the drawer is opened. The
warming drawer must be fully enclosed, top
and bottom.
For electrical requirements and additional
specifications, refer to the microwave oven and
warming drawer sections of our website,
wolfappliance.com. Also refer to the installation
instructions provided with the microwave trim
kit and warming drawer front for detailed
specifications.
291/2"(749)
WARMING DRAWER
OPENING WIDTH
5"
(127)
4"
(102)
E
24"min
(610)
NOTE: Refer to the 36"(914) built-in single oven specifications for electrical location.
24"min
(610)
201/8"min
(511)
201/8"min
(511)
333/8"(854)
MICROWAVE
OPENING WIDTH
341/2"(876 )
36-INCH OVEN
OPENING WIDTH
5"
(127)
4"
(102)
E
39" (991)
RECOMMENDED CABINET WIDTH
36"min (914)
241/16"
(611)
1"min
(25)
1811/16"
(475)
241/16"
(611)
1"min
(25)
1811/16"
(475)
The width of the custom panel for the warming drawer with integrated drawer front will vary according to the specific installation, but the rough opening width will remain 291/2" (749).
OVERLAY APPLICAT I ON
*Dimension may increase depending onthe sizeof the drawer front panel.
11/2"min*
(38)
24" min (610)
OPENING DEPTH
101/4"
(260)
OPENING
HEIGHT
97/8"(251)
2"(51) x 2" (51)
ANTI-TIP BLOCK
FLUSH INSET APPLICATION
25" min (635)
CABINET DEPTH
11/2"min*
(38)
24" (610) + THICKNESS
OF DRAWER FACE
FOR OPENING DEPTH
101/4"
(260)
OPENING
HEIGHT
97/8"(251)
2"(51) x 2" (51)
ANTI-TIP BLOCK
24" min (610)
CABINET DEPTH
