Planning Information
Model W542718(R) Pro Wall Hood
Dimensions in parentheses are in
millimeters unless otherwise specified.
9/06
1
Wolf Pro wall hoods provide the ultimate in
ventilation. With standard elements like heat sentry
and dual setting halogen lighting, Wolf elevates the
need for ventilation to an enjoyable perk.
Pro 27" (686) deep wall hoods are available in the
classic stainless steel finish. You also have the option
of a decorative rail. While a classic stainless steel rail
is standard on (R) models, platinum or brass rails are
available to match the bezels of our dual fuel ranges
and sealed burner rangetops.
The deepest of the Pro wall hoods, this 27" (686)
model provides an additional exclusive feature – heat
lamps.
Pro wall ventilation hoods are recommended for use
with all Wolf cooking appliances. For optimal perform-
ance, a Pro 27" (686) deep wall hood is recommended
for use with ranges and rangetops that contain a
charbroiler or griddle.
Wolf Pro 27" (686) deep wall hoods
are available in the classic stainless steel
finish. Rail option hoods (R) come with a
classic stainless steel decorative rail and
stand-offs. Optional platinum or brass
rails match dual fuel range bezels. Pro
wall hoods are sold as a shell only;
internal, in-line and remote blower
options are available.
Model W542718
Model W542718R
– Rail Option
Model W542718R shown with standard classic stainless steel
decorative rail, platinum or brass rail available as a sales accessory
Classic stainless
steel finish
Backdraft damper
Stainless steel
baffle filters
Infinite speed
blower control
Welded seams
and hemmed edges
Halogen lighting
Hand finished
craftsmanship
Recessed easy
access controls
Decorative rail
(optional)

Planning Information
Model W542718(R) Pro Wall Hood
Dimensions in parentheses are in
millimeters unless otherwise specified.
Dimensions may vary by ±
1
/ 8 " (3).
2
FEATURES
54" (1372) wide by 27" (686) deep wall
ventilation hood with classic stainless steel
finish
Rail option hoods (R) come with a classic
stainless steel decorative rail and stand-offs –
optional platinum or brass rail to match dual
fuel range and sealed burner rangetop bezels
is available as a sales accessory
Internal, in-line and remote blower options
Heavy-duty 16-gauge brushed stainless steel
construction
Stainless steel enclosed liner
Continually welded seams, hemmed edges
and sides and hand finished craftsmanship
Recessed easy-access controls
Infinite-speed blower control
Heat sentry feature automatically turns unit
on when heat is sensed and automatically
adjusts blower speed
Halogen lighting with two settings
Heat lamps – bulbs not included
Removable, dishwasher-safe, restaurant-
grade stainless steel baffle filters
Transition with backdraft damper included
UL listed to US and Canadian safety
standards
UL approved for covered outdoor applications
Two and five year residential warranty –
exclusions apply; warranty information can
be found on our website, wolfappliance.com
54" (1372)
OVERALL WIDTH
27" (686)
OVERALL DEPTH
12"
(305)
54" (1372)
OVERALL WIDTH
27" (686)
OVERALL DEPTH
12"
(305)
18"(457)
OVERALL
HEIGHT
2"
(51)
4"(102)
3/4" (19)
DIAMETER
OF RAIL
18"(457)
OVERALL
HEIGHT
4"(102)
OVERALL DIMENSIONS
Model W542718
Model W542718R with Rail

Planning Information
Model W542718(R) Pro Wall Hood
Dimensions in parentheses are in
millimeters unless otherwise specified.
3
SPECIFICATIONS
Overall Width of Hood 54" (1372)
Overall Height of Hood 18" (457)
Overall Depth of Hood – W542718 27" (686)
W542718R (including rail) 29" (737)
Duct Size 10" (254) Round
Discharge Vertical
Electrical Supply Requirements 110 / 120 V AC, 60 Hz
15 amp dedicated circuit
Shipping Weight 108 lbs (49 kg)
For optimal performance, a Pro 27" (686) deep wall hood is
recommended for use with ranges and rangetops that contain a
charbroiler or griddle.
Specifications are subject to change without notice.
BLOWER OPTIONS
1200 CFM Internal Blower 804702
1100 CFM In-Line Blower 808332
900 CFM Remote Blower 801641
1200 CFM Remote Blower 801642
1500 CFM Remote Blower 804701
Refer to the Pro Ventilation
Recommendations chart at the end
of this section.
ACCESSORIES
Platinum or brass decorative rail
and stand-offs
38" (965) high stainless steel
backsplash
38" (965) high stainless steel
backsplash with warming rack
6" (152) and 12" (305) duct covers
Contact your Wolf dealer for additional
information on accessories.

Planning Information
Model W542718(R) Pro Wall Hood
Dimensions in parentheses are in
millimeters unless otherwise specified.
4
DIMENSIONS
Overall Width of Hood 54" (1372)
Overall Height of Hood 18" (457)
Overall Depth of Hood (excluding rail) 27" (686)
Countertop to Bottom of Hood 30" (762) to 36" (914)
Location of Electrical Within shaded area
See Installation Instructions shipped with unit for detailed specifications.
INSTALLATION SPECIFICATIONS
54" (1372)
WIDTH OF HOOD
NOTE: Horizontal discharge is applicable on 24" (610) deep wall hoods used with WBLOWER-120INT or any remote blower. 27" (686) deep wall hoods are vertical
discharge only.
30" TO 36"
(762–914)
TO COUNTERTOP
30" TO 36"
(762–914)
TO COUNTERTOP
18" (457)
HEIGHT
OF HOOD
27" (686)
DEPTH OF HOOD
E
6"
(152)
5"
(127)
LOCATION OF
ELECTRICAL

Planning Information
Model W542718(R) Pro Wall Hood
Dimensions in parentheses are in
millimeters unless otherwise specified.
5
INSTALLATION NOTES
Refer to the illustrations and specifications
for overall dimensions and installation specifics.
Wolf Pro wall ventilation hoods are recom-
mended for use with any Wolf cooking appli-
ance, and should be at least as wide as the
cooking surface. It is recommended that the
hood overlap the cooking surface by 3" (76) on
either side.
For optimal performance, a Pro 27" (686)
deep wall hood is recommended for use with
ranges and rangetops that contain a charbroiler
or griddle.
Installation of all Pro wall hoods should be
30" (762) to 36" (914) from the bottom of the
hood to the countertop. Follow the dimensions
shown in the Installation illustration.
Wolf Pro wall hoods are shipped without a
blower assembly. Internal, in-line and remote
blower assemblies are available. Blower options
also vary with the volume of air that needs to be
moved and the length of the duct run. Refer to
the end of this section for Pro ventilation
recommendations and blower options.
IMPORTANT NOTE: Install this ventilation hood
only with a Wolf blower.
Pro wall hoods require a separate, grounded
110/120 V AC, 60 Hz power supply. The service
should have its own 15 amp circuit breaker.
Placement of the electrical supply is not critical,
as long as you provide a minimum of 6" (152)
of 120 V AC, 60 Hz power cable. Locate electri-
cal within the shaded area shown in the Instal-
lation illustration. Note that the location of the
electrical supply will differ between vertical and
horizontal discharge blowers.
You must follow all National Electrical Code
regulations. In addition, be aware of local codes
and ordinances when installing your service.
Refer to the installation instructions shipped
with each Wolf product for detailed specifica-
tions. This information can also be found on
our website, wolfappliance.com.

Planning Information
Model W542718(R) Pro Wall Hood
Dimensions in parentheses are in
millimeters unless otherwise specified.
6

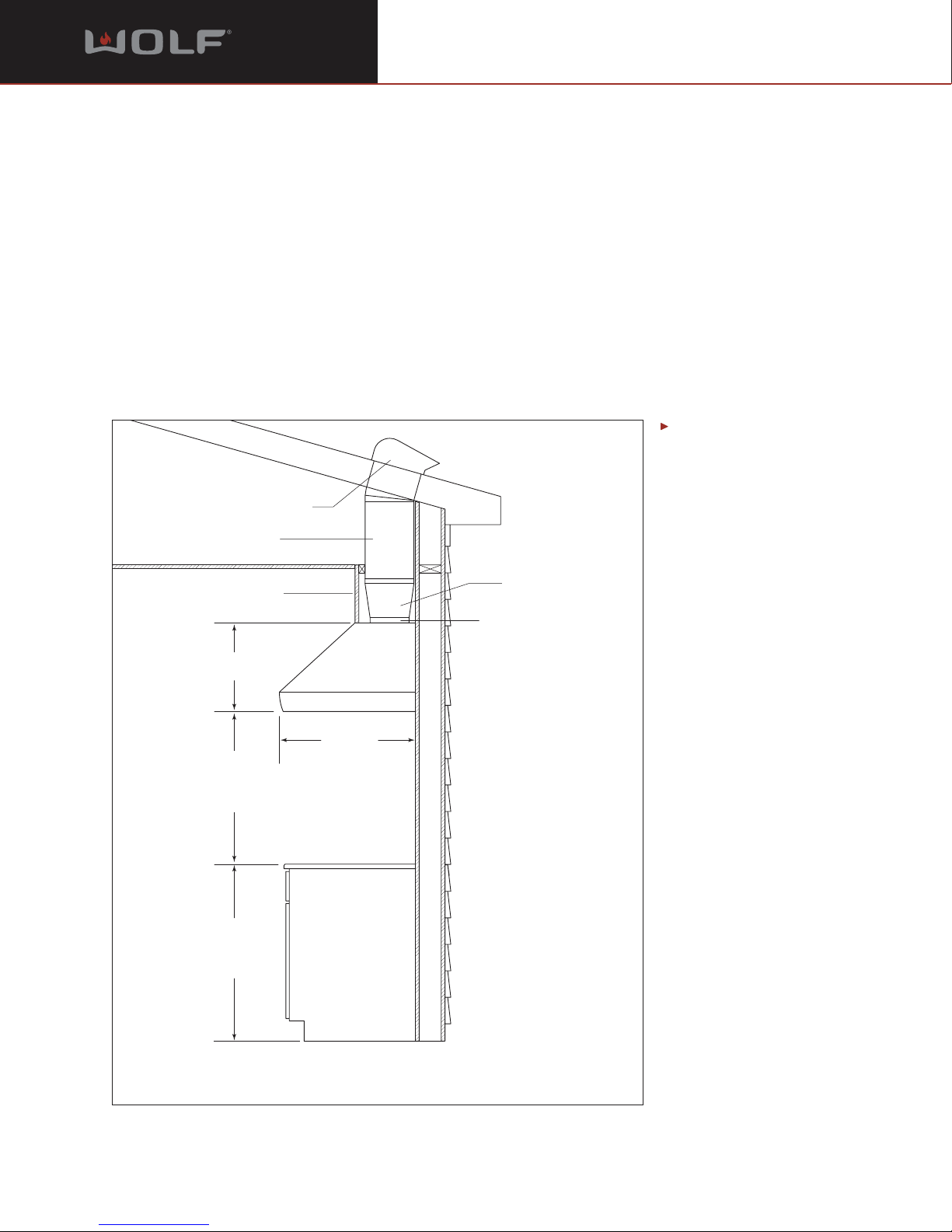

DUCTING CONSIDERATIONS
Wolf Pro 27" (686) deep wall hoods are shipped
without the blower assembly. Internal, in-line or
remote blower assemblies are available.
Pro 27" (686) deep wall hoods have a vertical
discharge location as shown in the illustration
below.
IMPORTANT NOTE: Install these ventilation
hoods only with a Wolf blower.
Refer to the Pro ventilation charts at the end of
this section for recommendations and blower
options.
30" TO 36"
(762–914)
COUNTERTOP
TO BOTTOM OF
VENTILATION HOOD
18" (457)
HEIGHT OF HOOD
WALL HOOD
DUCTWORK INSTALLATION
THROUGH ROOF
36" (914)
STANDARD
FLOOR TO
COUNTERTOP
HEIGHT
27" (686)
DEPTH OF HOOD
10" ROUND DUCT
SOFFIT OR CABINET
OR DUCT COVER
VERTICAL DISCHARGE ONLY FOR 27" (686) DEEP WALL HOODS.
TRANSITION
221/4"W x 9"D TO 10" ROUND
10"H (INCLUDING FLANGES)
ROOF CAP OR REMOTE BLOWER
VERTICAL DISCHARGE
Ducting considerations
for Pro 27" (686) deep
wall hoods.

Planning Information
Wolf Ventilation Recommendations
Dimensions in parentheses are in
millimeters unless otherwise specified.
7
241/2"
(622)
151/2"
(394)
281/4"
(718)
203/4"
(527)
243/4"
(629)
14"
(356)
43/4"
(121)
10" (254)
Diameter
143/4"
(375)
291/2"
(749)
291/2"
(749)
18" (457)
22"
(559)
101/8"
(257)
71/4"
(184)
10"
(254)
10" (254)
Diameter
Remote BLOWER-60REM and
BLOWER-90REM
143/4"
(375)
291/2"
(749)
291/2"
(749)
21" (533)
25"
(635)
103/8"
(264)
71/4"
(184)
10"
(254)
10" (254)
Diameter
WOLF BLOWER ASSEMBLIES
A ventilation system must include a blower
assembly. With a few exceptions where internal
blowers are included, Wolf ventilation hoods and
downdrafts are shipped without the blower
assembly. An internal, in-line or remote blower
assembly must be selected to accommodate the
cooking appliance, CFM requirements and home-
owner preferences. Internal, in-line and remote
blower assemblies are available as sales acces-
sories through your Wolf dealer.
Wolf internal, in-line and remote blowers are for
use with Wolf cooktop hoods, downdraft
systems and Pro ventilation hoods and hood
liners.
IMPORTANT NOTE: Use only a Wolf blower
with all Wolf ventilation products.
Internal blowers are mounted inside the hood
canopy or downdraft blower box. In-line blowers
are mounted in between the hood and the
exterior of the home. Remote blowers can be
mounted on the roof or in some cases, on an
exterior wall. Refer to the illustrations below for
dimensions of Wolf in-line and remote blowers.
Ventilation recommendation charts on the
following pages provide minimum CFM recom-
mendations according to the cooking appliance
and ventilation system used and blower options
for each specific ventilation hood or downdraft.
Remote BLOWER-120REM Remote BLOWER-150REM
113/4"
(298)
211/2"
(546)
243/8"
(619)
181/2"
(470)
121/4"
(311)
41/2"
(114)
18"
(457)
22"
(559)
247/8"
(632)
12"
(305)
18"
(457)
8"
(203)
In-line BLOWER-60IL In-line BLOWER-110IL
Dimensions may vary by ±
1
/ 8 " (3).

Planning Information
Wolf Pro Ventilation Recommendations
8
Dimensions in parentheses are in
millimeters unless otherwise specified.
PRO VENTILATION CFM RECOMMENDATIONS
Pro 27" (686) Deep Wall Hoods
W302718 W362718 W422718 W482718 W542718 W602718 W662718
DF304 / R304 / SRT304 600 600
DF366 / R366 / SRT366 / RT366 900 900
DF364 / R364 / SRT364 / RT364 900 900
RT362 900 900
R488 / RT488 1100 1100
DF486 / R486 / SRT486 / RT486 1100 1100
DF484 / R484 / SRT484 / RT484 1100 1100
R482 / RT482 1100 1100
DF606 / R606 1500 1500
DF604 / R604 1500 1500
Model numbers for dual fuel ranges, gas ranges, sealed burner rangetops and gas rangetops indicate width and number of surface
burners. Features such as a charbroiler, griddle and/or French Top will vary.
CFM recommendations are based on total Btu/hr output. Wolf recommends 1 CFM per 100 Btu/hr (.03 kW). Additional CFM may be
required for long duct runs.
PRO VENTILATION BLOWER OPTIONS
Pro 27" (686) Deep Wall Hoods
Blower Description Blower Number Wall Hood Models
600 CFM Internal WBLOWER-60INT (807614) W302718 / W362718 / W422718
900 CFM Internal WBLOWER-90INT (805086) W302718 / W362718 / W422718
1200 CFM Internal WBLOWER-120INT (804702) W482718 / W542718 / W602718 / W662718
600 CFM In-Line BLOWER-60IL (808331) W302718
1100 CFM In-Line BLOWER-110IL (808332) All 27" (686) Deep Wall Hoods
600 CFM Remote BLOWER-60REM (801640) W302718
900 CFM Remote BLOWER-90REM (801641) W302718 / W362718 / W422718 / W482718 / W542718
1200 CFM Remote BLOWER-120REM (801642) All 27" (686) Deep Wall Hoods
1500 CFM Remote BLOWER-150REM (804701) All 27" (686) Deep Wall Hoods
Vertical discharge with 10" (254) round duct.
Wall hood models without decorative rail listed; blower options are the same for (R) models. Transition with backdraft damper included
with all wall hoods. Blower configurations are for reference only. Refer to minimum CFM recommendations for your specific cooking
product. Always consult a qualified HVAC Engineer for specific applications.
