Wolf CTWH30 Owner's manual

USE &CARE INFORMATION
COOKTOP VENTILATION HOODS

CONTENTS
Introducing Wolf Cooktop Ventilation Hoods 3
Safety Instructions & Precautions 4
Wolf Cooktop Ventilation Hood Features 6
Wolf Cooktop Ventilation Hood Use & Care 8
Wolf Cooktop Ventilation Hood Accessories 12
Troubleshooting Guide 13
Service Information 14
Wolf Warranty 15
As you read this Use & Care Information,
take particular note of the CAUTION and
WARNING symbols when they appear.
This information is important for safe and
efficient use of the Wolf equipment.
In addition, this Use & CareInformation may
signal an IMPORTANT NOTE which highlights
information that is especially important.
signals a situation where minor injury or
product damage may occur if you do not
follow instructions.
states a hazard that may cause serious
injury or death if precautions are not
followed.
WOLF®is a registered trademark of Wolf Appliance Company, LLC

3
THANK YOU
Your purchase of a Wolf cooktop ventilation
hood attests to the importance you place upon
the quality and performance of your cooking
equipment. We understand this importance
and have designed and built your ventilation
hood with quality materials and workmanship
to give you years of dependable service.
We know you are eager to start cooking, but
before you do, please take some time to read
this Use & Care Information. Whether you are
abeginning cook or an expert chef, it will be
to your benefit to familiarize yourself with the
safety practices, features, operation and care
recommendations of the Wolf cooktop
ventilation hood.
We appreciate your choice of a Wolf Appli-
ance product and welcome any suggestions
or comments you may have. Toshare your
opinions with us, please call 800-332-9513.
Your Wolf ventilation hood is protected by a
warranty that is one of the finest in the
industry. Take a moment to read the warranty
statement on page 15 and refer to it should
service become necessary.
INTRODUCING WOLF COOKTOP VENTILATION HOODS
CONTACT
INFORMATION
Wolf Customer
Service:
800-332-9513
Website:
wolfappliance.com

4
WHAT TO DO
IMPORTANT NOTE: Read all
instructions before using this
appliance.
Read this Use and Care Information
carefully before using your new
ventilation unit to reduce the risk of
fire, electrical shock or injury to
persons.
Use this unit only in the manner
intended by Wolf Appliance
Company. If you have questions,
contact us at 800-332-9513.
Beforeservicing or cleaning unit,
switch power off at service panel
and lock the service disconnecting
means to prevent power from being
switched on accidentally.When the
service disconnecting means can not
be locked, securely fasten a
prominent warning device, such as a
tag, to the service panel.
Installation work and electrical
wiring must be done by qualified
person(s) in accordance with all
applicable codes and standards,
including fire-rated construction
codes and standards.
Sufficient air is needed for proper
combustion and exhausting of gases
through the flue (chimney) of fuel
burning equipment to prevent back-
drafting.Follow the heating
equipment manufacturer’s guideline
and safety standards such as those
published by the National Fire
Protection Association (NFPA), the
American Society for Heating,
Refrigeration and Air Conditioning
Engineers (ASHRAE) and the local
code authorities.
SAFETY INSTRUCTIONS AND PRECAUTIONS
Ducted fans must always be vented
to the outdoors.
To reduce the risk of fire, use only
steel ductwork.
This unit must be grounded.
To avoid motor bearing damage and
noisy and/or unbalanced impellers,
keep drywall spray, construction
dust, etc. off power unit.
For maximum ventilation capability,
the bottom of the hood should be a
minimum of 24" (610) and maximum
of 30" (762) above the countertop.
Please read specification label on
product for further information and
requirements.
Two installers are recommended
because of the large size and weight
of this hood.
Your hood motor has a thermal
overload which will automatically
shut off the motor if it becomes
overheated. The motor will restart
when it cools down. If the motor
continually shuts off and restarts,
contact an authorized Wolf service
provider.
Do not use abrasive or caustic
cleaners or detergents on this
appliance as these may cause
permanent damage.
To reduce the risk of fire and
properly exhaust air, be certain
to duct air outside. Do not vent
exhaust air into spaces within
walls or ceilings or into attics,
crawl spaces or garages.

5
WHAT NOT TO DO
When cutting or drilling into wall or
ceiling, do not damage electrical
wiring or other hidden utilities.
To reduce the risk of fire or electric
shock, do not use this hood with an
additional speed control device.
For general ventilating use only.
Do not use to exhaust hazardous or
explosive materials and vapors.
Avoid using food products that
produce flames under the wall hood
or island hood.
SAFETY PRECAUTIONS
TO REDUCE THE RISK OF A COOKTOP
GREASE FIRE:
Never leave surface units
unattended at high settings.
Boilovers cause smoking and greasy
spillovers that may ignite. Heat oils
slowly on low or medium settings.
Always turn hood ON when cooking
at high heat or when cooking
flaming foods.
Clean ventilating fans frequently.
Grease should not be allowed to
accumulate on fan or filter.
Use proper pan size. Always use
cookwareappropriate for the size of
the surface element.
USE AN EXTINGUISHER ONLYIF:
You know you have a Class ABC
extinguisher and you already know
how to operate it.
The fire is small and contained in
the area whereit started.
The fire department is being called.
You can fight the fire with your back
to an exit (NFPA Fire Safety Tips).
TO REDUCE THE RISK OF INJURY
TO PERSONS IN THE EVENT OF
A GREASE FIRE, OBSERVE THE
FOLLOWING:
Smother flames with a close-
fitting lid, baking sheet or other
metal tray, then turn off the gas
burner. Be careful to prevent
burns. If the flames do not go out
immediately, evacuate and call
the firedepartment.
Do not use water, including wet
dish cloths or towels – a violent
steam explosion will result.
Never pick up a flaming pan –
you may be burned.
Dimensions in parentheses are in
millimeters unless otherwise specified.

6
COOKTOP WALL HOOD FEATURES
Classic stainless steel finish
Internal or remote blower options
Front-mounted controls with LED indicators
Heavy-duty stainless steel seamless
construction
Three-speed blower control
Variable-speed blowers
Filter clean timer lets you know when the
filter needs cleaning
Delay-off mode automatically turns unit off
Sealed halogen lighting with three settings
Stainless steel filter cover with dishwasher
safe aluminum mesh filter
Heat sentry feature automatically turns unit
on when heat is sensed and automatically
adjusts blower speed
Transition with backdraft damper included
Fits 8' (2.4 m) to 9' (2.7 m) ceilings—flue
extension to accommodate 10' (3 m)
ceilings is available
UL listed to US and Canadian safety
standards
Two and five year residential warranty –
exclusions apply, see warranty on page 15
IMPORTANT NOTE: Wolf cooktop wall hoods
are recommended for use with Wolf electric
and gas cooktops and integrated modules.
They areNOT recommended for use with Wolf
dual fuel ranges, gas ranges and rangetops.
Any violation of this application may void your
warranty for one or both products.
WOLF COOKTOP VENTILATION HOOD FEATURES
MODEL CTWH30
30" (762) Cooktop Wall Hood
MODEL CTWH36
36" (914) Cooktop Wall Hood
LED indicators
Front mounted
controls
Seamless
construction
LED indicators
Front mounted
controls
Seamless
construction

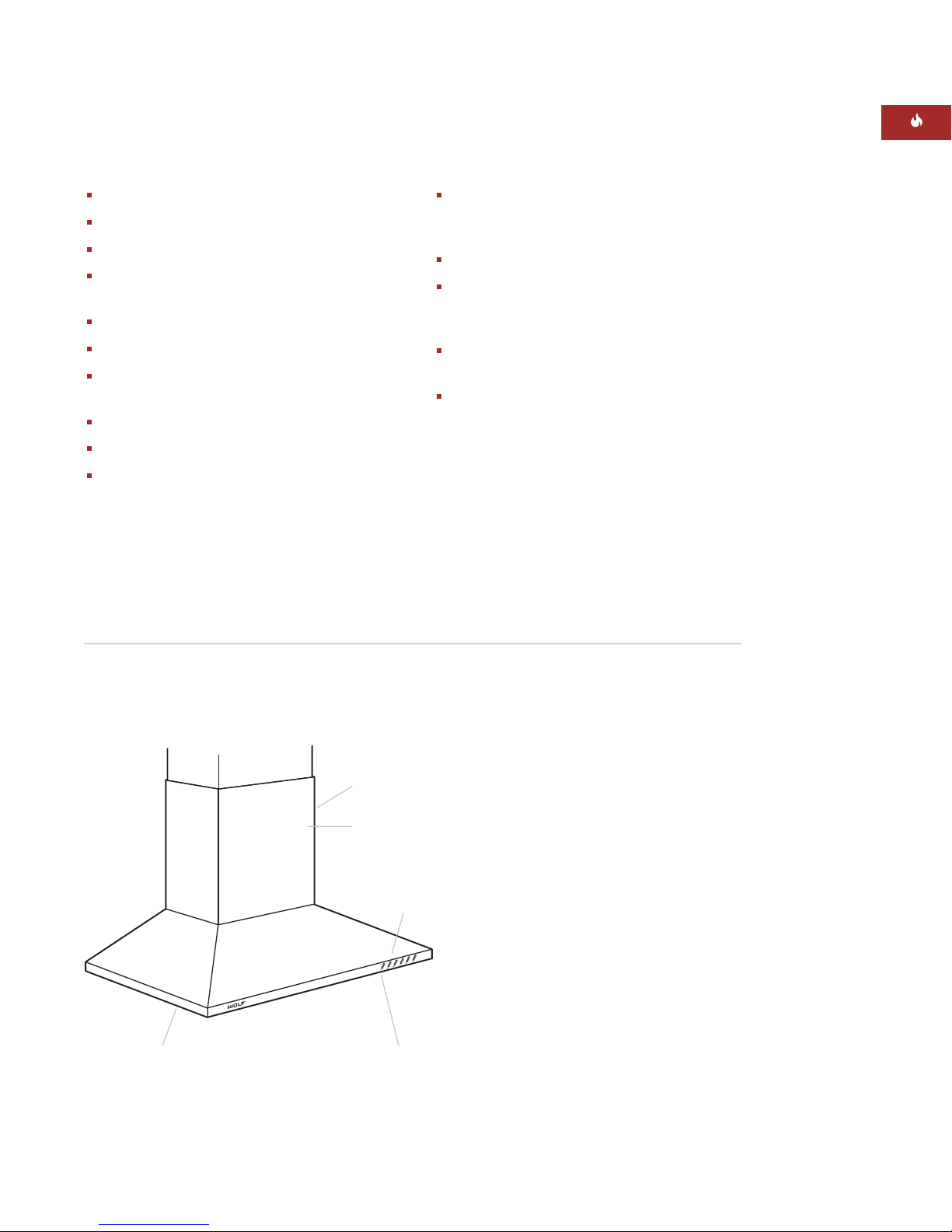

Model CTWH30
Model CTWH36
Model IH4227
Telescopic chimney
flue extension
Halogen lighting Halogen lighting
Telescopic chimney
flue extension

7
WOLF
WARRANTY
Wolf products are
covered by a two
and five year
residential warranty
(exclusions apply).
See warranty
details at the end
of this guide.
COOKTOP ISLAND HOOD FEATURES
Classic stainless steel finish
Internal or remote blower options
Front-mounted controls with LED indicators
Heavy-duty stainless steel seamless
construction
Three-speed blower control
Variable-speed blowers
Filter clean timer lets you know when the
filter needs cleaning
Delay-off mode automatically turns unit off
Sealed halogen lighting with three settings
Stainless steel filter cover with dishwasher
safe aluminum mesh filter
Heat sentry feature automatically turns unit
on when heat is sensed and automatically
adjusts blower speed
Transition with backdraft damper included
Fits 8' (2.4 m) to 9' (2.7 m) ceilings—flue
extension to accommodate 10' (3 m)
ceilings is available
UL listed to US and Canadian safety
standards
Two and five year residential warranty –
exclusions apply, see warranty on page 15
IMPORTANT NOTE: The Wolf cooktop island
hood is recommended for use with Wolf
electric and gas cooktops and integrated
modules. It is NOT recommended for use with
Wolf dual fuel ranges, gas ranges and range-
tops. Any violation of this application may void
your warranty for one or both products.
MODEL IH4227
42" (1067) Cooktop Island Hood
WOLF COOKTOP VENTILATION HOOD FEATURES
Dimensions in parentheses are in
millimeters unless otherwise specified.
LED indicators
Front mounted
controls
Seamless
construction
Halogen lighting
Telescopic chimney
flue extension

8
WOLF COOKTOP VENTILATION HOOD USE & CARE
VENTILATION HOOD CONTROLS
The ventilation hood is operated using the
controls along the front edge of the hood.
The
LIGHT button turns the halogen lights
onand off. The
LIGHT button also allows
you to brighten or dim lighting. Lighting
has three levels, high, medium and low.
The blower operates at three speeds. The
HIGH , MEDIUM or LOW button can be
pressed to activate the blower. The corre-
sponding LED indicator will illuminate to
indicate the blower speed.
To turn the ventilation hood off, depress the
speed control a second time. For example,
if you have the blower running at low
speed, press the
LOW button to turn off the
blower.
The LED next to the
FILTER button on the
controls will illuminate when it is time to
clean the filters. This indicator light comes
on after approximately 30 hours of opera-
tion. Refer to Filter Careon page 11.
Toreset the FILTER clean LED indicator,
press the
FILTER button.
DELAY-OFF MODE
The delay-off mode will allow the ventilation
hood blower to continue operating at the
selected speed for approximately five minutes
after the
DELAY button has been pressed. This
mode allows you to leave the cooking area,
while the ventilation hood is still in operation;
it will then shut off.
In delay-off mode, both the
DELAY LED and
the corresponding blower speed LED will
be illuminated.
If the blower is on high speed and the
DELAY button is pressed, the blower will
stay on high speed for five minutes. It will
then switch to low speed for an additional
five minutes beforeturning off.
If the blower is on medium speed and the
DELAY button is pressed, the blower will
stay on medium speed for five minutes.
It will then switch to low speed for an
additional five minutes beforeturning off.
If the blower is on low speed and the
DELAY button is pressed, the blower will
stay on low speed for five minutes before
turning off.
If the
DELAY button is pressed when the
blower is off, no operation will take place.
If the
DELAY button is pressed when the
unit is already in delay-off mode, the delay-
off mode will be cancelled.
Ventilation hood controls
Delay-off buttonFilter clean LED indicator
Light button
Three-speed
blower controls

9
WOLF COOKTOP VENTILATION HOOD USE & CARE
HEAT SENTRY FEATURE
The heat sentry feature will help you maintain
your cooking environment and allows your
ventilation hood to sense when blower opera-
tion is needed.
The heat sentry feature is always in wait and
is activated when the exhaust temperature
from the hood reaches 206˚F (97˚C). At this
temperature, the blower motor speed will
automatically adjust to the next highest speed.
For example, if the blower motor is in low
speed and the threshold temperature is
reached, the blower will increase to medium
speed. The corresponding LED on the control
will blink to indicate the heat sentry feature
blower speed.
Once heat sentry feature is activated, the
ventilation hood will continue to monitor
exhaust temperatures every three minutes. If
the exhaust temperature reaches 206˚F (97˚C),
the blower speed will increase to the next
highest speed and the corresponding LED
will blink. If after three minutes the exhaust
temperature falls below 174˚F (79˚C), the
blower speed will decrease to the next lowest
speed.
If the blower was off prior to heat sentry
feature activation, the unit will turn off when
exiting the heat sentry feature.
When the blower speed returns to the original
setting prior to heat sentry feature activation,
the corresponding LED will stop blinking and
remain constant. The unit has exited the heat
sentry feature.

10
WOLF COOKTOP VENTILATION HOOD USE & CARE
HALOGEN LIGHTING
The Wolf 30" (762) wall hood requires
two halogen bulbs (type T4, 12V, 20W).
The Wolf 36" (914) wall hood requires
three halogen bulbs (type T4, 12V, 20W).
The Wolf 42" (1067) Island hood requires
four halogen bulbs (type T4, 12V, 20W).
Replacement halogen light bulbs for the Wolf
cooktop wall and island hoods are available
through your Wolf dealer. To obtain local
dealer information, visit the Locator section of
our website, wolfappliance.com.
HALOGEN BULB REPLACEMENT
1) Turn ventilation hood blower and lights off.
2) Remove filters from underside of the hood.
3) Reach into the underside of the hood and
squeeze tabs on the back side of the bulb
housing.
4) Grasp the front lens assembly and twist to
loosen.
5) Remove the glass bulb cover and replace
the bulb. Use a paper towel when handling
the replacement bulb.
6) Push the bulb securely into the socket and
snap the lens assembly closed.
IMPORTANT NOTE: Use a paper towel when
handling the replacement halogen bulb to keep
oil on fingers from touching the bulb. Failure
to do this will cause the bulb to burn out at
first use.
Be sure that the bulb is cool before
replacing. Halogen bulbs get hot
instantly and adjacent parts may retain
heat.
ACCESSORIES
Optional acces-
sories are available
through your
Wolf dealer. To
obtain local dealer
information, visit
the Locator section
of our website,
wolfappliance.com.

11
GENERAL CARE
Most surfaces of your cooktop wall or island
hood are stainless steel. Although resistant to
most stains, it is not totally impervious to
damage. Salt and some cooking liquids may
pit and stain the surface. Always remove these
spills immediately.
IMPORTANT NOTE: Becareful not to soak the
electronic controls. Although they are sealed,
excessive moisture may cause damage to the
controls.
CLEANING
Using a clean cloth or sponge, wipe with warm
water and mild detergent. Rinse and dry
immediately.Apply protective polish, always
in the same direction as the grain.
IMPORTANT NOTE: Do not use steel wool
pads or abrasive cleaners; they will perma-
nently scratch the surface.
Spray Degreasers: Removes fingerprints and
greasy spatters. Spray on a cloth and wipe the
surface. Buff dry immediately to avoid streaks.
HardWater Stains: Use white vinegar and
water.
Protective Polish: Apply to the surface to
maintain luster and protect from some food
stains. Use a soft, non-abrasive stainless steel
cleaner like SignaturePolish (see side note)
and apply with a soft lint-free cloth.
FILTER CARE
The aluminum mesh filters should be cleaned
approximately every month, depending on
use. The FILTER clean LED on your controls
will illuminate when it is time to clean the
filters. This indicator light comes on after
approximately 30 hours of operation. You may
need to clean the filters more often if your
cooking style generates large amounts of
grease, like frying foods or wok cooking.
The filters and filter covers are dishwasher
safe and are designed to fit most dishwashers.
To remove the filters, push the filter toward the
back of the hood and rotate the filter
downward. Place the aluminum mesh filter
and stainless steel cover into the dishwasher
at approximately 140˚F (60˚C), or hand wash,
using a biodegradable detergent. When filters
aredry, reinstall using the reverse procedure.
IMPORTANT NOTE: DO NOT operate the
ventilation hood without the filters. This may
cause damage to the blower or other internal
components of the hood.
WOLF COOKTOP VENTILATION HOOD USE & CARE
Dimensions in parentheses are in
millimeters unless otherwise specified.
SIGNATURE
POLISH
Signature Polish
is available from
Signature Limited
Laboratory,
P.O. Box 13436,
Dayton, Ohio
45413-0436, or
call 877-376-5474
(toll free).

12
WOLF COOKTOP VENTILATION HOOD ACCESSORIES
VENTILATION HOOD ACCESSORIES
Optional accessories for the Wolf cooktop wall
and island hoods are available through your
Wolf dealer. To obtain local dealer information,
visit the Locator section of our website,
wolfappliance.com.
WALL SHIELDS
801633 – (CTWALLSHIELD30)
Stainless steel wall shield for use with wall
hoods.
801634 – (CTWALLSHIELD36)
Stainless steel wall shield for use with wall
hoods.
FLUE EXTENSIONS
801635 – (CTFLUEEXT)
Flue extension for use with wall hoods.
Allows you to increase the height of your
wall hood to accommodate 10' (3 m)
ceilings.
801639 – (IHFLUEEXT)
Flue extension for use with the island hood.
Allows you to increase the height of your
island hood to accommodate 10' (3 m)
ceilings.
BLOWER ASSEMBLIES
Wolf cooktop wall and island hoods are
shipped without the blower assembly. Internal
orremote blower assemblies are available as
sales accessories. Use only a Wolf blower with
the cooktop ventilation hood.
INTERNAL BLOWERS
801643 – (CTBLOWER-45INT)
450 CFM internal blower for use with the
30" (762) wall hood.
801644 – (CTBLOWER-60INT)
600 CFM internal blower for use with the
36" (914) wall hood or island hood.
801645 – (CTBLOWER-90INT)
900 CFM internal blower for use with the
36" (914) wall hood or island hood.
REMOTE BLOWERS
801640 – (CTBLOWER-60REM)
600 CFM remote blower for use with wall
hoods or island hood.
801641 – (CTBLOWER-90REM)
900 CFM remote blower for use with wall
hoods or island hood.
801642 – (CTBLOWER-120REM)
1200 CFM remote blower for use with wall
hoods or island hood.
804701 – (CTBLOWER-150REM)
1500 CFM remote blower for use with wall
hoods or island hood.
IMPORTANT NOTE: Blower options vary
with the cooking surface. For recommenda-
tions, refer to the Wolf Design Guide found
under the Trade section of our website,
wolfappliance.com.
ACCESSORIES
Optional acces-
sories are available
through your
Wolf dealer. To
obtain local dealer
information, visit
the Locator section
of our website,
wolfappliance.com.

13
TROUBLESHOOTING GUIDE
TROUBLESHOOTING GUIDE
PROBLEM POSSIBLE SOLUTION
Motor and lights Afuse in your home may be blown or the circuit breaker tripped.
do not operate Replace the fuse or reset the circuit breaker.
Electrical connections at the electrical box may be made
incorrectly. Contact your installer.
Motor runs but lights Halogen light bulb(s) may have burned out.
will not operate
The fuse for the light bulb socket may have blown.
Switch operation may be faulty.
Motor does not function, Connect the motor directly to a supply cord, by-passing the hood.
but lights are operational
If the motor runs, contact a Wolf authorized service center to check
switch and control boardoperation.
Excessive fan speed Check to be sure that the blower wheel is not hitting the side of
and/or noise the blower. Adjust if necessary.
Check and tighten blower mounting hardware if necessary.
Check for obstructions in the damper flap or duct work.
Check for excessive length of the duct run, number of transitions
and elbows and duct diameter.
Dimensions in parentheses are in
millimeters unless otherwise specified.

14
SERVICE INFORMATION
When requesting information, literature,
replacement parts or service, always refer to
the model and serial number of your ventila-
tion hood. This information is found on the
rating plate located on the inside left-hand wall
ofthe hood, above the filter. Record the rating
plate information below for future reference.
Model Number
Serial Number
Installation Date
Wolf Authorized Service Center and Phone
Wolf Dealer and Phone
BEFORE CALLING FOR SERVICE
Before calling your Wolf authorized service
center, refer to the Troubleshooting Guide on
page 13. Check the household fuse or circuit
breaker to see if it has been blown or tripped
and that the electrical connection to the appli-
ance has not been disconnected. A power
outage may also have caused a disruption in
service.
PRODUCT REGISTRATION
Register your new Wolf product today so that
we may ensure your satisfaction. You may
register by one of the following options:
1) Mail in the completed Wolf Product
Registration Card.
2) Register online at wolfappliance.com .
3) Register by phone by calling the Wolf
Customer Service Department at
800-332-9513 .
The model and serial numbers of your appli-
ance are printed on the enclosed Wolf Product
Registration Card. If you provide us with your
e-mail address, we will send you exciting new
product updates and recipes as they become
available, along with information on special
events.
SERVICE INFORMATION
CONTACT
INFORMATION
Wolf Customer
Service:
800-332-9513
Website:
wolfappliance.com
The information and images are the copyright
property of Wolf Appliance Company, LLC,
an affiliate of Sub-Zero Freezer Company, Inc.
Neither this book nor any information or images
contained herein may be copied or used in
whole or in part without the express written
permission of Wolf Appliance Company, LLC,
an affiliate of Sub-Zero Freezer Company, Inc.
©Wolf Appliance Company, LLC all rights
reserved.

15
WOLF APPLIANCE PRODUCTS
LIMITED WARRANTY
RESIDENTIAL USE ONLY
FULL TWO YEAR WARRANTY*
For two years from the date of original installation, your Wolf Appliance product warranty covers all
parts and labor to repair or replace any part of the product that proves to be defective in materials
or workmanship. All service provided by Wolf Appliance Company under the above warranty must
be performed by a Wolf Appliance authorized service center, unless otherwise specified by Wolf
Appliance Company. Service will be provided in the home during normal business hours.
LIMITED THIRD THROUGH FIFTH YEAR WARRANTY
From the third through fifth year from the date of original installation, Wolf Appliance Company will
repair or replace the following parts that prove to be defective in materials or workmanship. Labor to
remove and replace defective parts is not covered. Wolf Appliance Company recommends that you
use a Wolf Appliance authorized service center to perform such service.
Gas Burners(excluding appearance), Electric Heating Elements, Blower Motors (vent hoods),
Electronic Control Boards, Magnetron Tubes and Induction Generators
LIMITED LIFETIME WARRANTY
For the life of the product, Wolf Appliance Company will repair or replace any BBQ body or BBQ hood
that rusts through due to defective material or workmanship. Labor to remove and replace defective
parts is not covered. Wolf Appliance Company recommends that you use a Wolf Appliance author-
ized service center to perform such service.
TERMS APPLICABLE TO EACH WARRANTY
The warranty applies only to products installed for normal residential use. The warranty applies only
to products installed in any one of the fifty states of the United States, the District of Columbia or
the ten provinces of Canada. This warranty does not cover any parts or labor to correct any defect
caused by negligence, accident or improper use, maintenance, installation, service or repair.
THE REMEDIES DESCRIBED ABOVE FOR EACH WARRANTY ARE THE ONLY ONES THAT WOLF
APPLIANCE COMPANY
,LLC WILL PROVIDE, EITHER UNDER THIS WARRANTY OR UNDER ANY
WARRANTY ARISING BY OPERATION OF LAW. WOLF APPLIANCE COMPANY, LLC WILL NOT BE
RESPONSIBLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES ARISING FROM THE
BREACH OF THIS WARRANTY OR ANY OTHER WARRANTY, WHETHER EXPRESS, IMPLIED OR
STATUTORY.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation or exclusion may not apply to you. This warranty gives you specific legal rights and
you may also have other legal rights that vary from state to state.
Toreceive parts and/or service and the name of the Wolf Appliance authorized service center
nearest you, contact Wolf Appliance Company, LLC, P. O. Box 44848, Madison, Wisconsin 53744;
check the Locator section of our website, wolfappliance.com, or call 800-332-9513.
*Stainless Steel (classic,platinum and carbon) doors, panels and product frames are covered by a
limited 60 day parts and labor warranty for cosmetic defects.

807575 9/2005
WOLF APPLIANCE COMPANY, LLC P. O. BOX 44848 MADISON, WI 53744 800-332-9513 WOLFAPPLIANCE.COM
