ASSEMBLY INSTRUCTIONS YOKOHAMA
018150|14
COMFORT
LINE
ASSEMBLY INSTRUCTIONS
Top quality from Japan
Metal shed Yokohama
The assembly video can be found on: www.finnhaus.de

2
ASSEMBLY INSTRUCTIONS YOKOHAMA
A
A
B
C
AB C
AB C
AB C
The basement and the cross-beam must be layed together as in the plan.
ASSEMBLY OF THE BASEMENT AND CROSS-BEAM
Required accessories
Pce no. Article Qty
Base frame, in front 1
Base frame, left 1
Base frame, right 1
Base frame, rear 1
Cross-beam 1
-Metal fitting for corner
basement, front left 1
-Metal fitting for corner
basement, front right 1
-Metal fitting for
corner basement, rear 2
01
02
03
04
05
01
02
03
04
05
A
A
B
C
Metal fitting rear corner. Metal fitting front right. Metal fitting
front left.
Drive the metal fittings on the frame, so that the holes conform.
Front view with bricks used
as foundation.
Front view with plastic plates used as foundation.
01
02
03
04
05
To guarantee the shed
stands correctly it
requires a good found-
ation. (More information
can be found in our
leaflet).
The shed must be build
raised from the dround
to insure that the rain
water can run under-
neath.

3
ASSEMBLY INSTRUCTIONS YOKOHAMA
A
A
B
C
Front view
Spirit level
Short screws
Short screws
Short screws
Short screws
※
※
Attention: Please insure that all the base frame parts are level, so that after completion the door opens and closes
easily.

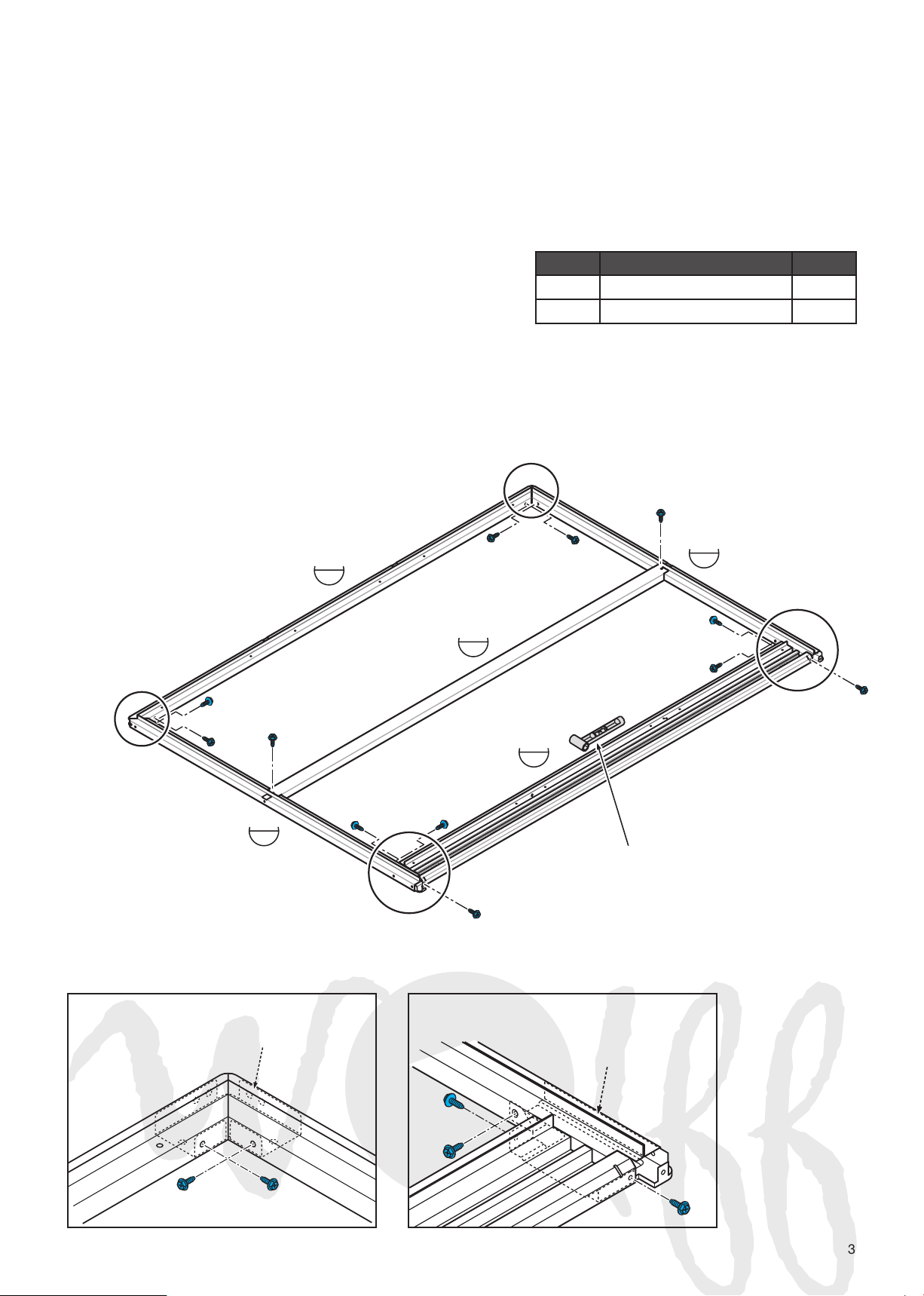

FITTING OF THE BASE FRAME AND THE CROSS-BEAM
01
02
03
04
05
Required accessories
Pce no. Article Qty
-Short screws 12
-Spirit level 1
B + C
Metall fitting
for the front
※
Short screws
AMetall fitting
for the rear corner
Short screws
After the frame has been checked that it is level the two
screws marked can then be secured, checking that
there are no gaps in between the frame parts.
※

4
ASSEMBLY INSTRUCTIONS YOKOHAMA
ASSEMBLY OF THE CORNER POST
Required accessories
Pce no. Article Qty
Corner post, front left 1
Corner post, front right 1
Corner post, rear left 1
Corner post, rear right 1
-Short screws 14
06
07
08
09
08
06
09
Slot
Hook
Put the hook in the slot.
Short screws
Tighten all the screws.
07 01
04
02 03
ATTENTION:
To maintain that everything is at a right angle
check the length of diagonals are exactly the
same.
Please check that all the edges of the frames
are together. Otherwise the ground panels
may not fit.

5
ASSEMBLY INSTRUCTIONS YOKOHAMA

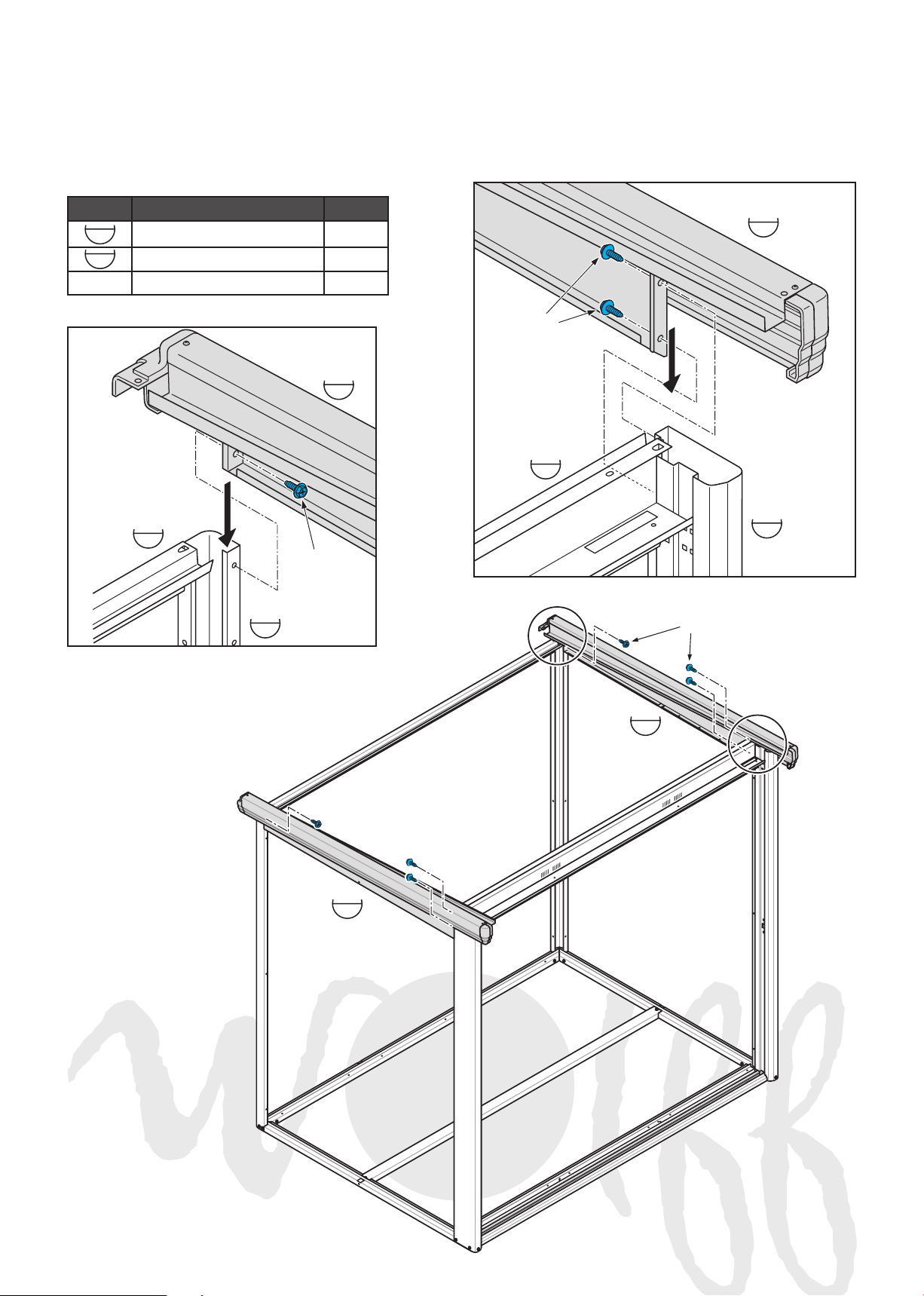

ASSEMBLY OF THE REAR AND FRONT ROOF FRAME
Required accessories
Pce no. Article Qty
Roof frame, rear 1
Roof frame, front 1
-Rubber plug, small 2
-Short screws 6
15
15
19
A
B
Short
screws
Short
screws
Rubber plug,
small
Slot
Hook
Hook
Rubber plug,
small
Short
screws
Hook the top rear frame in both corner
post slots and screw tightly.
Hook the top over the front corner post lip. Fit bottom hook
in slot and secure with two short screws.
After fitting the rear top framework please fit the smaler
rubber grommets (these holes are for electric cable).
A B
08
19
06
15
08
06
07
19
09

6
ASSEMBLY INSTRUCTIONS YOKOHAMA
ASSEMBLY OF THE LEFT AND RIGHT DECORATIVE COVER
Required accessories
Pce no. Article Qty
Decorative cover, left 1
Decorative cover, right 1
-Short screws 6
17
18
A
B
Short
screws
Short
screws
A
B
18
18
19
17
07
09
15
18

7
ASSEMBLY INSTRUCTIONS YOKOHAMA

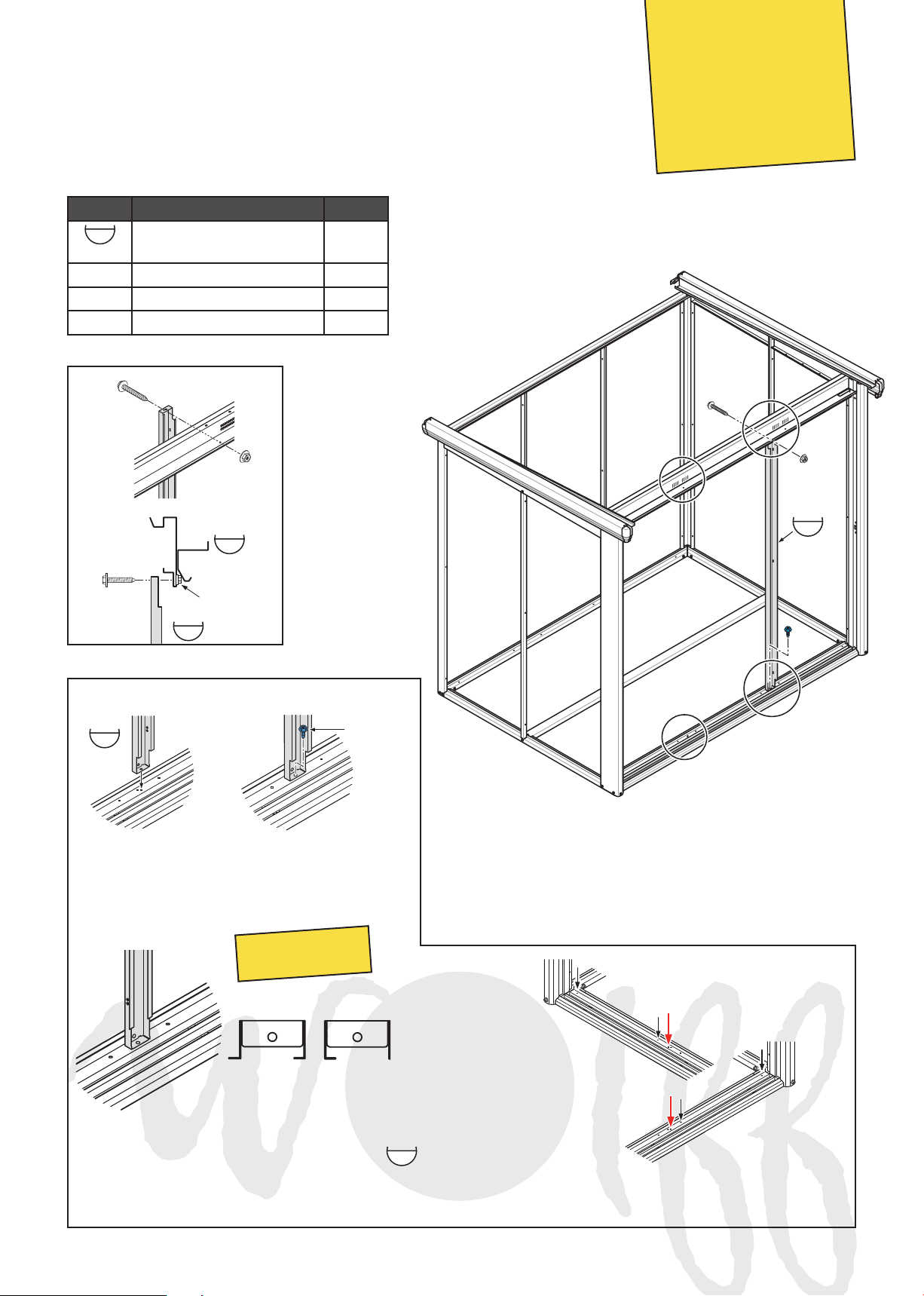

ASSEMBLY OF THE CENTRAL WALL STRENGTHENERS FOR THE LEFT, RIGHT AND THE REAR
11
14
A
BC
Please fit the wall strengthener provisionaly.
A
11
11
11
B
14
14
14
Top side
Hole to
the inside
Central
hole Top, shorter
Bottom, longer
①
②
Required accessories
Pce no. Article Qty
Central wall strengthener,
left, right 2
Central wall strengthener,
rear 1
-Short screws 8
C
11
Central
hole
Hole to
the inside
Short
screws
11
Side view

8
ASSEMBLY INSTRUCTIONS YOKOHAMA
ASSEMBLY OF THE CENTRAL WALL STRENGTHENERS IN FRONT
Required accessories
Pce no. Article Qty
Central wall strengthener,
front 1
-Long screws 1
-Short screws 1
-Nut 1
10
A
A
B
B
Short
screws
Long
screws
Nut
Long
screws
Nut
Nut
Long
screws
A
Upper Attachement
Short
screws
B
Lower Attachement
The base of the strengthener is pressed and
secured into the third hole of the corner post.
Please watch the
hook direction!
Left Right
For a door opening left: The strengthener is
turned over and is secured on the baseframe
in the third hole from left.
01
Counting from corner post use third hole.
Threaded hole for door panel
Threaded hole for the central wall
strengthener in front
10
10
10
19
ATTENTION!
Don‘t forget to
secure the top of the
strengthener.

9
ASSEMBLY INSTRUCTIONS YOKOHAMA
Required accessories
Pce no. Article Qty
Central Ground panel 1
Ground panel
left, right 2
-Special screw 12
ASSEMBLY OF THE GROUND PANEL
29
30
The front of the ground panel (C) to be mounted
over ledge of gutter.
Please usw the special srews.
(If the screws do not fit exactly
please take a look on page 27 (3)
Tips for Assembling)
Ａ
Ｂ
C
Special
screw
30
30
29
A B C
Basement
groundpanel
Basement
groundpanel Basement
groundpanel
Side view Front viewRear view

10
ASSEMBLY INSTRUCTIONS YOKOHAMA
Rear
Strengthe-
ring
A bag with each roof
panel contains
seven snow plugs.
Remove glue covering
and fit as shown. No
snow plugs are used
on the small panels.
ASSEMBLY OF THE ROOF PANELS
Required accessories
Pce no. Article Qty
Roof panel, big 2
Roof panel, small 2
-Short screws 12
-Snow plug (3 Bags) 21
27
27
27
27
15 15
27
27
2728 27 28
28 28
28 28
28
28
Fit roof starting left, then
centre and last right.
Rear
Strengthering
Short screws
Front Fit roof in this order.
28
27
A
Short
screws
or or
ATTENTION!
Before mounting the
roof fill holes with snow
plugs.
28
27
Slop roof down to rear so that rain
can drop off there.
Rear Front
1 2 3

11
ASSEMBLY INSTRUCTIONS YOKOHAMA
１
2
2

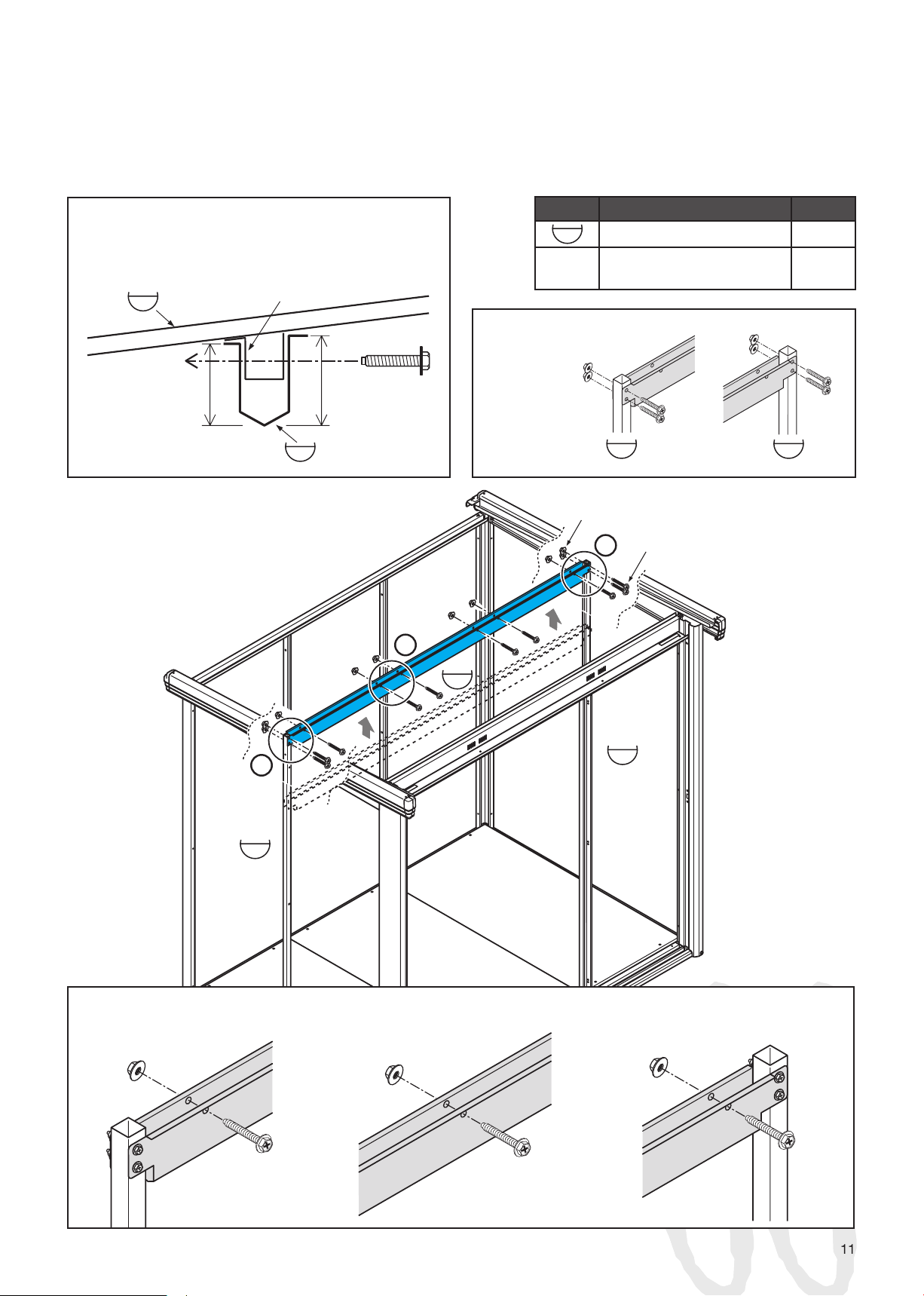

ASSEMBLY OF THE ROOF STABILISER
Required accessories
Pce no. Article Qty
Roof stabiliser 1
-Long screws and nuts
each with 10
16
11 11
16
16
27
11
11
Lift the roof stabilisator and secure with two
long screws central holes.
Strengthering of the roof panels
lower
side
upper
side
long screw
nut
nut
long
screw
long
screw
1.
Fix both
ends of the
stabilisator
with nuts
and bolts.
2.
3.
NutNut Nut
long
screw long
screw
long
screw
Please check all nuts and bolts are tight.

12
ASSEMBLY INSTRUCTIONS YOKOHAMA
1
2
1
2

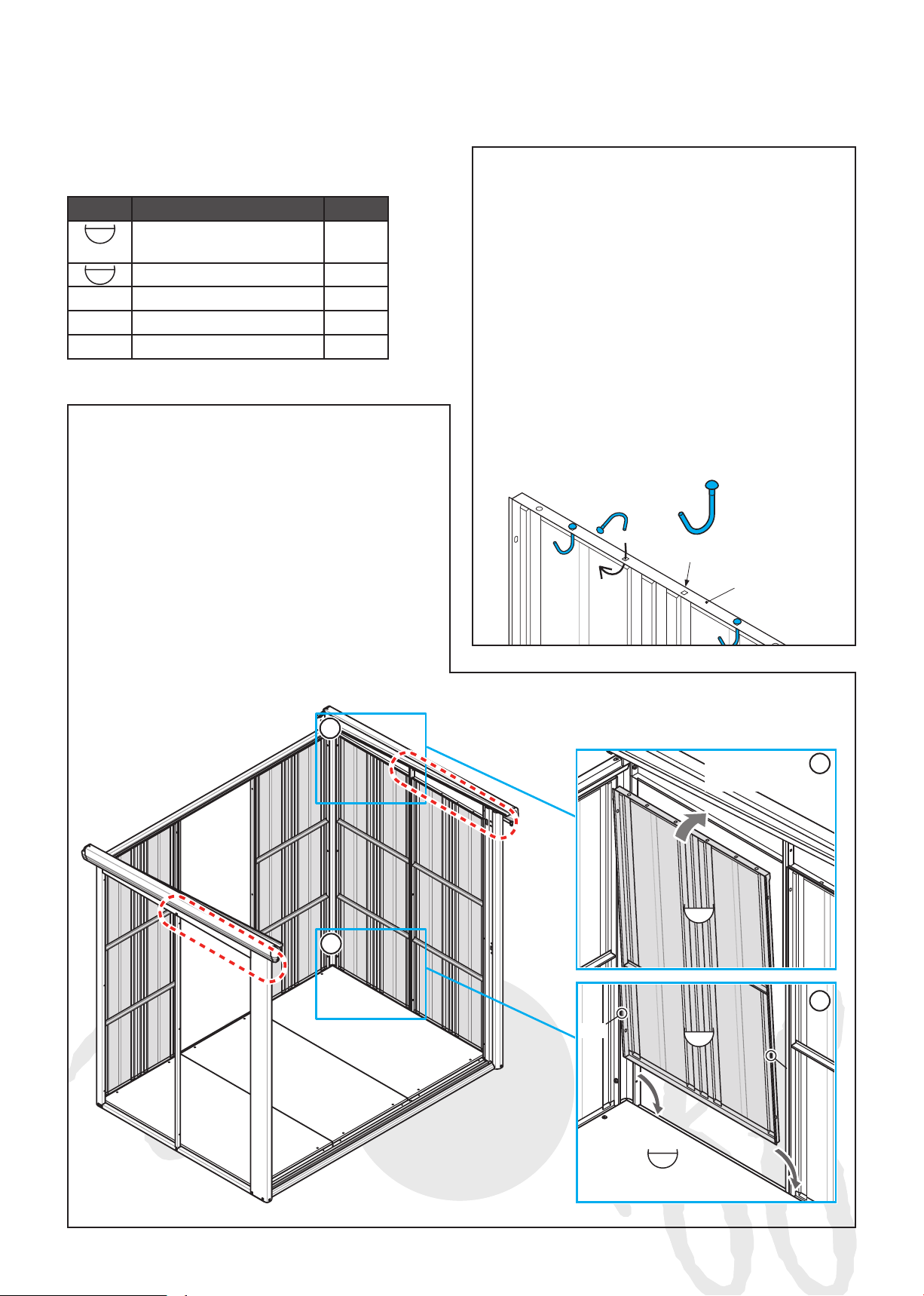

ASSEMBLY OF THE SIDE WALL PANELS
Required accessories
Pce no. Article Qty
Side wall panel big
76 / 106 2/3
Side wall panel, small 2
-Hooks out of aluminium 3
-Short screws 18
-Long screws and nuts 12
20
21
1. BEFORE ASSEMBLING
Only the hooks within the red markings can be moved
when the shed is finished. Please decide – before the
shed is build up – where the hooks should be.
Attaching the hooks
The hooks can be mounted in the holes of the large
or small sides of the panels but with a max. of 2 kg
per hook.
2. MOUNT
1. Place the bottom of the panels in the base frame.
2. Lift top of place between posts.
While assembling the side wall panels do not let them
go, before they are not provisorily bolted. They might
fall down and hurt someone.
20
20
30
Upper
wall strengthener

13
ASSEMBLY INSTRUCTIONS YOKOHAMA
90
ASSEMBLY OF THE SIDE WALL PANELS
20
20 21 21
20
20
20
20
20
21
20
21
1. SIDE WALL PANELS, REAR
Please check the right angle
of 90 ° between the base frame
and the posts.
2. BOLTING
In corner posts secure with short srews, all
the strengtheners with long nuts and bolts and
strengthen, then fix strengtheners.
First fix panels to corner posts provisionally
and tighten all the screws.
Short
screws
Long
screws
Nut
Side view Rear view

14
ASSEMBLY INSTRUCTIONS YOKOHAMA

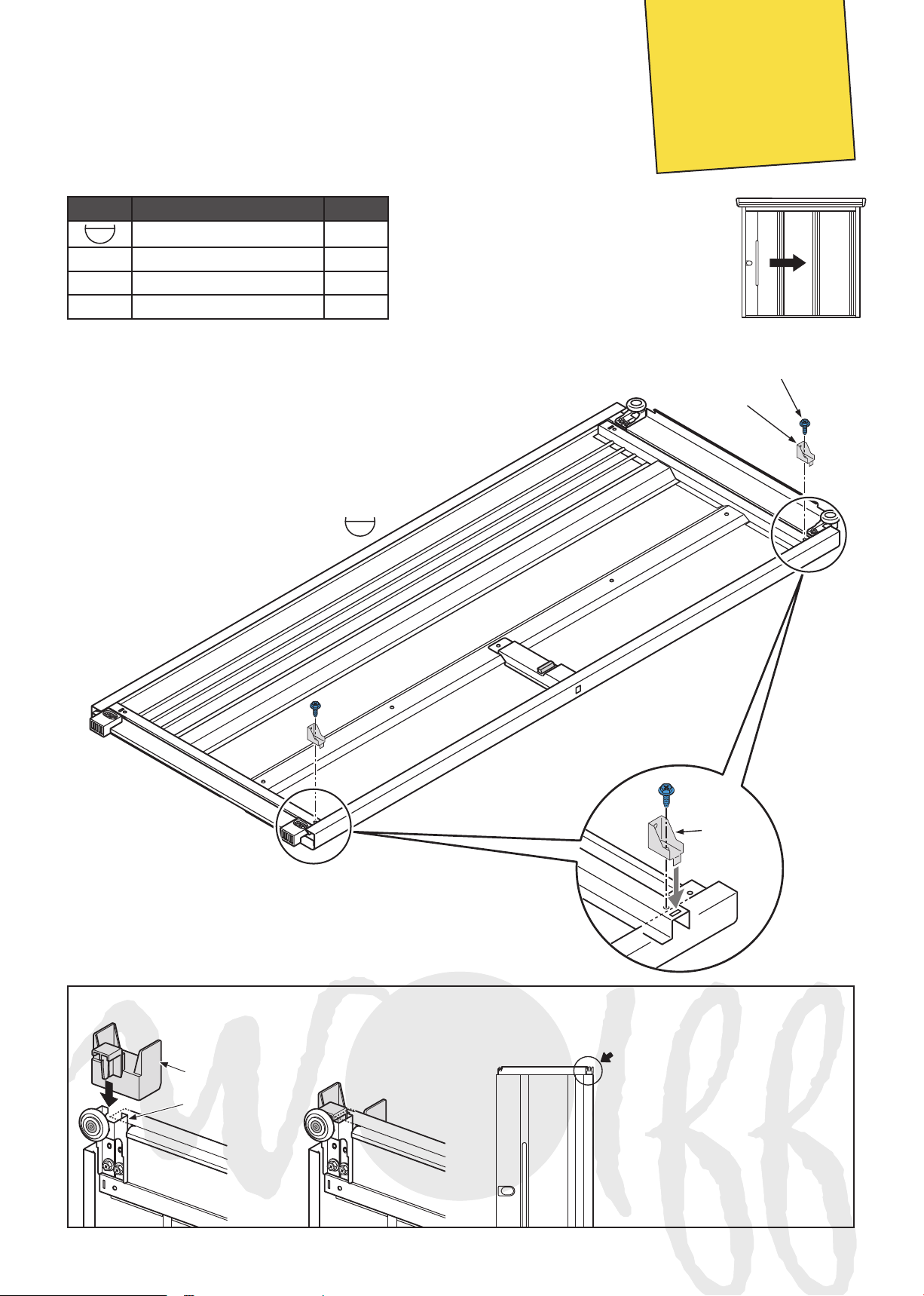

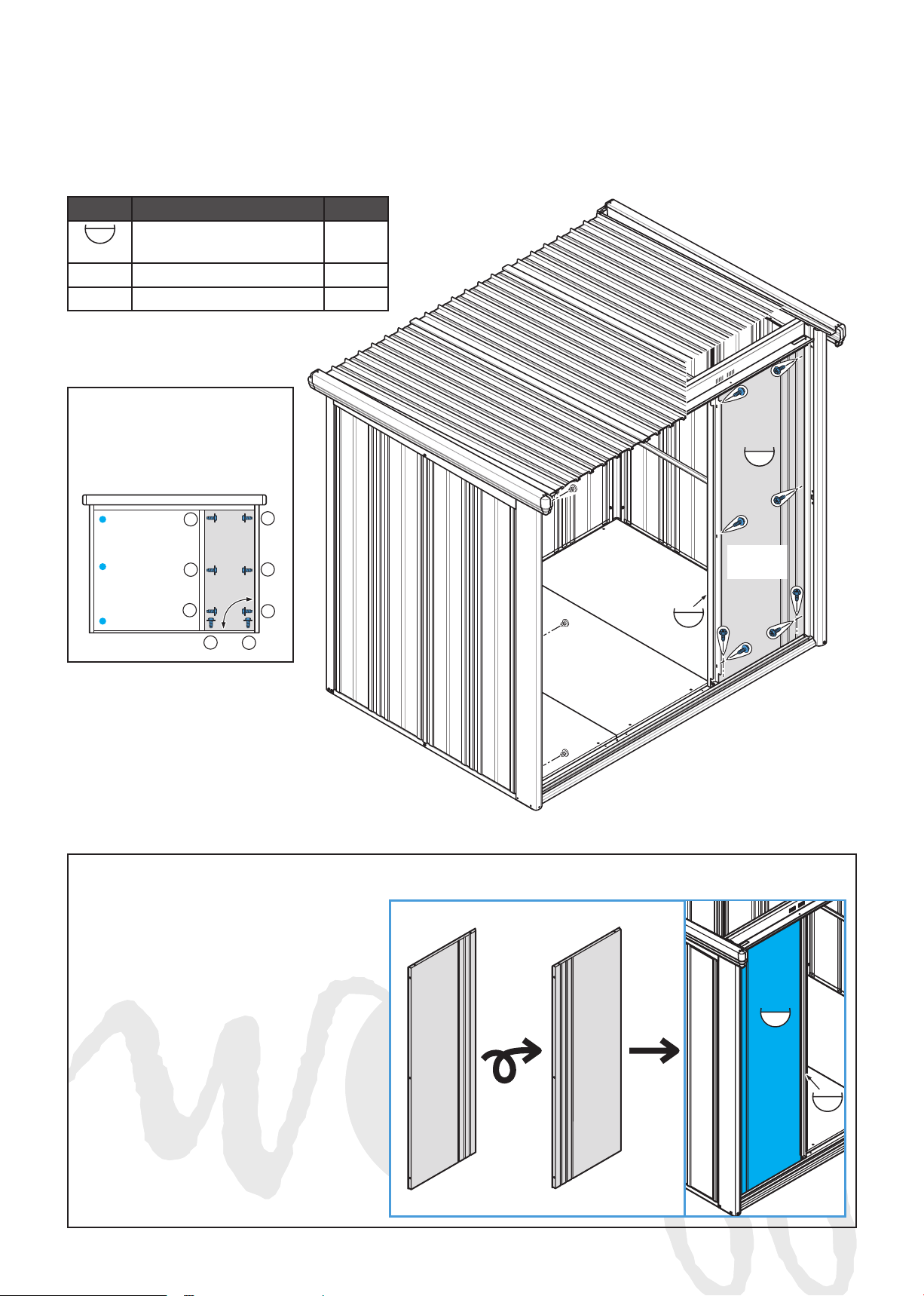

ASSEMBLY OF THE DOOR PANEL FOR OPENING AT THE RIGHT
Required accessories
Pce no. Article Qty
Door panel rear,
fixed 1
-Hole caps 3
-Short screws 8
24
ASSEMBLY OF THE DOOR PANEL FOR OPENING AT THE LEFT
Please turn the panel over to assemble it for
opening the door to the left. The assembly
instructions for the door panel for opening
at the right apply for this, too.
90
2
6
7
8
3
5
4
1
Please fit the hole caps in the
holes as shown and screw
short screws in the shown
order below: 24
24
10
10
Short
screws
Hole caps

15
ASSEMBLY INSTRUCTIONS YOKOHAMA
ASSEMBLY OF THE FRONT DECORATIVE COVER AND THE HEIGHT COMPENSATION COVER BAR
Required accessories
Pce no. Article Qty
Decorative cover, front 1
Height compensation
cover bar 1
-Hole caps 3
-Short screws 7
25
51
Short
screws
Hole caps
Roof panel
25
51
25
25
19
1
2
Hook the trim panel in the front roof frame.
Rotate the trim panel as shown up over the roof
and secure it with short screws.
Secure the adjustment ledge with three short
screws and hole caps.
1
2
3

16
ASSEMBLY INSTRUCTIONS YOKOHAMA

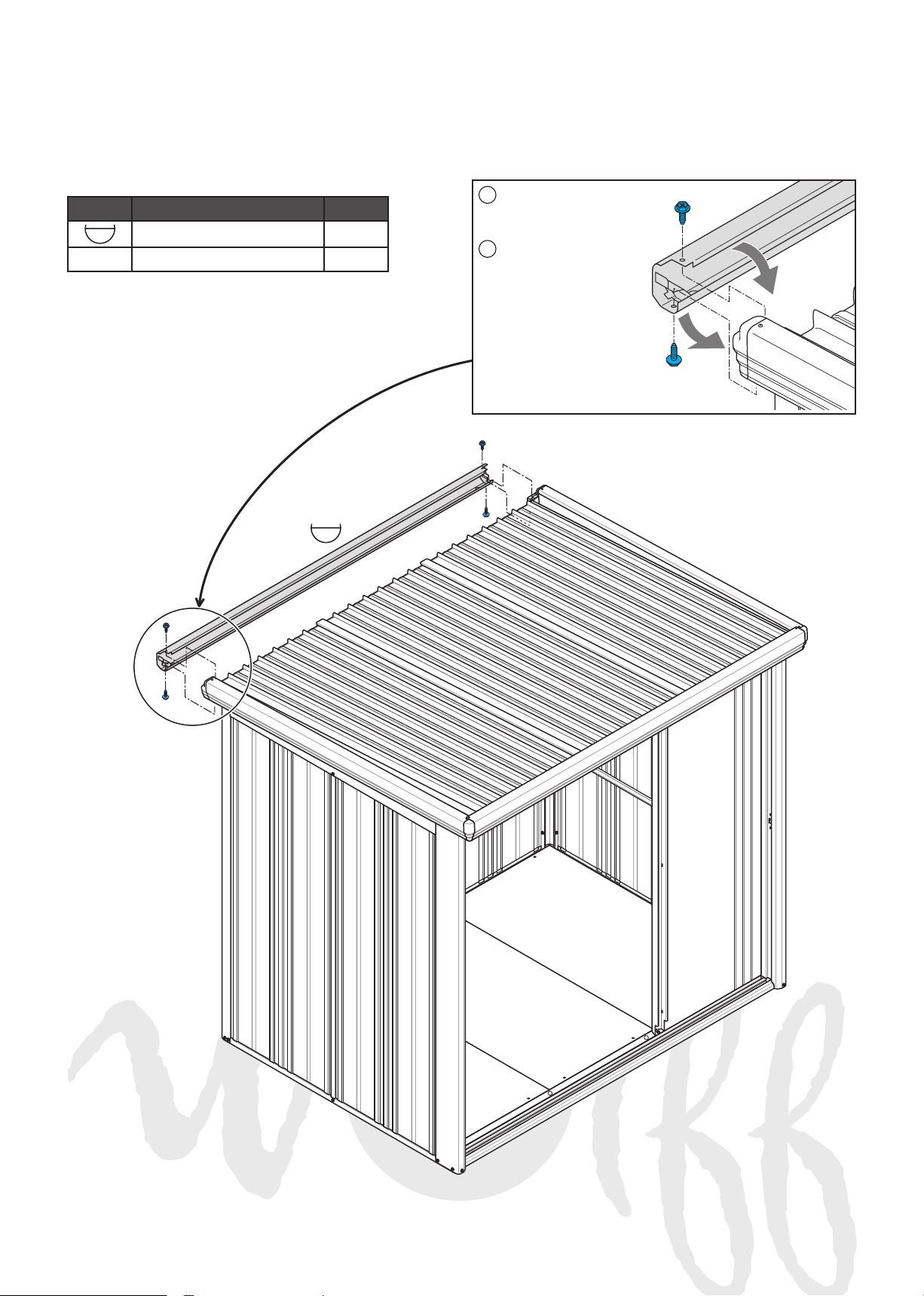

ASSEMBLY OF THE GUTTER
Required accessories
Pce no. Article Qty
Gutter 1
-Short screws 4
26
26
Hook both ends of the
gutter on the trim panels.
Rotate over the roof
and secure it with
short screws..
Short
screws
1
2

17
ASSEMBLY INSTRUCTIONS YOKOHAMA

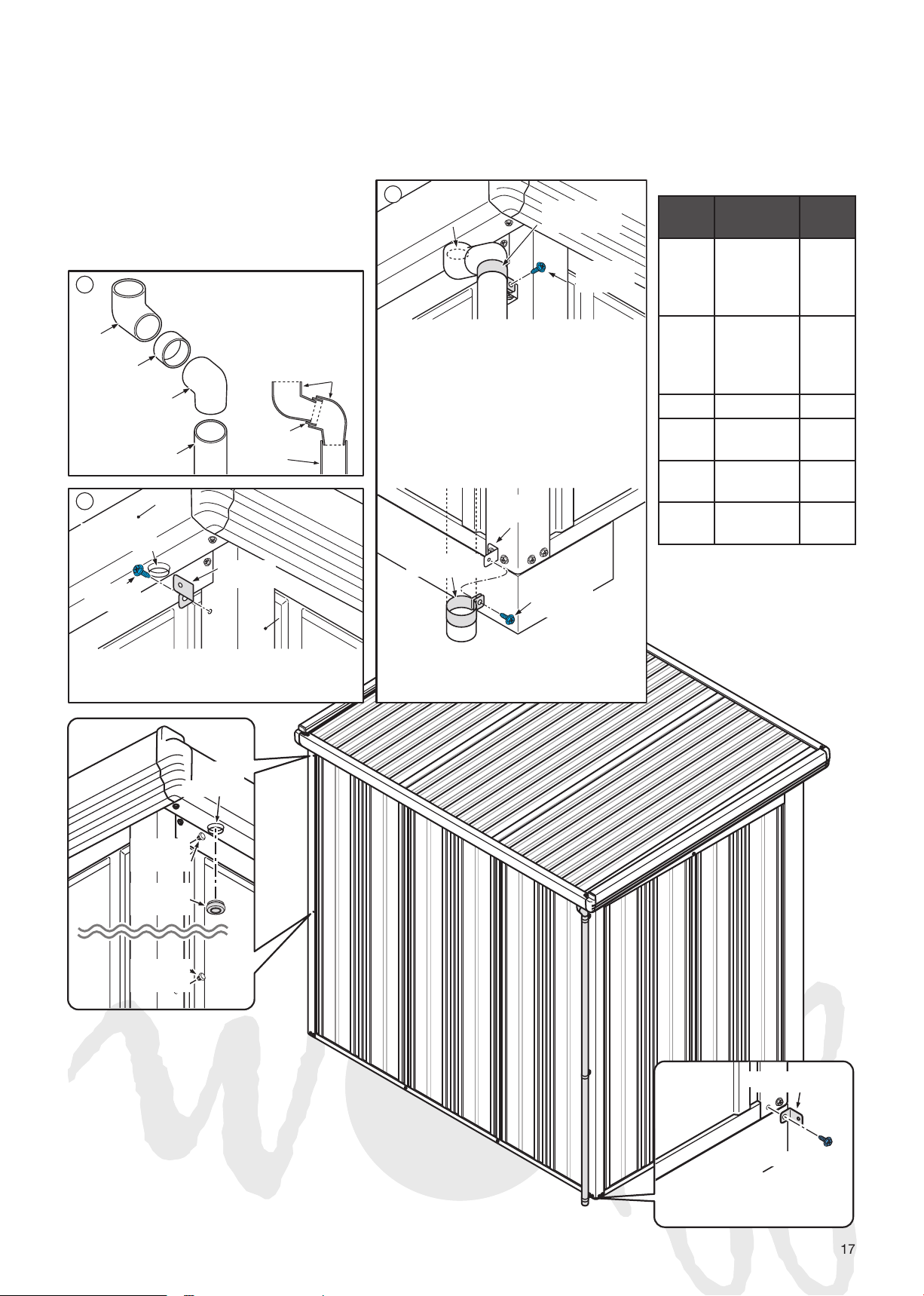

Put both bends with
connecting piece together
Fit clamps over down pipe and attache both
bends with connection piece to gutter.
ATTENTION:
Please cut the rainwater pipe to the correct
length BEFORE assembling it. The metal
clamps have to be slid onto the rainwater
pipe before mounting.
The unused hole must be sealed
with a rubber plug and the small
holes must be sealed with Hole
caps.
Secure the down pipe to the angle joint star-
ting from the top, then centre and last at the
bottom.
Für die Verschraubung wird dieselbe
Schraube verwendet, die bereits für
den Eckpfosten verwand wurde.
Bend
Drain
hole
Drain
pipe
Hole
cover
Hole
cover
Rubber
plug
Angle joint
Screw the three angle joints with short screws.
Gutter
Hole for
rainwater
Angle
joint
Angle
joint
Metal clamp for
rainwater pipe
Short
screws
Short
screws
Short screws
Angle joint
Bend
Rainwater
pipe
Connection
piece
Short
screws
SIDE VIEW
1
3
2
ASSEMBLY OF THE RAINWATER PIPE
In one or the other rain holes which you
ever wish can be used to fit the down pipe.
The other hole must be sealed with a rubber
plug.
Required accessories
Pce
no.
Article Qty
-Rainwater
pipe and
connec-
tion piece
1
-Metal
clamp
and angle
joint
3
-Bend 2
-Short
screws 5
-Rubber
plug, big 1
-Hole
caps 2

18

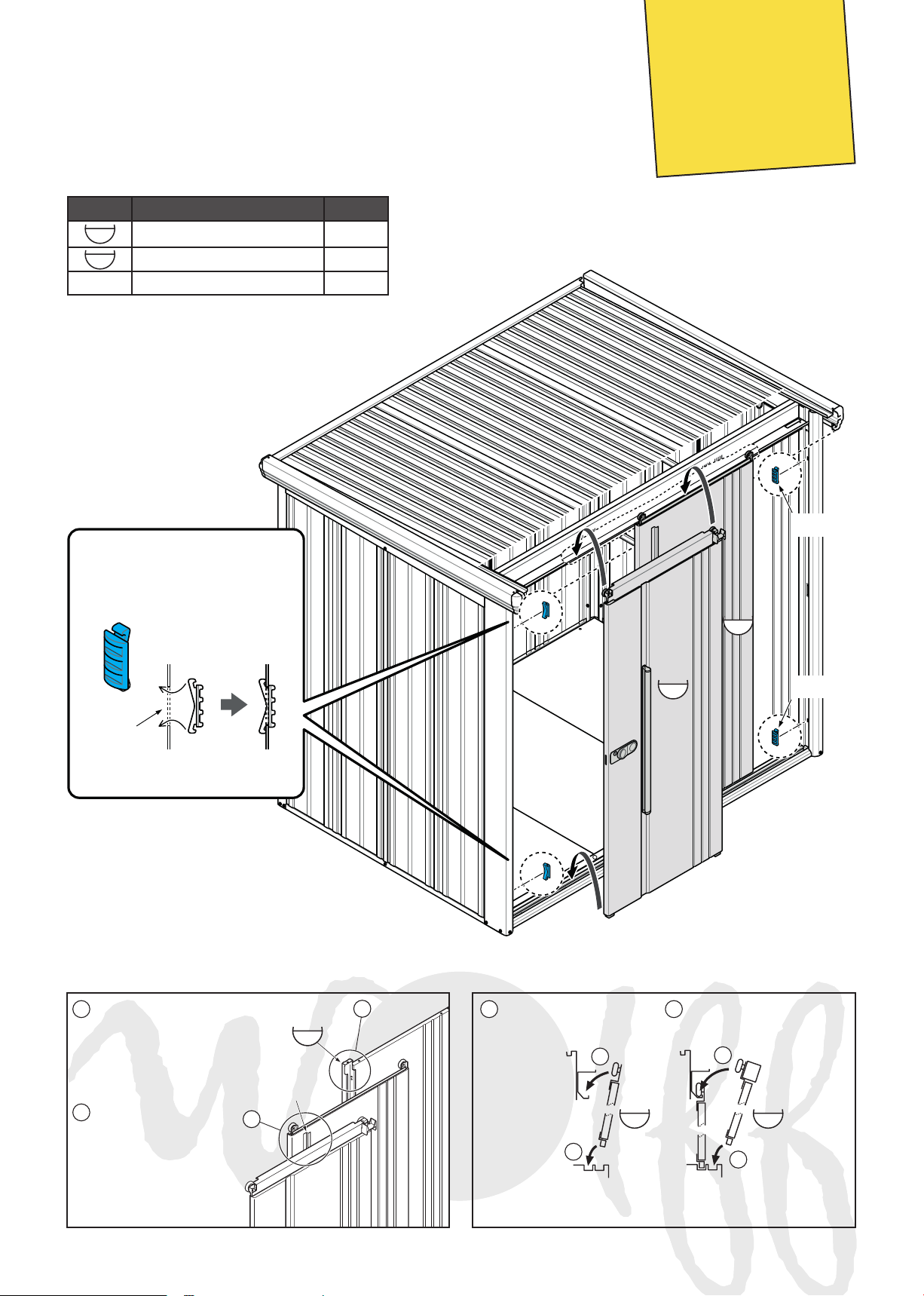

ASSEMBLY INSTRUCTIONS YOKOHAMA
ASSEMBLY RIGHT HAND DOOR
Required accessories
Pce no. Article Qty
Door panel, rear, front 1
-Metal stopper 2
-Short screws 2
-Door stop cover 1
32
32
Before mounting door please fit
both metal stoppers top and bottom
as shown.
Take precaution that the cylinder
lock isn‘t scratched.
Short
screws
Metal
stopper
Metal
stopper
Door stop
cover
For a right hand door, fit door stop
cover on the right.
Runner wheel unit
at the door
Hook both stoppers in the slots and secure with the
short screws.
Fit the door stop cover in the metal runner wheel unit.
ATTENTION!
To build the left hand
door, go to page 19 in
this assembly instruction.

19
ASSEMBLY INSTRUCTIONS YOKOHAMA
ASSEMBLY LEFT HAND DOOR
Changes neccessary to chance from right
hand to left hand door. On both doors the
ends must be changed over, i.E. running wheel
unit to door space cover and vice versa.
Take precuation that the cylinder look doesn´t
get scratched.
Runner wheel
unit
lower cover for clea-
rance between door
frame and door leaf
lower cover for clea-
rance between door
frame and door leaf
Door stop
cover
Door stop
cover
Short
screws
Runner wheel
unit
Metal
stopper
Door stop
cover
Runner wheel unit
at the door
Secure top and bottom metal stoppers on the door
with handle.
Fit the door stop cover in the metal runnter wheel unit.
Required accessories
Pce no. Article Qty
Door paneel, rear, front 1
Door paneel, centre, rear 1
-Metal stopper 2
-Short screws 2
-Door stop cover 1
32
32
33
33
Hole
Mounting the runner
wheel unit.
For both doors fit
runner wheel units
provionally. Then
adjust the gap to 5
mm and tighten.
Assemble
with screw
5 mm Gap
will rise
Door panel
24
32
33

20
ASSEMBLY INSTRUCTIONS YOKOHAMA
ASSEMBLY RIGHT HAND DOOR
Required accessories
Pce no. Article Qty
Door panel, rear, front 1
Door panel, centre, rear 1
- Rubber plug 4
32
33
Mount the rubber plug on the
front, right and left corner
post.
33
32
3233
Drip ledge
Place rear movable door
in lower rear sill and hook
on the runner wheels,
so that there is a wheel
either side of the fixed door
strengthener.
Afterwards place front
door in front sill and hook
on runner wheels on either
side of drip ledge.
2
1
10
1
2
Hook bottom of door in rear
sill.
Hook bottom of door in front sill and fit top in upper door sill.
Fit top in upper door sill.
1 2
11
22
Front view
Press the rubber plug together
to fit easily into the corner post.
Hole for
rubber
plug
Rubber plug
Rubber plug
ATTENTION!
To build the left hand
door, go to page 21 in
this assembly instruction.
