WOLFF SolarStorm 16R User manual

TANNING BED
INSTRUCTION
MANUAL
16R / 24S / 24SR
24R / 32S / 32R

Skin Type:
I Sensitive Skin (Burns easily and severely and does not tan.)
II Light Skin (Burns easily and severely and tans minimally.)
III Normal Skin (Burns moderately and tans average.)
IV Dark Skin (Burns minimally, tans easily and above average.)
Danger Ultraviolet radiation. Follow instructions. Avoid Overexposure. As with
natural sunlight, overexposure can cause eye and skin injury and allergic reactions. Repeated
exposure may cause premature aging of the skin and skin cancer. WEAR PROTECTIVE EYEWEAR;
FAILURE TO MAY RESULT IN SEVERE BURNS OR LONG TERM INJURY TO THE EYES. Medications
or cosmetics may increase your sensitivity to the ultraviolet radiation. Consult physician before
using sunlamp if you are using medications or have a history of skin problems or believe yourself
especially sensitive to sunlight. If you do not tan in the sun, you are unlikely to tan from the use
of this product. Children, the elderly, or fair skinned people who always burn easily and either
never tan or tan minimally should not use this equipment.
To use, lie down under canopy and pull down as far as adjustment will allow. Do not use without
clear plastic panel and wire grill in place. Untanned persons should not tan on consecutive days
during their rst week of tanning. Never tan more than once a day. Tanning normally appears
after the rst few sessions and maximizes after approximately four weeks. Tan once or twice per
week thereafter to maintain appearance. Persons already having a base tan may begin at
advanced levels corresponding to the extent of their base tan.
New lamps emit approximately 10% more ultraviolet radiation during the rst 50 hours of operation.
Recommended tanning times should therefore be reduced by approximately 10% during that period.
WARNING: Read these instructions before using this sunlamp product. All persons in the
room should wear protective eyewear when lamps are on. Recommended eyewear: Provided
eyeshields or equivalent eyewear as dened under 21 CFR 1040.20. Other types of eyewear may
not provide adequate protection. Failure to use protective eyewear may result in severe burns or
other eye injury. If discomfort develpos, discontinue use and consult a physician.
RECOMMENDED
TANNING
SCHEDULE
SKIN TYPE MAXIMUM EXPOSURE TIME IN MINUTES – 15 MINUTE MODELS
Week 1 Week 2 Week 3 Week 4
I
Sensitive Skin:
Burns easily & severely
Does not tan Tanning Not Advised
II Light Skin: Burns easily & severely
Tans minimally 4 6 8 10
III Normal Skin: Burns moderately
Tans moderately 6 8 10 13
IV Dark Skin: Burns minimally
Tans well/above average 8 10 12 15
RECOMMENDED
TANNING
SCHEDULE
SKIN TYPE MAXIMUM EXPOSURE TIME IN MINUTES – 20 MINUTE MODELS
Week 1 Week 2 Week 3 Week 4
I
Sensitive Skin:
Burns easily & severely
Does not tan Tanning Not Advised
II Light Skin: Burns easily & severely
Tans minimally 4 6 8 12
III Normal Skin: Burns moderately
Tans moderately 6 8 10 15
IV Dark Skin: Burns minimally
Tans well/above average 8 10 15 20
16R / 24S / 24SR
24R / 32S / 32R

The following lamps have been certied for use in the Solar Storm
16R, 24S, 24SR, 24R, 32S or 32R models:
2645 Inferno Wol lamps (15 minute) 1704 FT LSI lamps (20 minute)
2393 CC 5.0 Wol lamps (20 minute) 1705 BT LSI lamps (20 minute)
Electrical Requirements
Your sunbed operates from a 120V or 220V AC source. For 120V models, you should have a standard
electrical outlet on a dedicated 20 Amp Circuit Breaker. For 220V models, you should have a NEMA 6-20R
Electrical outlet on a dedicated 20 Amp Circuit Breaker installed in the room in which you will use the unit.
For SS32R models, 30 Amp service will need to be hard-wired to the bed. We recommend installation
by a professional electrician. The outlet must be earth grounded.
DANGER
Shock hazard.
Disconnect power before servicing
or removing any protective covers.
Do not operate this device near
water or while you are wet.
DANGER
Some medications may increase your
sensitivity to ultraviolet light. It is
recommended that you consult a physician
before using this sunbed if taking any
medication or if you suspect that your skin
might be especially sensitive to sunlight.
WARNING
Wear protective eyewear. Failure to may result in severe burns or long term injury to the eyes.
CAUTION
Air from the room is used to cool the sunbed. Maximum ambient room temperature should be
80oF. Place your sunbed no closer than 6" from any wall. Make sure nothing obstructs the
airow into the sunbed's endcaps or out of the fan openings. A poorly ventilated room may
cause the unit to become hot and cause discomfort to the user.
Unpacking and Inspection
Your sunbed comes in two cardboard cartons. Pull back the plastic sheet and, with a helper, grasp
the bench and pull it from the carton bottom, leaving the plastic wrap and the carton packaging.
Do not try to lift the unit with the plastic still on as it may slip. Do the same with the canopy.
The canopy box contains the canopy and a pair of gas springs. The bench box contains the bench,
assembly hardware and stand legs. Inspect the items and make sure they are free from any visible
damage. Report the extent of any damage to the transportation company.
Hardware Inventory
!!
!
!
Allen-head Bolt 5/16 X 1”
Quantity 6
5/16” Metal Washer
Quantity 10
Allen-head Bolt 5/16 X 1.5”
Quantity 4
Hinge Brackets
(1) Left, (1) Right
Hex (Allen) Wrench
Quantity 1
Safety Goggles
Quantity 1
Standard 120V NEMA 6-20
(220V)
120V/240V Outlets

Turn bench over. Install hinge
brackets to ends of bench.
Secure using 5/16” X 1.5” Allen-
head bolts and 5/16” metal
washers. Tighten bolt snug,
then an additional half turn.
3
Using six 5/16” X 1” bolts and six 5/16” washers, fasten the
legs to the bench as shown, with the two small skirt
mounting holes toward the back, by installing the
center bolt rst. You may have to gently push the sides
of the legs in to align holes. Tighten with the allen
wrench.
2
Lay the bench upside down on the oor. Locate the two stand legs.
1
Assembly Procedures
Lift the canopy and hold it
between the hinge brackets.
4Insert 5/16” X 1.5” bolts
with 5/16” washers into both
hinge brackets. Tighten bolts
into the endcap threaded inserts
until snug, then an additional
half turn. Do not overtighten
to avoid damaging threaded
inserts.
5
Long Bolt
The gas springs have
a locking mechanism.
Pry back the
locking clip
with a at
screwdriver.
6With a helper holding the canopy open, align ends of gas spring ball joints
with pivot studs and push into place. Be sure rod end is down as shown.
7
DO NOT lower canopy until both
gas springs are engaged!
Lift and lower the canopy a few times to lubricate
gas springs for optimum performance.
8
Plug the three-prong power cord into the proper
dedicated outlet. 32R models are to be hard-wired.
(*See Electrical Requirements.)
9
CAUTION
Voltage for 120V beds must
be between105-125 VAC.
Voltage for 220V beds must
be between215-230 VAC or
will void warranty.
!
CAUTION
Failure to engage locking clips may
result in the ball joints working loose,
allowing the canopy to fall, which may
result in damage to the unit and injury.
!

Using Your Sunbed
Before using your sunbed, please note the following:
•Your skin should be free of cosmetics, tanning oils, or other body lotions prior to tanning
except for those specically made for use with tanning devices. However, do not remove
natural body oils by bathing or showering immediately before tanning.
•Keep treated hair from contacting sunbed surfaces. Many hair products can damage the
sunbed acrylic. Wear a shower cap or towel if you use gels, mousses, sprays or other hair
products.
•Your sunbed is designed for individual use. Always wear the safety goggles supplied with
your sunbed or another approved pair of goggles, as defined under 21 CFR 1040.20.
Regular sunglasses do not provide adequate protection from ultraviolet light.
Exposure Times
Follow the guidelines for skin type and exposure times according to your model as shown in the
tables below. Untanned persons should not tan on consecutive days during their first week of
tanning. Never tan more than once a day. Tanning normally appears after the first few sessions
and maximizes after approximately four weeks. Tan once or twice per week thereafter to maintain
apearance. Persons already having a base tan may begin at advanced levels corresponding to the
extent of their base tan.
Skin Type:
I Sensitive Skin (Burns easily and severely and does not tan.)
II Light Skin (Burns easily and severely and tans minimally.)
III Normal Skin (Burns moderately and tans average.)
IV Dark Skin (Burns minimally, tans easily and above average.)
RECOMMENDED
TANNING
SCHEDULE
SKIN TYPE MAXIMUM EXPOSURE TIME IN MINUTES – 15 MINUTE MODELS
Week 1 Week 2 Week 3 Week 4
I Sensitive Skin: Burns easily & severely
Does not tan Tanning Not Advised
II Light Skin: Burns easily & severely
Tans minimally 4 6 8 10
III Normal Skin: Burns moderately
Tans moderately 6 8 10 13
IV
Dark Skin:
Burns minimally
Tans well/above average 8 10 12 15
RECOMMENDED
TANNING
SCHEDULE
SKIN TYPE MAXIMUM EXPOSURE TIME IN MINUTES – 20 MINUTE MODELS
Week 1 Week 2 Week 3 Week 4
I Sensitive Skin: Burns easily & severely
Does not tan Tanning Not Advised
II
Light Skin:
Burns easily & severely
Tans minimally 4 6 8 12
III Normal Skin: Burns moderately
Tans moderately 6 8 10 15
IV Dark Skin: Burns minimally
Tans well/above average 8 10 15 20
Timer Overview
The LT1 Timer is ideal for controlling residential tanning beds.
Specifications
Depth Width Height Current Draw Relay Spec. Configuraon
1.408" 4.10" 2.1" 40mA 120VAC@5A SPST Form A

Wiring
Connect the LT1 to the tanning bed using the white header connector on the back of the circuit board.
See the diagram.
Session Control
To start a session, press the Set button on the LT1. The
time will go to the maximum time then count down.
The lamps will turn on automatically. You can decrease
the time by pressing the Set button. To cancel a session,
press the Start/Stop button on the LT1. The display will
go to a 0.

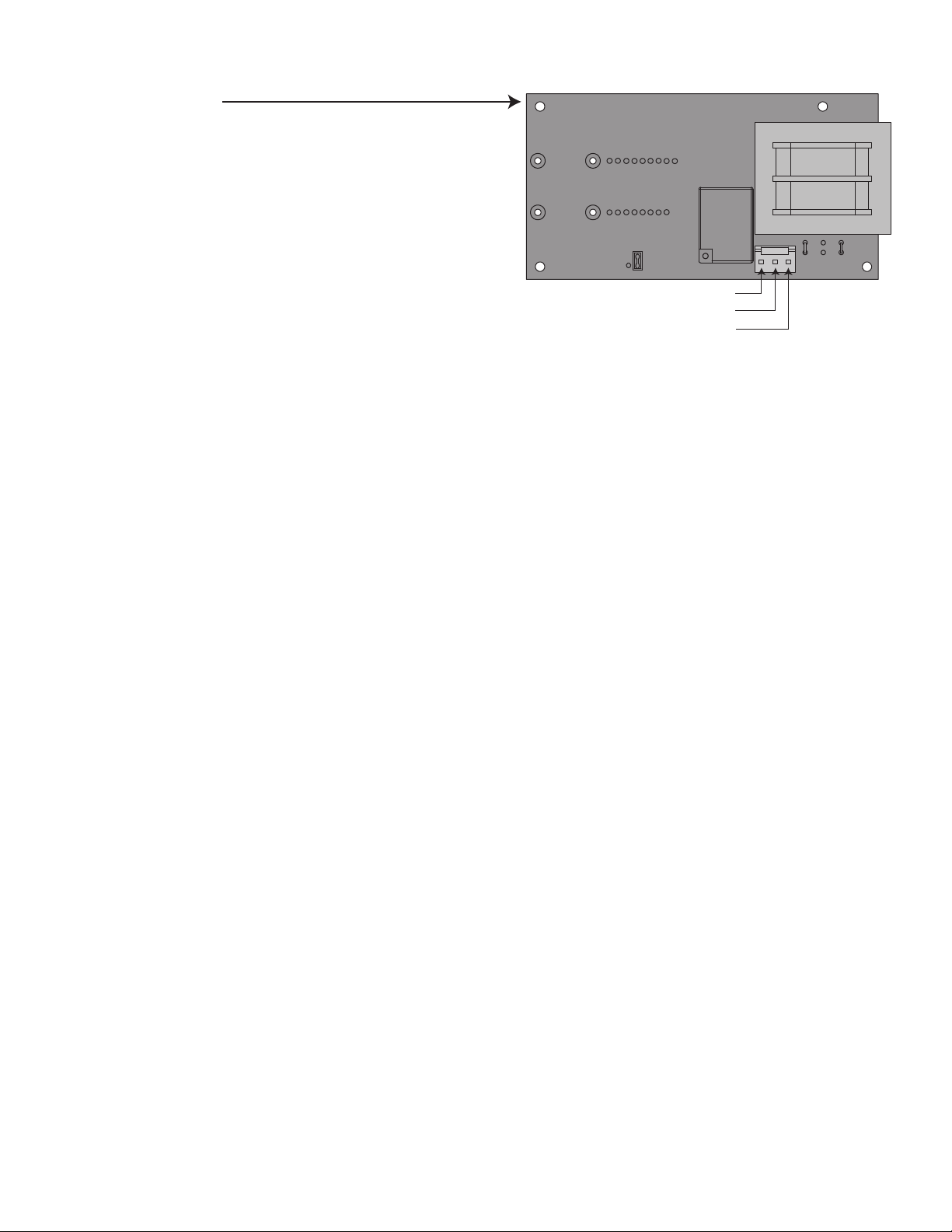

JP2 JP1
Pin 3 - Neutral or L2
Pin 2 - AC HOT or L1
Pin 1 - Output
110V
110V 220V
Removal of Acrylic
Remove black acrylic locking strips first. To remove the acrylic locking strip, insert a flat head screwdriver
into the front edge of the locking strip and pry up. After Acrylic locking strip is removed, go to the head
of the bed. Place the flat head screwdriver between the acrylic and aluminum extrusion. You will then lift
the acrylic up enough to get your hand under it. Please use a glove due to the acrylic is very sharp and will
cut an unprotected hand. With your hand placed between the acrylic and extrusion, lift up on the acrylic
until it pops out of the extrusion. Lift the acrylic out of the bed.
Replacing Acrylic
Insert Acrylic into aluminum extrusion lip in back of bed. Apply pressure to back aluminum extrusion while
pushing acrylic down into the bed until it pops into the front aluminum extrusion. Replace black acrylic
locking strips.
Care and Maintenance
Cleaning After Use
Clean and disinfect your tanning bed’s bench and canopy after each use. Use a non-abrasive disinfectant
cleaner that does not contain ammonia or ammonia derivitaves. Ammonia may damage the acrylic
shield. Spray the acrylic lightly with disinfectant and wipe dry with a clean soft cloth. Wipe the canopy grill
with a soft cloth slightly dampened with disinfectant, then wipe dry.
Thorough Periodic Cleaning
The cooling fans draw air through the bed and will cause a dust buildup on the lamps and reflectors.
When a dust buildup is observed, it is necessary to thoroughly clean the inside of the bench and canopy.
1) Remove the acrylic shield, metal grill and lamps.
2) With a soft cloth, wipe the entire length of each lamp.
3) Clean both sides of the acrylic shield and grill with a non-ammonia disinfectant cleaner.
4) Wipe the reflectors with a clean damp cloth.
5) Re-install the lamps, acrylic shield and grill.
Mechanical Inspection
• Inspect the unit’s fasteners verifying that all are firmly in place. Pay particular attention to the hinge bolts.
• Inspect gas springs for signs of wear. Replace gas springs that will not hold the canopy in the fully open
position when raised.
• Inspect the AC power cord and its connections.
• Inspect the acrylic. Replace if broken, cracked or badly scratched.

Solar Storm Lamp Conguration
Use this table to determine the correct lamp type, quantity and placement for your Solar Storm model:
Quanty Lamp Quanty Lamp
4 1704
4 1705
4 1704PW
4 2393 CC
SS16R Bronze 8 2645 Inferno 8 2645 Inferno 15
SS16R 8 2393 CC 8 2393 CC 20
6 1704
6 1705
6 1704PW
6 2393 CC
SS24S Bronze 12 2645 Inferno 12 2645 Inferno 15
SS24S 12 2393 CC 12 2393 CC 20
12 2645 Inferno
6 2281 Renew T5
6 1704
6 1705
6 1704PW
6 2393 CC
SS24R Bronze 12 2645 Inferno 12 2645 Inferno 15
SS24R 12 2393 CC 12 2393 CC 20
8 1704
8 1705
8 1704PW
8 2393 CC
SS32S Bronze 16 2645 Inferno 16 2645 Inferno 15
SS32S 16 2393 CC 16 2393 CC 20
SS32R 16 2393 CC 16 2393 CC 20
32R Bronze 16 2645 Inferno 16 2645 Inferno 15
8 1704PW
8 2393 CC
8 1704
8 1705
SS32R PW 16 2393 CC 20
SS32R Dual 16 2393 CC 20
20
20
20
2393 CC
20
20
20
20
15
2393 CC
Canopy
Bench
2393 CC
2393 CC
20
2393 CC
SS16R Dual
SS16R PW
SS24S PW
SS24S Dual
8
8
12
12
Max. Exposure
Time (Minutes)
16 2393 CC
16 2393 CC
SS24SR
SS24R Dual
SS24R PW
SS32S Dual
SS32S PW
12 2645 Inferno
12 2393 CC
12

Solar Storm
16R / 24S / 24SR / 24R / 32S / 32R
Manufactured by
1044 Fordtown Road - Kingsport, TN 37663
423-349-2900
,
Form# F-922-001
