Wood Stone CHURRASCO 900 User manual

Toll Free 800.988.8103
Tel [phone]
Fax [phone]
www.woodstone-corp.com
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
CHURRASCO 900
Specialty Grill
Gas-Fired Grill
CHURRASCO WS-LCHUG-900
DOC NO M0100.02 REVISED June 2015
Installation and
Operation Manual

2
Churrasco–900
Installation and Operation Manual
An ongoing program of product improvement may require us to change
specifications without notice. WS-LCHUG-900 Churrasco,
Revised June 2015. Doc no: M0100.02
[email protected] or visit woodstone-corp.com
Wood Stone Corporation
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
Toll Free 800.988.8103
Tel [phone]
Fax [phone]
TABLE OF CONTENTS
TABLE OF CONTENTS
CHURRASCO � � � � � � � � � � � � � � � � � � � � � � � 3
CAUTIONS AND WARNINGS � � � � � � � � � � � � 4
SPECIFICATIONS � � � � � � � � � � � � � � � � � � � � 6
RECEIVING & ASSEMBLY � � � � � � � � � � � � � � 7
CLEARANCES & VENTING � � � � � � � � � � � � � � 8
UTILITY INFORMATION � � � � � � � � � � � � � � � � 9
LIGHTING INSTRUCTIONS � � � � � � � � � � � � � 11
DAILY OPERATION � � � � � � � � � � � � � � � � � � 12
MAINTENANCE � � � � � � � � � � � � � � � � � � � � 13
TROUBLESHOOTING� � � � � � � � � � � � � � � � � 14
WIRE DIAGRAM � � � � � � � � � � � � � � � � � � � � 15
LIMITED WARRANTY � � � � � � � � � � � � � � � � 16

3
Churrasco–900
Installation and Operation Manual
An ongoing program of product improvement may require us to change
specifications without notice. WS-LCHUG-900 Churrasco,
Revised June 2015. Doc no: M0100.02
[email protected] or visit woodstone-corp.com
Wood Stone Corporation
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
Toll Free 800.988.8103
Tel [phone]
Fax [phone]
INSTALLATION AND OPERATION MANUAL FOR THE
WOOD STONE CHURRASCO GRILL
SPECIALITY COOKING EQUIPMENT
WS-LCHUG-900-(NG, LP)
GAS-FIRED CHURRASCO
ADDITIONAL COPIES AVAILABLE UPON REQUEST
CHURRASCO
CASCADE ROTISSERIE

4
Churrasco–900
Installation and Operation Manual
An ongoing program of product improvement may require us to change
specifications without notice. WS-LCHUG-900 Churrasco,
Revised June 2015. Doc no: M0100.02
[email protected] or visit woodstone-corp.com
Wood Stone Corporation
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
Toll Free 800.988.8103
Tel [phone]
Fax [phone]
CAUTIONS AND WARNINGS
WHEN THE OVEN IS NOT PROPERLY INSTALLED, A FIRE MAY RESULT. TO REDUCE THE RISK OF FIRE, FOLLOW
THE INSTALLATION INSTRUCTIONS.
INSTALLATION AND OPERATING INSTRUCTIONS
FOR THE WS-LCHUG-900
WOOD STONE GAS-FIRED CHURRASCO
FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this
or any other appliance. Also, always keep the area under and around this appliance free and clear of any
and all combustible materials.
It is recommended that this oven be installed, maintained and serviced by
authorized professionals.
DO NOT USE PRODUCTS NOT SPECIFIED FOR USE WITH THIS OVEN.
WARNING: Improper installation, adjustment, alteration, service or maintenance can result in property
damage, injury or death. Read the installation, operation and maintenance instructions thoroughly before
installing or servicing this equipment.
IMPORTANT: Consult your local gas supplier for a statement outlining a procedure to be followed in the
event you smell gas. Post the statement in a prominent location.
READ ALL INSTRUCTIONS BEFORE INSTALLING AND USING THE APPLIANCE
Please read this entire manual before you install the oven. Failure to follow instructions may result in
property damage, bodily injury or even death. Contact your local building or fire officials concerning any
installation restrictions or the need for inspection of the oven installation in your area.
RETAIN THIS MANUAL FOR FUTURE REFERENCE
Additional copies of this manual available on woodstone-corp�com�
For prompt responses to service/maintenance questions, call us at @ 1-800-988-8103�

DISCONNECT POWER TO THE OVEN BEFORE SERVICING OR CLEANING.
NO ATTEMPT SHOULD BE MADE TO OPERATE THIS APPLIANCE DURING A POWER FAILURE
5
Churrasco–900
Installation and Operation Manual
An ongoing program of product improvement may require us to change
specifications without notice. WS-LCHUG-900 Churrasco,
Revised June 2015. Doc no: M0100.02
[email protected] or visit woodstone-corp.com
Wood Stone Corporation
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
Toll Free 800.988.8103
Tel [phone]
Fax [phone]
CAUTIONS AND WARNINGS
NOTE: This appliance is supplied on casters and is connected to the supply piping by means of a
connector for movable appliances. There is a restraint on the appliance. If disconnection of the restraint
is necessary, reconnect this restraint after the appliance has been returned to its originally installed
position.
A MAJOR CAUSE OF FIRES IS FAILURE TO
MAINTAIN REQUIRED CLEARANCES (AIR SPACES)
TO COMBUSTIBLE MATERIALS. IT IS OF THE
UTMOST IMPORTANCE THAT THIS APPLIANCE BE
INSTALLED ONLY IN ACCORDANCE WITH THESE
INSTRUCTIONS.
This equipment has been tested and approved by
Intertek Testing Services, and is ETL Listed to ANSI Z83.11b - 2009, CSA 1.8b-2009
and to NSF/ANSI Standard 4 - 2009.
SAVE THE INSTRUCTIONS
WARNING: Do not pack required air space with insulation or other material.
WARNING: This product must be installed by a licensed plumber or gas fitter when installed within the
Commonwealth of Massachusetts.

G
6
Churrasco–900
Installation and Operation Manual
An ongoing program of product improvement may require us to change
specifications without notice. WS-LCHUG-900 Churrasco,
Revised June 2015. Doc no: M0100.02
[email protected] or visit woodstone-corp.com
Wood Stone Corporation
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
Toll Free 800.988.8103
Tel [phone]
Fax [phone]
LCHUG-900 SPECIFICATIONS
Side view
Plan view
Front view
UTILITIES SPECIFICATIONS
Gas: 3/4" NPT gas inlet
98,000 BTU/hr Natural Gas (NG)
OR
87,000 BTU/hr Propane (LP)
Maximum gas inlet pressure
1/2 psi (14 inches W�C�)
Venting
The Churrasco must be vented with a Listed Type 1 exhaust
hood, or one constructed in accordance with NFPA 96 and
all relevant local and national codes� This appliance must be
vented in accordance with all relevant local and national codes,
and in a manner acceptable to the authority having jurisdiction�
Electrical
120 VAC, 0�33 A, 1Ph, 60 Hz
NEMA5-15 plug on 10' cord
Gas utility connection made on
bottom of the unit�
Refer to data plate when installing�
Unit Weight: 480 lbs
Shipping Weight: 755 lbs.
REV:
DATE:
PART #:
Bellingham, WA 360/650-1111 www.woodstone-corp.com
WS-LCHUG-900
Churrasco 900
General Arrangement
5/16/2014
bena
0
DIMENSIONS ARE IN INCHES
TOLERANCES: LINEAR ±1/2 [±10mm], ANGULAR ±2°
UNLESS NOTED OTHERWISE
DWN BY:
SHEET:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF WOOD STONE CORPORATION
ANY REPRODUCTION OR USE IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF WOOD STONE IS PROHIBITED
An ongoing program of product improvement may require us to
change specifications without notice.
\\woodstone.net\dfs\CAD\0 Pn\WS Top Level\CSI-Custom_Stainless_Industries\Churasco\LCHUG-900\LCHUG-900 (WOODSTONE).dft
1 of 1
7 1/4"
190mm TYP
7"
180mm
32 3/4"
830mm
27 3/4"
710mm
31 1/2"
800mm
49 1/4"
1250mm
35 1/2"
900mm
37 3/4"
960mm
6 1/4"
160mm
23 1/2"
600mm
REV:
DATE:
PART #:
Bellingham, WA 360/650-1111 www.woodstone-corp.com
WS-LCHUG-900
Churrasco 900
General Arrangement
5/16/2014
bena
0
DIMENSIONS ARE IN INCHES
TOLERANCES: LINEAR ±1/2 [±10mm], ANGULAR ±2°
UNLESS NOTED OTHERWISE
DWN BY:
SHEET:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF WOOD STONE CORPORATION
ANY REPRODUCTION OR USE IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF WOOD STONE IS PROHIBITED
An ongoing program of product improvement may require us to
change specifications without notice.
\\woodstone.net\dfs\CAD\0 Pn\WS Top Level\CSI-Custom_Stainless_Industries\Churasco\LCHUG-900\LCHUG-900 (WOODSTONE).dft
1 of 1
7 1/4"
190mm TYP
7"
180m
m
32 3/4"
830mm
27 3/4"
710mm
31 1/2"
800mm
49 1/4"
1250mm
35 1/2"
900mm
37 3/4"
960mm
6 1/4"
160mm
23 1/2"
600mm
REV:
DATE:
PART #:
Bellingham, WA 360/650-1111 www.woodstone-corp.com
WS-LCHUG-900
Churrasco 900
General Arrangement
5/16/2014
bena
0
DIMENSIONS ARE IN INCHES
TOLERANCES: LINEAR ±1/2 [±10mm], ANGULAR ±2°
UNLESS NOTED OTHERWISE
DWN BY:
SHEET:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF WOOD STONE CORPORATION
ANY REPRODUCTION OR USE IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF WOOD STONE IS PROHIBITED
An ongoing program of product improvement may require us to
change specifications without notice.
\\woodstone.net\dfs\CAD\0 Pn\WS Top Level\CSI-Custom_Stainless_Industries\Churasco\LCHUG-900\LCHUG-900 (WOODSTONE).dft
1 of 1
7 1/4"
190mm TYP
7"
180mm
32
3/4"
830
mm
27 3/4"
710mm
31 1/2"
800mm
49 1/4"
1250mm
35 1/2"
900mm
37 3/4"
960mm
6 1/4"
160mm
23 1/2"
600mm
G

7
Churrasco–900
Installation and Operation Manual
An ongoing program of product improvement may require us to change
specifications without notice. WS-LCHUG-900 Churrasco,
Revised June 2015. Doc no: M0100.02
[email protected] or visit woodstone-corp.com
Wood Stone Corporation
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
Toll Free 800.988.8103
Tel [phone]
Fax [phone]
RECEIVING & ASSEMBLY
UNLOADING THE GRILL
The crated Churrasco weighs 755 lbs� A 2,000 lb� capacity forklift should be used for unloading the unit from the delivery vehicle�
Approach the crated rotisserie from the side and insert the evenly spaced forks under the wooden skid� Take care not to hit the legs
or casters that protrude from the bottom of the unit�
MOVING THE GRILL
The crated grill can be moved using a forklift, if space allows� Alternatively, a 1,000 lb� pallet jack can be used� Caster equiped
models may be rolled into place over a level surface after removal from crate�
ASSEMBLY
Install Spit Rails by placing pin into larger hole on either side and pushing down on rail� Rail with 3 indentations goes in the middle
position; rail with 4 indentations goes on the bottom� Note how weldment and the small lip at the bottom of the rail faces outward�
Unit comes standard with 7 spits�
SPIT RAILS
Removable Spit Rail Connection
Narrow Grease/
Debris Drawer with
screen insert
Wide Grease/
Debris Drawer
with screen insert
Spit seated in
Spit Rail
Churrasco with 11
Spits in position
SPITS
Top Resting Spit Rail (Fixed)
Middle Rotating Spit Rail (Removable)
Bottom Rotating Spit Rail (Removable)
Drop-Down Burner Guard
Ignition Button
Notes
Adjoining Spits
rotate in the
opposite direction�
Maximum capacity
per spit: 6�5 lbs

8
Churrasco–900
Installation and Operation Manual
An ongoing program of product improvement may require us to change
specifications without notice. WS-LCHUG-900 Churrasco,
Revised June 2015. Doc no: M0100.02
[email protected] or visit woodstone-corp.com
Wood Stone Corporation
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
Toll Free 800.988.8103
Tel [phone]
Fax [phone]
CLEARANCES & VENTING
INSTALLATION CLEARANCES
Sides
• Minimum clearance from sides of grill to combustible construction is 36"�
• Minimum clearance from sides of grill to non-combustible construction is 36" to allow for combustion air�
Floor
• The unit is suitable for installation on combustible floors�
WARNING: Do not pack required air spaces with insulation or other material. Do not obstruct the flow of combustion and
ventilation air.
VENTING
The Wood Stone Circular Grill must be vented using a Listed Type 1 exhaust hood or one constructed in accordance with the
Standard for Ventilation Control and Fire Protection of Commercial Cooking Operations, NFPA 96, and all relevant local and national
codes, and in a manner acceptable to the authority having jurisdiction�
VERY IMPORTANT! WOOD STONE RECOMMENDS THAT YOU SUBMIT VENTING PLANS TO
LOCAL CODE AUTHORITIES BEFORE PROCEEDING WITH INSTALLATION.

9
Churrasco–900
Installation and Operation Manual
An ongoing program of product improvement may require us to change
specifications without notice. WS-LCHUG-900 Churrasco,
Revised June 2015. Doc no: M0100.02
[email protected] or visit woodstone-corp.com
Wood Stone Corporation
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
Toll Free 800.988.8103
Tel [phone]
Fax [phone]
UTILITY INFORMATION
UTILITY CONNECTIONS
NOTE: This unit is on casters, so utility hookups should be made in such a way as to allow mobility of the grill for service and
maintenance purposes�
IMPORTANT INSTALLATION CONSIDERATIONS FOR MOVABLE APPLIANCES
IMPORTANT NOTICE REGARDING GAS CONNECTIONS TO MOVABLE APPLIANCES
Install with a gas connector that complies with the Standard for Connectors for Movable Gas Appliances, ANSI Z21�69 or CSA
6�16, and a quick-disconnect device that complies with the Standard for Quick-Disconnect Devices for Use With Gas Fuel, ANSI
Z21�41 or CSA 6�9�
ATTENTION INSTALLER: EQUIPMENT RESTRAINT MUST BE PROVIDED
Adequate means must be provided to limit the movement of the appliance without depending on the connector and the quick-
disconnect device or its associated piping to limit the appliance movement�
Use the eyehooks at the rear bottom of the unit to attach the restraining device(s).
All utility connections to the grill are made from the bottom of the unit.
The installation of this appliance must conform with local codes, or in the absence of local codes, with the National Fuel
Gas Code, ANSI Z223.1/NFPA 54 or the Natural Gas Installation Code, CAN/CGA-B149.1 as applicable including:
The appliance and its individual shutoff valve (supplied by others) must be disconnected from the gas supply piping
system during any pressure testing of that system at test pressures in excess of 1/2 psi (3.45 kPa).
The appliance must be isolated from the gas supply piping system by closing its individual manual shutoff valve (supplied
by others) during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psi
(3.5 kPa).

10
Churrasco–900
Installation and Operation Manual
An ongoing program of product improvement may require us to change
specifications without notice. WS-LCHUG-900 Churrasco,
Revised June 2015. Doc no: M0100.02
[email protected] or visit woodstone-corp.com
Wood Stone Corporation
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
Toll Free 800.988.8103
Tel [phone]
Fax [phone]
UTILITY INFORMATION
3/4" NPT gas inlet connection

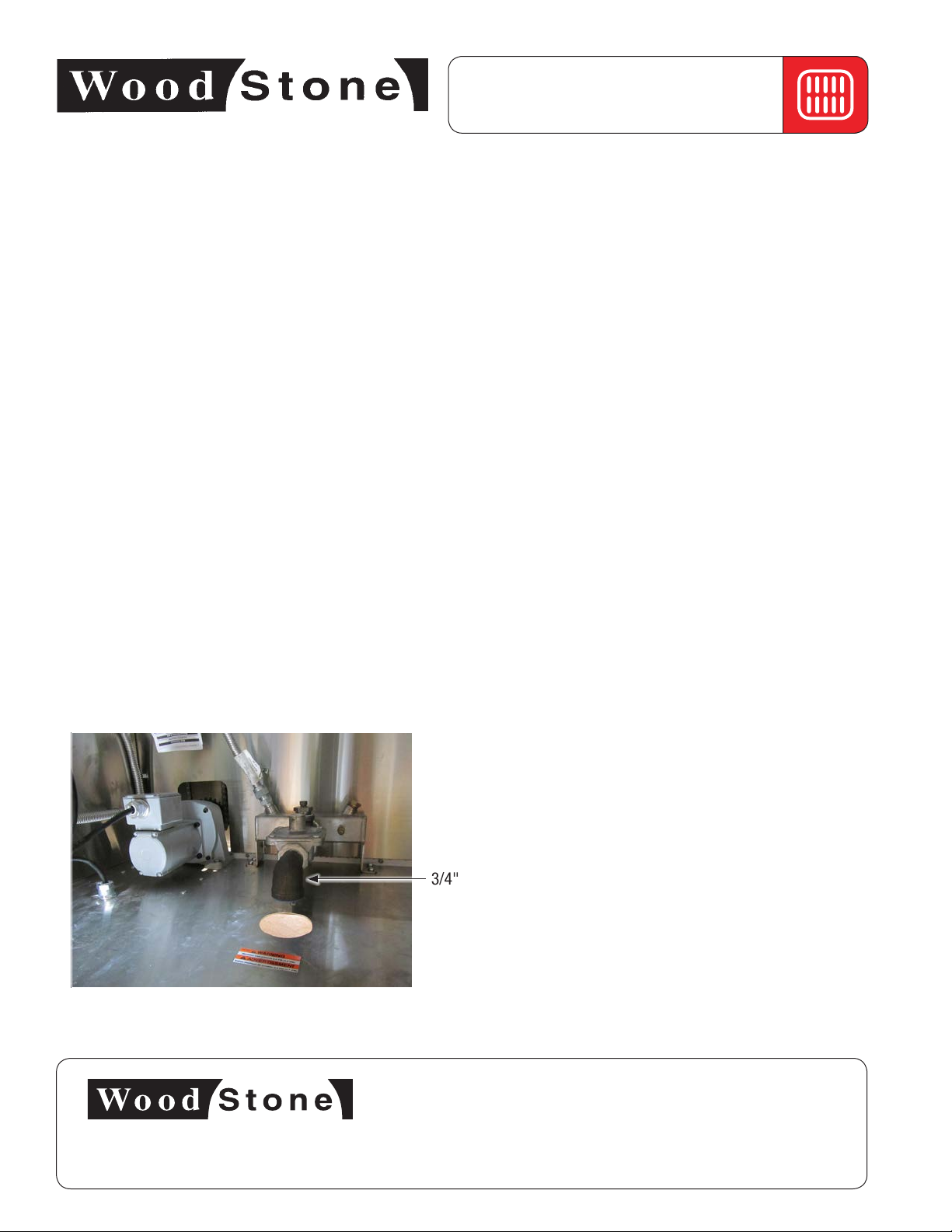

The Churrasco is equipped with a 3/4" NPT gas inlet connection� Have a licensed gas installer provide the hook-up and test all
fittings and pipe connections for leaks� Use approved gas leak detectors (soap solutions or equivalent) over and around the fittings
and pipe connections�
DO NOT USE A FLAME TO TEST FOR LEAKS!
Wood Stone recommends that a manual, individual appliance shutoff valve be supplied, located between the grill and the main gas
supply, and be left readily accessible�
MANIFOLD PRESSURE / GAS RATING
This appliance is equipped with a gas pressure regulator suitable for incoming pressure of up to 1/2 psi (14" W�C�)�
If incoming pressure exceeds 1/2 psi (14" W�C�), a suitable regulator, by others, must be installed�
Manifold pressure can be checked at the tap provided, which is located just beyond the outlet side of the regulator�
MANIFOLD PRESSURE / GAS RATING
WS-CHUG-900
Natural Gas (NG): 4.0" W.C.
98,000 BTU/hr
Propane (LG): 10.0" W.C.
87,000 BTU/hr
ELECTRICAL
120 VAC �33 A, 60 Hz� Cord, originating under unit, with NEMA 5-15 plug and 10' cord� Supply a grounded 3-prong receptacle�
DO NOT CUT OR REMOVE THE GROUNDING PRONG FROM THE PLUG.

11
Churrasco–900
Installation and Operation Manual
An ongoing program of product improvement may require us to change
specifications without notice. WS-LCHUG-900 Churrasco,
Revised June 2015. Doc no: M0100.02
[email protected] or visit woodstone-corp.com
Wood Stone Corporation
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
Toll Free 800.988.8103
Tel [phone]
Fax [phone]

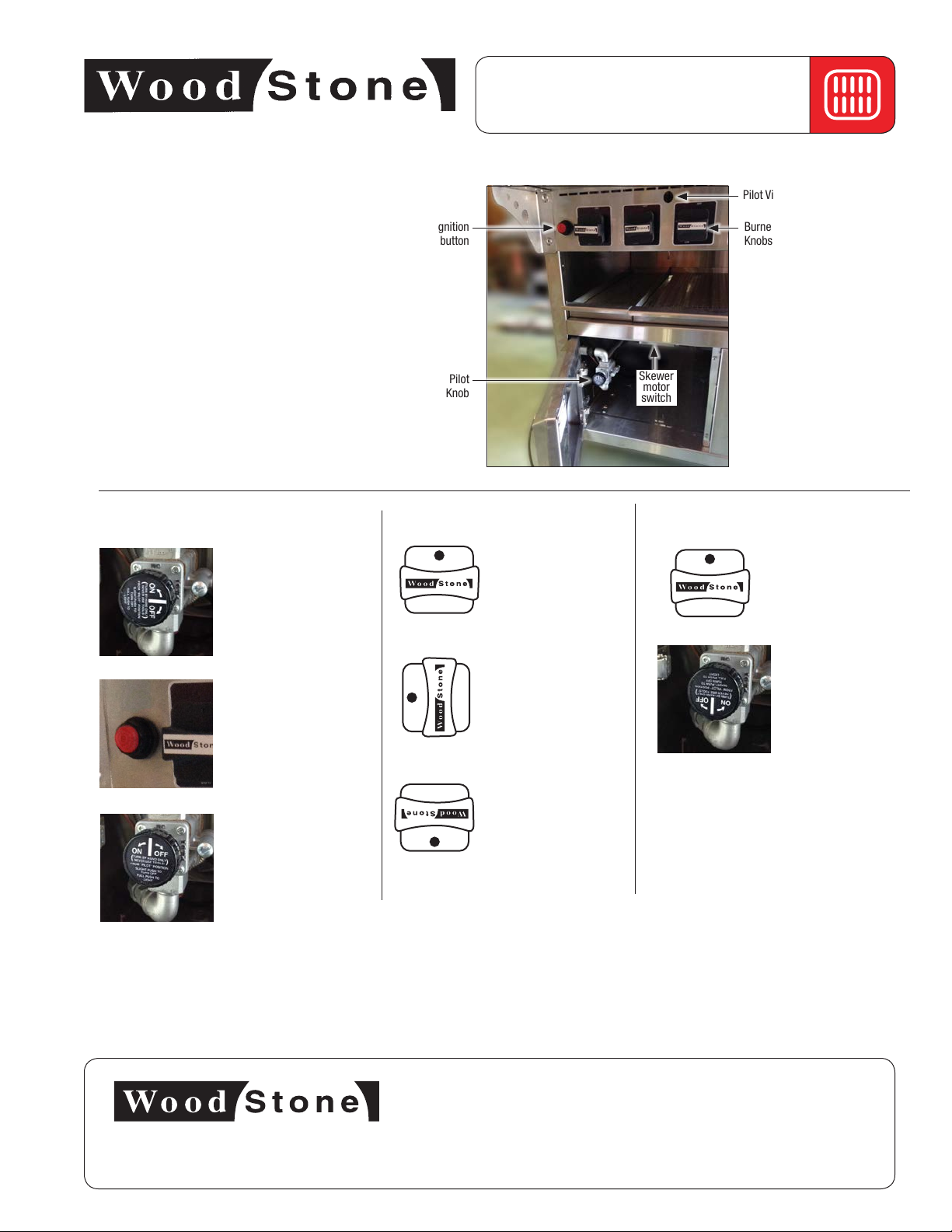

LIGHTING INSTRUCTIONS
1. Depress Pilot knob
and turn to PILOT
position� Hold down
while depressing
and holding down
the red IGNITION
button (to the left of
the Burner Control
knobs)�
2. Keep red IGNITION
button depressed until
visually confirming the
pilot has lit through
the Pilot View port,
then release the
IGNITION button�
3. Turn Pilot Knob to the
ON position�
1. Push and turn
all Burner
Control Knobs
to OFF position�
The “Low” setting
position�
OFF
HIGH
LOW
PILOT position
OFF position
Red Ignition button
ON position
To adjust flame height,
depress Burner Control
knob, turn to the flame
height desired, then
release�
The “High” setting
position�
2. Push and turn
Pilot Knob to
OFF position�
LIGHTING INSTRUCTIONS
Note: Unit must be off for 5 minutes
before starting or restarting�
The 900 Churrasco Grill has one
lighting control on the left side for
the 7 burners�
TO TURN UNIT COMPLETELY OFFTO ADJUST FLAME HEIGHTTO LIGHT THE BURNERS
Ignition
button
Burner Control
Knobs
Pilot View Port
Pilot
Knob
Skewer
motor
switch

12
Churrasco–900
Installation and Operation Manual
An ongoing program of product improvement may require us to change
specifications without notice. WS-LCHUG-900 Churrasco,
Revised June 2015. Doc no: M0100.02
[email protected] or visit woodstone-corp.com
Wood Stone Corporation
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
Toll Free 800.988.8103
Tel [phone]
Fax [phone]
DAILY OPERATION
OPERATION
FLAME HEIGHT
See “To Adjust Flame Height” box on previous page�
GREASE/DEBRIS TRAYS
Add water to the Grease/Debis Trays to catch drippings and simplify cleaning�
SPIT MOTOR
Press the orange ON/OFF button to turn the unit on and off� The button for the
Spit Motor is located behind the left lower door (see photo to right)�
DO NOT use water or any other liquid to cool down heated components of the Churrasco� Doing so could permanently damage the
Grill and its components� Never spray water onto or around the burners�
END OF DAY
CLEANING THE CABINET EXTERIOR
All exposed surfaces of the grill should be wiped clean daily using an approved mild cleaning solution� Stubborn residues may be
removed using a non-metallic scouring pad� When scouring stainless steel, scrub with the grain to avoid scratching the finish�
CLEANING THE CABINET INTERIOR
When adequately cool, lift and pull the Middle and Bottom Spit Rails to remove
and clean� Spray then wipe the interior of the cabinet walls with oven cleaner,
following the directions of the manufacturer� Wipe with wet cloth to remove
streaks�
Lift, then tip down the Drop Down Burner Shield to clean the grease trough
which runs behind the shield�
CLEANING THE ACCESSORIES
The Churrasco Spits should be cleaned using an approved mild detergent and hot water�
CLEANING THE GREASE/DEBRIS TRAYS
Remove Grease/Debris Trays, being careful with the water in the trays� Remove the
screen insert� Soak and scrub both sections using an approved mild detergent and hot
water� Alternatively, these items can be cleaned in a dishwasher� For built-up debris, oven
cleaner may be required�
EXHAUST HOOD
Refer to the exhaust hood manufacturer’s recommendations for inspection, maintenance and cleaning�
Narrow Grease/
Debris Tray with
screen insert
removed
Drop
Down
Burner
Shield
Skewer motor switch

13
Churrasco–900
Installation and Operation Manual
An ongoing program of product improvement may require us to change
specifications without notice. WS-LCHUG-900 Churrasco,
Revised June 2015. Doc no: M0100.02
[email protected] or visit woodstone-corp.com
Wood Stone Corporation
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
Toll Free 800.988.8103
Tel [phone]
Fax [phone]
MAINTENANCE
WEEKLY MAINTENANCE
1. With grill cool, clean the Grill Burner Radiants� Wipe away any debris�
2. Clean fallen debris from the lower Grease/Debris Trays�

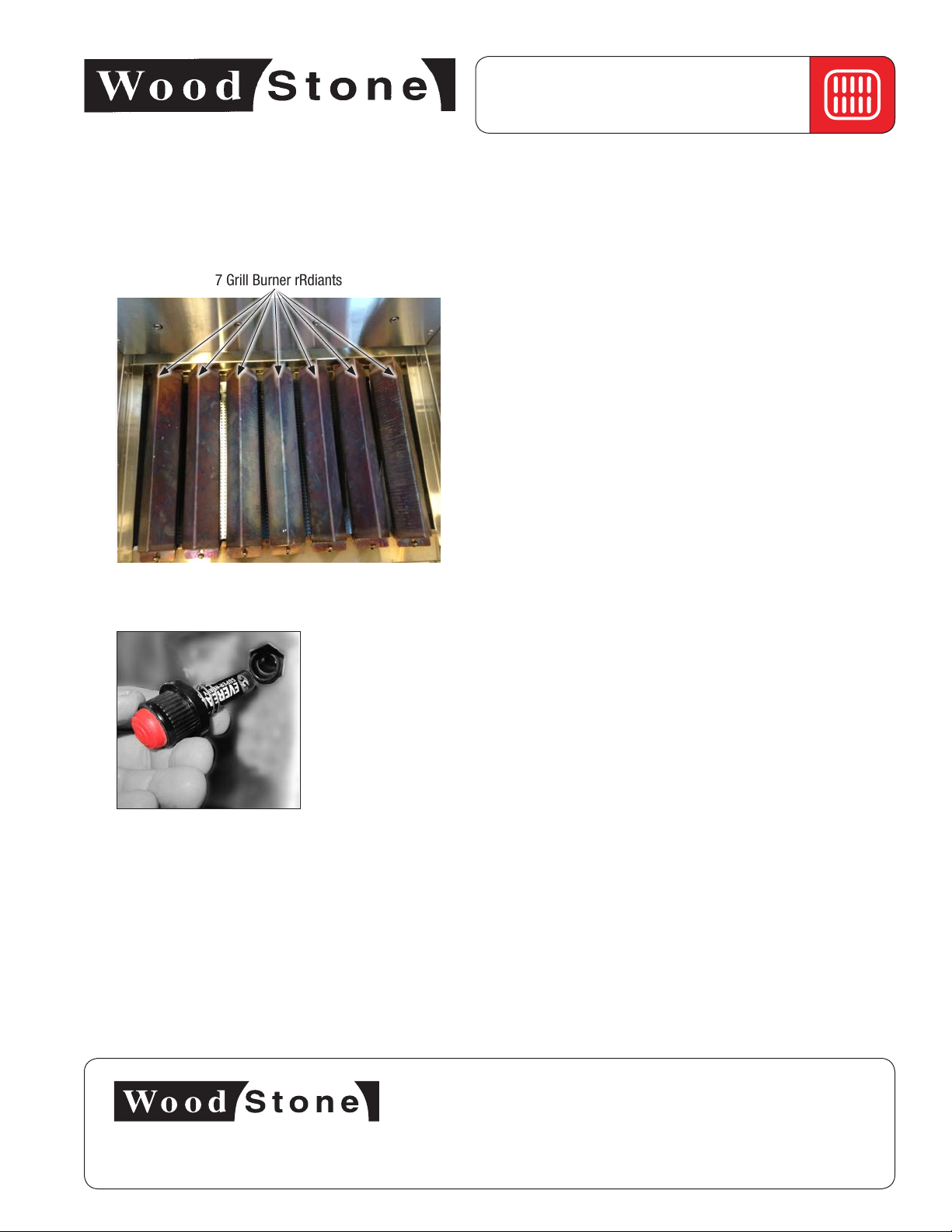

7 Grill Burner rRdiants
1. Verify Gas Control knob is in OFF position�
2. Unscrew the Ignitor button to access the AA battery�
3. Replace battery, placing negative (-) end into spring on button,
sliding positive (+) end into receptacle�
4. Tighten Ignitor button�
IGNITER BATTERY REPLACEMENT

Please contact Wood Stone at 1-800-988-8103 should service be necessary, or if you have any questions about
your appliance. Our service hours are 8am to 4:30pm Pacific Standard Time. Follow the recorded instructions for
Emergency Service if you require assistance during non-business hours. A Wood Stone technician will promptly
respond to your call.
Zip tube will not
stay lit
Thermocouple
has good output
but low reading
at valve
Thermocouple
has good output
but inlet gas
control magnet
will not hold
Burners will not
fully light
Burners flash
back
• Loose, dirty or corroded terminals Clean or tighten as required
• Grease under Flame Height knob
prevents knob from being depressed Remove knob and clean
• Pilot magnet defective Replace auto gas valve
• Blocked burner ports Clear burner ports
• Blocked cross-over Clear burner cross-over
• Blocked injector Clear injector
• Low gas pressure Increase pressure at main or grill regulator
• Blocked injector Clear injector
• Low gas pressure Increase pressure at main or grill regulator
• Cracked burner head Replace burner
• Manual shut-off valve partially closed Open valve fully
• Pilot flame too small Raise pilot flame, adjust at gas valve
• Low gas pressure Increase pressure at main or appliance regulator
• Clogged orifice Clean orifice
• Gas line too small Replace gas line
• Flame blowing away from thermocouple Eliminate drafts
• Defective thermocouple Replace thermocouple
Loose, dirty or corroded terminals Clean or tighten as required�
PROBLEM SOLUTIONPOSSIBLE CAUSE
14
Churrasco–900
Installation and Operation Manual
An ongoing program of product improvement may require us to change
specifications without notice. WS-LCHUG-900 Churrasco,
Revised June 2015. Doc no: M0100.02
[email protected] or visit woodstone-corp.com
Wood Stone Corporation
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
Toll Free 800.988.8103
Tel [phone]
Fax [phone]
TROUBLESHOOTING

15
Churrasco–900
Installation and Operation Manual
An ongoing program of product improvement may require us to change
specifications without notice. WS-LCHUG-900 Churrasco,
Revised June 2015. Doc no: M0100.02
[email protected] or visit woodstone-corp.com
Wood Stone Corporation
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
Toll Free 800.988.8103
Tel [phone]
Fax [phone]
WIRE DIAGRAM
CSI MOTOR SWITCH BOX WIRING
DATE:
DIAG #:
WD803 Rev. 0
1/30/2014
Bellingham, WA [phone] www.woodstone-corp.com
LINE
GROUND
NEUTRAL
SWITCH BOX
SWITCH LAMP
GREY
BLACK
BLUE
4µF
220 VAC
BLUE
120 VAC
MOTOR
SPECS:
Brother
GL22N18X-
BMLC1A
1 Phase
~1/50 HP
115V 60Hz
0.33A
MOTOR
JUNCTION
BOX

16
Churrasco–900
Installation and Operation Manual
An ongoing program of product improvement may require us to change
specifications without notice. WS-LCHUG-900 Churrasco,
Revised June 2015. Doc no: M0100.02
[email protected] or visit woodstone-corp.com
Wood Stone Corporation
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
Toll Free 800.988.8103
Tel [phone]
Fax [phone]
LIMITED WARRANTY
ALL WARRANTY SERVICE MUST BE PRE-APPROVED BY WOOD STONE
Wood Stone warrants its equipment to the original purchaser against defects in material or manufacture for a period of one
year from the original date of purchase, subject to the following exclusions and limitations.
Please contact the factory first at 1.800.988.8103 or 1.360.650.1111, seven days a week. Our normal business hours are 8am
to 4:30pm PST Monday–Friday. If calling during non-business hours, follow the recorded instructions for emergency service
and a Wood Stone technician will get back to you promptly.
EXCLUSIONS
The warranties provided by Wood Stone do not apply in the following instances:
1� In the event that the equipment is improperly installed� Proper installation is the responsibility of the installer; proper installation
procedures are prescribed by the Wood Stone Installation and Operation Manual�
2� In the event the equipment is improperly or inadequately maintained� Proper maintenance is the responsibility of the user; proper
maintenance procedures are prescribed in the Wood Stone Installation and Operation Manual� Burner problems resulting from debris
or ash in the burner well will not be covered by the warranty� Call with questions regarding maintenance frequency�
3� In the event that the failure or malfunction of the appliance or any part thereof is caused by abnormal or improper use or is otherwise
not attributable to defect in material or manufacture�
4� In the event that the appliance, by whatever cause, has been materially altered from the condition in which it left the factory�
5� In the event that the rating plate has been removed, altered or obliterated�
6� On parts that would be normally worn or replaced under normal conditions�
7� Normal cracking due to expansion and contraction stress relief in the ceramic firebox�
8� In wood-fired equipment configurations, in the event that pressed log products of any type have been burned in the equipment�
9� In coal-fired oven configurations, in the event any type of coal other than anthracite coal fuel has been used�
10� Damage resulting from the use of chemical cleaning products in the oven, as well as any damage from liquids or chemicals, including
water, being poured or sprayed into the oven�
If any oral statements have been made regarding this appliance, such statements do not constitute warranties and are not part of the
contract of sale� This Limited Warranty constitutes the complete, final and exclusive statement with regard to warranties�
THIS LIMITED WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES WHETHER WRITTEN, ORAL OR
IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR PARTICULAR
PURPOSE OR WARRANTY AGAINST LATENT DEFECTS.
LIMITATIONS OF LIABILITY
In the event of warranty claim or otherwise, the sole obligation of Wood Stone shall be the repair and/or replacement, at the option of
Wood Stone, of the appliance or component or part thereof� Such repair or replacement shall be at the expense of Wood Stone with the
exception of travel over 100 miles or two hours, overtime, and holiday charges which shall be at the expense of the purchaser� Any repair
or replacement under this warranty does not constitute an extension of the original warranty for any period of the appliance or for any
component or part thereof� Parts to be replaced under this warranty will be repaired or replaced at the option of Wood Stone with new
or functionally operative parts� The liability of Wood Stone on any claim of any kind, including claims based on warranty, expressed or
implied, contract, negligence, strict liability or any other theories shall be solely and exclusively the repair or replacement of the product
as stated herein, and such liability shall not include, and purchaser specifically renounces any rights to recover, special, incidental,
consequential or other damages of any kind whatsoever, including, but not limited to, injuries to persons or damage to property, loss of
profits or anticipated profits, or loss of use of the product�
TO SECURE WARRANTY SERVICE
If you claim a defect covered by this Limited Warranty, contact:
Wood Stone Corporation, Attn: Service Department, 1801 W� Bakerview Rd�, Bellingham, WA 98226 USA
Phone 1�800�988�8103 or 1�360�650�1111
