Wood Stone GAS PLANCHA WS-GPL-4836-CT01 User manual

Toll Free 800.988.8103
Tel [phone]
Fax [phone]
www.woodstone-corp.com
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
GAS PLANCHA
Speciality Equipment
Countertop Model
and Optional Stand Models
4-ZONE GAS PLANCHA WS-GPL-4836-CT01
3-ZONE GAS PLANCHA WS-GPL-3636-CT01
2-ZONE GAS PLANCHA WS-GPL-2436-CT01
DOC NO M0202.05 REVISED AUGUST 2018
Installation and
Operation Manual

Wood Stone Gas Plancha
Installation and Operation Manual
PG 2 OF 28
M0202.05 AUGUST 2018
An ongoing program of product improvement may
require us to change specifications without notice.
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
TOLL FREE 800.988.8103
TEL [phone]
FAX [phone]
E-MAIL [e-mail]
woodstone-corp.com
TABLE OF CONTENTS
TABLE OF CONTENTS
Wood Stone Gas Plancha � � � � � � � � � � � � � � � 3
Cautions & Warnings � � � � � � � � � � � � � � � � � � 4
SPECIFICATIONS
WS-GPL-4836-CT01� � � � � � � � � � � � � � � � � 5
WS-GPL-4836-CT01 w/ Stand � � � � � � � � 6
WS-GPL-3636-CT01� � � � � � � � � � � � � � � � � 7
WS-GPL-3636-CT01 w/ Stand � � � � � � � � 8
WS-GPL-2436-CT01� � � � � � � � � � � � � � � � � 9
Clearances & Ventilation� � � � � � � � � � � � � � � 10
Utility Specifications � � � � � � � � � � � � � � � � � � 11
Basic Operation � � � � � � � � � � � � � � � � � � � � � 12
Daily Use & Maintenance � � � � � � � � � � � � � � 13
Troubleshooting � � � � � � � � � � � � � � � � � � � � � 14
Operational Sequence � � � � � � � � � � � � � � � � 15
WIRE DIAGRAMS
WS-GPL-4836-CT01
Ignition Module Interconnect Harness� � � 16
Ignition & Power Distribution � � � � � � � � � 17
Indicators & Potentiometers� � � � � � � � � � 18
Thermocouple Connections � � � � � � � � � � 19
WS-GPL-3636-CT01
Ignition Module Interconnect Harness� � � 20
Ignition & Power Distribution � � � � � � � � � 21
Indicators & Potentiometers� � � � � � � � � � 22
Thermocouple Connections � � � � � � � � � � 23
WS-GPL-2436-CT01
Ignition Module Interconnect Harness� � � 24
Ignition & Power Distribution � � � � � � � � � 25
Indicators & Potentiometers� � � � � � � � � � 26
Thermocouple Connections � � � � � � � � � � 27
Limited Warranty � � � � � � � � � � � � � � � � � � � � 28

Wood Stone Gas Plancha
Installation and Operation Manual
PG 3 OF 28
M0202.05 AUGUST 2018
An ongoing program of product improvement may
require us to change specifications without notice.
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
TOLL FREE 800.988.8103
TEL [phone]
FAX [phone]
E-MAIL [e-mail]
woodstone-corp.com
WOOD STONE GAS PLANCHA
WS-GPL-4836-CT01
Shown with optional stand
WS-GPL-4836-CT01
WS-GPL-3636-CT01
WS-GPL-2436-CT01
WS-GPL-3636-CT01
Shown with optional stand
INSTALLATION AND OPERATION MANUAL
WOOD STONE GAS PLANCHA
WS-GPL-4836-CT01 (w/ OPTIONAL STAND)
WS-GPL-3636-CT01 (w/ OPTIONAL STAND)
WS-GPL-2436-CT01
ADDITIONAL COPIES AVAILABLE UPON REQUEST

Wood Stone Gas Plancha
Installation and Operation Manual
PG 4 OF 28
M0202.05 AUGUST 2018
An ongoing program of product improvement may
require us to change specifications without notice.
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
TOLL FREE 800.988.8103
TEL [phone]
FAX [phone]
E-MAIL [e-mail]
woodstone-corp.com
CAUTIONS & WARNINGS
IF THIS EQUIPMENT IS NOT PROPERLY INSTALLED A FIRE MAY RESULT. TO REDUCE
THE RISK OF FIRE, FOLLOW THESE INSTALLATION INSTRUCTIONS. A MAJOR CAUSE OF
APPLIANCE-RELATED FIRES IS FAILURE TO MAINTAIN REQUIRED CLEARANCES (AIR SPACES)
TO COMBUSTIBLE MATERIALS. IT IS OF UTMOST IMPORTANCE THAT THIS APPLIANCE BE
INSTALLED ONLY IN ACCORDANCE WITH THESE INSTRUCTIONS.
!
Please read this entire manual before you install the appliance. Failure to follow instructions may result in
property damage, bodily injury or even death. Contact your local building or fire officials about restrictions and
installation inspection in your area.
WOOD STONE GAS PLANCHA INSTALLATION AND OPERATION INSTRUCTIONS
DO NOT THROW THIS MANUAL AWAY
FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or
any other appliance.
ESURE DE SÉCURITÉ: Ne pas entreposer ni utiliser de’essence ni autres vapeurs ou liquides inflammables à
proximté de cet appareil ou de tout autre appareil.
WARNING: Improper installation, adjustment, alteration, service or maintenance can cause property damage,
injury or death. Read the installation, operation and maintenance instructions thoroughly before installing or
servicing this equipment.
AVERTISSEMENT: L’installation, le réglage, la modification, la réparation ou l’entretien incorrect de cet
appareil peut causer des dommages matériels, des blessures ou la mort. Lire attentivement les instructions
d’installation, de fonctionnement et d’entretien avant de procéder à son installation ou entretien.
IMPORTANT: Consult your local gas supplier for a statement outlining a procedure to be followed in the event
you smell gas. Post the statement in a prominent location.
This product must be installed by a licensed plumber or gas fitter when installed within the Commonwealth of Massachusetts.
IMPORTANT: It is recommended this equipment be installed, maintained and serviced by authorized professionals.
RETAIN THIS MANUAL FOR FUTURE REFERENCE
Additional copies of this manual at woodstone-corp�com�
For prompt responses to service/maintenance questions, call us at @ 1-800-988-8103�
ANSI Z83.11
CSA 1.8
ANSI/NSF 4
The Wood Stone Gas Plancha has been tested
and approved by Intertek Testing Services
and conforms to ANSI Z83.11;
is certified to CSA 1.8 and CGA 2.17;
and to NSF/ANSI 4.

Wood Stone Gas Plancha
Installation and Operation Manual
PG 5 OF 28
M0202.05 AUGUST 2018
An ongoing program of product improvement may
require us to change specifications without notice.
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
TOLL FREE 800.988.8103
TEL [phone]
FAX [phone]
E-MAIL [e-mail]
woodstone-corp.com
WS-GPL-4836-CT01 SPECS
Shipping weight: 580 lbs Unit weight: 484 lbs
Plan view
Side viewFront view
WS-GPL-4836-CT01 COUNTERTOP MODEL
REV:
DATE:
PART #:
WS-GPL-4836
7/12/2018 lucasm
DWN BY:
SHEET:
GPL4836
4 Knob - Countertop
0
1 of 1
G
G
48"
1220mm 12 3/4"
330mm
24 1/4"
620mm
8"
200mm
34"
870mm
2 1/4"
60mm 39"
990mm
4"
100mm
45 1/4"
1150mm 21" 530mm
8 3/4"
220mm
12 3/4"
330mm
20 1/2"
520mm
4 1/4"
110mm
REV:
DATE:
PART #:
WS-GPL-4836
7/12/2018 lucasm
DWN BY:
SHEET:
GPL4836
4 Knob - Countertop
0
1 of 1
G
G
48"
1220mm 12 3/4"
330mm
24 1/4"
620mm
8"
200mm
34"
870mm
2 1/4"
60mm 39"
990mm
4"
100mm
45 1/4"
1150mm
21"
530mm
8 3/4"
220mm
12 3/4"
330mm
20 1/2"
520mm
4 1/4"
110mm
REV:
DATE:
PART #:
WS-GPL-4836
7/12/2018 lucasm
DWN BY:
SHEET:
GPL4836
4 Knob - Countertop
0
1 of 1
G
G
48"
1220mm 12 3/4"
330mm
24 1/4"
620mm
8"
200mm
34"
870mm
2 1/4"
60mm 39"
990mm
4"
100mm
45 1/4"
1150mm
21"
530mm
8 3/4"
220mm
12 3/4"
330mm
20 1/2"
520mm
4 1/4"
110mm
Gas
3/4 inch FNPT gas inlet
110,000 BTU/hr Natural Gas (NG)
OR
118,000 BTU/hr Propane (LP)
Maximum gas inlet pressure
1/2 psi (14 inches W�C�)
Electrical
120 VAC, �7 A, 50/60 Hz
Equipped with a NEMA 5-15P plug for use with
a standard 120 VAC 15 A or 20 A outlet�
G
Venting
The Wood Stone Gas Plancha must be vented with
a Listed Type 1 exhaust hood, or one constructed in
accordance with NFPA 96 and all relevant local and
national codes� The oven must be vented in accordance
with all relevant local and national codes, and in a
manner acceptable to the authority having jurisdiction�
UTILITIES SPECIFICATIONS Refer to data plate when installing.

Wood Stone Gas Plancha
Installation and Operation Manual
PG 6 OF 28
M0202.05 AUGUST 2018
An ongoing program of product improvement may
require us to change specifications without notice.
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
TOLL FREE 800.988.8103
TEL [phone]
FAX [phone]
E-MAIL [e-mail]
woodstone-corp.com
WS-GPL-4836-CT01 W/ STAND SPECS
WS-GPL-4836-CT01 WITH OPTIONAL STAND
REV:
DATE:
PART #:
WS-GPL-4836
7/12/2018 lucasm
DWN BY:
SHEET:
GPL4836
4 Knob - With Caster Stand
0
1 of 1
G
G
48"
1220mm 12 3/4"
330mm
24 1/4"
620mm
8"
200mm
34"
870mm
2 1/4"
60mm 39"
990mm
20 1/2"
520mm
43"
1090mm
47"
1190mm
43 1/2"
1110mm
31 3/4"
810mm
6"
150mm
7 3/4"
200mm
35 1/4"
890mm
22 1/2"
570mm
27 3/4"
700mm
Plan view
REV:
DATE:
PART #:
WS-GPL-4836
7/12/2018 lucasm
DWN BY:
SHEET:
GPL4836
4 Knob - With Caster Stand
0
1 of 1
G
G
48"
1220mm 12 3/4"
330mm
24 1/4"
620mm
8"
200mm
34"
870mm
2 1/4"
60mm 39"
990mm
20 1/2"
520mm
43"
1090mm
47"
1190mm
43 1/2"
1110mm
31 3/4"
810mm
6"
150mm
7 3/4"
200mm
35 1/4"
890mm
22 1/2"
570mm
27 3/4"
700mm
Side view
REV:
DATE:
PART #:
WS-GPL-4836
7/12/2018 lucasm
DWN BY:
SHEET:
GPL4836
4 Knob - With Caster Stand
0
1 of 1
G
G
48"
1220mm 12 3/4"
330mm
24 1/4"
620mm
8"
200mm
34"
870mm
2 1/4"
60mm 39"
990mm
20 1/2"
520mm
43"
1090mm
47"
1190mm
43 1/2"
1110mm
31 3/4"
810mm
6"
150mm
7 3/4"
200mm
35 1/4"
890mm
22 1/2"
570mm
27 3/4"
700mm
Front view
Shipping weight: 660 lbs. Unit weight: 550 lbs.
Gas
3/4 inch FNPT gas inlet
110,000 BTU/hr Natural Gas (NG)
OR
118,000 BTU/hr Propane (LP)
Maximum gas inlet pressure
1/2 psi (14 inches W�C�)
Electrical
120 VAC, �7 A, 50/60 Hz
Equipped with a NEMA 5-15P plug for use with
a standard 120 VAC 15 A or 20 A outlet�
G
Venting
The Wood Stone Gas Plancha must be vented with
a Listed Type 1 exhaust hood, or one constructed in
accordance with NFPA 96 and all relevant local and
national codes� The oven must be vented in accordance
with all relevant local and national codes, and in a
manner acceptable to the authority having jurisdiction�
UTILITIES SPECIFICATIONS Refer to data plate when installing.

Wood Stone Gas Plancha
Installation and Operation Manual
PG 7 OF 28
M0202.05 AUGUST 2018
An ongoing program of product improvement may
require us to change specifications without notice.
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
TOLL FREE 800.988.8103
TEL [phone]
FAX [phone]
E-MAIL [e-mail]
woodstone-corp.com
WS-GPL-3636-CT01 SPECS
Shipping weight: 490 lbs Unit weight: 390 lbs
WS-GPL-3636-CT01 COUNTERTOP MODEL
Plan view
Side view
Front view
REV:
DATE:
PART #:
WS-GPL-3636
7/12/2018 lucasm
DWN BY:
SHEET:
GPL3636
3 Knob - Countertop
0
1 of 1
G
G
36"
910mm
24 1/4"
620mm
34"
870mm
2 1/4"
60mm 31 3/4" 810mm
8"
200mm
12 3/4"
330mm
4"
100mm
32 3/4"
830mm
12 3/4"
320mm
8 3/4"
220mm 21" 530mm 4 1/4" 110mm
20 1/2"
520mm
REV:
DATE:
PART #:
WS-GPL-3636
7/12/2018 lucasm
DWN BY:
SHEET:
GPL3636
3 Knob - Countertop
0
1 of 1
G
G
36"
910mm
24 1/4"
620mm
34"
870mm
2 1/4"
60mm 31 3/4" 810mm
8"
200mm
12 3/4"
330mm
4"
100mm
32 3/4"
830mm
12 3/4"
320mm
8 3/4"
220mm 21" 530mm 4 1/4" 110mm
20 1/2"
520mm
REV:
DATE:
PART #:
WS-GPL-3636
7/12/2018 lucasm
DWN BY:
SHEET:
GPL3636
3 Knob - Countertop
0
1 of 1
G
G
36"
910mm
24 1/4"
620mm
34"
870mm
2 1/4"
60mm 31 3/4" 810mm
8"
200mm
12 3/4"
330mm
4"
100mm
32 3/4"
830mm
12 3/4"
320mm
8 3/4"
220mm 21" 530mm 4 1/4" 110mm
20 1/2"
520mm
Gas
3/4 inch FNPT gas inlet
85,000 BTU/hr Natural Gas (NG)
OR
85,000 BTU/hr Propane (LP)
Maximum gas inlet pressure
1/2 psi (14 inches W�C�)
Electrical
120 VAC, �6 A, 50/60 Hz
Equipped with a NEMA 5-15P plug for use with
a standard 120 VAC 15 A or 20 A outlet�
G
Venting
The Wood Stone Gas Plancha must be vented with
a Listed Type 1 exhaust hood, or one constructed in
accordance with NFPA 96 and all relevant local and
national codes� The oven must be vented in accordance
with all relevant local and national codes, and in a
manner acceptable to the authority having jurisdiction�
UTILITIES SPECIFICATIONS Refer to data plate when installing.

Wood Stone Gas Plancha
Installation and Operation Manual
PG 8 OF 28
M0202.05 AUGUST 2018
An ongoing program of product improvement may
require us to change specifications without notice.
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
TOLL FREE 800.988.8103
TEL [phone]
FAX [phone]
E-MAIL [e-mail]
woodstone-corp.com
REV:
DATE:
PART #:
WS-GPL-3636
7/12/2018 lucasm
DWN BY:
SHEET:
GPL3636
3 Knob - With Caster Stand
0
1 of 1
G
G
36"
910mm
24 1/4"
620mm
34"
870mm
2 1/4"
60mm 31 3/4" 810mm
8"
200mm
12 3/4"
330mm
35 1/4"
890mm 6"
150mm
7 3/4"
200mm
31 3/4"
810mm
22 1/2"
570mm
20 1/2"
520mm
27 3/4"
700mm
31 1/4"
790mm
34 1/2"
880mm
43"
1090mm
WS-GPL-3636-CT01 W/ STAND SPECS
Side viewFront view
REV:
DATE:
PART #:
WS-GPL-3636
7/12/2018 lucasm
DWN BY:
SHEET:
GPL3636
3 Knob - With Caster Stand
0
1 of 1
G
G
36"
910mm
24 1/4"
620mm
34"
870mm
2 1/4"
60mm 31 3/4" 810mm
8"
200mm
12 3/4"
330mm
35 1/4"
890mm 6"
150mm
7 3/4"
200mm
31 3/4"
810mm
22 1/2"
570mm
20 1/2"
520mm
27 3/4"
700mm
31 1/4"
790mm
34 1/2"
880mm
43"
1090mm
REV:
DATE:
PART #:
WS-GPL-3636
7/12/2018 lucasm
DWN BY:
SHEET:
GPL3636
3 Knob - With Caster Stand
0
1 of 1
G
G
36"
910mm
24 1/4"
620mm
34"
870mm
2 1/4"
60mm 31 3/4" 810mm
8"
200mm
12 3/4"
330mm
35 1/4"
890mm 6"
150mm
7 3/4"
200mm
31 3/4"
810mm
22 1/2"
570mm
20 1/2"
520mm
27 3/4"
700mm
31 1/4"
790mm
34 1/2"
880mm
43"
1090mm
Plan view
WS-GPL-3636-CT01 WITH OPTIONAL STAND
Shipping weight: 570 lbs. Unit weight: 445 lbs.
Front view
Gas
3/4 inch FNPT gas inlet
85,000 BTU/hr Natural Gas (NG)
OR
85,000 BTU/hr Propane (LP)
Maximum gas inlet pressure
1/2 psi (14 inches W�C�)
Electrical
120 VAC, �6 A, 50/60 Hz
Equipped with a NEMA 5-15P plug for use with
a standard 120 VAC 15 A or 20 A outlet�
G
Venting
The Wood Stone Gas Plancha must be vented with
a Listed Type 1 exhaust hood, or one constructed in
accordance with NFPA 96 and all relevant local and
national codes� The oven must be vented in accordance
with all relevant local and national codes, and in a
manner acceptable to the authority having jurisdiction�
UTILITIES SPECIFICATIONS Refer to data plate when installing.

Wood Stone Gas Plancha
Installation and Operation Manual
PG 9 OF 28
M0202.05 AUGUST 2018
An ongoing program of product improvement may
require us to change specifications without notice.
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
TOLL FREE 800.988.8103
TEL [phone]
FAX [phone]
E-MAIL [e-mail]
woodstone-corp.com
WS-GPL-2436-CT01 SPECS
REV:
DATE:
PART #:
WS-GPL-2436
7/12/2018lucasm
DWN BY:
SHEET:
GPL2436
2 Knob - Countertop
0
1 of 1
G
G
24 1/4"
620mm
8"
200mm
34"
870mm
21/4"
60mm 23"
580mm
24"
610mm 12 1/2"
320mm
4"
100mm
21 1/4"
540mm
12 3/4"
320mm
21"
530mm
20 1/2"
520mm
41/4"
110mm
83/4"
220mm
REV:
DATE:
PART #:
WS-GPL-2436
7/12/2018lucasm
DWN BY:
SHEET:
GPL2436
2 Knob - Countertop
0
1 of 1
G
G
24 1/4"
620mm
8"
200mm
34"
870mm
21/4"
60mm 23"
580mm
24"
610mm 12 1/2"
320mm
4"
100mm
21 1/4"
540mm
12 3/4"
320mm
21"
530mm
20 1/2"
520mm
41/4"
110mm
83/4"
220mm
REV:
DATE:
PART #:
WS-GPL-2436
7/12/2018lucasm
DWN BY:
SHEET:
GPL2436
2 Knob - Countertop
0
1 of 1
G
G
24 1/4"
620mm
8"
200mm
34"
870mm
21/4"
60mm 23"
580mm
24"
610mm 12 1/2"
320mm
4"
100mm
21 1/4"
540mm
12 3/4"
320mm
21"
530mm
20 1/2"
520mm
41/4"
110mm
83/4"
220mm
Side view
Plan view
Shipping weight: 335 lbs Unit weight: 265 lbs
Front view
Gas
3/4 inch FNPT gas inlet
60,000 BTU/hr Natural Gas (NG)
OR
60,000 BTU/hr Propane (LP)
Maximum gas inlet pressure
1/2 psi (14 inches W�C�)
Electrical
120 VAC, �4 A, 50/60 Hz
Equipped with a NEMA 5-15P plug for use with
a standard 120 VAC 15 A or 20 A outlet�
G
Venting
The Wood Stone Gas Plancha must be vented with
a Listed Type 1 exhaust hood, or one constructed in
accordance with NFPA 96 and all relevant local and
national codes� The oven must be vented in accordance
with all relevant local and national codes, and in a
manner acceptable to the authority having jurisdiction�
UTILITIES SPECIFICATIONS Refer to data plate when installing.
WS-GPL-2436-CT01

PG 10 OF 28
M0202.05 AUGUST 2018
Wood Stone Gas Plancha
Installation and Operation Manual
CLEARANCES & VENTING
CLEARANCES
1. The Wood Stone Gas Plancha must have a minimum 12 inch clearance to combustible construction from sides and back,
and 0 inch clearance to non-combustible construction from sides and back.
2. This appliance may be installed on a combustible or non-combustible surface�
3� Combustion air: Combustion air flows into the Plancha through vents in the bottom panel� The Plancha must be installed with
the legs provided� Do not block the space between the appliance and the countertop�
IF THIS EQUIPMENT IS NOT PROPERLY INSTALLED A FIRE MAY RESULT. TO REDUCE THE RISK OF
FIRE, FOLLOW THESE INSTALLATION INSTRUCTIONS. A MAJOR CAUSE OF APPLIANCE-RELATED
FIRES IS FAILURE TO MAINTAIN REQUIRED CLEARANCES (AIR SPACES) TO COMBUSTIBLE
MATERIALS. IT IS OF UTMOST IMPORTANCE THAT THIS APPLIANCE BE INSTALLED ONLY IN
ACCORDANCE WITH THESE INSTRUCTIONS.
!
VENTILATION
The Wood Stone Gas Plancha must be vented with a Listed Type 1 Exhaust Hood, or one constructed in accordance with
NFPA 96 and all relevant local and national codes� The oven must be vented in accordance with all relevant local and
national codes, and in a manner acceptable to the authority having jurisdiction�
TEMPORARILY REMOVING CONTROL PANEL
The Control Box can be temporarily removed to allow unit to pass through narrower passageways�
1 Remove the
4 screws
which secure
the Control
Panel to the
unit�
2 Pull the Control
Panel down, then
come forward, and
tilt down so it rests
supported in the
open position�
3 Disconnect (1) Power Cord, (2) Wire Harness at Molex connector and (3) Thermocouple Leads�
4 Lift Control Panel up
and then off hinge pins
to remove�
Note: When replacing
Control Panel, make
certain numbered
Thermocouple Leads
correspond to the
numbers on connecter�
Molex Connector ThermocouplesPower Cord
Ü
ÜÜ
Ü
Cotter Pin
Note: Plug
behind Ignition
Module

Wood Stone Gas Plancha
Installation and Operation Manual
PG 11 OF 28
M0202.05 AUGUST 2018
An ongoing program of product improvement may
require us to change specifications without notice.
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
TOLL FREE 800.988.8103
TEL [phone]
FAX [phone]
E-MAIL [e-mail]
woodstone-corp.com
UTILITY SPECIFICATIONS
GAS INFORMATION
The Wood Stone Gas Plancha is equipped with a 3/4 inch FNPT gas connection located at the rear of the appliance� The installer
should provide an appropriate quick disconnect fitting for connection to the gas supply�
BURNER MANIFOLD PRESSURE
Model Natural Gas (NG) model Propane (LP) model
WS-GPL-4836-CT01 4�0" W�C� 9�0" W�C�
WS-GPL-3636-CT01 4�0" W�C� 9�0" W�C�
WS-GPL-2436-CT01 4�0" W�C� 9�0" W�C�
BTU/HR INPUT RATE
Model Natural Gas (NG) model Propane (LP) model
WS-GPL-4836-CT01 110,000 BTU/hr 118,000 BTU/hr
WS-GPL-3636-CT01 85,000 BTU/hr 85,000 BTU/hr
WS-GPL-2436-CT01 60,000 BTU/hr 60,000 BTU/hr
ELECTRICAL RATINGS
Model Voltage Amperage
WS-GPL-4836-CT01 120 VAC 0�7 A
WS-GPL-3636-CT01 120 VAC 0�6 A
WS-GPL-2436-CT01 120 VAC 0�4 A
*The Plancha is equipped with a NEMA 5-15P plug for use with a standard 120 VAC 15 A or 20 A outlet�
Electrical Grounding: This appliance must be electrically grounded in accordance with local codes, or in the absence of local
codes, with the National Electrical code, ANSI/NFPA 70 or the Canadian Electrical Code, CSA C22�1 as applicable�
ELECTRICAL SUPPLY CORD AND GAS CONNECTION SHOULD BE ROUTED SO THAT THEY ARE NOT SUBJECTED TO THE
HEAT COMING FROM THE PLANCHA COOKING SURFACE.
The Plancha is equipped with a gas pressure regulator that is preset at the factory� This regulator comes installed on the rear
of the unit� If incoming gas pressure is less than 1/2 psi (14 inches W�C�), no additional regulator is required or recommended�
If incoming gas pressure is greater than 1/2 psi, an additional regulator, by others, must be installed on the gas line serving the
appliance� Do not remove the factory supplied regulator�
If you must convert the Plancha to run on a different gas type, i�e� NG to LP, please contact Wood Stone to obtain the necessary
parts and instructions�
No modification is required for use at high altitudes.

PG 12 OF 28
M0202.05 AUGUST 2018
Wood Stone Gas Plancha
Installation and Operation Manual
BASIC OPERATION
CLEAN THOROUGHLY BEFORE FIRST USE
A vegetable oil cooking spray is applied to the cook surface at the factory to help protect from corrosion during shipping� The cook
surface must be thoroughly cleaned before use� Follow these instructions:
1. Make sure the Grease/Debris Trays are in place�
2. Turn the Plancha ON and allow to heat for 5 minutes� Then turn the Plancha OFF and wait for 5 minutes�
3. Wipe the cook surface using a wet towel, dampened with a small amount of water and a mild dish detergent� Then rinse with a
towel dampened with clean water 3-4 times� Wipe the surface down with a dry towel and the Plancha is ready for service�
CAUTION: THE COOKING SURFACE WILL BE HOT! USE CAUTION WHEN WIPING SURFACE,
PAYING PARTICULAR ATTENTION TO AVOID STEAM FROM DAMP TOWELS.
BASIC OPERATION
Use the Power Switch on the Front Panel to turn ON the Plancha� The switch will illuminate Green� This appliance utilizes an
automatic ignition system� Note: There are NO standing pilots to manually light� Press the Power Switch to the OFF position to turn
OFF the Plancha�
At start-up, the red Fault Light on the front panel will illuminate for a few seconds when the unit is first switched ON� The purpose
is to allow the operator to confirm the light is functional� If the red light comes on any other time in the operation of the unit, turn
the Power Switch to the OFF position, wait 5 minutes, then restart the Plancha� Notice if the red light is on steady or is blinking, as
this will be useful information if calling in for service assistance�
When the Plancha is first turned ON, the Heat Indicator Light for each zone will be illuminated until its zone reaches the
temperature set on the Temperature Control Knob� The green Heat Indicator Lights in each zone correspond to the burner state of
each zone� If the light is on, the burner should be on�
The Plancha Controller automatically controls the burners supplying heat to each zone to maintain the set point temperature�
ON/OFF Switch
3 Temperature
Controls
Red Fault Light
3 Heat
Indicator
Lights
Grease/Debris Tray
WS-GPL-3636-CT01 ON/OFF
Switch
2 Temperature
Controls
Red Fault Light
2 Heat
Indicator Lights
Grease/
Debris Tray
WS-GPL-2436-CT01
ON/OFF Switch
4 Temperature
Controls
Red Fault Light
4 Heat
Indicator Lights
Grease/
Debris Trays
WS-GPL-4836-CT01

Wood Stone Gas Plancha
Installation and Operation Manual
PG 13 OF 28
M0202.05 AUGUST 2018
An ongoing program of product improvement may
require us to change specifications without notice.
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
TOLL FREE 800.988.8103
TEL [phone]
FAX [phone]
E-MAIL [e-mail]
woodstone-corp.com
DAILY USE & MAINTENANCE
DAILY USE AND MAINTENANCE
1. Check and empty the Grease/Debris Tray(s) frequently throughout the day� Keep the drain clear and do not allow the trays to
overflow�
2. The cooking surface should be scraped frequently throughout the day using a grill scraper�
CAUTION: COOK SURFACE IS VERY HOT!
3. When using chemicals to clean the grill surface, first shut down the Plancha and allow it to cool� If the Plancha is too hot, the
chemical may tend to boil or burn off immediately and not work as effectively� Do not pour water onto a hot Plancha to cool it
as this can warp the cook surface� If using chemical grill cleaners, follow the instructions provided with that product�
DO NOT USE EXCESSIVE AMOUNTS OF WATER TO CLEAN THE PLANCHA. Be careful when using scrapers on the cook
surface to avoid scratching or gouging the top� Be aware that the cook surface is made of mild steel—it will not clean to
a shiny silver-like surface� Do not use heavy duty degreasers or oven cleaners on the Plancha as these are not generally
intended for use on hot surfaces�
Never use a grill cleaning brick in the area of the rear exhaust flues, as dust and debris from the grill brick can enter the flues
and damage the plancha burners�
NOTE: Damage caused by using spray hoses or excessive water, or scratching or marring of the cook surface, is not covered
by the warranty�
4. The front, sides and back may be wiped down with a cloth and mild detergent if needed� Do not use abrasive cleaners or
scouring pads as these will scratch the stainless steel�
5. Take care to avoid getting debris and liquids into the exhaust flues at the rear of the Plancha, as this can damage the burners�
The flues are easily removable for cleaning� They should be inspected daily and cleaned as necessary�
NOTE: The Plancha must be turned OFF before removing the flues� NEVER run the Plancha with the flues removed� Do not
touch, or attempt to clean the burners�
CAUTION: FLUES ARE VERY HOT!

Wood Stone Gas Plancha
Installation and Operation Manual
PG 14 OF 28
M0202.05 AUGUST 2018
An ongoing program of product improvement may
require us to change specifications without notice.
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
TOLL FREE 800.988.8103
TEL [phone]
FAX [phone]
E-MAIL [e-mail]
woodstone-corp.com

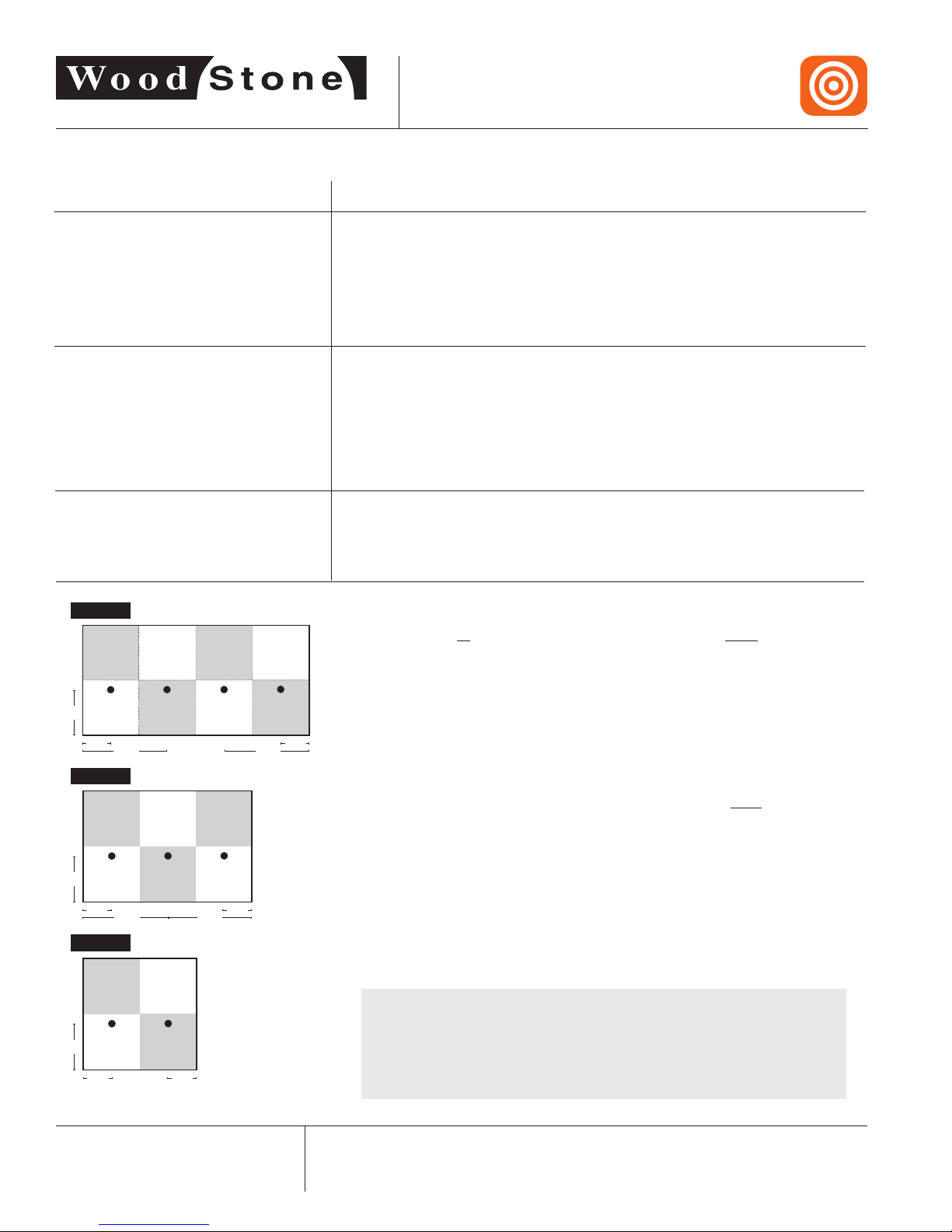

TROUBLESHOOTING
PROBLEM CAUSE/SOLUTION
Plancha will not turn ON� No indicator
light on ON/OFF switch
1. Check that Plancha is plugged in, and that circuit breaker for the circuit serving
the Plancha has not tripped� Power for the Plancha may be interlocked to the
ventilation system—make sure the Exhaust Hood system is turned ON�
2. Try connecting unit to a different outlet�
3. If Plancha still does not turn ON, please contact Wood Stone for assistance�
Red Fault light stays on after
the first few seconds
Grill is not cooking consistently
1. Check that gas line is connected by disconnecting and reconnecting the gas
line, and that all gas shutoffs are in the open position� Gas supply may be
interlocked to the ventilation system —make sure Exhaust Hood is turned on�
To retry, turn off Plancha, wait 5 minutes, then turn back ON�
2. If the Plancha is being started for the first time: Make sure all air has been bled
from the gas line�
1. Determine the cooking surface temperature, using the Surface Temperature
Measurement Procedure below�
2. If any reading is outside the acceptable temperature range, call Wood Stone�
Please contact Wood Stone at 1-800-988-8103 should service be
necessary, or if you have any questions about your Plancha. Our service
hours are 8am to 5pm Pacific time. Follow the recorded instructions for
Emergency Service if you require assistance during non-business hours.
A Wood Stone technician will promptly respond to your call.
3. Using a surface probe intended for griddles, condition the test probe
before each measurement by placing it on the cook surface, away from the
Measurement Point (•)� Once the reading has stabilized, THEN slide the probe
over the Measurement Point� Wait for Heat Indicator Light to cycle OFF, then
note temperature�
4. Temperature reading at each point should be within the range +/-15 °F of the
Set Point� If the temperature reading is outside of the +/-15 °F range, wait for
the green Heat Indicator Light to come on again and recheck the temperature�
If the temperature is still out of range, contact Wood Stone�
SURFACE TEMPERATURE MEASUREMENT PROCEDURE
1. Carefully verify all Temperature Knobs are set exactly at the same temperature�
Make certain grill surface is clean�
2. From a cold start: Turn on the Plancha and wait at least 60 minutes before
taking temperature measurements�
If Plancha is heated up / in use: Allow 15 minutes of inactivity to stabilize after
last cooking run� Make certain grill surface is clean�
• Measurement points
10"
5-3/4" 5-3/4"
17-3/4" 17-3/4"
GPL-4836
10"
5-3/4" 5-3/4"
17-1/2" 17-1/2"
GPL-3636
10"
5-3/4" 5-3/4"
GPL-2436

Wood Stone Gas Plancha
Installation and Operation Manual
PG 15 OF 28
M0202.05 AUGUST 2018
An ongoing program of product improvement may
require us to change specifications without notice.
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
TOLL FREE 800.988.8103
TEL [phone]
FAX [phone]
E-MAIL [e-mail]
woodstone-corp.com
OPERATIONAL SEQUENCE
SEQUENCE OF OPERATION
Based upon the temperature of
each of the zones as compared to
the Set Point, individual Burners
are ON or OFF�
Green front panel lights
illuminate�
Note: On a cold unit, at initial
start-up, zones will light in
sequence, left to right�
Burners light�
Controller determines temperature
is below Set Point and signals
Burners to light�
Software version blinks on one of
the green front panel lights, and
momentarily illuminates the red
“Fault” light�
Burner(s) do not light�*
After 3 attempts, Gas Valve closes
and red Fault light illuminates�
No additional attempts at relighting until
Main Power is turned OFF, then ON to reset�
Power Switch ON�
Power OFF�
All Gas Valves close�
All Burners and Controller OFF�
* This is true of each zone individually�
If one zone “locks out”, the other zones
could continue to run normally�
Resetting the unit is required to unlock
the locked zone�

PG 16 OF 28
M0202.05 AUGUST 2018
Wood Stone Gas Plancha
Installation and Operation Manual
WS-GPL-4836-CT01 WIRE DIAGRAM






 






 

   
  




  



 


  

  




 

  





 

 





  








IGNITION MODULE INTERCONNECT HARNESS - W6

PG 17 OF 28
M0202.05 AUGUST 2018
Wood Stone Gas Plancha
Installation and Operation Manual
WS-GPL-4836-CT01 WIRE DIAGRAM






 















  

 
 


 
 







   

 
  













  
  







 
 
















  


 

 

 




















 
 
 




 



IGNITION AND POWER DISTRIBUTION

PG 18 OF 28
M0202.05 AUGUST 2018
Wood Stone Gas Plancha
Installation and Operation Manual
WS-GPL-4836-CT01 WIRE DIAGRAM






 















 









 







 
   
























 
  
 






















































INDICATORS AND POTENTIOMETERS

PG 19 OF 28
M0202.05 AUGUST 2018
Wood Stone Gas Plancha
Installation and Operation Manual
WS-GPL-4836-CT01 WIRE DIAGRAM






 














































 




 

THERMOCOUPLE CONNECTIONS

PG 20 OF 28
M0202.05 AUGUST 2018
Wood Stone Gas Plancha
Installation and Operation Manual
WS-GPL-3636-CT01 WIRE DIAGRAM






 






 

   
 




 



 


  

  







  





 

 














IGNITION MODULE INTERCONNECT HARNESS - W6
