Professional Series Grill
INSTALLATION AND OPERATION MANUAL FOR THE
WOOD STONE PROFESSIONAL SERIES GRILL
STONEFIRED COOKING EQUIPMENT
WOOD FIRED GRILL
INCLUDING COUNTERTOP MODELS
ADDITIONAL MANUAL COPIES AVAILABLE UPON REQUEST
Professional Series Grill Installation and Operation Manual

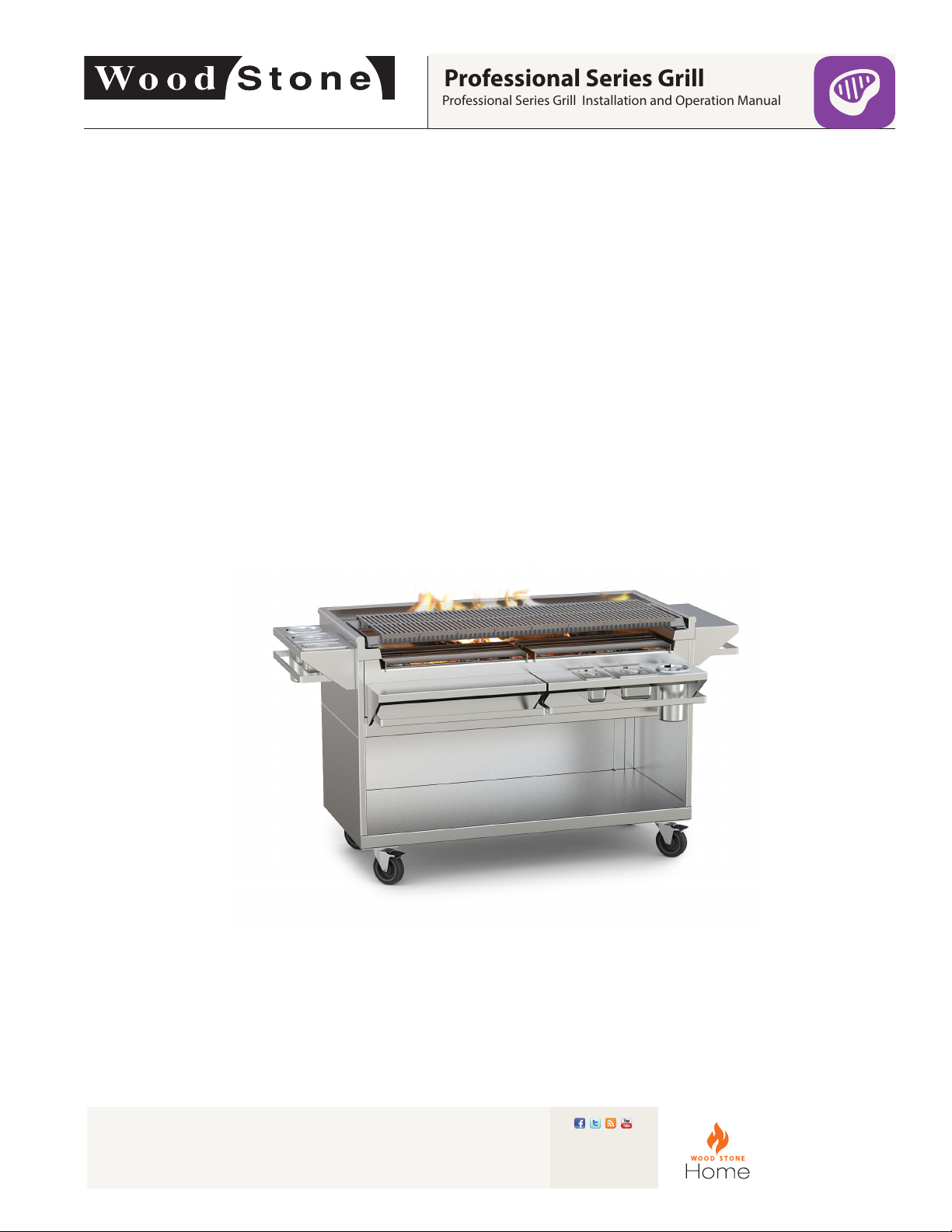

Shown with optional Stainless Steel
Shelves and Sauce Pan Racks.

PG 4 OF 20
An ongoing program of product improvement may require us to change specications without notice.
woodstonehome.com
[e-mail]
tf. 800.578.6836
f. 360.734.0223
Wood Stone Corporation
1801 W. Bakerview Rd.
Bellingham, WA 98226 U.S.A.
M0325.00
Rev. November 2020
Cautions & Warnings
Professional Series Grill Installation and Operation Manual
READ ALL INSTRUCTIONS BEFORE INSTALLING AND USING THIS APPLIANCE
Please read this entire manual before you install the appliance. Failure to follow instructions may result in
property damage, bodily injury or even death. Contact your local building or re ocials about restrictions
and installation inspection in your area.
WHEN THIS APPLIANCE IS NOT PROPERLY INSTALLED, A FIRE MAY RESULT. TO REDUCE THE RISK OF FIRE,
FOLLOW THE INSTALLATION INSTRUCTIONS. IT IS RECOMMENDED THAT THIS APPLIANCE BE INSTALLED,
MAINTAINED AND SERVICED BY AUTHORIZED PROFESSIONALS.
INSTALLATION AND OPERATING INSTRUCTIONS FOR THE WOOD STONE
MODEL WSPWG PROFESSIONAL SERIES GRILL
INCLUDING COUNTERTOP MODELS
CAUTION: Never use gasoline, gasoline-type lantern fuel, kerosene, charcoal lighter uid or similar liquids
to start or freshen up a re in this appliance. Keep all such liquids well away from this appliance when in
use. DO NOT USE PRODUCTS NOT SPECIFIED FOR USE WITH THIS APPLIANCE. USE SOLID WOOD
FUEL ONLY.
RETAIN THIS MANUAL FOR FUTURE REFERENCE
Additional copies of this manual at woodstone-corp.com.
For prompt responses to service/maintenance questions, call us at 1-800-988-8103.
WARNING: Improper installation, adjustment, alteration, service or maintenance can result in property
damage, injury or death. Read the installation, operation and maintenance instructions thoroughly before
installing or servicing this equipment.
AVERTISSEMENT: L’installation, le réglage, la modication, la réparation ou l’entretien incorrect de cet
appareil peut causer des dommages matériels, de blessures ou la mort. Lire attentivement les instructions
d’installation, de fonctionement et d’entretien avant de procéder à son installation ou entretien.
FOR YOUR SAFETY: Do not store or use gasoline or other ammable vapors or liquids in the vicinity of this
or any other appliance.
POUR VOTRE SÉCURITÉ: Ne pas entreposer ni utiliser d’essence ou d’autres vapeurs de liquides
inammables ou des liquides dans les environs de ce ou de tout autre appareil.
THIS APPLIANCE AND INSTRUCTIONS ARE INTENDED FOR RESIDENTIAL USE ONLY. THE INFORMATION
IN THIS MANUAL IS NOT APPLICABLE TO COMMERCIAL FOOD SERVICE APPLICATIONS. PLEASE CON
TACT WOOD STONE FOR INFORMATION REGARDING COMMERCIAL SOLID FUEL COOKING EQUIPMENT.

PG 5 OF 20
An ongoing program of product improvement may require us to change specications without notice.
woodstonehome.com
[e-mail]
tf. 800.578.6836
f. 360.734.0223
Wood Stone Corporation
1801 W. Bakerview Rd.
Bellingham, WA 98226 U.S.A.
M0325.00
Rev. November 2020
Cautions & Warnings
Professional Series Grill Installation and Operation Manual
A MAJOR CAUSE OF APPLIANCE RELATED
FIRES IS A FAILURE TO MAINTAIN REQUIRED
CLEARANCES TO COMBUSTIBLE MATERIAL.
IT IS OF UTMOST IMPORTANCE THATTHIS
APPLIANCE BE INSTALLED ONLY IN
ACCORDANCE WITH THESE INSTRUCTIONS.
Always keep the area under and around this appliance free and clear of any and all combustible materials.
Wood and charcoal fuel should be stored in accordance with the Standard for Ventilation Control of Fire
Protection of Commercial Cooking Operations, NFPA 96, and local authorities having jurisdiction.
CAUTIONS:
(i) DO NOT INSTALL IN A MOBILE HOME.
(ii) DO NOT CONNECT TO USE IN CONJUNCTION WITH ANY AIR DISTRIBUTION DUCTWORK UNLESS
SPECIFICALLY APPROVED FOR SUCH INSTALLATIONS.
(iii) DO NOT USE CHEMICALS OR FLUIDS TO START THE FIRE
(iv) DO NOT BURN GARBAGE OR FLAMMABLE FLUIDS SUCH AS GASOLINE, NAPHTHA OR ENGINE OIL.
(v) HOT WHILE IN OPERATION. KEEP CHILDREN, CLOTHING AND FURNITURE AWAY. CONTACT MAY CAUSE
SKIN BURNS.
FOR RESIDENTIAL USE. TO BE INSTALLED ONLY OUTDOORS. CLEARANCES TO COMBUSTIBLES
MUST BE MAINTAINED. TO AVOID RISK OF FIRE, ANY COMBUSTIBLE STRUCTURE ABOVE THE
GRILL MUST BE PROTECTED.
CAUTION – the grill is extremely hot when in use. Install the unit in such a manner that it is away from
high trac areas where it can be inadvertently touched by people passing by.
Do not allow children to play with or operate the appliance.
• Never locate the grill under an unprotected roof or overhang, up against a combustible structure, in an
enclosed, building, garage, shed or other such enclosed area.
• Never locate the grill under unprotected combustible construction.
Solid Fuel Storage:
Wood and charcoal may be stored beneath the grill on cabinet equipped models. Otherwise, wood and
charcoal should be stored at least 5 ft. away from the grill.

PG 6 OF 20
An ongoing program of product improvement may require us to change specications without notice.
woodstonehome.com
[e-mail]
tf. 800.578.6836
f. 360.734.0223
Wood Stone Corporation
1801 W. Bakerview Rd.
Bellingham, WA 98226 U.S.A.
M0325.00
Rev. November 2020
Cautions & Warnings (Cont'd.)
Professional Series Grill Installation and Operation Manual
INSTALLATION IN A ROOFED AREA
If installed within an outdoor structure incorporating a roof, a suitable, non-combustible means of
capturing the heat and smoke from the grill and exhausting it safely above the roof structure is required.
The venting system must be suitable for high temperature solid fuel applications. It may also require a fan
suitable for high temperature solid fuel applications. The venting system must include an approved spark
arrestor device at the outlet above the roof. The venting system will typically incorporate a metal corro-
sion resistant hood suitable for high temperatures and overhanging all sides of the appliance suciently
to capture the smoke and heat coming o of the appliance. The appliance may also be placed within a
masonry structure designed to capture the heat and smoke and incorporating a chimney to
discharge the exhaust safely above the roof structure. The venting system must be designed and installed
by a qualied installer/contractor. We recommend you consult with a replace or HVAC professional
experienced with solid fuel applications. The venting system must be designed, installed and maintained
in accordance with all applicable local codes and regulations. In the absence of local codes, relevant Na-
tional Codes shall be referred to.
When using the appliance out in the open, beware that sparks and embers can become airborne in the
course of operating the appliance. To avoid risk of re, only operate the appliance in a safe area where
sparks or embers cannot land on vegetation, other ammable materials, or structures. Never use this
appliance when a burn ban is in eect, and always observe any burning restrictions that may be in place in
your area. Use common sense and be extremely cautious when conditions are dry and/or windy.
If installing in an area prone to wind, it is highly recommended that a non-combustible wind screen be
constructed to minimize the eects of the wind while using the appliance.
Keep a re extinguisher in an easily accessible location near the appliance.
This unit must be installed and used in accordance with all applicable local codes and regulations.
Install only on a non-combustible surface extending 36 inches in all directions beyond the grill. Clearance
to all combustible materials from front, sides and back of the grill is 36 inches.
The grill must be installed on a solid level surface, capable of safely supporting the weight of the grill.
DO NOT INSTALL THIS APPLIANCE INDOORS
Please read this entire manual before you install the appliance. Failure to follow instructions may result in
property damage, bodily injury or even death. Contact your local building or re ocials about restrictions
and installation inspection in your area. All installations subject to the approval of the local authority
having jurisdiction.

PG 7 OF 20
An ongoing program of product improvement may require us to change specications without notice.
woodstonehome.com
[e-mail]
tf. 800.578.6836
f. 360.734.0223
Wood Stone Corporation
1801 W. Bakerview Rd.
Bellingham, WA 98226 U.S.A.
M0325.00
Rev. November 2020

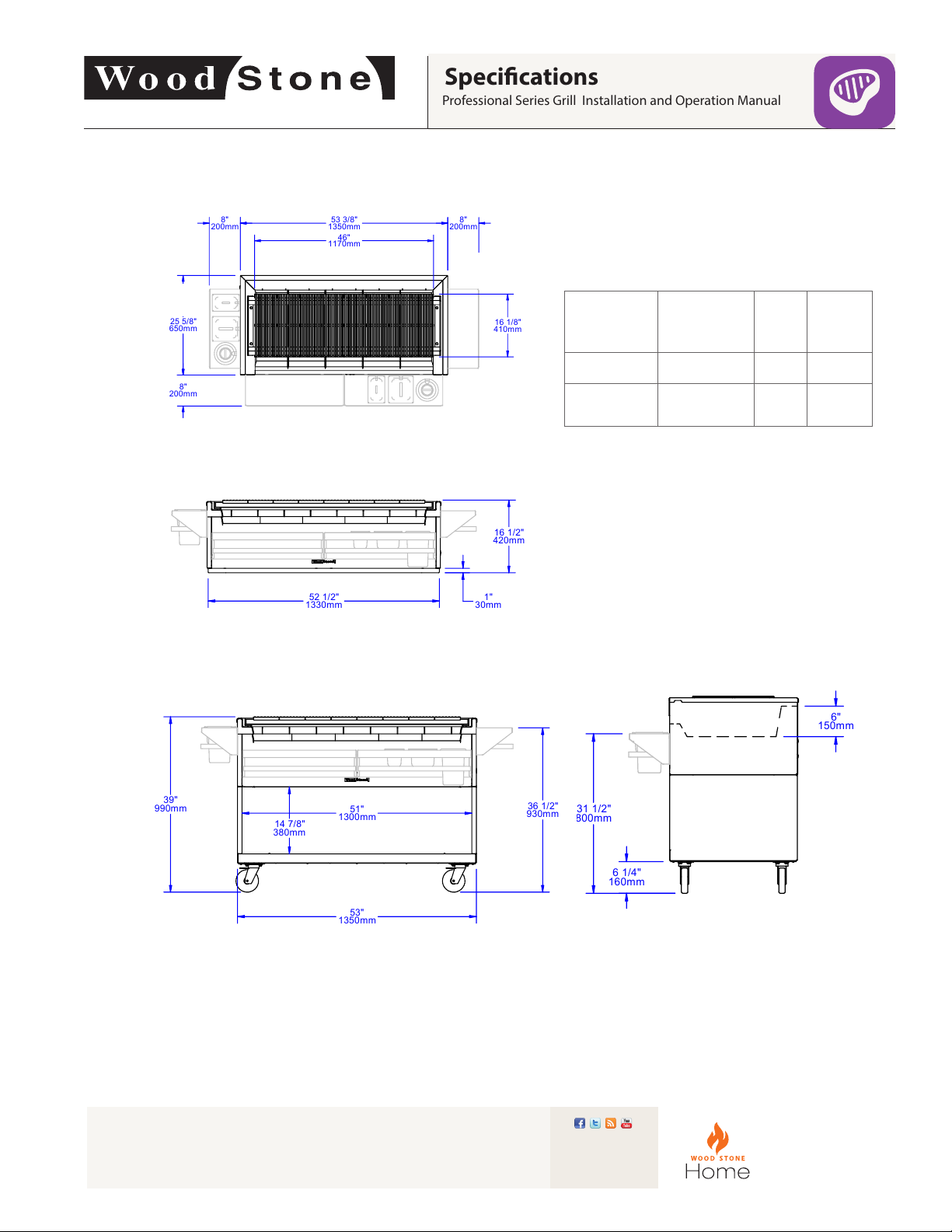

Specications
Professional Series Grill Installation and Operation Manual
Model Width 6x16"
Ship
Wgt
(lbs)
PWG-5426 54" 8 1,100
PWG-5426-
CT
54"
(1372mm) 8 900
123456
A
B
C
D
123456
A
B
C
D
PROFESSIONAL SERIES GRILL
5426
WOOD STONE CORPORATION
1801 W. BAKERVIEW RD. BELLINGHAM, WA 98226
360.650.1111 - WOODSTONE-CORP.COM
PART NO.
WS-PWG-5426
SIZE
B
REV
0
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF WOOD STONE CORPORATION.
ANY REPRODUCTION OR USE IN PART OR AS A WHOLE WITHOUT EXPRESS WRITTEN PERMISSION OF WOOD STONE CORP. IS PROHIBITED.
6"
150mm
6 1/4"
160mm
31 1/2"
800mm
16 1/2"
420mm
53 3/8"
1350mm 8" 200mm
25 5/8"
650mm
8"
200mm
39"
990mm
14 7/8"
380mm
51"
1300mm
53"
1350mm
36 1/2"
930mm
8"
200mm
52 1/2"
1330mm 1"
30mm
46"
1170mm
16 1/8"
410mm
123456
A
B
C
D
123456
A
B
C
D
PROFESSIONAL SERIES GRILL
5426
WOOD STONE CORPORATION
1801 W. BAKERVIEW RD. BELLINGHAM, WA 98226
360.650.1111 - WOODSTONE-CORP.COM
PART NO.
WS-PWG-5426
SIZE
B
REV
0
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF WOOD STONE CORPORATION.
ANY REPRODUCTION OR USE IN PART OR AS A WHOLE WITHOUT EXPRESS WRITTEN PERMISSION OF WOOD STONE CORP. IS PROHIBITED.
6"
150mm
6 1/4"
160mm
31 1/2"
800mm
16 1/2"
420mm
53 3/8"
1350mm 8" 200mm
25 5/8"
650mm
8"
200mm
39"
990mm
14 7/8"
380mm
51"
1300mm
53"
1350mm
36 1/2"
930mm
8"
200mm
52 1/2"
1330mm 1"
30mm
46"
1170mm
16 1/8"
410mm
123456
A
B
C
D
123456
A
B
C
D
PROFESSIONAL SERIES GRILL
5426
WOOD STONE CORPORATION
1801 W. BAKERVIEW RD. BELLINGHAM, WA 98226
360.650.1111 - WOODSTONE-CORP.COM
PART NO.
WS-PWG-5426
SIZE
B
REV
0
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF WOOD STONE CORPORATION.
ANY REPRODUCTION OR USE IN PART OR AS A WHOLE WITHOUT EXPRESS WRITTEN PERMISSION OF WOOD STONE CORP. IS PROHIBITED.
6"
150mm
6 1/4"
160mm
31 1/2"
800mm
16 1/2"
420mm
53 3/8"
1350mm 8" 200mm
25 5/8"
650mm
8"
200mm
39"
990mm
14 7/8"
380mm
51"
1300mm
53"
1350mm
36 1/2"
930mm
8"
200mm
52 1/2"
1330mm 1"
30mm
46"
1170mm
16 1/8"
410mm
123456
A
B
C
D
123456
A
B
C
D
PROFESSIONAL SERIES GRILL
5426
WOOD STONE CORPORATION
1801 W. BAKERVIEW RD. BELLINGHAM, WA 98226
360.650.1111 - WOODSTONE-CORP.COM
PART NO.
WS-PWG-5426
SIZE
B
REV
0
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF WOOD STONE CORPORATION.
ANY REPRODUCTION OR USE IN PART OR AS A WHOLE WITHOUT EXPRESS WRITTEN PERMISSION OF WOOD STONE CORP. IS PROHIBITED.
6"
150mm
6 1/4"
160mm
31 1/2"
800mm
16 1/2"
420mm
53 3/8"
1350mm 8" 200mm
25 5/8"
650mm
8"
200mm
39"
990mm
14 7/8"
380mm
51"
1300mm
53"
1350mm
36 1/2"
930mm
8"
200mm
52 1/2"
1330mm 1"
30mm
46"
1170mm
16 1/8"
410mm
Plan
view
Front
view
-CT
Front
view
Side
view
Shown with standard grill rack.
Side Shelf
000-401-45
Side Pan Rail
000-402-45
Front Shelf
000-401-29
Front Pan Rail
000-402-29
Actual unit weight: 845 lbs.
Approx ship weight: 1,045 lbs

PG 8 OF 20
An ongoing program of product improvement may require us to change specications without notice.
woodstonehome.com
[e-mail]
tf. 800.578.6836
f. 360.734.0223
Wood Stone Corporation
1801 W. Bakerview Rd.
Bellingham, WA 98226 U.S.A.
M0325.00
Rev. November 2020
Clearances
Professional Series Grill Installation and Operation Manual
INSTALLATION CLEARANCES
Floor: For use on only on noncombustible oors (installér sur un plancher incombustible seulement). The Profes-
sional Series Grill must be installed on a non-combustible oor extending 3 ft. in all directions from the appliance
or one provided with a non-combustible covering acceptable to the authority having jurisdiction.
A MAJOR CAUSE OF APPLIANCE RELATED FIRES IS A FAILURE TO MAINTAIN REQUIRED CLEARANCES TO
COMBUSTIBLE MATERIAL. IT IS OF UTMOST IMPORTANCE THAT THIS APPLIANCE BE INSTALLED ONLY IN ACCOR-
DANCE WITH THESE INSTRUCTIONS.
SIDES
ABOVE, if installed
under a suitable
metal hood or
masonry chimney.
The hood or chimney
assembly should
extend at least 12
inches beyond the
outside perimeter of
the grill to ensure
adequate capture of
smoke.
36" 36"
72"
MINIMUM CLEARANCES
TO COMBUSTIBLE
CONSTRUCTION
SIDES, FRONT & BACK: 36"
ABOVE: 72", IF INSTALLED
UNDER A SUITABLE METAL
HOOD OR MASONRY
CHIMNEY. SEE PG. 6 FOR
INSTALLATION IN A ROOFED
AREA.
WARNING:
DO NOT PACK
REQUIRED AIR
SPACE WITH
INSULATION
OR OTHER
MATERIALS.
*Examples of non-combustible construction include: metal stud wall faced with cement board with a tile or
metal nish; cement block with tile or metal nish.
NON-COMBUSTIBLE
FLOOR
36"36"
36"
36"
FRONT BACK
36" 36"

PG 9 OF 20
An ongoing program of product improvement may require us to change specications without notice.
woodstonehome.com
[e-mail]
tf. 800.578.6836
f. 360.734.0223
Wood Stone Corporation
1801 W. Bakerview Rd.
Bellingham, WA 98226 U.S.A.
M0325.00
Rev. November 2020
Installation
Professional Series Grill Installation and Operation Manual
UNLOADING THE PROFESSIONAL SERIES GRILL
Under no circumstances should manual unloading be attempted. If a receiving dock is available, a pallet jack
should be sucient to remove the crated unit from the delivery truck. The use of a forklift (2,000 lb.) is sug-
gested when moving the unit from the delivery truck to ground level.
SACRIFICIAL HEAT SHIELD
Install at rear of rebox.
FLASHING COUNTERTOP MODELS ONLY
Follow instructions below.
REV:
DATE:
PART #:
WS-SFB-57-CT
General Arrangement
Installation Illustrations
3/7/2013 bena
3
DWN BY:
SHEET:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF WOOD STONE CORPORATION
ANY REPRODUCTION OR USE IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF WOOD STONE IS PROHIBITED
An ongoing program of product improvement may require us to
change specifications without notice.
Bellingham, WA 360/650-1111 www.woodstone-corp.com
DIMENSIONS ARE ININCHES
TOLERANCES: LINEAR ±1/2 [±10mm], ANGULAR ±2°
UNLESS NOTED OTHERWISE
1 of 1
\\woodstone.net\dfs\CAD\0 Pn\WS Top Level\WS-SFB-CT_Flange_Install_Detail-0.dft
Seal bottom edge of flashing
to counter using high-temp
silicone (provided).
Seal any gap between the flashing and
the charbroiler using the high-temp
silicone (provided).
Using the hardware provided, install the
stainless steelflashing to the front and
back of the charbroiler.
Install Sacrificial Heat
Shield as Shown
Sacrificial Heat Shield
Flashing
REV:
DATE:
PART #:
WS-SFB-57-CT
General Arrangement
Installation Illustrations
3/7/2013 bena
3
DWN BY:
SHEET:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF WOOD STONE CORPORATION
ANY REPRODUCTION OR USE IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF WOOD STONE IS PROHIBITED
An ongoing program of product improvement may require us to
change specifications without notice.
Bellingham, WA 360/650-1111 www.woodstone-corp.com
DIMENSIONS ARE ININCHES
TOLERANCES: LINEAR ±1/2 [±10mm], ANGULAR ±2°
UNLESS NOTED OTHERWISE
1 of 1
\\woodstone.net\dfs\CAD\0 Pn\WS Top Level\WS-SFB-CT_Flange_Install_Detail-0.dft
Seal bottom edge of flashing
to counter using high-temp
silicone (provided).
Seal any gap between the flashing and
the charbroiler using the high-temp
silicone (provided).
Using the hardware provided, install the
stainless steelflashing to the front and
back of the charbroiler.
Install Sacrificial Heat
Shield as Shown
Sacrificial Heat Shield
Flashing
Using the hardware pro-
vided, install the stainless
steel ashing to the front
and back of the grill.
Seal bottom edge of ash-
ing to counter using high-
temp silicone (provided).
Seal any gap between the
ashing and the grill us-
ing the high-temp silicone
(provided).
Install Sacricial Heat
Shield as shown.
Sacricial Heat Shield
Flashing

PG 10 OF 20
An ongoing program of product improvement may require us to change specications without notice.
woodstonehome.com
[e-mail]
tf. 800.578.6836
f. 360.734.0223
Wood Stone Corporation
1801 W. Bakerview Rd.
Bellingham, WA 98226 U.S.A.
M0325.00
Rev. November 2020
Broiler Shelf Installation
PLACE OPTIONAL BROILER
SHELF STAND ONTO GRILL
1. The optional Broiler Shelf Stand
is lowered onto the Professional
Series Grill so that the legs slide
over the side walls.
The broiler shelf must be re-
moved to install the stainless
steel rain cover. Allow shelf to
cool before removing.
1 of 1
INSTALL RACKS ONTO STAND
2. Place the Wire Cooking Rack
Supports onto the upper or
lower bottom supports.
3. Place the lower Wire Cooking
Racks onto the bottom sup-
ports.
4. Place the upper Wire Cooking
Racks onto the top supports. we
r
q
Professional Series Grill Installation and Operation Manual

PG 11 OF 20
An ongoing program of product improvement may require us to change specications without notice.
woodstonehome.com
[e-mail]
tf. 800.578.6836
f. 360.734.0223
Wood Stone Corporation
1801 W. Bakerview Rd.
Bellingham, WA 98226 U.S.A.
M0325.00
Rev. November 2020
Fuel Safety
Professional Series Grill Installation and Operation Manual
WOOD
Use only well seasoned hardwood to fuel the grill. The wood should have a moisture content of less than 20%.
For best results, pieces should be split so that the diameter does not exceed 5 inches. See Wood Stone’s FUEL-
WOOD FACTS section at the end of this manual.
CAUTION: NEVER USE GASOLINE, GASOLINETYPE LANTERN FUEL, KEROSENE, CHARCOAL LIGHTER FLUID
OR SIMILAR LIQUIDS TO START OR FRESHENUP A FIRE IN THIS APPLIANCE. KEEP ALL SUCH LIQUIDS WELL
AWAY FROM THE APPLIANCE WHEN IN USE.
WOOD STORAGE
Wood should be stored and handled in accordance with the recommendations outlined in NFPA 96.
DISPOSAL OF ASHES
Ashes should be placed in a metal container with a tight-tting lid. The
closed container of ashes should be placed on a non-combustible oor or
on the ground, well away from the combustible materials, pending nal
disposal. When the ashes are disposed by burial in soil or otherwise locally
dispersed, they should be retained in the closed container until all cinders
have thoroughly cooled.
The optional Wood Stone’s Dual Compartment Ash Dolly is available
through your dealer or by calling Wood Stone direct at 800.578.6836. The
specication sheet may be viewed on the Wood Stone website under Tools
& Accessories.
RAIN COVER
The Professional Series Grill is an open-top grill.
Do not attempt to operate the grill with the rain
cover in place. Remove all fuel and hot coals be-
fore placing the cover on the unit after use. Unit
must be cool before installing cover.
CAUTION: If cover is placed on the unit while in
use, or with burning coals it can get hot enough
to cause serious burns.

PG 12 OF 20
An ongoing program of product improvement may require us to change specications without notice.
woodstonehome.com
[e-mail]
tf. 800.578.6836
f. 360.734.0223
Wood Stone Corporation
1801 W. Bakerview Rd.
Bellingham, WA 98226 U.S.A.
M0325.00
Rev. November 2020
Fueling the Grill
Professional Series Grill Installation and Operation Manual
It is necessary to develop a consistent and simple fuel, re and temperature management plan for cooking
on your wood-red grill. This plan should be based on the most appropriate grill temperatures for your prod-
ucts. We have outlined the basic steps below to begin operating your grill. Keep in mind that with the terms
wood-red and solid-fuel, we are talking about not only wood, but also lump charcoal. We've found that lump
charcoal provides excellent results and is easy to use, either by itself or in combination with one of the
recommended hardwoods.
11
22
44
55
33
Model Lump Charcoal
(lbs)
PWG-5426 15–20
TO BEGIN
1.Pull the grate rack forward, and remove
the center grill grates by using the Grate
Tool. Stack grates on the remaining side
grates until the re has been established
to keep the grates out of the intense
start up re heat, and to create working
space.
2.Using the Ash Shovel, remove about 2/3rds of the y ash. Move ash and any
live coals along the back-center of the re box. The coals and ash will help
start the new re faster.
LUMP CHARCOAL AND WOOD FIRE
4.Stack 3 or 4 small pieces of wood in a conical tepee shape on top of any live
coals towards the back of the re box. Ignite a re starter and place it under the
wood.
LUMP CHARCOAL ONLY FIRE
3.Stack recommended quantity of charcoal (see table above) on top of any live
coals and ash toward the back of the rebox. Ignite a re starter and place it
under the charcoal. After 1 hour, add charcoal as necessary to maintain the coal
bed depth.
5.As the wood re gets going, add lump charcoal in front of the re—do not
extinguish the ame. The lump charcoal will help to quickly establish a good
working coal bed. The wood is primarily for theater, and will not be the primary
source of live coals.
Lump charcoal quantities
to ll grill rebox
The well maintained rebox (side view)
The coal bed should be about 3" deep in the back and 1-1/2"
in the front. A 5–10" open ame (as measured from the top
of coal bed) will maintain this coal depth,
producing the temperature regions shown below.
Coal bed
10" flame
from
coal
bed
5" flame
1-1/2"1-1/2"
600 °F600 °F 550 °F 450 °F
Ceramic
firebox
3"3"
Cooking
grates

PG 13 OF 20
An ongoing program of product improvement may require us to change specications without notice.
woodstonehome.com
[e-mail]
tf. 800.578.6836
f. 360.734.0223
Wood Stone Corporation
1801 W. Bakerview Rd.
Bellingham, WA 98226 U.S.A.
M0325.00
Rev. November 2020
Fueling the Grill
Professional Series Grill Installation and Operation Manual
LUMP CHARCOAL (we recommend Mesquite lump charcoal) is a carefully
produced carbonized product that burns at a higher temperature for a longer
period of time than live coals resulting from a natural wood re. Using lump
charcoal as the main source of heat simplies grill temperature management and
is often the only fuel used when kitchen theater isn't a consideration.
6.Once the re is well established use the Grate Tool to distribute the coals in the
rebox, with about 3" deep in the back, tapering to 1-1/2" deep in the front.
8.To optimize heat and energy, pull live coals forward out of the re. Do not pull
wood with open ame forward. Cooking over an open ame tends to burn fat,
making food taste bitter.
66
88
77
MAINTAINING THE FIREBOX
7. Place two medium pieces of wood on either side of the center ame every
20–30 minutes. The height of the open the ame, 5–10 inches as measured
from the top of the coal bed, controls the amount of live coals generated, and
by extension, the temperature.
As necessary, add charcoal to maintain coal bed level, remembering it takes
about 15–30 minutes for charcoal to ignite and signicantly contribute to the
coal bed. Proper rebox maintenance requires taking this delay into account
to optimize temperature consistency and minimize over ring.
See the FUELWOOD FACTS section on page 15 of this manual, for more information about fuel characteristics.

PG 14 OF 20
An ongoing program of product improvement may require us to change specications without notice.
woodstonehome.com
[e-mail]
tf. 800.578.6836
f. 360.734.0223
Wood Stone Corporation
1801 W. Bakerview Rd.
Bellingham, WA 98226 U.S.A.
M0325.00
Rev. November 2020
Maintenance
Professional Series Grill Installation and Operation Manual
EXTERIOR STAINLESS STEEL SURFACES
All exterior stainless surfaces of the unit should be wiped down as necessary (or daily) using an approved
mild cleaning solution. Stubborn residues may be removed using a non-metallic scouring pad. When scouring
stainless steel, scrub with the grain of the metal to avoid scratching the nish.
GRILL GRATES
Scrub the cast iron grill grates and rack (as necessary) with a wire brush to remove cooked on build-up. The
stainless grill support rack can be removed and cleaned using hot water and an approved mild detergent.
CERAMIC FIREBOX
Remove excess ash from the rebox using the stainless shovel provided. NEVER POUR WATER INTO THE
CERAMIC FIREBOX. Never use water to extinguish the re in the rebox, except in an emergency. Do
not allow rain, snow or water to accumulate in the rebox. Use the provided rain cover, or store the
unit where it is protected from the weather. CAUTION: To avoid risk of re Make sure all coals are re-
moved and the unit is cooled before storing it inside of any structure.
CREOSOTE: FORMATION AND NEED FOR REMOVAL
If using any type of chimney, hood, or venting system above the appliance, regular inspection and cleaning is
required. Any creosote buildup must be removed to reduce risk of re. When wood is burned slowly, it pro-
duces tar and other organic vapors that combine with expelled moisture to form creosote. The creosote va-
pors condense in the relatively cool exhaust hood and chimney. As a result, creosote residue accumulates on
the ue lining and exhaust hood. When ignited, the creosote makes an extremely hot re. For most residential
applications where the grill is not used on a daily basis for extended periods of time, a yearly inspection and
cleaning should be adequate. If the appliance experiences heavy use for several days out of the month more
frequent inspection may be required. Consult with a professional chimney sweep or hood cleaner to deter-
mine the proper maintenance schedule for your installation.
STORING THIS APPLIANCE
CAUTION: Burning coals, wood , charcoal emit Carbon Monoxide. To avoid risk of injury or death DO NOT
store the appliance in an enclosed area unless all coals are removed and the unit is cool. This appliance is for
outdoor use only.
STAINLESS STEEL RAIN COVER
DO NOT place the cover on the appliance when it is in use, or when the unit is hot. Cover is not intended for
use while cooking. Unit must be cool before installing cover. CAUTION: If cover is placed on the unit while in
use, or with burning coals it can get hot enough to cause serious burns.

PG 15 OF 20
An ongoing program of product improvement may require us to change specications without notice.
woodstonehome.com
[e-mail]
tf. 800.578.6836
f. 360.734.0223
Wood Stone Corporation
1801 W. Bakerview Rd.
Bellingham, WA 98226 U.S.A.
M0325.00
Rev. November 2020
Fuelwood Facts
Professional Series Grill Installation and Operation Manual
WHAT TYPE OF WOOD SHOULD YOU USE TO FIRE YOUR SOLID FUEL COOKING EQUIPMENT?
The answer to this question depends on several considerations: geographical location, availability and rela-
tive cost of various fuelwood species and individual preferences regarding the avor qualities of various wood
types. There are a wide variety of good fuelwood species in all geographic locations. Each species of wood has
dierent characteristics. The table below should help weigh the pros and cons of various types of wood. The
best woods for cooking are heavy hardwoods with an average length of 16-18" and a diameter of 3-5" (either
full logs or the sides of split wood). Heavy hardwoods are preferred because they require less labor to main-
tain the same amount of heat. Wood from conifers (pine trees) is not recommended due to its poor fuelwood
characteristics (low weight, low-med heat, poor coaling, high sparking and high residual creosote).
Whichever type of wood you use, MAKE SURE YOU KNOW THE MOISTURE CONTENT. Properly seasoned
wood (cured for 12-16 months) contains 20% moisture or less. If wood contains more than 20% moisture, it
should not be accepted for use, as it will produce more creosote residue, which accumulates on the ue lining
and exhaust hood, increasing the risk of re. Wood should be stored o the ground and out of the rain in an
environment that allows good air circulation so the drying process can continue (follow the recommendations
in NFPA 96 for safe wood storage and handling practices). Wet wood is the most common operational dicul-
ty associated with wood-red cooking equipment. Wood Stone’s optional Mini-Ligno E Wood Moisture Meter
can save you from paying for water when you thought you were paying for wood (see the Tools & Accessories
section of woodstonehome.com under products).
Do not use pressed wood products in Wood Stone food service equipment; they may damage the ceramics.
Damage caused by use of pressed wood and similar products is not covered under the warranty.
*The desirability of
various fragrances
is largely a matter
of personal
preference.
Wood Type Heat Lb/Cord Lighting Coaling Sparks Fragrance*
Alder Med-Low 2500 Fair Good Moderate Slight
Apple High-Med 4400 Fair Excellent Few Excellent
Ash High 3500 Fairly Difficult Good-Excellent Few Slight
Beech High 3800 Difficult Excellent Few Good
Birch (white) Medium 3000 Easy Good Moderate Slight
Cherry Medium 2000 Fair Excellent Few Excellent
Elm High 2300 Very Difficult Good Very Few Fair
Hickory Very High 4200 Fairly Difficult Excellent Moderate Excellent
Maple (red) High-Med 3200 Fairly Difficult Excellent Few Good
Maple (sugar) High 3700 Difficult Excellent Few Good
Mesquite Very High Very Difficult Excellent Many Excellent
Oak (live) Very High 4600 Very Difficult Excellent Few Fair
Oak (red) High 3700 Difficult Excellent Few Fair
Oak (white) Very High 4200 Fairly Difficult Excellent Few Fair
Pecan High Fair Good Few Good

PG 16 OF 20
An ongoing program of product improvement may require us to change specications without notice.
woodstonehome.com
[e-mail]
tf. 800.578.6836
f. 360.734.0223
Wood Stone Corporation
1801 W. Bakerview Rd.
Bellingham, WA 98226 U.S.A.
M0325.00
Rev. November 2020
Replacement Parts
REV:
DATE:
PART #:
001-5SFB-45
Floor Mount - Assembly
General Arrangement
6/24/2014bena
2
DWN BY:
SHEET:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF WOOD STONE CORPORATION
ANY REPRODUCTION OR USE IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF WOOD STONE IS PROHIBITED
An ongoing program of product improvement may require us to
change specifications without notice.
Bellingham, WA 360/650-1111 www.woodstone-corp.com
DIMENSIONS ARE IN INCHES
TOLERANCES: LINEAR ±1/2 [±10mm], ANGULAR ±2°
UNLESS NOTED OTHERWISE
C:\Users\bena\Desktop\001-5SFB_Mt_St_Helens_SFB_Floor_Mount-1.dft
The drawing below indicates part numbers for the replaceable parts on all Mt. St. Helens models. See table for
specic model grate capacities and grate part numbers.
002-953
Grate Rack Assembly
Replacement Grates --See
Table for part numbers
2170704
Sacricial Heat Shield
9000-0614
5/16" Lock
Washer
9000-0609
5/16-18 x 3/4 Hex Hd Bolt
GR5
7100-0501
5" Swivel Caster w/
Brake
7100-0500
5" Swivel
Caster
Professional Series Grill Installation and Operation Manual
REPLACEMENT GRATE
QUANTITY
Model
6x16"
Grates
50RO-0017-2
PWG-5426 8
PWG-5426-
CT 8

PG 17 OF 20
An ongoing program of product improvement may require us to change specications without notice.
woodstonehome.com
[e-mail]
tf. 800.578.6836
f. 360.734.0223
Wood Stone Corporation
1801 W. Bakerview Rd.
Bellingham, WA 98226 U.S.A.
M0325.00
Rev. November 2020
Limited Warranty
Professional Series Grill Installation and Operation Manual
ALL WARRANTY SERVICE MUST BE PREAPPROVED BY WOOD STONE
Wood Stone warrants its equipment to the original purchaser against defects in material or manufacture for a period of
one year from the original date of purchase, subject to the following exclusions and limitations.
Please contact the factory rst at 1.800.988.8103 or 1.360.650.1111, seven days a week. Our normal business hours are
7am to 5pm PST Monday–Friday. If calling during non-business hours, follow the recorded instructions for emergency
service and a Wood Stone technician will get back to you promptly.
EXCLUSIONS
The warranties provided by Wood Stone do not apply in the following instances:
1. In the event that the equipment is improperly installed. Proper installation is the responsibility of the installer;
proper installation procedures are prescribed by the Wood Stone Installation and Operation Manual.
2. In the event the equipment is improperly or inadequately maintained. Proper maintenance is the responsibility
of the user; proper maintenance procedures are prescribed in the Wood Stone Installation and Operation Manual.
Burner problems resulting from debris or ash in the burner well will not be covered by the warranty. Call with
questions regarding maintenance frequency.
3. In the event that the failure or malfunction of the appliance or any part thereof is caused by abnormal or improper
use or is otherwise not attributable to defect in material or manufacture.
4. In the event that the ceramic rebox has been exposed to water.
5. In the event that the appliance, by whatever cause, has been materially altered from the condition in which it left
the factory.
6. In the event that the rating plate has been removed, altered or obliterated.
7. On parts that would be normally worn or replaced under normal conditions.
8. Normal cracking due to expansion and contraction stress relief in the ceramic rebox.
9. In the event that pressed log products of any type have been burned in the equipment.
10. Damage resulting from the use of chemical cleaning products in the appliance, as well as any damage from liquids
or chemicals, including water, being poured or sprayed into the appliance.
If any oral statements have been made regarding this appliance, such statements do not constitute warranties and
are not part of the contract of sale. This Limited Warranty constitutes the complete, nal and exclusive statement with
regard to warranties.
THIS LIMITED WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES WHETHER WRITTEN, ORAL
OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR
PARTICULAR PURPOSE OR WARRANTY AGAINST LATENT DEFECTS.
LIMITATIONS OF LIABILITY
In the event of warranty claim or otherwise, the sole obligation of Wood Stone shall be the repair and/or replacement,
at the option of Wood Stone, of the appliance or component or part thereof. Such repair or replacement shall be at
the expense of Wood Stone with the exception of travel over 100 miles or two hours, overtime, and holiday charges
which shall be at the expense of the purchaser. Any repair or replacement under this warranty does not constitute
an extension of the original warranty for any period of the appliance or for any component or part thereof. Parts to
be replaced under this warranty will be repaired or replaced at the option of Wood Stone with new or functionally
operative parts. The liability of Wood Stone on any claim of any kind, including claims based on warranty, expressed
or implied, contract, negligence, strict liability or any other theories shall be solely and exclusively the repair or
replacement of the product as stated herein, and such liability shall not include, and purchaser specically renounces
any rights to recover, special, incidental, consequential or other damages of any kind whatsoever, including, but not
limited to, injuries to persons or damage to property, loss of prots or anticipated prots, or loss of use of the product.
TO SECURE WARRANTY SERVICE
If you claim a defect covered by this Limited Warranty, contact:
Wood Stone Corporation, Attn: Service Department, 1801 W. Bakerview Rd., Bellingham, WA 98226 USA
Phone [phone] or 1.360.650.1111

PG 18 OF 20
M0325.00 NOVEMBER 2020
This page left blank, with intention.

PG 19 OF 20
M0325.00 NOVEMBER 2020
This page left blank, with intention.

PG 20 OF 20
M0325.00 NOVEMBER 2020
Toll Free 800.578.6836
Fax [phone]
woodstonehome.com
[e-mail]
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
An ongoing program of product improvement may
require us to change specifications without notice.
