1
INSTALLATION AND CARE GUIDE
20230620 REV. 1
READ ALL INSTRUCTIONS BEFORE UNPACKING THE PRODUCT
2 PEOPLE ARE REQUIRED TO LIFT AND DURING
ENTIRE INSTALLATION OF THIS PRODUCT
INSTRUCTIONS THAT, IF IGNORED COULD RESULT IN DEATH OR SERIOUS INJURY CAUSED BY INCORRECT HANDLING
OR INSTALLATION OF THE PRODUCT. THESE INSTRUCTIONS MUST BE OBSERVED FOR SAFE INSTALLATION.
Customer Service Phone: [phone]. (Monday - Friday 9 AM - 5 PM Pacific Time)
Or Email: [email protected]
Certified to the following Codes & Standard:
• UL 1795 Safety Standard for Hydromassage Bathtubs (UL1795)
• ASME A112.19.7 / CSA B45.10) – Hydromassage Bathtub Systems
• CSA B45.5/IAPMO Z124 – Plastic Plumbing Fixtures
• International Plumbing Code®(IPC)
• International Residential Code®(IRC)
• Uniform Plumbing Code®(UPC)
•National Plumbing Code of Canada®(NPC)
This products must be installed by a fully insured and licensed plumber only. Installation of any our product by anyone other
than fully insured and licensed plumber shall void limited warranty. We recommends that such licensed plumber has experience
in the installation of products.
We are not responsible for local code compliance for this product. Building and plumbing codes may vary from state-to-state in
accordance to your location. We are not responsible for providing any compliance certifications.
Under no circumstances we shall not be liable for any incidental damages sustained in connection with this product
Neither manufacture, nor distributor, nor retailer is responsible for water damage or flood caused due to use of this product.
Under no circumstances We shall not be liable for any and all fees, cost of installation/reinstallation/removal, subsequent
damage or transportation in case of the product defect
R
WOODBRIDGE AIR BATHTUB
B0170 B0101/BTS0101 B0102/BTS0102

R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
BEFORE YOU BEGIN
PRODUCT REQUIREMENTS
A. Summary Of Key Requirements
Observe all local plumbing codes, Install the unit to a level subfloor,Provide properly
-dimensioned framing.
B. Product Inspection
Uncrate and inspect bath for damage. Leave all materials in the crate during construction to
prevent damage.

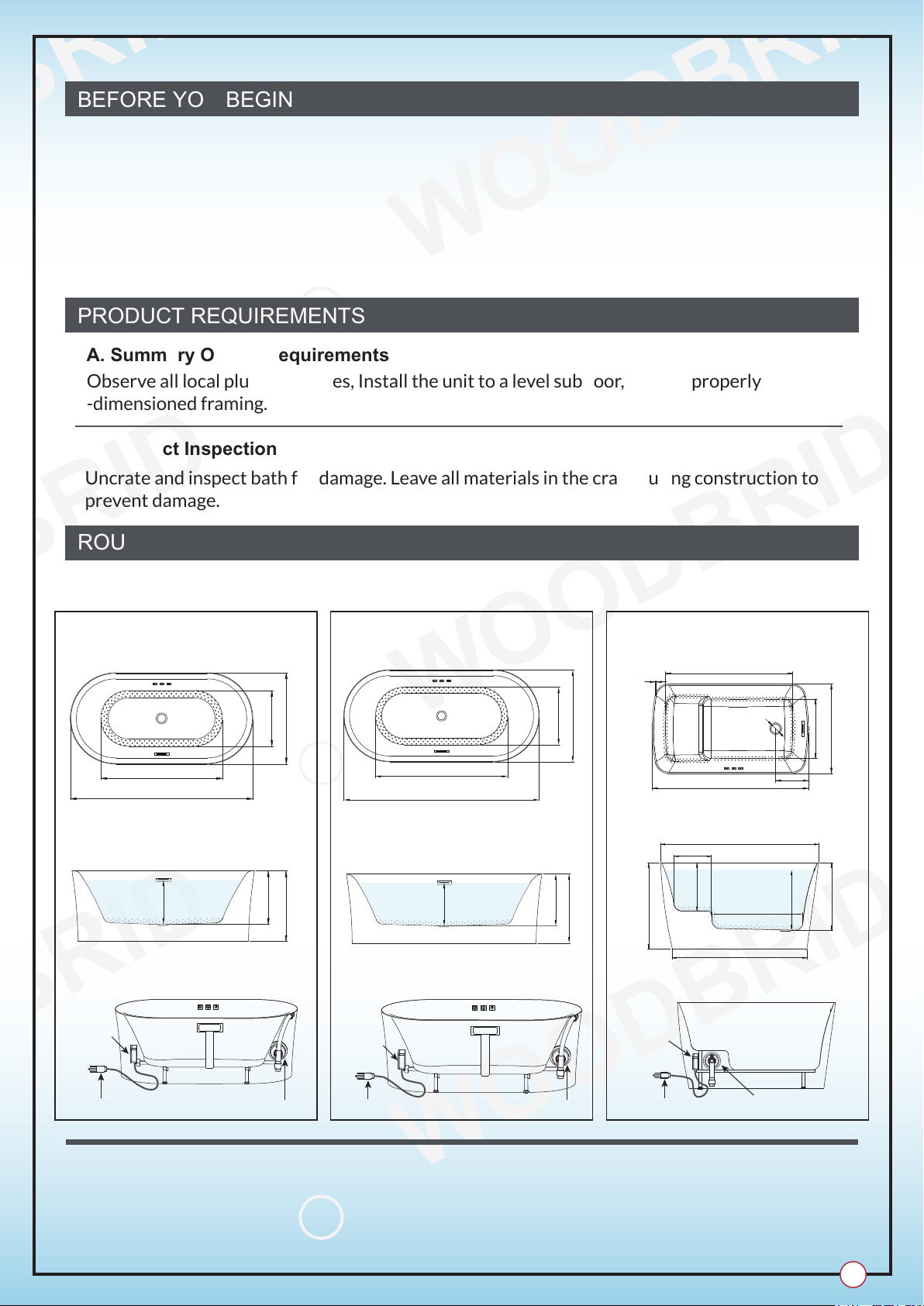

ROUGHING-IN
Roughing-in:
2
• Please read these instructions carefully to familiarize yourself with the required
tools, materials, and installation sequences. Follow the sections that pertain to your
particular installation. This will help you avoid costly mistakes. In addition to proper
installation, read all operating and safety instructions.
• All information is based on the latest product information available at the time of
publication. WOODBRIDGE® reserves the right to make changes in product
characteristics, packaging, or availability at any time without notice.
IMPORTANT INFORMATION
•Measurements are ± 1/2" and subject to change without notice
• Specifications & Configurations are subject to change without notice
• Pls measure tub on-site before installation
• Please note that installer(s) must be certify or warranty will be voided.
• Measurements herein supersede all others published prior to purblication
date shown below
• Before ordering or installing, please consider future access to equipment
67"
Electrical Power Outlet Air Blower
18"
29 1/2"
39 3/8"
59"
17 3/8"
22 7/8"
45 1/4"
19 5/8"
31 1/2"
17 3/4"
23 5/8"
Power Supply
& Control Box
14 3/4"
Water depth
Water depth 14 3/8"
Power Supply
& Control Box
Electrical Power Outlet Air Blower
B0101/BTS0101B0102/BTS0102 B0170
36-7/8"
3/8"
27-1/2"
17-3/4"
9-5/8"
48"
ø2"
48"
26"
10-5/8"
14-1/2"
20-1/4"
25-5/8"
39-7/8"
Water depth
17"
Power Supply
& Control Box
Electrical Power Outlet Air Blower

R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
INSTALL BATHTUB
1) Your new bathtub been manufactured to the highest possible
standards, it has been factory tested and approved.
INSTALLATION REQUIREMENTS
A. Tools Required
• Adjustable pipe
• wrench
• Rule
• Level
• Safety shoes
• Safety glasses
• Square
•Screwdriver
•Pliers
• Utility knife
B. Materials Required:
•Plumbers putty
• Wall coverings, as necessary
•Silicone sealant
• Gypsum cement (optional)
•Construction adhesive
• (optional)
• Protective covering for
•bathtub
•Nails
C. Clearance Requirements:
Check the rough-in and room dimensions to provide adequate space for the bath unit.
SITE REQUIREMENTS
A. Plumbing Preparation
Position the plumbing according to rough-in dimensions.
Cap the supplies and check for leaks.
BEFORE INSTALLING UNIT
CAUTION: Ensure a watertight seal on the bath drain connections.
A. Install the faucet valving and shower head tee.When drilling bathtub for faucet,
ensure sufficient clearance. Open the hot and cold water valves and check the
supply connections for leaks.
B. Run water into the bath and check the drain connections for leaks.
C. Fill the bathtub up to the overflow level and check overflow unit for leaks.
3
This products must be installed by a fully insured and licensed plumber only.
2) When removing bathtub from protective carton. DO NOT LIFT BATHTUB BY PIPE WORK.
Inspect for any possible damage that may have occurred in transit.
IMPORTANT: Bathtub must be installed level on all top edges.

R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE

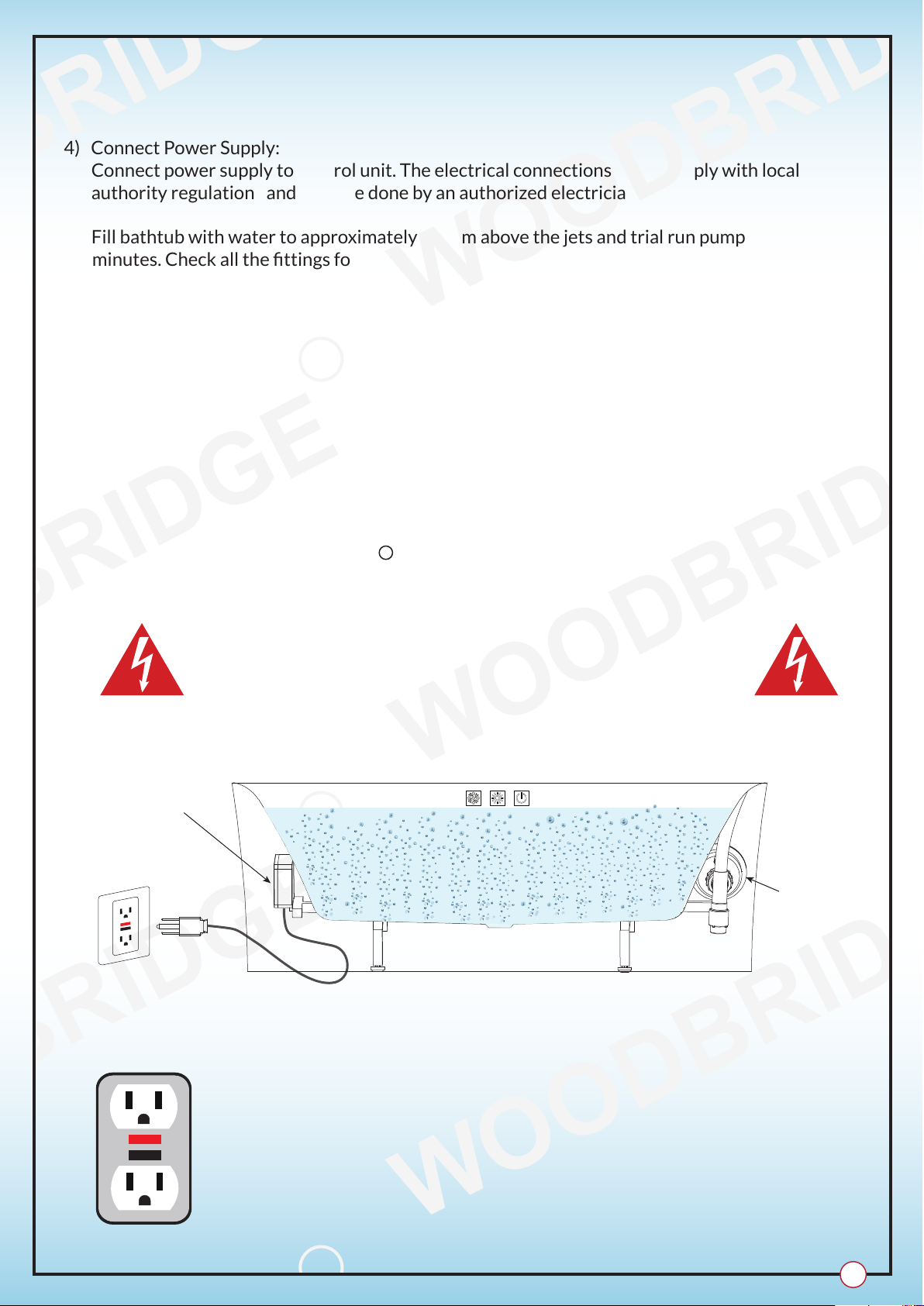

4) Connect Power Supply:
Connect power supply to control unit. The electrical connections must comply with local
authority regulations and must be done by an authorized electrician.
5) Fill bathtub with water to approximately 40 mm above the jets and trial run pump for 10-15
minutes. Check all the fittings for leaks and test the control functions. Switch off the spa
pump and leave the unit filled with water (pump is not running) for at least another two
minutes. Check the pump and pipes union connections for leaks. Hand tighten union
connections if required.
IMPORTANT: Your bathtub has been factory tested and approved. It is the responsibility of
the installer to test run the bathtub, check all the fittings for leaks and test the control functions.
NON OBSERVANCE WILL INVALIDATE FACTORY WARRANTY.
6) The unit must be connected only to a supply circuit that is protected by a Ground-Fault
Circuit Interrupter (GFCI). Such a GFCI should be provided by the installer and should be
tested on a routine basis.
4
ELECTRICAL REQUIREMENTS
R
WOODBRIDGE WHIRLPOOL & AIR BATHTUB
RESET
120V 15AMP
Dedicated
GFCI Breaker
In the example above, there is 1 Dedicated 120V 15AMP Dedicated GFCI Breaker
1. One (1) Dedicated GFCI Breaker for the Air Massage Blower
Each Accessory Requires a Dedicated 120V 15AMP GFCI Breaker.
THESE CANNOT BE SHARED
(LED LIGHTS & OZONE CAN SHARE A BREAKER)
AIR MASSAGE
3)Set the bathtub on two 4x4 pieces oflumber .so you can access from the bottom ofthe bathtub.
1 Total Breakers
RESET
CGFI
Outlet
Power Supply
& Control Box
Air Blower

R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
R
WOODBRIDGE
5
BUBBLE MASSAGE
ON / OFF BUTTON CHROMA-LIGHT ON / OFF BUTTON BATHTUB POWER ON / OFF BUTTON
OPERATING GUIDE
AIR BUBBLE MASSAGE SYSTEM
CHROMA-LIGHT
POWER THE BATHTUB
POWER Function, touch Power button to turn on the main power and button
backlight will turn into red. Re-touch button to turn off the main power and
button’s backlight will off.
The AIR BUBBLE LIGHT function, whenthe tub is power on and running, touch
air bubble light button at the bottom of tub to turn on the light, and the light will
turn into blue light, re-touch button to turn off the light and button’s backlight will off.
AIR Bubble Bath function, When the tub is power on and running, touch air bath
keypad to turn on the air blower and keypad backlight is in blue, re-touch keypad
to turn off the air blower, and keypad’s backlight will off.
Panel lock function, lock function will activate, and the control panel will lock if no activity on
control pad in 10 seconds. The backlight of the power button will turn to white color. Long press
the power button for 3 seconds to unlock the panel lock function.
• There is a system beep sound on every operation.

R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
WARRANTY
R
WOODBRIDGE
Woodbridge warrants its products as listed in below to be free of material and workmanship defect,subjected to the
limitations set forth in this limited warranty.
• Bathtub, Whirlpool/Air Bubble Massage Tub: 1 Year limited to be free of defects in material and workmanship
• Toilet and Bidet: 1 Year limited to be free of defects in material and workmanship
• Faucet: 1 Year limited to be free of defects in material and workmanship
• Vanity: 1 Year limited to be free of defects in material and workmanship
• Granite, Marble, Engineered Quartz Vanity Top: 1 Year limited to be free of defects in material and workmanship
• Medicine Cabinet, LED Mirror: 1 Year limited to be free of defects in material and workmanship
• Stainless Steel Sink: 1 Year limited to be free of defects in material and workmanship
• Solid Surface Shower Wall Panel, Shower Base and Vanity Top: 10 Years limited warranty to be free from material
defects
• Shower Door: Lifetime warranty on glass components and 1Year limited on other hardware
-transferable and only applies to products purchased and installed in the United
This limited warranty is non-transferable and only applies to products purchased and installed in the United States.
This limited warranty excludes all industrial, commercial and business usage. Proof of purchase (original sales receipt)
from the original purchaser, Description and pictures of defect, model number or model description must be provided
to Woodbridge Bath for all warranty claims and Woodbridge Bath IS NOT responsible for labor cost, removal or
installation costs.
This limited warranty shall not apply to goods which have been subject to accident, negligence, improper installation,
product abuse, product misuse, or use of cleaners containing abrasives, alcohol or other organic solvents, whether
performed by a contractor, service company, or yourself, are excluded from this warranty.
During this limited warranty period if a malfunction occurs and after inspection it is determined that a defect developed
during normal use, Woodbridge will as at its election proceed withon any of the following options:
(1) repair or replace the defective part(s) or product(s) at cost
(2) issue a refund of the original purchase price of the product(s) (Valid within 30 days from the date of purchase)
(3) issue a credit to be applied toward the purchase of a new product. Shipping/delivery charges may apply and are in
sole discretion.
Caution:
NEVER use cleaners containing abrasive cleaners, ammonia, bleach, acids, waxes, alcohol, solvents or other productsthat
are not recommend for Chrome finish will void the warranty.
Woodbridge products should be installed by a fully insured and licensed contractor only. Installation by anyoneother
than fully insured and licensed contractorwillvoid this limited warranty.
This warranty does not cover surface damaged caused by use of chemicals that break through or dissolve the surface
finish or damage caused by the accidental dropping of sharp or heavy objects. Improper care and use of abrasive
cleaners and will void the warranty.
6

R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
RESPONSIBILITIES OF OTHERS
Damage occurring in transit is the responsibility of the carrier. The user or installer MUST open the crate and
inspect the unit for damage when it is delivered. If damage is discovered, it must be reported immediately to the
seller and the carrier in writing, and an inspection requested. Failure of the carrier to respond should be reported
to the seller and the carrier. Your freight claims should be filed promptly thereafter.
DISCLAIMER
Except as expressly provided, there shall be no warranty or obligation, express or implied, oral or statutory. No
dealer or other person has the authority to make any warranties or representations concerning or its products. In
no event shall be held responsible for any such warranties or representations.
Some states/provinces do not allow limitations on how long an implied warranty lasts, or the exclusion on
limitation of special, incidental or consequential damages, so these limitations and exclusions may not apply to
you. This warranty gives you specific legal rights, you may also have other rights which vary from state/province
to state/province.
To obtain warranty and replacement parts, please send e-mail to [email protected] the original
receipt information, Woodbridge will determine whether to repair or replace your product, issue a refund or
issue a credit.
R
WOODBRIDGE
Inspecting the unit prior to installation is the responsibility of the installer or building contractor who acts on
behalf of the user. They are responsible for ensuring the unit is free of defect or damage. Notices are placed on
the unit and on the shipping carton advising the installer of this responsibility. In the event of a problem, the unit
must not be installed. Woodbridge is not responsible for failures or damage that could have been discovered,
repaired, oravoided by proper inspection and testing prior to installation.
7
(Monday - Friday 9 AM - 5 PM Pacific Standard Time)
Email: [email protected] (Prefer by e-mail)
Customer Service Phone: [phone]
15600 Blackburn Ave ,
Norwalk , CA 90650 USA

R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE WOODBRIDGE
WOODBRIDGE
Care and Cleaning
Retain these installation instructions for future reference!
IMPORTANT!
DO NOT USE: Abrasive cleaners such as: acid, ammonia, bleach, and simmilar solutions. Use of such solutions may cause
corrosion, finish peeling, and/or dull the surface.
DO NOT USE: Abrasive sponges or cloth. Never use steel, wool, or wired brushes that will permanently scratch the surface.
• Most dirt will wash off with mild soap and warm water.
• For tough spots, use liquid dish washing soap or non-chlorine bleach.
• Do not use abrasive material such steel wool or scouring pads to clean the acrylic surface.
• Always test the cleaning solution on a small area before using it on the entire surface.
• Do not allow cleaning to soak on the acrylic surface.
• Rinse thoroughly with water immediately and wipe dry with soft cloth.
• Use liquid polish compound such as Gel-Gloss Kitchen and Bath Polish(TM) to keep the original shine of acrylic surface.
• Light scratches can be removed with polishing compound for automobiles.
• For deeper scratches use wet sandpaper (1500 grit or higher). Always add water when sanding and lightly sand the area larger
than the scratch in a circular motion to remove the scratches. Repeat until the scratch is removed. Use soft cloth and small
amount of polishing compound to restore shine. Repeat as needed until surface shine is restored.
Repair and Maintenance
The bathtub must be installed and used as described in this manual
Use caution when entering or exiting the bathtub
Do not permit children or persons with infirmities to use the bathtub without supervision of an adult
People using any medications or having adverse medical history must consult a physician prior to use of the bathtub
to avoid potential hyperthermia and possible drowning
Water temperature over 100ºF may cause hyperthermia and/or other health problems. Check water temperature
and adjust it for your personal comfort
Never use bathtub while intoxicated, after taking meals or any alcoholic beverages. Consuming alcoholic beverages
before or during bathing will cause drowsiness and may result in hyperthermia, loss of consciousness, or even
drowning
If you are pregnant or you feel that you are may be pregnant, consult your doctor before using the bathtub
Never use any electrical devices such as hair dryer, lamp, telephone, tv, radio, or others within 5 feet of the bathtub
Do not overfill the bathtub before enetering. Entering the bathtub when filled will cause overflow and slippery
conditions. Use extreme caution when entering and exiting
IMPORTANT SAFETY RULES
ATTENTION! ALWAYS FOLLOW THESE PRECAUTIONS WHEN USING A BATHTUB
Warning
Warning
Warning
Warning
Warning
Warning
Warning
Warning
Warning
Thank you for using WoodBridge products!
Please don't hesitate to contact us if you have any questions or concerns.
Customer Service Phone: [phone]. (Monday - Friday 9 AM - 5 PM Pacific Time)
Or Email: [email protected]
