Woodhead SST-DN3-104-1 Operating and maintenance manual

SST-DN3-104-1
and SST-DN3-104-2
Hardware Reference Guide
Document Edition: 1.0
Document #: 715-0082

Hardware Reference Guide SST-DN3-104-1 and SST-DN3-104-2
ii
Document Edition: 1.0, Document #: 715-0082, Template Edition: 1.1, Template #: QMS-06-045
Use, duplication or disclosure of this document or any of the information contained herein is subject to the restrictions on page ii of this document.
Document Edition: 1.0
Date: June 29, 2004
This document applies to the SST-DN3-104-1 and SST-DN3-104-2 interface cards.
Copyright ©2004 Woodhead Software & Electronics, Division of Woodhead Canada Limited
This document and its contents are the proprietary and confidential property of Woodhead
Industries Inc. and/or its subsidiaries and may not be used or disclosed to others without the
express prior written consent of Woodhead Industries Inc. and/or its subsidiaries.
SST is a trademark of Woodhead Software & Electronics. All other trade names are trademarks
or registered trademarks of their respective companies.
At Woodhead, we strive to ensure accuracy in our documentation. However, due to rapidly
evolving products, software or hardware changes occasionally may not be reflected in our
documents. If you notice any inaccuracies, please contact us (see Appendix D of this document).
Written and designed at Woodhead Software & Electronics, 50 Northland Road,
Waterloo, Ontario, Canada N2V 1N3.
Hardcopies are not controlled.

SST-DN3-104-1 and SST-DN3-104-2 Hardware Reference Guide
Preface iii
Document Edition: 1.0, Document #: 715-0082, Template Edition: 1.1, Template #: QMS-06-045
Use, duplication or disclosure of this document or any of the information contained herein is subject to the restrictions on page ii of this document.
Preface
Preface Sections:
• Purpose of this Guide
• Using this Guide
• Conventions

Hardware Reference Guide SST-DN3-104-1 and SST-DN3-104-2
iv Preface
Document Edition: 1.0, Document #: 715-0082, Template Edition: 1.1, Template #: QMS-06-045
Use, duplication or disclosure of this document or any of the information contained herein is subject to the restrictions on page ii of this document.
Purpose of this Guide
This guide contains technical and product-related information on the SST-DN3-104-1
and SST-DN3-104-2 network interface cards.
The SST-DN3-104-1 consists of a single DeviceNet network interface (or channel), and the
SST-DN3-104-2 comprises two independent interfaces, controlled by independent CPUs.
Each CPU executes downloadable application firmware modules, which enable application-level
product behavior. For more details, refer to relevant firmware documentation.
Note
An application running on one channel does not affect the performance
of other channels, as it does not share memory or processor resources
with them.
Note
In this manual, the SST-DN3-104-1 and SST-DN3-104-2 will be
referred to as the card, except where product differences apply.
Using this Guide
If you are running a 3rd party application or writing your own application using the card’s DLL
calls, the sections of interest in this guide will be “Card Overview”, “Installation” and potentially
“Troubleshooting”. If you are writing your own application in a non-Windows environment
(interfacing directly with the card’s memory registers), we recommend that you read the whole
guide.

SST-DN3-104-1 and SST-DN3-104-2 Hardware Reference Guide
Preface v
Document Edition: 1.0, Document #: 715-0082, Template Edition: 1.1, Template #: QMS-06-045
Use, duplication or disclosure of this document or any of the information contained herein is subject to the restrictions on page ii of this document.
Conventions
This guide uses stylistic conventions, special terms, and special notation to help enhance your
understanding.
Style
The following stylistic conventions are used throughout this guide:
Bold indicates field names, button names, tab names, and options or selections
Italics indicates keywords (indexed) or instances of new terms and/or specialized
words that need emphasis
CAPS indicates a specific key selection, such as ENTER, TAB, CTRL, ALT,
DELETE
Code Font indicates command line entries or text that you’d type into a field
Underlining indicates a hyperlink
“>” delimiter indicates how to navigate through a hierarchy of menu selections/options
“0x” indicates a hexadecimal value

Hardware Reference Guide SST-DN3-104-1 and SST-DN3-104-2
vi Preface
Document Edition: 1.0, Document #: 715-0082, Template Edition: 1.1, Template #: QMS-06-045
Use, duplication or disclosure of this document or any of the information contained herein is subject to the restrictions on page ii of this document.
Terminology
The following special terms are used throughout this guide:
Card the SST-DN3-104-1 or SST-DN3-104-2 network interface card
Channel a DeviceNet network interface on the card
Firmware Module the embedded software module that gets loaded to the card’s
memory and runs on the card. This is the operating system of the
card, enabling it to respond to commands from the host and
manage network communications.
Host the computer system in which the card is installed
.bin an unencrypted firmware module for the card
.ss3 an encrypted firmware module for the card

SST-DN3-104-1 and SST-DN3-104-2 Hardware Reference Guide
Preface vii
Document Edition: 1.0, Document #: 715-0082, Template Edition: 1.1, Template #: QMS-06-045
Use, duplication or disclosure of this document or any of the information contained herein is subject to the restrictions on page ii of this document.
Special Notation
The following special notations are used throughout this guide:
Warning
Warning messages alert the reader to situations where personal injury
may result. Warnings are accompanied by the symbol shown, and
precede the topic to which they refer.
Caution
Caution messages alert the reader to situations where equipment damage
may result. Cautions are accompanied by the symbol shown, and
precede the topic to which they refer.
Note
A note provides additional information, emphasizes a point, or gives a
tip for easier operation. Notes are accompanied by the symbol shown,
and follow the text to which they refer.

Hardware Reference Guide SST-DN3-104-1 and SST-DN3-104-2
viii Preface
Document Edition: 1.0, Document #: 715-0082, Template Edition: 1.1, Template #: QMS-06-045
Use, duplication or disclosure of this document or any of the information contained herein is subject to the restrictions on page ii of this document.

SST-DN3-104-1 and SST-DN3-104-2 Hardware Reference Guide
Contents ix
Document Edition: 1.0, Document #: 715-0082, Template Edition: 1.1, Template #: QMS-06-045
Use, duplication or disclosure of this document or any of the information contained herein is subject to the restrictions on page ii of this document.
Contents
Preface .......................................................................................................................... iii
Purpose of this Guide ................................................................................................................. iv
Using this Guide ......................................................................................................................... iv
Conventions..................................................................................................................................v
Style...........................................................................................................................................v
Terminology ............................................................................................................................ vi
Special Notation ..................................................................................................................... vii
Card Overview ............................................................................................................. 13
1.1 Warnings and Cautions.........................................................................................................14
1.2 Card Features........................................................................................................................15
1.3 Byte Ordering .......................................................................................................................15
1.4 DN3 Compatibility ...............................................................................................................15

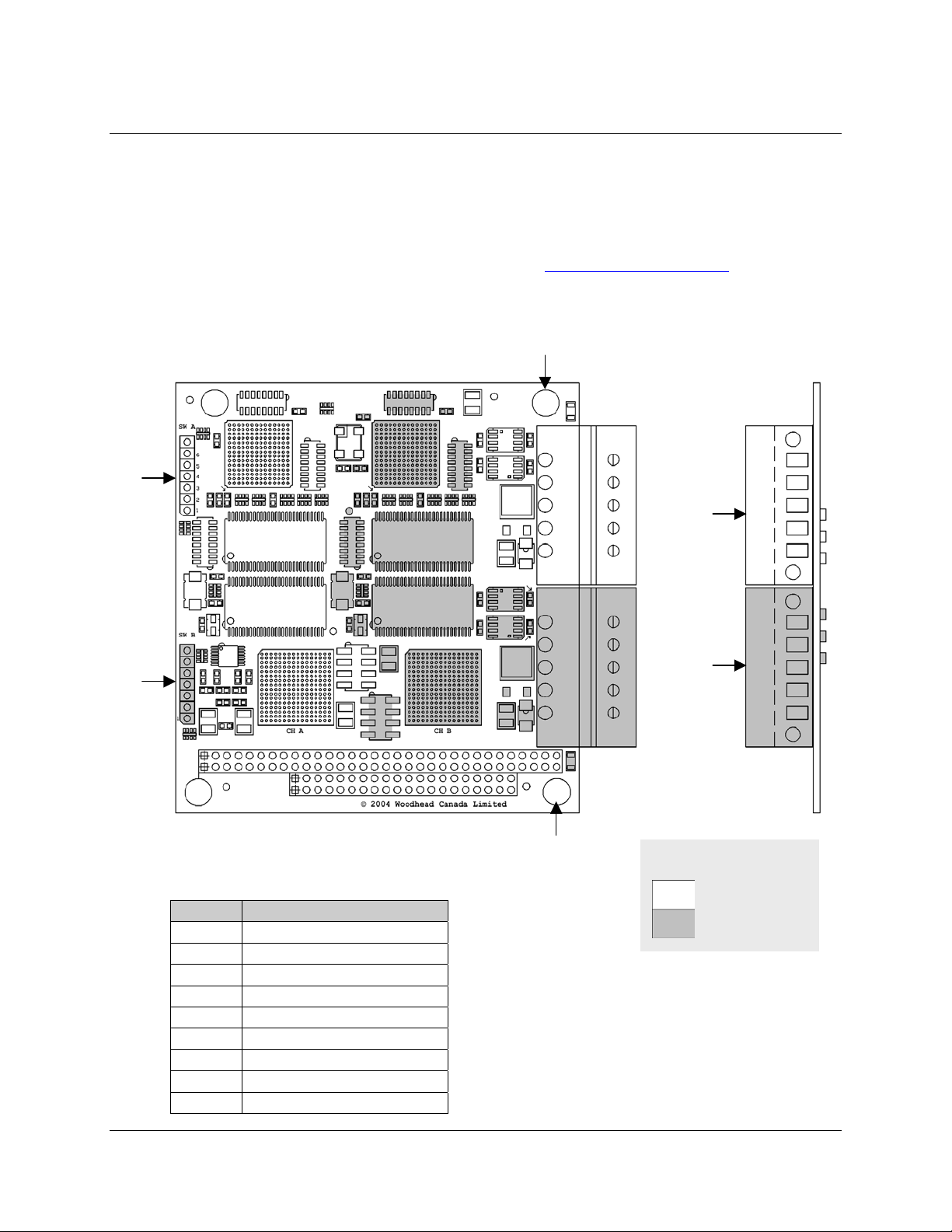

1.5 Hardware Description...........................................................................................................16
1.5.1 CAN Connector..............................................................................................................17
1.5.2 LEDs...............................................................................................................................19
1.5.3 Switches .........................................................................................................................21
Installation ................................................................................................................... 25
2.1 System Requirements ...........................................................................................................26
2.2 Handling Precautions............................................................................................................26
2.3 Installing the Card ................................................................................................................27
2.4 Connecting to a Network......................................................................................................28
2.4.1 Connecting to a DeviceNet Network .............................................................................28
2.4.2 Connecting to a CAN Network ......................................................................................29

Hardware Reference Guide SST-DN3-104-1 and SST-DN3-104-2
x Contents
Document Edition: 1.0, Document #: 715-0082, Template Edition: 1.1, Template #: QMS-06-045
Use, duplication or disclosure of this document or any of the information contained herein is subject to the restrictions on page ii of this document.
Hardware Registers..................................................................................................... 31
3.1 DN3 Card Configuration Registers ......................................................................................32
3.1.1 Host Register Layout......................................................................................................32
3.1.2 Control Register .............................................................................................................33
3.1.3 AddrMatch Register .......................................................................................................34
3.1.4 WinSize Register............................................................................................................37
3.1.5 Bank Address Register...................................................................................................38
3.1.6 HostIrq Register .............................................................................................................40
3.1.7 LedReg Register.............................................................................................................41
3.1.8 Reserved Register...........................................................................................................42
3.1.9 FamilyId Register...........................................................................................................42
Troubleshooting.......................................................................................................... 43
4.1 HLTH or PWR LED is Red..................................................................................................44
4.1.1 HLTH LED is Red .........................................................................................................44
4.1.2 PWR LED is Red ...........................................................................................................44
4.2 Memory Conflict ..................................................................................................................45
4.3 Card Not Found ....................................................................................................................45
4.4 General Troubleshooting ......................................................................................................45
Error Messages ........................................................................................................... 47
A.1 Introduction .........................................................................................................................48
A.2 FamilyID Messages .............................................................................................................48
A.3 Fatal Hardware Self-Test Flash Codes ................................................................................49
Technical Specifications ............................................................................................ 51
B.1 Technical Specifications ......................................................................................................52
Loading Firmware ....................................................................................................... 55
C.1 Loading Firmware................................................................................................................56
C.1.1 Verify Card Presence.....................................................................................................56
C.1.2 Check for Conflicting RAM ..........................................................................................57
C.1.3 Test Channel RAM........................................................................................................58
C.1.4 Load and Start the Firmware Module............................................................................59
Warranty and Support................................................................................................. 61
D.1 Warranty ..............................................................................................................................62
D.2 Reference Documents..........................................................................................................62
D.3 Technical Support................................................................................................................62
D.3.1 Getting Help ..................................................................................................................63

SST-DN3-104-1 and SST-DN3-104-2 Hardware Reference Guide
Contents xi
Document Edition: 1.0, Document #: 715-0082, Template Edition: 1.1, Template #: QMS-06-045
Use, duplication or disclosure of this document or any of the information contained herein is subject to the restrictions on page ii of this document.
CE Compliance............................................................................................................ 65
E.1 CE Compliance ....................................................................................................................66
Index............................................................................................................................. 67

Hardware Reference Guide SST-DN3-104-1 and SST-DN3-104-2
xii Contents
Document Edition: 1.0, Document #: 715-0082, Template Edition: 1.1, Template #: QMS-06-045
Use, duplication or disclosure of this document or any of the information contained herein is subject to the restrictions on page ii of this document.

SST-DN3-104-1 and SST-DN3-104-2 Hardware Reference Guide
Card Overview 13
Document Edition: 1.0, Document #: 715-0082, Template Edition: 1.1, Template #: QMS-06-045
Use, duplication or disclosure of this document or any of the information contained herein is subject to the restrictions on page ii of this document.
1
Card Overview
Chapter Sections:
• Warnings and Cautions
• Card Features
• Hardware Description

Hardware Reference Guide SST-DN3-104-1 and SST-DN3-104-2
14 Card Overview
Document Edition: 1.0, Document #: 715-0082, Template Edition: 1.1, Template #: QMS-06-045
Use, duplication or disclosure of this document or any of the information contained herein is subject to the restrictions on page ii of this document.
1.1 Warnings and Cautions
The card is an electrical component and must be treated with the following precautions:
Warning
Only qualified electrical personnel familiar with the construction/
operation of this equipment and the hazards involved should install,
adjust, operate, and/or service this equipment. Read and understand this
guide in its entirety before proceeding. Failure to observe this precaution
could result in severe bodily injury or, in extreme cases, loss of life.
Warning
You must provide an external, hard-wired emergency stop circuit
outside the programmable controller circuitry. This circuit must disable
the system in case of improper operation. Uncontrolled machine motion
may result if this procedure is not followed. Failure to observe this
precaution could result in bodily injury.
Caution
The card contains static-sensitive components. Careless handling may
severely damage the card. Do not touch any of the connectors or pins on
the card. When not in use, the card should be stored in an anti-static bag.
Failure to observe this precaution could result in damage to or
destruction of the equipment.

SST-DN3-104-1 and SST-DN3-104-2 Hardware Reference Guide
Card Overview 15
Document Edition: 1.0, Document #: 715-0082, Template Edition: 1.1, Template #: QMS-06-045
Use, duplication or disclosure of this document or any of the information contained herein is subject to the restrictions on page ii of this document.
1.2 Card Features
The card is a PC/104 interface for communication with DeviceNet and other CAN-based
networks. The main features of each channel are:
• 16-bit PC/104 interface (compliant with PC/104, specification 2.4). 16 bits is the width
of the data bus and does not restrict the card from being used in a 32-bit operating
system.
• 66 MHz ColdFire Processor
• 256 KB of shared RAM
• DeviceNet-compliant 5-pin CAN connector
• Data rate of up to 1 Mbaud for CAN, and 125K, 250K and 500K for DeviceNet
• Bi-color LEDs showing card status
• Isolated physical layer
1.3 Byte Ordering
The card uses Intel-style (little endian) byte ordering for multi-byte entities LSB-low address and
MSB-high address. If your host system uses Motorola (big endian) byte ordering (MSB-low
address and LSB-high address), you must compensate for byte ordering in software.
The following language macro will compensate for byte ordering in a 16-bit data entity:
#define SWAP_WORD (WordData) ((WordData<<8) | (WordData>>8))
1.4 DN3 Compatibility
For a comparison of DN3 with DNP, refer to Section D.2, Reference Documents.

Hardware Reference Guide SST-DN3-104-1 and SST-DN3-104-2
16 Card Overview
Document Edition: 1.0, Document #: 715-0082, Template Edition: 1.1, Template #: QMS-06-045
Use, duplication or disclosure of this document or any of the information contained herein is subject to the restrictions on page ii of this document.
1.5 Hardware Description
The main features of the card are described in more detail in the following sections.
For information on card dimensions, refer to Section B.1, Technical Specifications.
Figure 1: SST-DN3-104-1 & 2 Interface Card
Table 1: Card Features
Feature Description
1 Channel A Switch
2 Channel B Switch
3 Connector Hole (H1)
4 Connector Hole (H2)
5 Channel A CAN Connector (J101)
6 Channel B CAN Connector (J201)
7 PWR LED
8 HLTH LED
9 COMM LED
1
2
7
8
9
5
6
4
3
Channel AChannel B
7
8
9
1- and 2-channel
2-channel onl
y
Legend

SST-DN3-104-1 and SST-DN3-104-2 Hardware Reference Guide
Card Overview 17
Document Edition: 1.0, Document #: 715-0082, Template Edition: 1.1, Template #: QMS-06-045
Use, duplication or disclosure of this document or any of the information contained herein is subject to the restrictions on page ii of this document.
1.5.1 CAN Connector
The 5-pin connector is a removable connector that conforms to the standard DeviceNet pinout.
Pin numbers, names and color codes are identified in the figure below.
Figure 2: 5-Pin CAN Connector
V+
CANH
SHIELD
CANL
V-
TM
Red
White
Bare
Blue
Black
DeviceNet
Color Code:
Pin Name:
12 345
1.5.1.1 V+, V-
These terminals provide power to the isolated section of the network interface, and
must be connected and powered for the card to communicate on the network. On DeviceNet
networks, they connect directly to the red (V+) and black (V-) wires of the DeviceNet cable.
On non-powered CAN networks, they must be connected to an external 24VDC supply.

Hardware Reference Guide SST-DN3-104-1 and SST-DN3-104-2
18 Card Overview
Document Edition: 1.0, Document #: 715-0082, Template Edition: 1.1, Template #: QMS-06-045
Use, duplication or disclosure of this document or any of the information contained herein is subject to the restrictions on page ii of this document.
1.5.1.2 CANH, CANL
These are the CAN communication bus signal terminals. Use only shielded twisted pair cable.
When using the card on DeviceNet with DeviceNet approved cabling, these wires will already be
a twisted pair with the proper DeviceNet impedance.
1.5.1.3 SHIELD
This is the shield connector. This terminal is “snubbed” to the PC/104 chassis ground via a
1M-ohm resistor, through the PC/104 standoffs connected to holes H1 and H2.
Note
The shield should be connected directly to earth ground at only one
point in the network.

SST-DN3-104-1 and SST-DN3-104-2 Hardware Reference Guide
Card Overview 19
Document Edition: 1.0, Document #: 715-0082, Template Edition: 1.1, Template #: QMS-06-045
Use, duplication or disclosure of this document or any of the information contained herein is subject to the restrictions on page ii of this document.
1.5.2 LEDs
There are three LEDs per channel: Power (PWR), Health (HLTH) and Communications
(COMM).
Note
For information on troubleshooting using LEDs, refer to Section 4.1,
HLTH or PWR LED is Red.
1.5.2.1 PWR LED
The PWR LED is an indicator that represents whether or not power is applied to the
CAN connector. The PWR LED’s behavior is described in the following table:
Table 2: PWR LED Behavior
Color Status
Green CAN bus power present
Red CAN bus power not present
Off PC/104 power not present

Hardware Reference Guide SST-DN3-104-1 and SST-DN3-104-2
20 Card Overview
Document Edition: 1.0, Document #: 715-0082, Template Edition: 1.1, Template #: QMS-06-045
Use, duplication or disclosure of this document or any of the information contained herein is subject to the restrictions on page ii of this document.
1.5.2.2 HLTH LED
The HLTH LED indicates the channel’s health status. The HLTH LED’s behavior is described in
the following table:
Table 3: HLTH LED Behavior
Color Status
Off Card initialization failed or the card is not powered
Green The firmware is running
Red The card has halted or there is a firmware run-time error
Amber Startup self-test complete, no firmware loaded. The
firmware must be reloaded (refer to Section 4.1,
HEALTH or PWR LED is Red).
Note
If the HLTH LED is flashing, there may have been a startup failure.
For more details, refer to Section A.3, Fatal Hardware Self-Test Flash
Codes.
1.5.2.3 COMM LED
The COMM LED indicates the network status. This LED’s meaning and behavior are
determined by the currently loaded firmware module. Refer to the module’s reference guide for
more details.
