woodmizer SLR Guide
WARNING! Read and understand this
manual before using this machine.
!
Shingle/Lap Sider
Safety, Operation, Maintenance, &
Parts Manual
SLR rev. A.00 - G.00
Safety is our #1 concern!
March 1997
Form #903
For use with LT15* through LT70 models.
*LT15 requires an adapter kit.
Active Patents assigned to Wood-Mizer, LLC
Belzile, Luc. 2016. Portable saw mill with bed adjustments. US Patent US 9,352,480B, filed Sepember 11, 2012, and
issued May 31, 2016.
Belzile, Luc. 2019. Blade sharpening and setting system. US Patent US10315260B2, filed August 27, 206, and issued
June 11. 2019.
Vogel, Chris. 2020. Wood cutting band saw blade having reduced kerf dust. US Patent US10625353B2, filed January 9,
2015, and issued June 21, 2020.
Bedel, Ambrose. 2011. Pallet dismantler. US Patent US 2011/0138984 A1, filed December 15, 2009, and issued June 16,
2011.
Laskowski, Jeff. 2006. Articulating deck mower with deck height adjuster. US Patent US 7,089,722 B2, filed September
30, 2004, and issued August 15, 2006.
Latuszek, Scott R., Dufek, Scott A. and Kohrman, Mark J. 2010. Latch for a pivoting mower deck. US Patent US
2010/0212278 A1, filed May 12, 2008, and issued August 26, 2010.
©2020 Wood-Mizer LLC
Printed in the United States of America, all rights reserved. No part of this manual may be reproduced in any form by any
photographic, electronic, mechanical or other means or used in any information storage and retrieval system without
written permission from
Wood-Mizer, LLC
8180 West 10th Street
Indianapolis, Indiana 46214
&DOLIRUQLD
3URSRVLWLRQ:DUQLQJ
:$51,1*%UHDWKLQJJDVGLHVHOHQJLQHH[KDXVWH[SRVHV\RXWRFKHPLFDOVNQRZQWR
WKH6WDWHRI&DOLIRUQLDWRFDXVHFDQFHUDQGELUWKGHIHFWVRURWKHUUHSURGXFWLYHKDUP
$OZD\VVWDUWDQGRSHUDWHWKHHQJLQHLQDZHOOYHQWLODWHGDUHD
,ILQDQHQFORVHGDUHDYHQWWKHH[KDXVWWRWKHRXWVLGH
'RQRWPRGLI\RUWDPSHUZLWKWKHH[KDXVWV\VWHP
'RQRWLGOHWKHHQJLQHH[FHSWDVQHFHVVDU\
)RUPRUHLQIRUPDWLRQJRWRZZZ3ZDUQLQJVFDJRY
:$51,1*'ULOOLQJVDZLQJVDQGLQJRUPDFKLQLQJZRRGSURGXFWVFDQH[SRVH\RXWR
ZRRGGXVWDVXEVWDQFHNQRZQWRWKH6WDWHRI&DOLIRUQLDWRFDXVHFDQFHU$YRLGLQKDOLQJ
ZRRGGXVWRUXVHDGXVWPDVNRURWKHUVDIHJXDUGVIRUSHUVRQDOSURWHFWLRQ
)RUPRUHLQIRUPDWLRQJRWRZZZ3:DUQLQJVFDJRYZRRG
Table of Contents Section-Page
Table of Contents WM doc 9/10/20 iii
SECTION 1 INTRODUCTION
1.1 Safety Symbols ...................................................................................... 1-1
SECTION 2 INSTALLATION
2.1 Assembly................................................................................................ 2-1
2.2 Installation and Setup............................................................................. 2-3
2.3 Installation and Setup (revision A.00 through F1.01)............................ 2-4
SECTION 3 LT15 INSTALLATION
3.1 LT15 Rev. E6.04+.................................................................................. 3-1
3.2 LT15 Rev. E4.00 - E6.03 ....................................................................... 3-3
3.3 LT15 Rev. A0.00 - E3.03....................................................................... 3-4
SECTION 4 SHINGLE OPERATION
4.1 Shingle setup .......................................................................................... 4-1
4.2 Shingle cutting operation ....................................................................... 4-4
SECTION 5 LAP SIDING OPERATION
5.1 Lap siding setup ..................................................................................... 5-1
SECTION 6 REPLACEMENT PARTS
6.1 Frame 1 ................................................................................................ 6-1
6.2 Frame 2 ................................................................................................ 6-3
6.3 Frame 3 .............................................................................................. 6-4
6.4 LT15 Adapters .................................................................................... 6-5
6.5 LT15 Auxiliary Bed Rail ....................................................................... 6-6
6.6 Shingle Lap Siding Resaw (revision A.00-F.01) ................................... 6-7
Introduction
Safety Symbols
1
1-1 WM doc 9/10/20 Introduction
SECTION 1 INTRODUCTION
The Shingle/Lap Siding Option (SLR) (see FIG. 1-1) creates tapered shingles or siding with your
Wood-Mizer sawmill.
1.1 Safety Symbols
The following symbols and signal words call your attention to instructions concerning your per-
sonal safety. Be sure to observe and follow these instructions.
DANGER! indicates an imminently hazardous situation which, if not avoided,
will result in serious injury or death.
WARNING! suggests a potentially hazardous situation which, if not avoided,
could result in serious injury or death.
CAUTION! refers to potentially hazardous situations which, if not avoided,
may result in minor or moderate injury or damage to equipment.

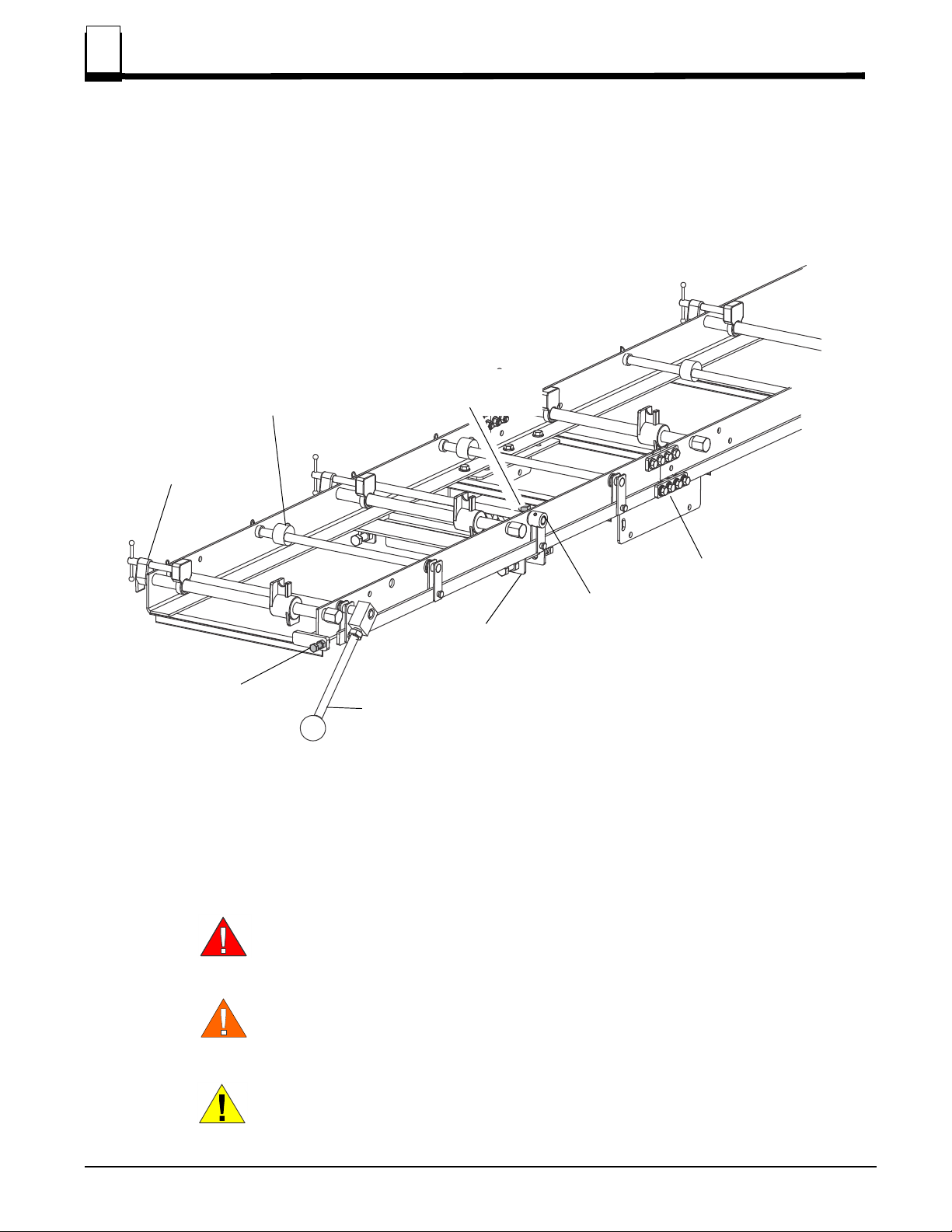

FIG. 1-1 MAJOR COMPONENTS
TDSLR02-01
Siding Lift Roller
Shingle Cam
Link Joint
Clamp Assembly
Bed Rail Mount
Shingle Taper
Adjustment Bolt
Siding Taper
Adjustment Bolt
Shift handle
Introduction
Safety Symbols 1
Introduction WM doc 9/10/20 1-2
NOTICE indicates vital information.
WARNING! Clean sawdust from all areas where sawdust may
gather after every 8-hour shift. Failure to do so may result in fire,
causing death or serious injury.
SETUP SAFETY
WARNING! Do not use if the mill is set up on ground with more than a 10
degree incline. An incline could cause the mill to tip over.
Use a lifting device (fork lift, crane, etc.) for parts over 100 lbs.
Use two persons for lifting parts over 50lbs.1
Keep all non-essential personnel out of the area while setting
up the equipment.
1.For more information on lifting safety see NOISH Lifting Equation athttps://www.cdc.gov/niosh/docs/94‐110/
Installation
Assembly
2
2-1 WM doc 9/10/20 Installation
SECTION 2 INSTALLATION
WARNING! Turn the base unit’s power to OFF, remove the key, and discon-
nect the battery ground terminal, if applicable.
On electric equipment, lock out power supply before performing any installa-
tion. See Electrical Lockout Procedures (OSHA regulation 1910.147, appendix
A reprinted in the Operator’s Manual).
Ensure your unit is on a level surface and secure from movement.
2.1 Assembly
1. Uncrate the SLR; discard the shipping braces (total 8) and fasteners. See FIG. 2-1.
FIG. 2-1
Part Part number Qty
Plate, SLR Link Arm Joint 128328 6
SLR Fastener Kit 130832 1
Fastener box contains: Bolt, 3/8-16x1 Gr5 HH F05007-87 32
Washer, 3/8 Flat SAE F05011-3 40
Nut, 3/8-16 Flanged Nylock F05010-222 32
Washer, 3/8 Split Lock F05011-4 8
Bolt, 3/8-16x3/4 Gr5 F05007-118 8
TDSLR01-01
Handle shipping position
Shipping braces
Mounting brace plates
Disassemble but DO NOT DISCARD
Installation
Assembly 2
Installation WM doc 9/10/20 2-2

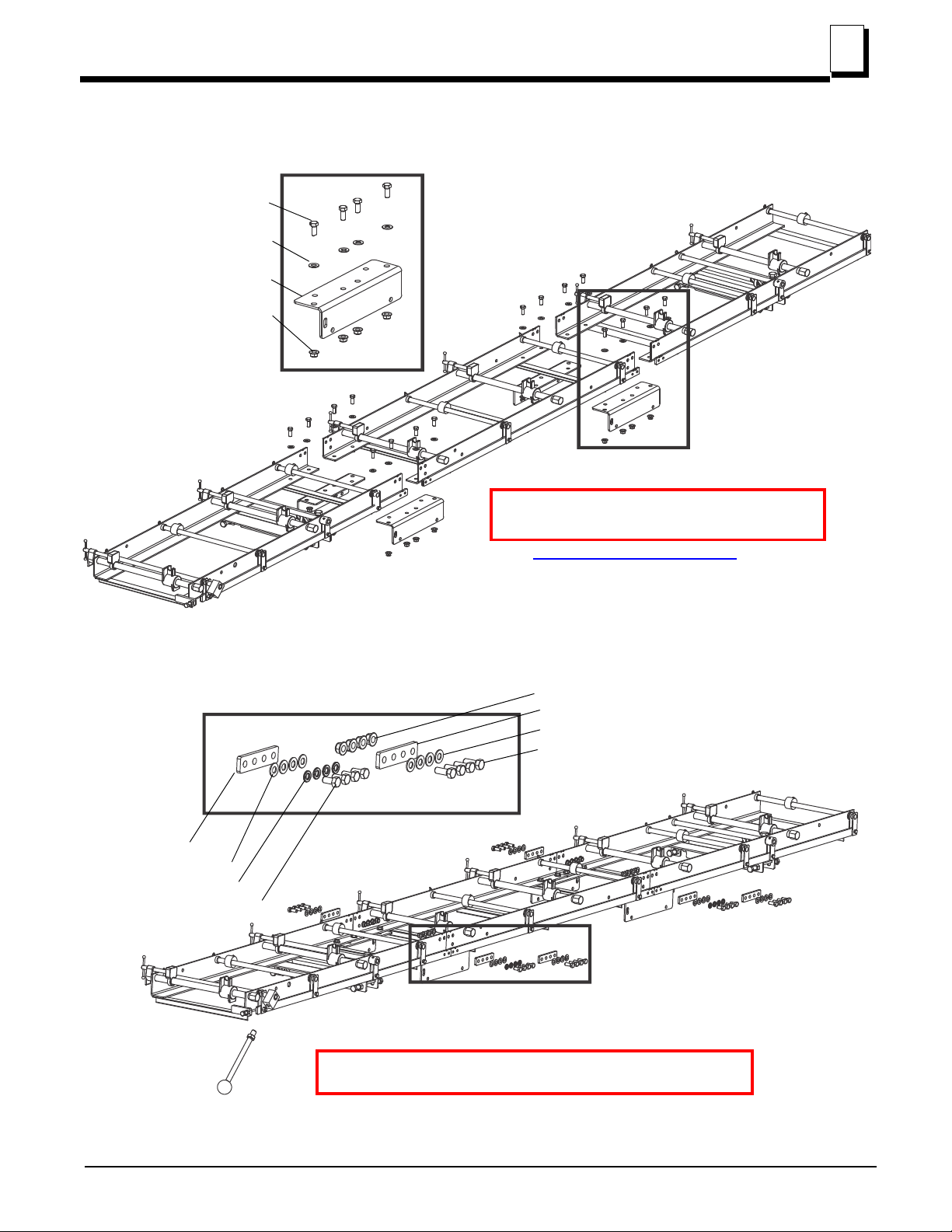

2. Lay out the frames as shown in FIG.2-2 to attach plates as shown in FIGs. 2-2 and 2-3
FIG. 2-2
FIG. 2-3
TDSLR02-12
Bolt, 3/8-16x1 Gr5
3/8 Flat washer
Brace plate
Nut, 3/8-16 Flanged Nylock
NOTE: If attaching the SLR to an LT15, use
the brace plates from the LT15 Adapter kit
See SECTION 3 LT15 Installation
TDSLR02-13
Link plate
3/8 Flat washer
3/8 Lock washer
Bolt, 3/8-16x3/4 Gr5
Nut, 3/8-16 Flanged Nylock
Link plate
3/8 Flat washer
Bolt, 3/8-16x1 Gr5
Screw in shift handle
NOTE: If attaching the SLR to an LT15, see SECTION 3
LT15 Installation for handle placement
Installation
Installation and Setup
2
2-3 WM doc 9/10/20 Installation

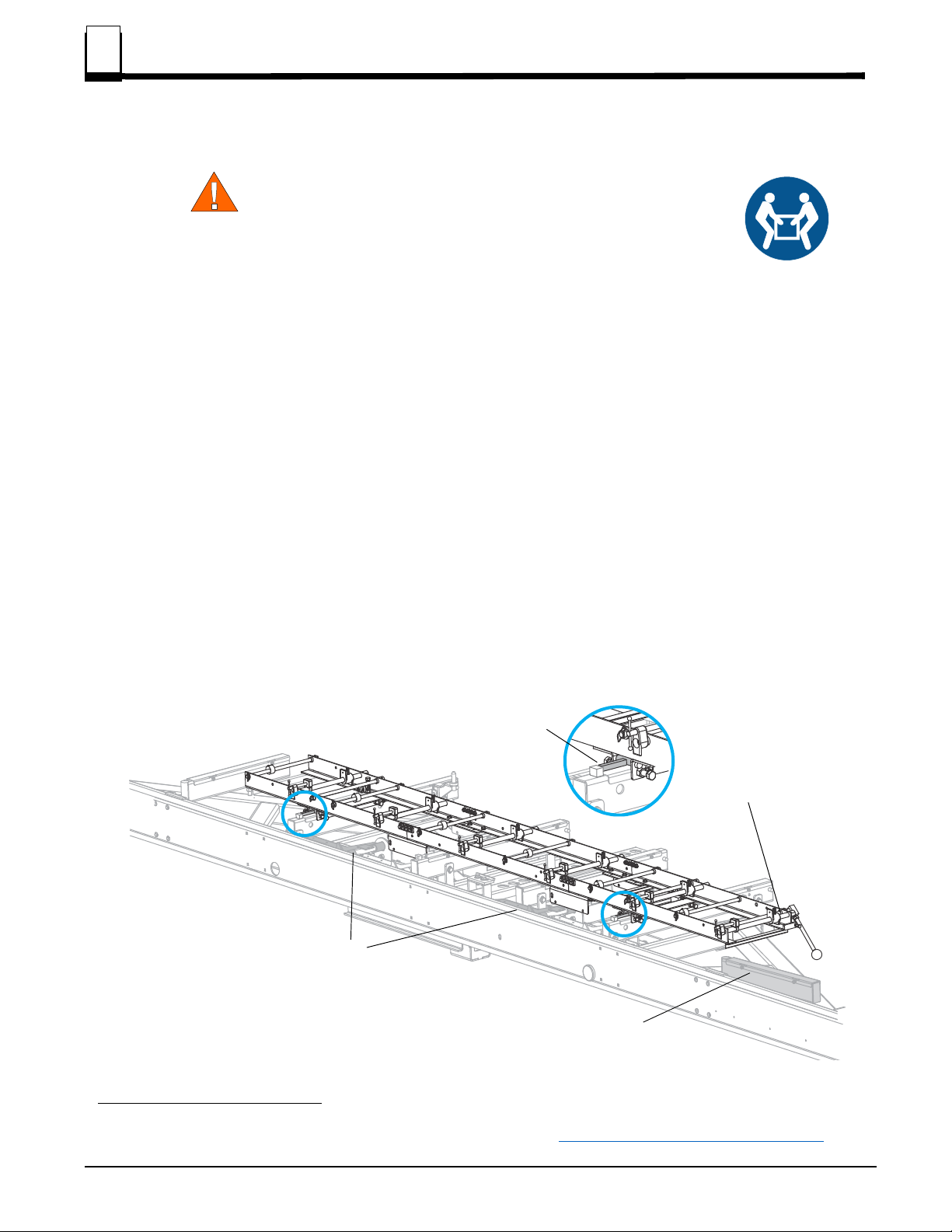

2.2 Installation and Setup
WARNING! Use a lifting device (fork lift, crane, etc.) for parts
over 100 lbs.
Use two persons for lifting parts over 50lbs.1
1. Position the sawhead upward, out of the way.
2. Lower all log supports.
3. Move front pivoting bed rail parallel to the bed frame.
4. Position the SLR on the mill bed with the mounting brackets around the front and rear bed rails.
a. Position the shift handle at the front end of the mill.
b. Ensure the SLR frame is lying flat on the bed rails.
NOTICE: DO NOT tighten the clamp bolts on the bed rails. The SLR bed
must be able to move during operation. The clamp bolts should only be tight-
ened before towing the sawmill with the SLR attached.
5. Slide the SLR frame all the way over toward the inboard side of the sawmill bed until the SLR
stops touch the bed rail stop blocks.
1.For more information on lifting safety see NOISH Lifting Equation athttps://www.cdc.gov/niosh/docs/94‐110/
FIG. 2-4
TDSLR02-02
Shift handle
towards the front
SLR stop against
board stop block
Log supports down
Front bed rail out
of the way
Installation 2
Installation
2.3 Installation and Setup (revision A.00 through F1.01)
1. Position the SLR on the mill bed with the mounting brackets around the front and rear bed rails.
The shift lever should be at the front end of the mill. Make sure the SLR frame is lying flat on the
bed rails. DO NOT tighten the clamp bolts on the bed rails. The clamp bolts should only be tight-
ened before towing the sawmill with the SLR attached.
2. Slide the SLR frame all the way over toward the inboard side of the sawmill bed until the SLR
stops touch the bed rail stop blocks.
FIG. 2-5
SLR stop
against
bed rail stop
Mounting brackets
positioned on bed rails
Shift lever
toward front
of sawmill
SM0091B
LT15 Installation
LT15 Rev. E6.04+
3
3-1 WM doc 9/10/20 LT15 Installation
SECTION 3 LT15 INSTALLATION
WARNING! Turn the base unit’s power to OFF, remove the key, and discon-
nect the battery ground terminal, if applicable.
On electric equipment, lock out power supply before performing any installa-
tion. See Electrical Lockout Procedures (OSHA regulation 1910.147, appendix
A reprinted in the Operator’s Manual).
Ensure your unit is on a level surface and secure from movement.

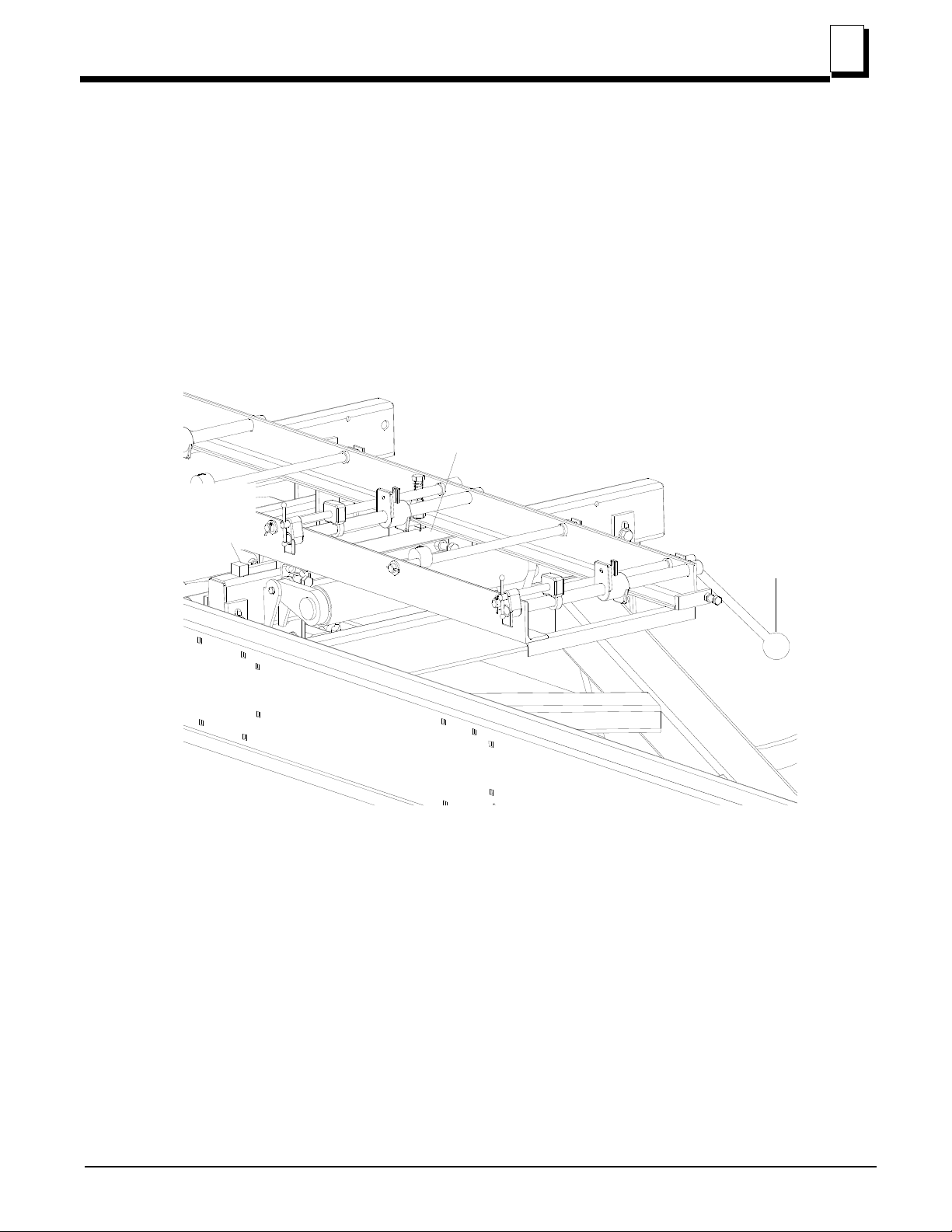

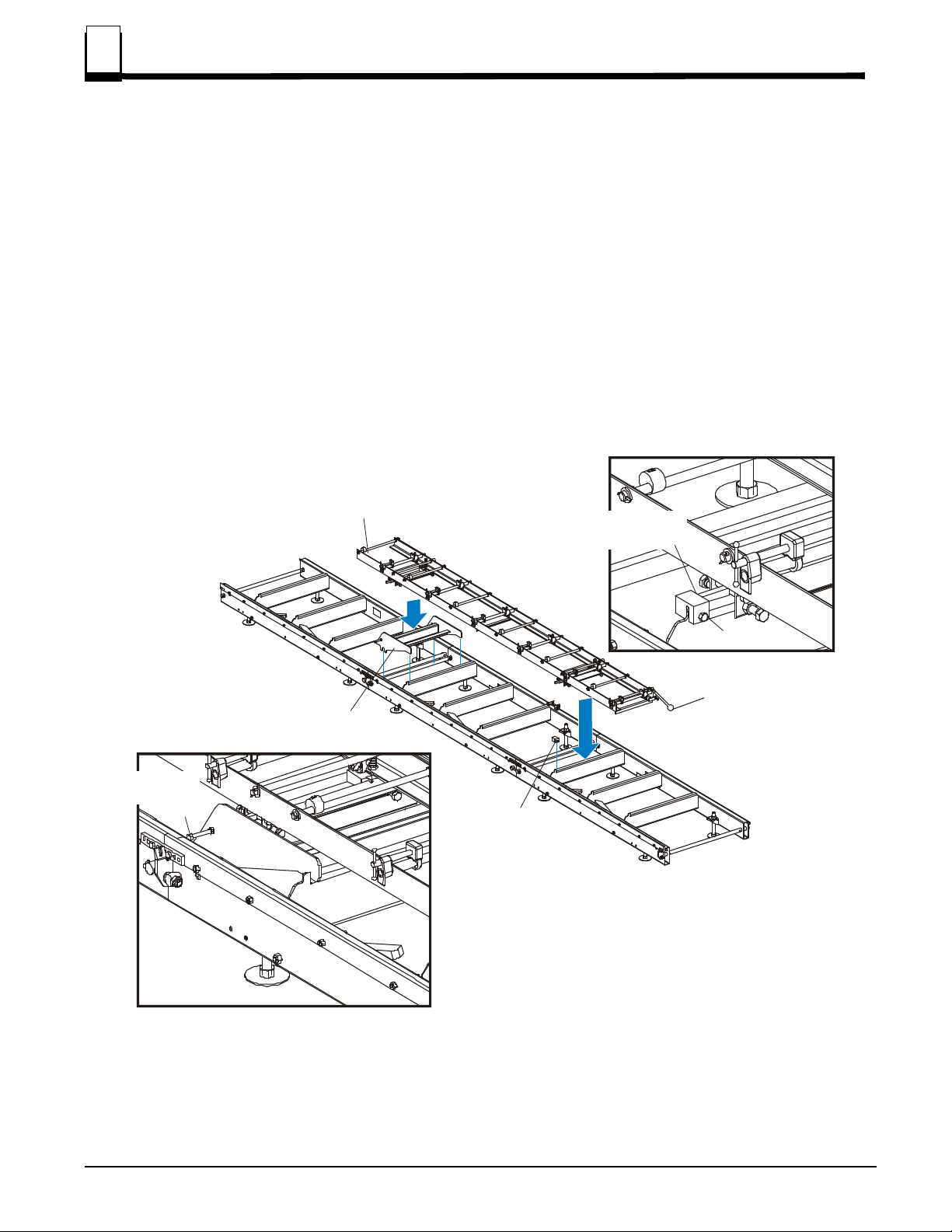

3.1 LT15 Rev. E6.04+
(Bed Sections Rev. G.00+): Kit SLRKIT-LT15.1 is required to mount the SLR.
1. Place the rail adapter on the second and third bed rails of the first bed section as shown in FIG.
3-1.
2. Slide the adapter against the bed rail stop blocks.
NOTE: If the adapter contacts the log support first, raise the support to the
height of the adapter and use the log support as the side starting point.
FIG. 3-1
TDSLR03-02
Front of bed
Board stop
Log support
Board stop
Brace to front
LT15 Installation
LT15 Rev. E6.04+ 3
LT15 Installation WM doc 9/10/20 3-2
3. Relocate the SLR shift handle to avoid interference with the front bed rail. See FIG. 3-2
a. Unbolt and unpin the handle shaft from the frame.
b. Unbolt and unpin the cam shaft.
c. Remove the cam from the cam shaft.
d. Slide the handle shaft in former position of the cam shaft, sliding the cam on the shaft
while inserting.
e. Bolt and pin the handle shaft to the frame.
f. Slide the cam shaft in former position of the handle shaft.
g. Bolt and pin the cam shaft to the frame.
4. Position the SLR on the bed with the shift handle toward the front of the sawmill.
5. Push the SLR stops against the rail adapter.
6. Screw in the handle to the handle shaft..
7. Continue SLR set up. See SECTION 4 Shingle Operation or SECTION 5 Lap Siding Operation.
FIG. 3-2
TDSLR03-01
LT15 Installation
LT15 Rev. E4.00 - E6.03
3
3-3 WM doc 9/10/20 LT15 Installation
3.2 LT15 Rev. E4.00 - E6.03
(Bed Sections Rev. E.00 - F.00): Kit SLRKIT-LT15 is required to mount the SLR.
1. Place the rail adaptor on the last bed rail of the second bed section as shown.
2. Adjust the stop bolt against the frame tube.
3. Install the stop block to the last bed rail of the first bed section and tighten the clamp bolt.
4. Position the SLR on the bed with the shift handle toward the front of the sawmill.
5. Push the SLR stops against the rail adapter and stop block.
FIG. 3-3
Shingle/Lap Siding
(SLR) Option
Rail Adaptor
(See Detail #2)
Stop Block
(See Detail #1)
150128-1
DETAIL #1
DETAIL #2
SLR Stop against
Stop Block
Clamp Bolt
Stop Bolt
against frame
tube
Shift lever
toward front
of sawmill
LT15 Installation
LT15 Rev. A0.00 - E3.03 3
LT15 Installation WM doc 9/10/20 3-4

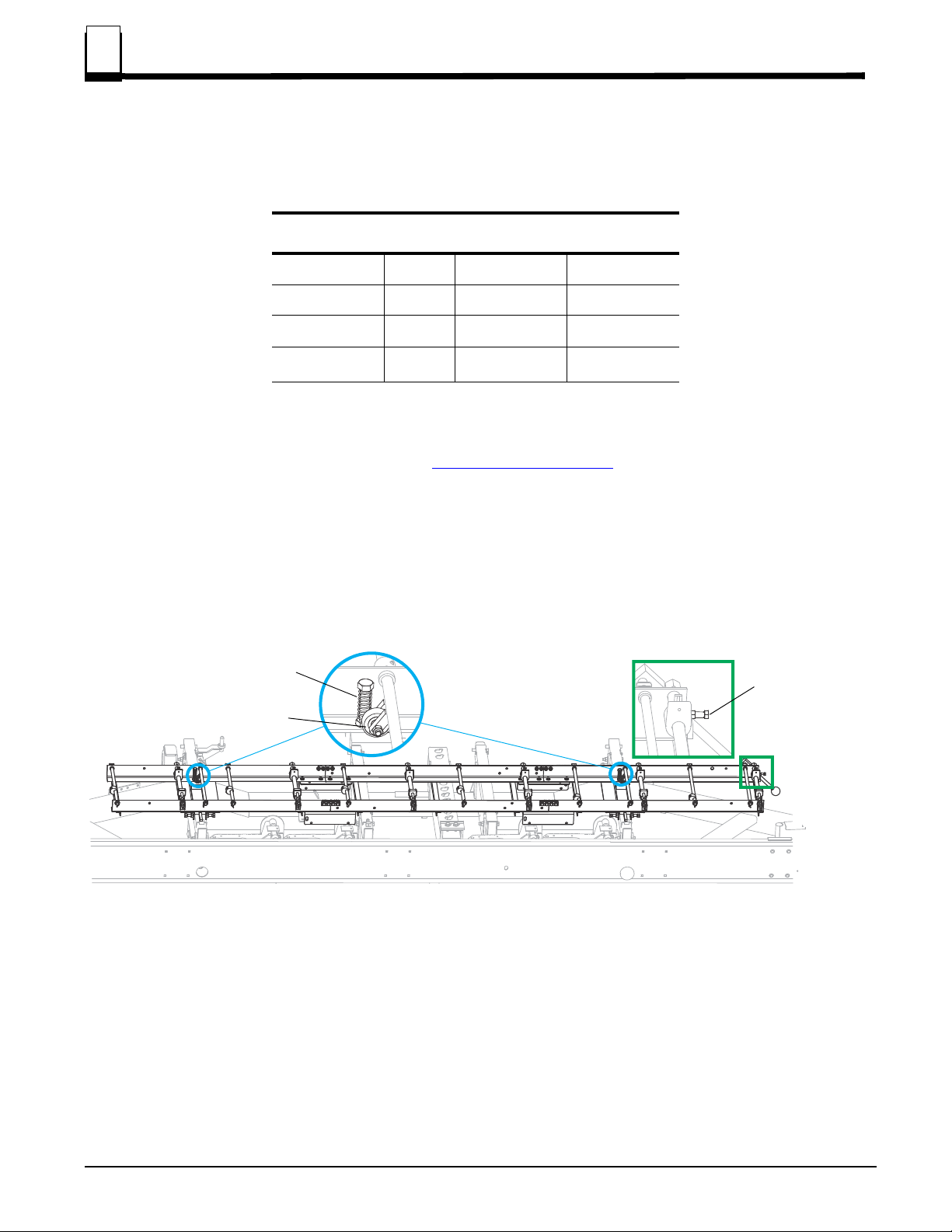

3.3 LT15 Rev. A0.00 - E3.03
(Bed Sections Rev. A0.00 - D.06): Auxiliary bed rail (part number 016037) needed.
1. Mount the auxiliary bed rail near the end of the middle bed section as shown (See LT15 manual
for details).
2. Position the SLR on the bed with the shift handle toward the front of the sawmill.
3. Push the SLR stops against the bed rail stop blocks.
FIG. 3-4
DETAIL
SLR stop against
bed rail stop
Mounting brackets
positioned on bed rails
Shift lever
toward front
of sawmill
150076-5B
See
Detail
Below
Operation
Shingle setup
4
4-1 WM doc 9/10/20 Operation
SECTION 4 SHINGLE OPERATION
4.1 Shingle setup
1. Install the SLR to the sawmill bed. See SECTION 2 Installation.
2. Position the siding taper adjustment bolts fully down (clockwise) until you can spin the siding lift
rollers by hand. See FIG. 4-1.
NOTE: The lift rollers should not tilt the SLR frame when the shift handle is
thrown.
Shingle Block Size
Length max 24" 610 mm
min 14" 355 mm
Width max 12" 305mm
Height 1
1 Higher blocks may cause excessive vibration, loosening the blocks from
the clamps.
max 12" 305 mm
FIG. 4-1
TDSLR02-03
Siding taper
adjustment bolt
Siding tilt rollers
Shingle taper
adjustment bolt
Operation
Shingle setup 4
Operation WM doc 9/10/20 4-2
NOTE: If not already done so, position the cams approximately 1.5 inches
away from the frame to prevent necessary realignment between lap siding
and shingle use.
3. Adjust the inner clamps as close to the SLR frame as possible to ensure the rear of the blocks
are positioned over the cams. See FIG. 4-3.
4. Clamp up to six shingle blocks, one over each cam. See FIG. 4-3.
5. Turn the clamp handle clockwise to firmly clamp the block in position to prevent movement during
operation.
FIG. 4-2
FIG. 4-3
TDSLR02-11
Cams loosened -- hanging heavy side down -- retightened
TDSLR02-05
Block flush
with clamp
Clamp open
to frame Clamp end
firmly in place
Operation
Shingle setup
4
4-3 WM doc 9/10/20 Operation
6. Lower the shift handle.
7. Make a trim cut across all the blocks to even them out.
8. Calculate the desired shingle size:
Thick end - Thin end = Cut setting
Example:
For a shingle 1/8" at the thin end, and 5/8" at the thick end:
5/8" - 1/8" = 4/8" (1/2")
Set the block tilt for 1/2".
9. Raise the blade the calculated height.
10. Set the saw blade over a trimmed block.
11. Position the blade at the end of the first block.
NOTE: Double check the blade position. Measure from a downward pointing
sawtooth.
12. Adjust the shingle taper adjustment bolt in until it contacts the shift handle linkage.
13. Set the jam nut on the shingle taper adjustment bolt.

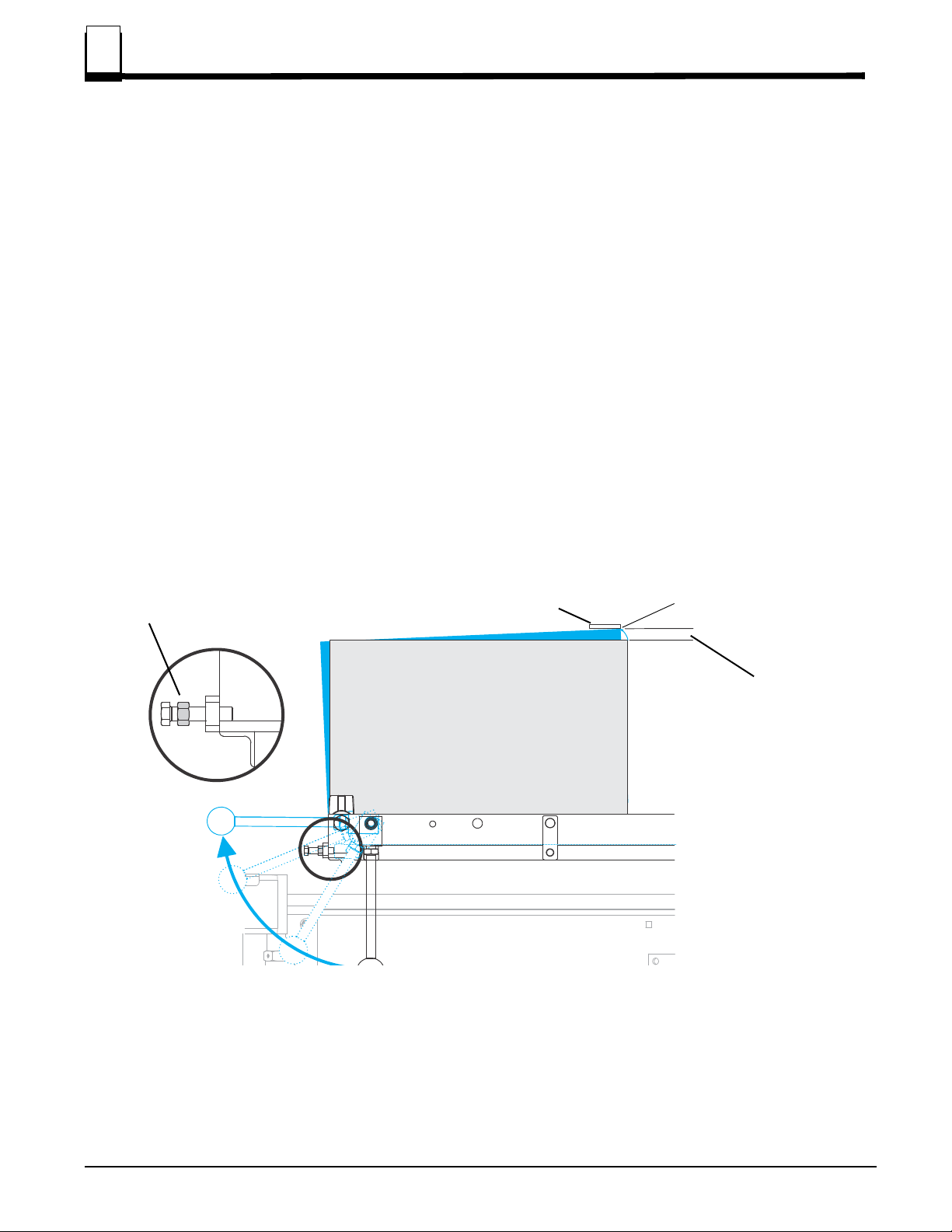

FIG. 4-4
TDSLR02-06
Sawblade
Jam nut loose
Calculated
distance
Downward pointing tooth
Operation
Shingle cutting operation 4
Operation WM doc 9/10/20 4-4
4.2 Shingle cutting operation
WARNING! Follow all safety and operating procedures stated in the operation
manual for your mill.
1. Lower the shift handle completely downward.
2. Make one trim cut to level all the blocks.
3. Lower the blade the thickness of the thin end of the shingle.
4. Raise the shift handle.
5. Make a cut and return the carriage.
Each shingle should match tapers to the setting you want. If they don't match,
repeat step 2 above.
6. Push the shift handle down and lower the blade the thickness of the thick end of the shingle.
7. Make a cut and return the carriage.
8. Repeat steps 3 - 7 down to the heart of the cants.
9. Unclamp the cants, flip 180°, and reclamp.
10. Continue sawing down as low as the SLR clamps will allow.
Operation
Lap siding setup
5
5-1 WM doc 9/10/20 Operation
SECTION 5 LAP SIDING OPERATION
5.1 Lap siding setup
To cut tapered siding, a single cant is clamped in the SLR. The siding taper adjustment bolts are
adjusted up so the lifting rollers tilt the SLR frame. When the shift handle is thrown, the SLR
frame tilts sideways.
NOTE: Maximum cant width is 12" (304.8 mm) and 12 ft long.
1. Install the SLR to the sawmill bed. See SECTION 2 Installation.
2. Adjust the shingle taper adjustment bolt to 1/4". See FIG.4-1, SECTION 4 Shingle Operation.
This will stop the shift handle when the lift rollers reach their maximum height.
3. Adjust the siding taper adjustment bolts all the way up so they do not lift the SLR frame from the
bed rails.
4. Adjust the inner clamp halves inside the shingle cams to avoid interference with the cant.
NOTE: To saw cants wider than 10", the cams must be adjusted out of the
way.
Be sure to mark each cam location so it can be returned to its original position
FIG. 5-1
Cams
Clamps inward
Operation
Lap siding setup 5
Operation WM doc 9/10/20 5-2
for sawing shingles.
Loosen the cam set screws and slide the cam along the shaft.
Reset the cams according toSECTION 4 Shingle Operation.
5. Position the cant so it is centered in the SLR frame.
6. Tighten the front clamp to secure one end of the cant.
7. Slide the outer clamp half in until it contacts the block.
8. Turn the clamp handle clockwise to firmly clamp the block in position.
9. Be sure the block is securely clamped so the block will not come loose while being cut.
FIG. 5-2
Adjust clamps
inside of cams Siding taper
adjustment
bolts up
When sawing siding, the
lift roller should tilt SLR frame
when shift lever is thrown
SM0091-6
Shingle taper
adjustment bolt
to 1/4"
Setup for Siding
Operation
Lap siding setup
5
5-3 WM doc 9/10/20 Operation
10. Repeat the procedure to clamp the rear of the cant.
11. Calculate the dimensions of the siding you want to cut.
The amount of taper is limited by how wide the cant is.
FIG. 5-3
FIG. 5-4
Width (C) Max. Taper (A - B)
4" 3/16"
6" 5/16"
8" 7/16"
TABLE 5-0
Center cant in SLR frame
and clamp at front and rear
SM0091-4
A
C
B
SM0253
Other manuals for SLR
1
Table of contents
Other woodmizer Construction Equipment manuals
